SKU:PEEL3

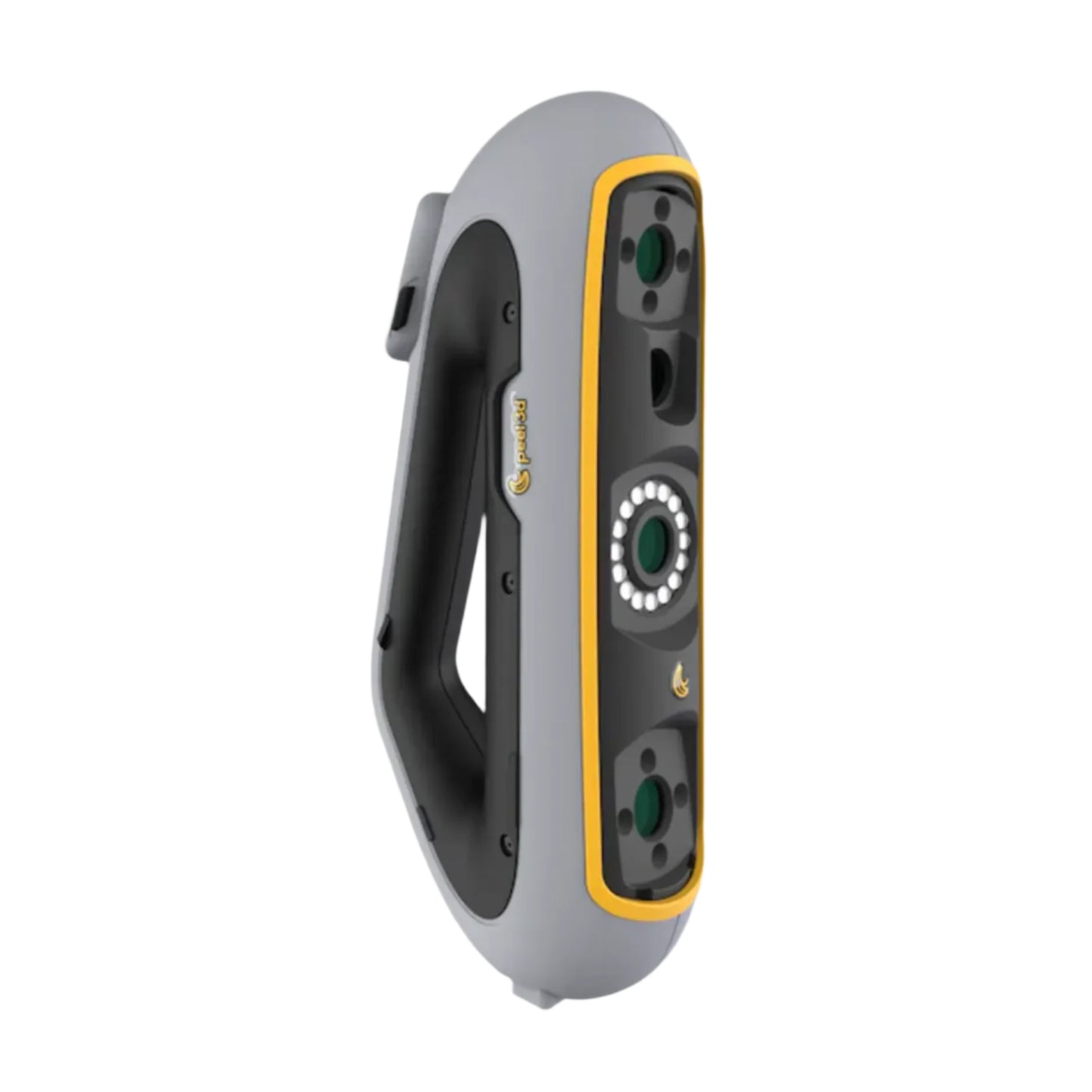

Peel 3 Handheld 3D Scanner PEEL3

Peel 3 Handheld 3D Scanner PEEL3

Regular price $5,999.00 USD
Regular price Sale price $5,999.00 USD
Sale Sold out

In stock

Includes Warranty

30-Day Returns

Unlimited Free Support

Peel 3 – Professional-Grade 3D Scanning, Made Easy

The Peel 3 is an affordable, turnkey 3D scanning solution built for professionals who need accuracy, repeatability, and ease of use. Whether you're digitizing handmade objects, preserving heritage pieces, or modeling for orthotics and human anatomy, Peel 3 delivers exceptional performance in a compact, intuitive package.


Key Applications

Peel 3 is perfect for:

  • High-fidelity object capture

  • Digital archiving

  • Human anatomy scans

  • Orthotics and prosthetics

  • Turning handmade objects into precise digital models

  • Creating assets for AR/VR and digital content


Innovative Design Features

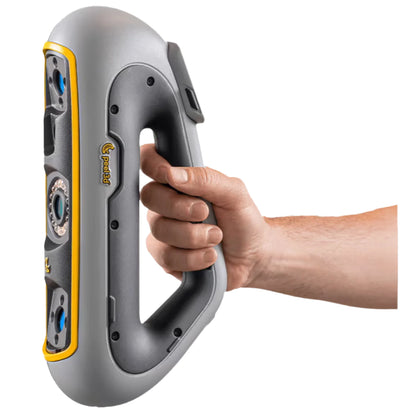

  • Ultra-Ergonomic Handle:
    Designed with a multi-grip triangulated shape for comfort in every scanning position.

  • Built-in LCD Touchscreen:
    A smart, intuitive display allows direct interaction with the scanner and even acts as a distance meter—scan confidently without staring at your computer.

  • Haptic Feedback:
    Peel 3 uses vibration cues to guide you while scanning narrow or hard-to-reach spaces. It’s a world-first feature for handheld scanners.

  • Made in Canada
    Backed by 1-year warranty and a 15-day risk-free trial.


Peel.OS – Simplified & Powerful Scanning Software

Peel 3 includes Peel.OS, a user-friendly software platform that empowers you to:

  • Capture and process data

  • Clean, align, and improve scans

  • Export files in multiple formats

Why Peel.OS stands out:

  • Guided workflows to speed up learning and productivity

  • Assisted merging of multiple scans

  • Integrated help system

  • Free with scanner purchase


What’s Included

When you purchase Peel 3, you get more than just a scanner:

  • Peel.OS data acquisition software

  • Power supply and USB cable

  • Foam insert carrying case

  • Regular positioning targets

  • Super-adhesive positioning targets


Protect Your Investment with V.I.Peel Club

Upgrade your ownership experience with the V.I.Peel Club, featuring:

  • Hardware repair coverage (accidental protection included)

  • Buy 2 packs of targets, get 1 free

  • 25% off on accessories

  • Full exchange value toward Creaform technologies

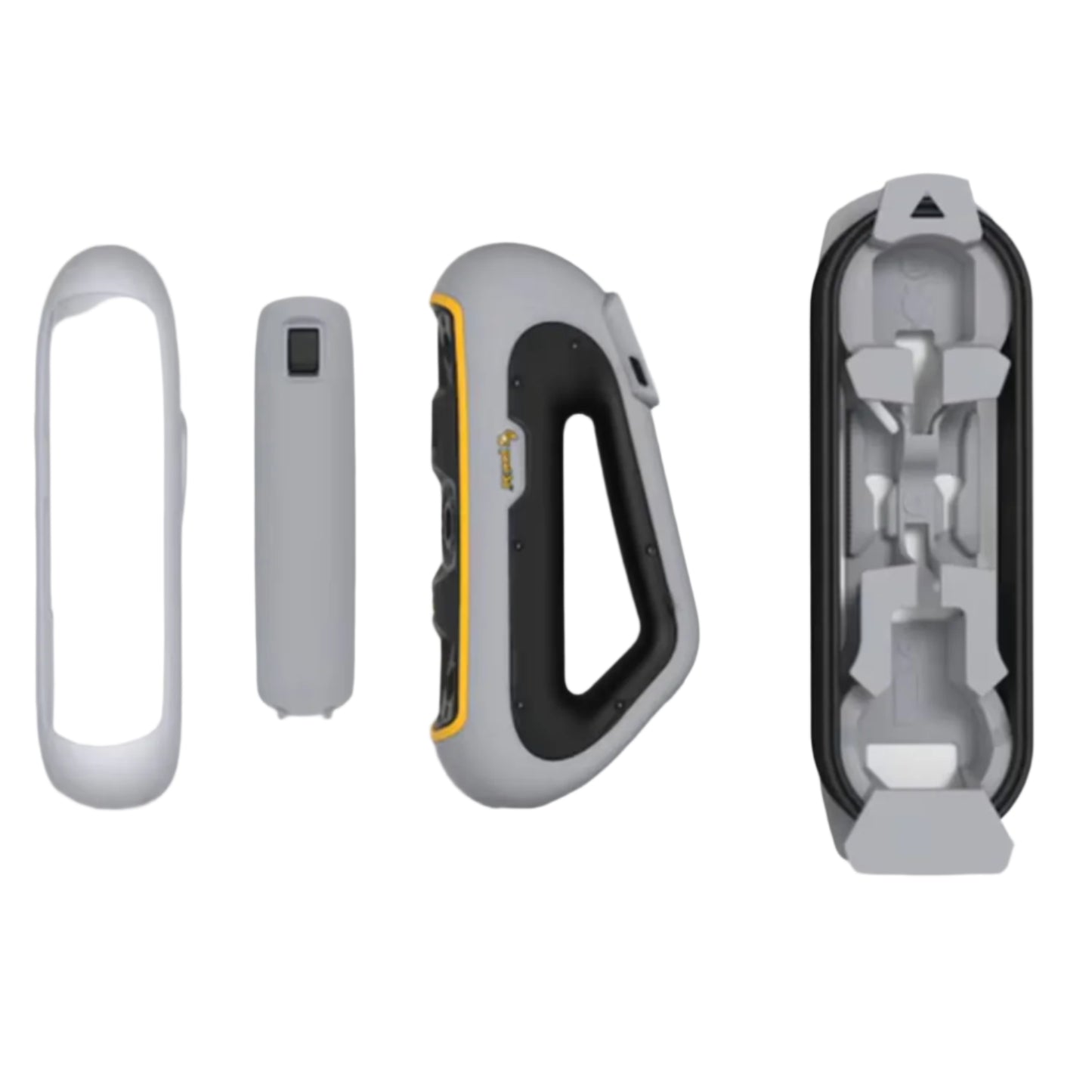

  • Includes protection kit with:

    • Silicone sleeve

    • Removable lens cover

    • Gorilla glass screen protector

    • Cable winder


Fields of Application

Peel 3 is trusted by a global community of users across industries:

  • Art & Heritage Preservation – Capture intricate details with ease

  • Healthcare – Design orthotics and prosthetics with confidence

  • AR/VR & Digital Content – Create stunning models without photogrammetry headaches


Peel 3D: Affordable, Reliable, and Built for Professionals

Whether you’re in design, healthcare, education, or entertainment, Peel 3 is the perfect balance of performance and price. Ready to see it in action?

Watch the Demo

Technical Specs

Category Specification
Software Peel.OS, Peel.CAD¹, Peel.CAD Pro²
Recommended Object Size 0.1 – 3.0 m (0.3 – 10 ft)
Accuracy Up to 0.050 mm (0.0020 in)
Volumetric Accuracy 0.050 mm + 0.100 mm/m (0.0020 in + 0.0012 in/ft)
Measurement Capabilities Pin: 1.5 mm (0.059 in)
Hole: 3.0 mm (0.118 in)
Step: 0.1 mm (0.0039 in)
Wall: 1.0 mm (0.039 in)
Mesh Resolution 0.250 mm (0.01 in)
Scanning Area 340 × 475 mm (13.39 × 18.7 in)
Scan Speed 80 sec/m² (7.4 sec/ft²)
Usage Distance 250 to 550 mm (9.8 to 21.7 in)
Depth of Field 300 mm (11.8 in)
Light Source IR VCSEL (Infrared Vertical Cavity Surface Emitting Laser)
Scanner Controls Touchscreen
Color Resolution (on object) 50 to 200 DPI
Positioning Methods Geometry, Targets, Texture
Measurement Rate 1,250,000 measurements/second
Dimensions 304 × 150 × 79 mm (12 × 5.9 × 3.2 in)
Weight 950 g (2.1 lb)
Connectivity USB 3.0
Output Formats .dae, .fbx, .ma, .obj, .ply, .stl, .txt, .wrl, .x3d, .x3dz, .zpr, .dxf, .3mf, .iges¹², .step¹²



Included in the Purchase

When you purchase Peel 3, you get more than just a scanner:

  • Peel.OS data acquisition software

  • Power supply and USB cable

  • Foam insert carrying case

  • Regular positioning targets

  • Super-adhesive positioning targets

Minimum System Requirements

System Requirements Table for running Peel 3D measurement solution

Category Minimum Requirements Recommended Specifications
Processor Intel Core i7 (6+ cores) – 2.3 GHz or more Intel Core i7 (8 cores) – 2.5 GHz or more
Operating System Windows 10 (64-bit, version 1909 or higher) or Windows 11 (64-bit) Same as minimum
Graphics Card NVIDIA (6 GB VRAM)
OpenGL 4.5+
CUDA Compute Capability 6.1
NVIDIA RTX 3070 (8 GB VRAM)
OpenGL 4.5+
Memory (RAM) 16 GB 32 GB
Hard Drive SSD with at least 200 GB of free space 512 GB SSD
Display Resolution 1920 × 1080 Same as minimum
USB Ports 1 × USB 3.0+ 2 × USB 3.0+

Note:

  • Processor must support AVX2 instructions

  • .NET Framework version 4.7.2 is required

  • Only NVIDIA GPUs with CUDA Compute Capability 6.1+ are supported

  • Recommended NVIDIA driver version: 536.25

  • GPU memory needs increase with scan resolution and part size



Owner's Manual

View Peel 3 User Manual

Standard Warranty

View Peel 3 Standard 1-Year Warranty
