🟢authorized PARTNER

SKU:1.01.030.001A01

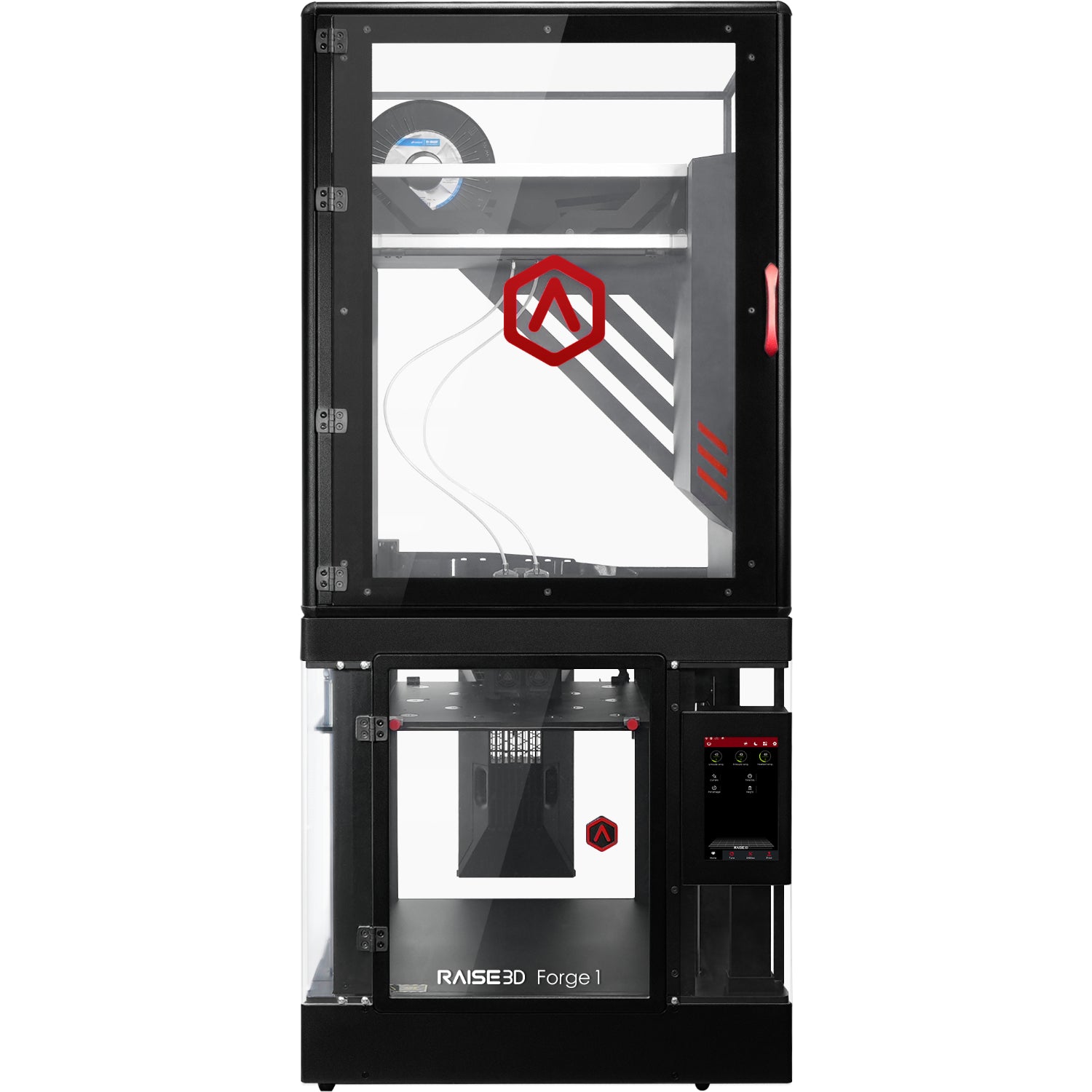

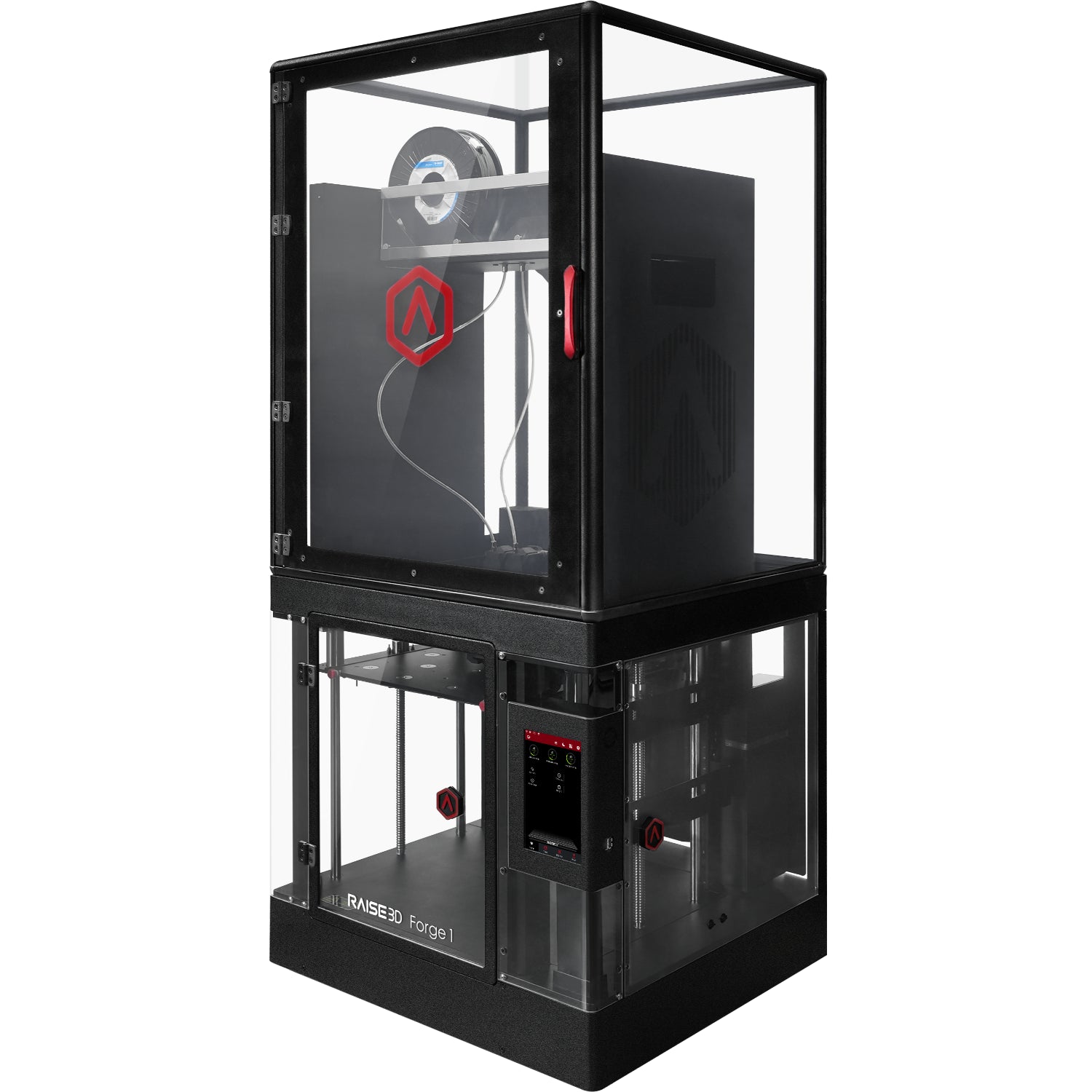

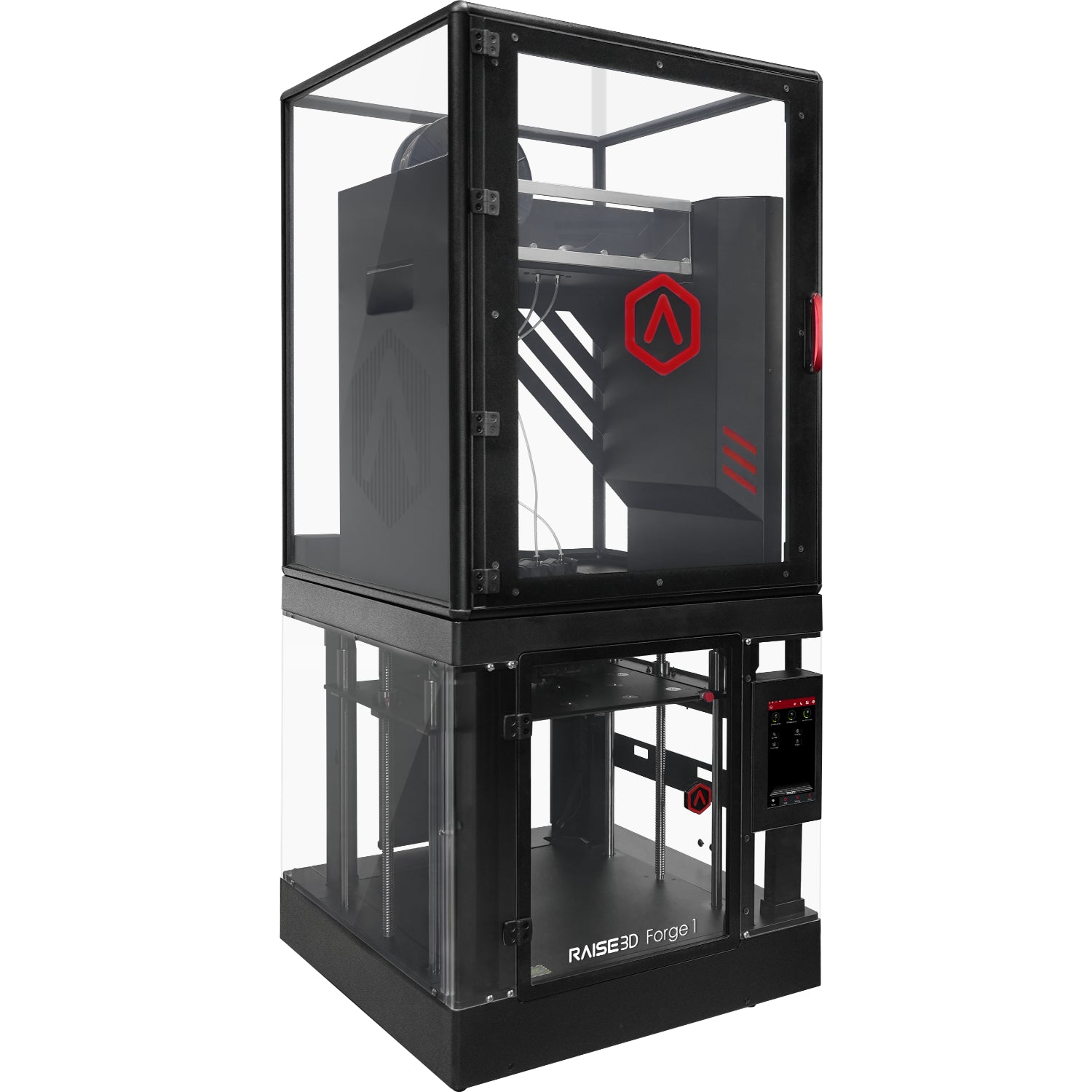

Raise3D Forge1 3D Printer Metal 3D Printer FDM 1.01.030.001A01

Raise3D Forge1 3D Printer Metal 3D Printer FDM 1.01.030.001A01

Regular price $9,999.00 USD
Regular price Sale price $9,999.00 USD
Sale Sold out

In stock

Includes Warranty

30-Day Returns

Unlimited Free Support

Print High-Quality Stainless Steel Parts In-House

The Raise3D Forge1 is a professional desktop metal 3D printer built on FFF technology using metal-polymer composite filaments. Forge1 delivers a cost-efficient and safer approach to manufacturing high-strength metal components for prototyping, tooling, and small-batch production.


Key Features & Advantages

  • Dual Extruder System
    One nozzle for metal filament, the other for support material.

  • Compatible with Ultrafuse® 316L and 17-4PH
    Print strong stainless steel parts with exceptional precision.

  • ideaMaker Metal Slicing Software
    Specialized slicing software offering process templates and shrink compensation.

  • Auto Bed Leveling & Glass Build Plate
    Delivers precise prints with minimal manual intervention.

  • End-to-End Workflow Support
    Integrated printing, debinding, and sintering solution with D200-E and S200-C systems.

  • MIM-Compatible Output
    Supports metal injection molding (MIM) post-processing standards.


Key Compatible Materials

  • Ultrafuse® 316L – For corrosion-resistant stainless steel parts.

  • Ultrafuse® 17-4PH – For parts requiring high hardness and strength.

  • Ultrafuse® Support Layer – Aluminum oxide-based support material (not standalone).


Raise3D Ecosystem

  • ideaMaker for Metal – Tailored slicer with debinding/sintering compensation.

  • RaiseCloud – Remote printer management and job tracking.

  • ideaMaker Library – Download proven metal print profiles.


Specs

Feature Specification
Build Volume (Single / Dual) 300×300×300 mm / 255×300×300 mm
Machine Size (W×D×H) 620×626×1390 mm
Net Weight 80.55 kg
Power Input / Output 100–240 V AC / 24 V DC, 600W
Print Technology Fused Filament Fabrication (FFF)
Extruder System Dual-head with Electronic Lifting System
Nozzle Diameter 0.4 mm (default), 0.2 / 0.6 mm available
Max Nozzle Temperature 300°C
Layer Height 0.1 – 0.25 mm
XYZ Step Size 0.78125, 0.78125, 0.078125 micron
Print Speed 30 –150 mm/s
Filament Diameter 1.75 mm
Build Plate Glass with silicone heater, 120°C max
Bed Leveling Auto-Leveling
Connectivity Wi-Fi, LAN, USB, Live camera
Noise Level < 55 dB(A)
Environment (Op/Storage) 15–30°C / -25–+55°C
Materials Supported Ultrafuse® 316L, 17-4PH, Support Layer
Software ideaMaker for Metal
File Types STL, OBJ, 3MF, OLTP
OS Support Windows
Machine Code GCODE
User Interface 7" Touchscreen, 1024×600 resolution
Power Recovery Available
Motion Controller Atmel ARM Cortex-M4, 120 MHz FPU
Logic Controller NXP ARM Cortex-A9 Quad 1GHz
Memory / Flash 1GB / 16GB
Ports USB 2.0 × 2, Ethernet × 1

Included in the Purchase

Item Quantity
Raise3D Forge1 3D Printer 1
Dual Extruder System (Pre-installed) 1
Glass Build Plate 1
Power Cable 1
USB Cable 1
Tool Kit 1
Quick Start Guide & Warranty Card 1
Access to ideaMaker for Metal Software 1

Raise3D Forge1 Technical Data Sheet

📄 View Raise3D Forge1 Technical Data Sheet

Raise3D Forge1 Unboxing& Setup Tutorial Video

Owner’s Manual

📄 View Raise3D Forge1 User Manual

Standard 1-Year Warranty

📄 View Raise3D Standard 1-Year Warranty
