🟢authorized PARTNER

SKU:CBF430

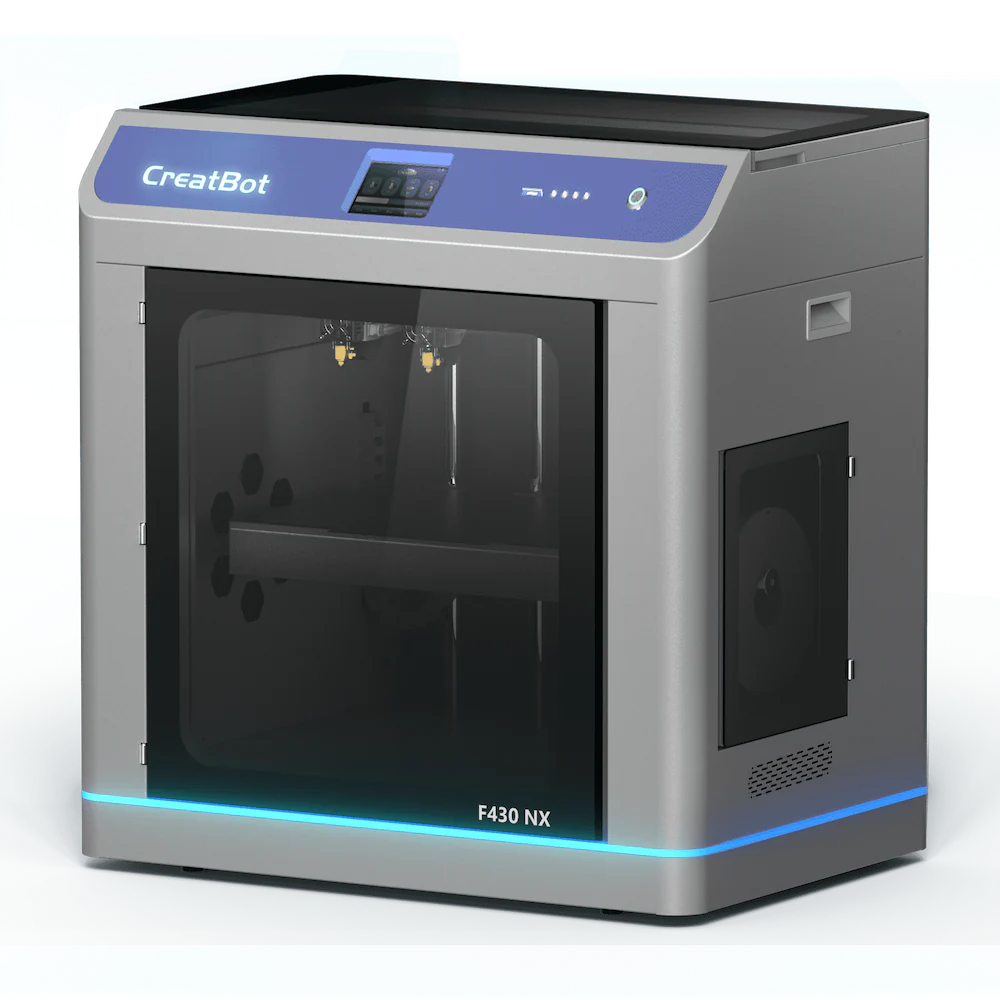

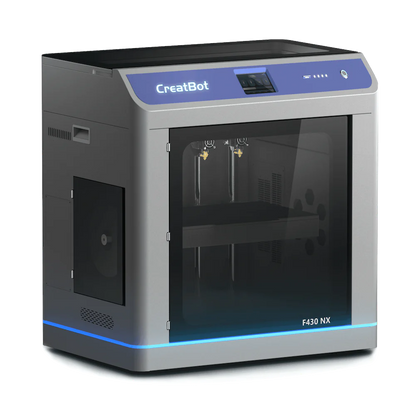

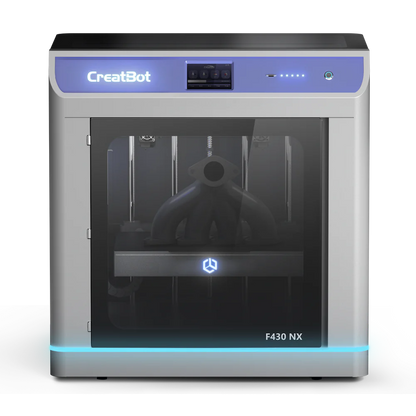

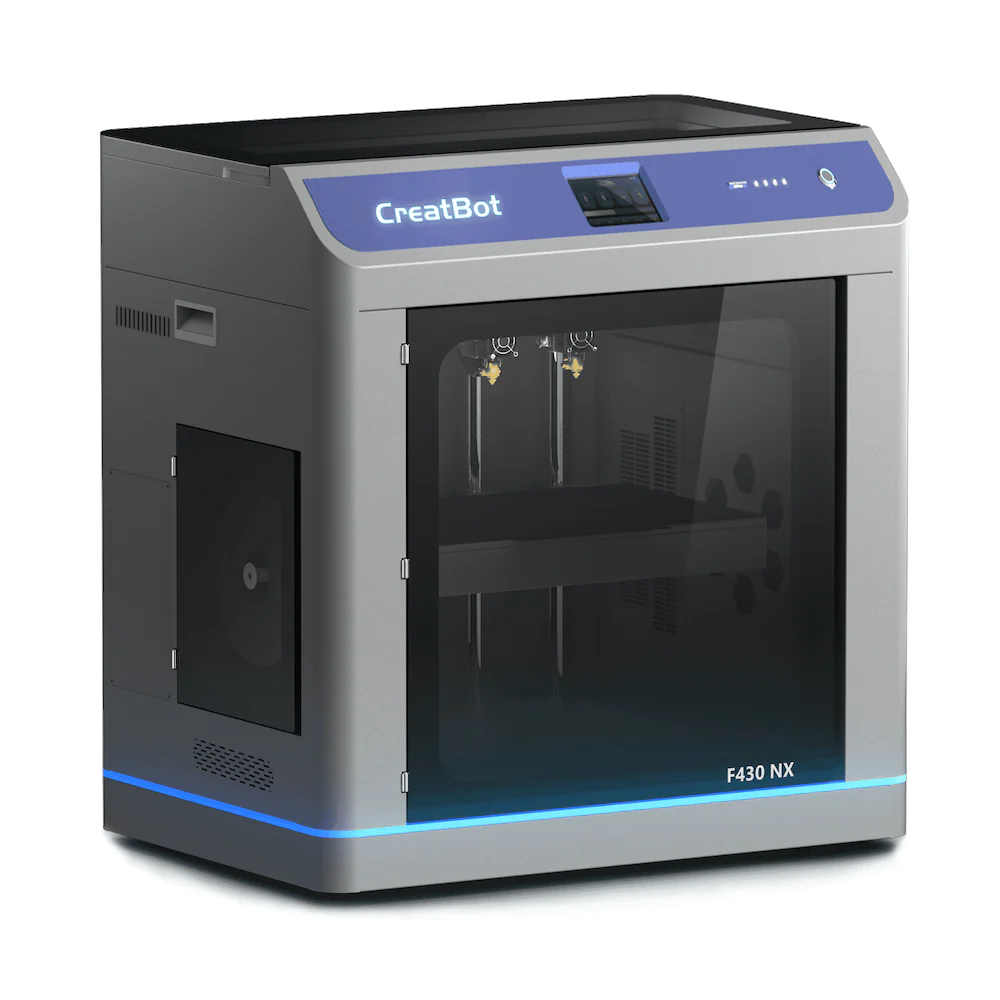

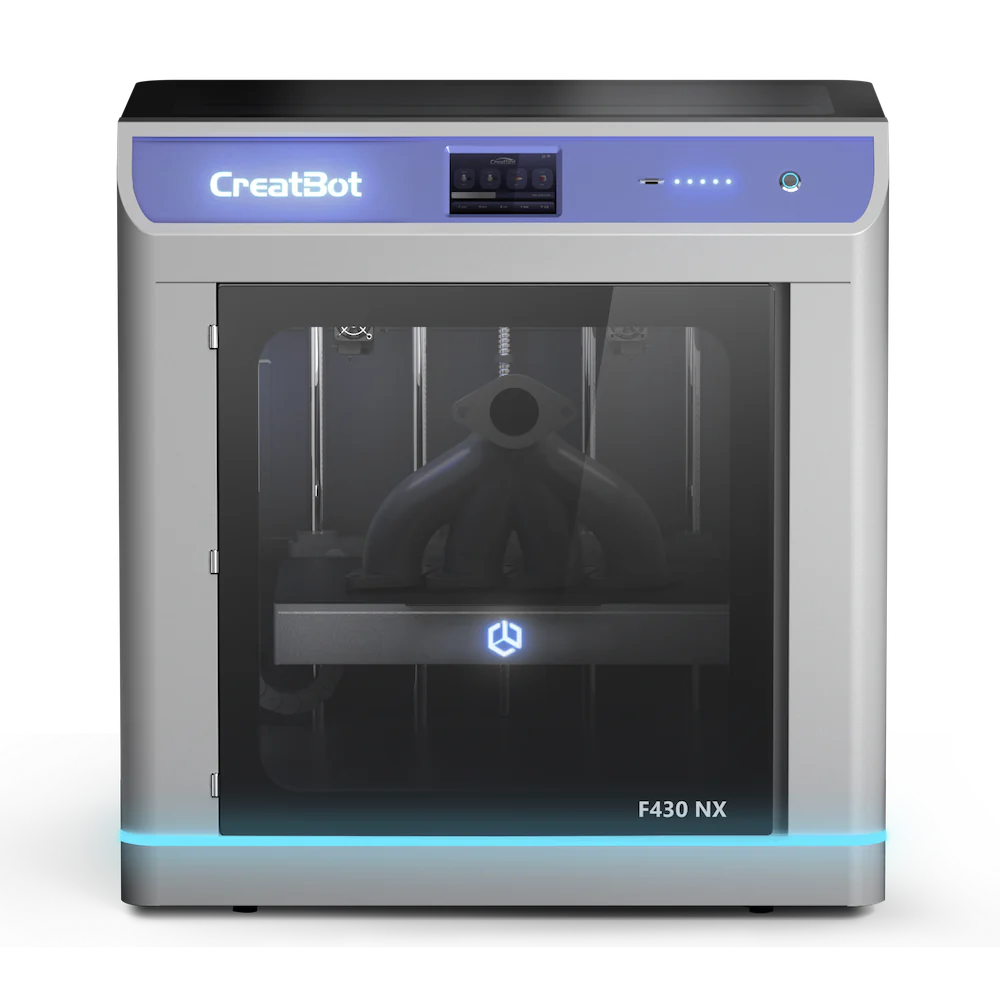

CreatBot F430 NX Industrial Grade FDM 3D Printer CBF430

CreatBot F430 NX Industrial Grade FDM 3D Printer CBF430

Regular price $6,989.00 USD
Regular price Sale price $6,989.00 USD
Sale Sold out

In stock

Includes Warranty

30-Day Returns

Unlimited Free Support

CreatBot F430 NX: A New Era of Professional High-Speed 3D Printing

The CreatBot F430 NX represents the pinnacle of professional-grade 3D printing technology. Building on the success of its predecessor, the F430 NX integrates cutting-edge features, robust engineering, and versatile capabilities to cater to industries requiring precision, speed, and high-performance material compatibility.

With over 5,000 units sold globally, this new generation product raises the bar for professional 3D printing.


Massive Build Volume

  • Single Printing: 400 x 300 x 300 mm
  • Dual Printing: 360 x 300 x 300 mm
  • Copy Mode: 225 x 300 x 300 mm
  • Mirror Mode: 190 x 300 x 300 mm

Unparalleled Heat Control System

  • Hotend: 420°C with dual extruders for advanced material compatibility.
  • Heated Bed: Reaches up to 140°C to ensure warp-free base layers.
  • Heated Chamber: Maintains a temperature of up to 70°C, preventing warping and cracking in engineering-grade materials.

High-Speed Performance

  • Print speeds up to 300 mm/s with a reinforced Z-axis for enhanced stability and accuracy.

Advanced Extrusion Technology

  • Independent Dual Extruders (IDEX):
    • Enables multi-material printing, support for copy and mirror modes, and backup operation for seamless production.
  • Silicon Carbide Nozzles:
    • Resistant to wear, ensuring durability during extended use with abrasive materials like carbon fiber.

Industrial-Grade Material Compatibility

Compatible with an extensive range of consumer and industrial-grade materials:

  • Consumer-grade: PLA, PETG, PLA-CF, etc.
  • Industrial-grade: ASA, ABS, PC, Nylon, UltraPA-CF, PET-GF, and more.
  • Support Materials: S-270, S-350.

Enhanced User Experience

  • 5-Inch Capacitive Touchscreen: Offers intuitive control and management.
  • Flexible Build Plate: Simplifies print removal for increased productivity.
  • Built-in Camera: Provides real-time monitoring of print progress.
  • WiFi/Ethernet Connectivity: Facilitates seamless integration into your workflow.
  • Status Breathing Light: Indicates real-time printer status.

Unmatched Precision and Accuracy

The combination of a high-precision ball screw, reinforced optical axes, and robust structural framework ensures dimensional accuracy and industrial-grade tolerances for the most demanding applications.

Active Heated System

With a heated bed reaching 140°C and a chamber maintained at 70°C, the F430 NX effectively prevents shrinkage and cracking, enabling flawless results with materials like ABS, PC, and carbon fiber composites.

IDEX Technology for Maximum Versatility

The independent dual extruders allow for multi-material printing, perfect for complex engineering projects requiring support materials or simultaneous production of multiple parts.

Quiet and Safe Operation

  • Noise Level: Operates at only 50 dB for a quieter workspace.
  • HEPA and Carbon Filters: Ensure a clean and safe working environment by filtering ultrafine particles.
  • Thermal Runaway Protection: Maintains safety during extended use.

The F430 NX is designed to serve various industries, including:

  • Aerospace and Automotive: Large-scale precision parts.
  • Medical Devices: High-performance, biocompatible components.
  • Consumer Goods: Durable prototypes and end-use products.

Specs

Feature Specification
Print Technology FFF
Build Volume Single: 400 × 300 × 300mm
Dual: 360 × 300 × 300mm
Copy Mode: 225 × 300 × 300mm
Mirror Mode: 190 × 300 × 300mm
Number of Nozzles Dual
Independent Dual Nozzles Yes
Min Layer Height 0.05mm
Filament Diameter 1.75mm
Filament Compatibility PLA, ABS, Carbon, Nylon, Ultra-PA, UltraPA-CF, PET-CF, PC, ASA, PETG, etc.
Nozzle Diameter 0.4mm (Optional: 0.3, 0.5, 0.6, 0.8, 1.0mm)
Print File Type GCODE, STL, STEP
Max Nozzle Temperature 420°C
Max Bed Temperature 140°C
Max Chamber Temperature 70°C
Printing Speed 50 - 300 mm/s
Power Requirements 240V, 50-60Hz / 110V, 50-60Hz
Max Power 240V: 3200W / 110V: 2500W
Screen 5" Touch Screen
Connectivity USB / USB Disk / WiFi
Software Bundle CreatWare, Simplify 3D, Cura, Slice3r
Supported File Types STL, OBJ, AMF
Operating Systems Windows All, Mac OS
Outage Restored Saves data when power is off
Filament Detection Pauses printing when filament clogs or runs out
Automatic Leveling Bed Yes
Automatic Shut-down Turns off power when printing is complete
Camera Control Yes
WiFi & Ethernet Yes
Breathing Light Yes
Back-up Model Yes
Air Filter HEPA + Carbon
Print Bed Removable magnetic platform (High-precision aviation aluminum plate)
Print Surface PEI sheet + PEI coating
Mainboard 32-bit
X/Y Min & Max Sensors Photoelectric switch
Product Dimensions & Weight 780 × 550 × 800mm, 78 kg (172 lbs)
Packaging Dimensions & Weight 865 × 635 × 1055mm, 107 kg (236 lbs)


CreatBot F430 NX Technical data Sheet

View CreatBot F430 NX Technical data Sheet

Owner's Manual

View CreatBot F430 NX User Manual

Standard Warranty

View CreatBot Standard 1-Year Warranty
