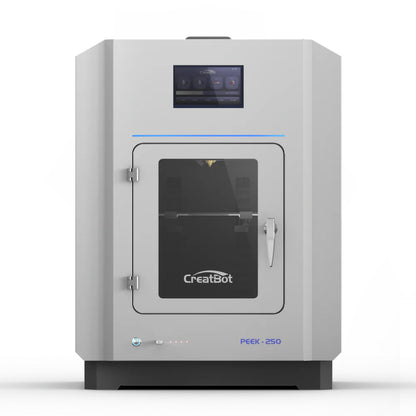

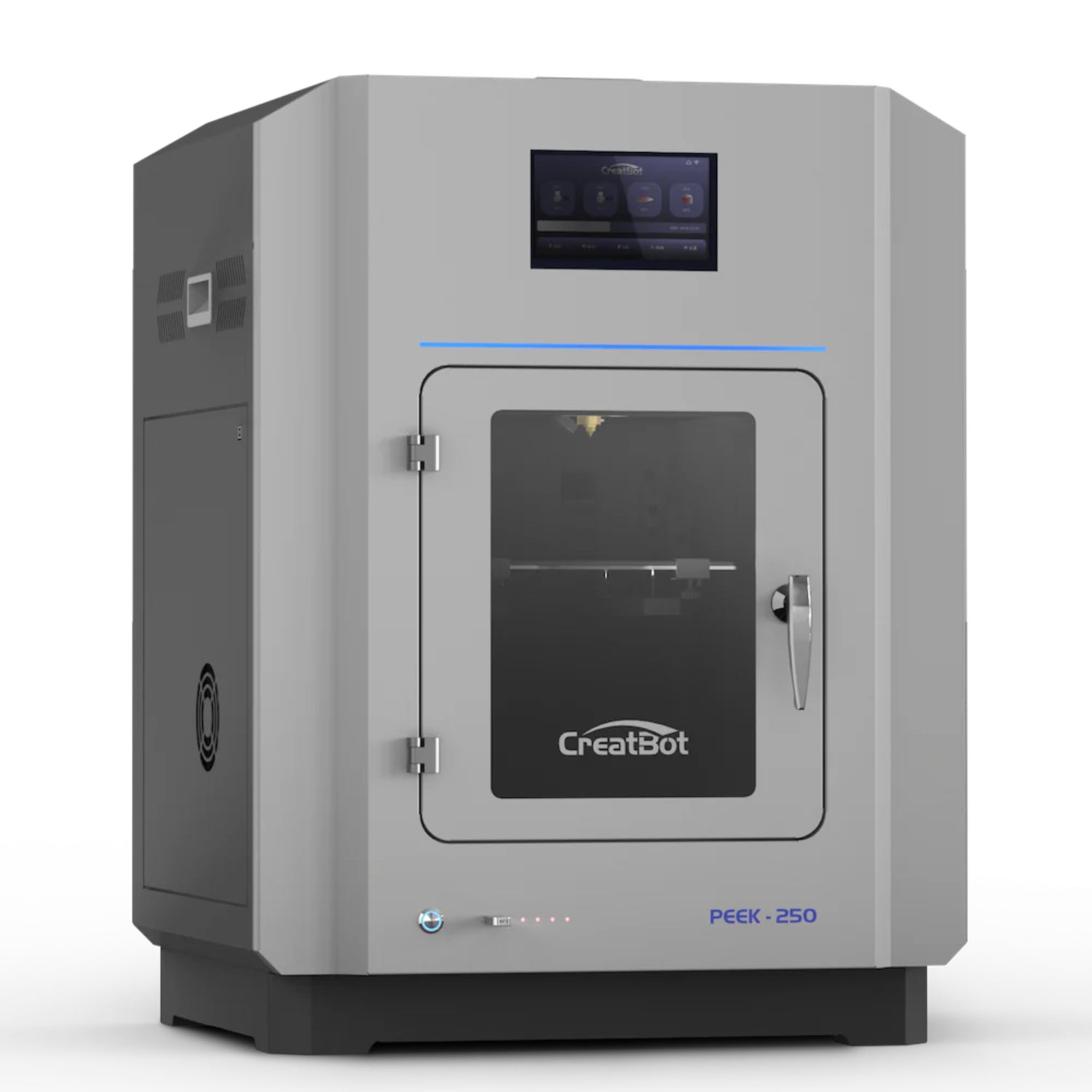

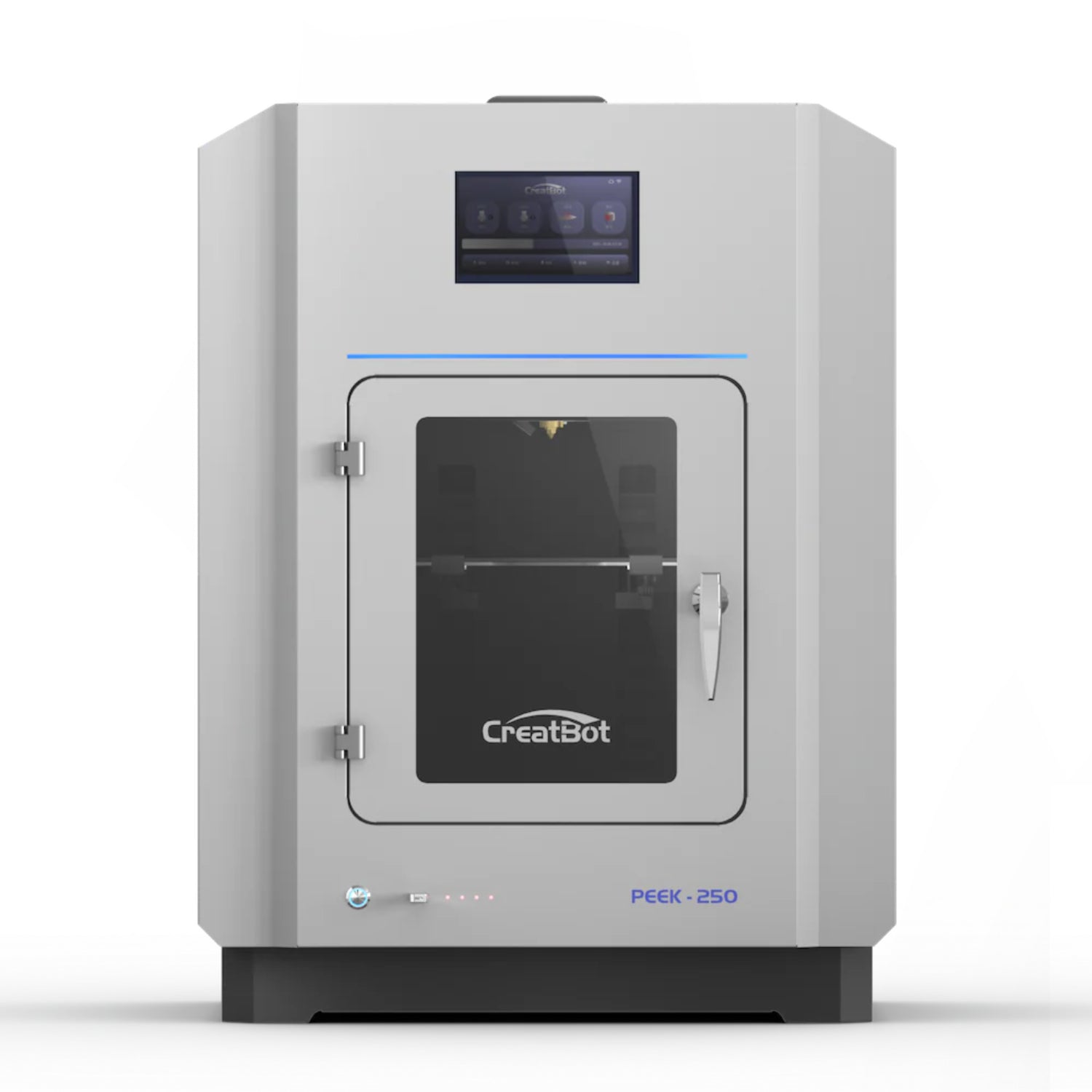

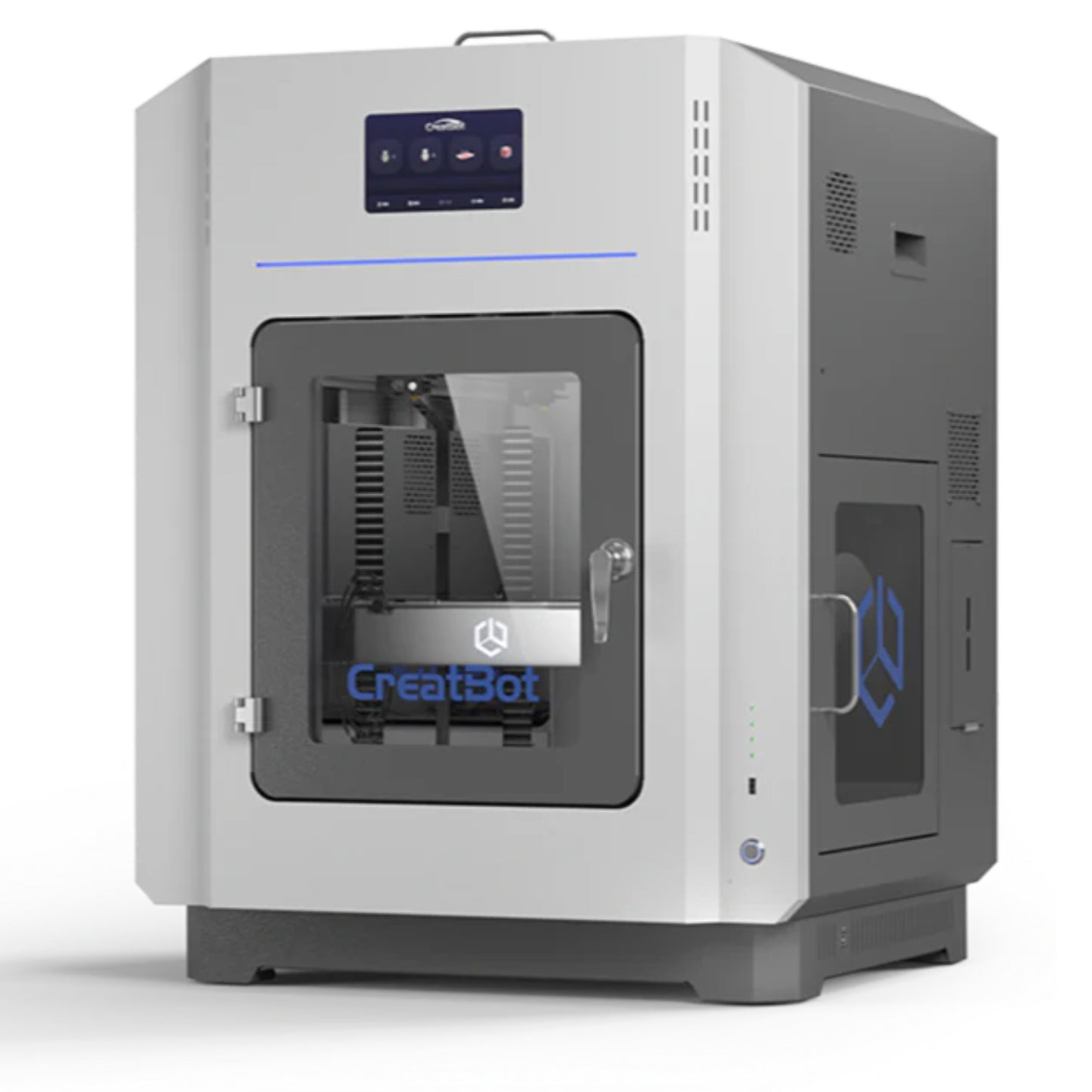

CreatBot PEEK-250 Industrial Grade FDM 3D Printer CPK250

CreatBot PEEK-250 Industrial Grade FDM 3D Printer CPK250

Regular price $11,999.00 USD
Regular price Sale price $11,999.00 USD
Sale Sold out

In stock

Includes Warranty

30-Day Returns

Unlimited Free Support

Professional-Grade High-Temperature 3D Printing

Printing Size: 250 × 250 × 300 mm

Nozzle Temperature: Up to 480°C

Heated Platform: Up to 200°C

Heated Chamber: Up to 200°C

Water Cooling & Heat Isolation System


The World's First Desktop 3D Printer with a 200°C Heated Chamber

  • First of its kind to reach 200°C chamber temperature, enabling optimal printing conditions for high-performance polymers.

  • Industry-leading thermal insulation ensures the external surface remains below 40°C, even after 5 hours at 180°C.

  • Rapid heating: Achieves 180°C chamber temperature in just 20 minutes.


Why is a 180°C+ Chamber Essential?

1. Direct Annealing for PEEK & PEI

  • Eliminates Warping & Internal Stress: Avoids loss of platform adhesion and deformation during post-processing.

  • Prevents Thermal Shock: No sudden temperature drops when removing parts.

  • Seamless Post-Processing: Set annealing cycles directly in the printer—e.g., maintain 180°C for 5 hours, then 120°C for 5 hours to fully anneal PEEK parts.

2. Ideal for PEI Printing

  • Optimized Temperature Range: Chamber temperature of 160°C-200°C ensures perfect extrusion, bonding, and reduced internal stress.

  • Integrated Drying System: Maintains <0.02% humidity, with built-in 150°C drying function.

  • Direct Annealing: Eliminates internal stress post-printing, improving mechanical strength and chemical resistance.


Adjustable Temperature Profiles

Nozzle Temp Bed Temp Chamber Temp
385°C 200°C 90°C
385°C 200°C 120°C
385°C 200°C 150°C
385°C 200°C 180°C

Why is Achieving 180°C+ Chamber Temperature So Difficult?

Challenges with High-Temperature Printing:

  • 70-80°C: The temperature limit for standard circuit boards, motors, and belts—exceeding this can cause failures.

  • 120°C: Requires high-temperature motors, belts, and effective shielding/insulation for electronic components.

  • 150°C: Demands a fully enclosed, heat-insulated chamber, specialized heat-resistant components, and multi-layer insulation.

  • 180-200°C: Needs aviation-grade thermal protection to fully isolate the chamber while maintaining external safety temperatures.


Specs

Feature Specification
Build Volume 250 × 250 × 300 mm
Filament Diameter 1.75 mm
Number of Nozzles Single Extruder
Nozzle Diameter 0.4mm (Optional: 0.3 ~ 1.0mm)
Filament Compatibility Engineering Plastics: PLA, ABS, ASA, PC, Nylon, PETG, PVDF, Carbon Fiber
High-Temperature Materials: PET-CF, PET-GF, UltraPA, UltraPA-GF, UltraPA-CF, PPSU
Ultra-Performance Materials: PEI (ULTEM™ Full Line), PEEK, PEEK-CF (Carbon Fiber), PEEK-GF (Glass Fiber), PEKK, etc.
Best Printing Speed 55 mm/s
Max Printing Speed 200 mm/s
Input Power 200V~240V, 20A
Rated Power 2500W
Screen 7'' Full-Color Touchscreen (Multi-language)
Print Method USB Connectivity / USB Disk
Cooling System Air Pump Cooling & Water Cooling
Build Platform PCB Aluminum + PEEK Print Board
Positioning Precision X/Y Axis: 0.0127mm
Z Axis: 0.00125mm
Extruder Type Direct Drive
Machine Construction Fully Enclosed Hot Chamber
Max Nozzle Temperature 480°C
Max Chamber Temperature 200°C
Max Platform Temperature 200°C
Software Compatibility CreatWare, Simplify3D, Cura, Slic3r
Operating Systems Windows (All), macOS
Supported File Types STL, OBJ, AMF, Gcode
Outage Recovery Saves data when power is off
Filament Detection Pauses printing when filament runs out
Thermal Insulation Three-layer insulation + Active Air Cooling
(Chamber temp. reaches 180°C, external surface stays below 40°C)
High-Temperature Components High-temp resistant motors, linear rails, belts, and circuits for long-duration high-temp printing
Door Cooling Active Air Cooling
Machine Size 630 × 555 × 815 mm
Net Weight 120 kg


CreatBot PEEK-250 High-Temp Capabilty Chart

View CreatBot PEEK-250: Temperature Capabilities Chart

Owner's Manual

View CreatBot PEEK-250 User Manual

Standard Warranty

View CreatBot Standard 1-Year Warranty
