🟢authorized PARTNER

SKU:C9199

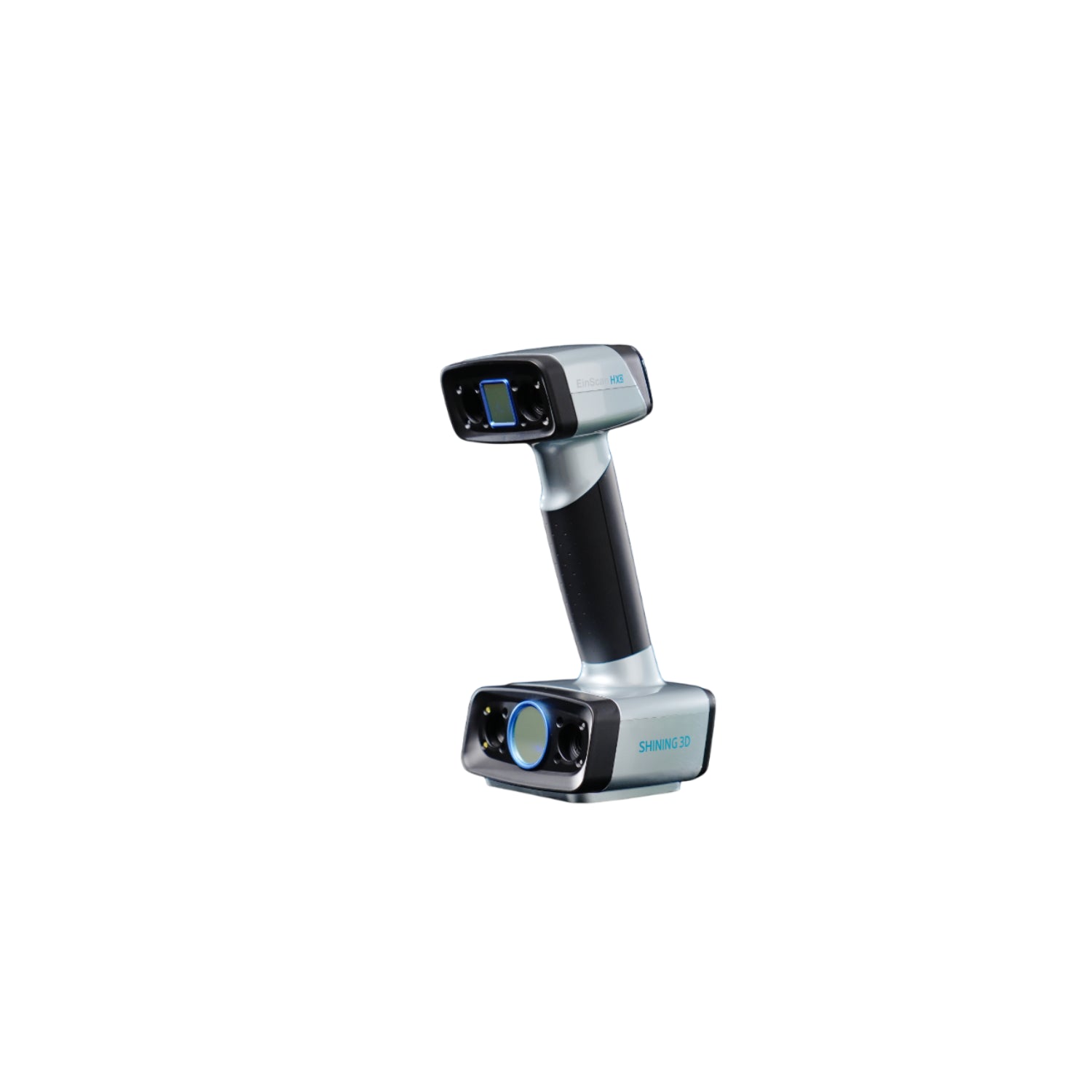

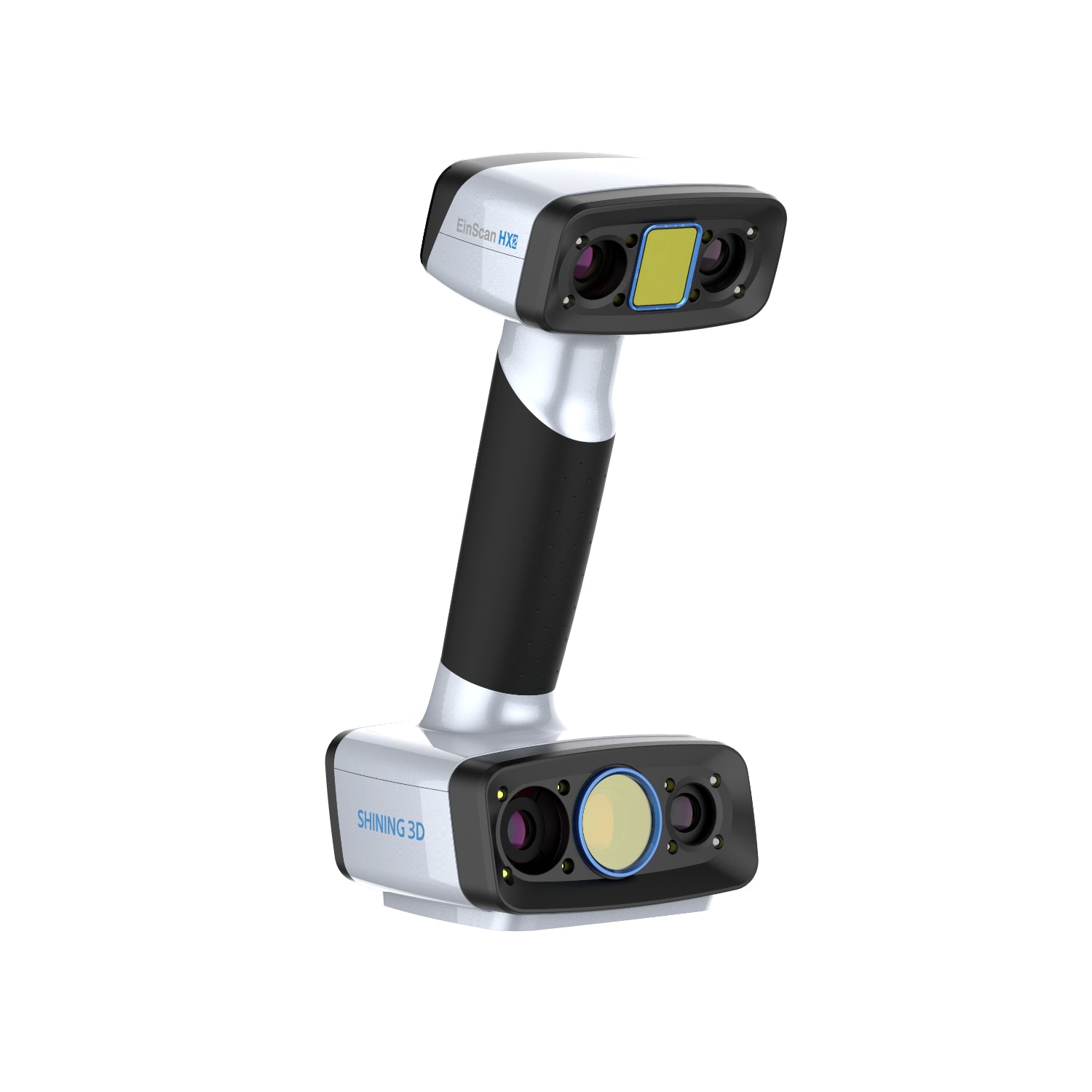

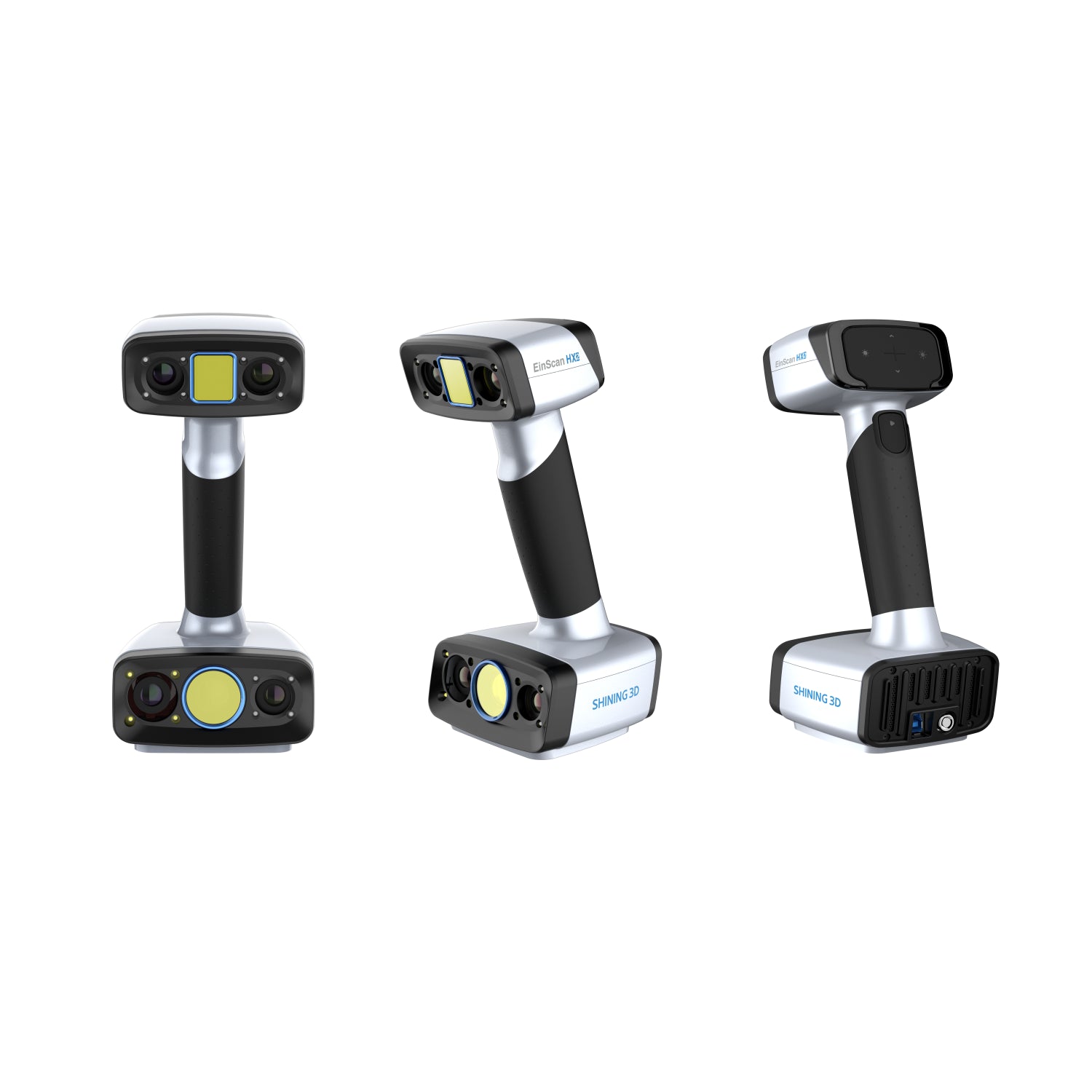

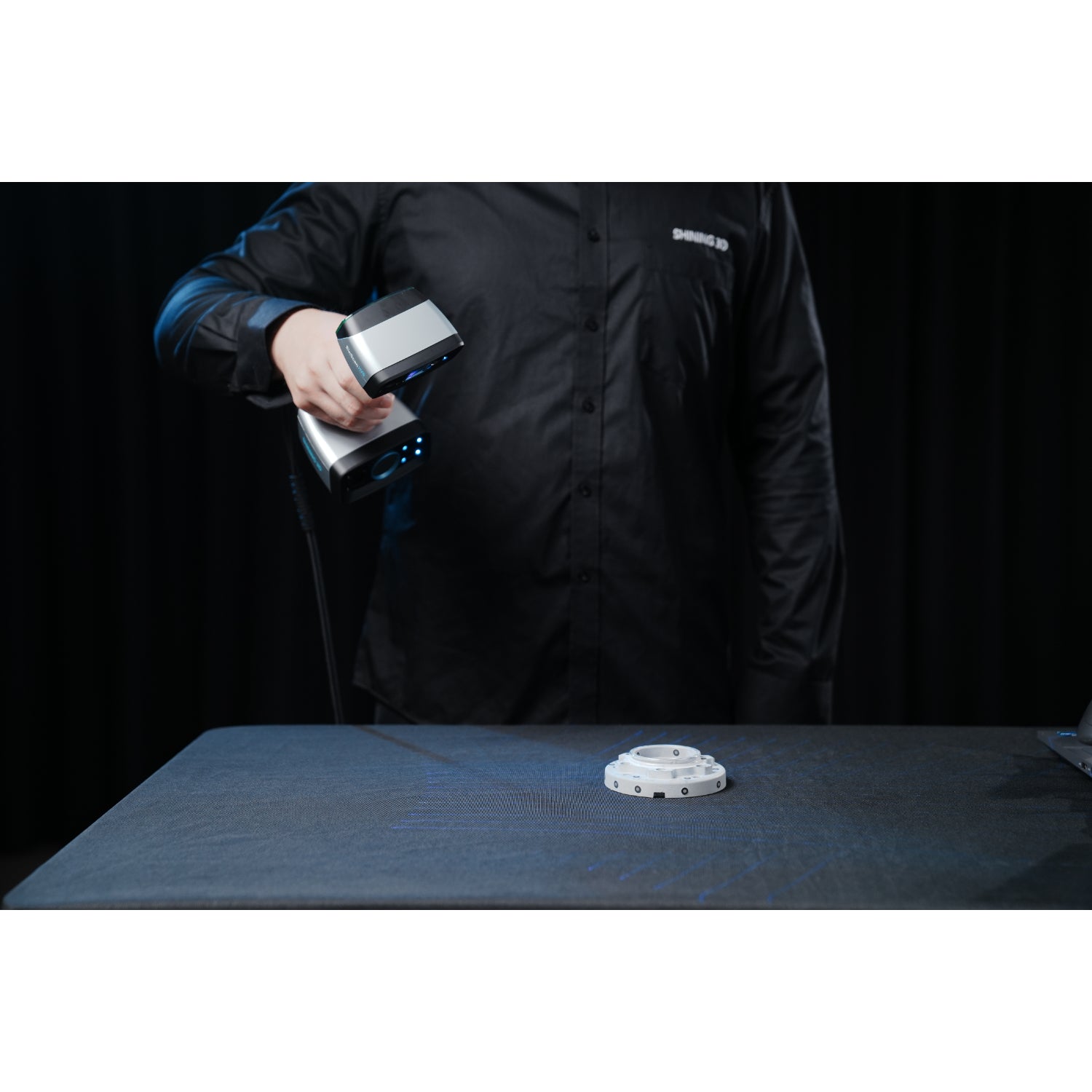

EinScan HX2 Hybrid Blue Laser-LED Handheld 3D Scanner C9199

EinScan HX2 Hybrid Blue Laser-LED Handheld 3D Scanner C9199

Regular price $9,999.00 USD
Regular price Sale price $9,999.00 USD
Sale Sold out

In stock

Includes Warranty

30-Day Returns

Unlimited Free Support

A New Standard in Hybrid 3D Scanning

The EinScan HX2 sets a new benchmark for hybrid 3D scanning solutions by combining blue laser and LED light technologies. Engineered for high precision, adaptability, and speed, it delivers reliable scanning results across a broad range of applications—from industrial design and manufacturing to reverse engineering and cultural preservation. With a compact, ergonomic design and intuitive software, it’s built for both professionals and beginners looking to elevate their 3D scanning capabilities.


Key Features

  • Hybrid Blue Laser & LED Light Technology
    Combines 13 crossed blue laser lines with advanced LED scanning for precise capture of complex, dark, or reflective surfaces.

  • Exceptional Accuracy
    Achieve up to 0.04 mm accuracy and a minimum point distance of 0.05 mm—ideal for high-resolution reverse engineering and detailed modeling.

  • High-Efficiency Scanning
    Scan speed reaches up to 1,600,000 points/second and 120 FPS in laser mode, reducing project time without compromising quality.

  • Full-Color Scanning
    Built-in color camera enables photorealistic texture capture and tracking, making it ideal for design and visualization workflows.

  • Portable and Easy to Use

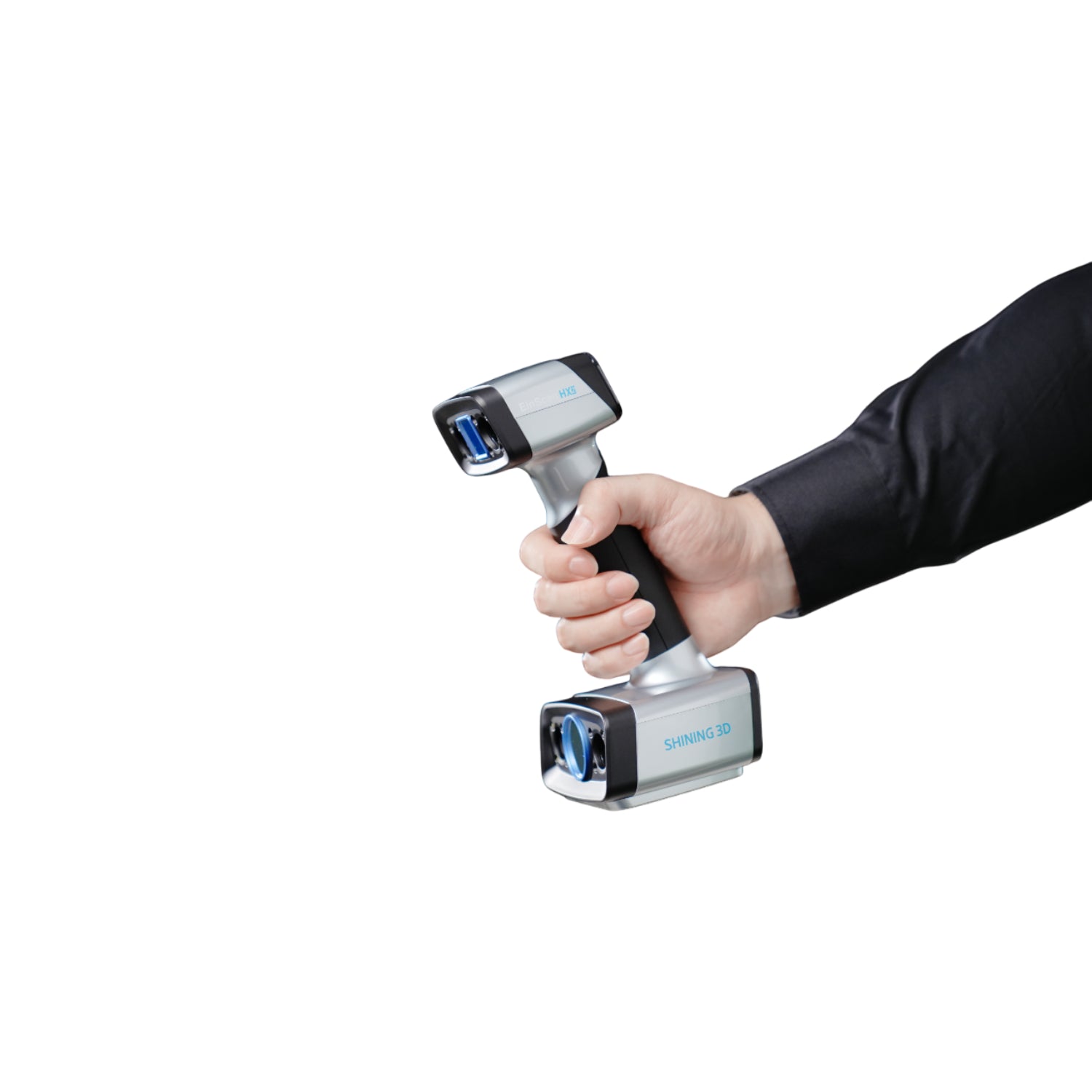

    Weighing just 745g, the EinScan HX2 is lightweight, ergonomic, and easy to deploy anywhere. Plug-and-play setup and user-friendly software streamline the scanning process.

  • Smart Software Integration
    EXScan HX offers guided calibration, intelligent mesh processing, real-time updates, and multilingual support. Seamless compatibility with EXModel, Geomagic Design X, Control X, and BlueStar Mapping.


What You Can Achieve

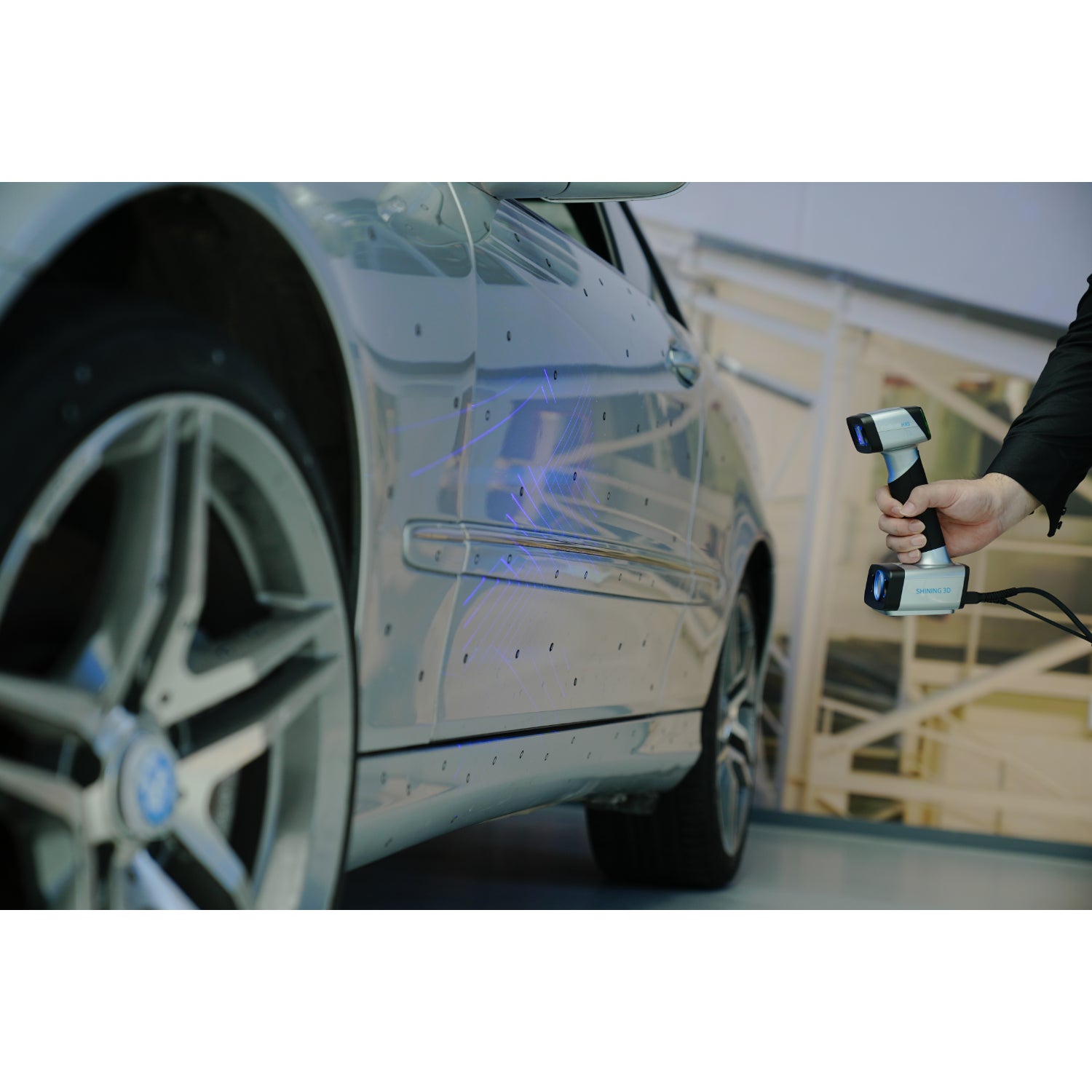

  • Automotive & Engineering
    Create accurate reverse engineering models, flanges, housings, and complex mechanical parts.

  • Research & Education
    Scan for teaching, prototyping, and academic research with full-color results and efficient workflow.

  • Cultural & Creative Industries
    Digitize sculptures, relics, and creative art for preservation, archiving, or modification.

Specs

Feature Specification
Light Source Blue LED / 13 Crossed Blue Laser Lines
Scan Accuracy Up to 0.04 mm (laser), 0.05 mm (LED)
Volumetric Accuracy 0.04 + 0.06 mm/m (laser), 0.05 + 0.1 mm/m (LED)
Point Distance 0.05–3 mm (laser), 0.25–3 mm (LED)
Scan Speed 1,600,000 pts/s @120 FPS (laser) / 1,200,000 pts/s @20 FPS (LED)
Max FOV 420 × 440 mm
Working Distance 470 mm (range: 200–700 mm)
Texture Capture Full-color via built-in camera (LED mode only)
Align Modes Markers, Features, Hybrid, Texture
Software Included EXScan HX, EXModel
Supported Formats OBJ, STL, ASC, PLY, P3, 3MF
Connectivity USB 3.0
Supported OS Windows 10/11, 64-bit
Recommended Specs NVIDIA RTX3060+, i7-12700+, 32GB RAM
Minimum Specs NVIDIA RTX2060+, i7-8700+, 16GB RAM
Device Dimensions 108 × 110 × 237 mm
Weight 745 g
Operating Temp/Humidity 0–40°C / 10–90% RH
Certifications CE, FCC, ROHS, WEEE, KC

Included in the Purchase

Item Quantity
EinScan HX2 Scanner 1
USB 3.0 Cable 1
Power Adapter 1
Calibration Board 1
EXScan HX Software License 1
EXModel Software License 1
User Manual (Digital) 1
Carrying Case 1
Quick Start Guide 1

EinScan HX2 Brochure

📄 View EinScan HX2 Brochure

Owner’s Manual

📄 View EinScan HX2 User Manual

Standard Warranty

📄 View EinScan 1-Year Standard Warranty
