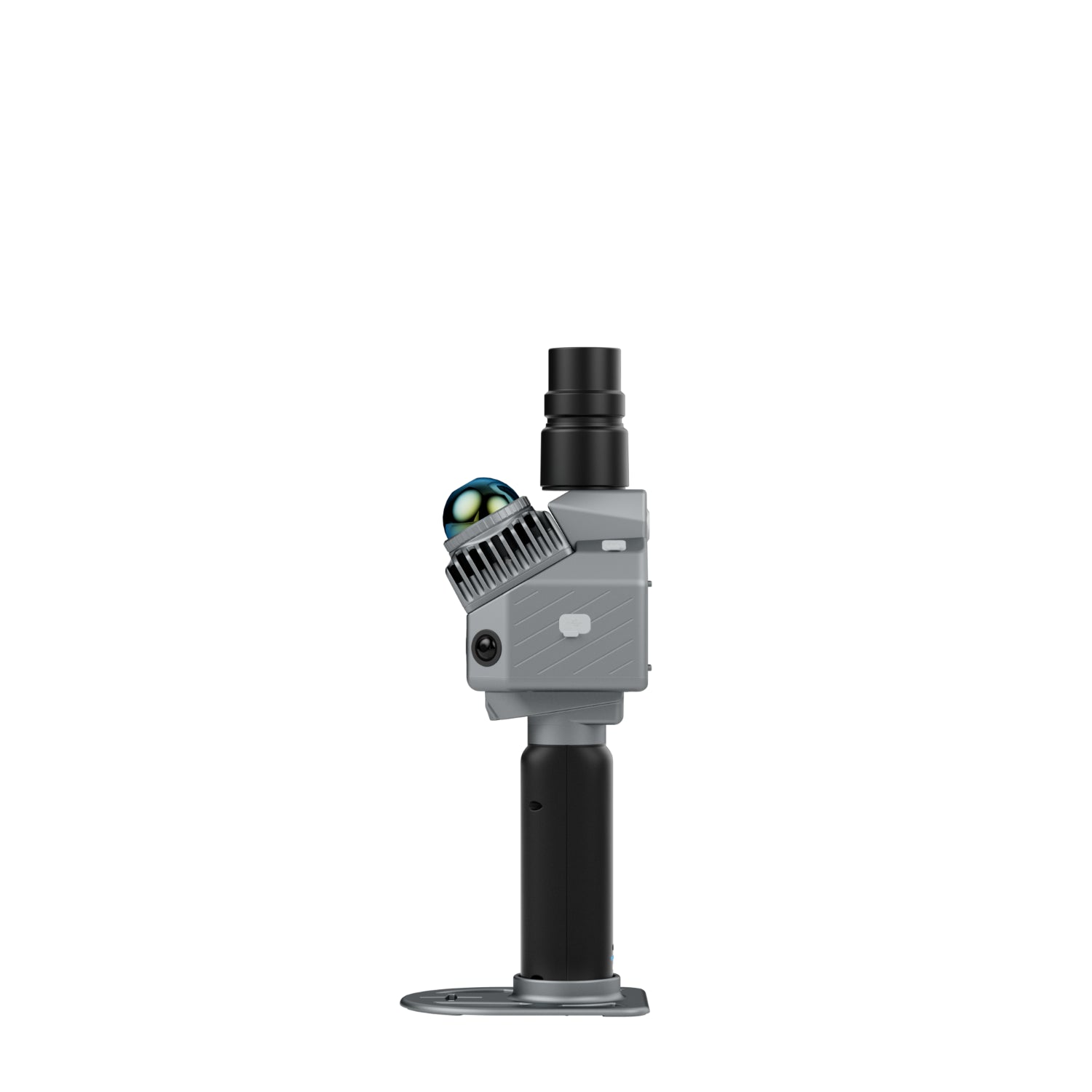

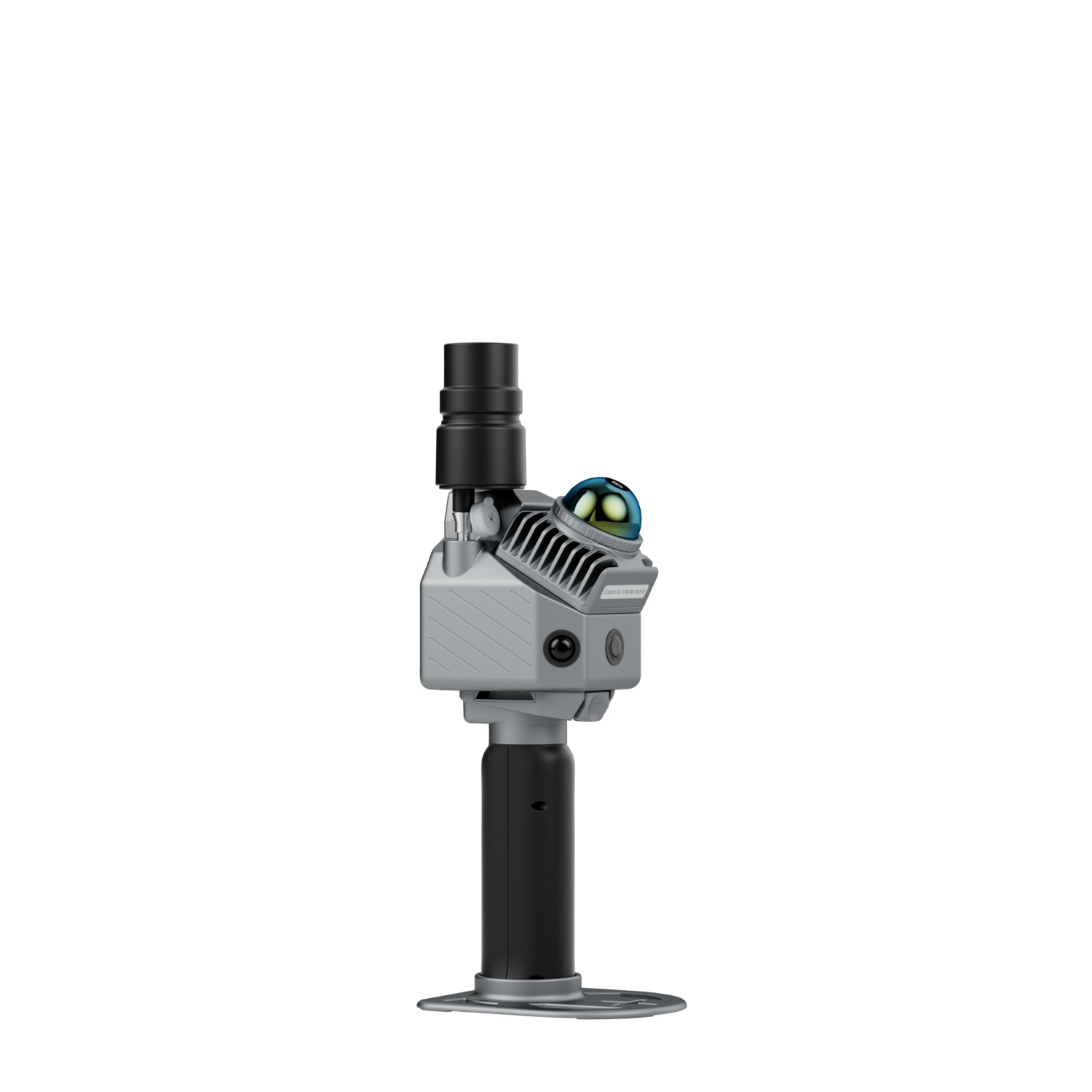

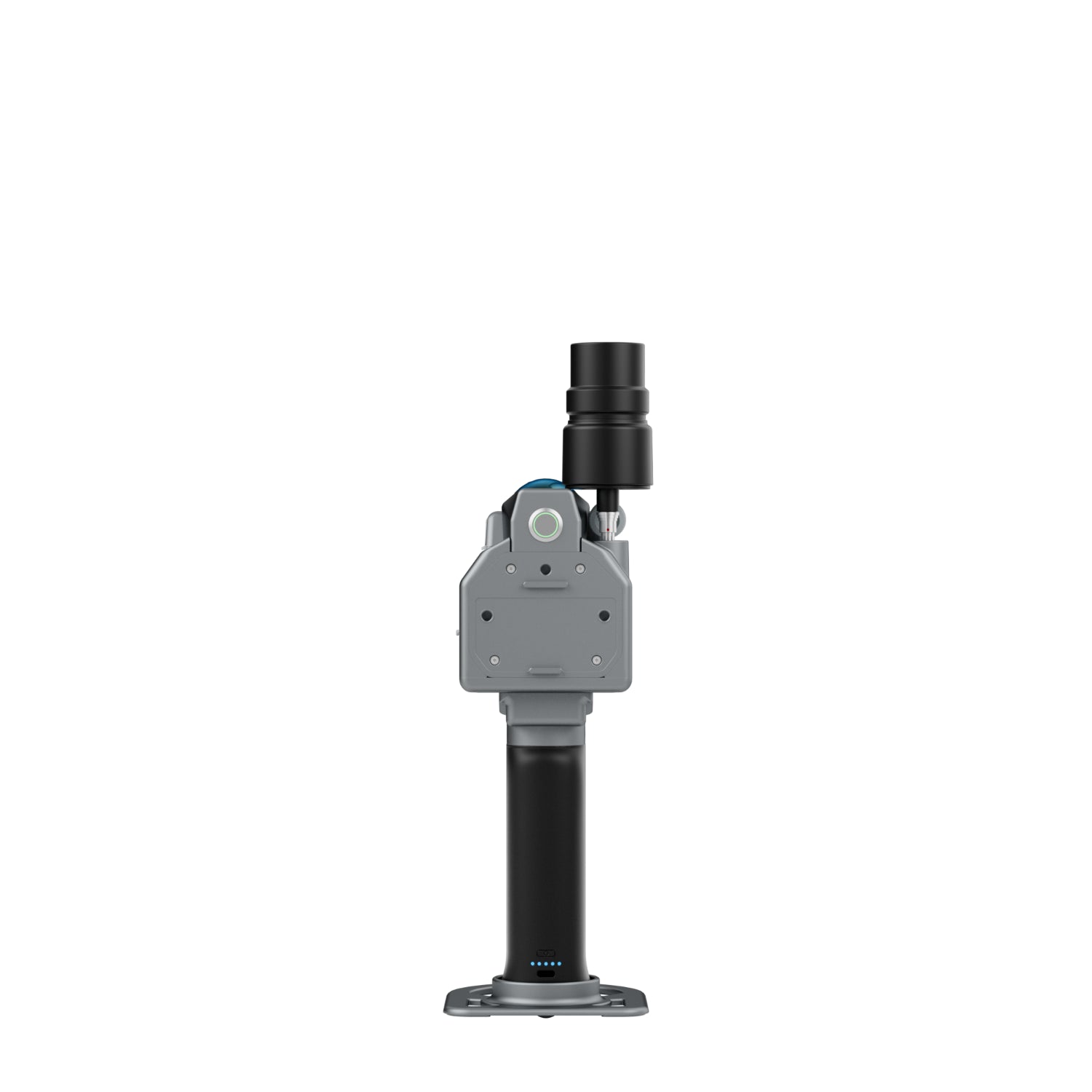

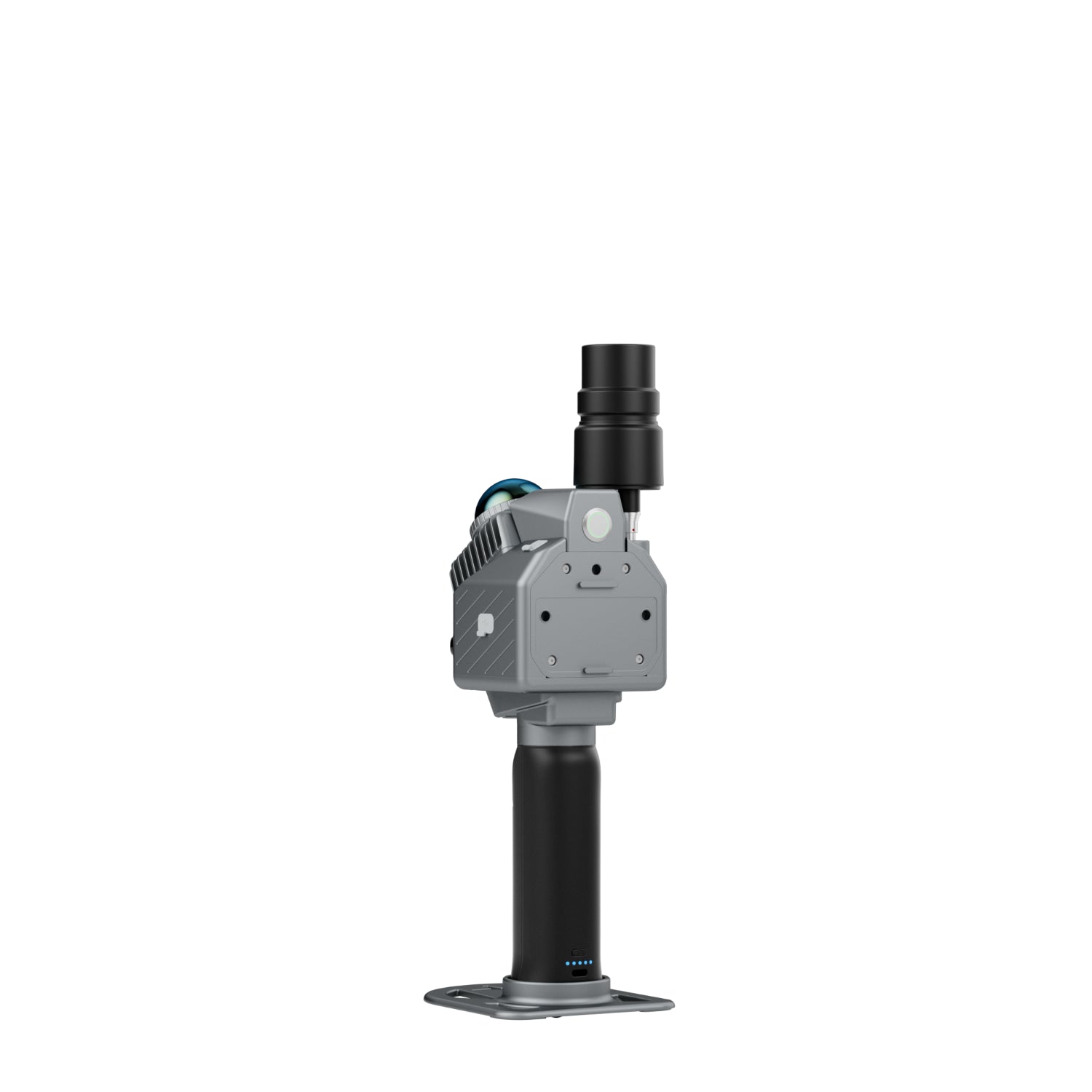

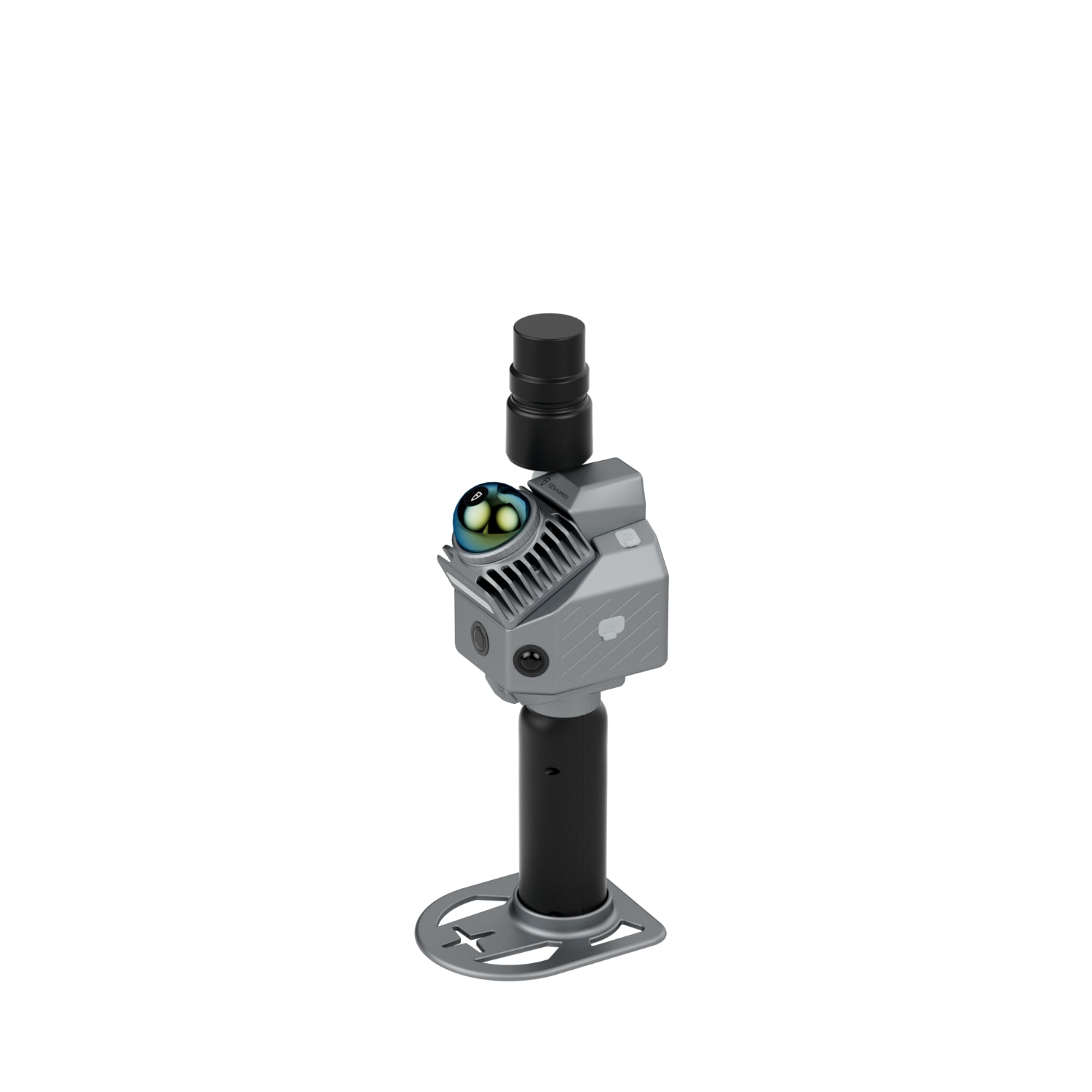

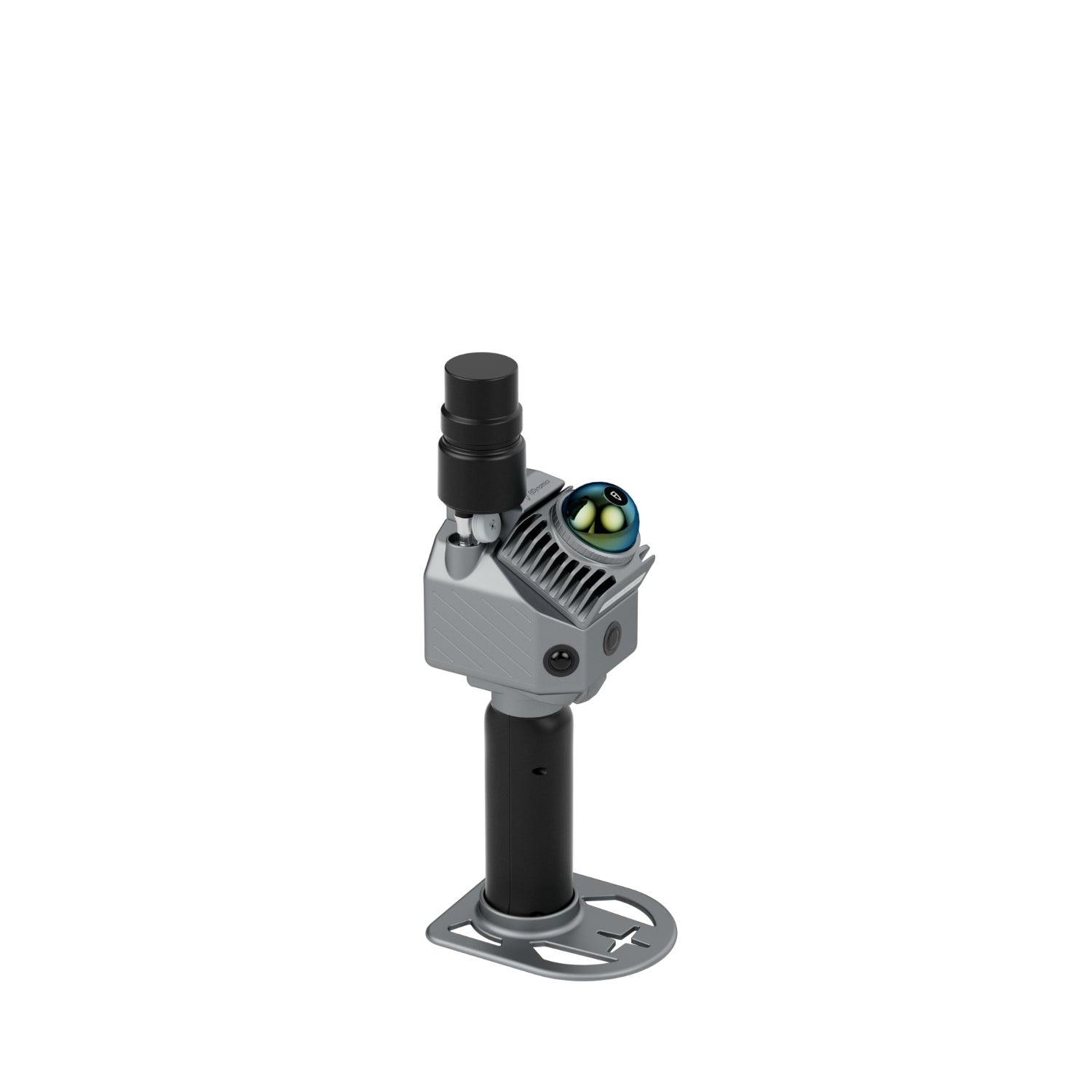

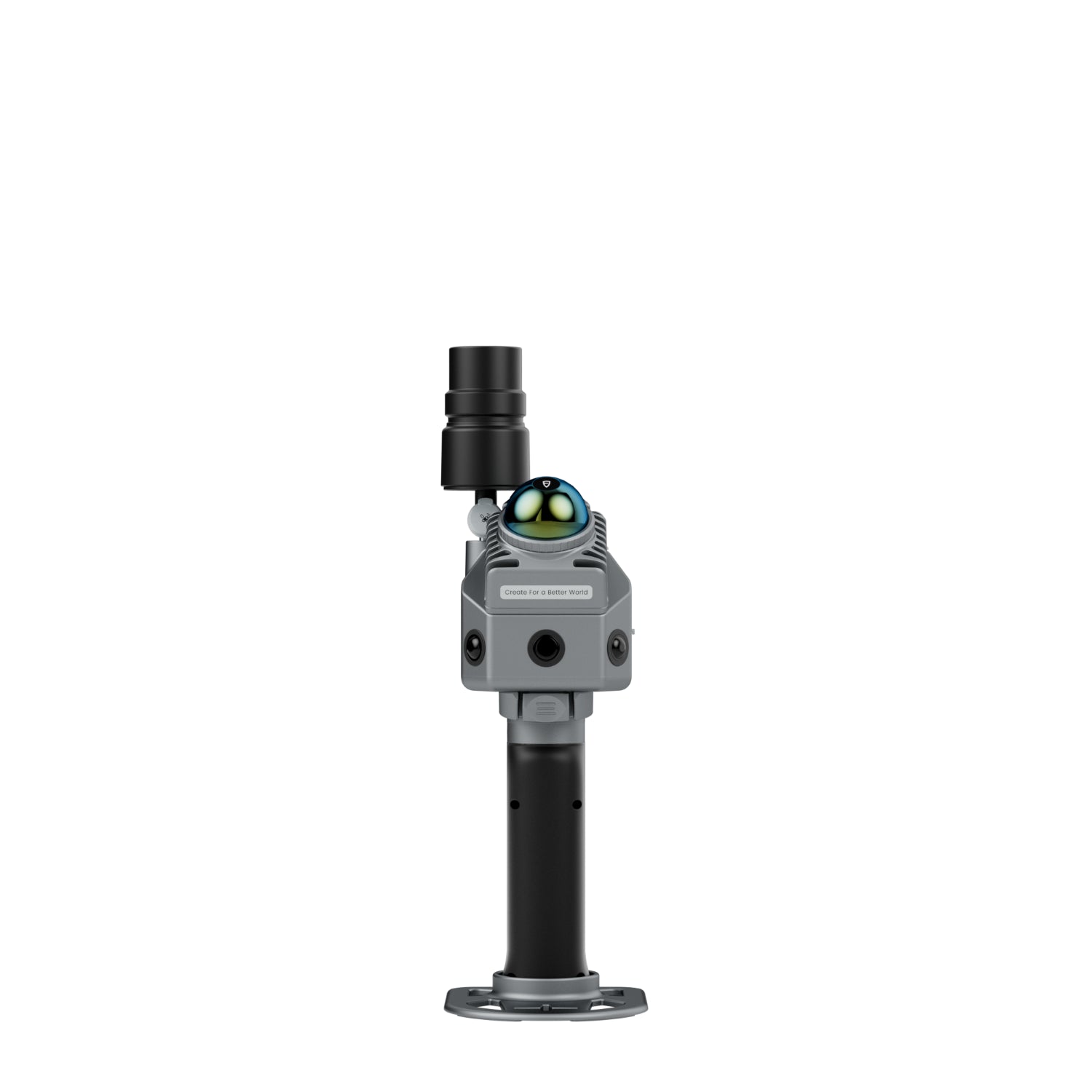

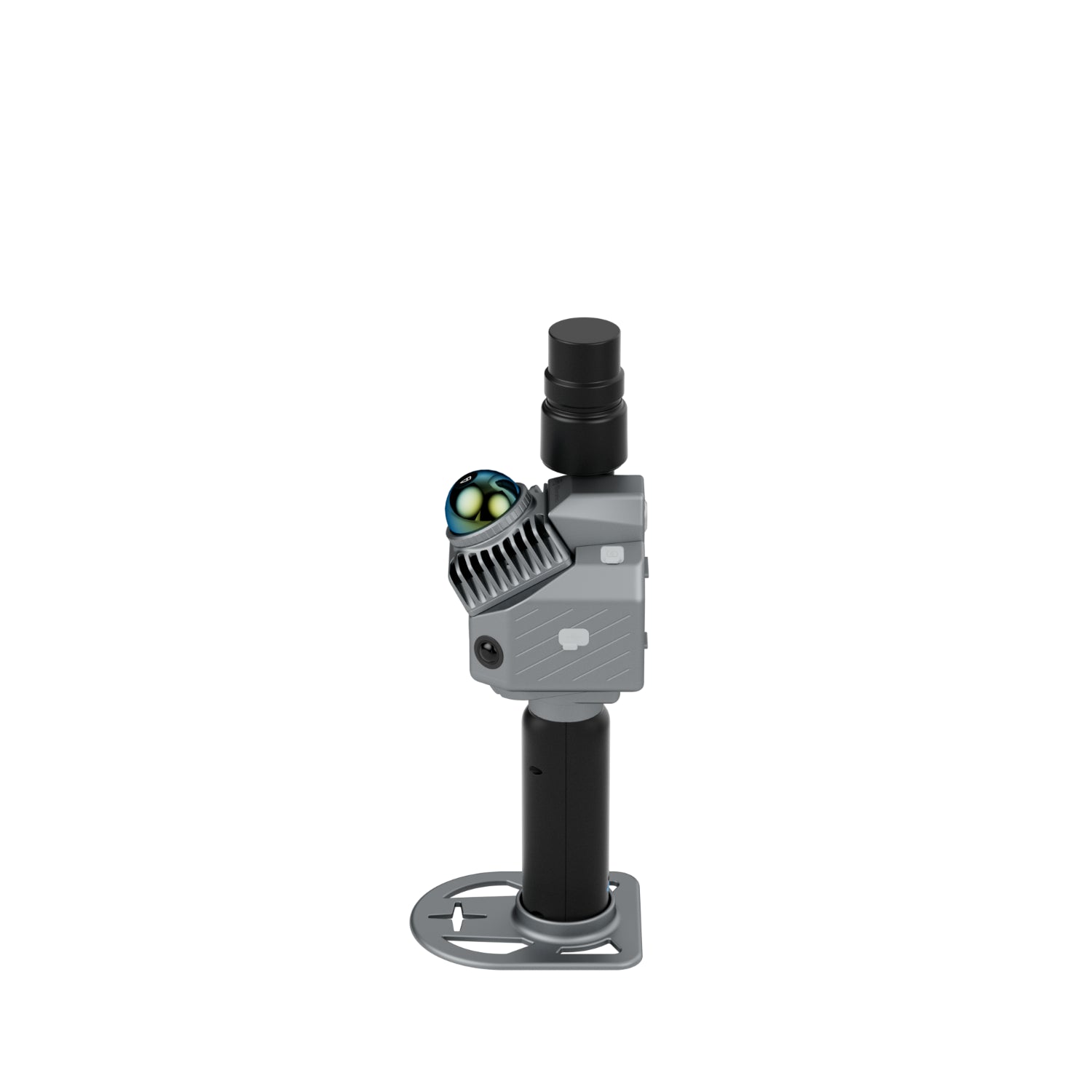

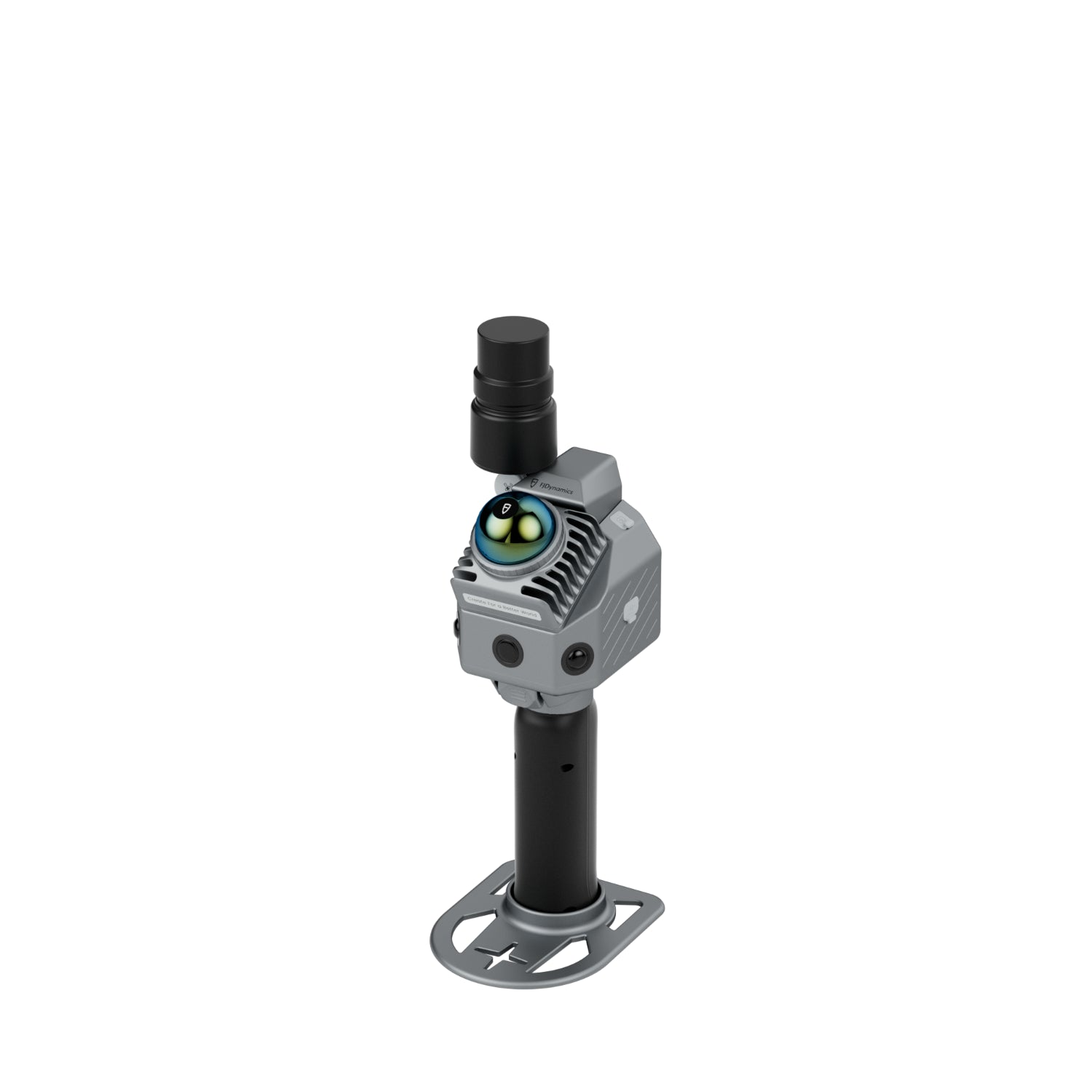

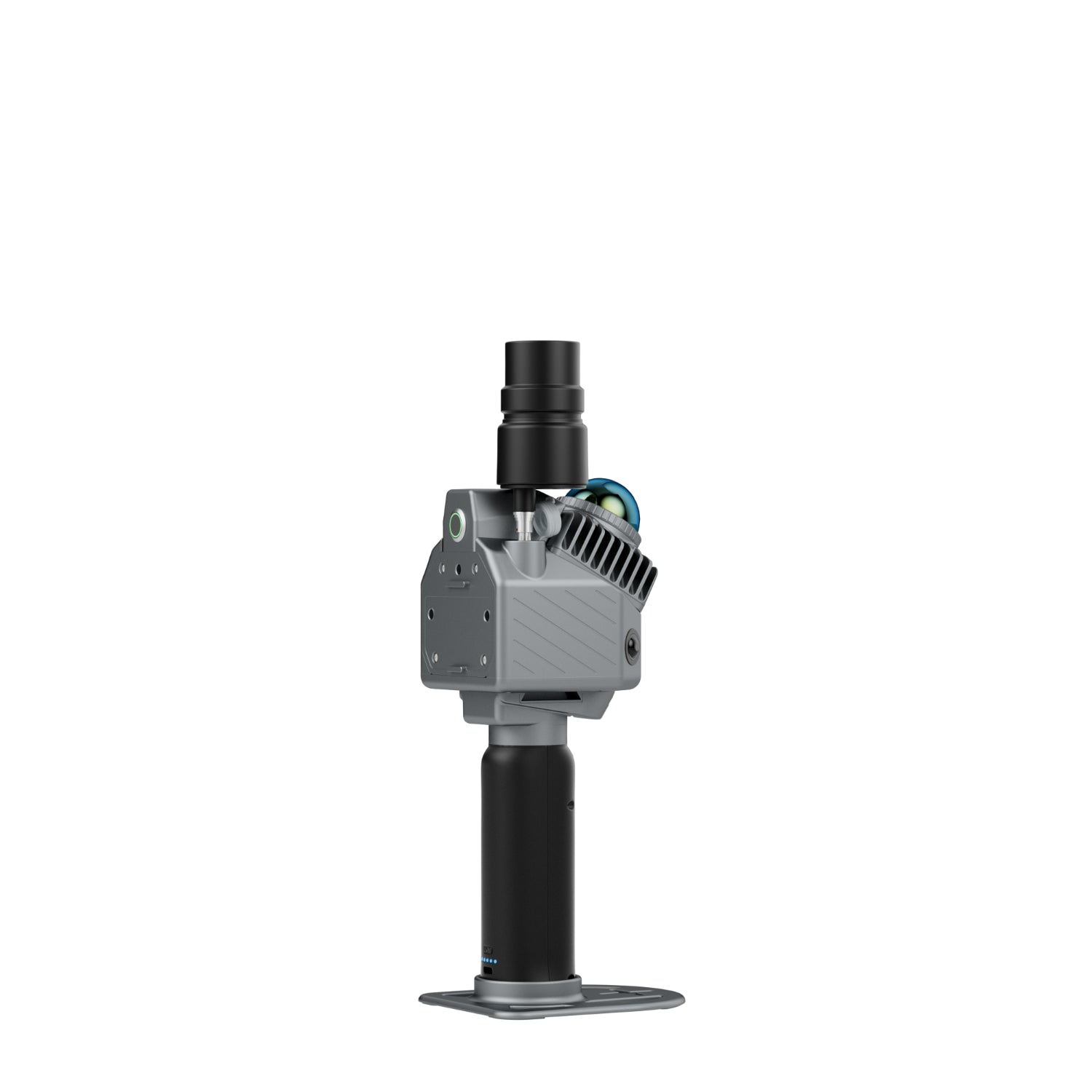

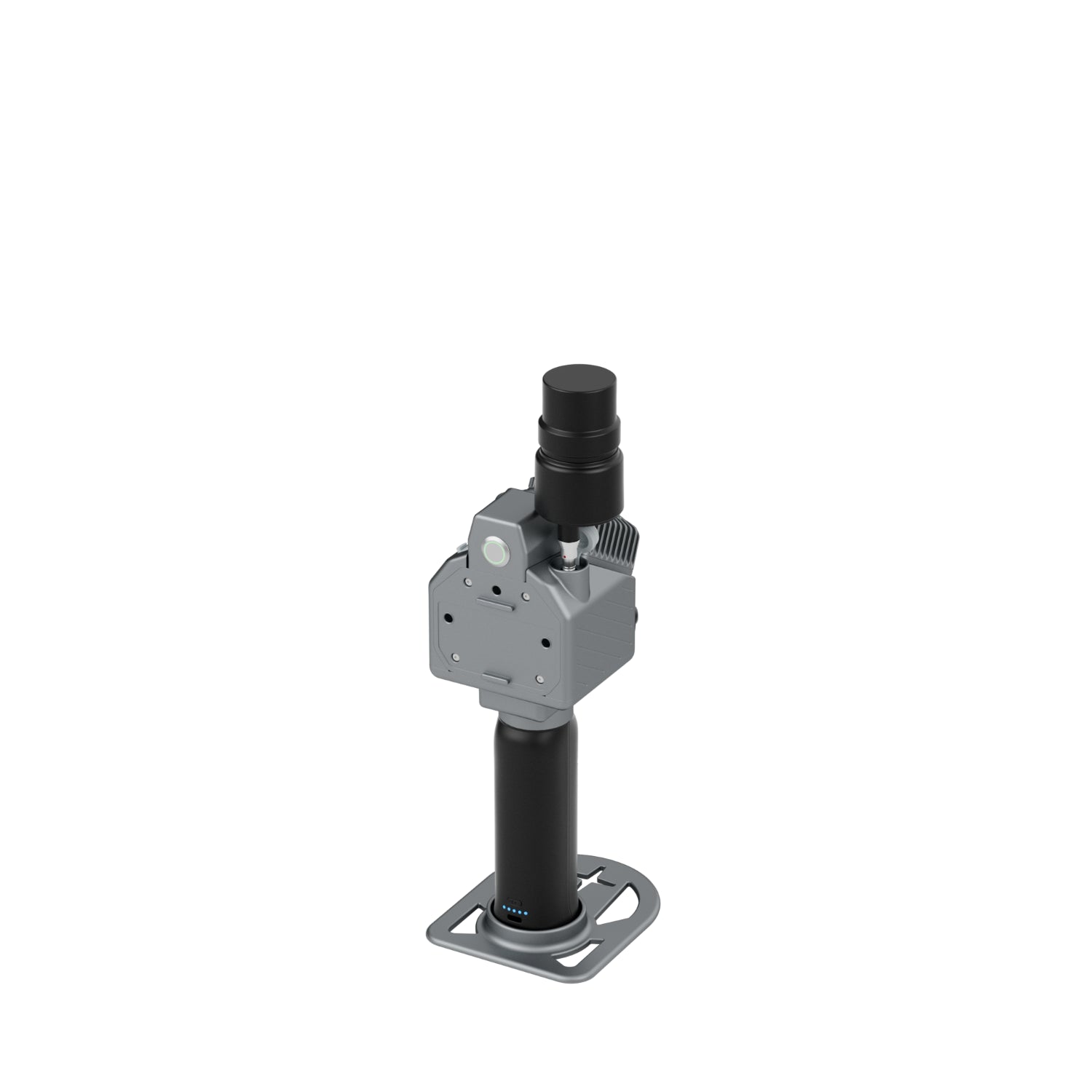

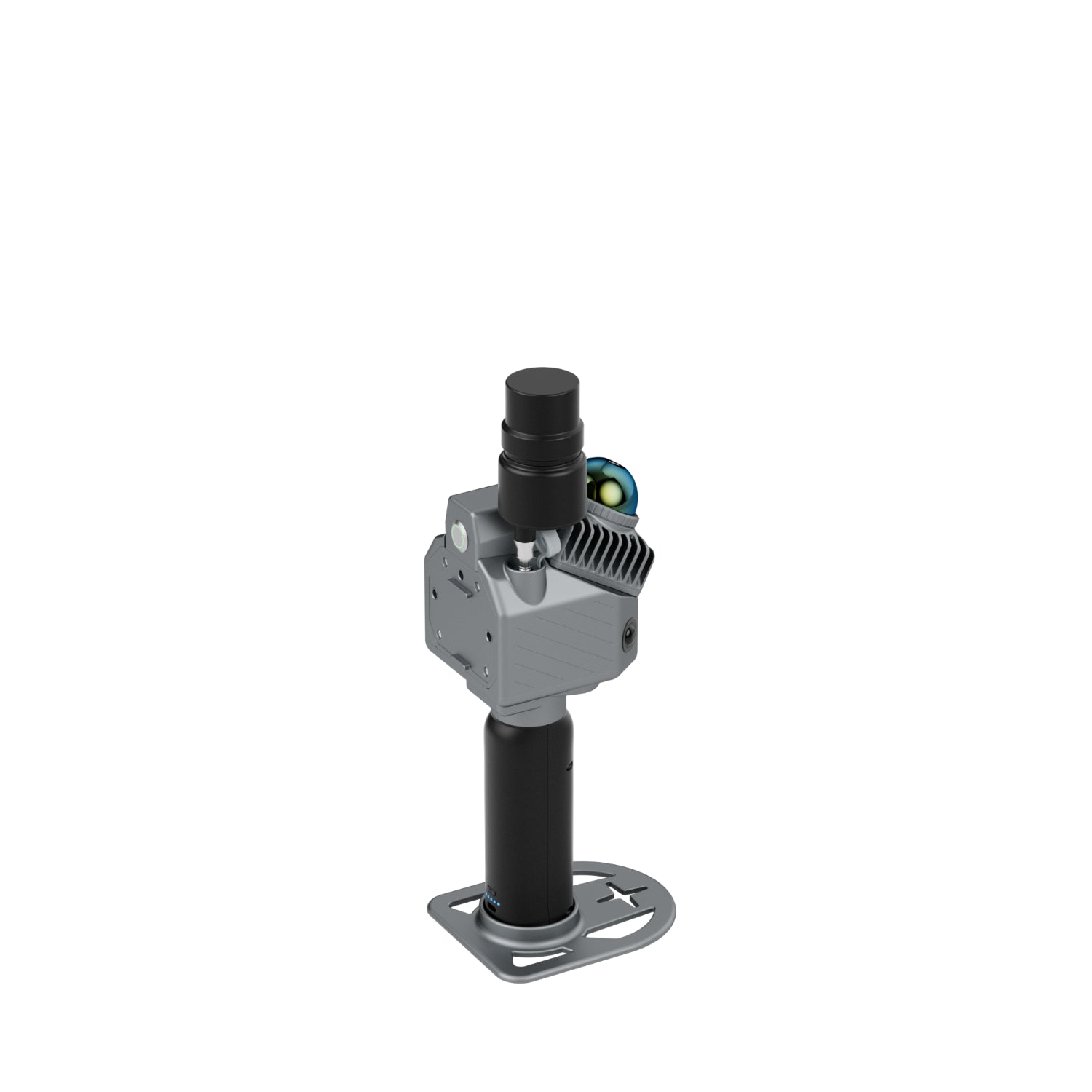

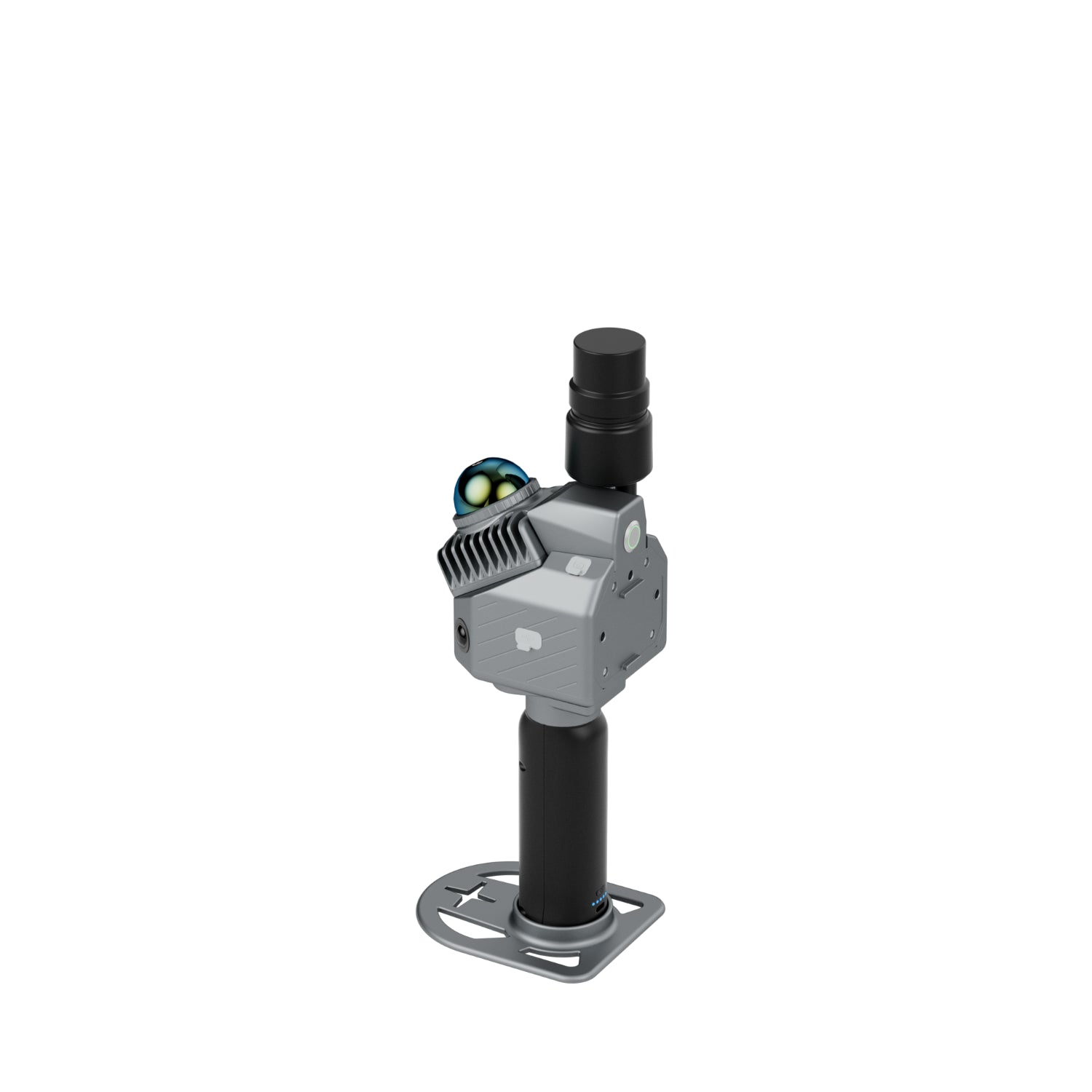

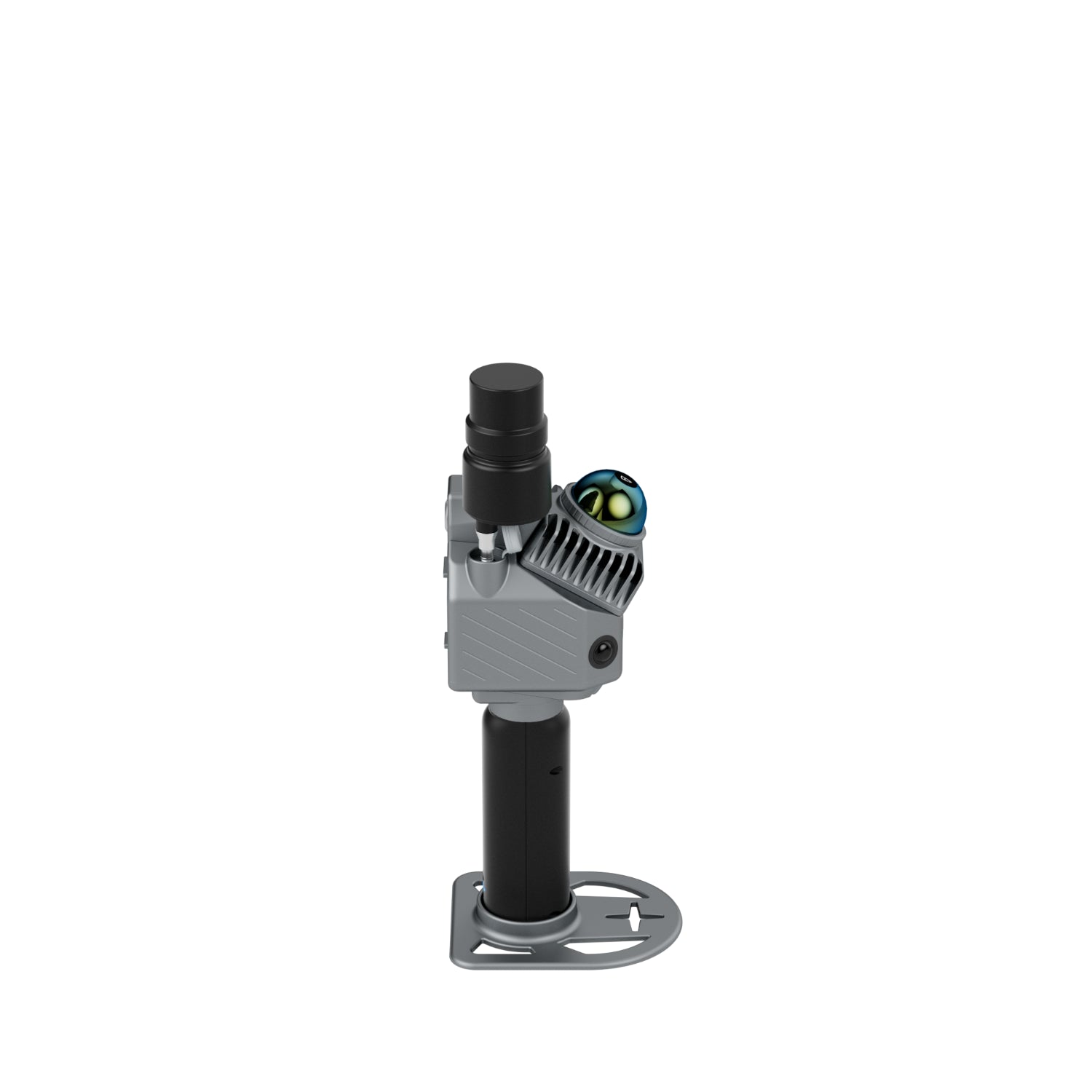

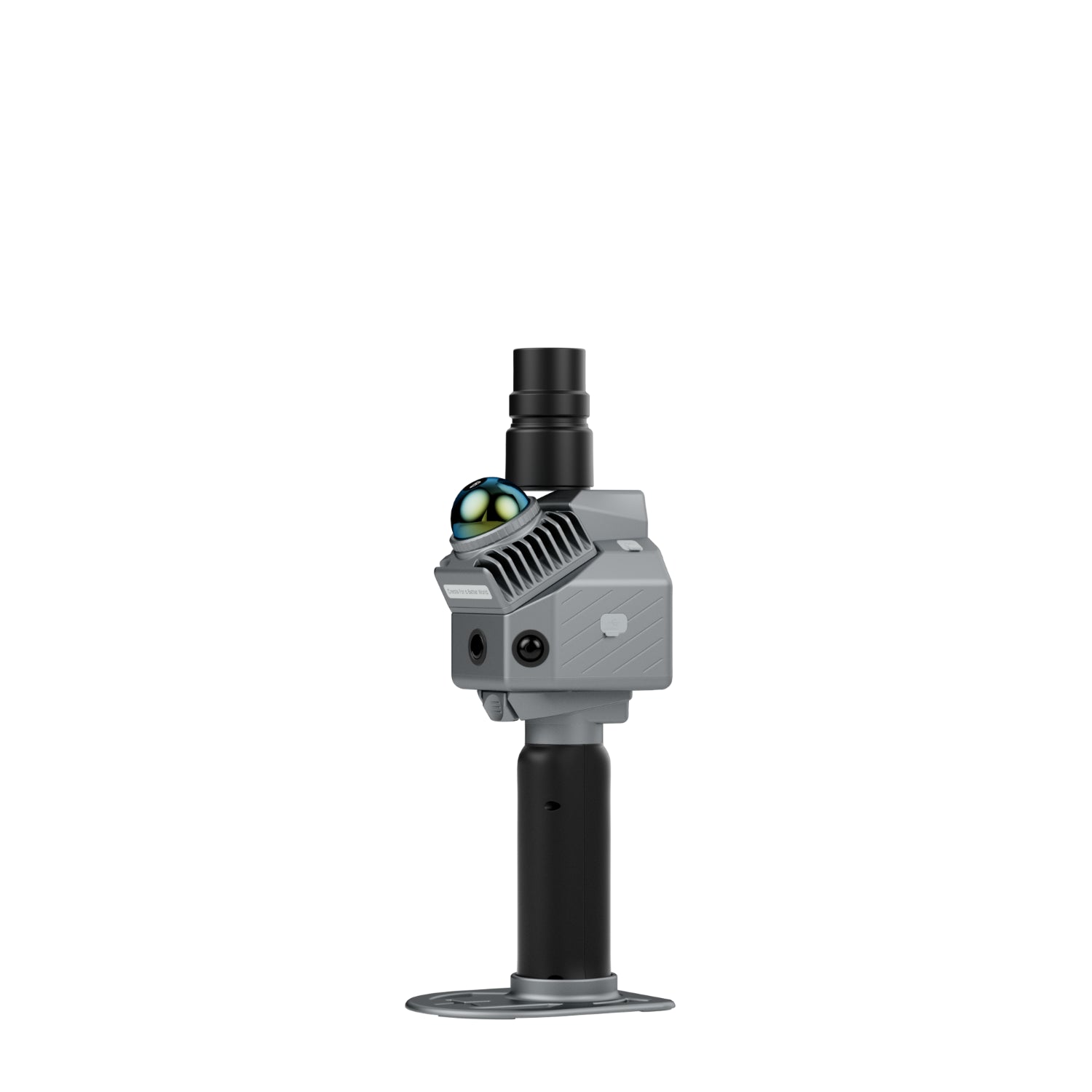

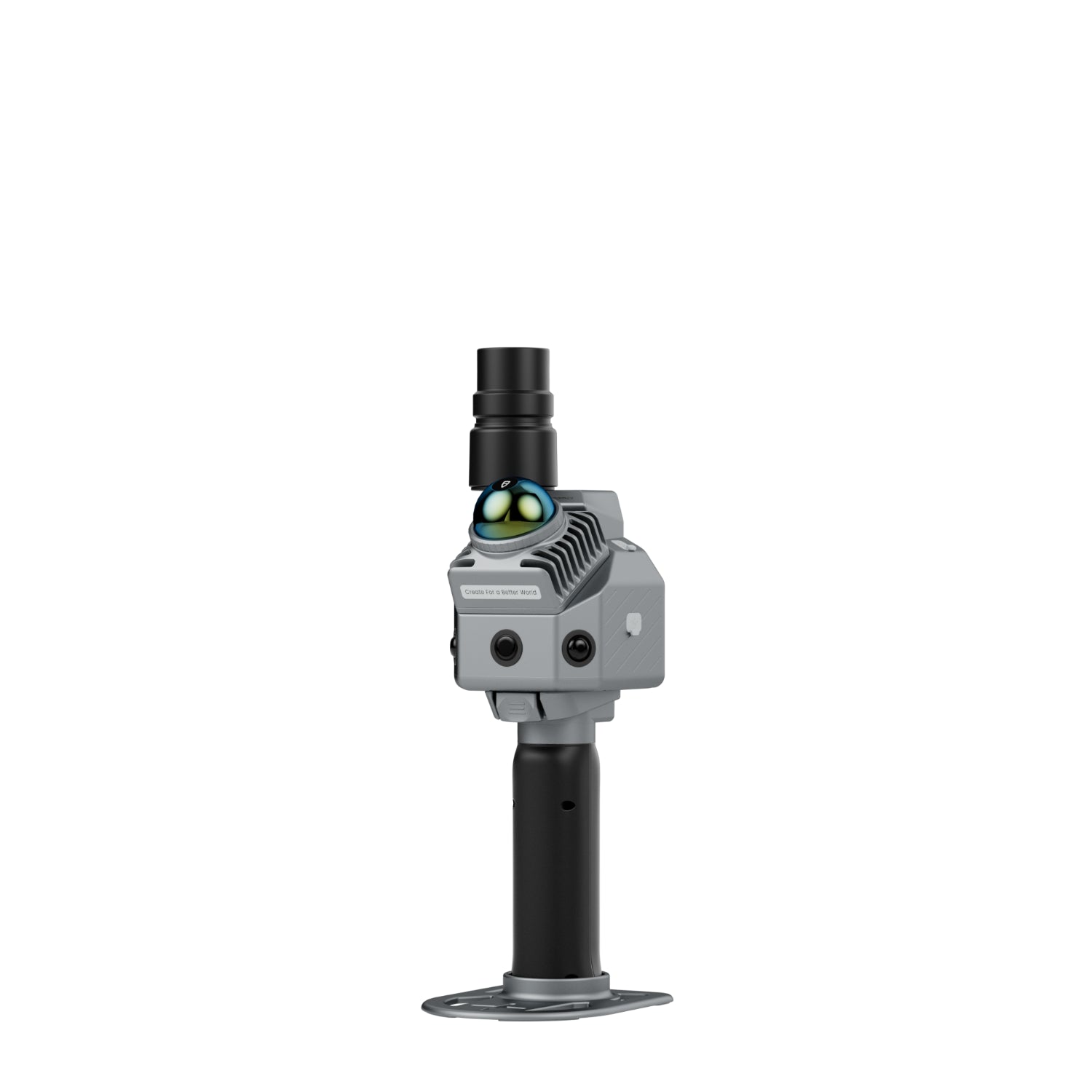

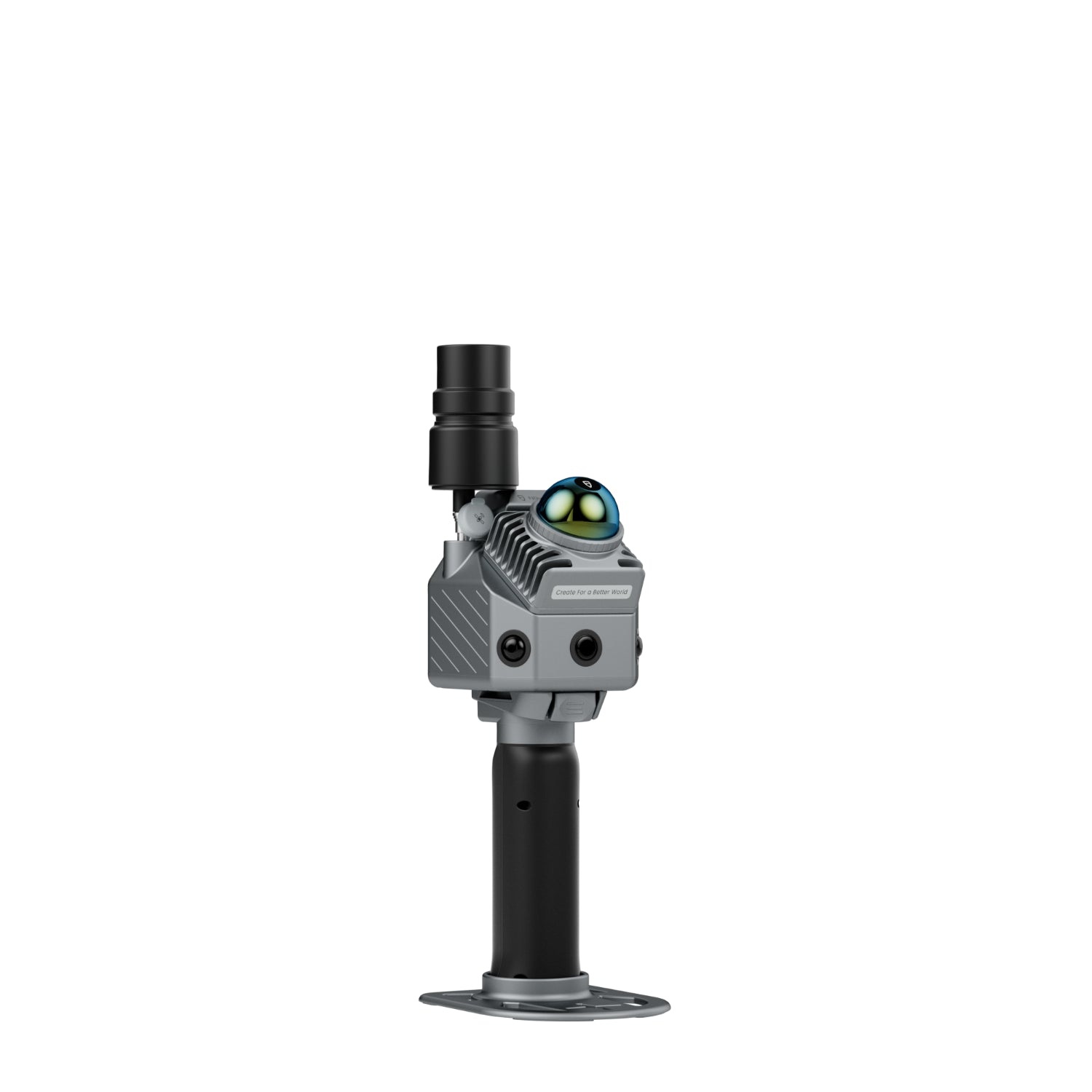

FJ Dynamics Trion P2 SLAM LiDAR 3D Scanner FJDTRP2

FJ Dynamics Trion P2 SLAM LiDAR 3D Scanner FJDTRP2

Regular price $10,999.00 USD
Regular price Sale price $10,999.00 USD
Sale Sold out

Includes Warranty

30-Day Returns

Unlimited Free Support

Portable, Accurate, and Built for Professional 3D Mapping

The FJD Trion™ P2 LiDAR Scanner delivers centimeter-level accuracy, real-time colorization, and seamless workflow integration — all in a lightweight sub-1kg form factor. Designed for industries like construction, surveying, mining, forestry, and digital twin creation, the Trion P2 provides cutting-edge scanning performance with multi-SLAM fusion, HyperDense+ technology, and dual 12MP color cameras.

Capture complex environments with precision and efficiency — whether on foot, indoors, outdoors, or underground — with the FJD Trion P2: Compact Power Meets Professional Accuracy.


Key Features

  • 1.2 cm Accuracy – Achieve post-processed accuracy up to 1.2 cm and real-time accuracy within 2–5 cm, even in complex terrains.

  • 70 m Scanning Range – Collect high-resolution 3D data with 70m range at 80% reflectivity and 40m range at 10% reflectivity.

  • Lightweight & Portable (<1 kg) – Ideal for handheld, drone, or backpack use with extended mobility.

  • 4-Hour Runtime – Dual-battery system provides up to 4 hours of continuous operation and supports fast charging.

  • Real-Time Colorized Point Clouds – Integrated 2MP global shutter and dual 12MP RGB cameras deliver vivid color accuracy and detailed visual context.

  • Multi-SLAM Fusion Algorithm – Maintain precision in GPS-denied or featureless environments such as tunnels, beaches, or forests.

  • HyperDense+ Point Clouds – Generates 5–7x denser point clouds for superior colorization and structural detail.

  • Multi-Deliverable Output – Create point clouds, 2D floor plans, 3D mesh models, Gaussian splatting, and georeferenced panoramas from one scan.

  • Seamless FJD Software Integration – End-to-end ecosystem from capture to processing and collaboration using FJD Trion Scan, Model, and Explorer apps.

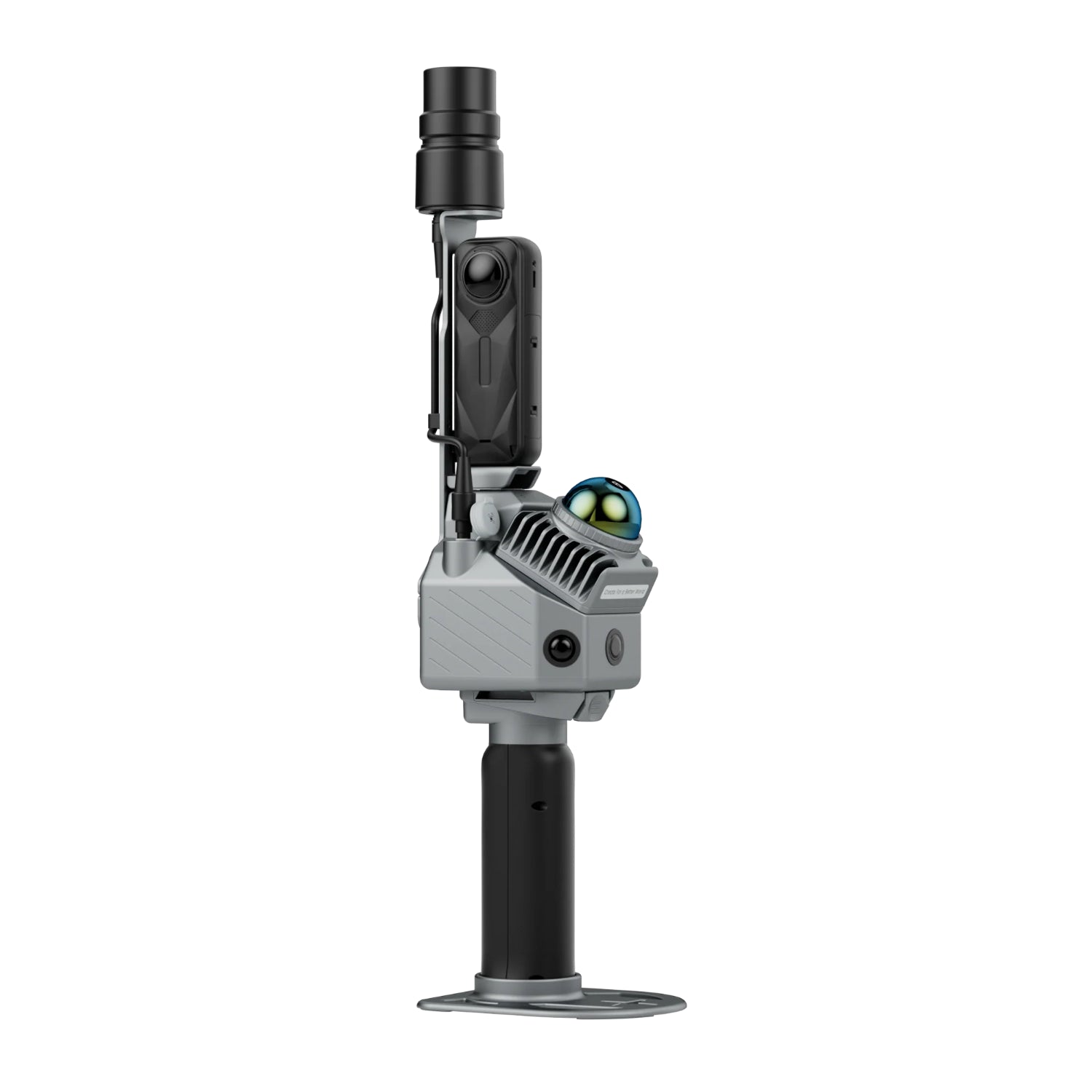

  • External Camera Compatibility – Supports Insta360 X3 and X5 for 360° imaging up to 8K resolution.

  • Rugged Design – IP54-rated build for use in demanding environments (-20°C to 50°C).


Applications

  • Surveying & Mapping – High-accuracy scanning for terrain, topography, and infrastructure documentation.

  • Architecture & Construction – Capture BIM-ready data for site analysis, construction progress, and as-built verification.

  • Forestry & Environmental Studies – Map tree canopies, ground surfaces, and vegetation structures.

  • Mining & Tunneling – Collect accurate data in featureless, GPS-denied underground environments.

  • Heritage & Cultural Preservation – Reconstruct and document historical sites in vivid detail.

  • 3D Modeling & Virtual Reality – Generate detailed 3D mesh and Gaussian splat data for visualization and digital twin projects.


Specs

Category Specification Details
LiDAR System Scanning Speed 200,000 pts/s
Field of View (FOV) 360° × 59°
Range 70 m (80% reflectivity), 40 m (10%)
Laser Safety Class 1, Eye-Safe
HyperDense+ Supported
Continue Scanning Supported
Real-Time Accuracy Relative: 2 cm / Absolute: 5 cm
Post-Processed Accuracy Relative: 1.2 cm / Absolute: 3 cm
Cameras Built-in Cameras 1 × 2MP Global Shutter + Dual 12MP RGB Cameras
Camera FOV Front: 70° / Side: 280° × 149°
Image Format .jpg
External Camera Support Compatible Models Insta360 X3 / Insta360 X5
Video Resolution (X3) Up to 5.7K @ 30fps
Video Resolution (X5) Up to 8K @ 30fps
Photo Resolution Up to 72MP
Video Format INSV / MP4
System Parameters Dimensions 110 × 106 × 280 mm
Weight 700g (core unit), 1200g with battery + RTK, 1500g with camera
Storage 512GB (expandable to 1TB)
Operating Temp -20°C to 50°C
Storage Temp -40°C to 60°C
Protection IP54 Dust & Splash Resistant
Data Export Wireless, USB-C, USB Flash
Supported File Formats .las, .ply, .pts, .e57
Power & Battery Runtime 4H (RTK only) / 3H (RTK + external cam)
Power Supply Dual DC Handheld Battery
Consumption 15W (LiDAR only) / 21W (with camera)
Charging 67W Fast Charger, Dual-Battery Charging Supported
GNSS / RTK Supported Systems BDS, GPS, GLONASS, Galileo, QZSS (IRNSS & SBAS upgradeable)
RTK Accuracy H: 8 mm + 1 ppm RMS / V: 15 mm + 1 ppm RMS
Positioning Rate 10 Hz
PPK Supported

FJD Trion Software Ecosystem

Software Function Key Features
FJD Trion Scan Data Collection Real-time app control, live preview, file management
FJD Trion Model (Desktop) Data Processing Generate reports for construction, forestry, and mining
FJD Trion Model (Tablet) On-Site Processing iPad & Android compatible, supports quick deliverables
FJD Trion Explorer Cloud Collaboration Share point clouds and 3D data for remote team access

Included in the Box

Item Quantity
FJD Trion™ P2 LiDAR Scanner 1
Rechargeable Battery Set 2
67W Fast Charger 1
Carrying Case 1
Data Cable (USB-C) 1
Calibration Plate 1
Quick Start Guide & Warranty Card 1 set
