🟢authorized PARTNER

SKU:KT-CP0150

LulzBot HE Tool Head | Hardened Steel | 0.5 mm KT-CP0150

LulzBot HE Tool Head | Hardened Steel | 0.5 mm KT-CP0150

Regular price $345.00 USD
Regular price Sale price $345.00 USD
Sale Sold out

In stock

Includes Warranty

30-Day Returns

Unlimited Free Support

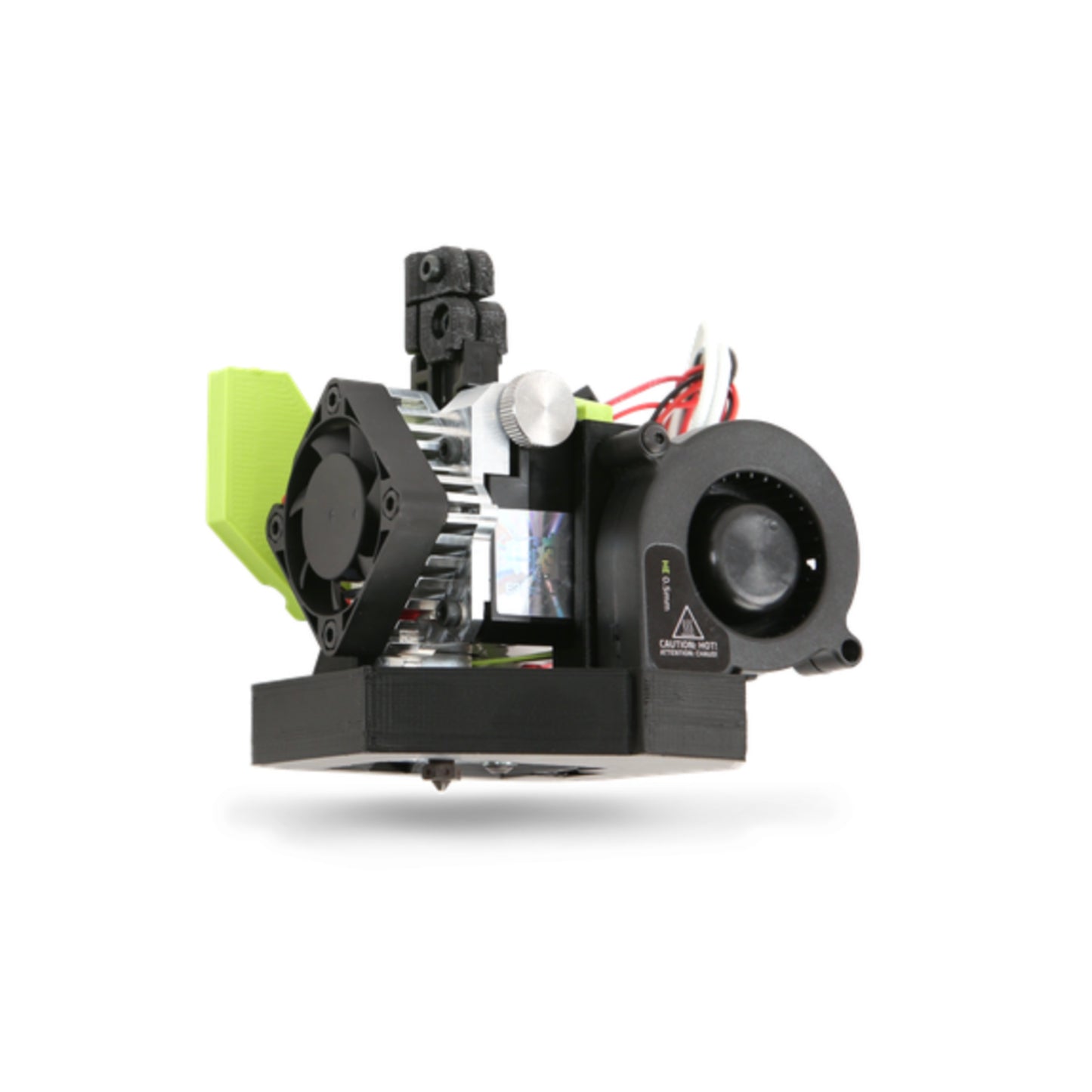

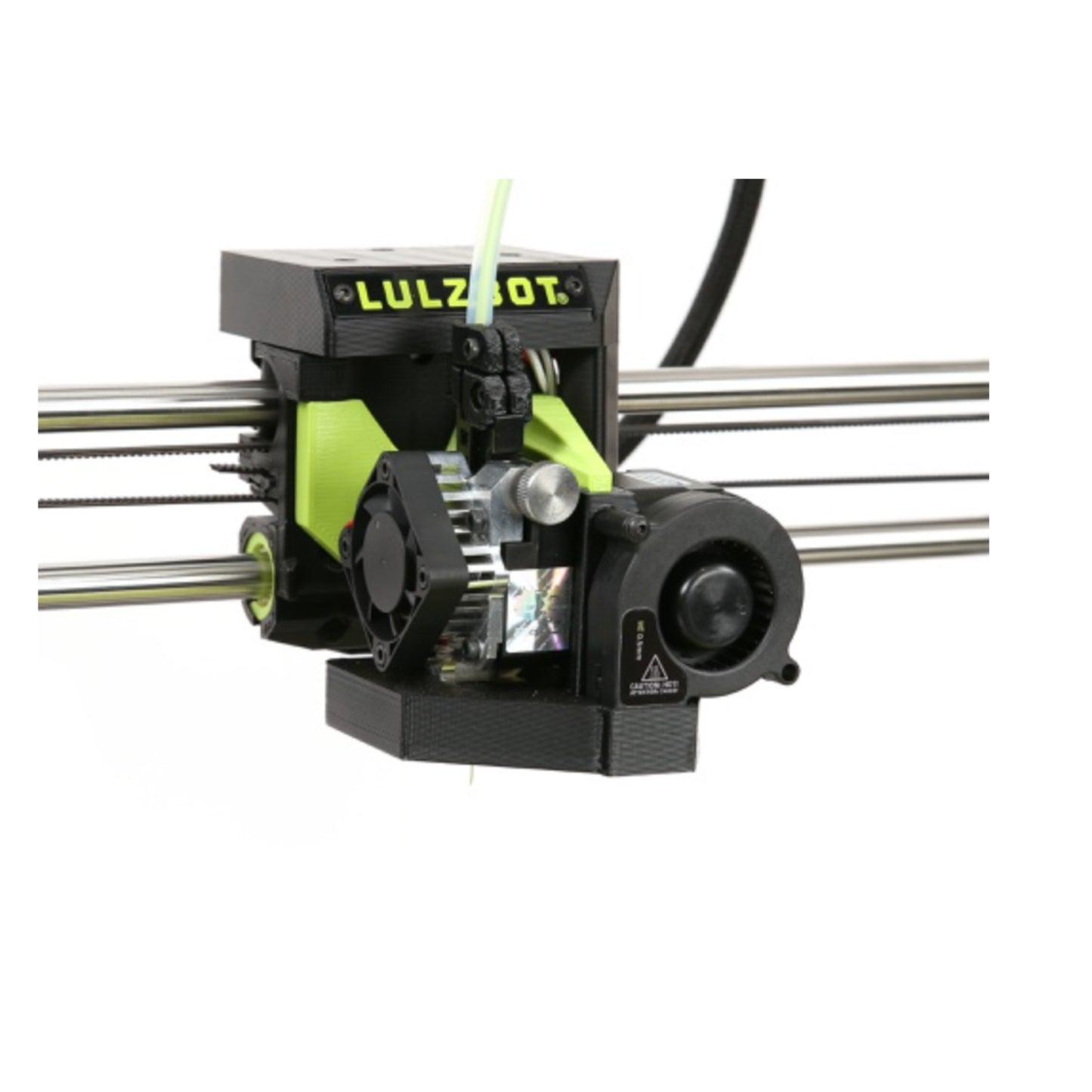

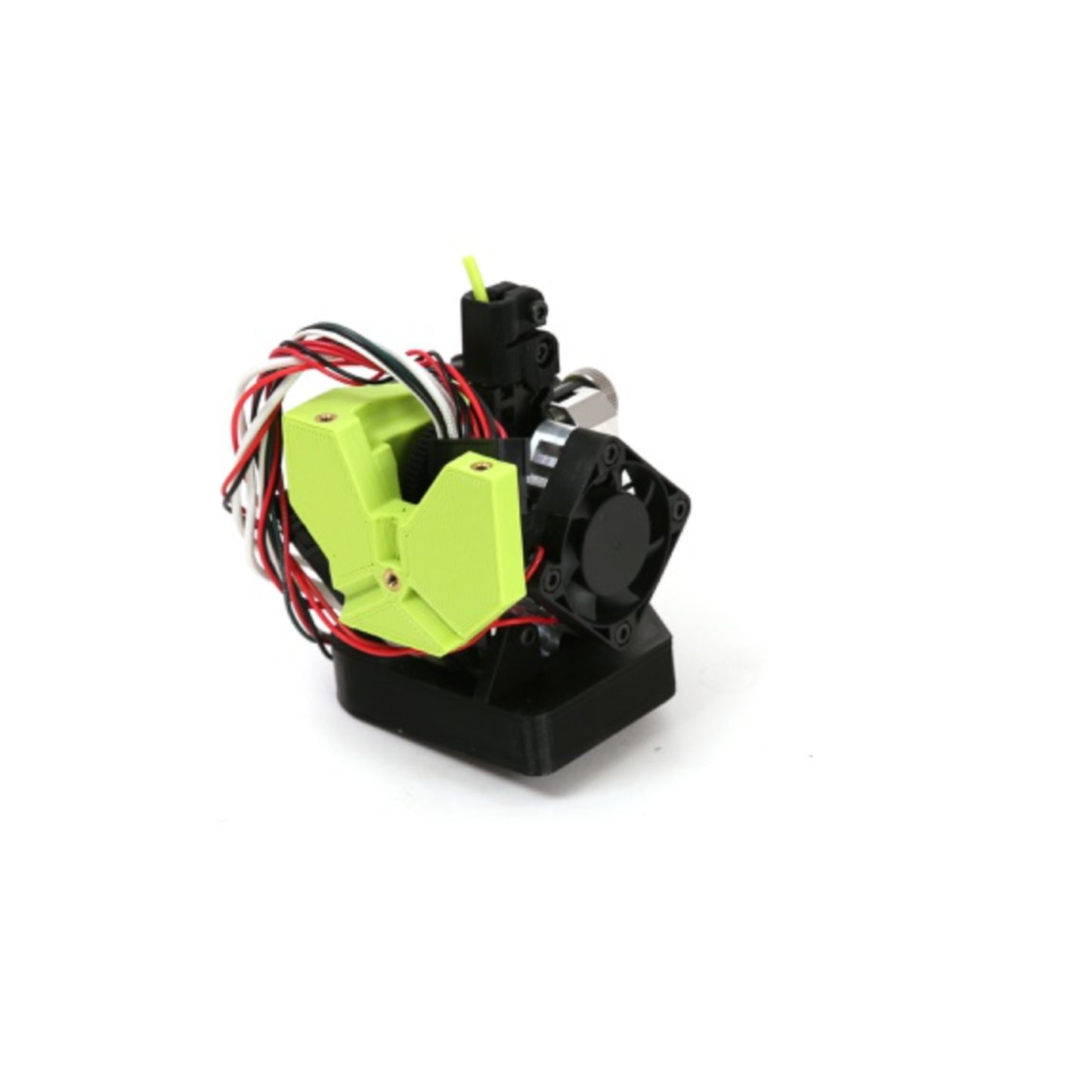

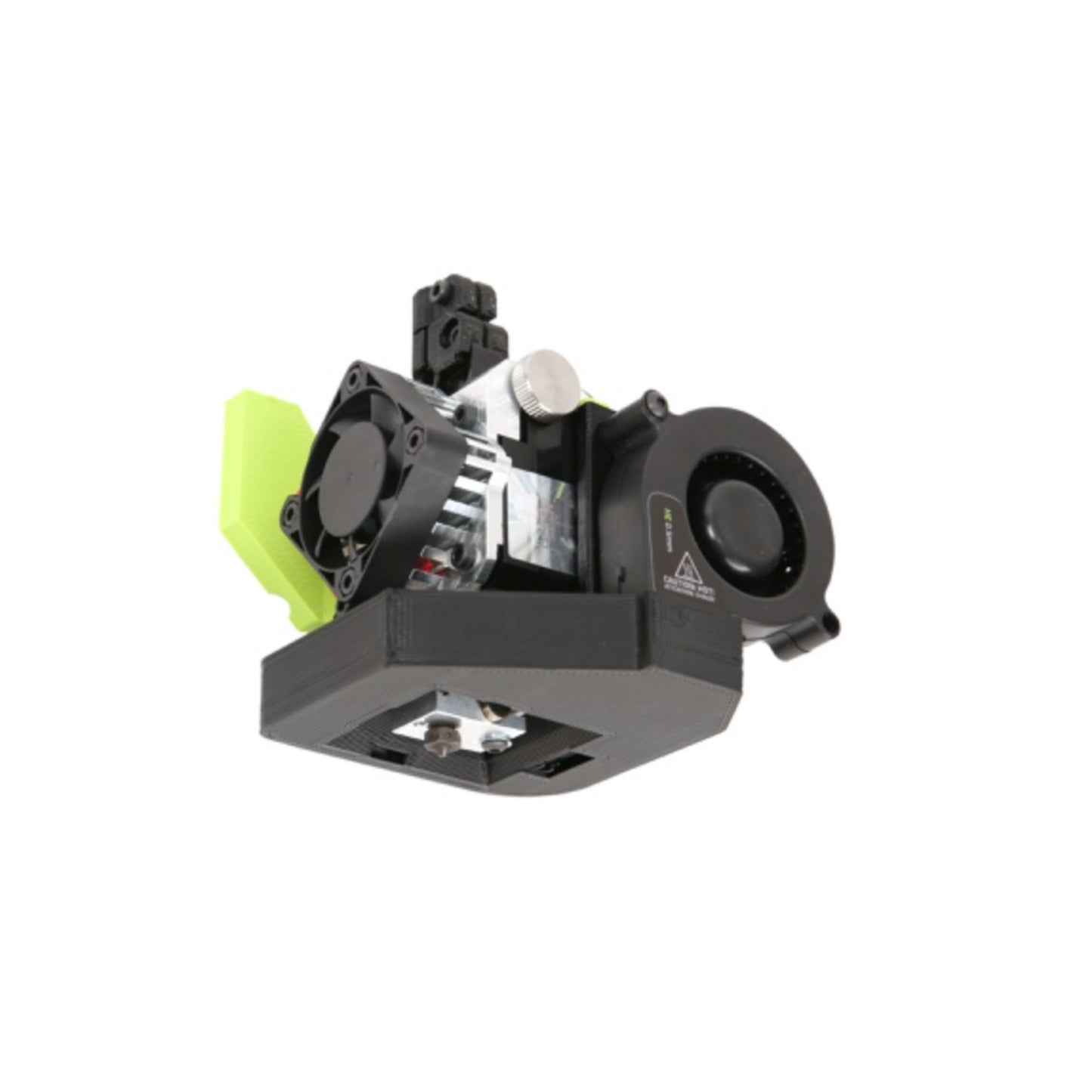

LulzBot HE Tool Head - Industrial-Strength 3D Printing Performance

Introducing the LulzBot HE Tool Head, designed for high-performance 3D printing with a hardened steel nozzle and extruder hobb. This robust extruder head excels in printing high-strength composite polymers comparable to PEEK, boasting a tensile strength of 15,200 psi (ASTM638). Ideal for demanding applications, these polymers are perfect for structural components and the automotive industry.

Parts produced with these advanced composites offer superior impact resistance and deformation stability while maintaining their strength in challenging environments. Industrial materials such as PA-CF Low Warp provide exceptional strength and dimensional stability (less than 2% elongation at break - ASTM638) and can withstand operating temperatures up to approximately 120° C (248° F).

The LulzBot HE Tool Head allows you to create durable parts with a professional finish. Engineered to manage the toughest materials, it is compatible with a wide range of filaments, from soft and flexible TPE to resilient carbon fiber reinforced options. Upgrade your 3D printing capabilities with the LulzBot HE Tool Head for industrial-strength results.

Specs

Extruder Type Single Extruder, Legacy
Filament Diameter 2.85mm
Maximum Flow Rate Test Data Unavailable
Flow Testing Test Data Unavailable
Nozzle Diameter 0.5mm Hardened Steel
Nozzle Layer Height Range 0.18mm (180 microns) to 0.38mm (380 microns)
Nozzle Swapping Not Supported
Swappable Layer Height Range Not Supported
Maximum Hot End Temperature 290°C (554°F) - Firmware Limited
Compatible Filaments PLA, TPU, ABS, PETg, PVB, Nylon, PC, and others below 290°C
Filament Tension Method Adjustable via Knob, Spring Loaded Idler
Extruder Drive Type Direct-Drive, Gear & Idler
Extruder E-Steps 420 steps/mm
Leveling System Compatibility Automatic 5V Circuit, Automatic BLTouch
PTFE Guide Tube Attachment 3D Printed Clamp
Tool Head Weight 491g (17.3oz)
Tool Head Warranty 90-Days
Country of Origin USA


Construction Materials

Nozzle Material Hardened Steel
Heater Block Material Aluminum, V6 Configuration
Heat Break Material Stainless Steel
Fan Shroud and Mount Material Polymaker ABS
Cold Block and Heat Sink Material Aluminum
Drive Gear Material Plastic Drive and Hardened Steel Hobb
Extruder Motor Size 34mm, 1.8° NEMA 17 Stepper
Heater Cartridge 24V, 40W
Temperature Sensor 100k Semitec NTC Thermistor
Part Cooling Fan 24V DC Centrifugal Blower
Heat Sink Fan 5V DC Axial Fan



Compatible Printers

TAZ SideKick SideKick 289, SideKick 747
Mini Platform Mini 1(with Adapter), Mini 2
TAZ Workhorse TAZ 6(with Adapter), Workhorse, Workhorse+
TAZ Pro Platform Pro, Pro S, Pro XT

Filament Tension Settings
