LulzBot TAZ Dual Extruder V3.1 Tool Head KT-CP0162

LulzBot TAZ Dual Extruder V3.1 Tool Head KT-CP0162

Regular price $495.00 USD
Regular price Sale price $495.00 USD
Sale Sold out

In stock

Includes Warranty

30-Day Returns

Unlimited Free Support

LulzBot TAZ Dual Extruder v3.1

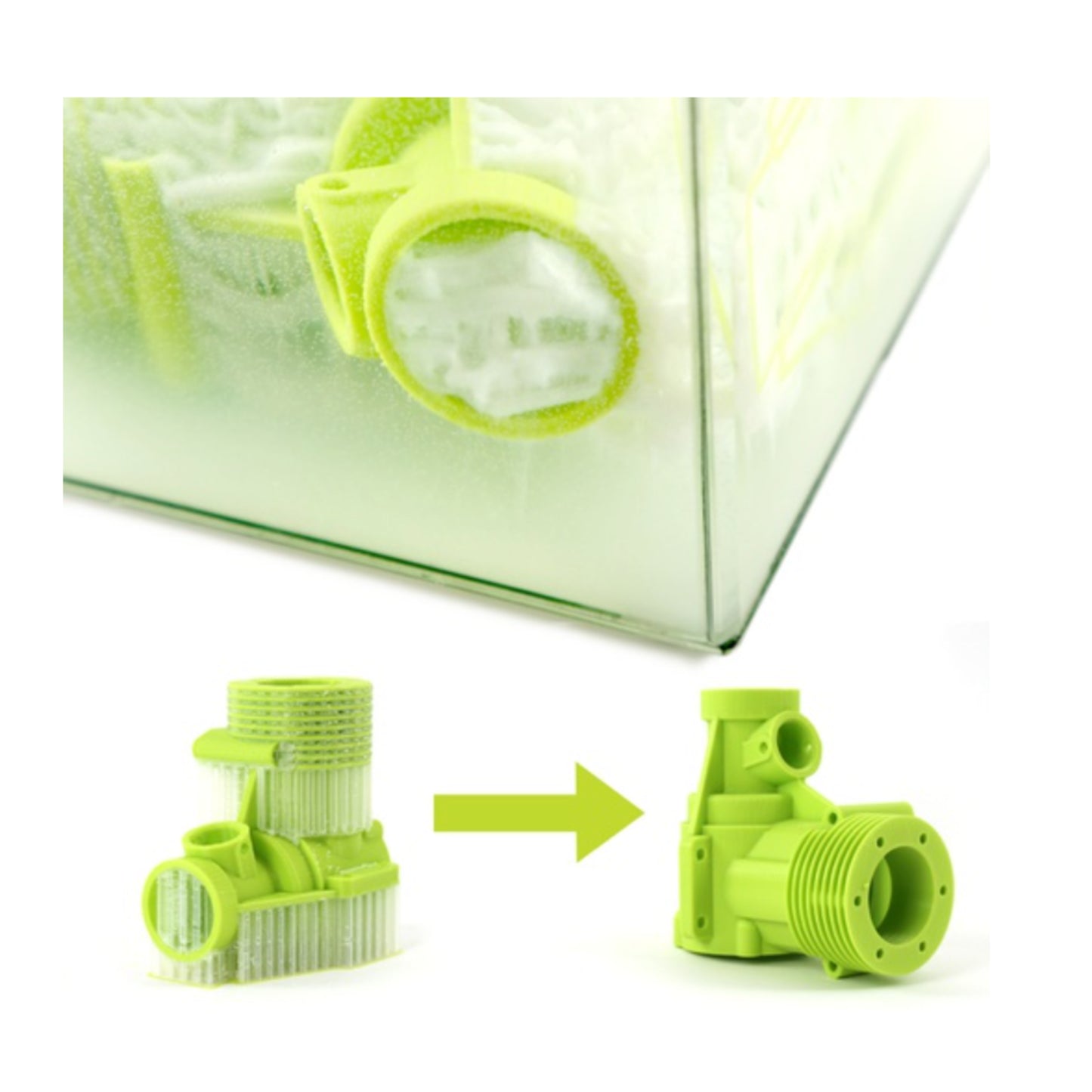

The LulzBot TAZ Dual Extruder v3.1 has been meticulously re-engineered to enhance airflow at the heat sink, ensuring greater efficiency during 3D printing. This advanced dual extruder is designed to tackle complex geometries that typically require the tedious removal of same-material supports, which often risks damaging your print and leaves imperfections on the bottom surfaces. With the ability to use water-soluble supports like PVA, you can let water do the work, resulting in clean and precise bottom surfaces.

Key Features:

- Unibody Heatsink and Redesigned Fan Mount: The Dual Extruder v3.1 features a streamlined design with two hot ends co-developed with E3D, known for their high-quality all-metal hot ends. This precision engineering brings the hot ends closer together, eliminating the need for nozzle leveling or offset calibration.
- Ease of Use: Installation is a breeze—just mount the tool head and accessories, quickly flash the firmware with Cura LulzBot Edition, and start printing.
- Complete Installation Kit: The Dual Extruder v3.1 comes with everything needed for installation on your LulzBot TAZ 5/6, including an extra-wide wiper pad mount to ensure flawless operation with LulzBot's self-cleaning and self-leveling technology.

Designed for Soluble Supports

The Dual Extruder v3.1 is ideal for 3D printing with soluble support materials, a feature highly sought after by LulzBot users for its design freedom and efficiency in creating rapid prototypes. Soluble supports allow for more intricate designs and higher-quality prints.

FAQ

Can the LulzBot TAZ Dual Extruder v3.1 print in two colors of the same material?**
- Yes, it can. However, the print profiles in Cura LulzBot Edition are not optimized for multicolor printing. Users may need to modify the included profiles for the best results, starting with the experimental base profiles provided.

Can the LulzBot TAZ Dual Extruder v3.1 print flexible materials?
- Yes, it is capable of printing flexible materials. Our internal tests show that PolyDissolve S1 and PVA adhere well to TPU (flexible filaments), though the profiles have not been fine-tuned for optimal cosmetic results. Flexible material profiles are available in the Experimental section of Cura LulzBot Edition, intended for advanced users to modify.

Can the LulzBot TAZ Dual Extruder v3.1 print solid and flexible materials together?
- Yes, it can. The hardware supports printing solid and flexible materials together, but the profiles need further optimization for reliability and cosmetic results. These profiles are available in the Experimental section of Cura LulzBot Edition, and advanced users can use them as a starting point for customization.

Experience the enhanced performance and versatility of the LulzBot TAZ Dual Extruder v3.1, designed to meet the demands of complex 3D printing projects with ease and precision.

Specs

Specification Details
Required Filament Diameter 2.85mm diameter
Hot End Temperature Range 120°C - 300°C
Nozzle Diameters 0.5mm
Required Power System 24 Volts
Fans - Two 24V 40mm axial fans for extrusion cooling
- One 5V 40mm axial fan for heat-sink cooling
Weight 0.96 kg (2.11 lbs)
Heater Cartridge 24V 40W

Parts Included

Component Quantity
LulzBot TAZ Dual Extruder Tool Head v3.1 (Fully Assembled) 1
3D Printed Z-axis endstop extension mount (for TAZ 6) 1
Machined Z-axis endstop extension (for TAZ 6) 1
Dual v3 wiper mount 1
Additional spool arm 1
Feed tube spinner 1
T-nut holder jig 1
Idler jig 1
Wire tie 4
Extruder wiring harness for second extruder 1
M5 washer (Black) 1
M5 x 14 mm socket head cap screw 1
Filament Feed tube 1

Note: The Z-axis Toggle Extension and Mount should only be used on a TAZ 6 with the Dual Extruder v3.1 Tool Head. Leaving this extension on the printer and using it with other tool heads will cause failed probes due to the higher registered minimum position
