Raise3D DF2+ Complete Package DLP 3D Printer BUNDLE-DF2P Series-000009

Raise3D DF2+ Complete Package DLP 3D Printer BUNDLE-DF2P Series-000009

Regular price $7,499.00 USD
Regular price Sale price $7,499.00 USD
Sale Sold out

Includes Warranty

30-Day Returns

Unlimited Free Support

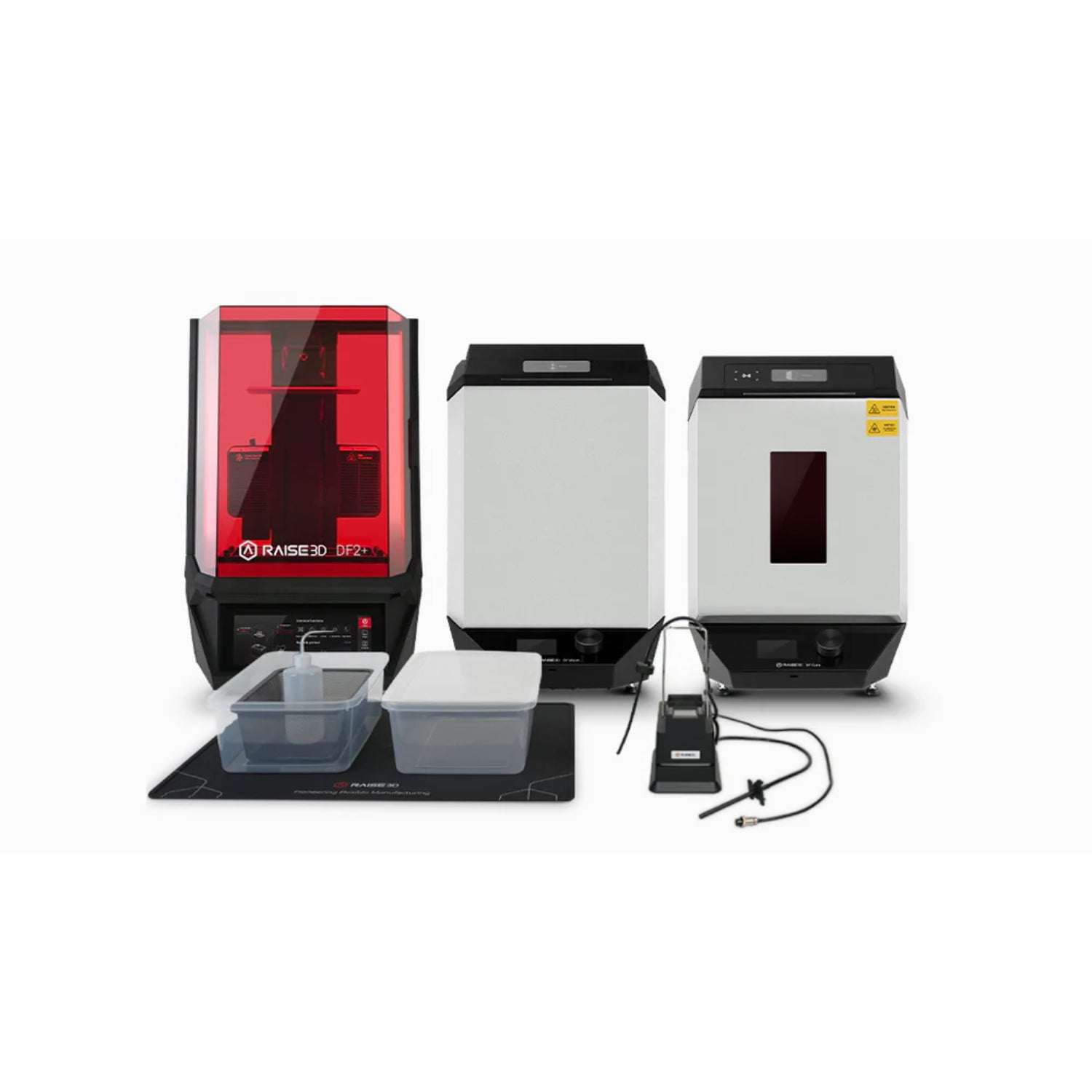

Raise3D DF2+ Complete Package

End-to-End Industrial DLP Resin 3D Printing Solution

The Raise3D DF2+ Complete Package is a fully integrated true DLP resin 3D printing ecosystem, designed for high-precision prototyping, production-grade parts, and scalable manufacturing workflows.
By combining the DF2+ printer, DF Wash, and DF Cure, this package delivers a traceable, RFID-enabled, end-to-end production loop—from printing to post-processing.

Built for engineering teams, manufacturers, and service bureaus, the DF2+ Complete Package maximizes accuracy, repeatability, and throughput while reducing manual handling and human error.


True DLP Precision, Faster Prints, Traceable Workflow

The DF2+ builds upon the proven DF2 platform with enhanced optical performance, higher printing speed, and broader material compatibility, making it ideal for advanced manufacturing.

Performance Enhancements

  • 20% increase in printing speed

  • Doubled light source intensity for faster curing

  • Enhanced optical system for sharper feature reproduction

  • Optimized HTF film for long-term reliability and consistency

With print speeds up to 100 mm/h, teams can iterate multiple designs within the same day.


Open Material Platform (OMP) – Maximum Resin Flexibility

The Open Material Platform (OMP) allows full control over material selection and process optimization.

OMP Advantages

  • Free access to OMP

  • Print Raise3D, Henkel, and Forward AM resins in-house

  • Tune parameters for application-specific performance

  • Reduce outsourcing costs

  • Expand material innovation opportunities

Supported materials include high-impact, high-temperature, fire-retardant, ESD-safe, and bio-compatible resins.


RFID-Enabled End-to-End Ecosystem

The DF2+ Complete Package integrates RFID technology across printing, washing, and curing to ensure consistent and repeatable results.

Smart Production Features

  • RFID resin verification before printing

  • Automatic parameter synchronization between DF2+, DF Wash, and DF Cure

  • Real-time ultrasonic resin level detection

  • Reduced setup errors and batch inconsistencies

This creates a scalable, production-ready workflow suitable for continuous operation.


Industrial-Grade Optical & Mechanical Design

Optical System

  • Texas Instruments Industrial-Grade DMD chips

  • High-transparency HTF film

  • Optical glass from Schott Germany

  • Reduced light loss and dispersion for sharper layers

Mechanical Stability

  • High-load Z-axis with 200 kg load capacity

  • High movement accuracy with zero layer shifting

  • Factory-calibrated leveling


Air-Peel Technology for Reliable Printing

Air-Peel technology reduces peeling force from 50 kg to 10 kg, improving layer separation and minimizing print failures—especially critical for large or high-detail parts.


Streamlined Resin Management & Post-Processing

  • Auto resin refill system

  • Ultrasonic liquid level monitoring

  • Assisted resin tank cleanup

  • DF Wash automatic drainage with waste container

  • DF Cure high-temperature curing up to 120 °C

This minimizes operator contact with uncured resin and improves shop safety.


ideaMaker Software – Production-Focused DLP Tools

ideaMaker is optimized specifically for DF2 & DF2+ workflows:

  • Antialiasing

  • Auto supports & auto orientation

  • Auto cross-section analysis

  • Suction cup detection

  • Hollowing & drainage holes

  • Texture generation

  • Smaller G-code sizes

Magic Layout Touch Interface

  • 10.25-inch touchscreen

  • Adjust layouts and duplicate prints directly on the printer

  • Automatic pre-print inspection for resin type, platform installation, feeding station status, and resin margins


Industrial Applications

Functional Prototyping

High-accuracy prototypes that replicate mechanical, thermal, and chemical properties for design validation.

End-Use Parts

Durable, high-precision components used in automotive, aerospace, medical, electronics, and consumer goods.

Jigs & Fixtures

Wear-resistant tooling designed for repeated industrial use.


DF2+ Technical Specifications

Printer Specifications

Specification Details
Print Technology Digital Light Printing (DLP)
Build Volume 200 × 112 × 300 mm
Max Printing Speed Up to 100 mm/h
Typical Printing Speed 50–60 mm/h
XY Resolution 2560 × 1440
Layer Height 50–200 microns
Chamber Heating Up to 40 °C

DF Wash Specifications

Feature Details
Washing Tank Volume 14 L
Max Wash Size 200 × 112 × 300 mm
Compatible Solvents IPA, TPM
Washing Method Twin-Turbo + Hand-Wash Simulation
Drying Dual-Fan Air Drying
Drainage Automatic with Waste Container
Wash Profiles RFID Auto or Manual

DF Cure Specifications

Feature Details
Max Curing Size Ø 230 × 300 mm
Light Source LED 365 / 385 / 405 nm
Max Heating Temp 120 °C
Cure Profiles RFID Auto or Manual

Included in the Purchase

Item Description

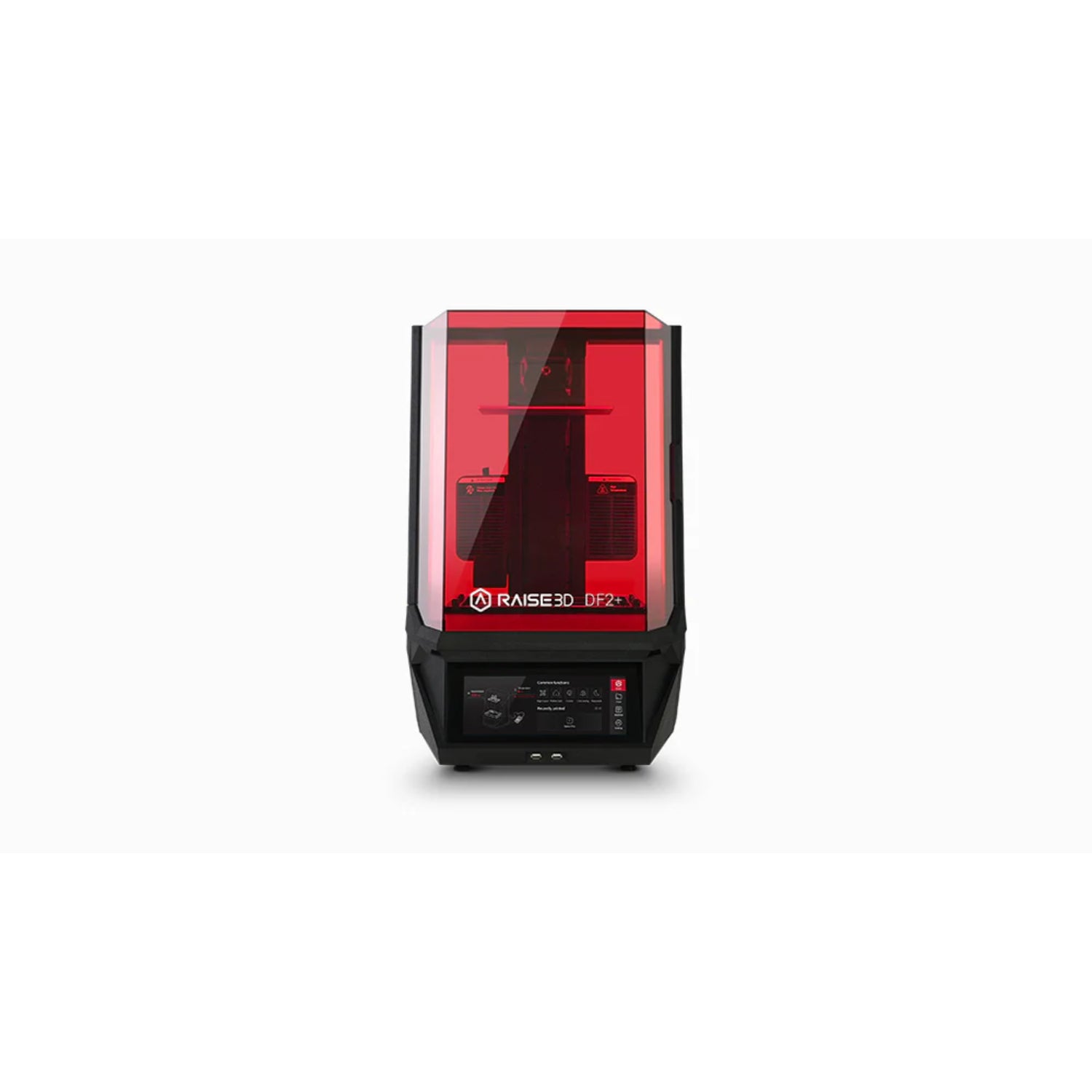

Raise3D DF2+ DLP 3D Printer Includes resin tank and Smart Build Plate

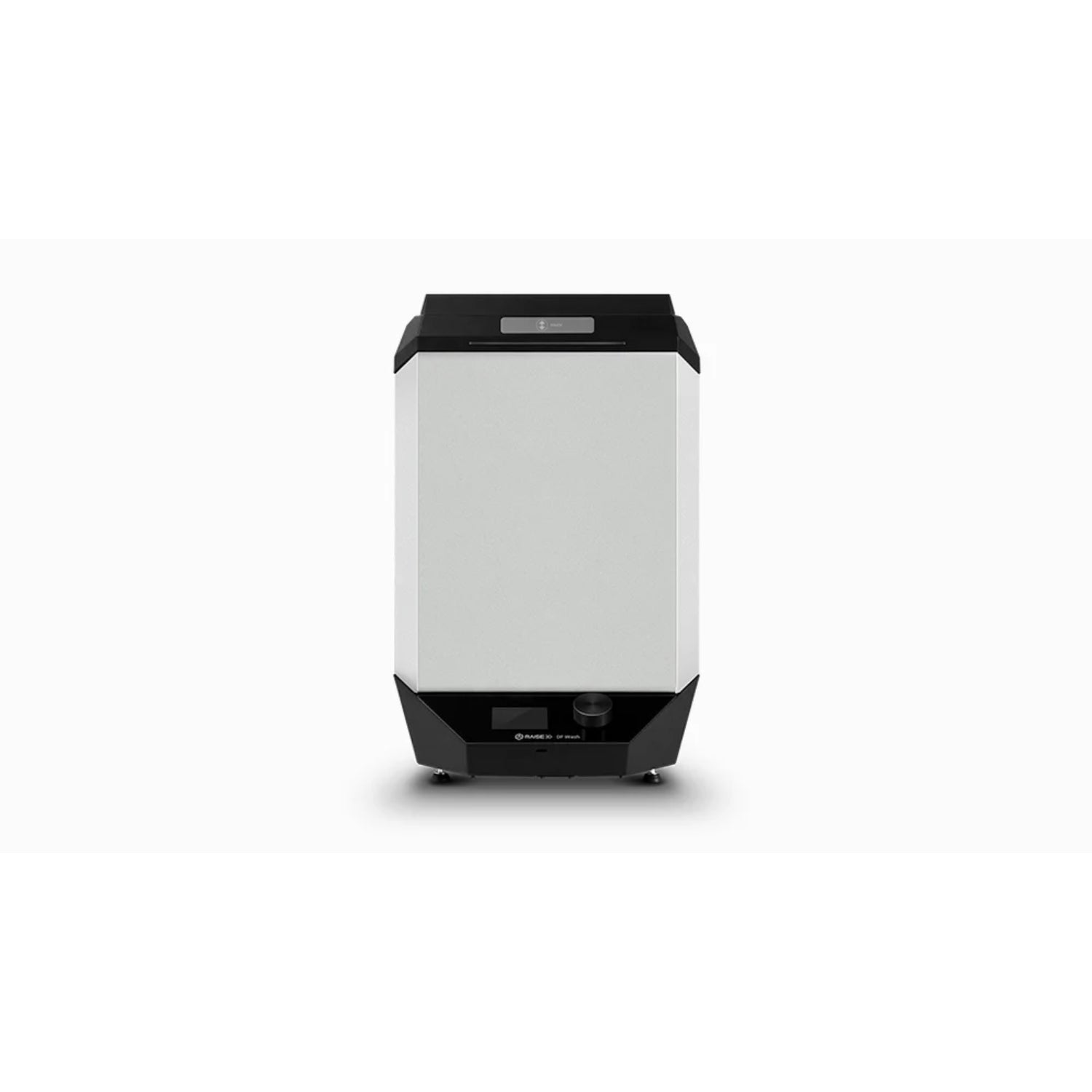

Raise3D DF Wash Automated washing system with RFID profiles

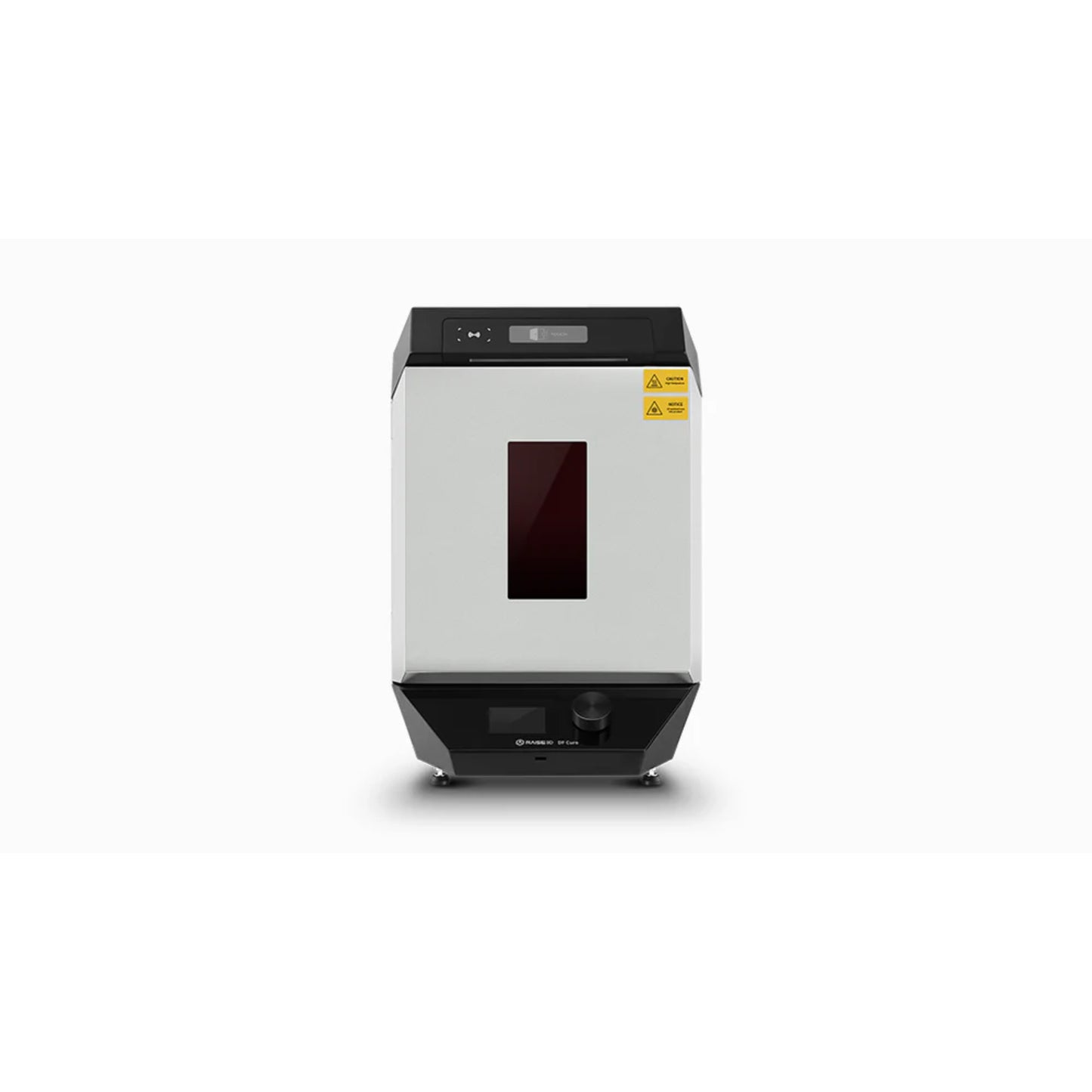

Raise3D DF Cure High-temperature UV curing system with RFID profiles
Auto Resin Feeding Station Automatic resin refill and level management
Finish Box Manual resin handling and cleanup support
Waste Container Automated waste solvent collection
Tool Box Setup, maintenance, and servicing tools
ideaMaker Slicing Software Free professional slicing software
Standard Warranty 1-year manufacturer warranty

Note:
Resins are not included and are sold separately. The DF2+ supports Raise3D resins and a wide range of third-party materials via the Open Material Platform (OMP).

Technical Data Sheet

📄 View Raise3D DF2+ Technical Data Sheet

Owner’s Manual

📄 View Raise3D DF2+ User Manual

Standard 1-Year Warranty

📄 View Raise3D DF2 Series 1-Year Warranty
