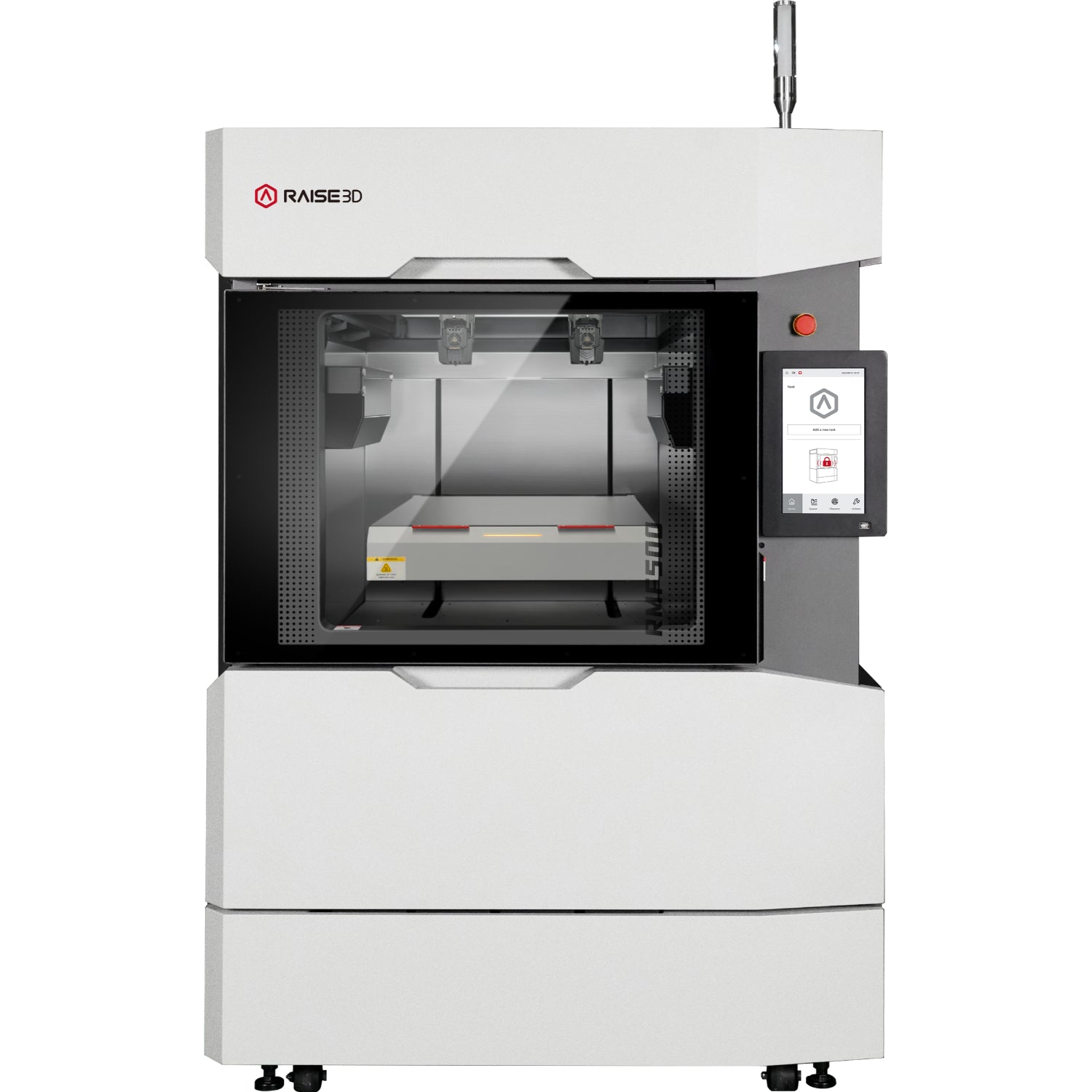

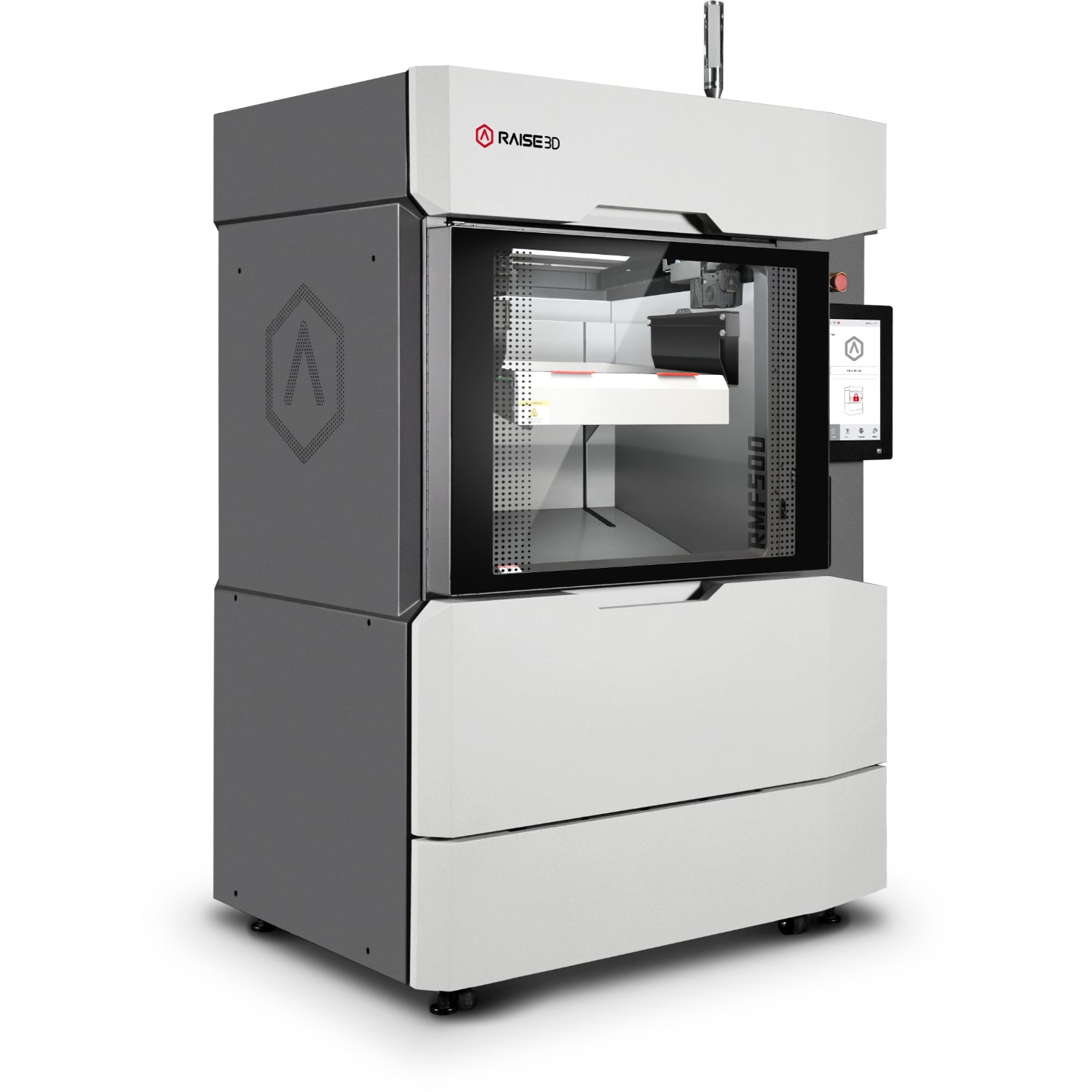

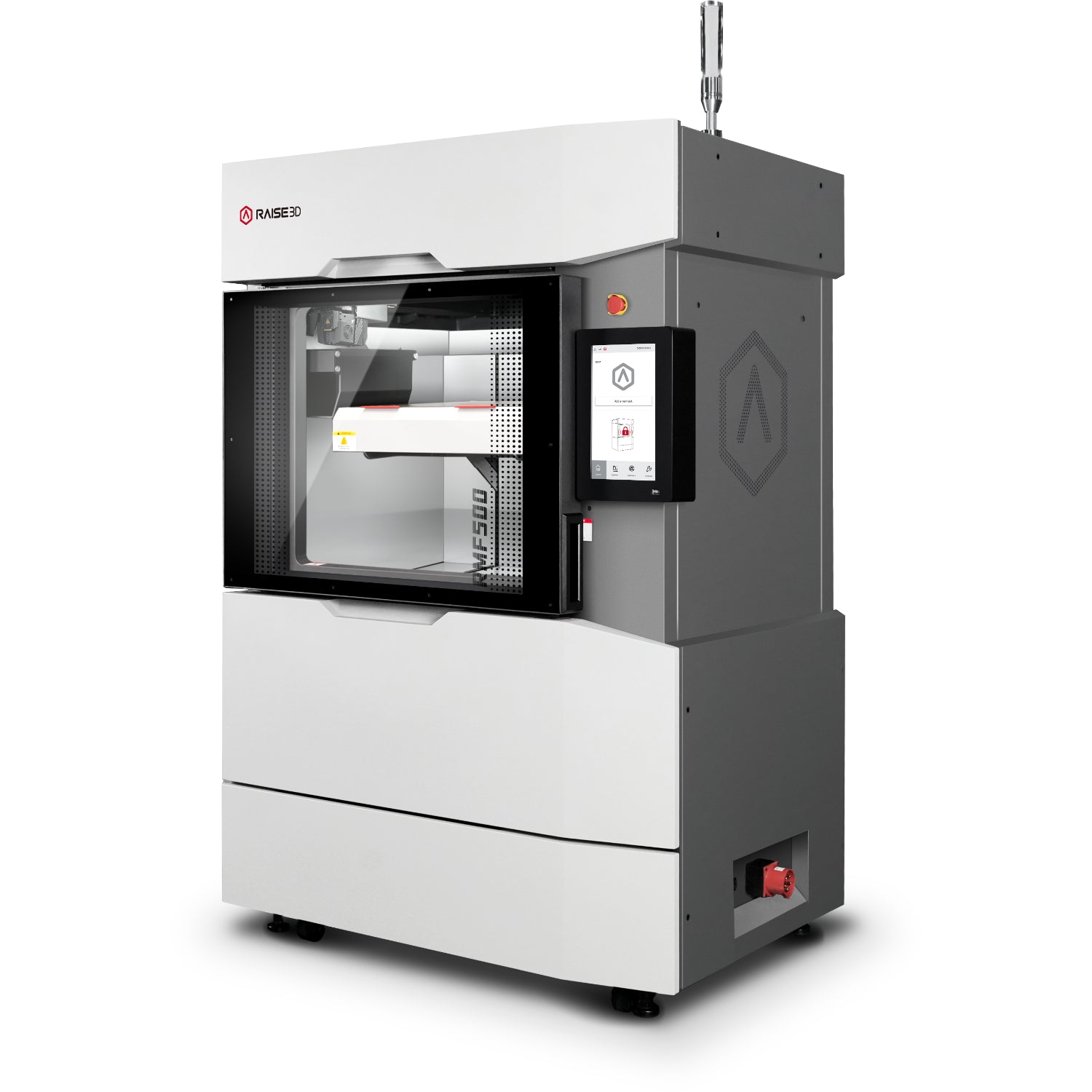

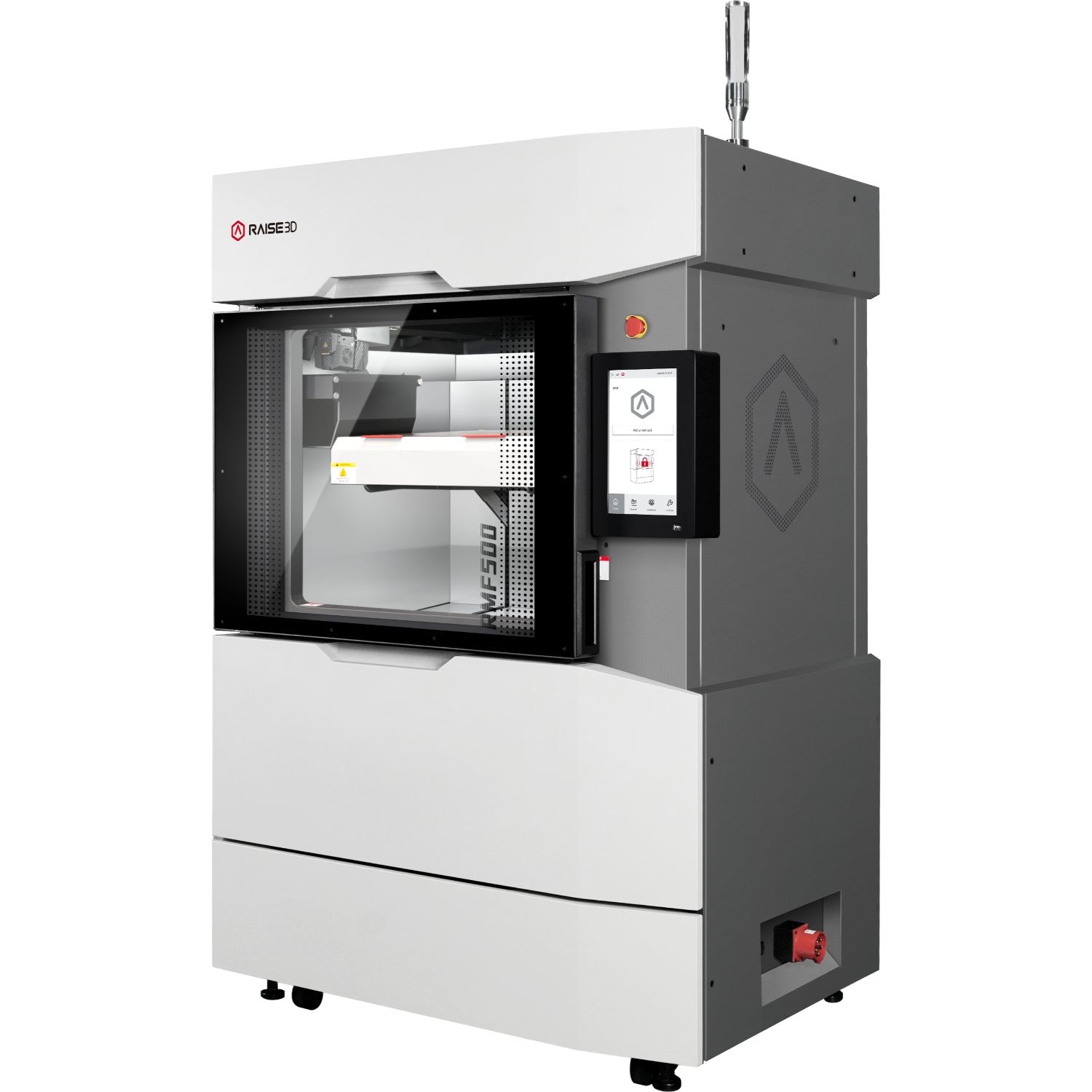

Raise3D RMF500

Large-Volume Industrial Hyper FFF 3D Printer for Uninterrupted Production

The Raise3D RMF500 is a large-format, industrial-grade Hyper FFF 3D printer engineered for continuous manufacturing, high repeatability, and precision production. Built on Raise3D’s deep expertise in FFF motion systems and polymer material science, the RMF500 delivers reliable, high-speed output for demanding industrial environments.

With a 500 × 500 × 500 mm build volume, IDEX extrusion system, and maximum print speeds up to 500 mm/s, the RMF500 is designed for large parts, low-volume production, and small-batch manufacturing—without compromising dimensional accuracy or material performance.

Starting at $69,999.00


Why Choose the Raise3D RMF500

  • Large-volume industrial FFF production

  • High repeatability and precision for end-use parts

  • Designed for uninterrupted 24/7 manufacturing

  • Supports diversified high-performance engineering materials

  • Open filament ecosystem with enterprise-grade control

  • High productivity at a competitive total cost of ownership


A Truly Productive Workhorse with a Large Build Volume

The RMF500 features a 500 × 500 × 500 mm build volume, enabling the production of large functional parts or multiple smaller components in a single run. Powered by Hyper FFF technology and Independent Dual Electric Nozzles, the system delivers outstanding throughput for industrial applications.

  • Maximum linear speed: 500 mm/s*

  • Maximum acceleration: 15,000 mm/s²*

  • Up to 2× faster than typical industrial FFF printers

*Test data from Raise3D Lab.


Engineered for High Reliability and Precision

Designed for round-the-clock industrial operation, the RMF500 incorporates a rigid mechanical platform and advanced motion control to maintain precision even at high speeds.

Industrial Motion System

  • Closed-loop linear motor drive system

  • XYZ positioning resolution: 1 μm / 1 μm / 0.09765 μm

  • Closed-loop control ensures positional accuracy under load and environmental variation

  • Precise positioning down to 10 μm, even during long production cycles

All-Steel Structural Frame

  • Minimizes vibration at high acceleration

  • Ensures dimensional stability and consistent layer accuracy

  • Built for continuous industrial workloads

High-Load Z-Axis

  • Supports over 100 kg load capacity

  • Deflection error 50% lower than market average

  • Maintains stable Z-axis motion for large and heavy parts


Designed for Uninterrupted High Productivity

The RMF500 is optimized for continuous manufacturing with minimal operator intervention.

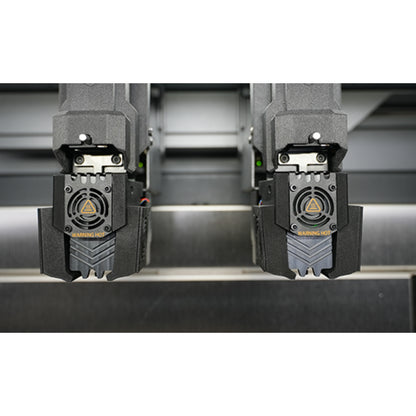

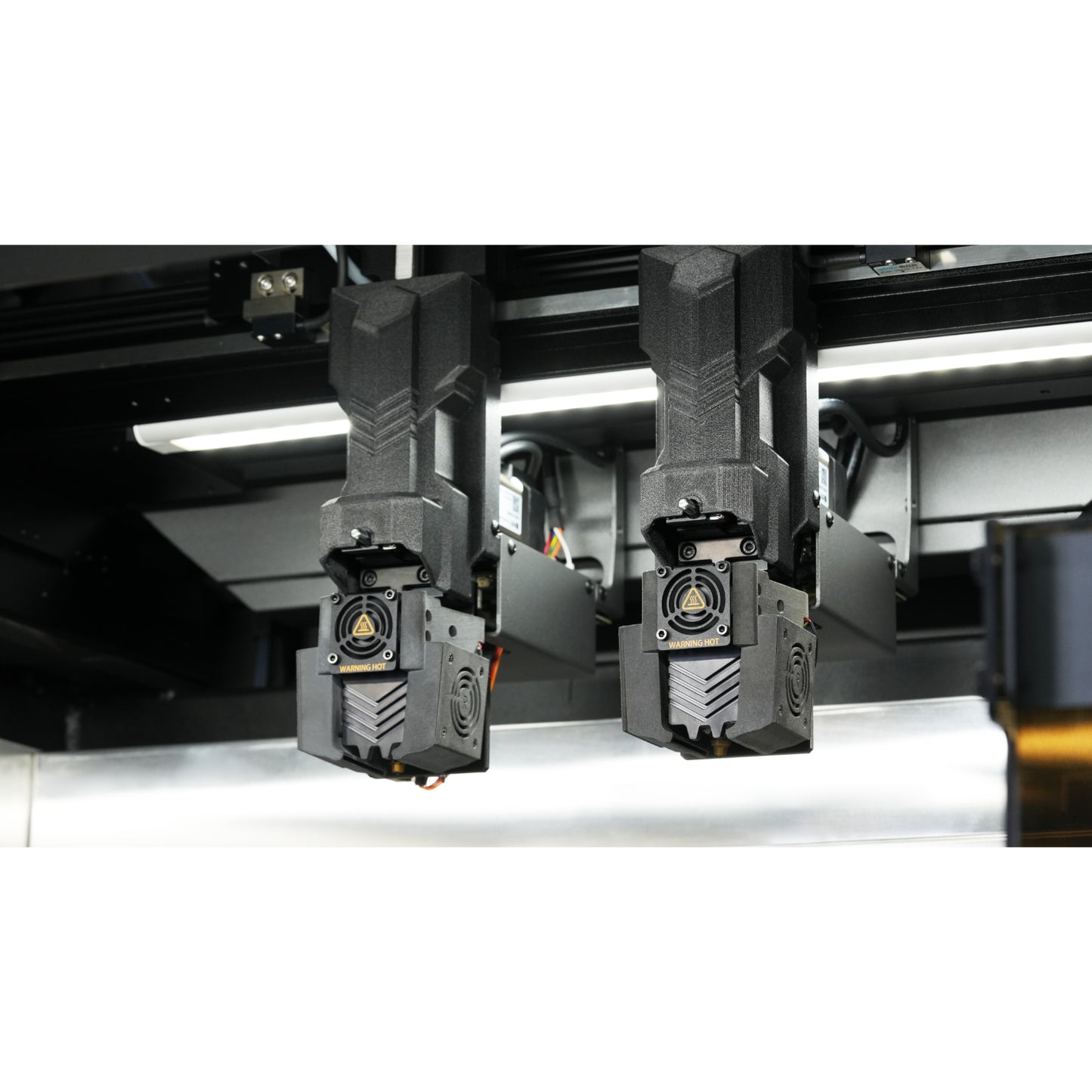

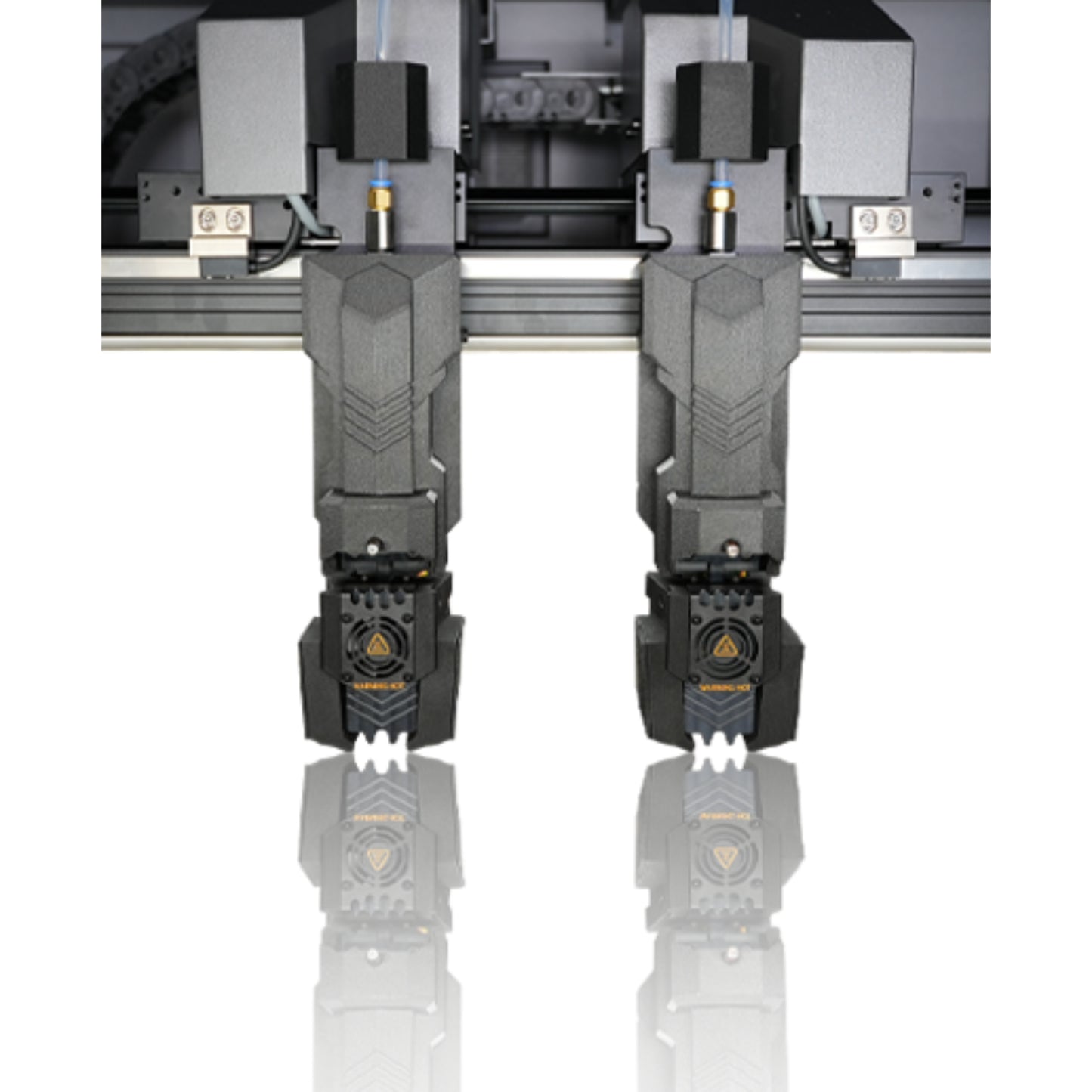

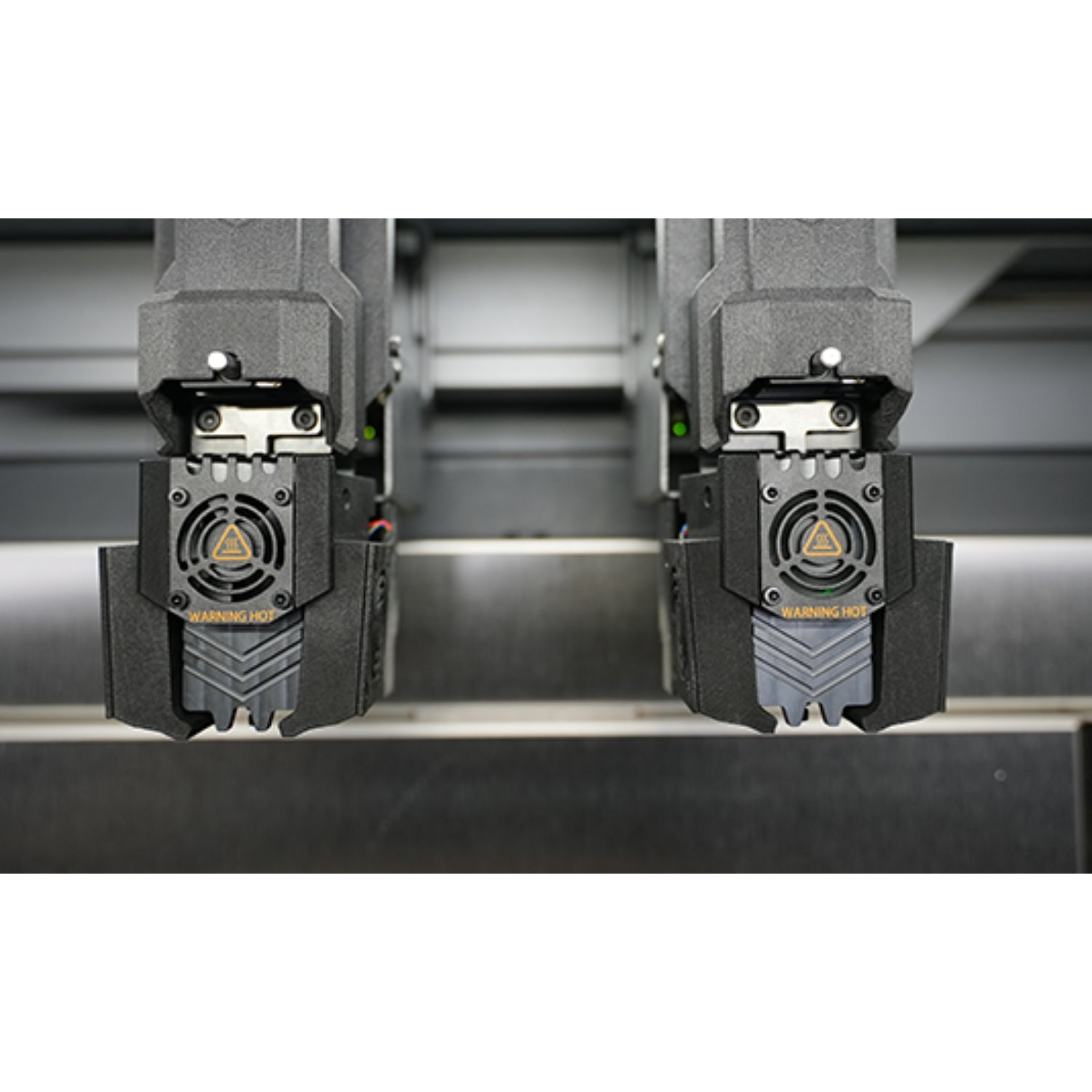

IDEX – Independent Dual Extruders

  • Duplicate and mirror printing modes

  • Simultaneous dual-material printing

  • Increased throughput and production efficiency

4 × 2.5 kg Filament Capacity

  • Supports 24/7 production

  • Enables up to one full work week (5 days) of continuous operation

  • Reduces downtime caused by material changes

Intelligent Filament Management

  • Automatic filament run-out detection

  • 2-in-1 automatic filament switching (primary → backup)

  • Integrated filament dry storage bags for moisture control


High-Performance Extrusion System

  • Gear ratio: 4.65

  • Extrusion motor: 65 W

  • Extrusion force: up to 120 N

  • Compatible with rigid and flexible filaments

  • Dual cooling fans for rapid solidification

  • Silicon carbide nozzles reduce wear and maintain dimensional accuracy over long runs


More Open, More Flexible, More Capable

Open Filament Program (OFP)

The RMF500 supports Raise3D’s Open Filament Program, allowing manufacturers to:

  • Use approved third-party industrial filaments

  • Customize slicing profiles and parameters

  • Optimize performance for application-specific materials

Paired with ideaMaker, users gain full control over process tuning, material profiles, and production optimization.


Smart Automation for Operator Efficiency

  • Automatic nozzle wiping removes excess material before printing

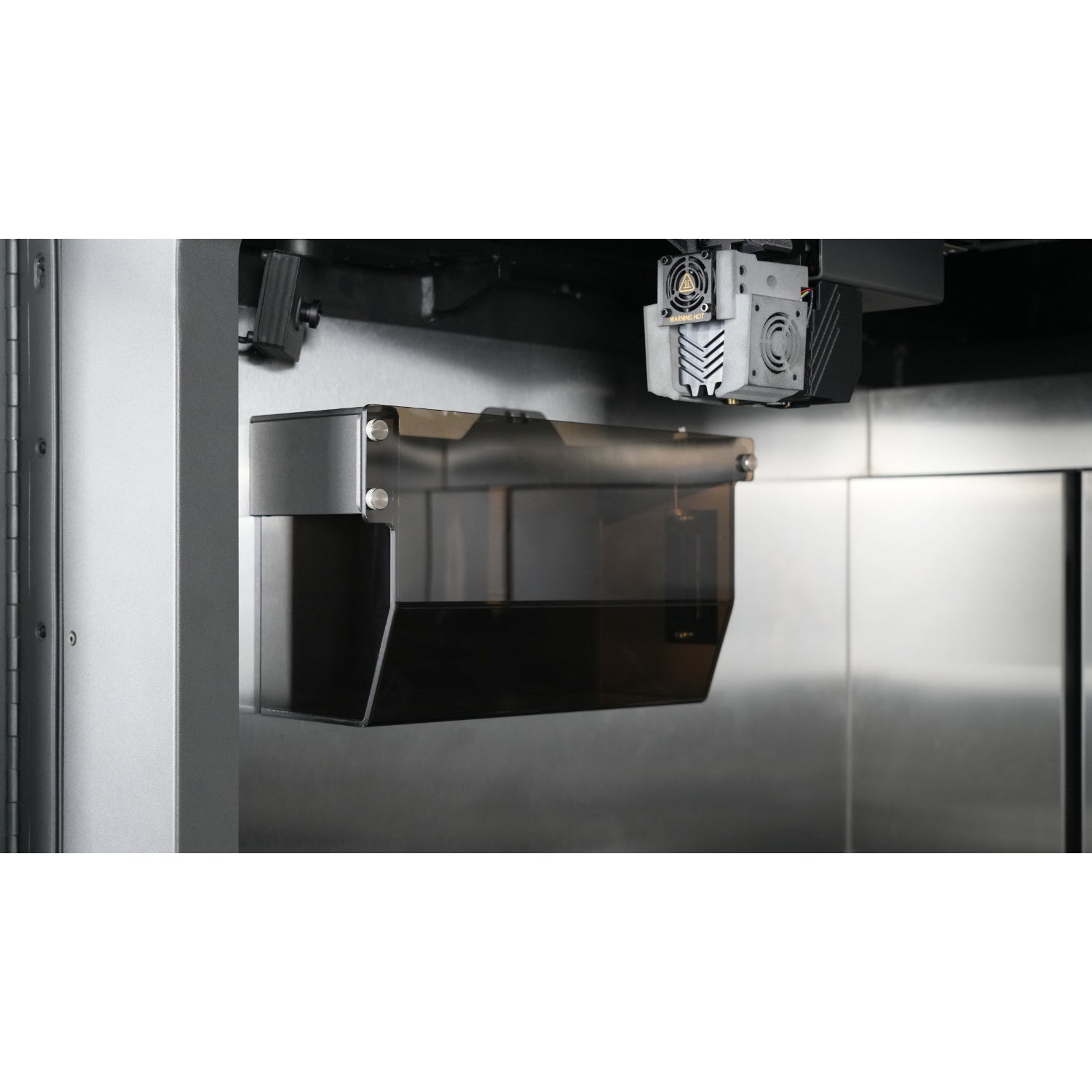

  • Waste material is collected in a dedicated waste box

  • Reduces manual intervention and improves print consistency

Magnetic Printing Platform

  • Easy part removal

  • No residue after cleaning

  • Longer lifespan compared to traditional PEI sheets


Supported High-Performance Engineering Materials

The RMF500 is designed to handle a wide range of industrial thermoplastics, supporting applications across:

  • Manufacturing tooling

  • Jigs & fixtures

  • End-use functional parts

  • Low-volume production components

(Exact filament compatibility depends on extrusion configuration and material profile settings.)


Technical Specifications

Specification Details
Machine Size (W × D × H) 1340 × 990 × 2370 mm
Build Volume 500 × 500 × 500 mm
Printing Speed ≤ 500 mm/s
Acceleration ≤ 15,000 mm/s²
XYZ Positioning Resolution 1 μm / 1 μm / 0.09765 μm
Extrusion System IDEX (Independent Dual Extruders)
Max Nozzle Temperature 330 °C
Max Build Plate Temperature 110 °C
Frame Structure All-steel industrial frame
Z-Axis Load Capacity > 100 kg
Filament Capacity 4 × 2.5 kg
Filament Management Auto switching, run-out detection, dry storage
Platform Type Magnetic build platform
