SKU:BUNDLE-RMS-000002

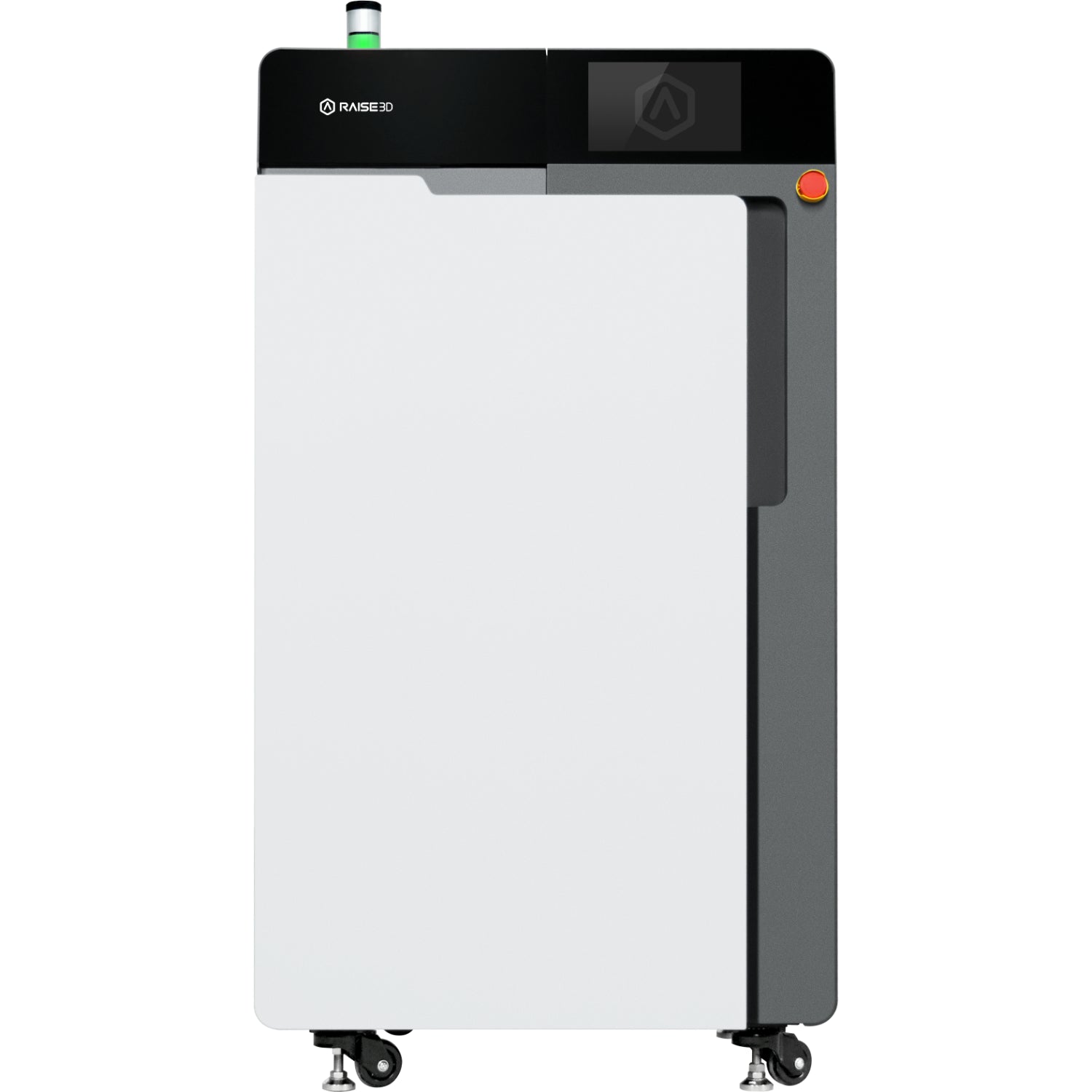

Raise3D RMS220 Series Standard Package SLS 3D Printer BUNDLE-RMS-000002

Raise3D RMS220 Series Standard Package SLS 3D Printer BUNDLE-RMS-000002

Regular price $39,998.00 USD
Regular price Sale price $39,998.00 USD
Sale Sold out

In stock

Includes Warranty

30-Day Returns

Unlimited Free Support

Raise3D RMS220 Series Standard Package

Industrial SLS 3D Printing for Scalable Production

The Raise3D RMS220 Series Standard Package is an industrial-grade Selective Laser Sintering (SLS) production system engineered for high throughput, dimensional stability, and simplified operation. Designed for engineering teams and manufacturers, the RMS220 enables efficient production of end-use parts, functional prototypes, and small-to-medium batch manufacturing using engineering thermoplastics and elastomers.

With a maximum output of up to 5 kg/day, a compact footprint, and an integrated production ecosystem, the RMS220 delivers low total cost of ownership (TCO) without compromising industrial performance.


Rapid Manufacturing, Simplified

The RMS220 Series is optimized for productivity, stability, and ease of maintenance, enabling reliable high-speed printing of engineering plastics and composite materials.

  • Maximum throughput: up to 5 kg/day

  • High nesting efficiency for batch production

  • Consistent and repeatable part quality

(Based on PA12 material, standard parameters, and 20% packing density by weight)


Low TCO & High Output

By combining high output, fast turnaround, and a space-efficient design, the RMS220 offers an ideal balance of performance and operating cost.

4-Zone Self-Calibrating IR Heating

  • Maintains uniform powder temperature across the build area

  • Prevents warping and dimensional deformation

  • Ensures consistent results throughout the build volume


High-Efficiency Batch Production

  • Build volume: 220 × 220 × 350 mm (17 L)

  • Supports multi-part nesting and parallel production

  • Ideal for continuous production environments

This enables manufacturers to move seamlessly from prototyping to functional and end-use part production.


High-Precision SLS Printing

The RMS220 delivers excellent surface quality and dimensional accuracy for demanding SLS applications.

  • Minimum thin-wall thickness: 0.5 mm*

  • Fine feature reproduction and tight tolerances

*Thin-wall mode requires implementation with Raise3D technical support.


Powerful Laser System for Speed & Accuracy

  • 75 W infrared fiber laser (1064 nm)

  • Industrial-grade high-precision galvanometer

  • Scanning speed up to 30,000 mm/s

This combination supports high-speed scanning while maintaining precision—ideal for both intricate geometries and high-volume production.


Large Build Volume, Compact Footprint

  • Build volume: 220 × 220 × 350 mm (17 L)

  • Footprint: only 0.58 m²

The RMS220 delivers one of the largest build volumes in its class, while preserving valuable factory floor space.

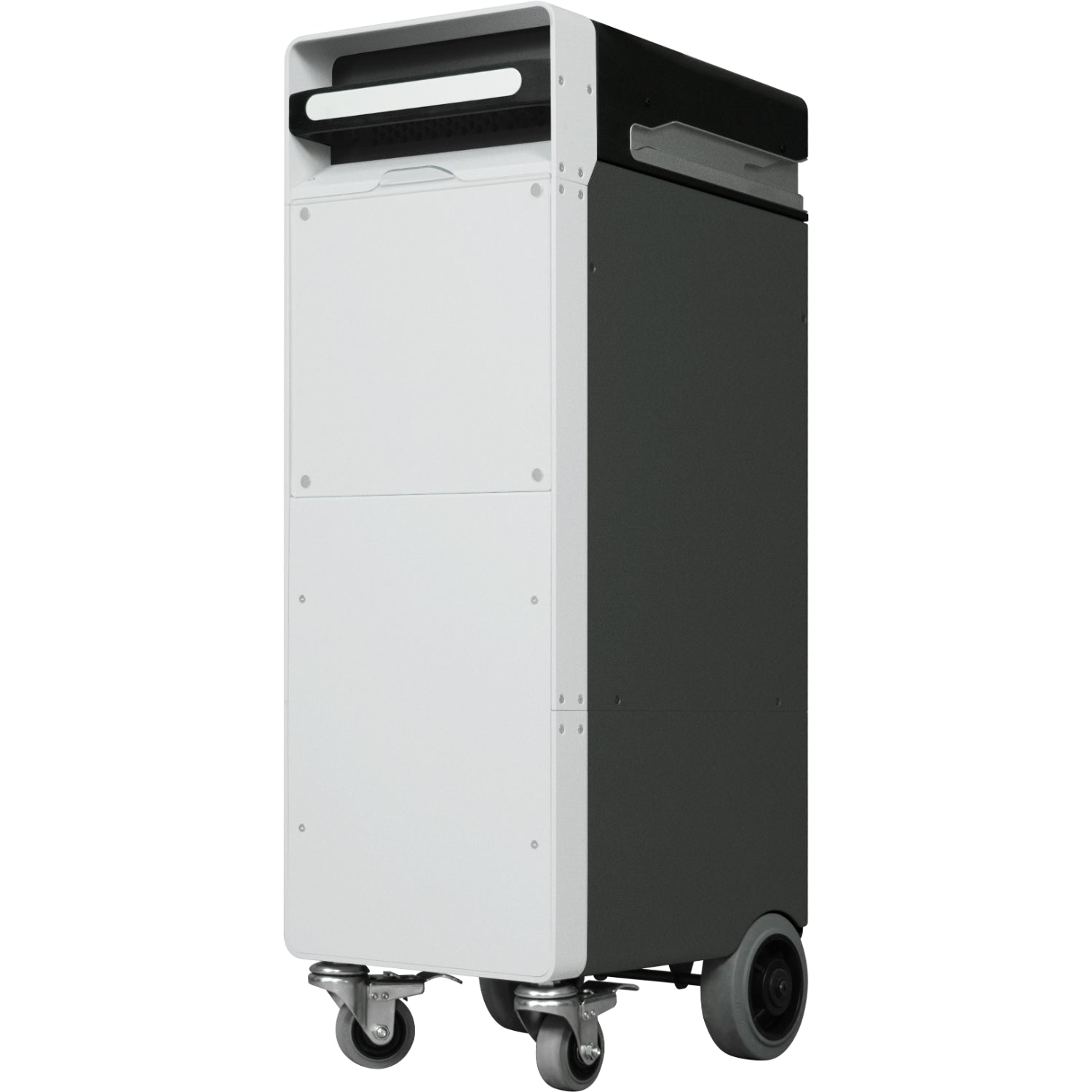

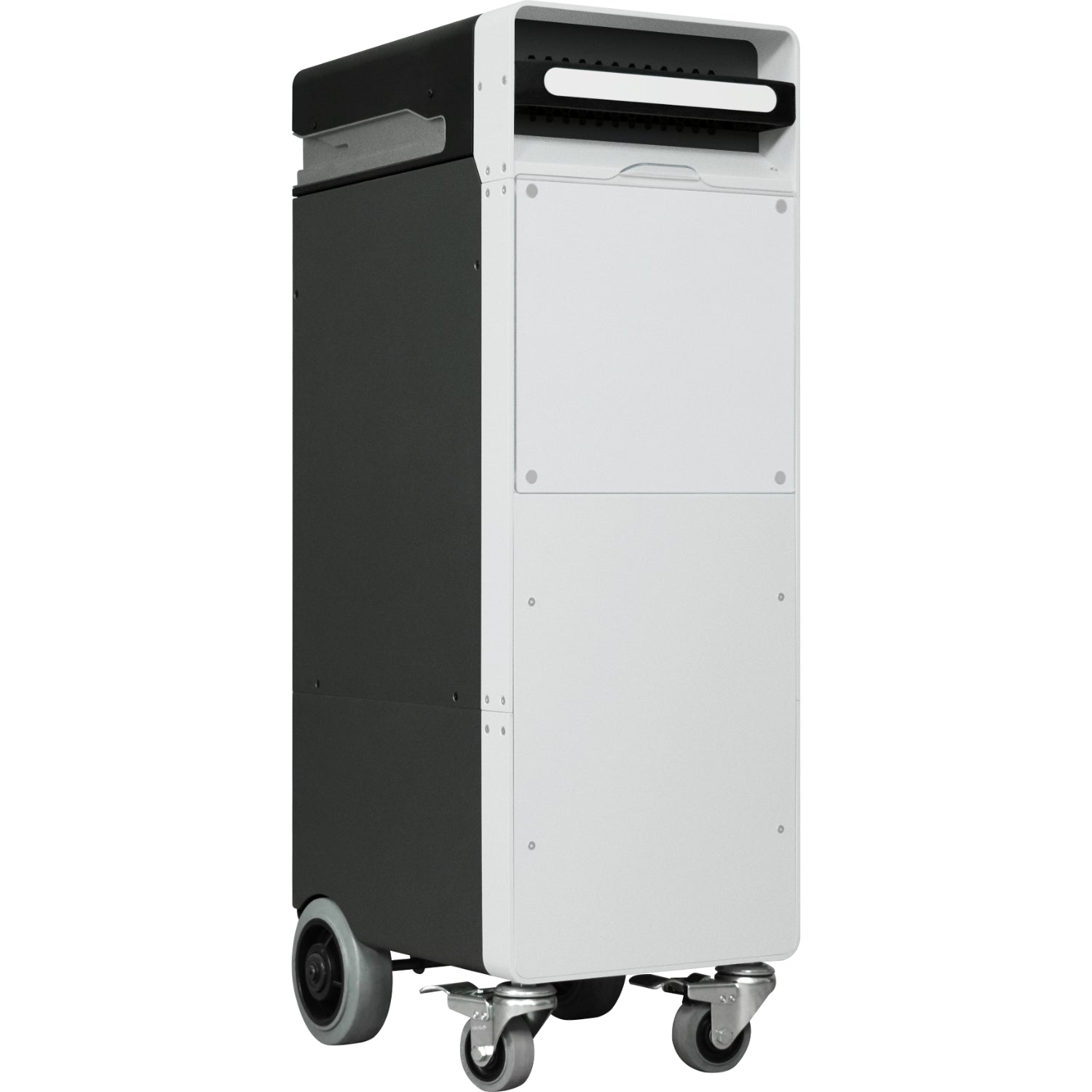

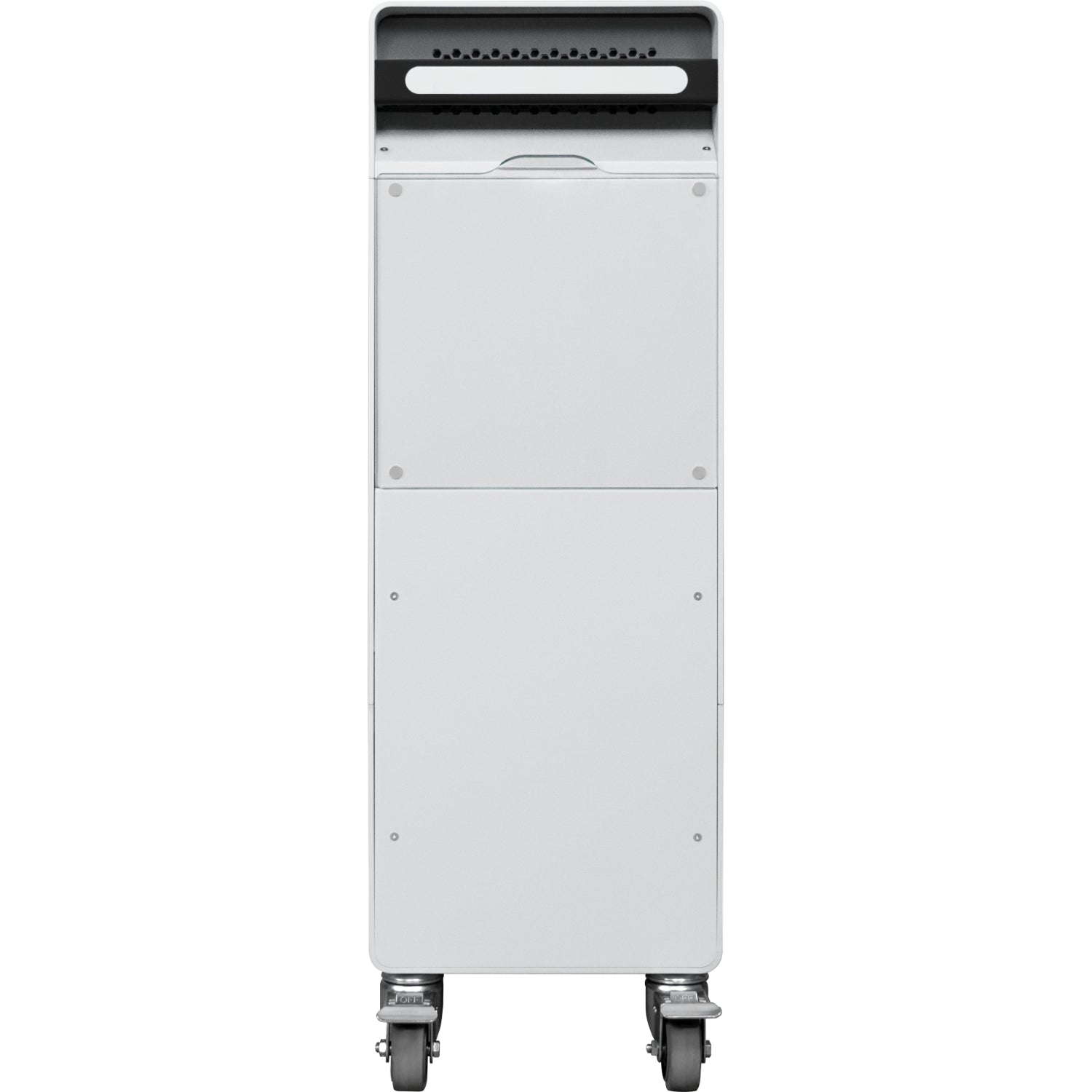

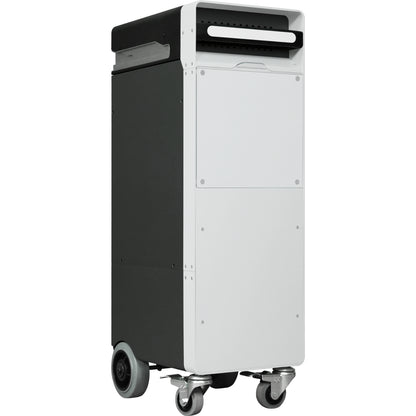

Fast Cooling & Continuous Productivity

The Build Unit 220 is designed to maximize uptime:

  • Independently powered module

  • Vertically movable build cylinder

  • Faster cooling without damaging parts

  • Enables parallel printing and post-processing


Quick-Detach Modular Design for Material Switching

  • Material changeover time: 45 minutes

  • Approximately 1/3 the time of traditional SLS systems

  • No hard-to-reach powder areas

  • Enables efficient multi-material production


RFID-Enabled Material Management

The integrated Raise3D RFID system automatically:

  • Identifies loaded powder

  • Applies optimized material parameters

  • Reduces operator error

  • Improves part consistency and quality


Ergonomic, Operator-Focused Design

  • Adjustable elbow rest for fatigue-free cleaning

  • Transparent protective cover for safety and visibility

  • Designed for comfortable operation in multiple working positions


Industrial SLS Materials Supported

Material Key Properties & Applications
Raise3D PA12 General-purpose material for rapid prototyping and production; balanced mechanical properties and high accuracy
Raise3D PA12 GB Glass bead–reinforced material with increased stiffness, higher HDT, and matte black finish
Raise3D PA11 Impact-resistant and flexible; ideal for snap-fits, living hinges, and thin-wall structures
Raise3D TPU90A Durable elastomer for flexible functional parts; strong, elastic, and wear-resistant
Raise3D TPU86A General-purpose elastomer offering high durability and elasticity for soft functional components

Technical Specifications

Printer Specifications

Specification Details
Technology Selective Laser Sintering (SLS)
Build Volume 220 × 220 × 350 mm (17 L)
Laser Type 75 W fiber laser, 1064 nm
Printing Speed 2.2 L/h (20% packing density)
Max Output Up to 5 kg/day*
Max Powder Temp 220 °C
Hopper Size 31.5 L (40 L with extension)
Layer Height 0.05 – 0.40 mm
Atmosphere Air or Nitrogen (built-in N₂ generator)
Slicer ideaMaker
File Formats STL, OBJ, 3MF, OLTP, STEP, STP, IGES, IGS

*Using PA12 material and standard parameters


Cleaning Station C220-P Specifications

Specification Details
Supported Printer Raise3D RMS220 Series
Build Volume 220 × 220 × 350 mm
Fresh Powder Hopper 20 L
Used Powder Hopper 20 L
Supported Materials PA12, PA11, PA12 GB, TPU90A, TPU86A

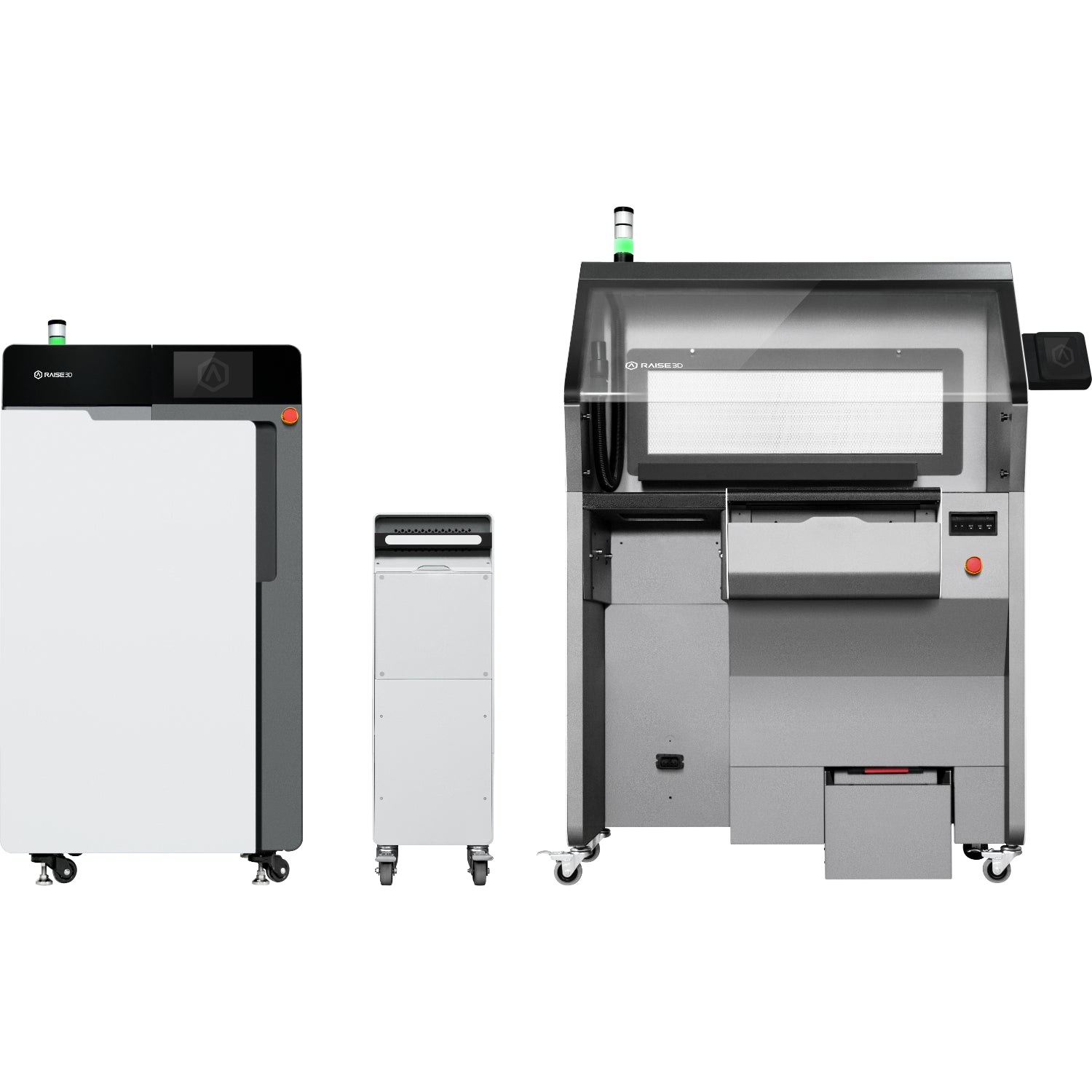

Included in the Purchase

Item Description
Raise3D RMS220 SLS Printer Industrial SLS printer with Build Unit 220
Build Unit 220 Independently powered build module for faster cooling and continuous operation
Cleaning Station C220-P Powder recovery and material management system
ideaMaker Slicing Software Professional slicing software (included free)
Standard Warranty 1-year manufacturer warranty



Technical Data Sheet

📄 View Raise3D RMS220 Technical Data Sheet

Flexible TPU Prints On The RMS220-Video

RMS220 Workflow Video

Standard 1-Year Warranty

📄 View Raise3D RMS220 Standard 1-Year Warranty

View full details
