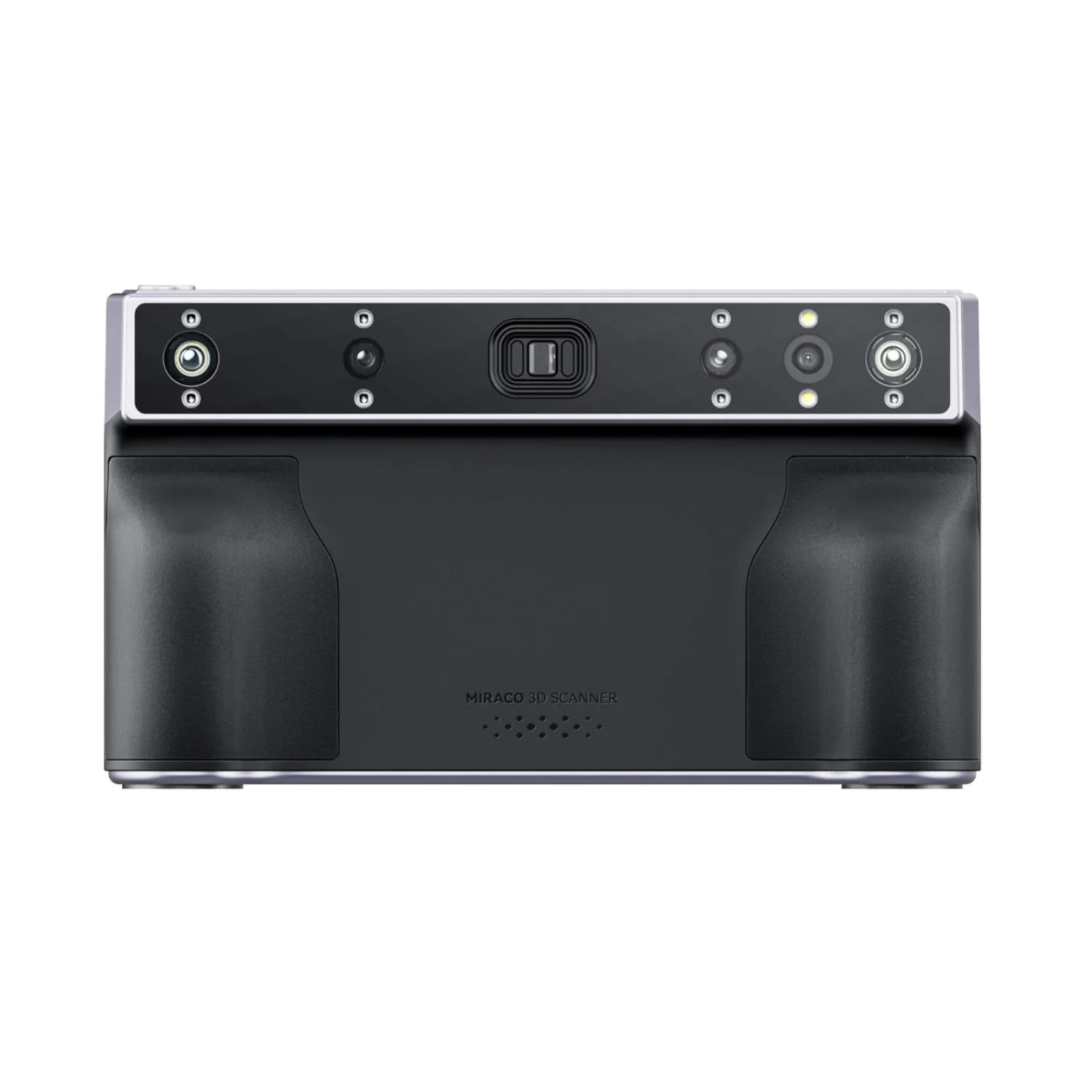

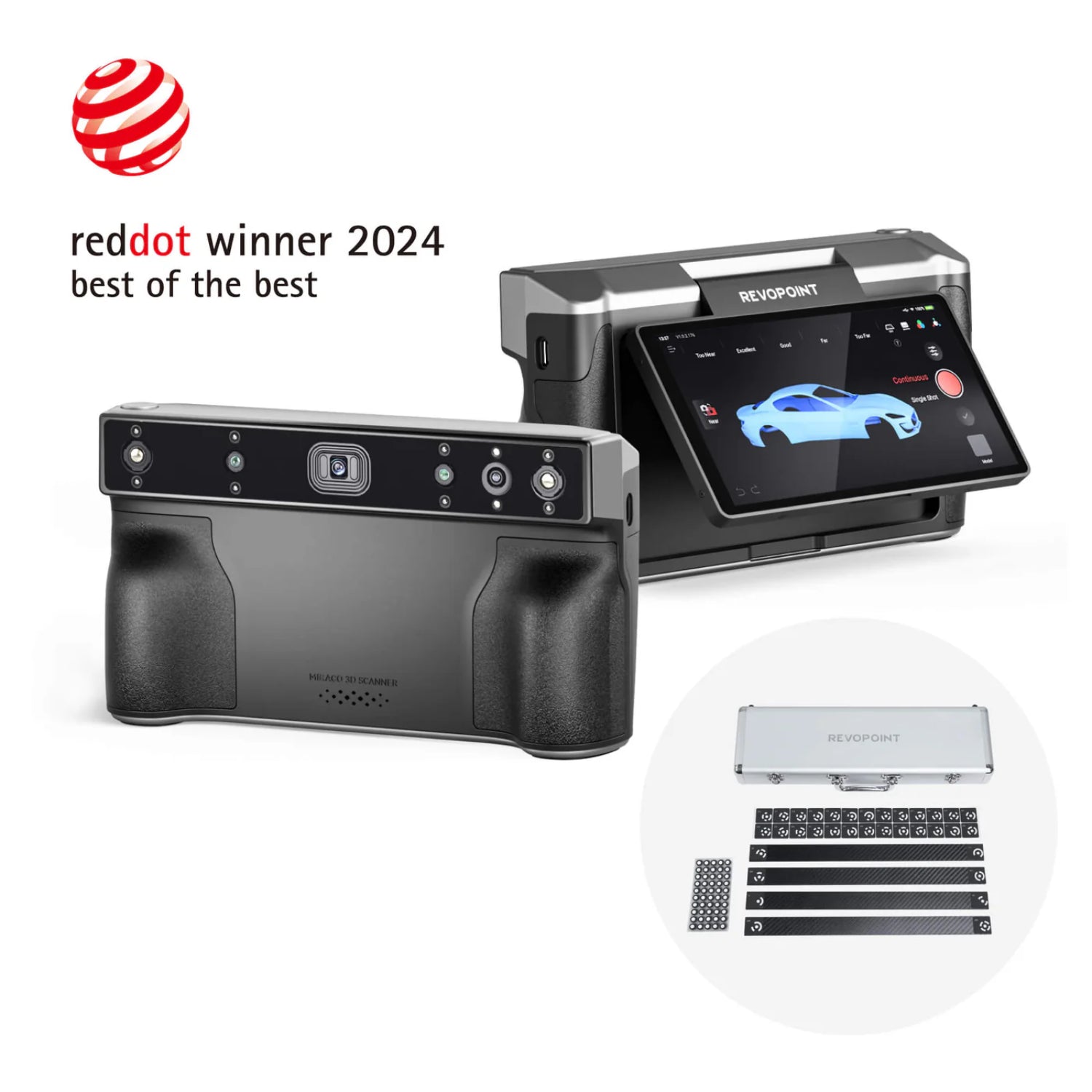

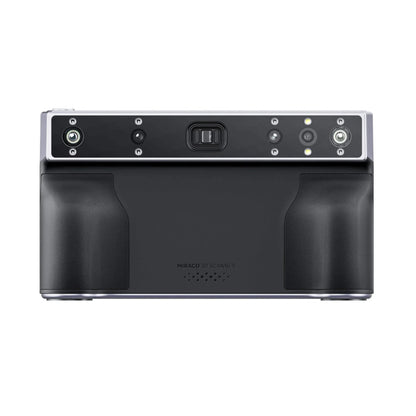

Revopoint MIRACO Plus Metrology-Grade 3D Scanner MIRACO Plus

Revopoint MIRACO Plus Metrology-Grade 3D Scanner MIRACO Plus

Regular price $1,799.00 USD
Regular price Sale price $1,799.00 USD
Sale Sold out

In stock

Includes Warranty

30-Day Returns

Unlimited Free Support

Everything in One Device: Scan, Measure, and Innovate

The MIRACO Plus 3D Scanner is the world’s first fully integrated 3D scanning and photogrammetric metrology device. Designed to streamline high-precision scanning, MIRACO Plus allows users to scan, measure, process, and export professional-grade 3D models from a single handheld device. With its quad-camera system, infrared structured light, and a 48MP RGB camera, it delivers unparalleled flexibility and results across small to large object applications.


Key Features & Benefits

  • Photogrammetric Metrology Built-In
    Achieve metrology-grade 3D measurements with coded targets, magnetic/adhesive scale bars, and powerful algorithms all within one compact device.

  • Two Capture Modes
    Switch between Near Mode for intricate details and Far Mode for large-scale object capture up to 4 meters.

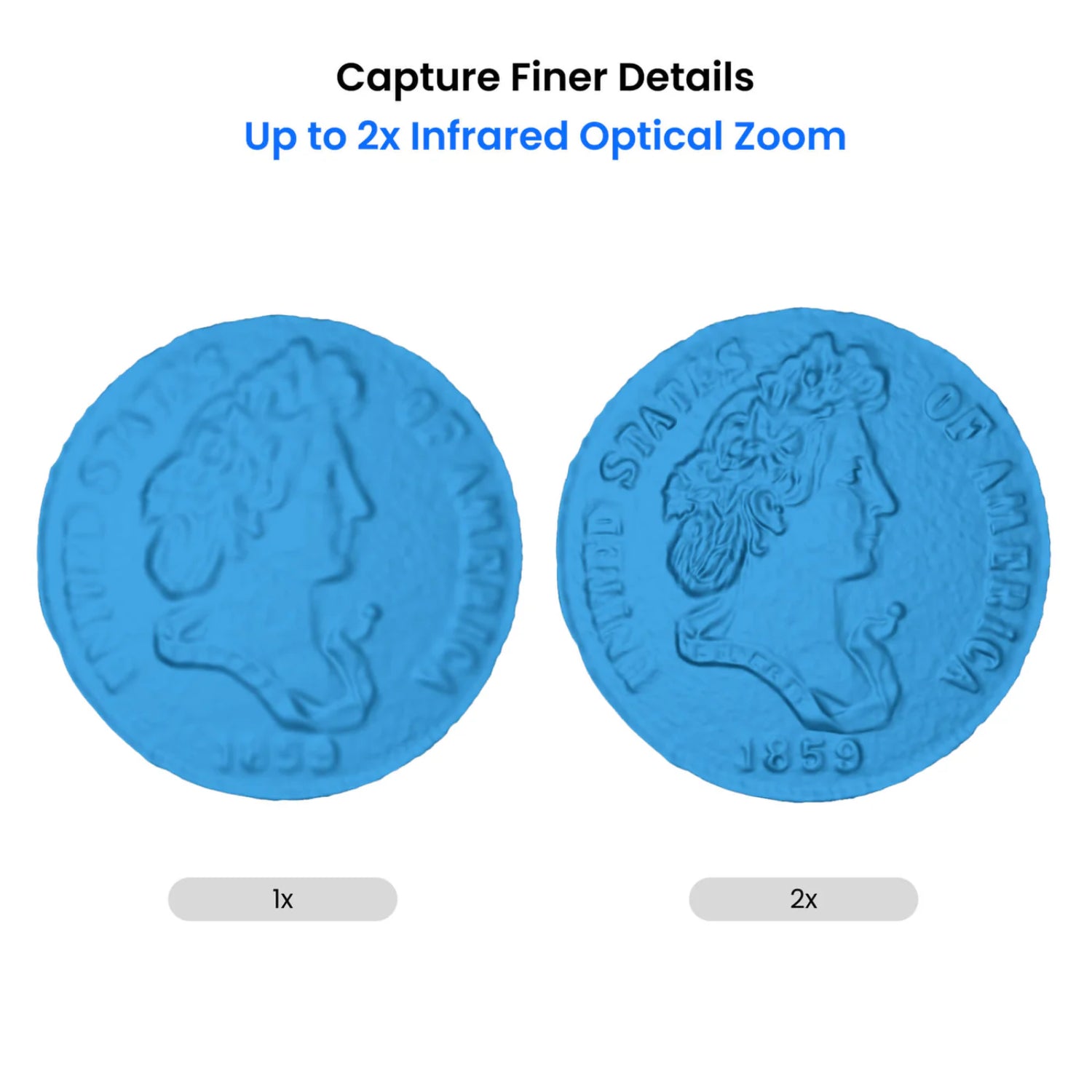

  • Zoom for Details
    Increase resolution and reduce noise with 1.5x and 2x optical zoom, optimized for high-detail scanning.

  • 48MP RGB Camera
    Create vibrant color 3D models with stunning texture clarity in color scan mode.

  • Touchscreen Control & Display

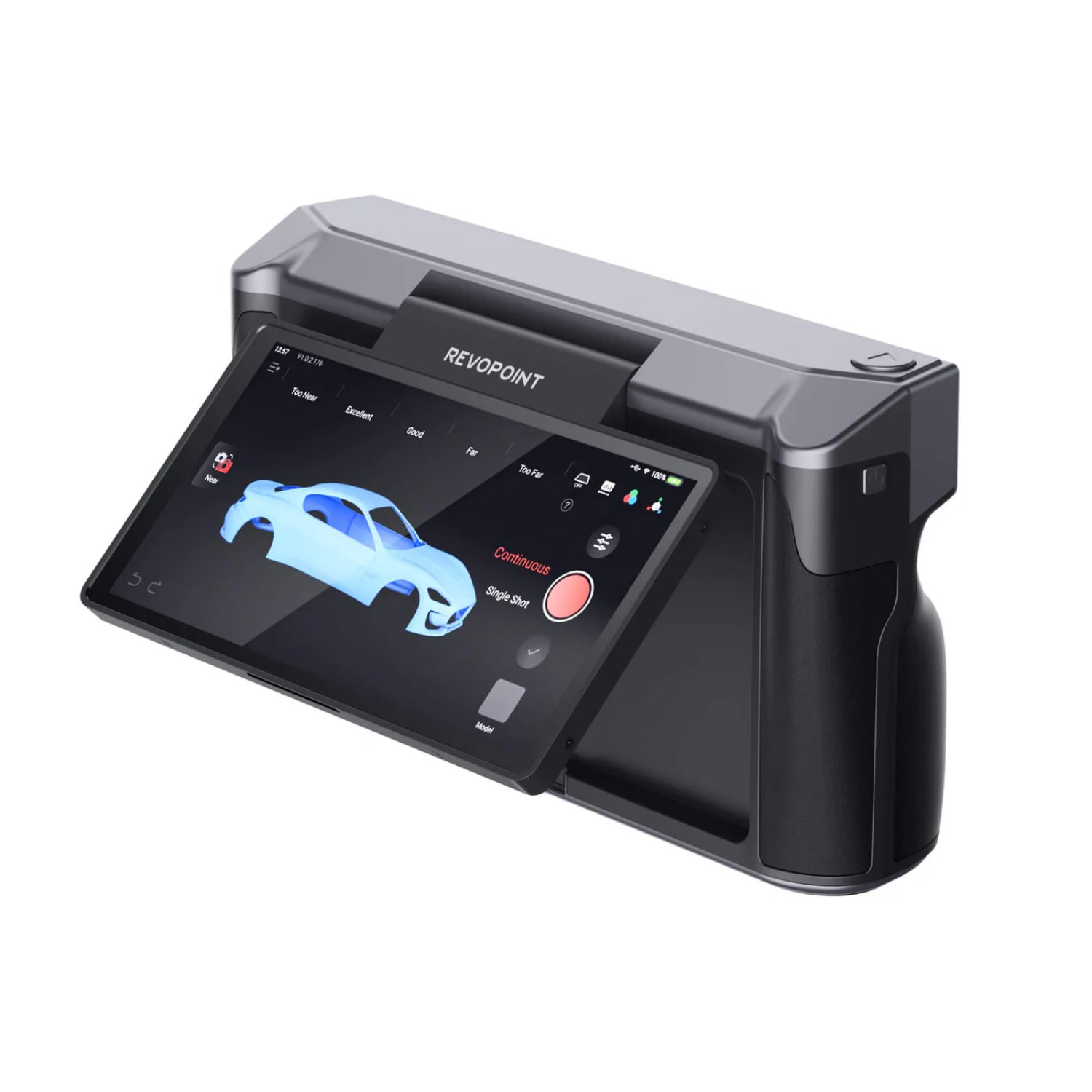

    The 6” 2K AMOLED flip screen offers real-time scan previews and editing without the need for a PC.

  • Stand-alone Performance
    With 256 GB storage, 32 GB RAM, and an 8-core ARM CPU, process and edit models directly on the scanner.

  • Dual Modes: Single-Shot & Continuous Scanning
    Capture precision frames in tight spaces or scan at up to 20 fps for smooth workflows.

  • Long Battery Life & Fast Charging
    5000mAh battery supports 2-hour sessions and charges to 80% in 35 minutes via 65W USB-C PD.

  • Wireless Project Transfer
    Quickly transfer scan data via Wi-Fi 6 or USB-C, or present via HDMI screen mirroring.

  • Powerful Editing Software
    Edit, align, mesh, and export directly from the device in PLY, OBJ, STL, ASC, 3MF, GLTF, FBX formats.


Applications

  • Industrial Manufacturing – Enhance assembly precision and quality assurance through in-line measurement.

  • Additive Manufacturing – Digitize objects of all sizes for immediate 3D printing.

  • Reverse Engineering – Use photogrammetric metrology to recreate parts with sub-millimeter accuracy.

  • Product Design – Capture surface and shape data to speed up iteration cycles.


Specs

Feature Specification
Technology Quad-Camera Infrared Structured Light + Photogrammetry
RGB Camera Resolution 48 MP

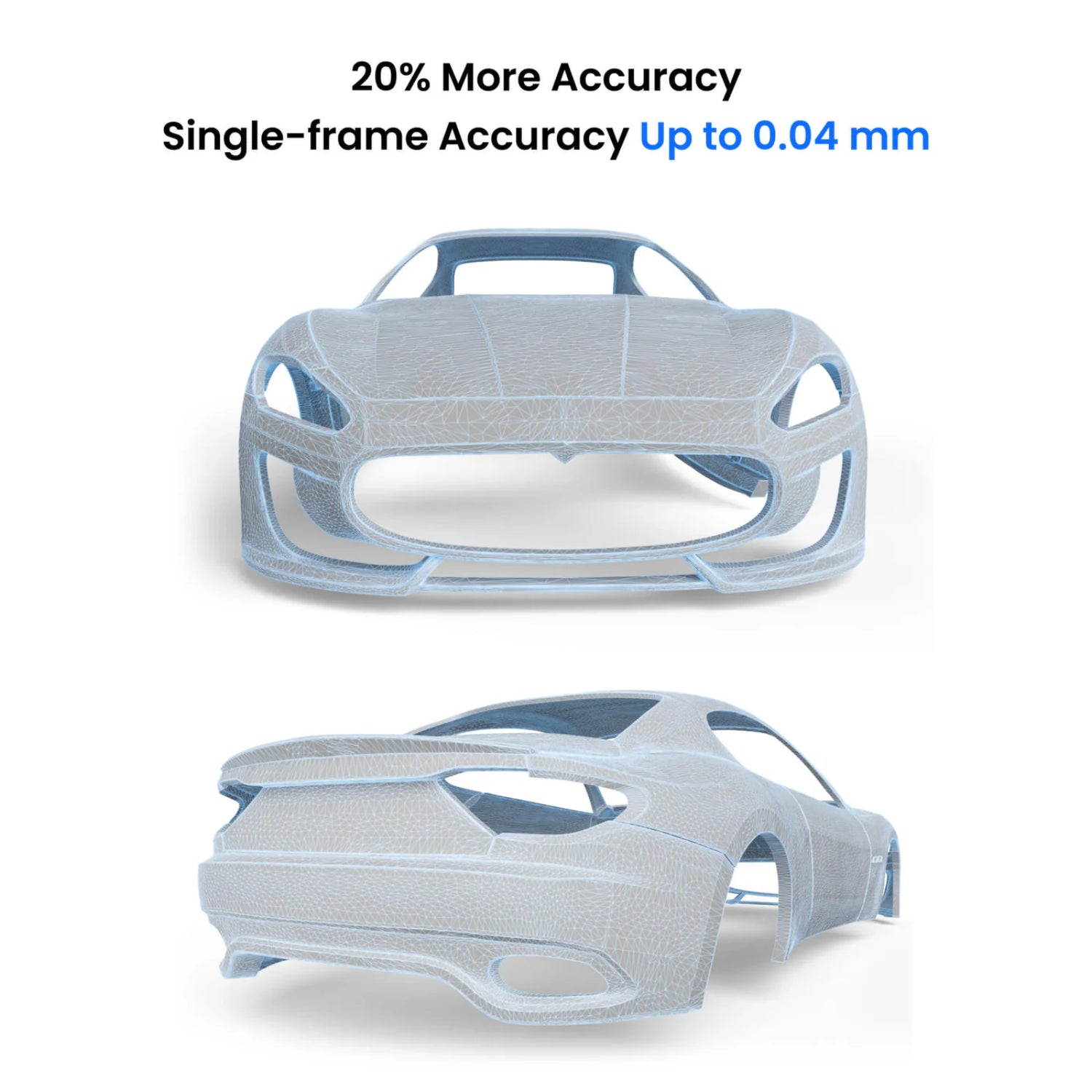

Single-frame Accuracy Up to 0.04 mm
Single-frame Precision Up to 0.02 mm

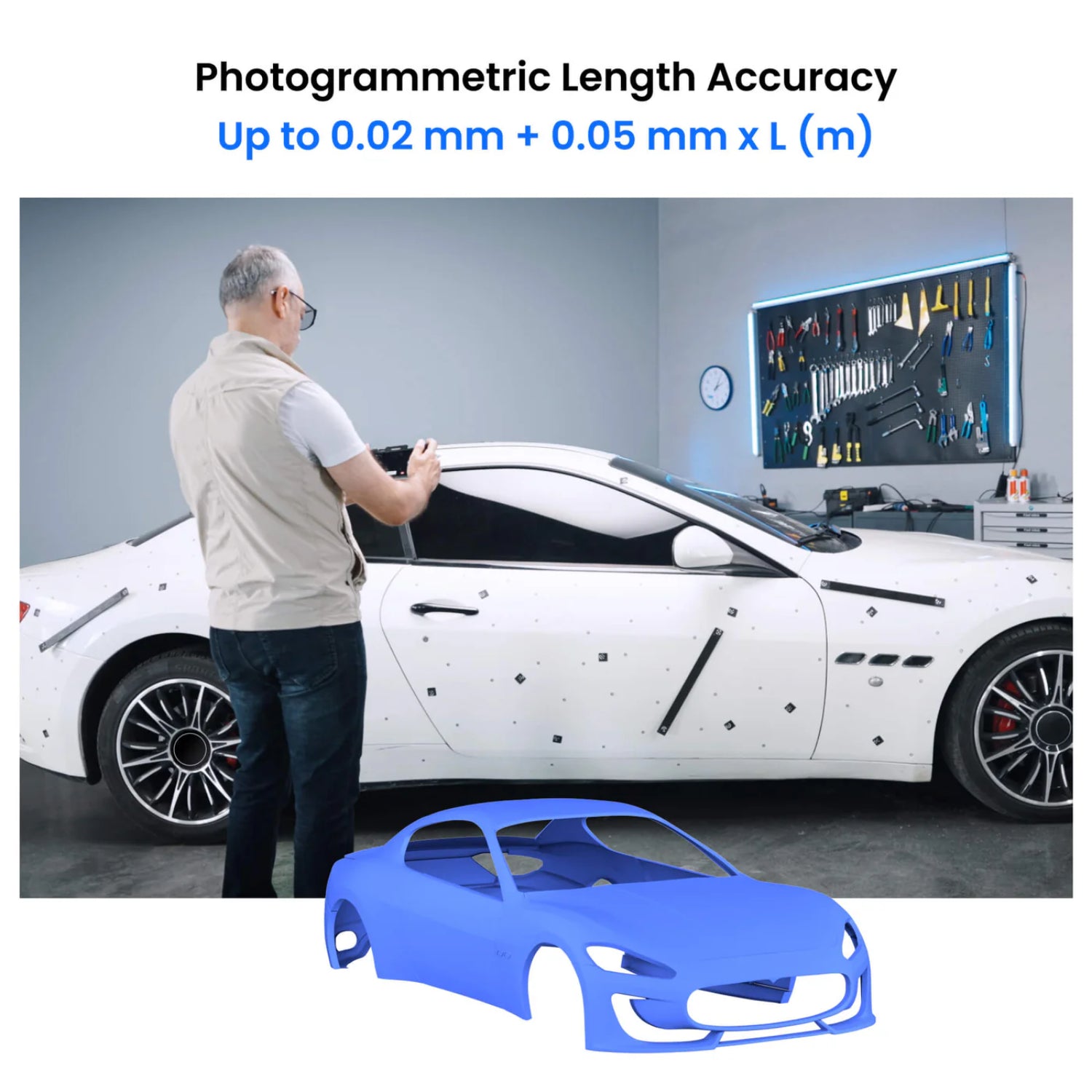

Photogrammetric Accuracy 0.02 mm + 0.05 mm × L (m)
Scanning Speed Up to 20 fps
Working Distance 100 – 1000 mm
Min/Max Scan Volume 10 mm – 4 m
Single Capture Area 28 x 53 mm to 975 x 775 mm
Point Distance Up to 0.05 mm
CPU 8-core ARM A76, 2.4GHz, Mali G52 GPU
RAM / Storage 32 GB DDR4 / 256 GB eMMC
Battery 5000 mAh, 2-hour runtime, 65W fast charging
Display 6” 2K AMOLED, 180° Flip Touchscreen
Connectivity Wi-Fi 6, Bluetooth 4.1, USB-C, HDMI output
Tracking Methods Feature, Marker, Global Marker
File Formats PLY, OBJ, STL, ASC, 3MF, GLTF, FBX
Compatible OS (Post-Process) Windows 10/11, macOS 11+
Device Dimensions / Weight 200 x 50 x 110 mm / 750 g
Light Type Class 1 Infrared (Eye Safe)
Calibration Supports user recalibration
Supported Accessories Dual Turntable, Calibration Boards, Power Bank Kit

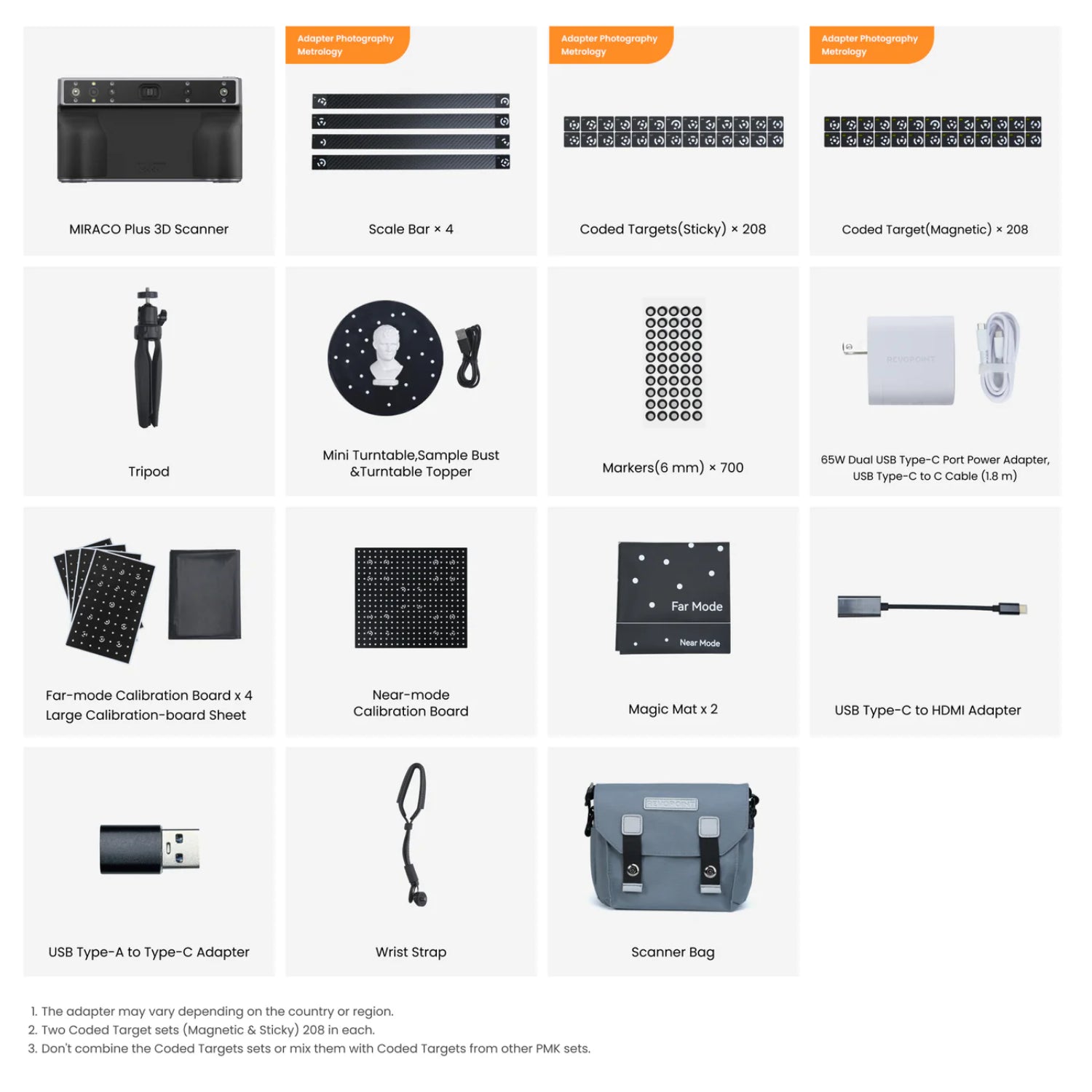

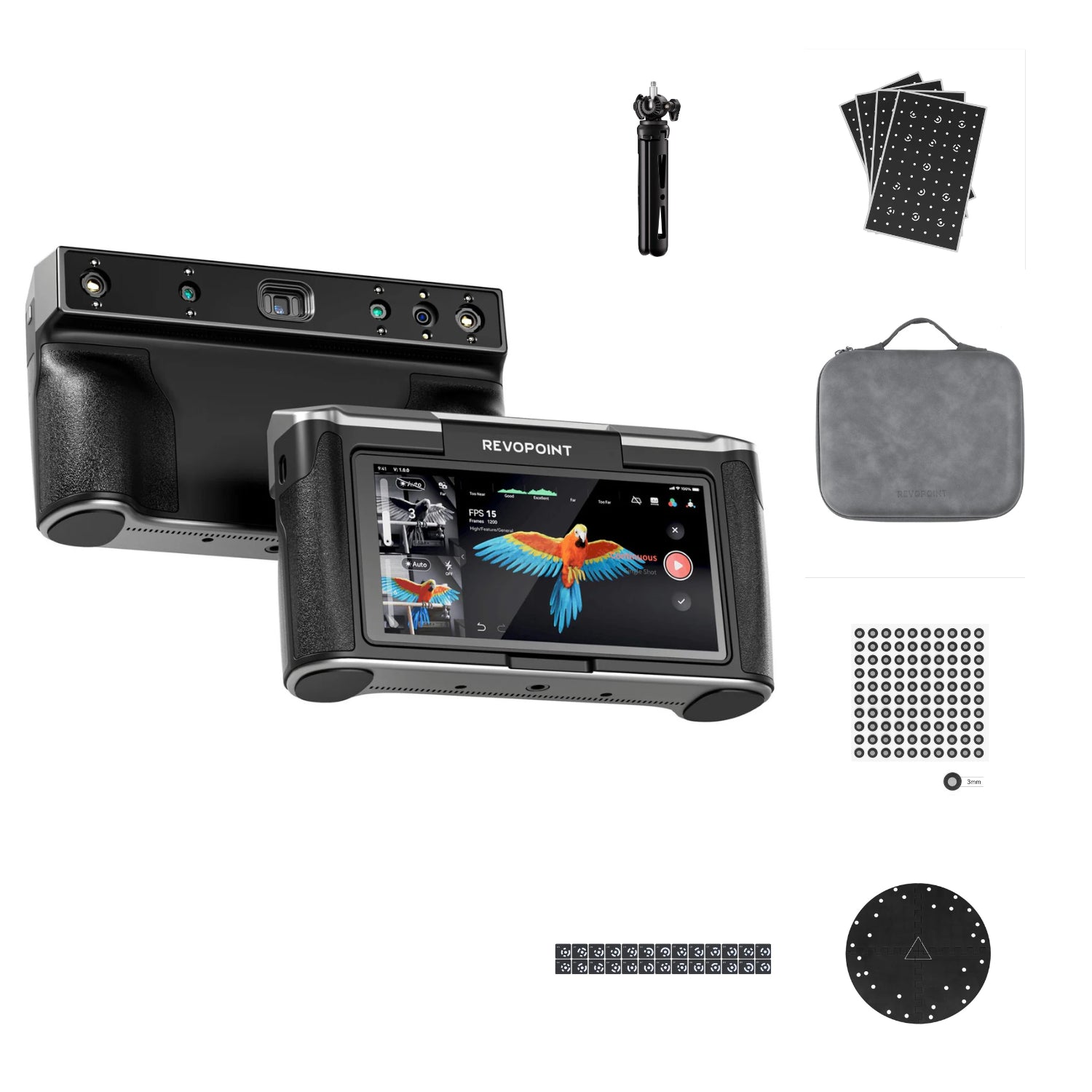

Included in the Purchase

Item Quantity
MIRACO Plus 3D Scanner 1
Scale Bars 4
Coded Targets (Sticky + Magnetic) 208 x 2
Tripod 1
Mini Turntable + Sample Bust 1 Set
Markers (6mm) 700
USB Type-C to HDMI Adapter 1
Far-mode Calibration Board 4
Large Calibration-board Sheet 1
Near-mode Calibration Board 1
Magic Mat 2
65W Dual USB-C Power Adapter + Cables 1 Set
USB Type-A to Type-C Adapter 1
Wrist Strap 1
Scanner Bag 1

Revopoint MIRACO Plus Metrology & Tutorial Video


Quick Start Guide

📄 View Revopoint MIRACO Quick Start Guide

Owner’s Manual

📄 View Revopoint MIRACO User Manual

Revopoint Standard 2-Year Warranty

📄View Revopoint Standard 2-Year Warranty
