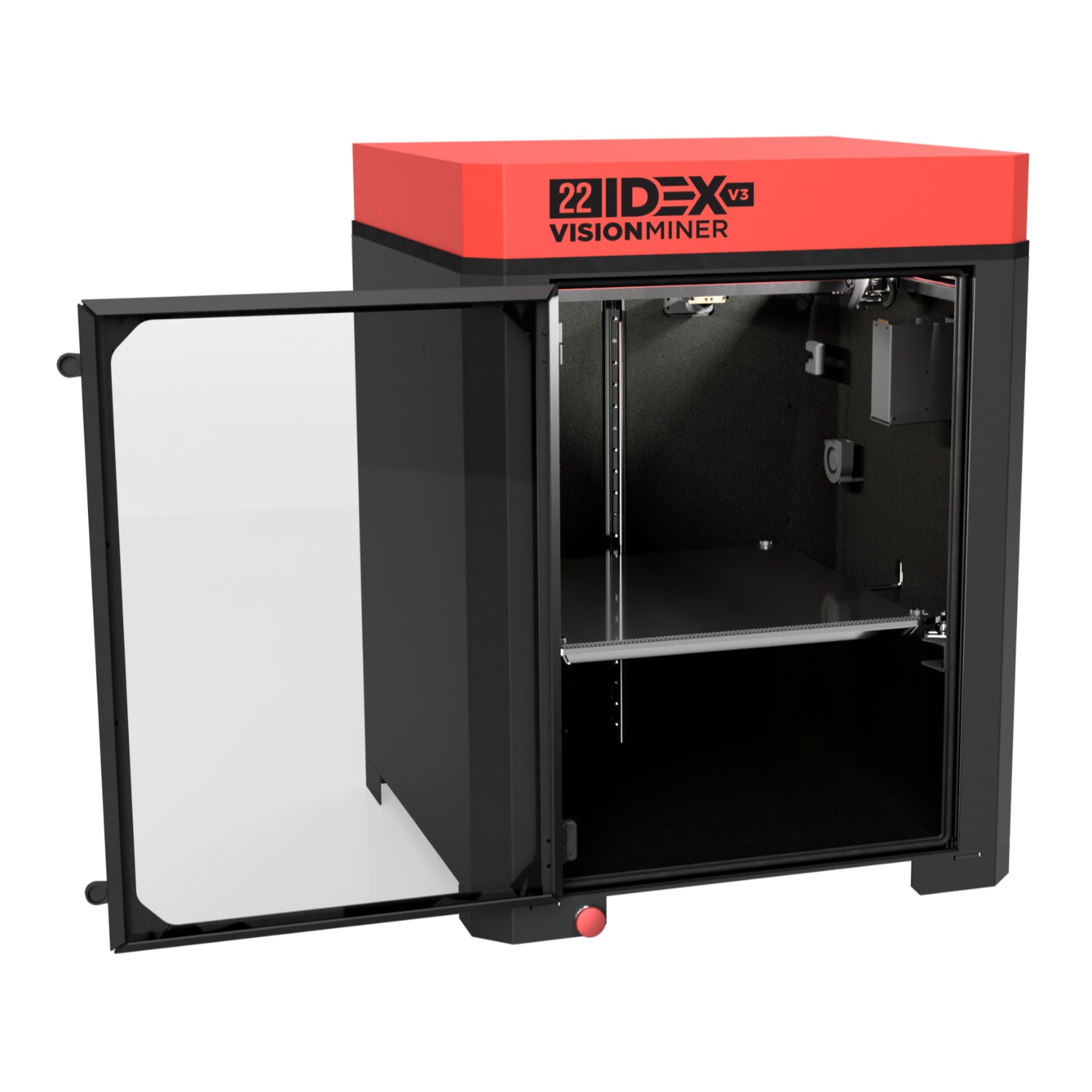

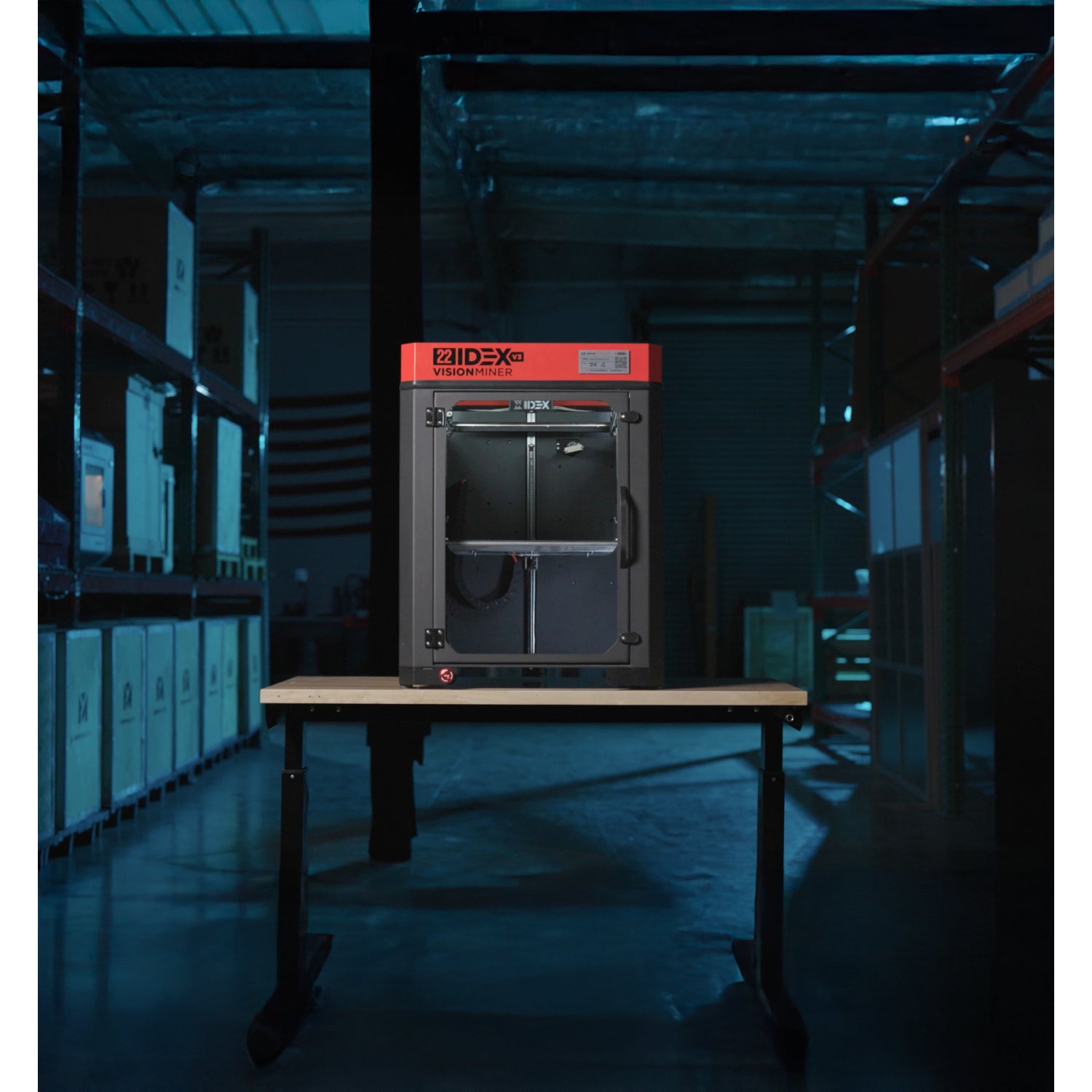

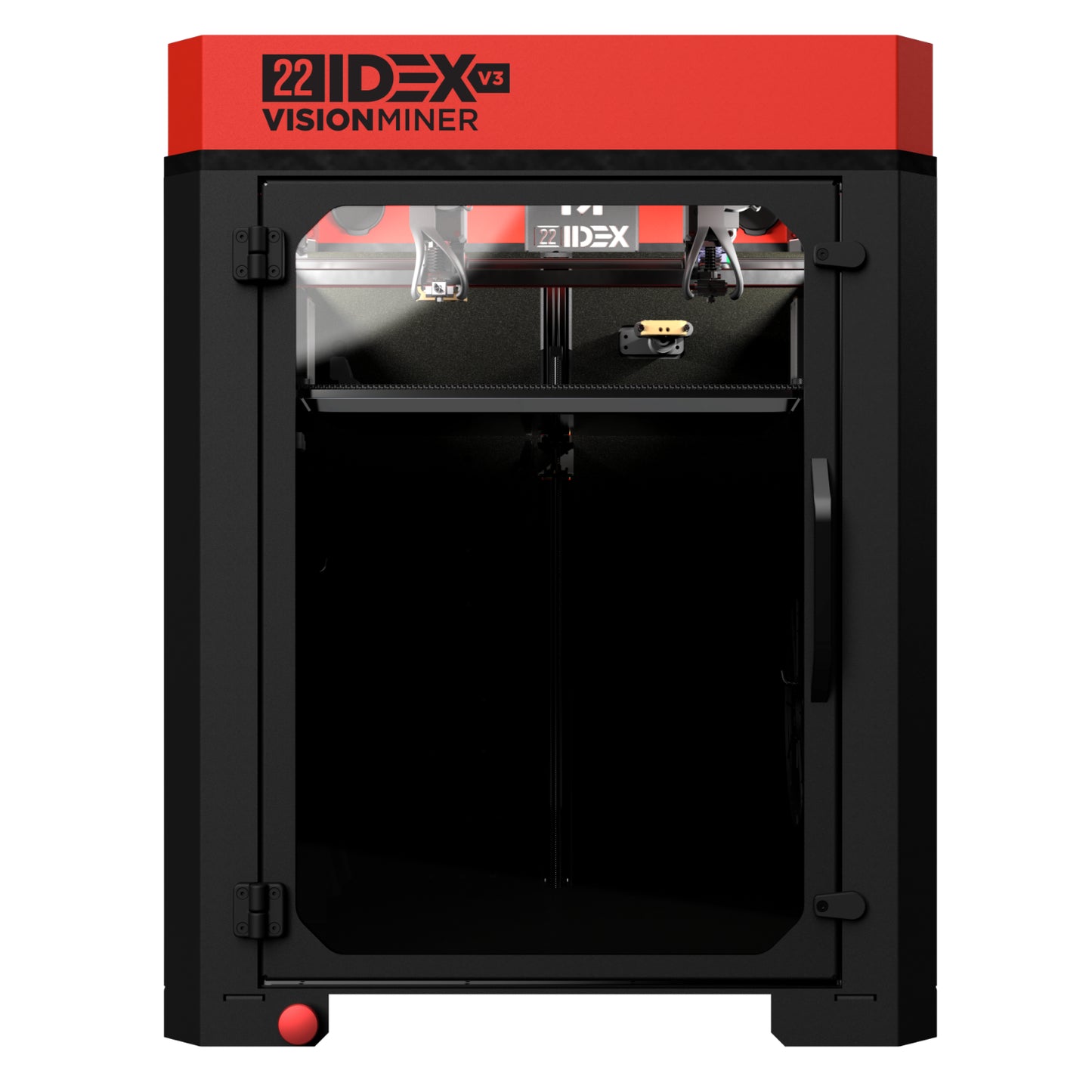

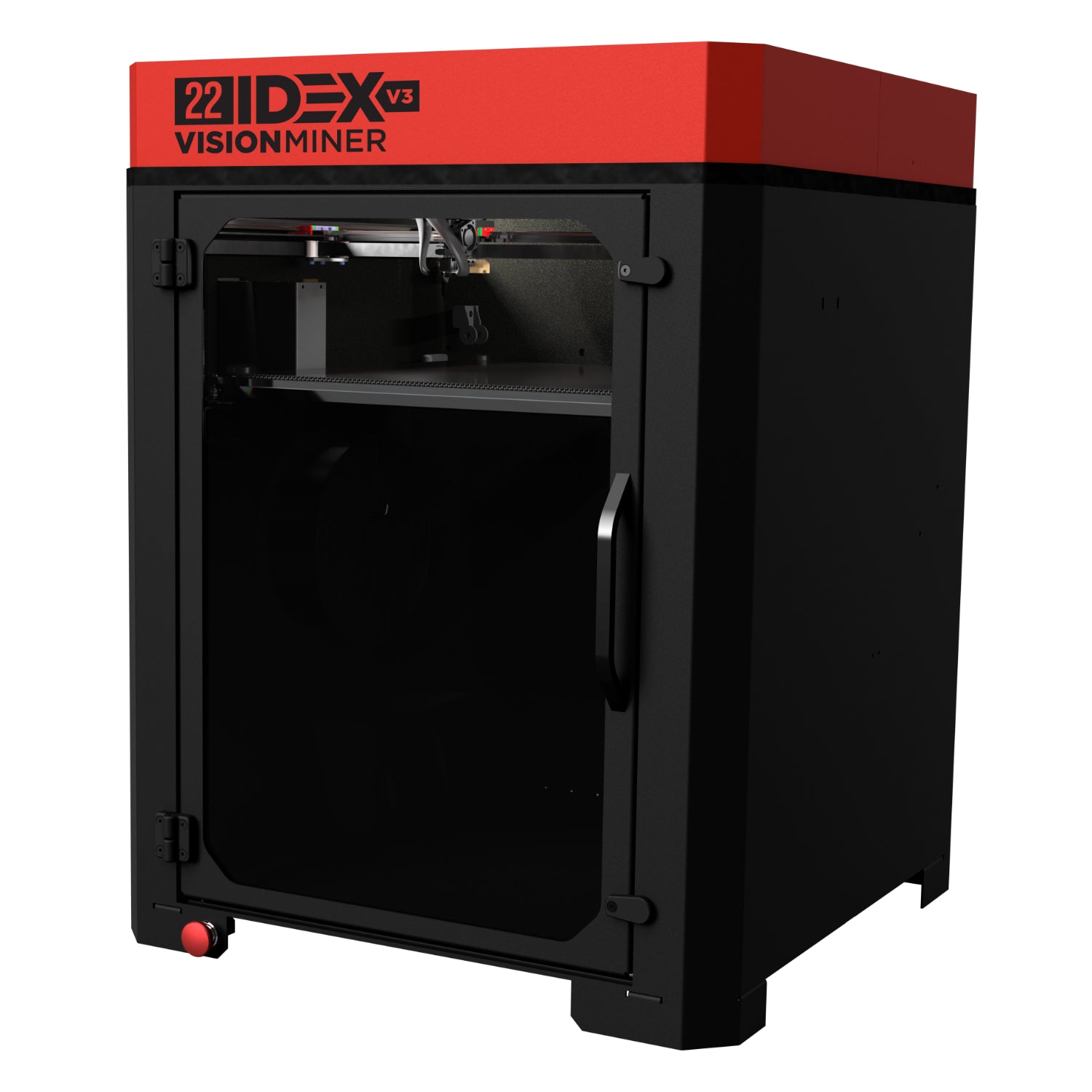

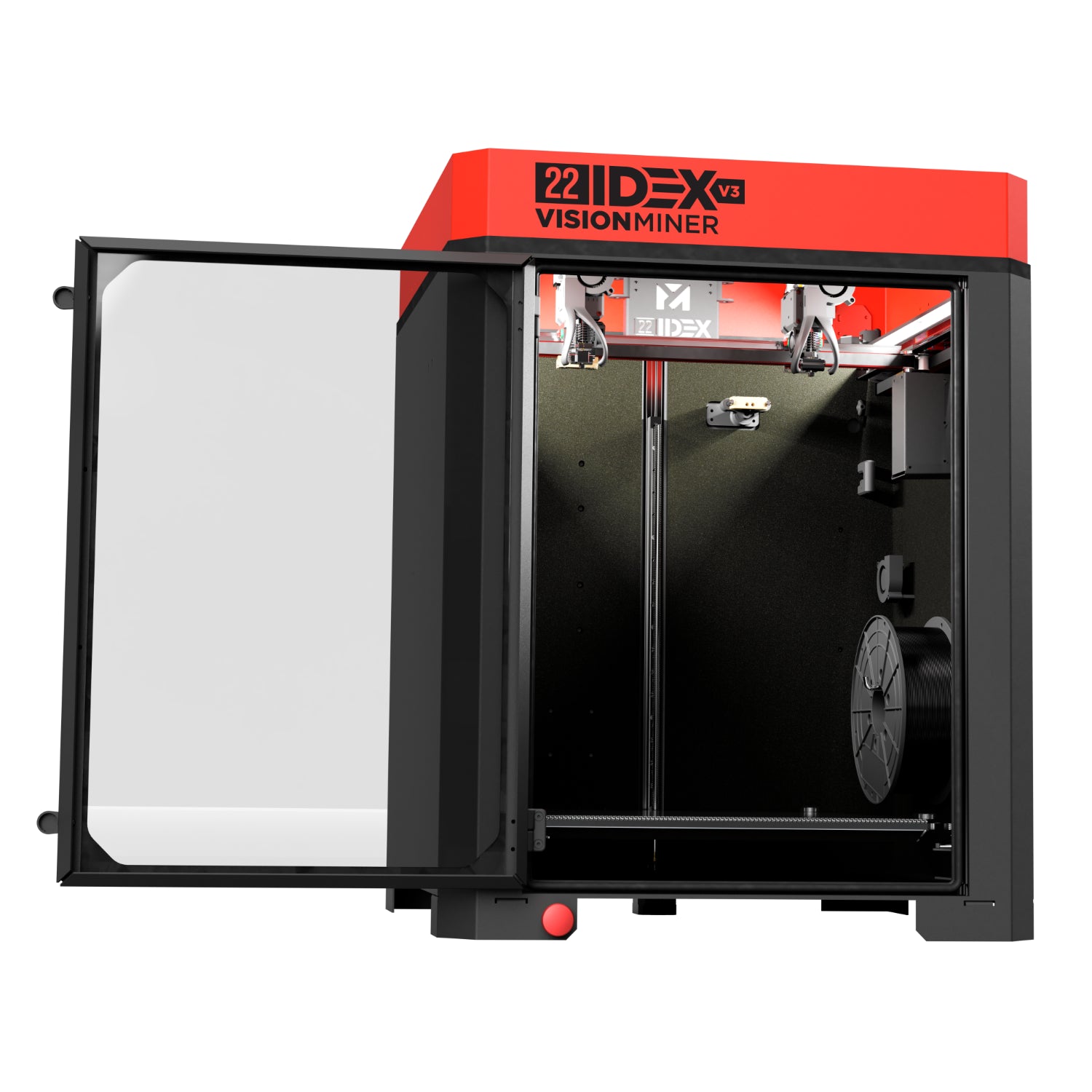

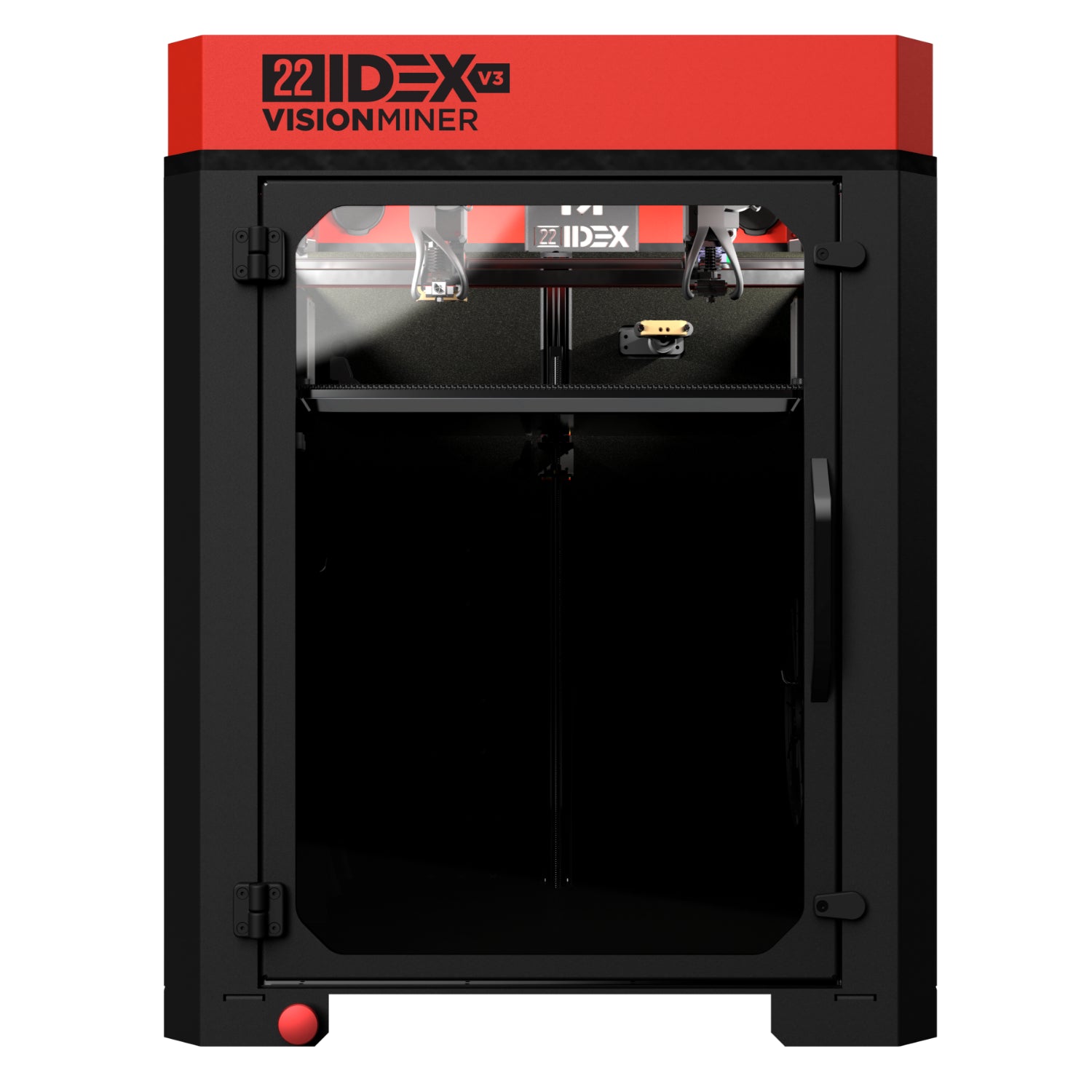

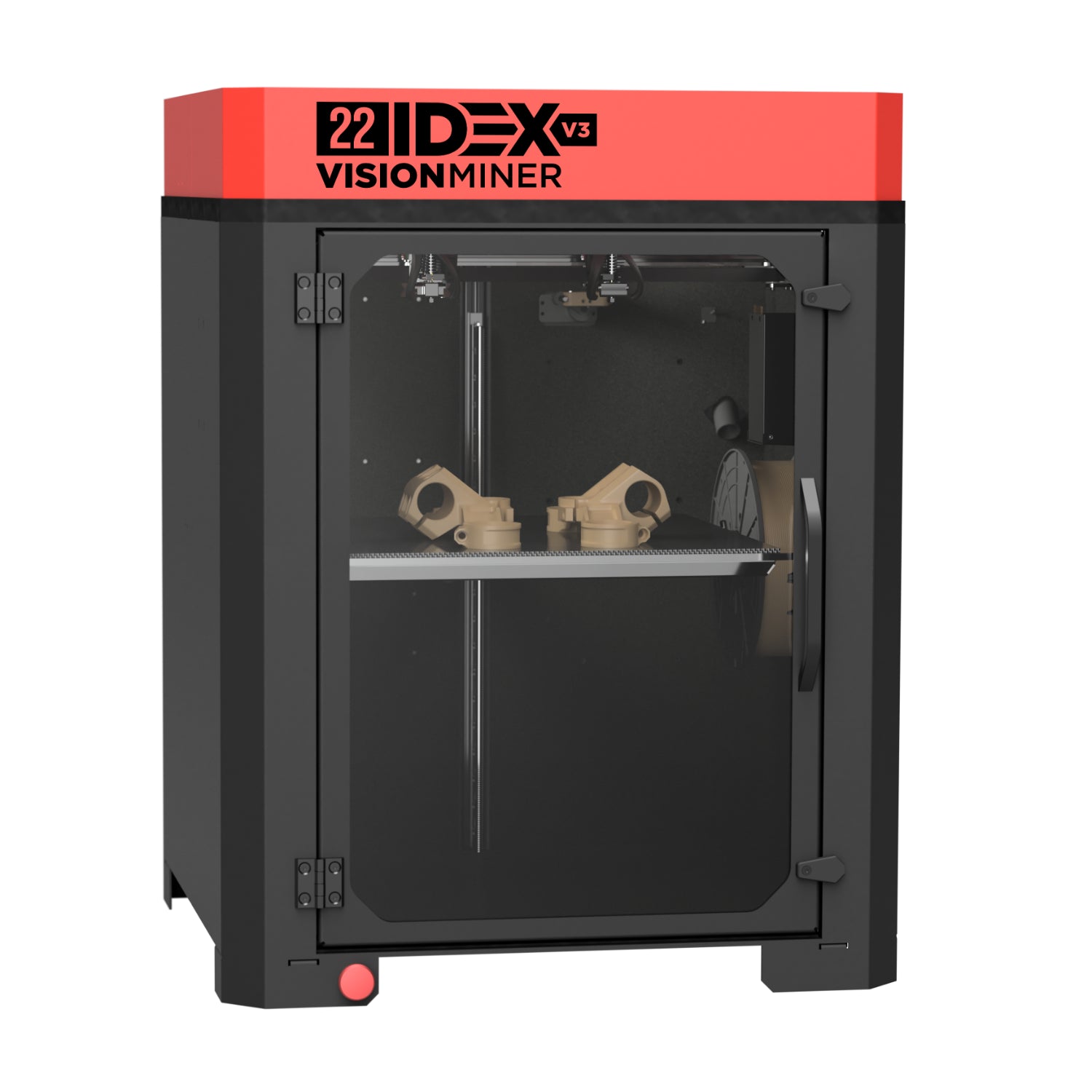

VISION MINER 22 IDEX V3 High-Temp Industrial Grade FDM 3D Printer 22IDEXV3

VISION MINER 22 IDEX V3 High-Temp Industrial Grade FDM 3D Printer 22IDEXV3

Regular price $14,900.00 USD
Regular price Sale price $14,900.00 USD
Sale Sold out

In stock

Includes Warranty

30-Day Returns

Unlimited Free Support

Unlimited Polymer Options, True Self-Leveling, and Fully Open Material System

The 22 IDEX v3 redefines industrial FFF/FDM printing with dual independent extruders capable of 500°C, a 200°C self-leveling build plate, and an actively-heated 100°C+ chamber. Designed for aerospace, automotive, medical, and advanced manufacturing, it supports virtually all performance thermoplastics — from PLA to PEEK, PEKK, and ULTEM™ — without being locked into proprietary filaments.

With quad-motor XY gantry, triple Z-axis leveling, Duet 3 control, and Bondtech LGX Pro extruders, the 22 IDEX v3 delivers precision, speed, and flexibility for industrial applications — all backed by American service and support.


Key Features

  • Extreme Material Capability – Print high-temp polymers including PEEK, PEKK, ULTEM™, PPSU, CF-Nylon, and more.

  • Dual Independent Extruders – Both hotends reach 500°C for true multi-material printing, duplication mode, mirror mode, and soluble supports.

  • True Self-Leveling Build Platform – Triple Z-axis motors automatically level the bed before each print, combined with unlimited-point mesh compensation.

  • Actively Heated Chamber – 100°C+ environment ensures dimensional stability for high-performance thermoplastics.

  • Fully Open Material System – Freedom to source the best materials from any vendor; compatible with specialty aerospace and medical-grade polymers.

  • Automated XY Toolhead Alignment – Precision CNC-inspired calibration with one-touch automation.

  • Built-in Filament Drying – Heated chamber storage prevents moisture issues with hygroscopic filaments.

  • Industrial-Grade Motion System – Quad-motor XY, linear rails, Kevlar belts, and high-temp stepper motors for maximum stability.

  • American Service & Support – Direct access to trained technicians with real-world additive manufacturing experience.


Applications

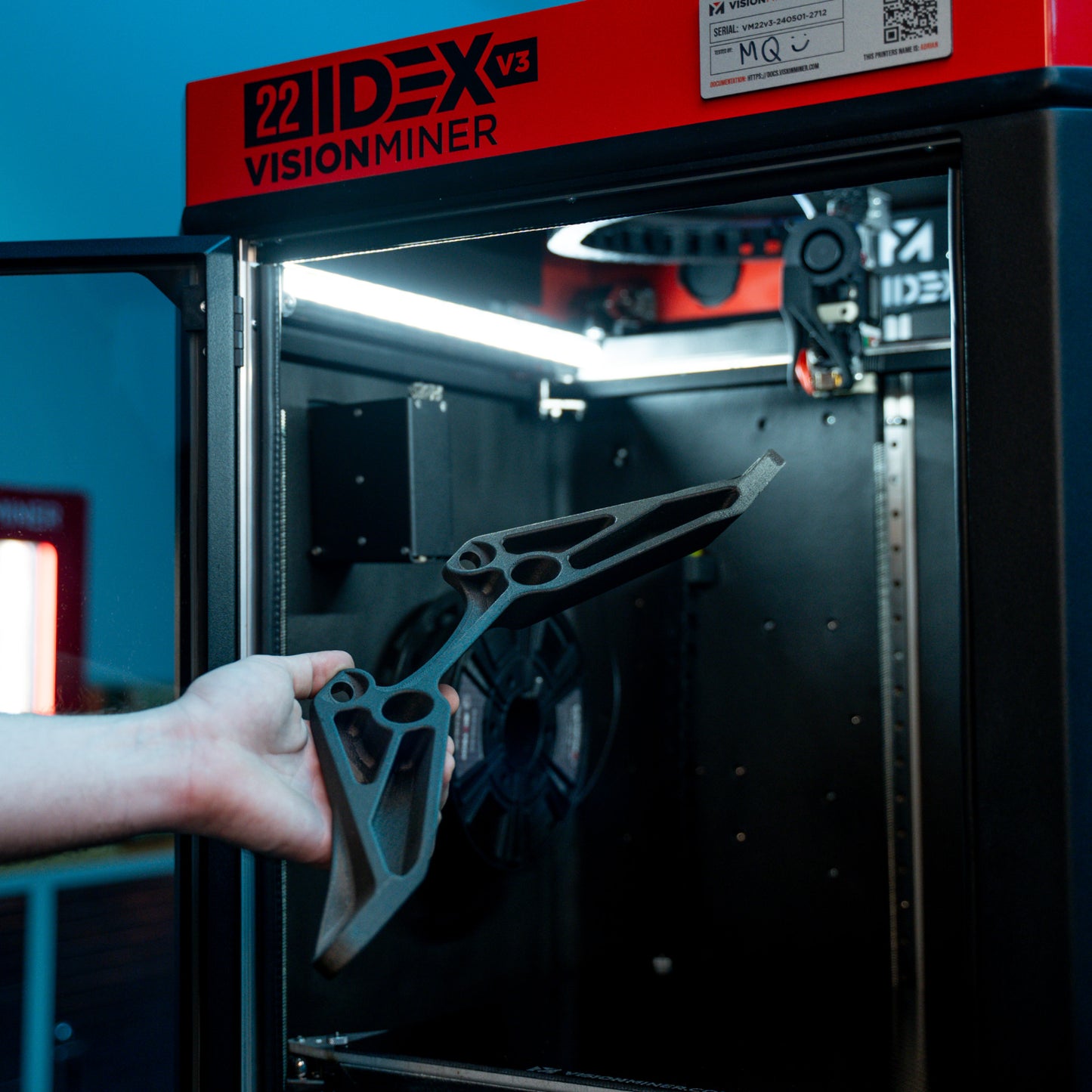

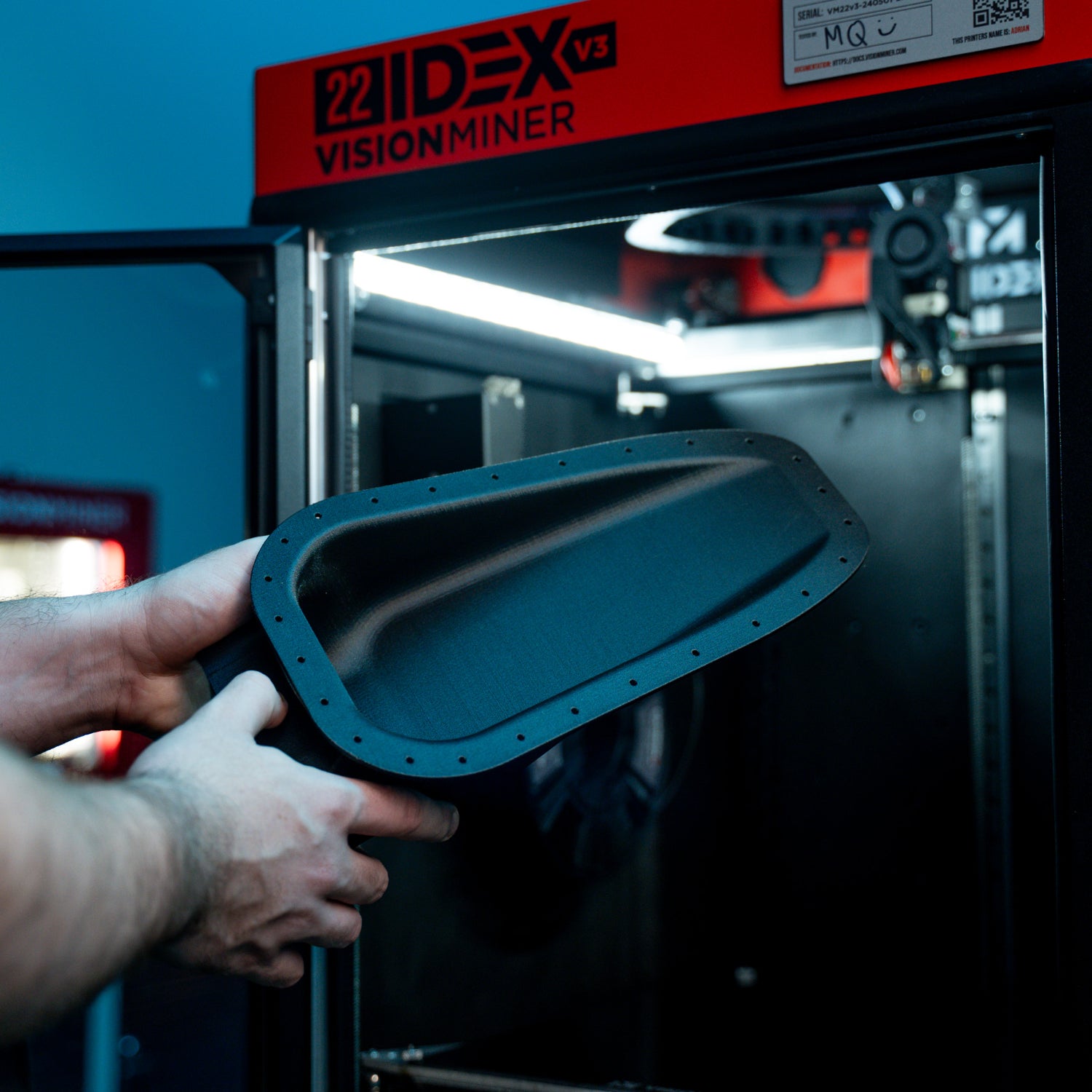

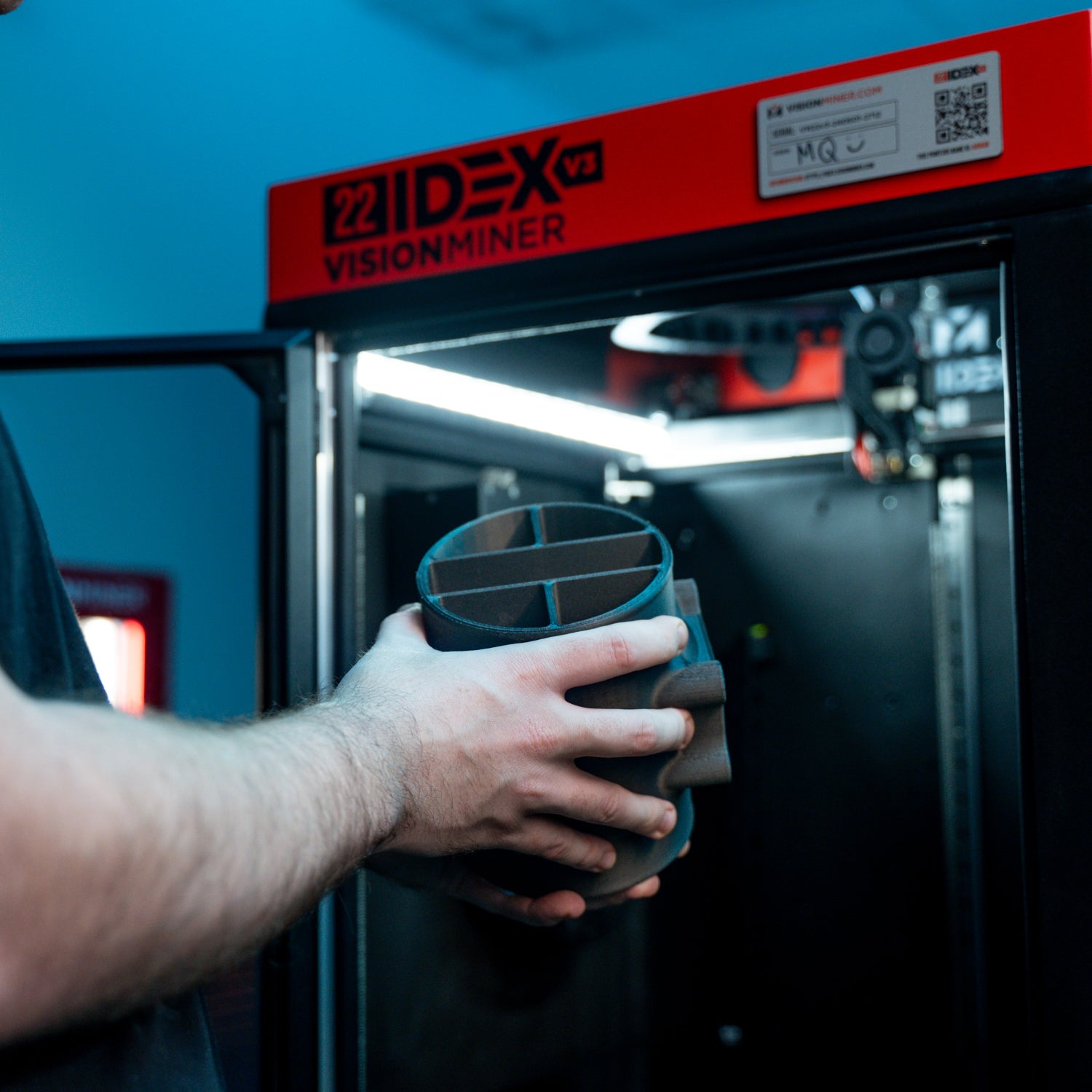

  • Aerospace & Automotive – High-strength polymer replacement parts, fixtures, tooling.

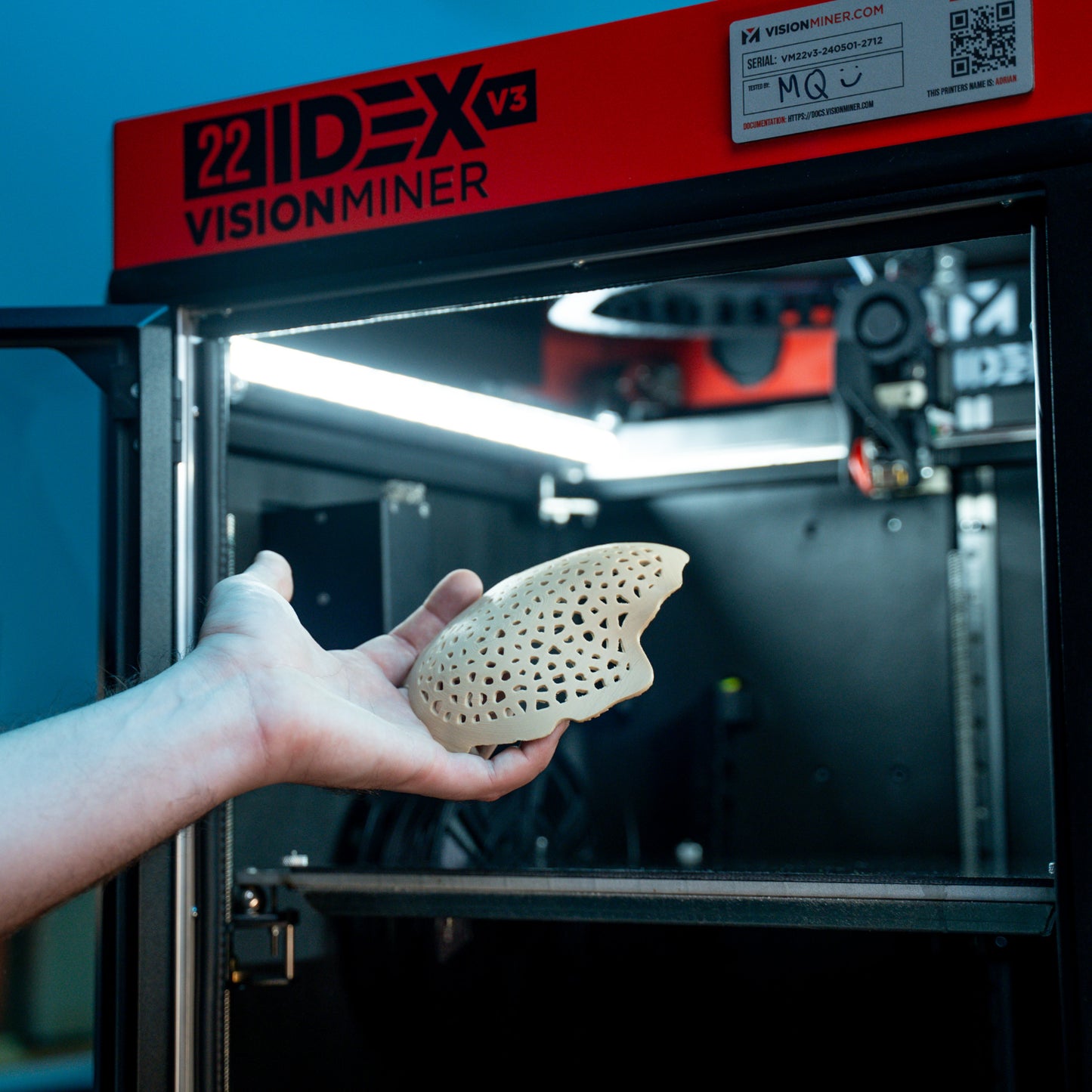

  • Medical & Lab – Autoclavable tools, sterilizable components.

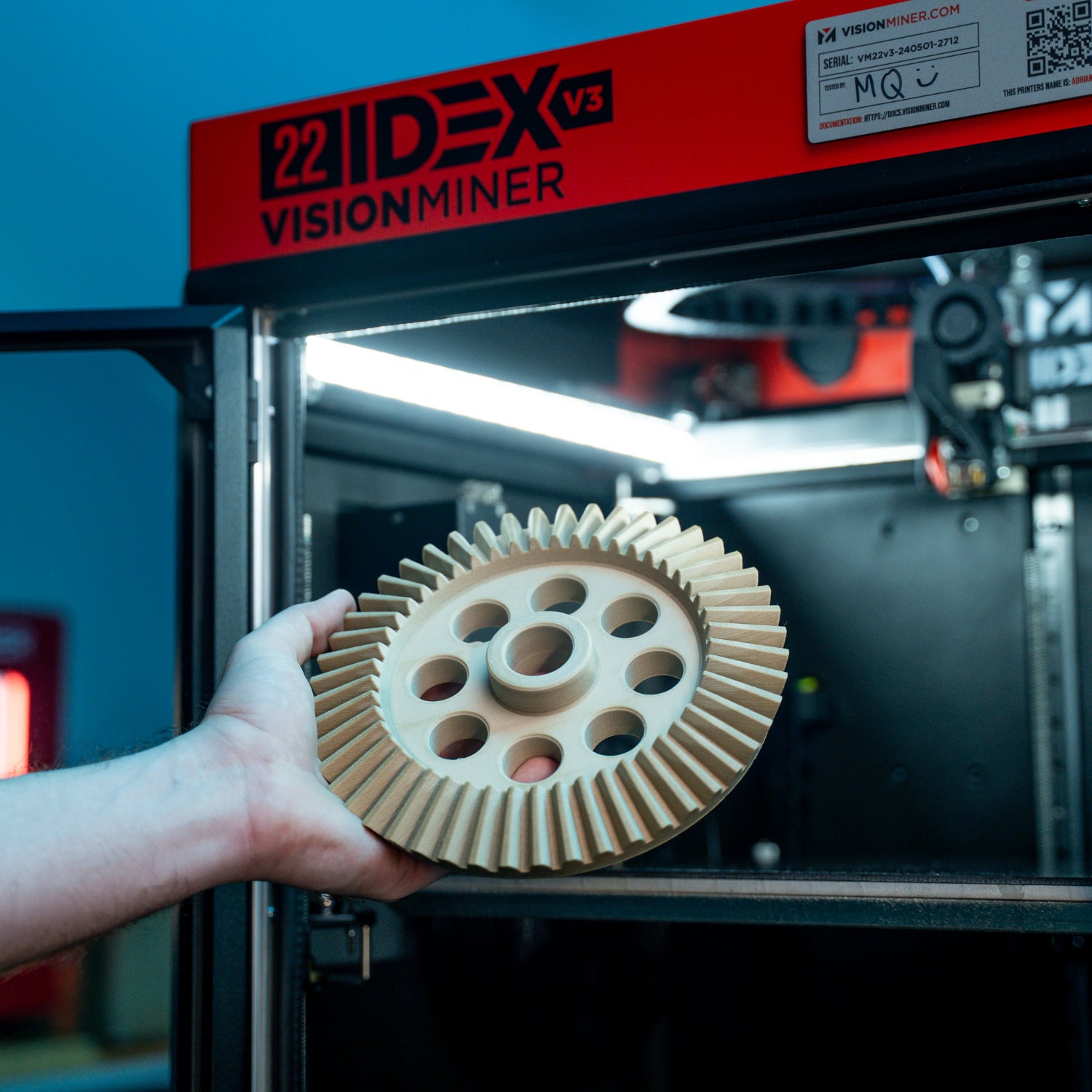

  • Manufacturing – Jigs, fixtures, vacuum molds, press brake tooling.

  • Engineering R&D – Multi-material prototyping with ultra-performance polymers.

Specs

Specification 22 IDEX v3 Industrial 3D Printer

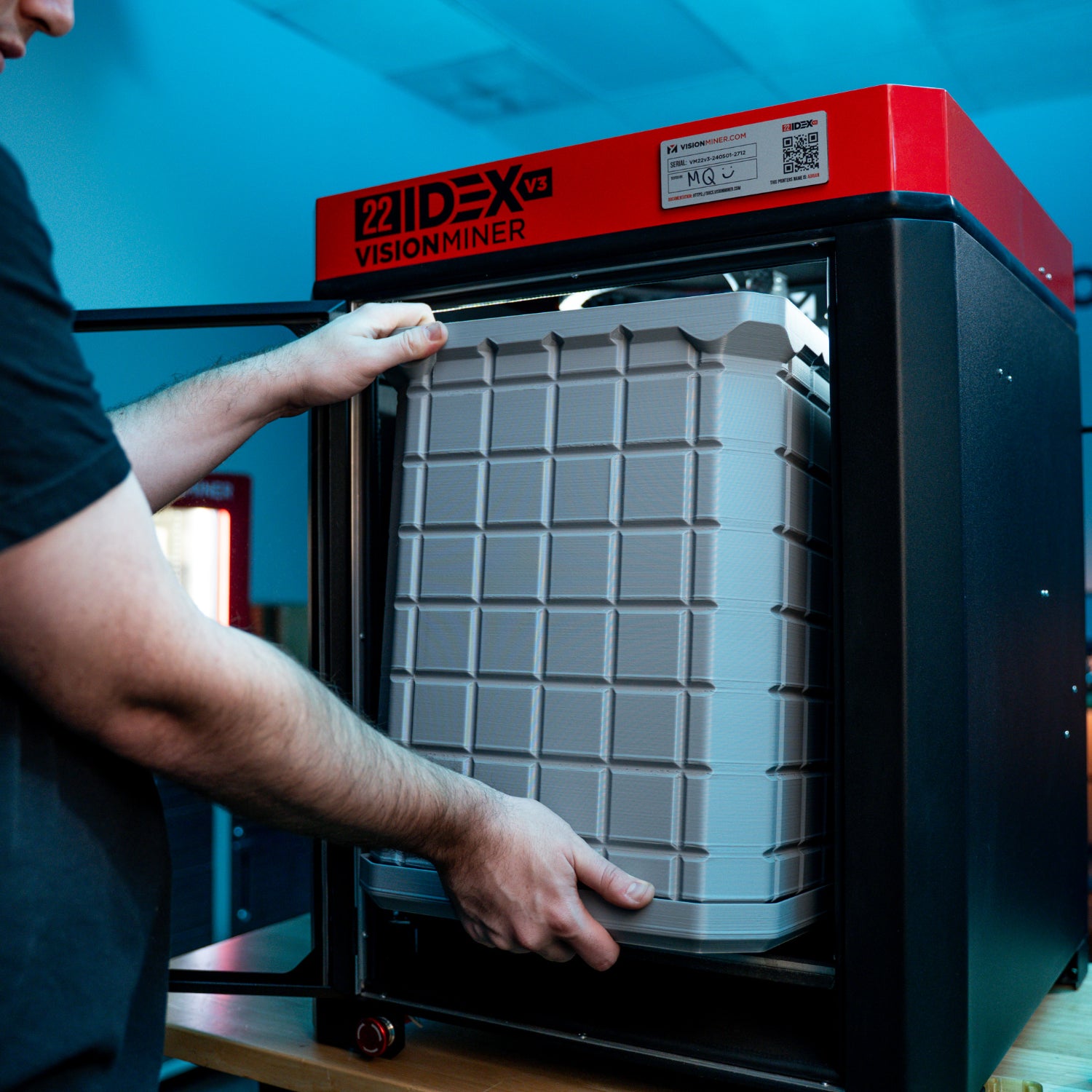

Build Volume 350 × 350 × 450 mm (13.7 × 13.7 × 17.7 in)
Nozzle Temperature Up to 500°C (both extruders)
Build Plate Temperature Up to 200°C (carbon fiber plate)
Chamber Temperature 100°C+ actively heated
Layer Resolution 40–500 microns (0.005” achievable)
Motion System Quad-motor XY, triple-motor Z, linear rails, Kevlar belts
Extruders Bondtech LGX Pro dual-gear (hardened steel nozzles)
Supported Filaments PLA, ABS, ASA, PETG, PC, Nylon, CF/GF composites, PEEK, PEKK, ULTEM™, PPSU, and more
Material System Fully open, 1.75 mm filament
Control Board Duet 3 with RepRap firmware
Connectivity Ethernet, Wi-Fi, USB
File Formats Standard G-code
Dimensions (Printer) 535 × 568 × 739 mm (21.6 × 22.36 × 29.09 in)
Weight 90.7 kg (200 lbs)
Safety CE certification, thermal runaway & overheat protection
Warranty 1-year standard, extended options available

Included in the Box

Item Quantity
22 IDEX v3 3D Printer 1
Carbon Fiber Build Plate 1
USB & Power Cables 1 set
Calibration Tools & Sensor 1 set
Hardened Steel Nozzles (0.4 mm) 2
Duet 3 Web Control Access 1
Quick Start Guide & Documentation 1 set
