SKU:PT-NP22-014

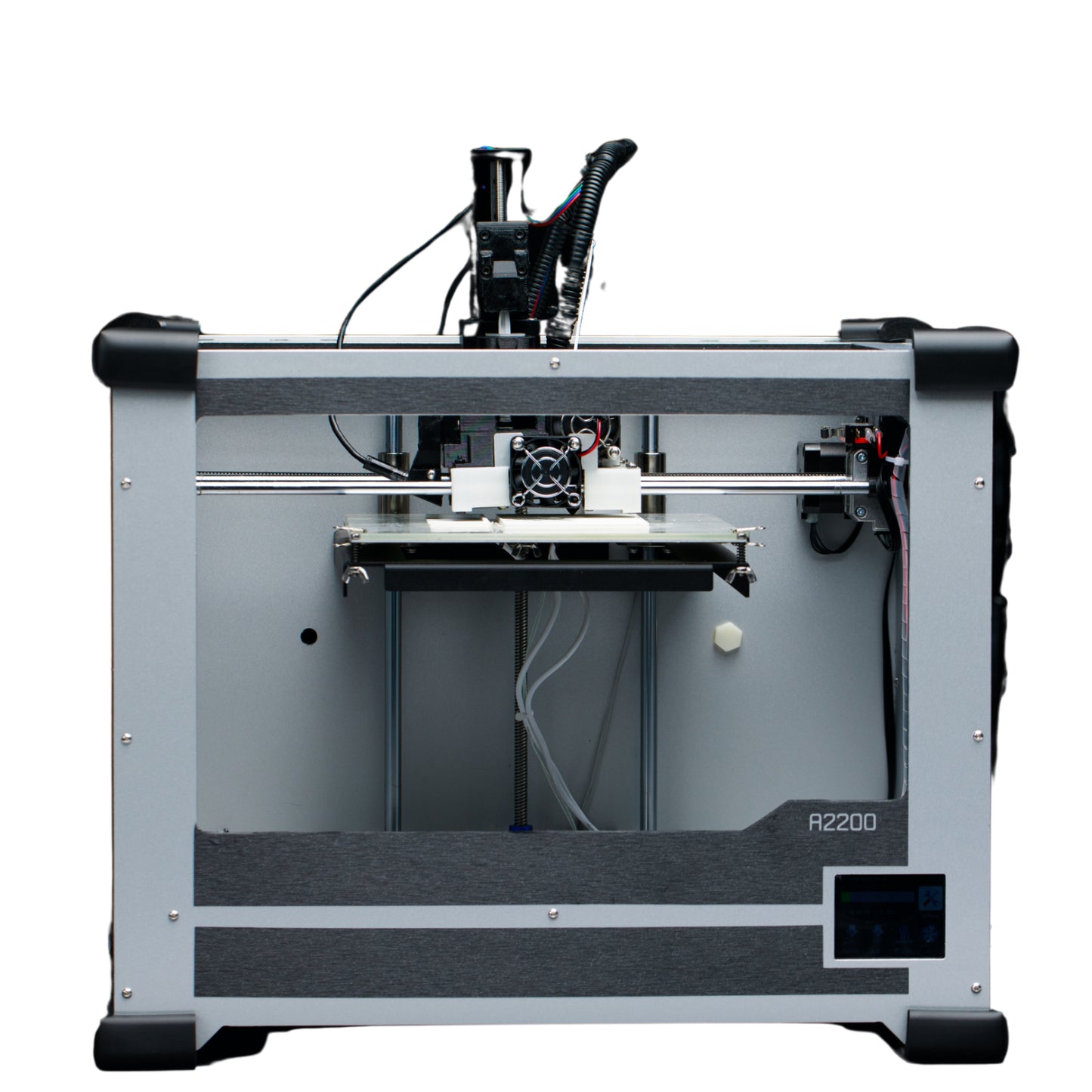

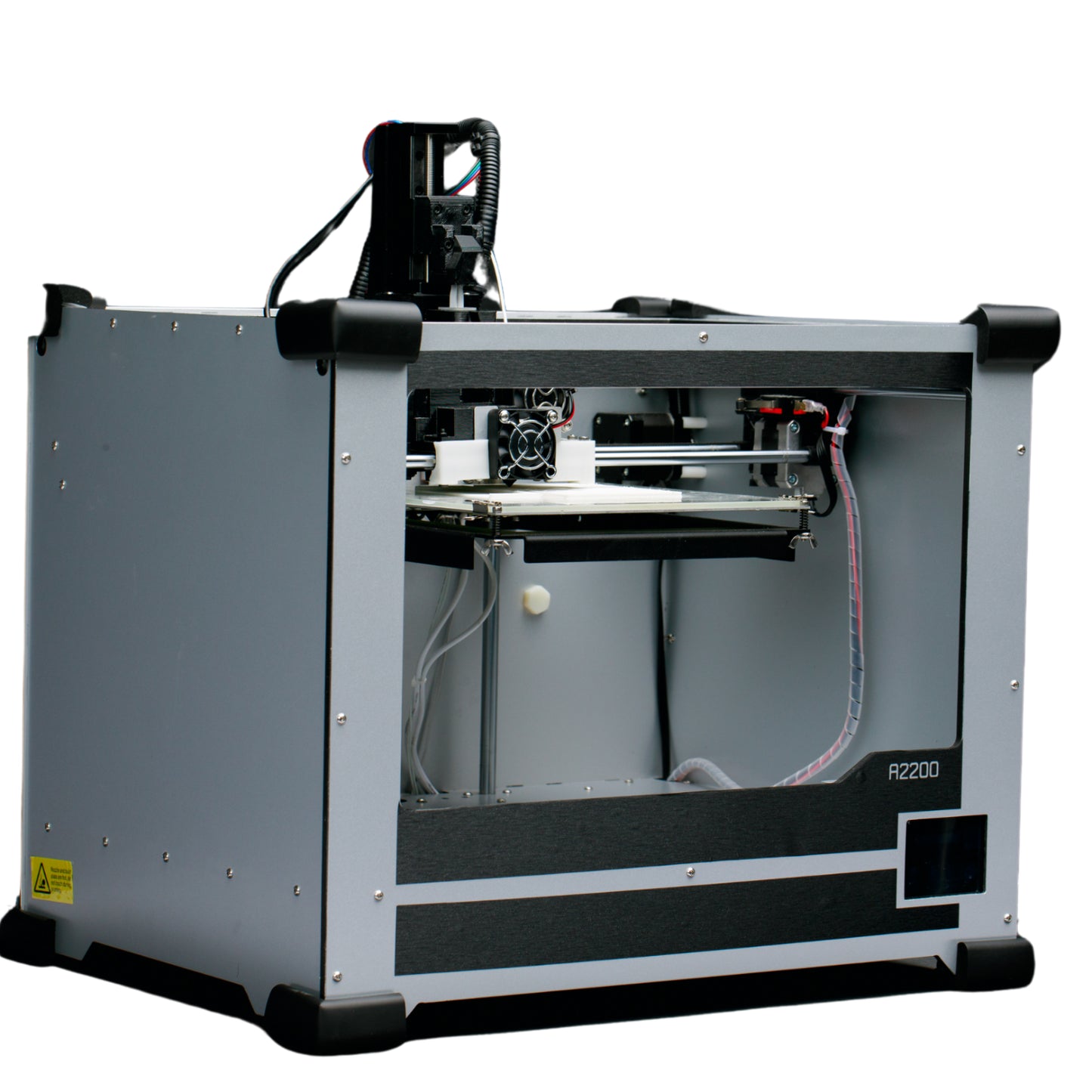

Nano3DPrint A2200 Industrial FDM 3D Printer PT-NP22-014

Nano3DPrint A2200 Industrial FDM 3D Printer PT-NP22-014

Regular price $8,800.00 USD
Regular price Sale price $8,800.00 USD
Sale Sold out

In stock

Includes Warranty

30-Day Returns

Unlimited Free Support

A2200 3D Printer: Revolutionizing Functional 3D Printing

Overview:

Experience the future of 3D printing with the A2200, a groundbreaking printer designed to create advanced electronics and functional objects with embedded circuitry. This innovative machine combines FDM (Fused Deposition Modeling) with the ability to print functional paste and highly conductive inks, enabling the creation of a wide range of sophisticated applications.

Key Features:

- Multifunctional Printing Capabilities:
  Print side-by-side FDM with functional paste and conductive inks to fabricate complex electronics such as sensors, antennas, and medical devices.

- Material Versatility:
  Utilize materials like gold, copper, and other advanced composites to create high-performance, durable objects.

- Strongest 3D Prints:
  Achieve unmatched strength and durability with composite materials, ensuring that your 3D prints meet the highest standards of quality and reliability.

- Cost-Effective:
  Benefit from a significantly lower cost of ownership compared to other 3D electronics printers, making cutting-edge technology accessible without compromising on performance.

Applications:

- Electronics:
  Integrate circuits directly into 3D printed objects, creating compact and efficient electronic devices.

- Medical Devices:
  Produce custom medical instruments and implants with embedded functionality for improved patient outcomes.

- Industrial Prototypes:
  Develop robust prototypes with embedded sensors and antennas for advanced testing and iteration.

Why Choose A2200:

The A2200 is not just a 3D printer; it’s a comprehensive solution for innovators and professionals looking to push the boundaries of what’s possible in 3D printing technology. With its unique ability to handle a variety of materials and combine multiple printing techniques, the A2200 sets a new standard in the industry. Embrace the future of manufacturing with the A2200 and bring your most ambitious projects to life.

Specs

Feature Details
Two Printheads Optimized Print Heads: FDM Extruder side-by-side with Materials Dispensing System
Print Head 1 (FDM Extruder) Conductive filament, Carbon Fiber filament, PLA, 1.75mm ABS, POM, Dissolvable filament (PVA, HIPS), PETG, Nylon (PA), PC, Flexible filament (TPU, PLA+), Moldlay (cartable filament), nano3Dprint high conductive filament, and much more...
Print Head 2 (Materials Dispensing System) nano3Dprint pastes and inks, functional pastes and inks, Conductive Paints, Fast Drying Solvent Based inks, Silver Nano-Particle inks, Graphene solutions, and much more...
Resolution Achieve a resolution of 200-microns, and attain even finer resolutions of up to 100-microns with specialty tips on the materials dispensing system
Materials Dispensing System Viscosity Range Works with all inks and pastes with viscosities ranging from 1mPa·s to 54000 mPa·s
Materials Dispensing System Syringe Size 3 ml
Materials Dispensing System Nozzle Size 14 to 30 Ga (1.6 mm to 150 μm) Higher Resolution Available: 32 Ga, 34 Ga
FDM Extruder Size 0.4 mm (1.75 mm filament)
Build Volume 214 x 186 x 160 mm (8.4 x 7.3 x 6.3 in)
Video Inspection System Real-time magnifying video inspection system for more precise adjustment control of the dispensing system
Machine Dimensions 467 x 357 x 374 mm
Machine Weight 13 kg (28.66 lbs.)
Max. Heat Bed Temperature 100°C
Max. Nozzle Temperature 270°C
Max. Axis Moving Speed 350 mm/s
Max. Nozzle Flow Rate 24 cc/hour
Nozzle Diameter 0.4 mm
Positional Accuracy XY axis: 0.011 mm, Z axis: 0.0025 mm
Printing Layer Height 0.05-0.3 mm
Stage Material Removable Glass Heated Bed
Software / File Format / Operating System Compatible with Repetier-Host, Cura, Makerware, Simplify3D etc. / STL, GCODE, OBJ, DAE, AMF, BMP, JPG, JPEG, PNG / Windows, Mac, Linux
Connectivity Direct print with SD card using full-color touch screen (recommended); Flash Drive

Included with the Purchase

Item Quantity
A2200 3D Multi-material Electronics Printer 1
General Tools & Materials:
- Allen Wrench (2 sizes) 2
- Allen Wrench (key type) 3
- Screw Driver 1
- Scraper 1
- Tweezer 1
- Screws & Plastic Corner Cover 5 screws total (1 for front fan, 4 for dispensing base)
- Dispenser/Syringe Adapter & Clamps for Plastic Syringe 1
- Dispenser/Syringe Adapter & Clamps for Glass Syringe 1
- Glue Stick 1
- Empty Plastic Syringes 5
- Syringe Caps 5
- Transfer Adapters 5
- Bed Clips 1 set
- Filament Holder 1
- Power Cable 1
- Glass Bed 1
- Mark II Dispensing System 1
- Video Monitoring System 1
- Simplify3D Software License 1

A2200 Data Sheet

View Nano3DPrint A2200 Data Sheet

User Manual

Nano3DPrint A2200 User Manual

Standard Warranty

Nano3DPrint Standard Warranty

Extended Warranty

Nano3DPrint Extended Warranty
