SKU:PT-NP33-038

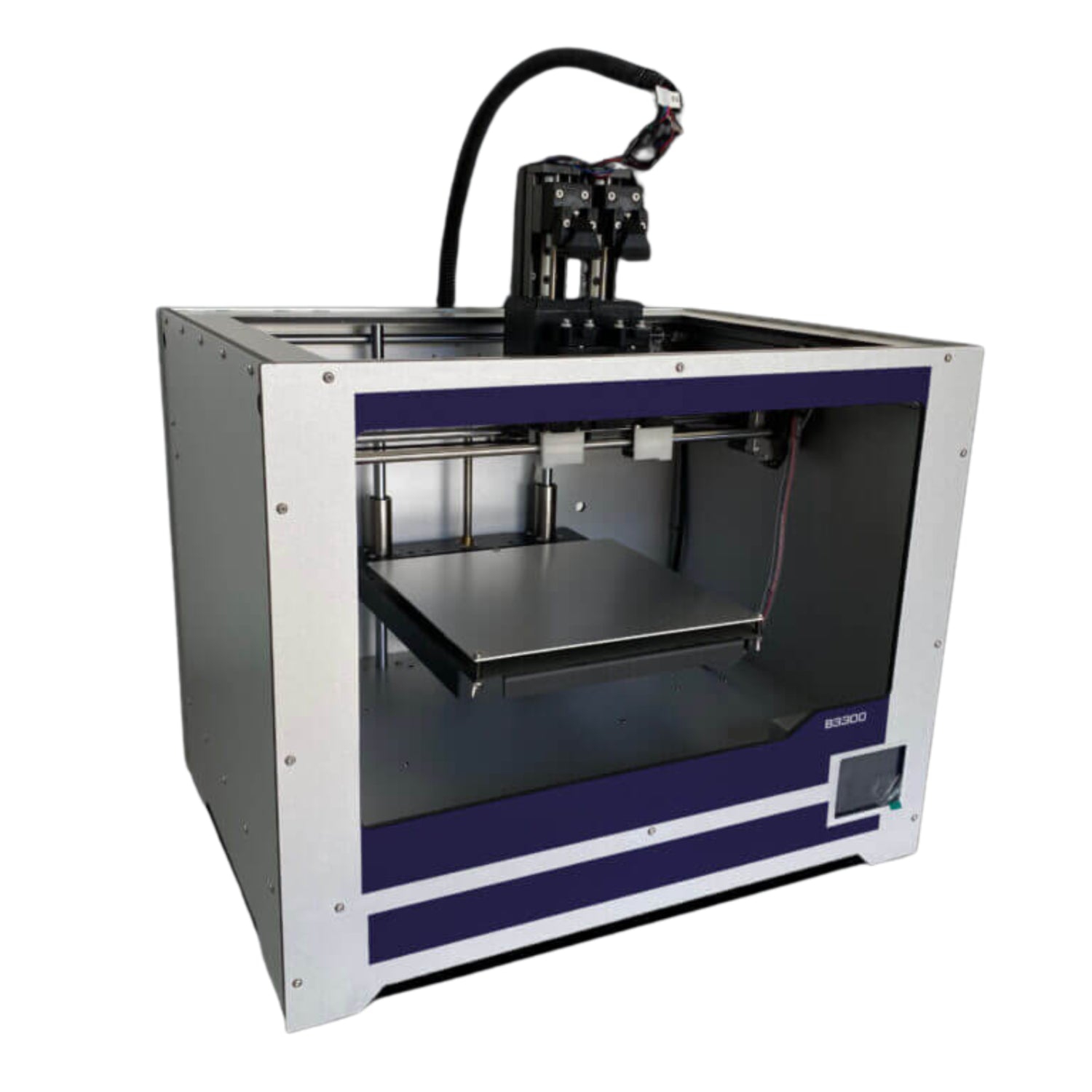

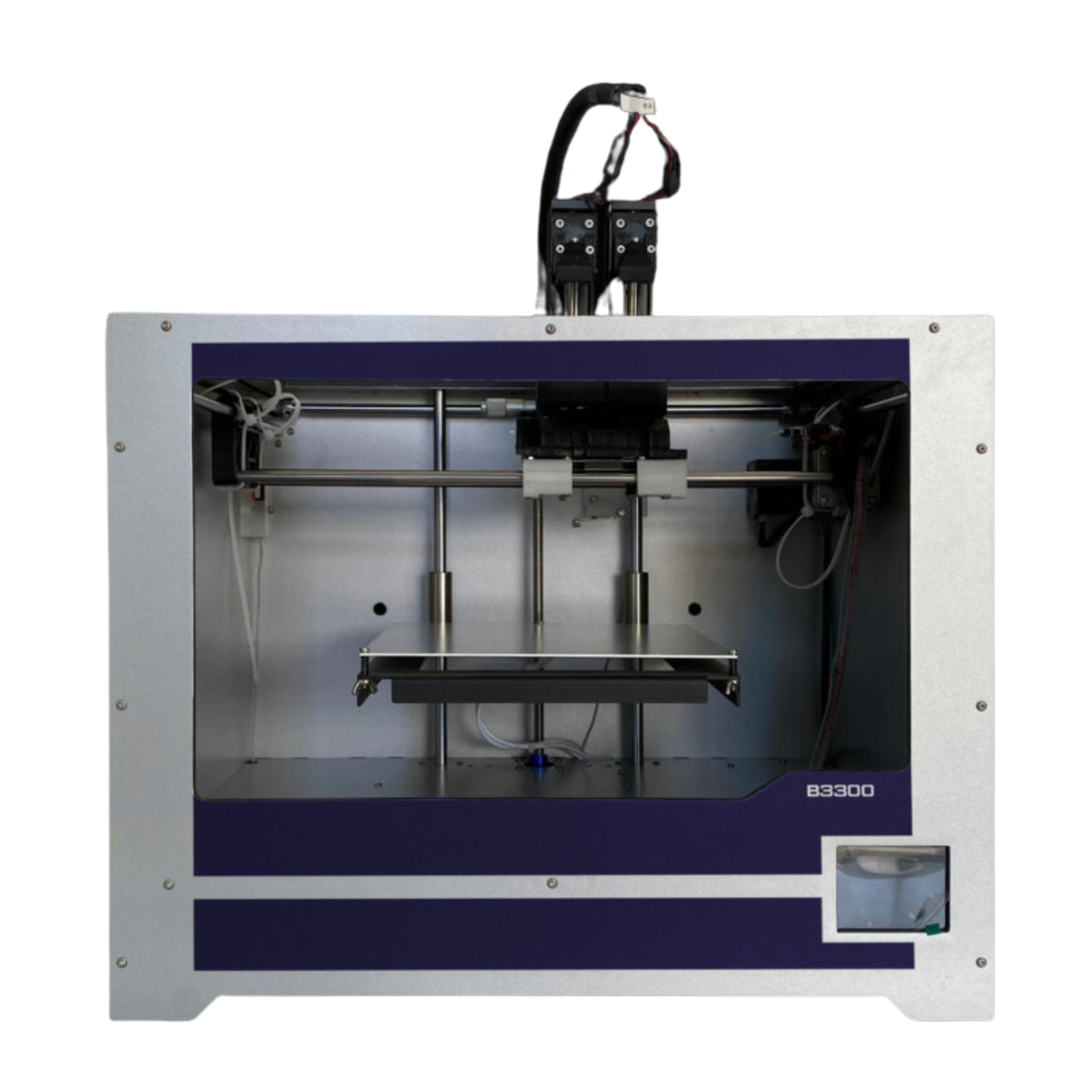

Nano3DPrint B3300 Industrial FDM 3D Printer PT-NP33-038

Nano3DPrint B3300 Industrial FDM 3D Printer PT-NP33-038

Regular price $6,000.00 USD
Regular price Sale price $6,000.00 USD
Sale Sold out

In stock

Includes Warranty

30-Day Returns

Unlimited Free Support

Meet the B3300, the cutting-edge 3D printer designed for printing functional inks and pastes with unparalleled precision and versatility.

Key Features:

- Versatile Printing Capabilities: The B3300 allows you to print full 3D patterns onto any substrate, combining multiple materials seamlessly to create advanced wearables, sensors, batteries, and other electronic components.

- Cost-Effective Solution: Enjoy a significantly lower cost of ownership with the B3300, making it an economical choice for both small-scale and large-scale production.

- Adjustable Layer Thickness: Whether you need thin or thick layers, the B3300 delivers with a viscosity range from 1 mPa·s to 54,000 mPa·s. Print layers as thick as 500 microns with high viscosity multi-materials in a single pass.

- Material Flexibility: Expand your printing material options from gold (Au) and silver (Ag) to UV curable polymers and silicone, enabling a broader range of applications and innovations.

Applications:

- Wearables: Create comfortable, flexible, and functional wearable electronics tailored to specific needs.
- Sensors: Develop high-precision sensors for various industrial, medical, and consumer applications.
- Batteries: Manufacture efficient and compact batteries with customized shapes and sizes.
- Electronics: Innovate with complex electronic circuits and components, directly printed onto diverse substrates.

The B3300 is your gateway to pioneering the future of electronics manufacturing, providing the tools and flexibility to bring your most ambitious designs to life. Embrace the future with the B3300 3D printer and unleash your creativity.

Specs

Feature Details
Printheads Two Printheads
Dispensing System Side-by-side Dual Materials Dispensing System
Materials Dispensing System 3D Prints Functional Pastes and Inks, Conductive Paints, Fast Drying Solvent Based Inks, Silver Nano-Particle Inks, Graphene Solutions, Conductive Inks (Au, Ag, Cu, etc.), Medical-Grade Silicone, Polyurethane Rubber and Plastics, Rigid and Flexible Urethane Foams, Epoxies, UV-Curable Polymers
Viscosity Range 1 mPa·s to 54000 mPa·s
Resolution 200 microns; up to 100 microns with specialty nozzles
Syringe Size 3 ml
Nozzle Size 14 to 30 Ga (1.6 mm to 150 μm); Higher Resolution Available: 32 Ga, 34 Ga
Build Volume 214 x 186 x 160 mm (8.4 x 7.3 x 6.3 in)
Video Inspection System Real-Time Magnifying Video Inspection System
Machine Dimensions 467 x 357 x 374 mm
Machine Weight 13 kg (28.66 lbs)
Max. Heat Bed Temperature 100°C
Max. Axis Moving Speed 125 mm/s
Max. Nozzle Flow Rate 15 cc/hour
Positional Accuracy XY axis: 0.011 mm; Z axis: 0.0025 mm
Printing Layer Height 0.05-0.3 mm
Stage Material Removable Glass Heated Bed
Software / File Format / Operating System Repetier-Host, Cura, Makerware, Simplify3D / STL, GCODE, OBJ, DAE, AMF, BMP, JPG, JPEG, PNG / Windows, Mac, Linux
Connectivity Direct Print with SD Card using Full-Color Touch Screen (recommended); Flash Drive



Included With the Purchase

Item Quantity
B3300 3D Multi-material Electronics Printer 1
General Tools & Materials
    Allen Wrench (2 sizes) 2
    Allen Wrench (key type) 3
    Screw Driver 1
    Tweezer 1
    Two Screws (for dispenser installation) 2
    Dispenser/Syringe Adapter & Clamps for Plastic Syringe 2
    Dispenser/Syringe Adapter & Clamps for Glass Syringe 2
    Empty Plastic Syringes 5
    Syringe Caps 5
    Transfer Adapters 5
    Bed Clips (1 set) 1 set
Power Cable 1
Glass Bed 1
Dual Dispensing System 1
Video Monitoring System 1
Simplify3D Software License 1

Nano3DPrint B3300 DataSheet

View Nano3DPrint B3300 DataSheet

Standard Warranty

Nano3DPrint Standard Warranty

Extended Warranty

Nano3DPrint Extended Warranty



View full details
