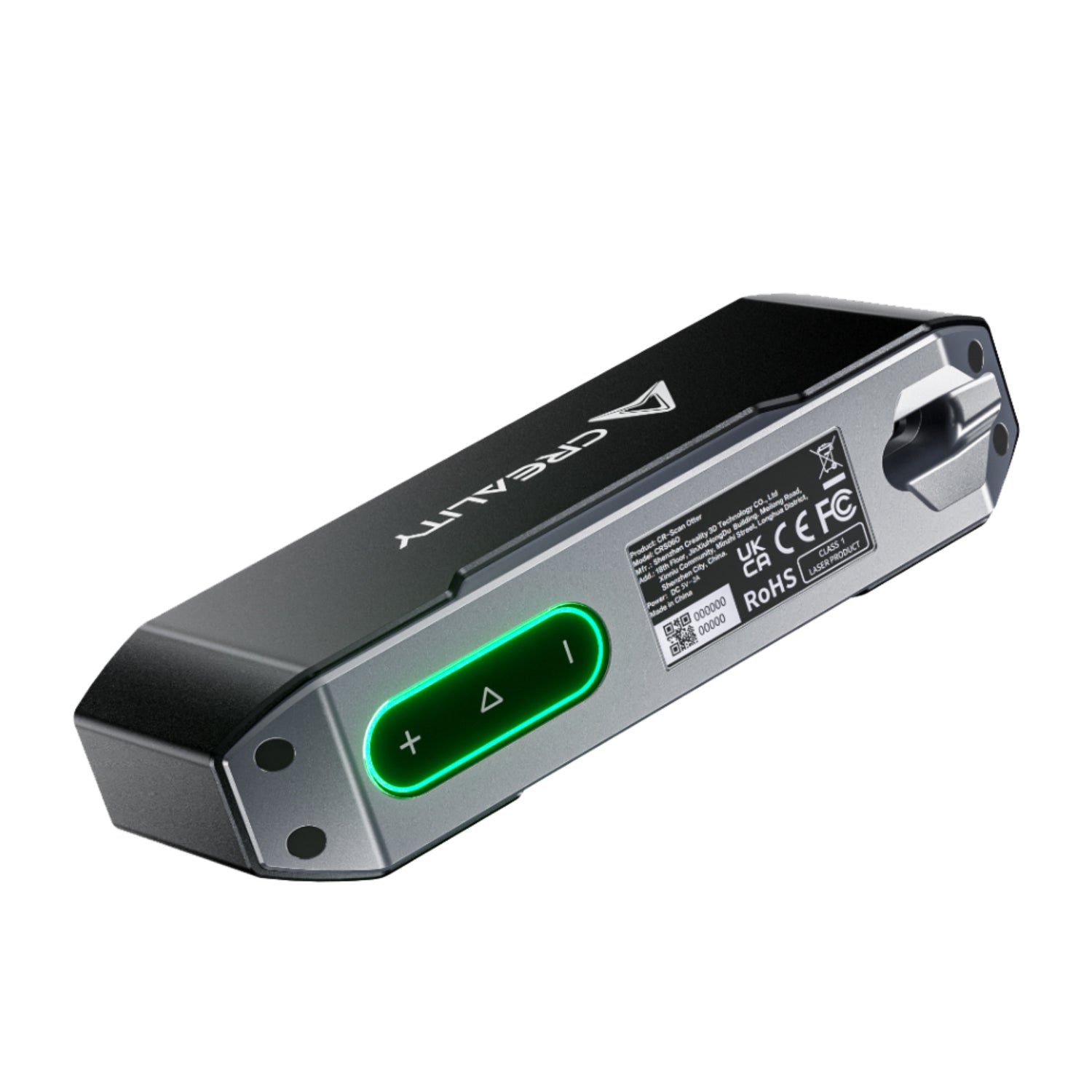

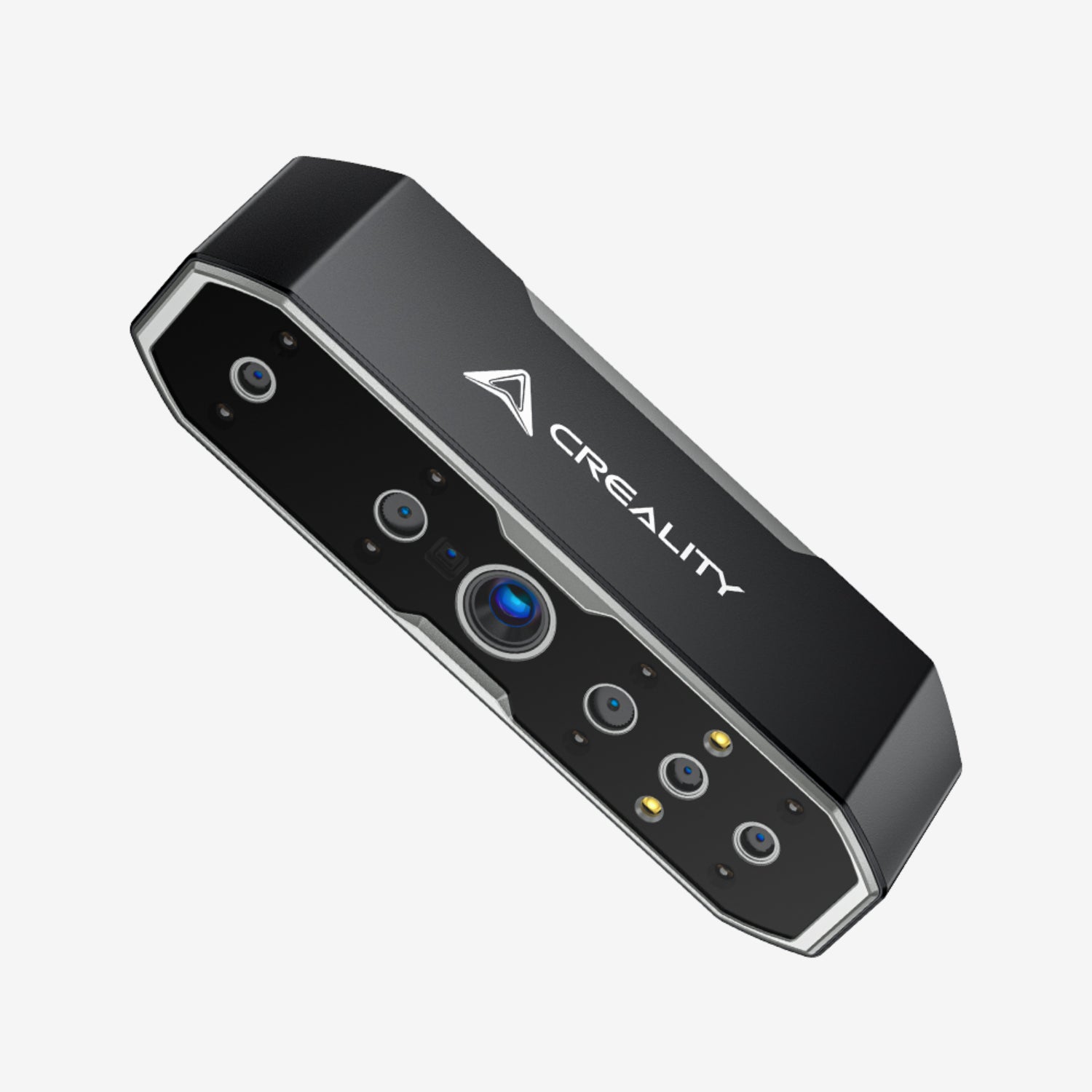

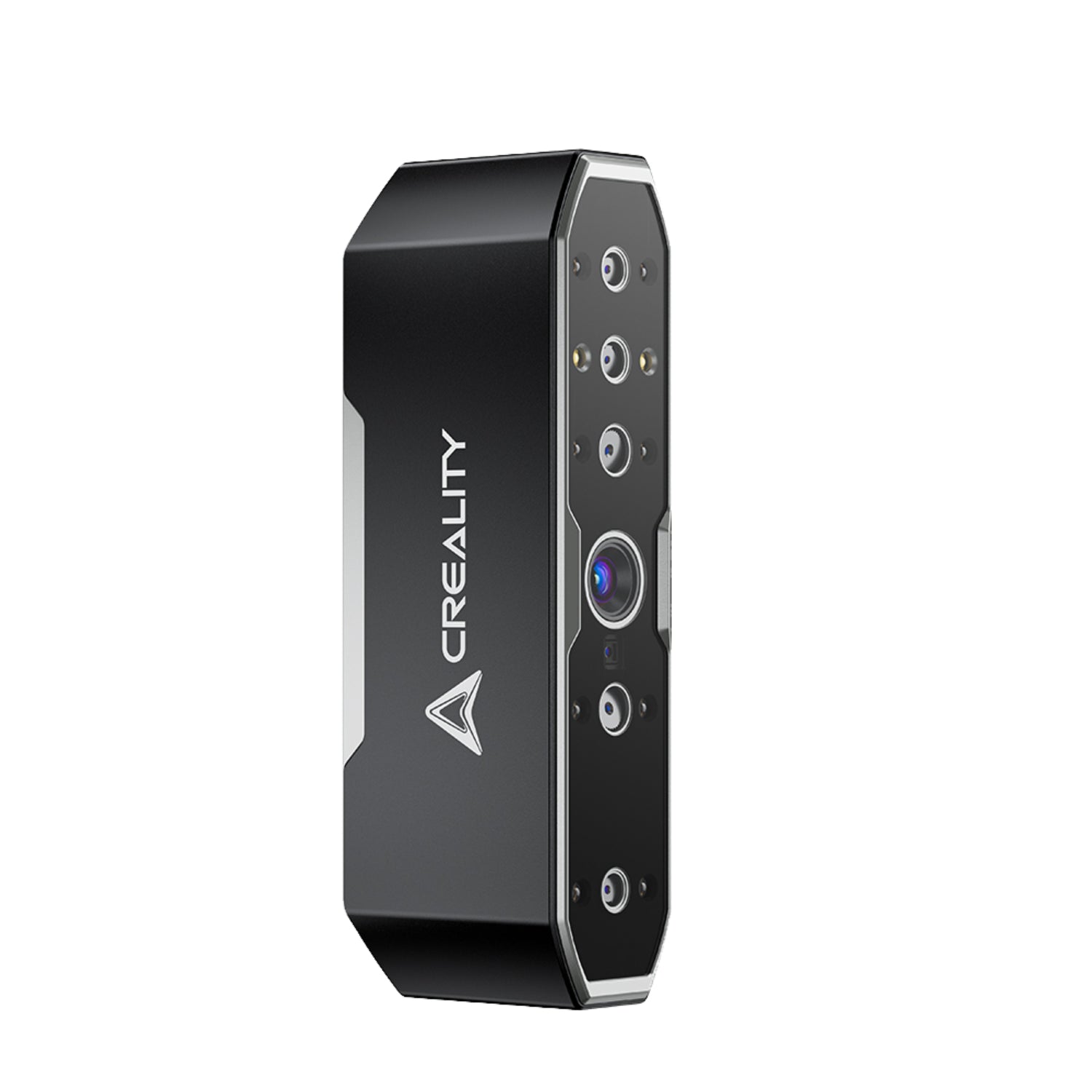

Creality CR-Scan Otter Handheld 3D Scanner 4008050048

Creality CR-Scan Otter Handheld 3D Scanner 4008050048

Regular price $899.00 USD
Regular price Sale price $899.00 USD
Sale Sold out

In stock

Includes Warranty

30-Day Returns

Unlimited Free Support

True Versatility with Dual-Lens Design and Sub-Millimeter Accuracy

The Creality CR-Scan Otter is a powerful 3D scanner designed to handle objects ranging from 10 mm to 2000 mm, delivering ultra-high accuracy of up to 0.02 mm. Whether you're scanning tiny parts or entire car components, the CR-Scan Otter ensures detail-rich, professional-quality results every time.


Key Features

  • Scanning Accuracy: Up to 0.02 mm @ 60 mm

  • Scanning Range: 10 mm to 2000 mm

  • Scanning Speed: Up to 20 fps

  • 4-Lens Stereo Vision: Optimized for small and large object capture

  • Color Mapping: 24-bit full-color scanning

  • Face & Body Mode: Scan humans in just 2 minutes

  • Outdoor Scanning Ready: Stable under <30,000 lux lighting

  • Markerless Scanning: Speckle matching eliminates the need for markers

  • Scan Black/Metal Objects: No spray needed

  • Quiet Fanless Design: For peaceful scanning sessions


Engineered for All Scenarios

  • Wide Object Compatibility: From 10×10×10 mm³ coins to 2000×2000×2000 mm³ vehicles

  • Two Dual-Lens Sets:

    • Long focal length lenses for small, detailed objects

    • Short focal length lenses for wider, larger surfaces

  • Anti-Shake One-Shot 3D Imaging: Reduces tracking loss

  • Face & Body Algorithm: Enhanced human scan accuracy and safety

  • LED Assistance: Built-in white LEDs for lighting in dark environments


Cross-Platform Compatibility

  • Windows & macOS Supported

  • iOS & Android Wireless Scanning Support Coming Soon

  • CrealityScan Software Features:

    • One-click model processing

    • Point-cloud and mesh editing

    • Marker mode

    • Face & Body mode

    • Step-by-step tutorials

Specs

Specification Description
Accuracy Up to 0.02 mm @ 60 mm
3D Resolution 0.05 – 2 mm
Scanning Speed Up to 20 fps
Minimum Scan Volume 10 x 10 x 10 mm
Maximum Capture Range 1350 x 840 mm @ 1000 mm
Technology Infrared Structured Light
Working Distance 110 – 1000 mm
Color Mapping Yes (24-bit RGB)
Alignment Modes Geometry / Marker / Texture
Output Formats OBJ, STL, PLY
IMU Yes
Color Supplemental Light 2 White LEDs
Marker Enhancement 8 Infrared LEDs
Laser Safety Class I (Eye Safe)
System Compatibility Windows/macOS (iOS/Android upcoming)
Wireless Scanning With future accessories
Buttons Touch + Audible Feedback
Operating Temp / Humidity -10°C to 40°C / 0-90% RH
Power Input 5V 3A
Interface USB Type-C / USB 3.0 / USB 2.0
Dimensions (L×W×H) 165 x 37 x 59 mm
Weight 390 g

Included in the Purchase

Item Quantity
CR-Scan Otter 3D Scanner 1
USB 3.0 Data Cable (USB-C/USB-A, 2m) 1
USB 2.0 Power Cable (USB-C/USB-A, 1.5m) 1
High-Precision Calibration Board 1
USB-C Adapters 2
Reflective Markers (6 mm x2, 3 mm x2) 1 Set
Scanning Pad 1
Cleaning Cloth 1
Lanyard 1
Scanning Test Object (Owl) 1
Portable Case 1
Quick Start Guide, Certification, Warranty 1 Set
