🟢authorized PARTNER

SKU:4008050059

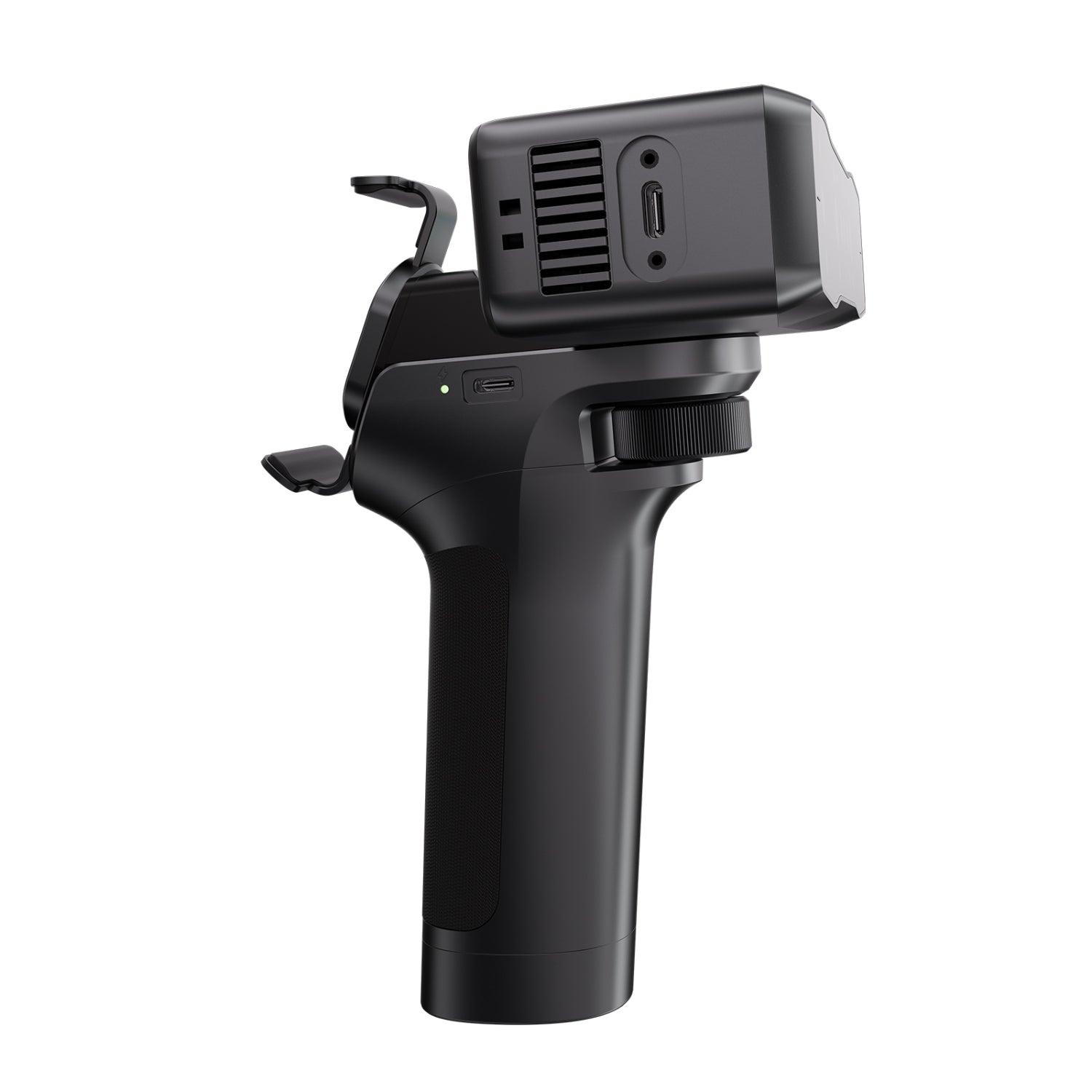

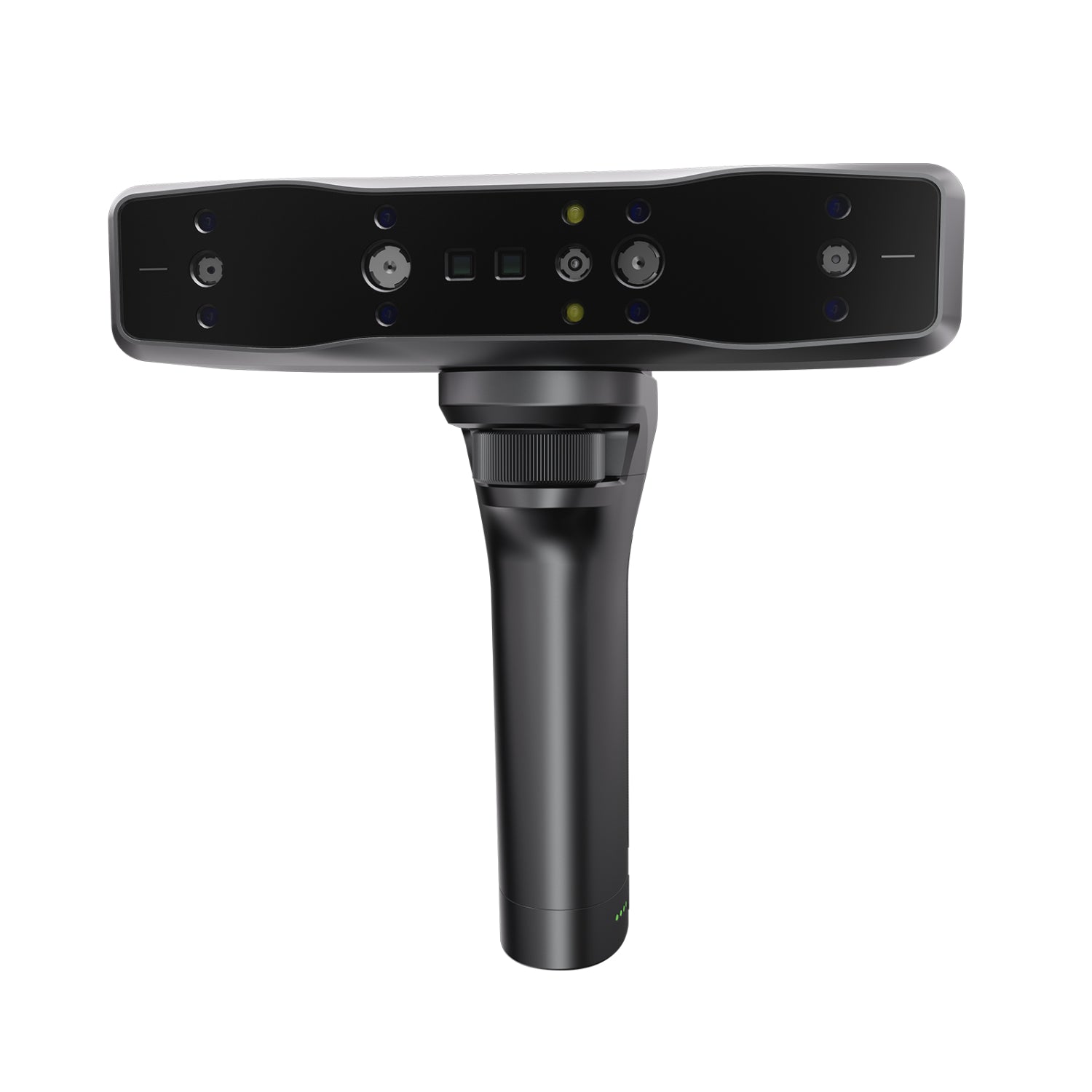

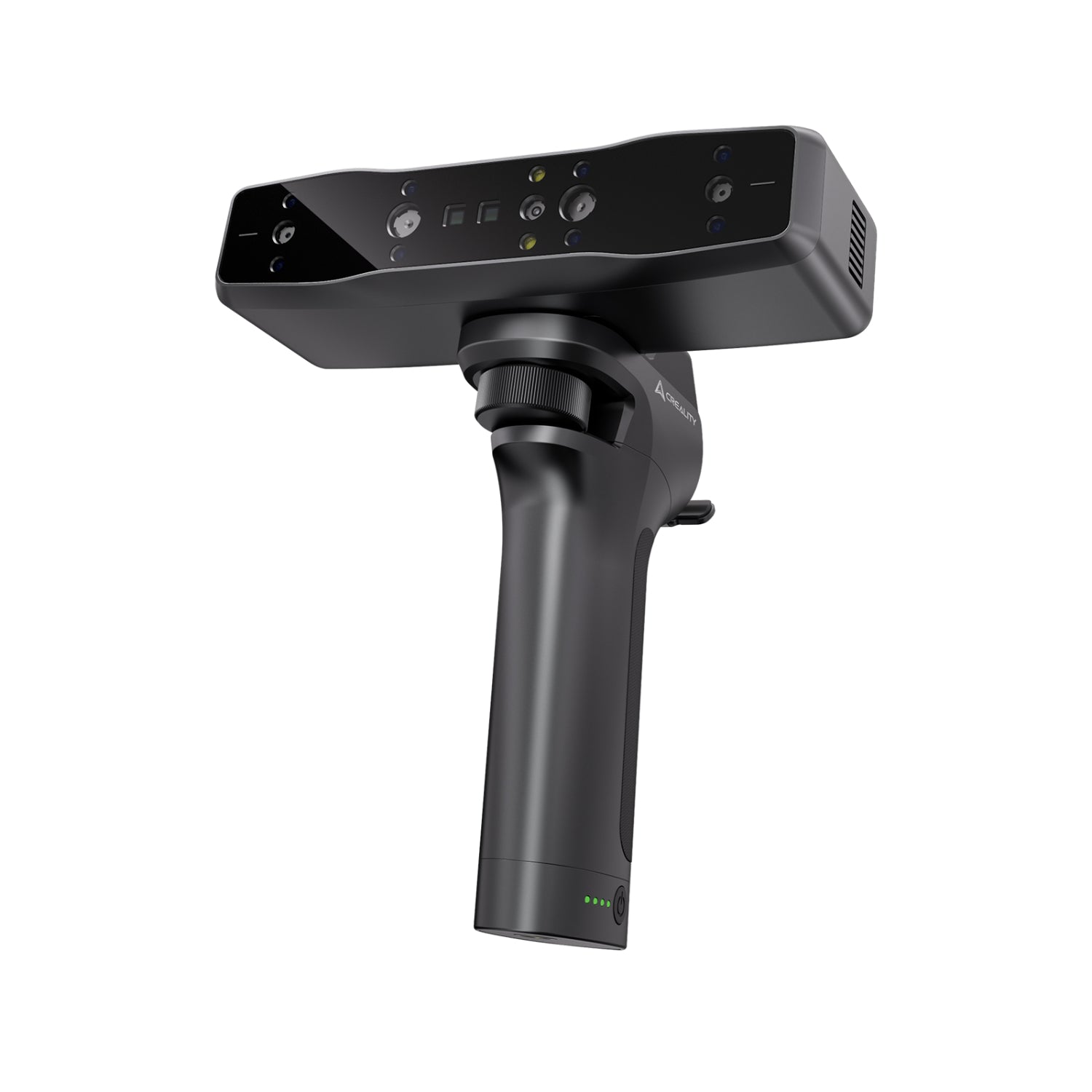

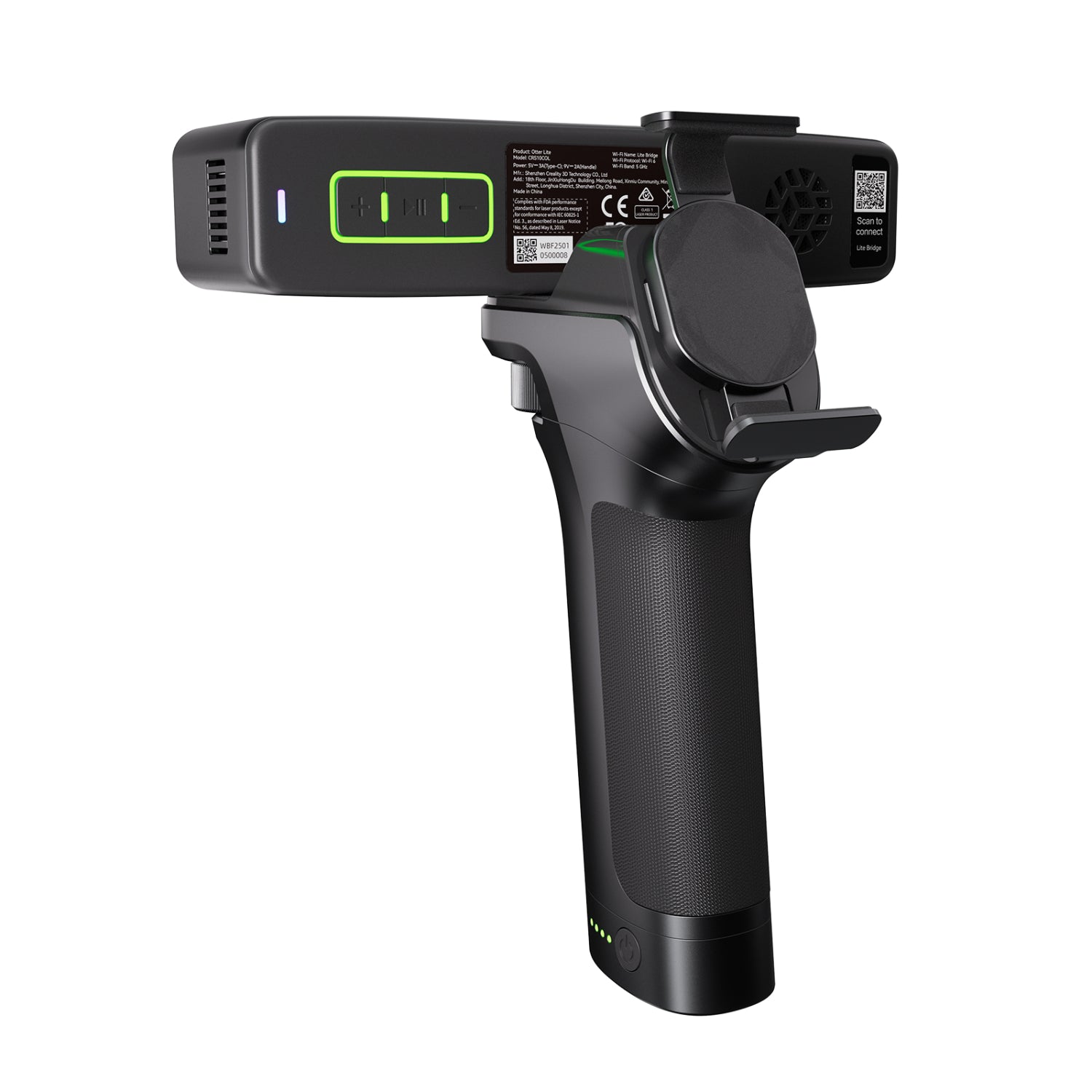

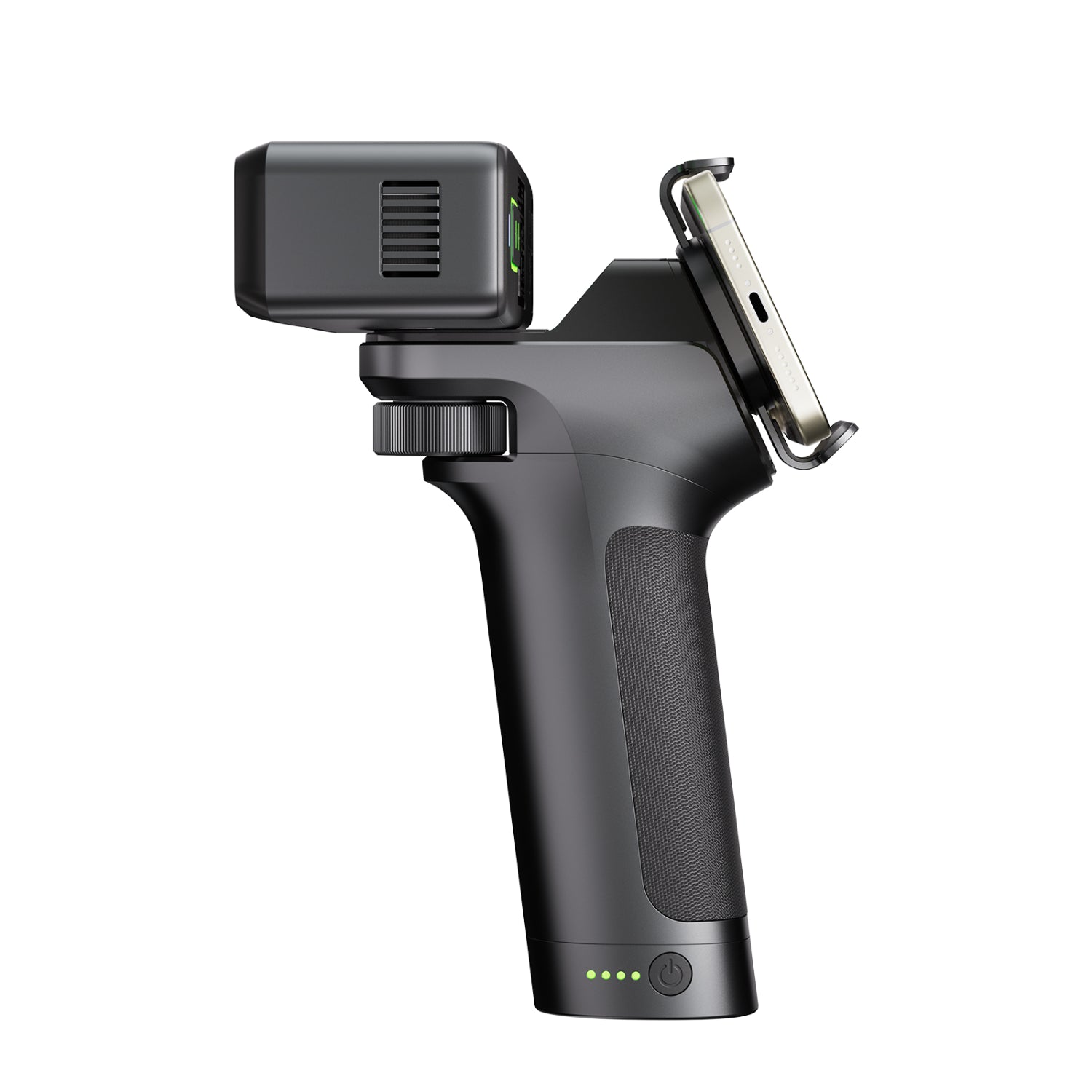

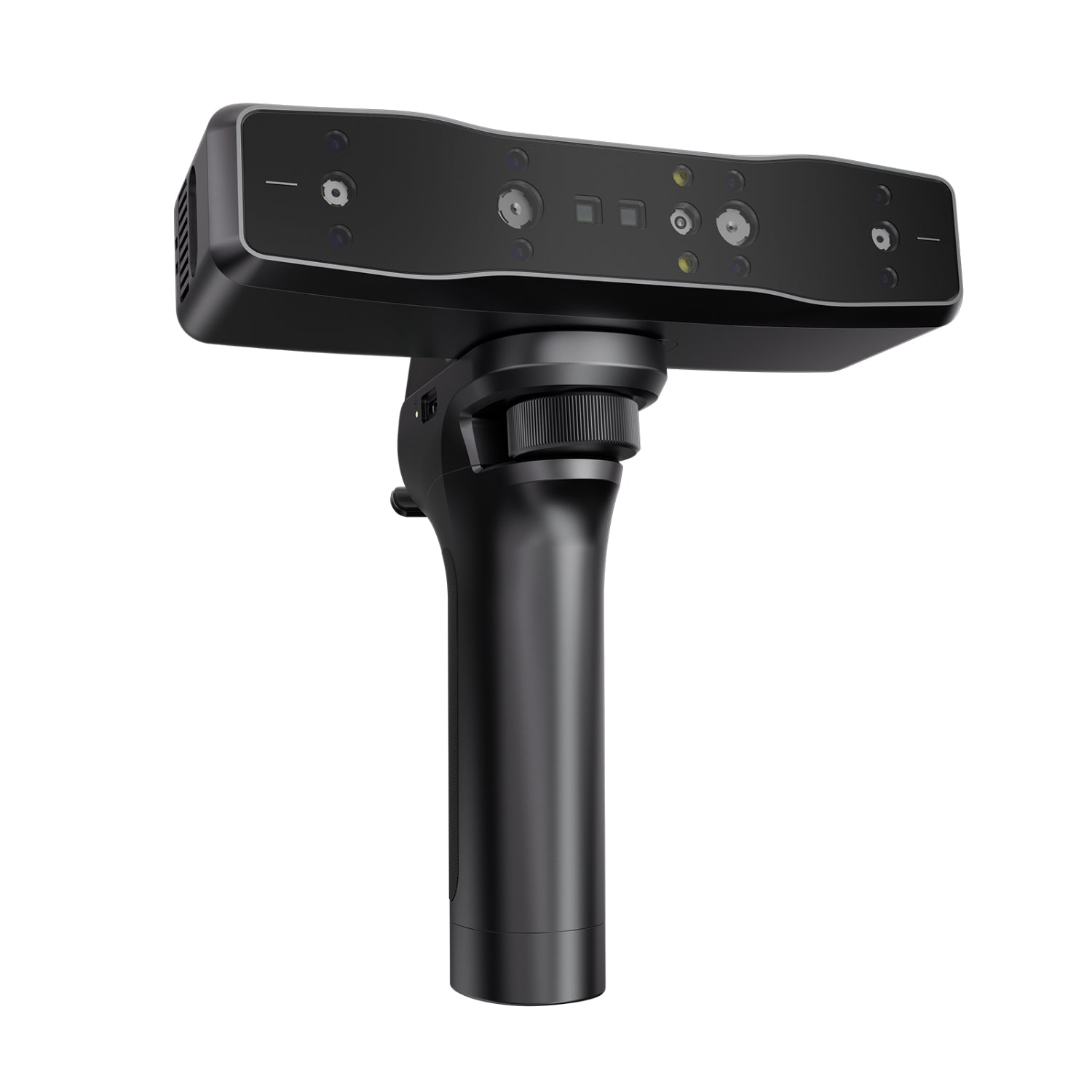

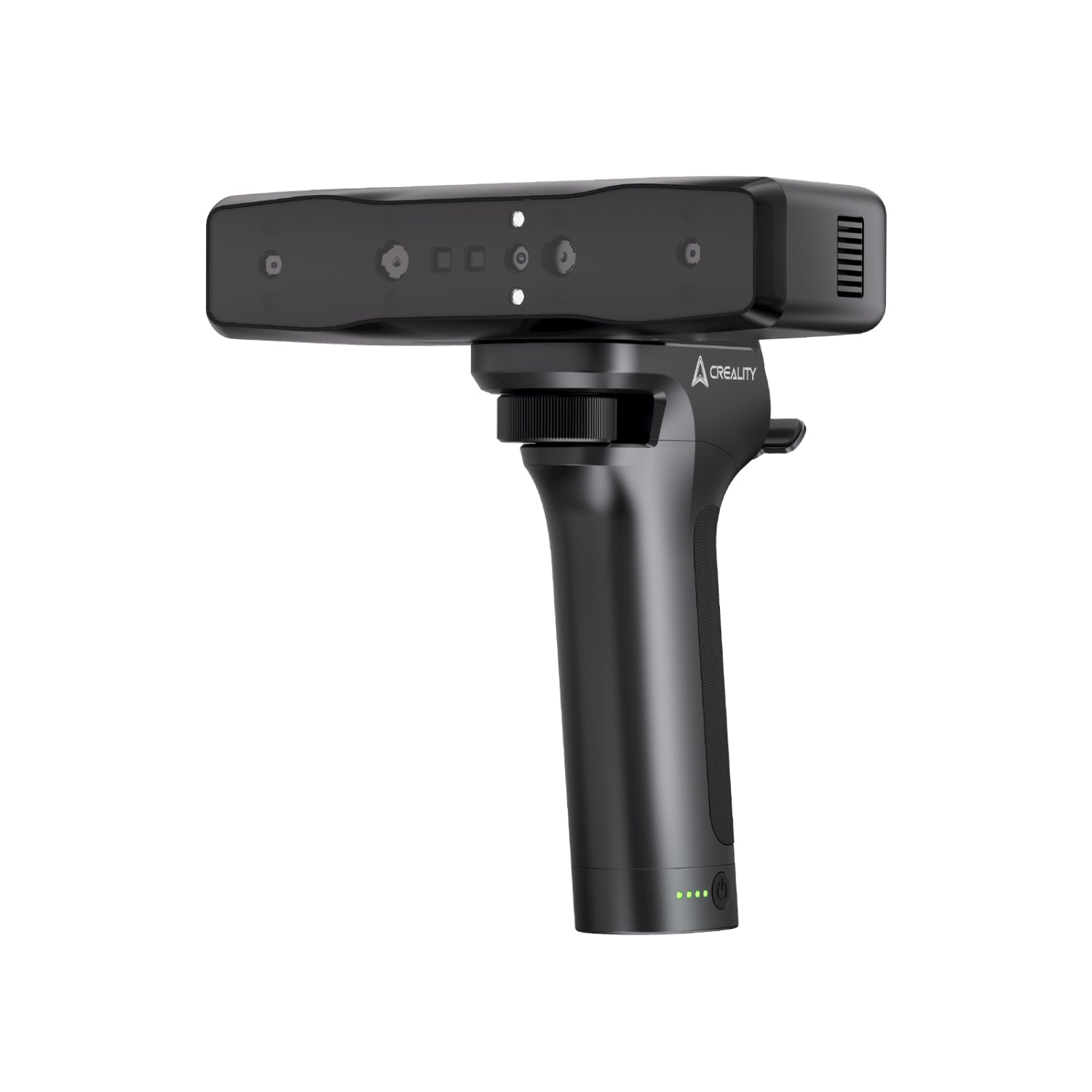

Creality CR-Scan Otter Lite Handheld NIR 3D Scanner 4008050059

Creality CR-Scan Otter Lite Handheld NIR 3D Scanner 4008050059

Regular price $759.00 USD
Regular price Sale price $759.00 USD
Sale Sold out

In stock

Includes Warranty

30-Day Returns

Unlimited Free Support

Portable Stereo-Vision Scanner for Big and Small Objects

The Creality Otter Lite is a high-performance wireless 3D scanner that pairs 4-lens stereo vision with Wi-Fi 6 connectivity, enabling smooth, real-time scanning from your mobile device. With support for objects ranging from 20 mm to 2000 mm, the Otter Lite is designed for hobbyists, designers, engineers, and educators alike.


Key Features

  • True Wireless Operation: No cables or PC required

  • 4-Lens Stereo Vision System: Scans small and large objects with fine detail

  • High Accuracy: Up to 0.05 mm @ 100 mm

  • Scanning Speed: Up to 30 fps

  • Objects Between: 20 mm to 2000 mm in size

  • Anti-Shake One-Shot Imaging: Smooth handheld scans with fast backtracking

  • 24-bit Full Color: Accurate color mapping with a million-pixel RGB camera

  • Scan Black/Metal Objects Without Spray: No surface prep needed

  • Lightweight & Ergonomic: Only 300 g main unit

  • Real-Time Mobile Preview: Scan live from your phone

  • Marker Scanning Support: Enhanced tracking using 8 infrared LEDs


Built for Versatility

  • Dual-Focal Lens System:

    • Long-focal lenses for small-object detail

    • Short-focal lenses for wide-coverage scans

  • DOE 3D Structured Light: Performs well even under <30,000 lux lighting

  • Face & Body Mode: Unique facial mapping for fast, accurate full-body scans

  • Color-Safe LEDs: White LEDs enhance color capture; Class 1 NIR is eye-safe


Seamless Software Experience

The CrealityScan 4.0 software offers:

  • Full-screen scanning with real-time feedback

  • Multi-scan alignment

  • AI-powered scan repair

  • Point cloud and mesh editing

  • Marker and body scanning modes

  • Compatible with OBJ/STL/PLY export formats

Specs

Specification Value
Scanning Mode NIR (infrared binocular structured light)
Accuracy Up to 0.05 mm @ 100 mm
3D Resolution 0.1 – 2 mm
Scanning Speed Up to 30 fps
Min. Scan Volume 20 x 20 x 20 mm
Working Distance 120 mm – 1200 mm
Single Capture Range 100x62 mm @120 mm – 1460x1017 mm @1200 mm
Alignment Modes Marker / Geometry / Texture
Color Mapping Yes (24-bit RGB camera)
Supplemental Lighting 2 White LEDs + 8 NIR LEDs
Output Formats OBJ, STL, PLY
IMU Yes
Wireless Scanning Yes (Wi-Fi 6, 5GHz, up to 4.7Gbps)
Battery Capacity 3400 mAh, Airplane Safe
Charging Time 80% in 1 hour
Operating Temperature -10°C to 40°C
Operating Humidity 0 - 90% RH
Dimensions (Main Unit) 173 x 39 x 56 mm
Weight 300 g (main), 306 g (Lite Bridge)
OS Compatibility Windows 10/11, macOS 11+, Android 10+, iOS 15+

Included in the Purchase

Item Quantity
Otter Lite 3D Scanner 1
Lite Bridge 1
USB 3.0 Data Cable (USB-C/USB-A, 2m) 1
USB 2.0 Power Cable (USB-C/USB-A, 1.5m) 1
High-Precision Calibration Board 1
Turntable 1
Scanning Test Object (Owl) 1
USB-C Adapters 2
Reflective Markers (6mm x10, 3mm x10) 1 set
Screw 1
Magnetic Phone Holder 1
Lanyard 1
Cleaning Cloth 1
Portable Case 1
Quick Start Guide, Cert & Warranty Card 1 set

Owner's Manual

📄 View Creality Otter Lite User Manual

Standard Warranty

📄 View Creality Standard 1-Year Warranty

View full details
