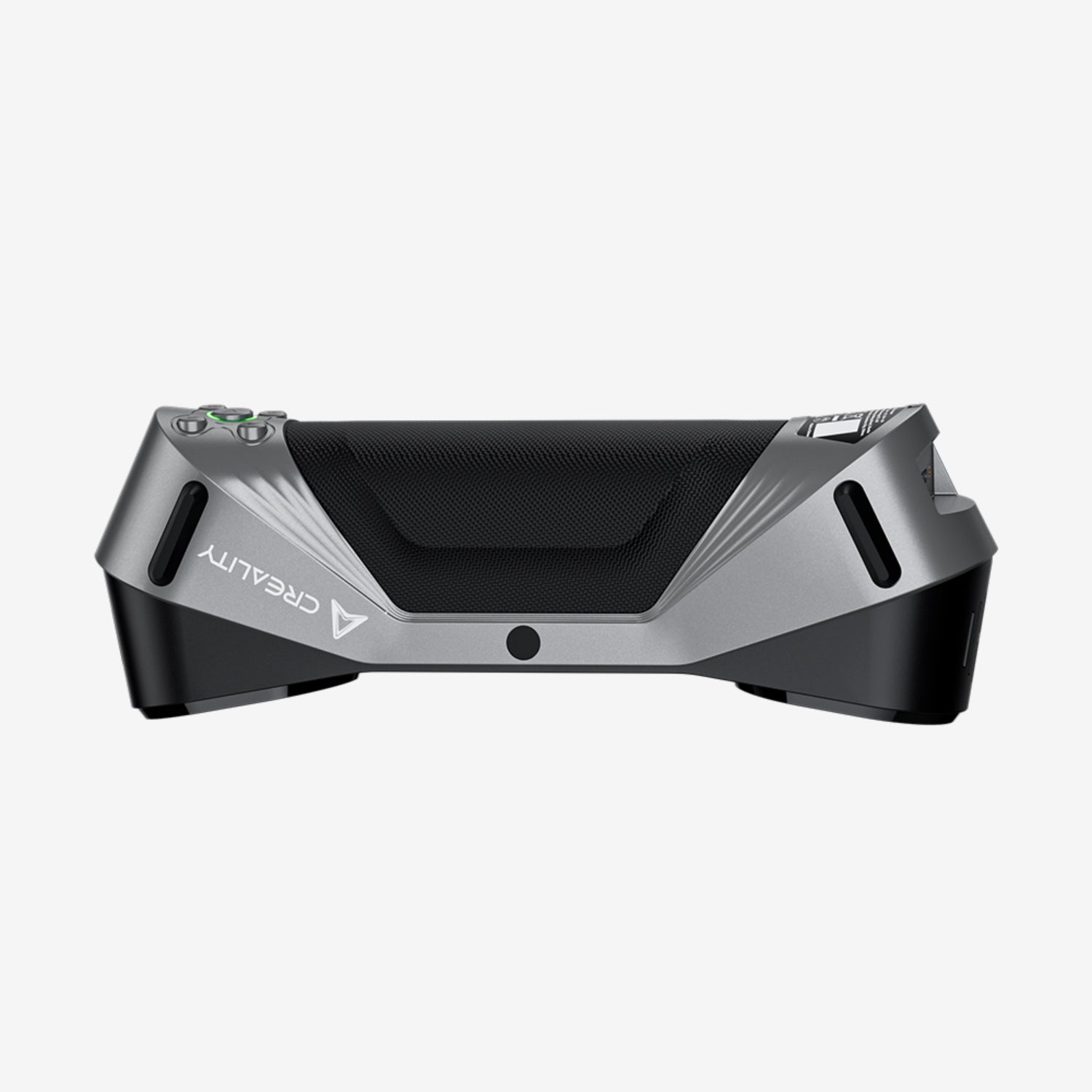

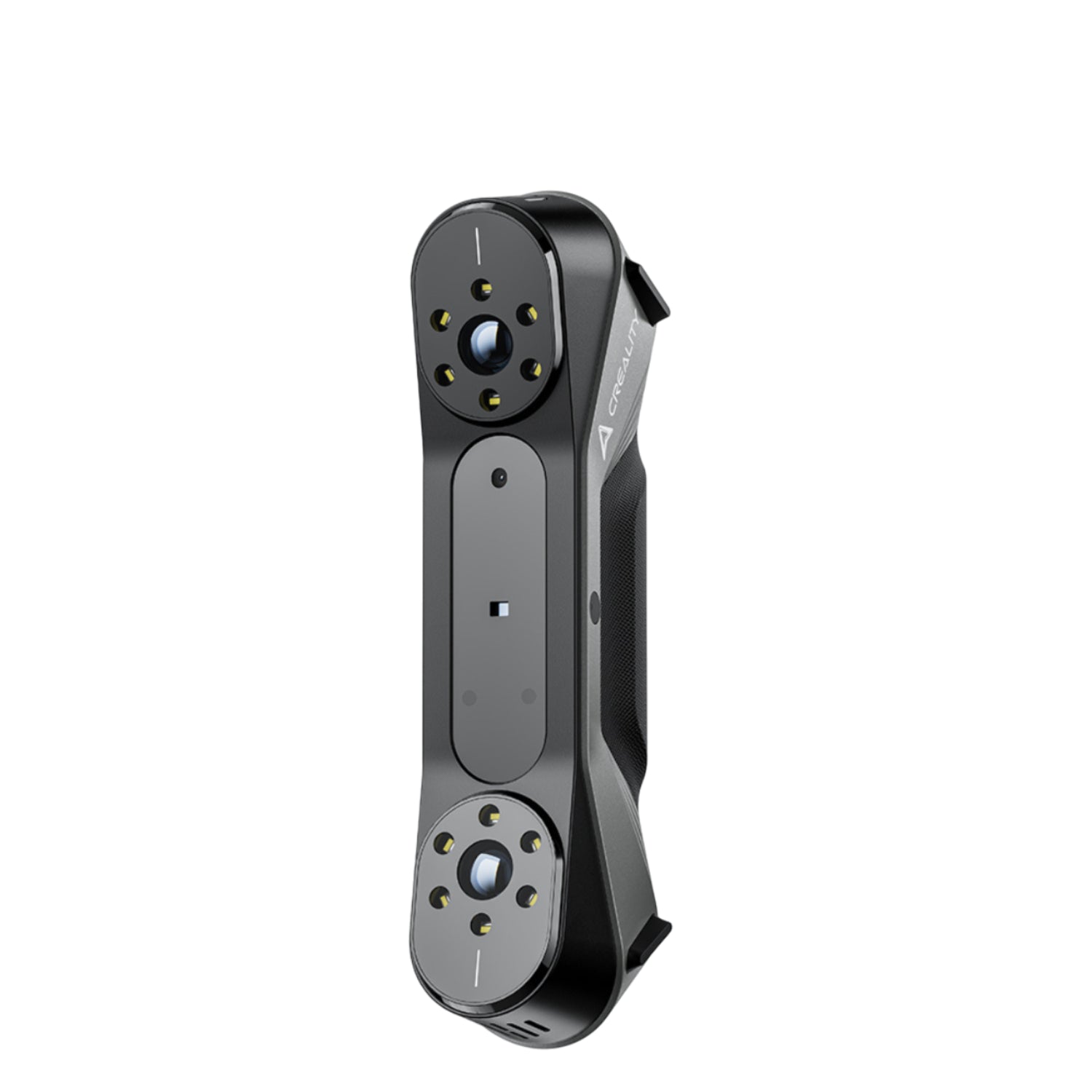

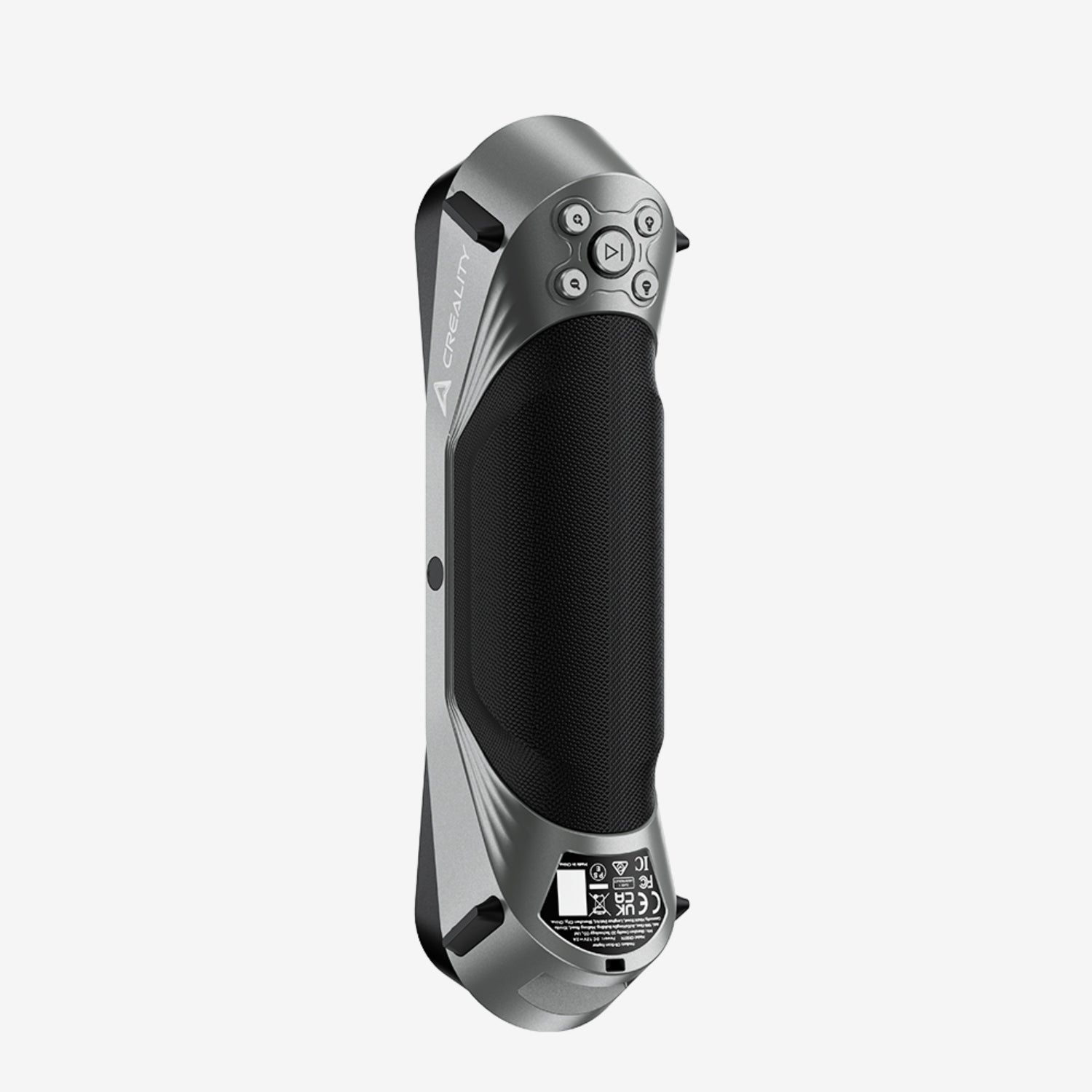

Creality CR-Scan Raptor Metrology-Grade Handheld 3D Scanner

Creality CR-Scan Raptor Metrology-Grade Handheld 3D Scanner

Regular price $1,499.00 USD
Regular price Sale price $1,499.00 USD
Sale Sold out

In stock

Includes Warranty

30-Day Returns

Unlimited Free Support

Creality CR-Scan Raptor 3D Scanner – Hybrid Blue Laser & NIR for Metrology-Grade Accuracy

The Creality CR-Scan Raptor is a powerful, lightweight hybrid 3D scanner equipped with 7 parallel blue laser lines and NIR (near-infrared) structured light. Delivering metrology-grade accuracy of up to 0.02 mm, the CR-Scan Raptor effortlessly handles scanning objects from 5 mm to 2000 mm in size—from miniature mechanical parts to full-body models.


Key Features

  • Metrology-Grade Accuracy: Up to 0.02 mm @ 100 mm

  • Dual Scanning Modes: Blue Laser & NIR Structured Light

  • Scanning Speed: Up to 60 fps (Blue Laser), Up to 30 fps (NIR)

  • No Marker Needed: Feature-rich object scanning without targets

  • 24-bit Full Color Scanning: Achieve vibrant, texture-rich models

  • Lightweight Design: Only 372 g, ideal for extended handheld use

  • High-Performance Camera: 2.3 MP 3D imaging camera for clear point clouds

  • Markerless Face & Body Scanning: Enhanced human scan algorithms

  • Scan Black & Metal Objects: No spray required


Optimized for Real-World Performance

  • High-Speed Capture: Up to 60 frames per second

  • Wide Scan Volume: Minimum 5 mm³ up to 2000 mm³ objects

  • Advanced Optical Structure:

    • ϕ20mm large depth-of-field lens

    • Low distortion < 5‰

    • Metal lens barrel and holder

    • 9-element precision lens stack

  • Environmental Adaptability:

    • Accurate in high/low temperatures

    • Built-in temperature compensation


Intelligent Scanning Technologies

  • One-Shot 3D Imaging: Reduces tracking loss and enables smoother scans

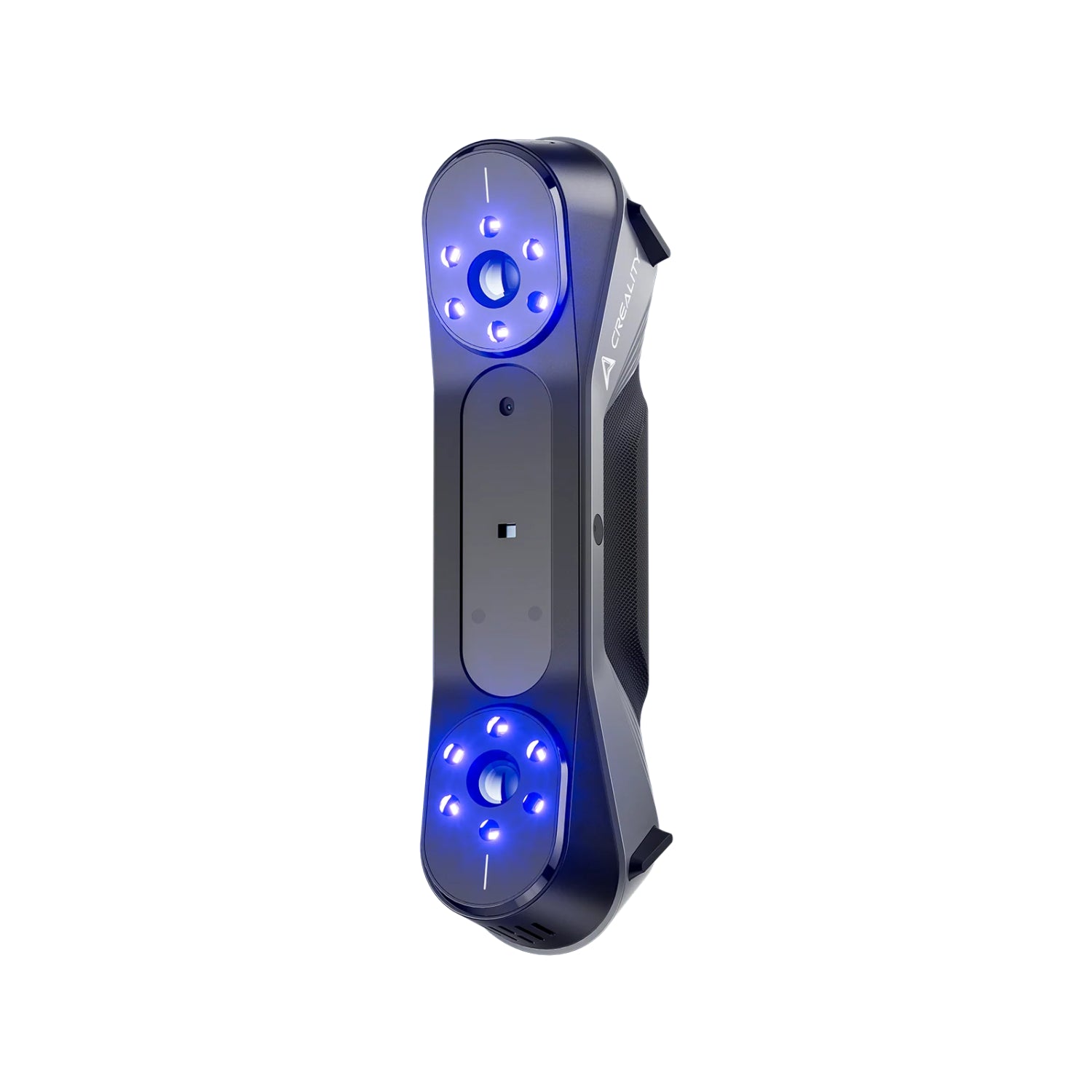

  • Dual-Color LED Lights: Blue for laser scanning, white for texture mapping

  • Face & Body Mode: Captures human features in as little as 2 minutes

  • Real-Time Ring Indicators: See scan status at a glance

  • Anti-Shake Stabilization: Ensures continuous data acquisition


Seamless Software Experience

Creality’s advanced scanning software includes:

  • Easy calibration process

  • One-click post-processing

  • Point cloud editing tools

  • Global marker support

  • Multi-format export: OBJ, STL, PLY

  • Compatible with Creality Print, Geomagic Design X, Control X


Use Cases

  • Reverse Engineering & Metrology

  • Automotive & Mechanical Part Inspection

  • 3D Modeling for AR/VR and Animation

  • Medical Applications & Body Scanning

  • Art & Heritage Preservation


Specs

Specification Blue Laser Mode NIR Mode
Accuracy Up to 0.02 mm @ 100 mm Up to 0.1 mm
3D Resolution 0.02 - 2 mm 0.1 - 2 mm
Scanning Speed Up to 60 fps Up to 30 fps
Min. Scan Volume 5 x 5 x 5 mm 150 x 150 x 150 mm
Max. Capture Range 270 x 170 mm @ 300 mm 665 x 574 mm @ 1000 mm
Working Distance 150 - 400 mm 170 - 1000 mm
Alignment Mode Marker Marker / Geometry / Texture
Color Mapping Yes (24-bit Full Color) Yes
3D Imaging Camera 2.3 MP (1920 x 1200) Same
Supplementary Lighting 12 White LEDs, 12 Blue LEDs Same
Output Formats OBJ, STL, PLY OBJ, STL, PLY
Operating Temperature -10°C to 40°C Same
Operating Humidity 0 - 90% RH Same
Wireless Scanning Supported via Scan Bridge accessory Supported via Scan Bridge accessory
Laser Safety Class I (Eye Safe) -
Weight 372 g Same
Dimensions 215 x 50 x 74 mm Same
Connectivity USB 3.0, Type-C Same
OS Compatibility Windows 10/11, macOS 11.7.7+ Same

Included in the Purchase

Item Quantity
CR-Scan Raptor 3D Scanner 1
High-Precision Glass Calibration Board 1
Type-C Converter 1
USB 3.0 Data Cable (USB-C / USB-A) 1
Power Adapter with Intl. Converters 1
Cleaning Cloth 1
Scanning Pad 1
Portable Carrying Case 1
Reflective Marker Points (6mm x 2, 3mm x5) 1 set
Quick Start Guide, Warranty Card, Certs 1 set


Owner's Manual

📄 View Creality CR-Scan Raptor User Manual


Standard Warranty

📄 View Creality Standard 1-Year Warranty
