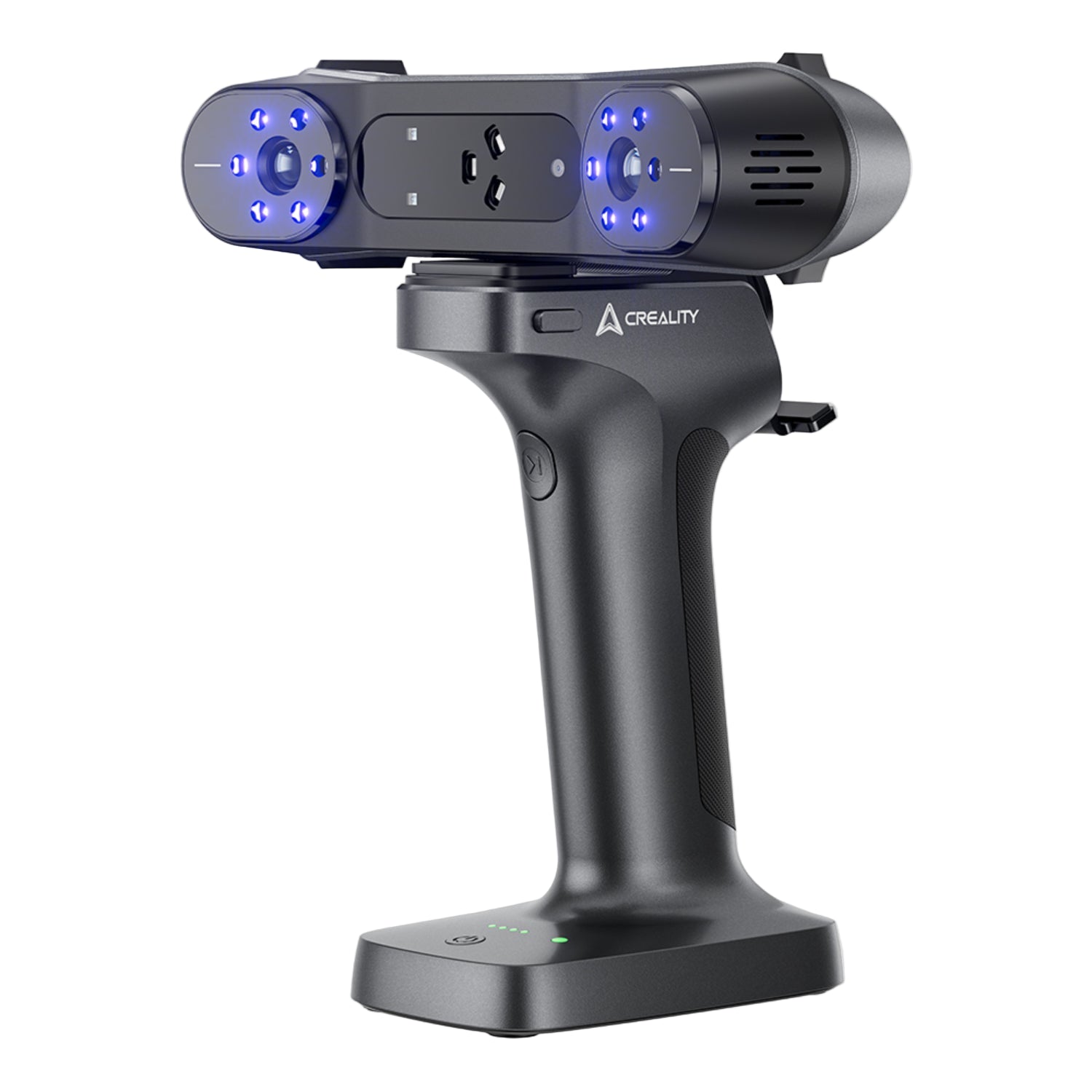

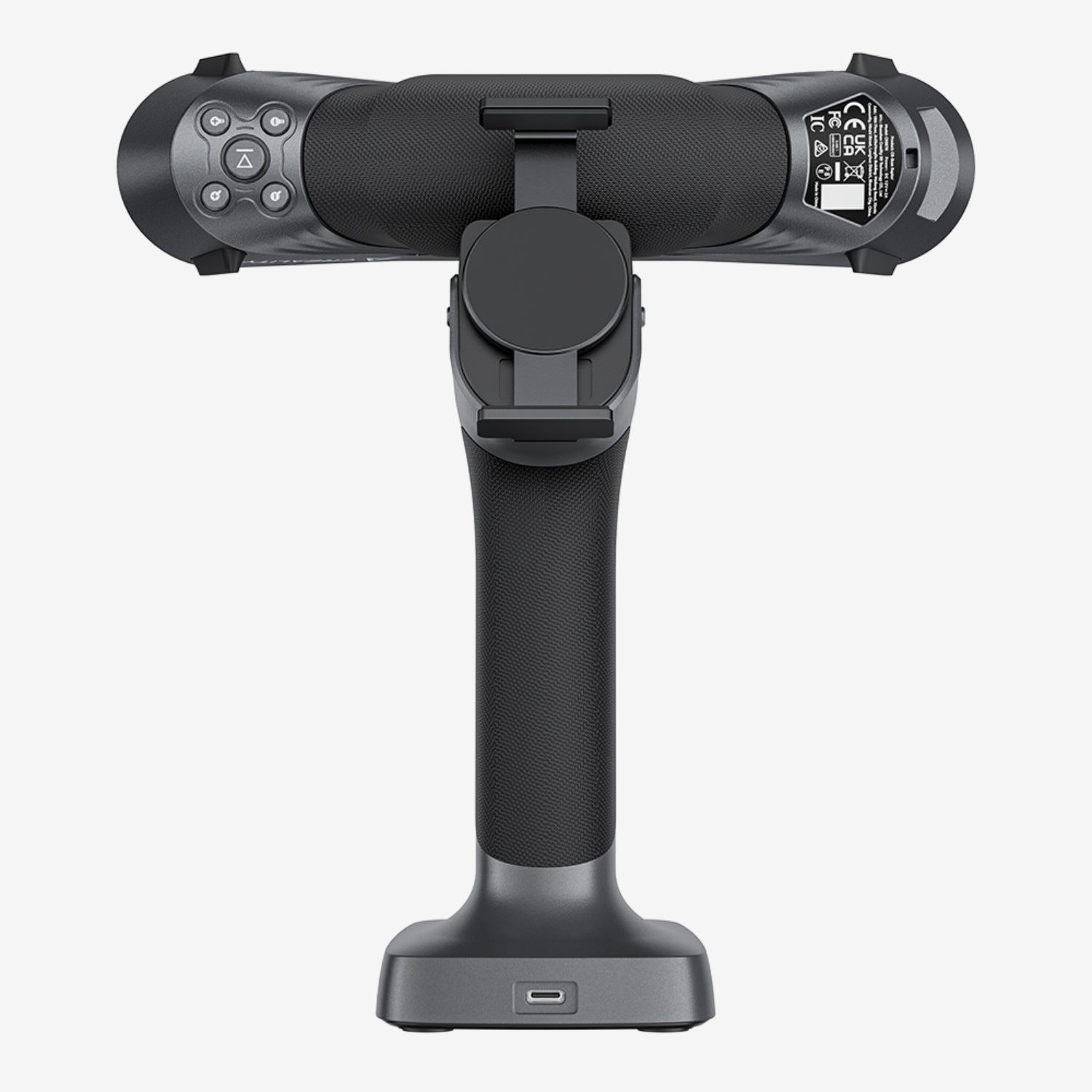

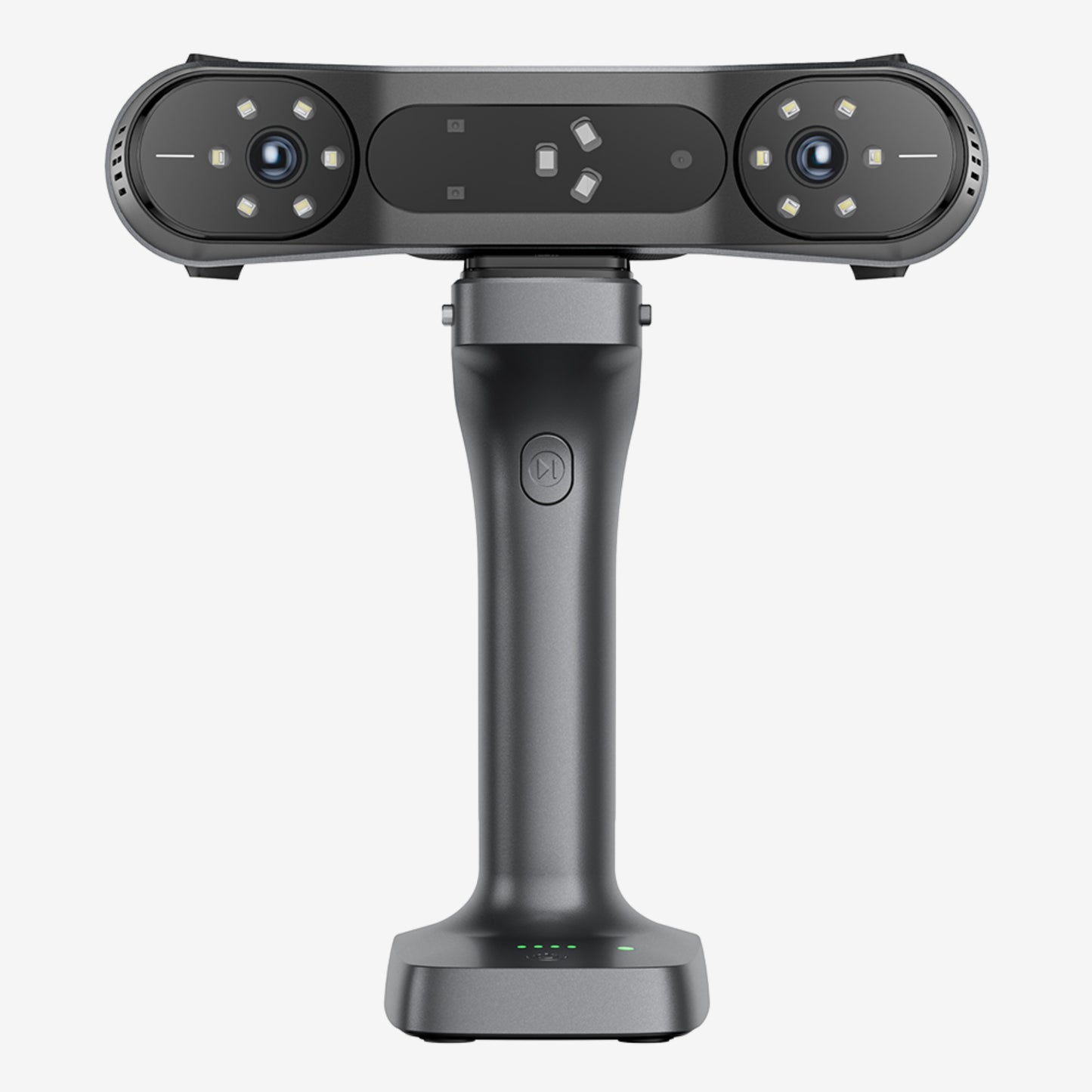

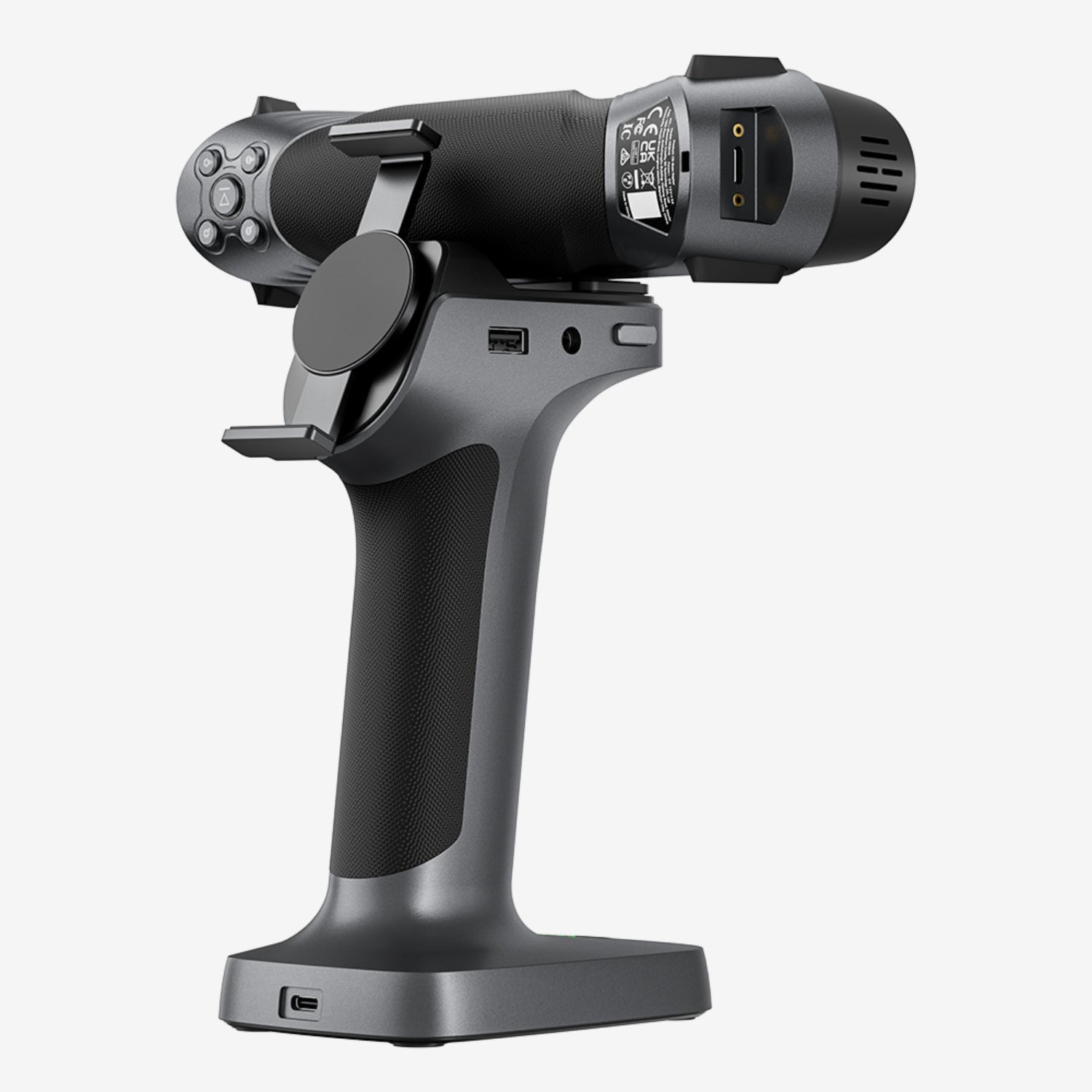

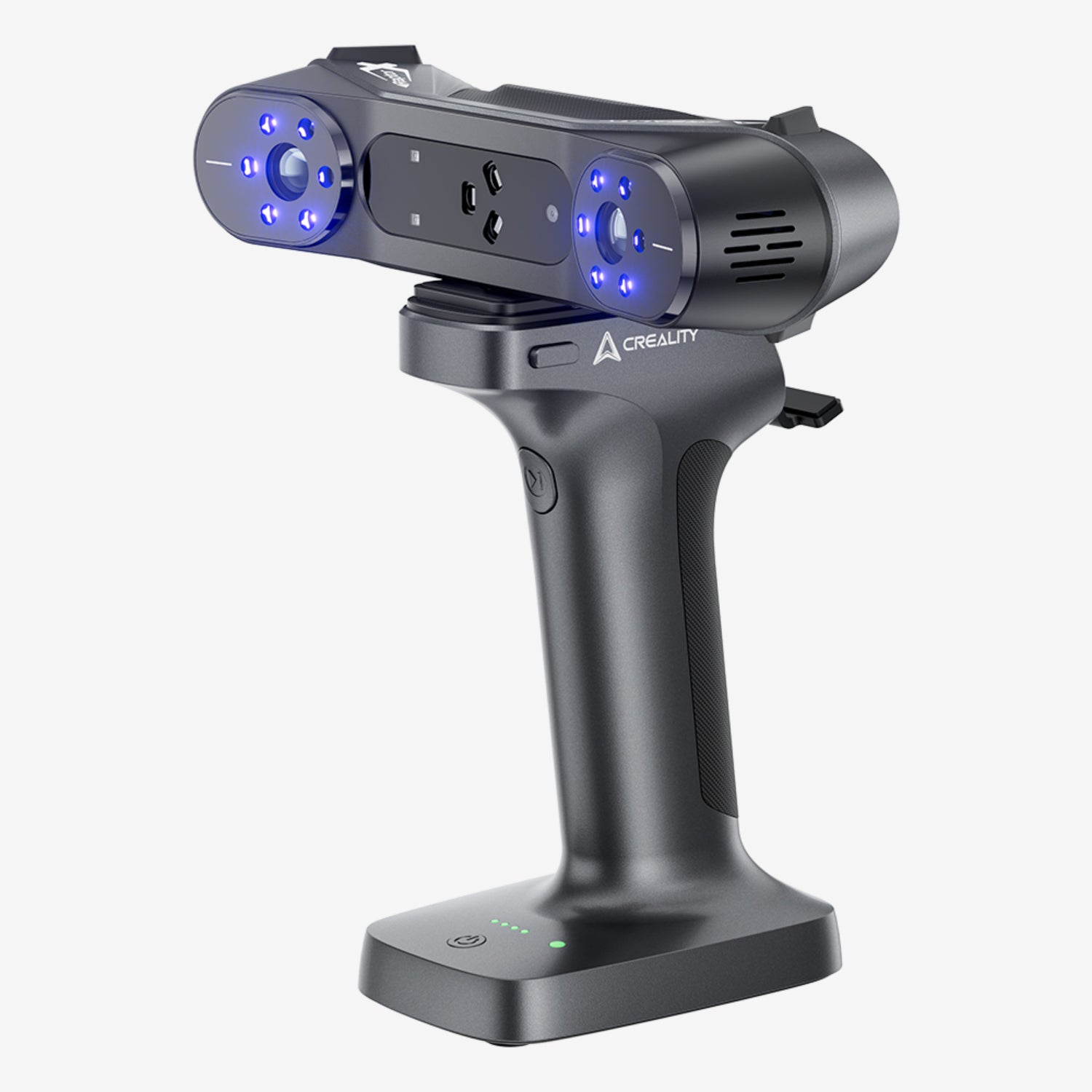

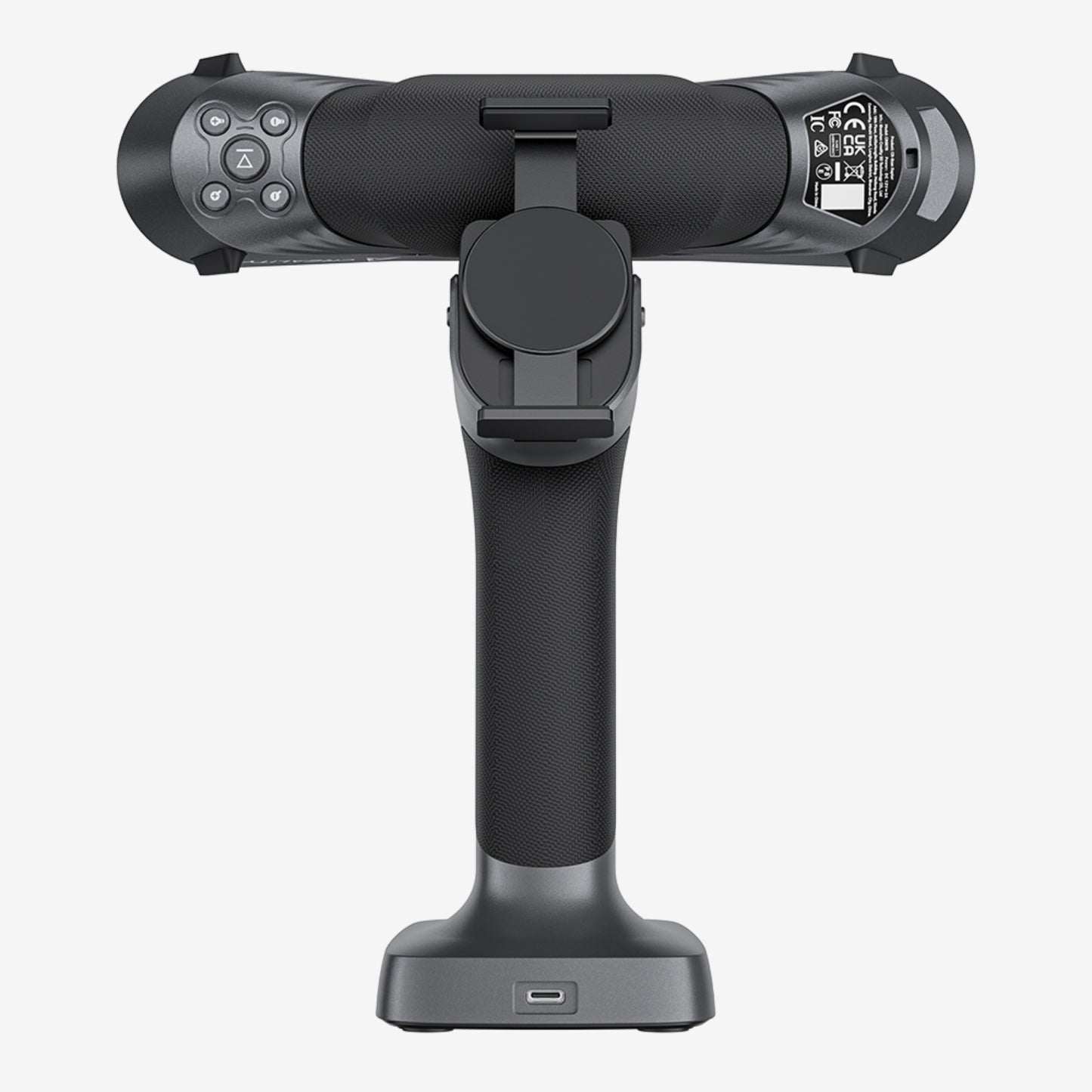

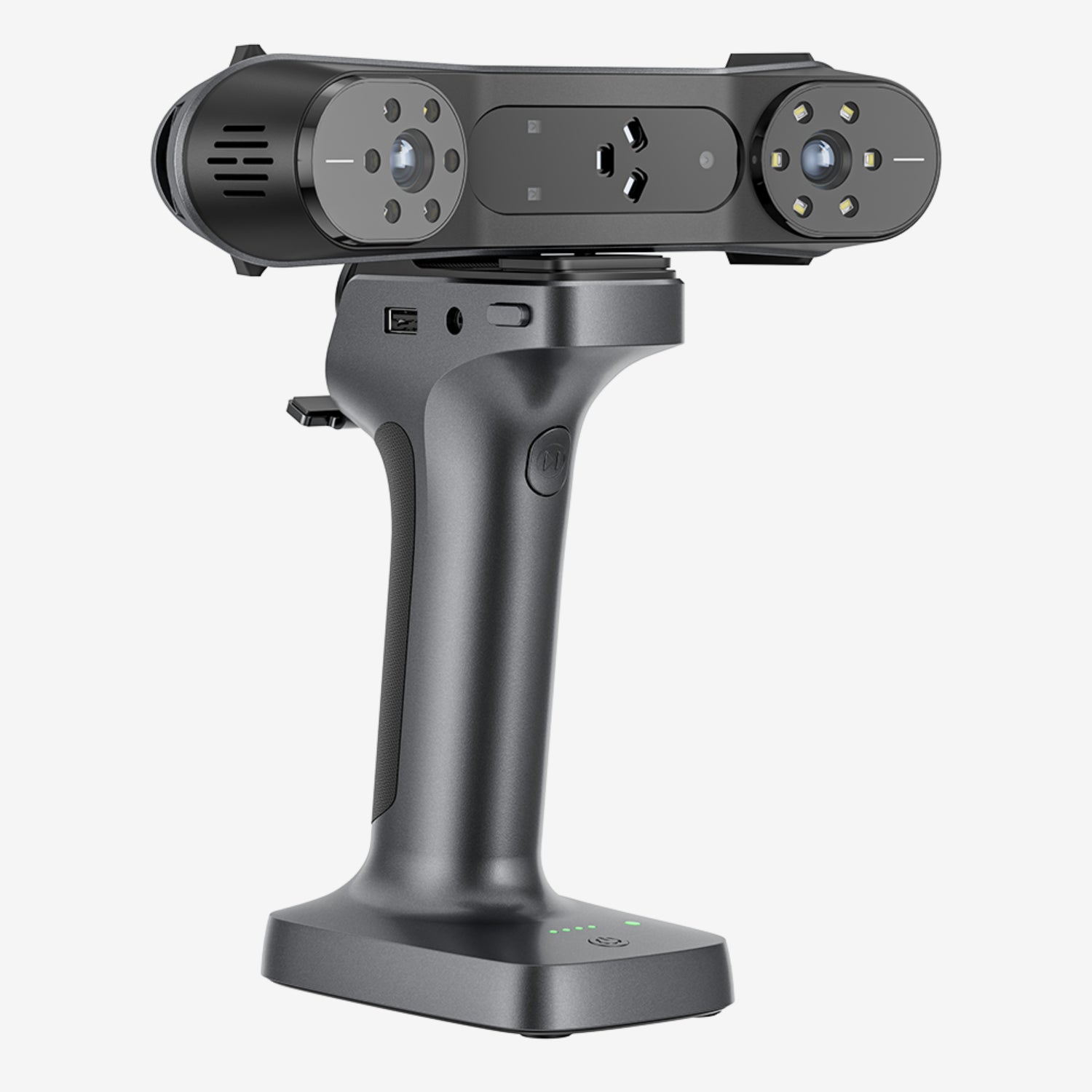

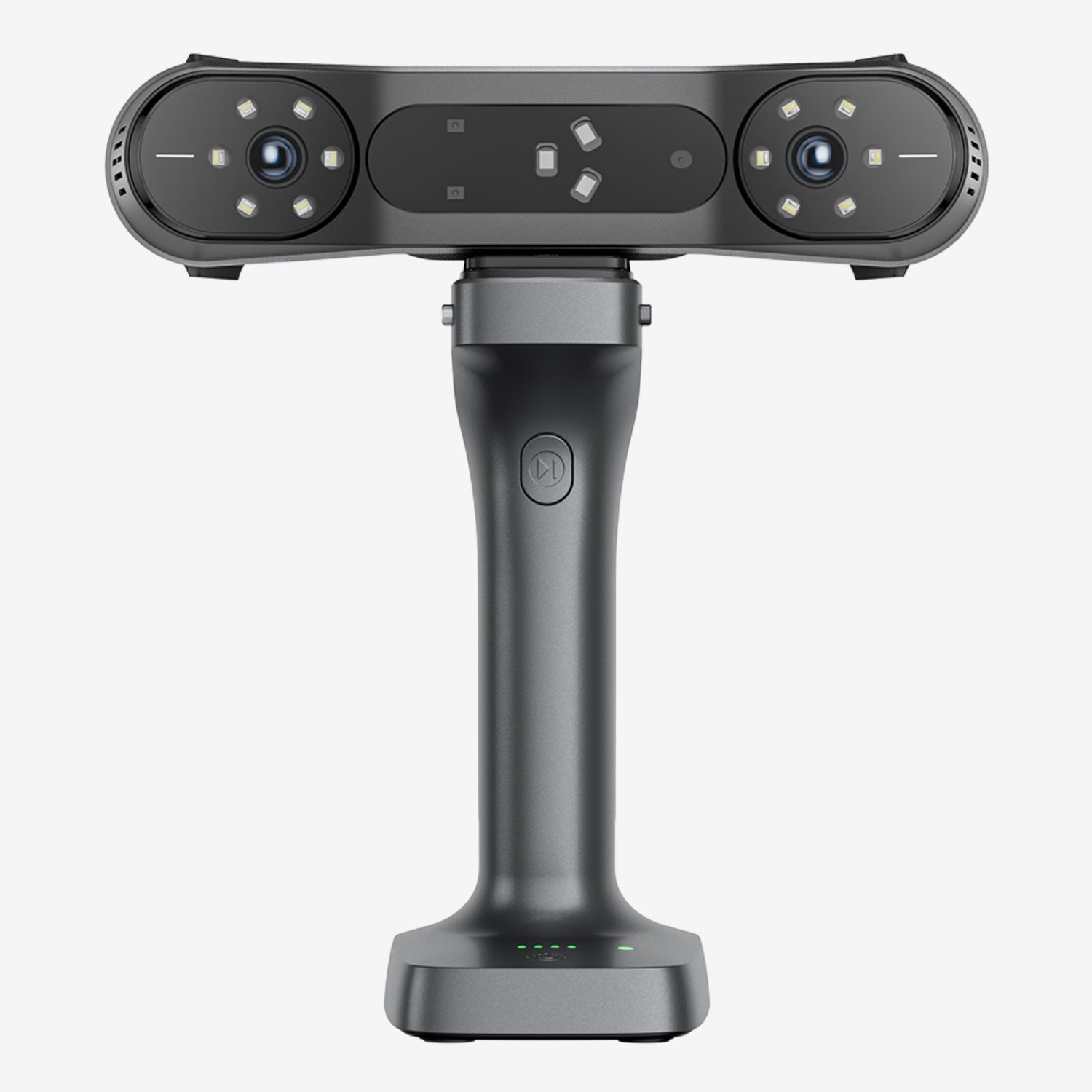

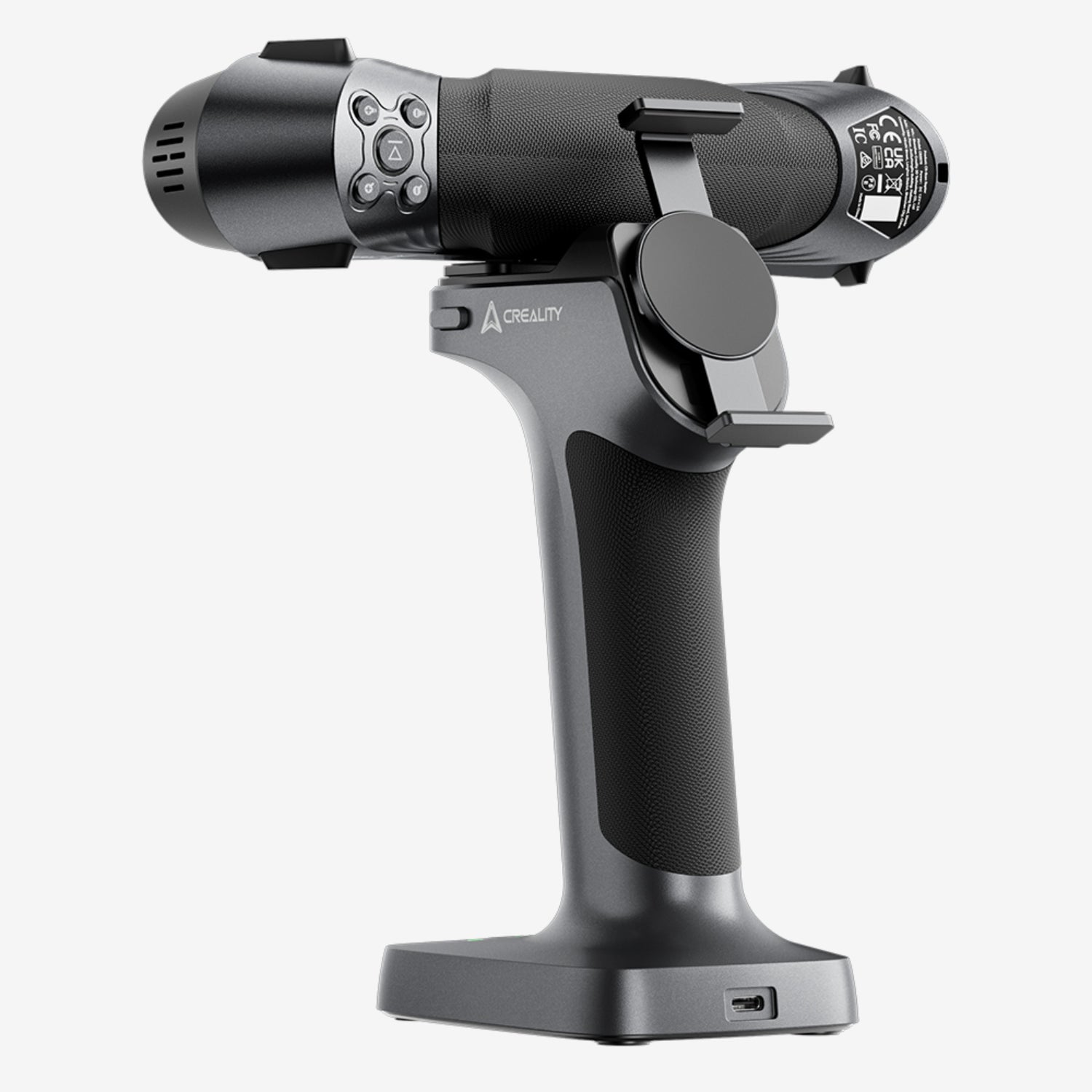

Creality RaptorX Wireless Hybrid Blue Laser-NIR 3D Scanner

Creality RaptorX Wireless Hybrid Blue Laser-NIR 3D Scanner

Regular price $4,599.00 USD
Regular price Sale price $4,599.00 USD
Sale Sold out

In stock

Includes Warranty

30-Day Returns

Unlimited Free Support

Next-Level Portable 3D Scanning with Full-Color Precision and Extreme Detail

The Creality RaptorX is a cutting-edge 3D scanner that combines 34 cross-line blue lasers, 7 parallel HD lasers, and NIR structured light for high-speed, ultra-detailed scanning of objects ranging from 5 mm to 4000 mm. Built for reverse engineering, industrial inspection, automotive, 3D printing, and art preservation, the RaptorX delivers volumetric accuracy of 0.02 mm + 0.06 mm/m and supports wireless scanning with real-time data transfer via Wi-Fi 6 AX6000.


Key Features

  • Volumetric Accuracy: 0.02 mm + 0.06 mm/m

  • Scanning Speed: Up to 1,020,000 points/second

  • Laser System:

    • 34 Blue Cross Laser Lines for large object scanning

    • 7 Parallel Laser Lines for partial HD scans

    • NIR Structured Light for full-body and textured scans

  • Dual Mode: Switch between laser scanning (up to 60 fps) and NIR scanning (up to 30 fps)

  • Full-Color Capture in All Modes with 24-bit color support

  • Scanning Range: Objects from 0.2" to 157" (5–4000 mm)

  • Camera Resolution: 2.3 MP 3D imaging

  • Wireless Connectivity: Wi-Fi 6 AX6000 (4.7 Gbps, 10 ms latency)

  • Battery Life: Up to 4 hours with 35,400 mWh battery (charges to 80% in 1.5 hours)

  • Portability: Lightweight at just 405 g with anti-slip sleeve and lanyard


Performance that Scales

  • Scan Cars, Molds, or Machinery in a single session with 34 laser lines

  • Partial HD Scanning mode provides sharp edge definition at 0.1 mm detail accuracy

  • Markerless Face & Body Scanning with unique algorithms – even captures hair

  • Infrared Stabilization ensures minimal tracking loss and fast recovery


Intelligent Features

  • Blue Laser Tolerance up to 100,000 lux: Suitable for outdoor scanning

  • Scan Black or Metallic Objects without spray

  • Built-in LED Lighting: Blue light for laser and white for texture enhancement

  • Magnetic Quick Setup, battery level indicator, and real-time scan mirroring

  • Temperature Compensation Algorithm maintains accuracy in varied environments


Advanced Software: CrealityScan

CrealityScan is a professional-grade scanning software featuring:

  • 50% faster processing

  • One-click model processing

  • Partial HD scanning

  • Point-cloud editing

  • Face & Body mode

  • Global marker scanning

  • Easy calibration

Seamless Software Integration

The scan data from the RaptorX integrates with major 3D design and inspection tools like:

  • Geomagic Control X

  • Geomagic Design X

  • Verisurf Inspect

  • Creality Print


Application Scenarios

  • Reverse Engineering

  • Inspection & Quality Assurance

  • Automotive Restoration & Parts Capture

  • Manufacturing & Prototyping

  • Art & Antiques Digitization

  • Healthcare & Full-body Scanning


Specs

Specification Details
Volumetric Accuracy 0.02 mm + 0.06 mm/m
Scanning Rate 1,020,000 points/s
Laser Modes 34 cross-line lasers, 7 parallel HD lasers
NIR Scanning Up to 30 fps
Blue Laser Scanning Up to 60 fps
3D Imaging Camera 2.3 MP
Minimum Scan Volume 5 × 5 × 5 mm³
Maximum Scan Volume 4000 × 4000 × 4000 mm³
Scanning Range 0.2" to 157" (5 mm to 4000 mm)
Outdoor Scanning Up to 100,000 lux (Blue Laser Mode)
Operating System Support Windows 10/11, macOS 11.7.7+, Apple M1/M2/M3
Recommended System Requirements i7-Gen10+, 32GB RAM, Nvidia GPU (8GB+)
Connectivity Wi-Fi 6 AX6000, USB Type-C
Battery Capacity 35400mWh (Airplane Safe)
Weight 405 g

Included in the Purchase

Item Quantity
Creality RaptorX 3D Scanner 1
Battery Pack (35400mWh, Airplane Safe) 1
USB Type-C Charging Cable 1
Calibration Boards (NIR & Blue Laser) 2
Carrying Case 1
Anti-slip Sleeve 1
Detachable Wrist Lanyard 1
Quick Start Guide 1


Owner's Manual

📄 View Creality RaptorX User Manual


Standard Warranty

📄 View Creality Standard 1-Year Warranty
