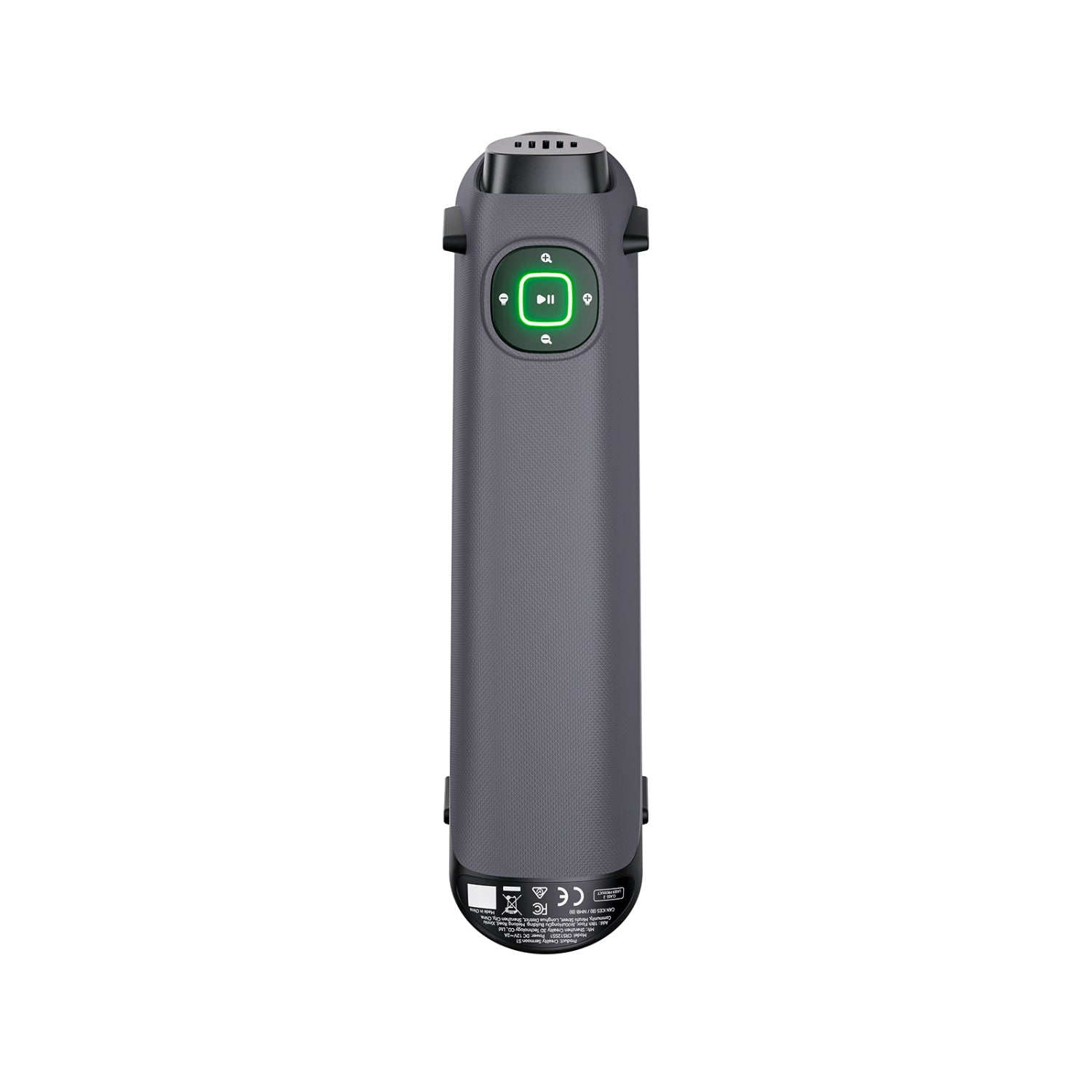

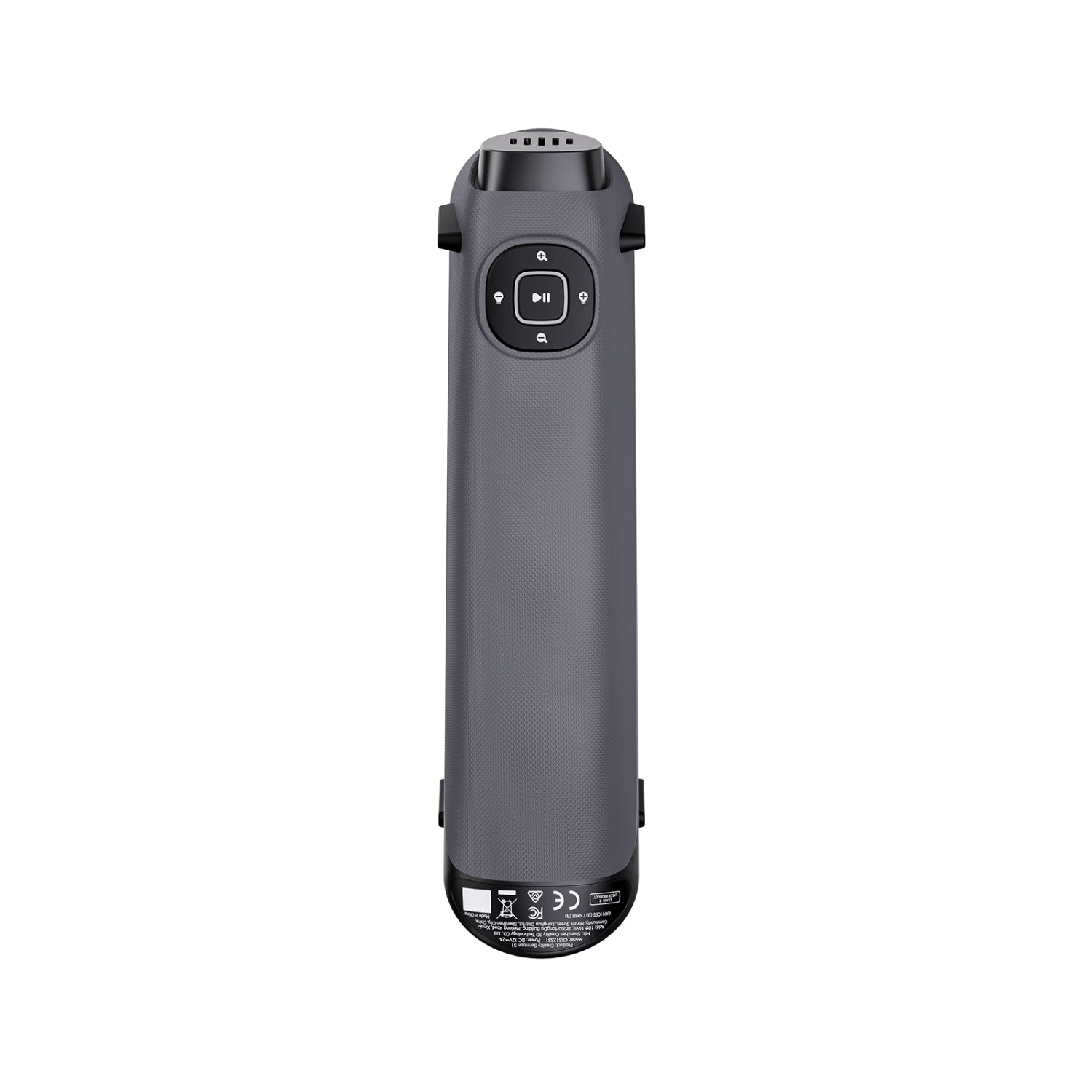

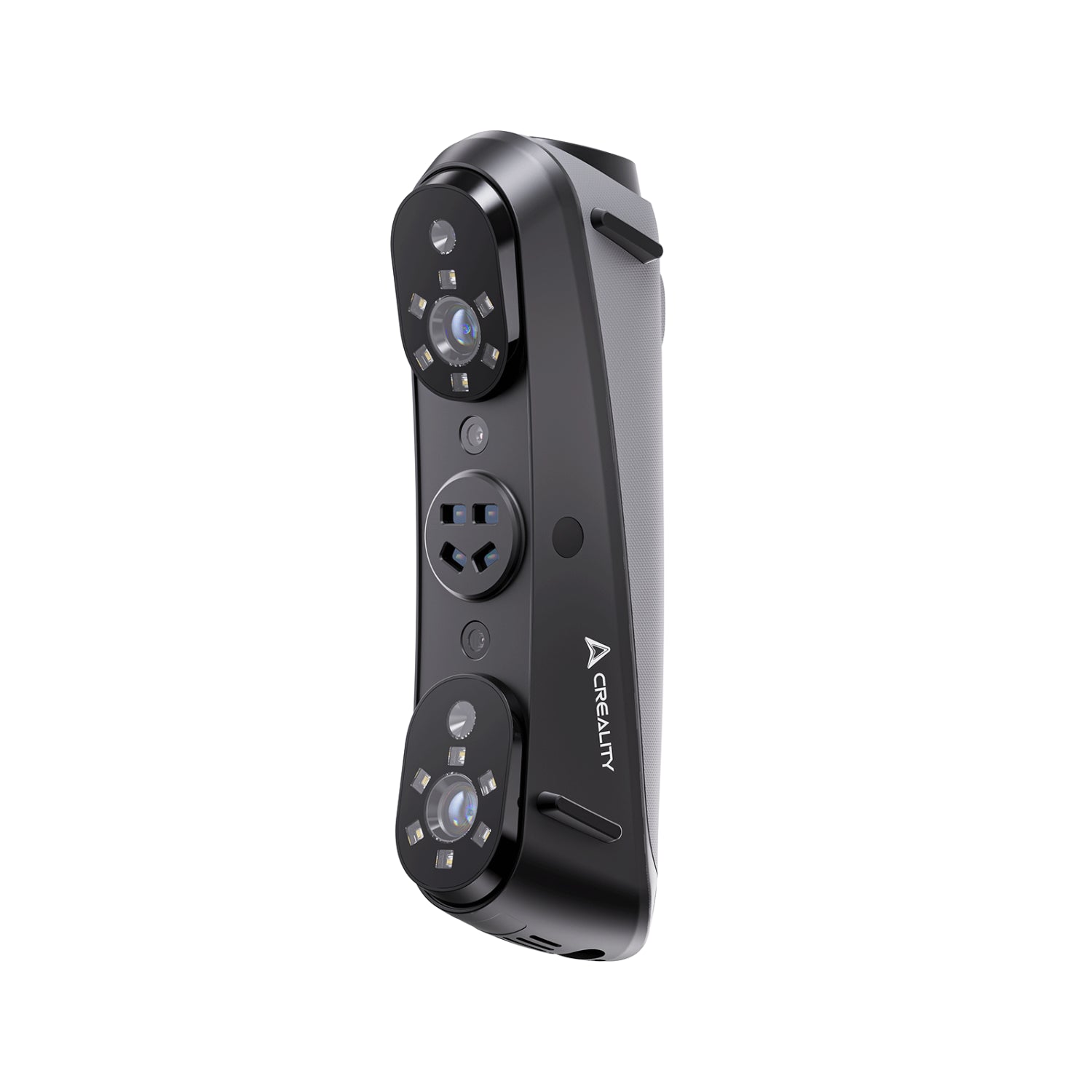

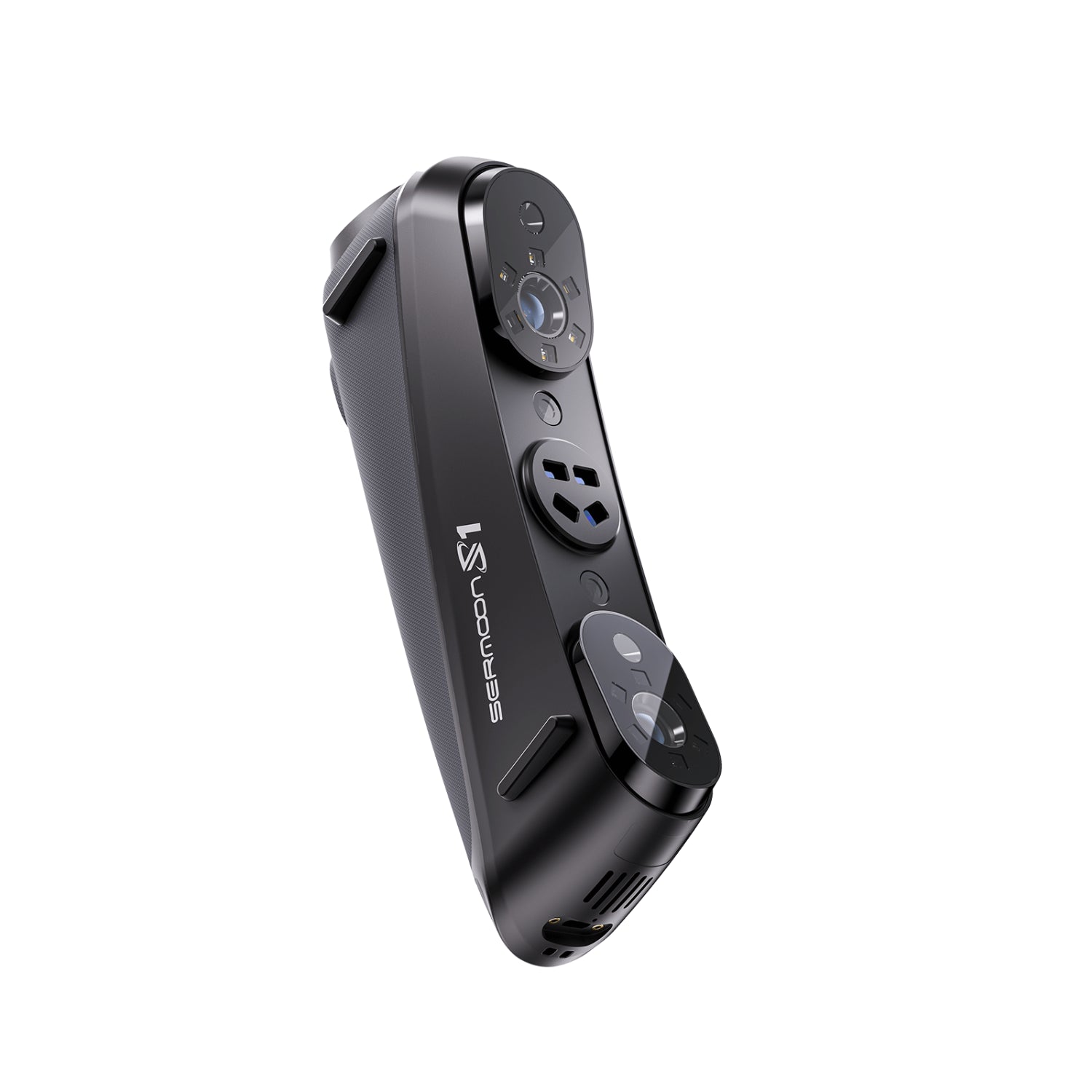

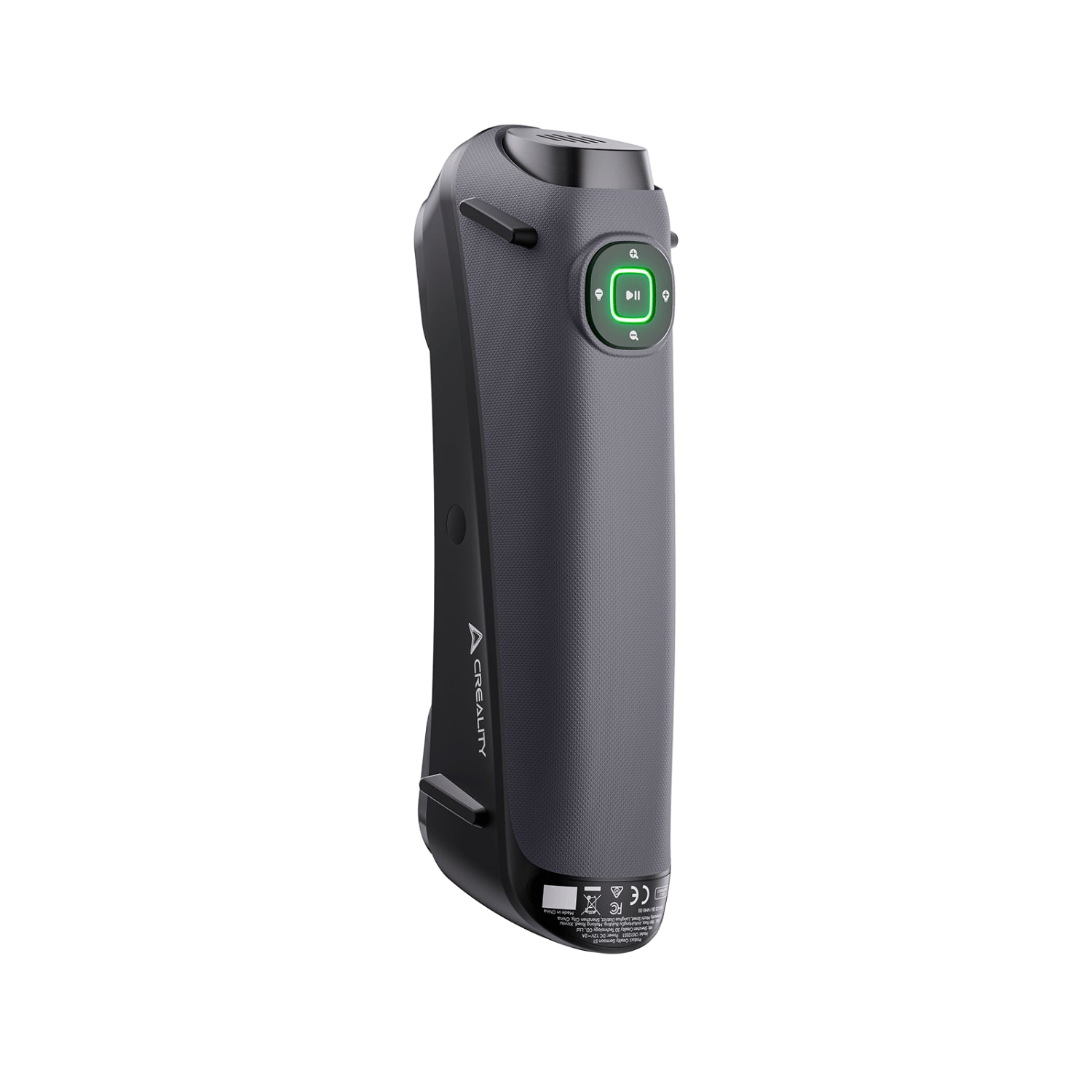

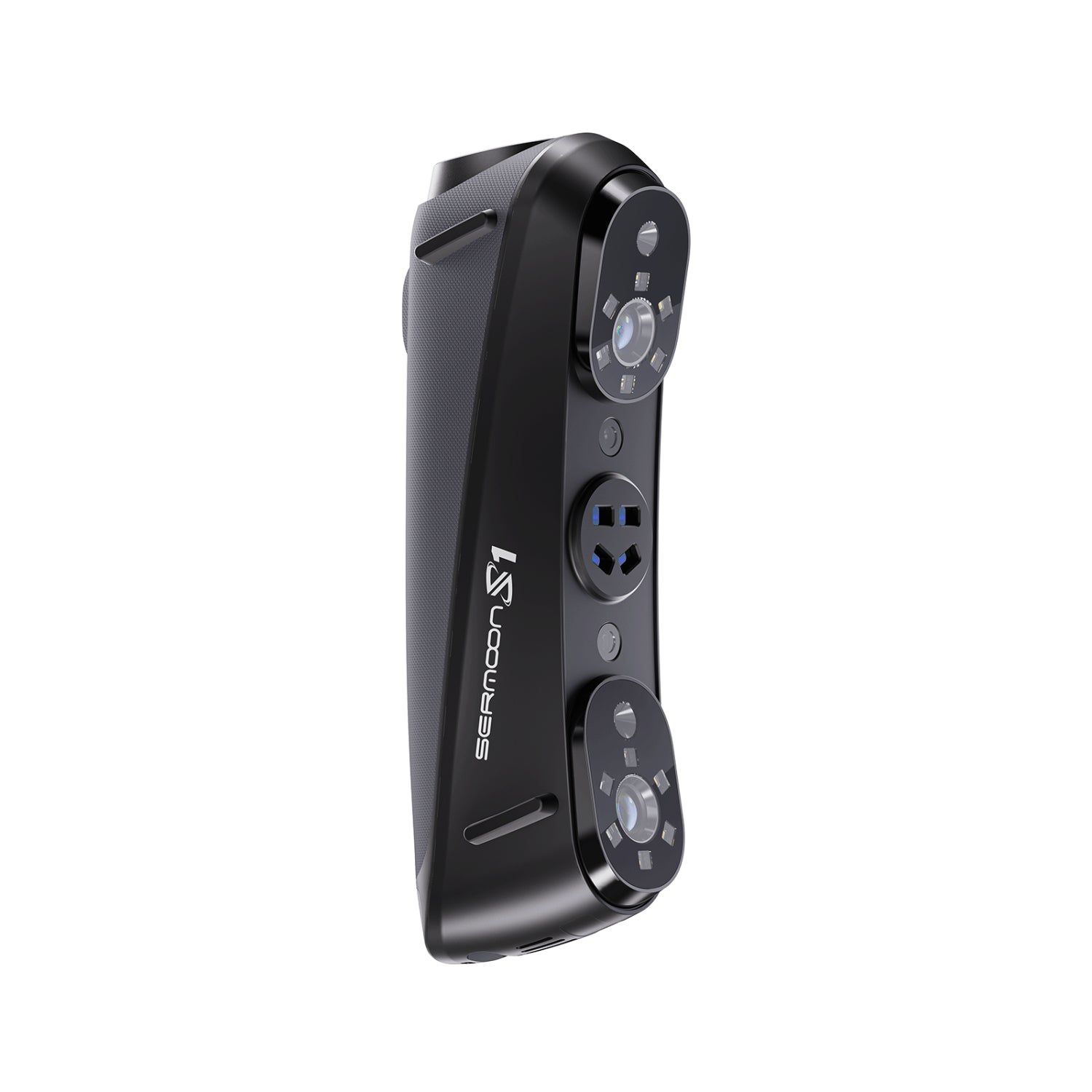

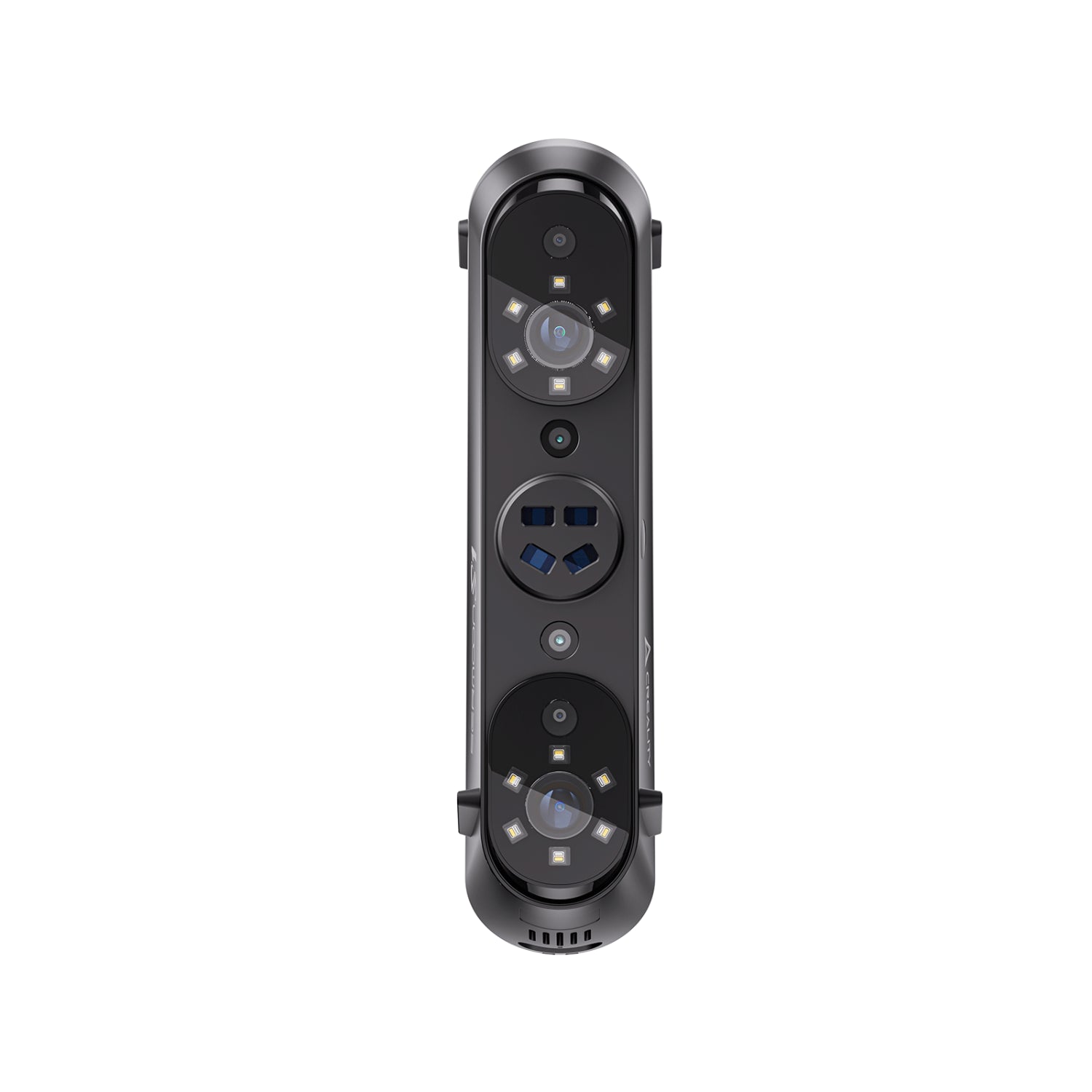

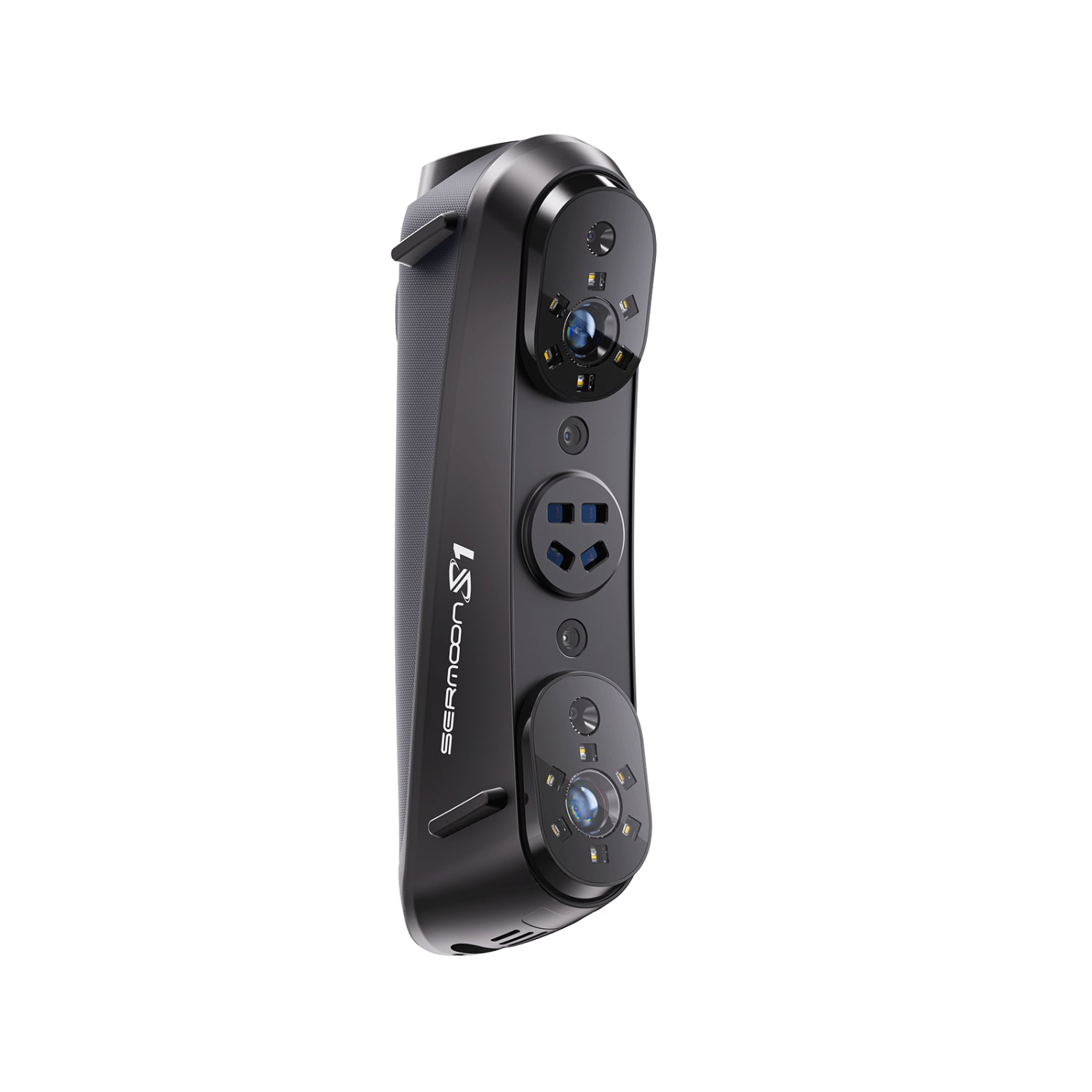

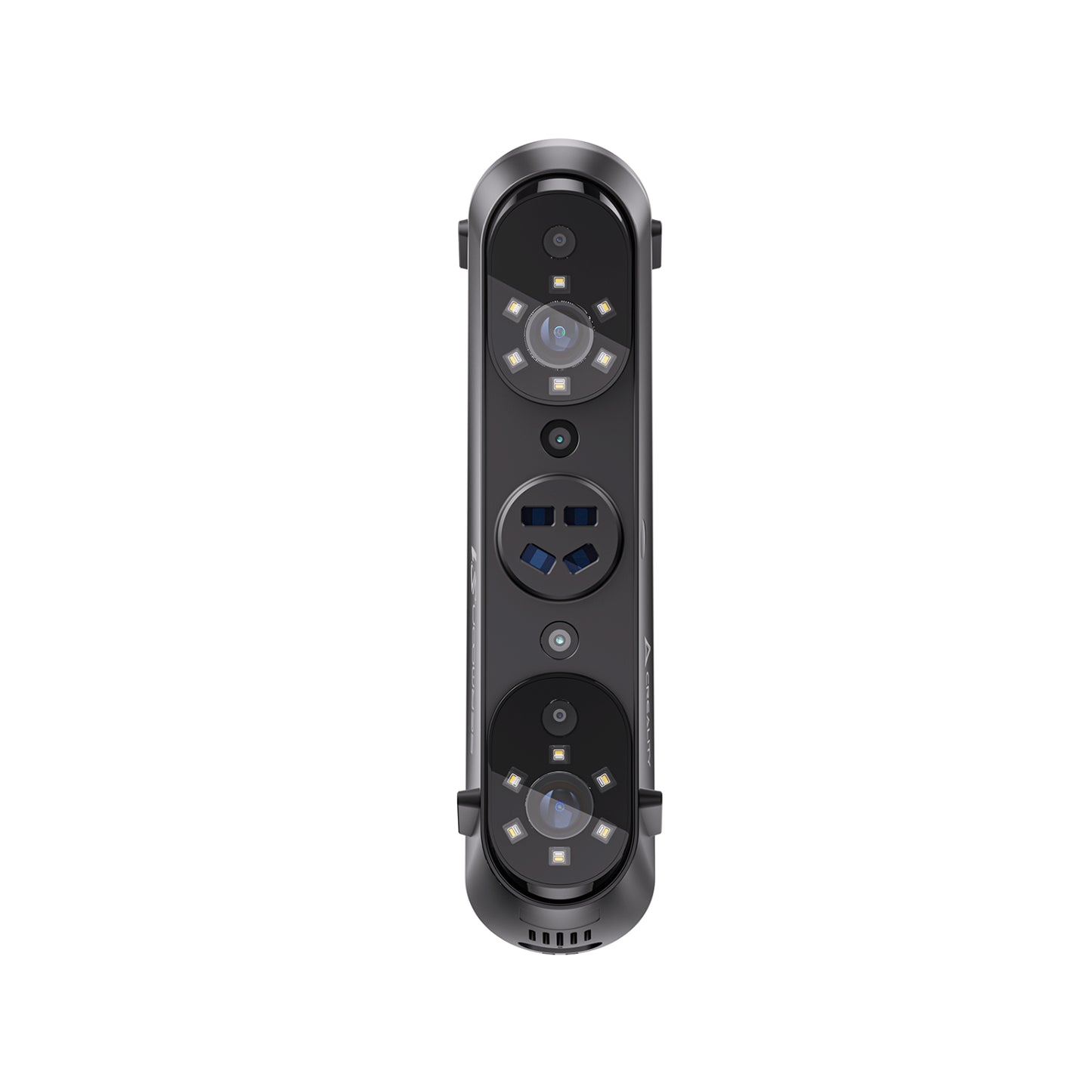

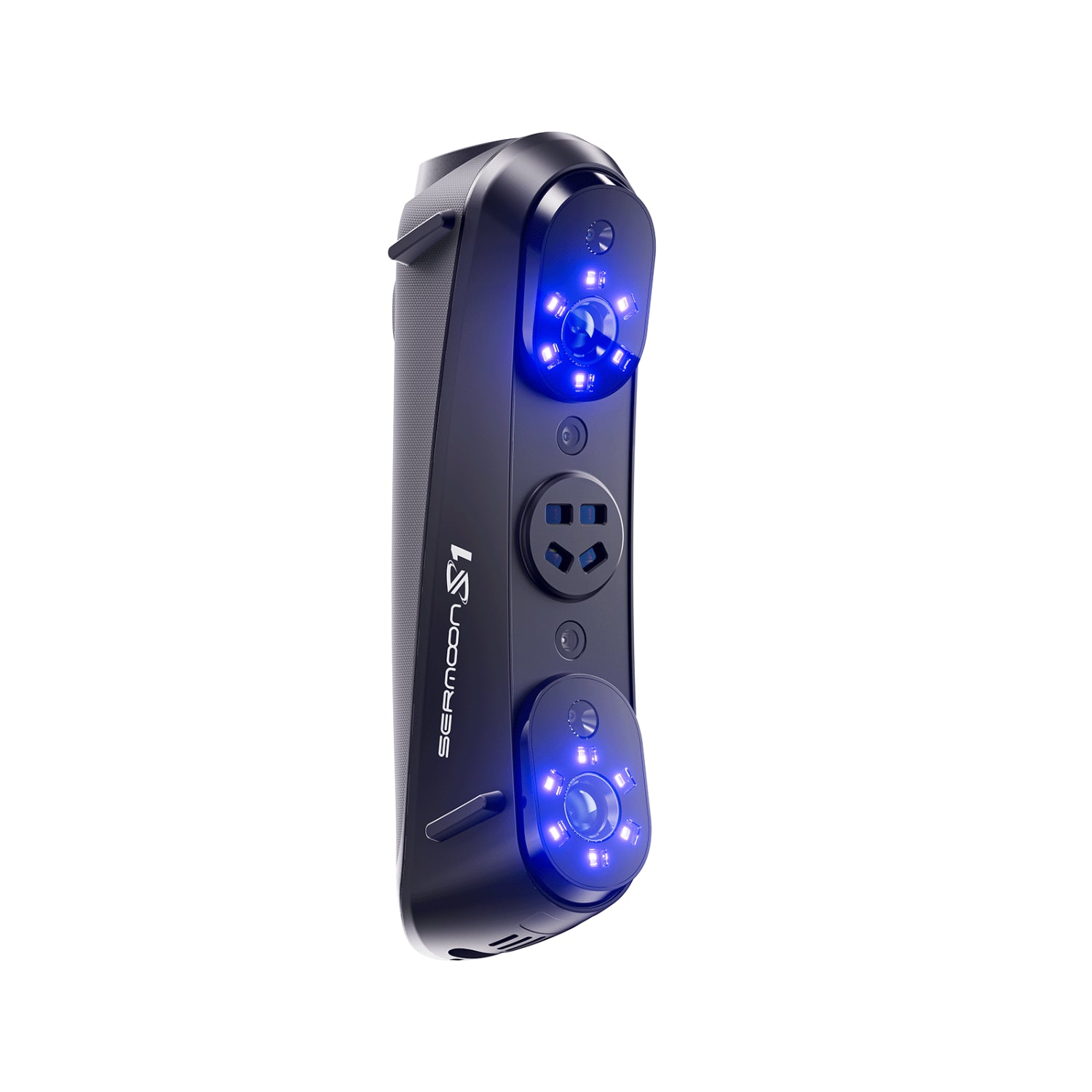

Creality Sermoon S1 Multi-Light Handheld 3D Scanner 4008050063

Creality Sermoon S1 Multi-Light Handheld 3D Scanner 4008050063

Regular price $2,699.00 USD
Regular price Sale price $2,699.00 USD
Sale Sold out

Includes Warranty

30-Day Returns

Unlimited Free Support

Creality Sermoon S1 – Professional Multi-Light 3D Scanner

Versatile to the Core, Accurate Evermore

The Creality Sermoon S1 is a next-generation professional 3D scanner featuring a hybrid scanning system with blue lasers, NIR structured light, and advanced AI stabilization. Designed for industrial inspection, reverse engineering, art, and manufacturing, it offers metrology-grade accuracy up to 0.02 mm, scanning speeds of 4.6M measurements/s, and versatility from coins to full-scale vehicles.

With spray-free scanning of black/metal objects, wireless scanning support, and powerful CrealityScan 4.0 software, the Sermoon S1 is built for efficiency, precision, and reliability in any environment.


Key Features

  • Multi-Light Versatility – 1 + 7 + 34 blue laser lines plus NIR structured light for ultimate adaptability.

  • High Accuracy – Metrology-grade precision up to 0.02 mm and volumetric accuracy of 0.02 mm + 0.08 mm/m.

  • Rapid Scanning Speed – Up to 90 FPS and 4.6M measurements/s, ideal for large-scale projects.

  • Scan Range Flexibility – Captures objects from 5 × 5 × 5 mm to 4000 × 4000 × 4000 mm.

  • Seamless Color Capture – Built-in high-definition 2MP color camera with dual-color LEDs.

  • AI-Powered Stability – Smart temperature compensation and AI-driven image tracking reduce stitching errors.

  • Outdoor & Indoor Ready – Performs consistently in challenging lighting conditions up to 100,000 lux.

  • Spray-Free on Black & Metal – Scans reflective and dark objects without the need for powders.

  • Wireless Operation Support – Expandable with optional Scan Bridge for unrestricted mobility.

  • Deep Detail Capture – Specialized optics for holes, recesses, and narrow gaps.


Applications

  • Automotive – Reverse engineering, quality inspection, and component validation.

  • Manufacturing – Tooling, fixtures, and metrology-grade inspection.

  • Art & Heritage – Cultural preservation, digital archiving, and restoration.

  • Education & Research – Advanced 3D scanning workflows for engineering and design.


Software – CrealityScan 4.0

  • AI-Powered Workflow – Step-by-step guidance, auto point cloud processing, and intuitive editing tools.

  • Cross-Platform Support – Available on Windows, macOS, Android, and iOS (wireless module required).

  • Mesh Editing Functions – Hole filling, noise removal, smoothing, and automatic alignment.

  • Wide Compatibility – Seamlessly integrates with Geomagic Design X, PolyWorks, Siemens NX, CATIA, SolidWorks, Rhino, ZBrush, Maya, Blender, Fusion 360, and more.

  • Multi-Language Support – Global accessibility with intuitive UI.

Specs

Specification Details
Scanning Technology Blue laser lines (1, 7, 34) + NIR structured light
Accuracy Up to 0.02 mm
Volumetric Accuracy 0.02 mm + 0.08 mm/m
Scanning Speed Up to 4.6M measurements/s; 90 FPS max
Resolution 0.05–2 mm
Minimum Scan Volume 5 × 5 × 5 mm
Maximum Scan Volume 4000 × 4000 × 4000 mm
Single Capture Range Up to 1245 × 754 mm (IR mode)
Working Distance 150–1200 mm (mode dependent)
Color Capture Yes, 2 MP high-resolution camera
Supplemental Lighting 12 Blue LEDs + 12 White LEDs
Laser Safety Class I & II (eye-safe)
Outdoor Scanning Up to 100,000 lux
Device Size 225 × 53 × 76 mm
Weight 508 g
Calibration Board High-precision glass
System Requirements Windows/macOS; Android/iOS (wireless accessory)
Recommended PC Config Intel i7 (Gen10+), NVIDIA GPU (8 GB VRAM), 32 GB RAM, Win 10/11 (64-bit)
Supported Formats OBJ, STL, ASC, PLY, 3MF

Included in the Box

Item Quantity
Creality Sermoon S1 Scanner 1
USB 3.0 Data Cable (Type-C/Type-A) 1
Power Plug + Type-C Adapter 1
High-Precision Glass Calibration Board 1
Lanyard & Cleaning Cloth 1
Reflective Markers (Φ6mm & Φ3mm, 10 sheets each) 20 sheets
Waterproof Storage Box 1
Quick Start Guide, Certificate, Warranty Card 1 set
