When a fixture, housing or functional prototype outgrows a typical desktop build plate, splitting it into smaller sections adds seams, assembly work and another source of dimensional error. Larger engineering-polymer parts also need better thermal control than an open-frame printer can provide; uneven cooling can lead to warped corners, cracking and layer separation.

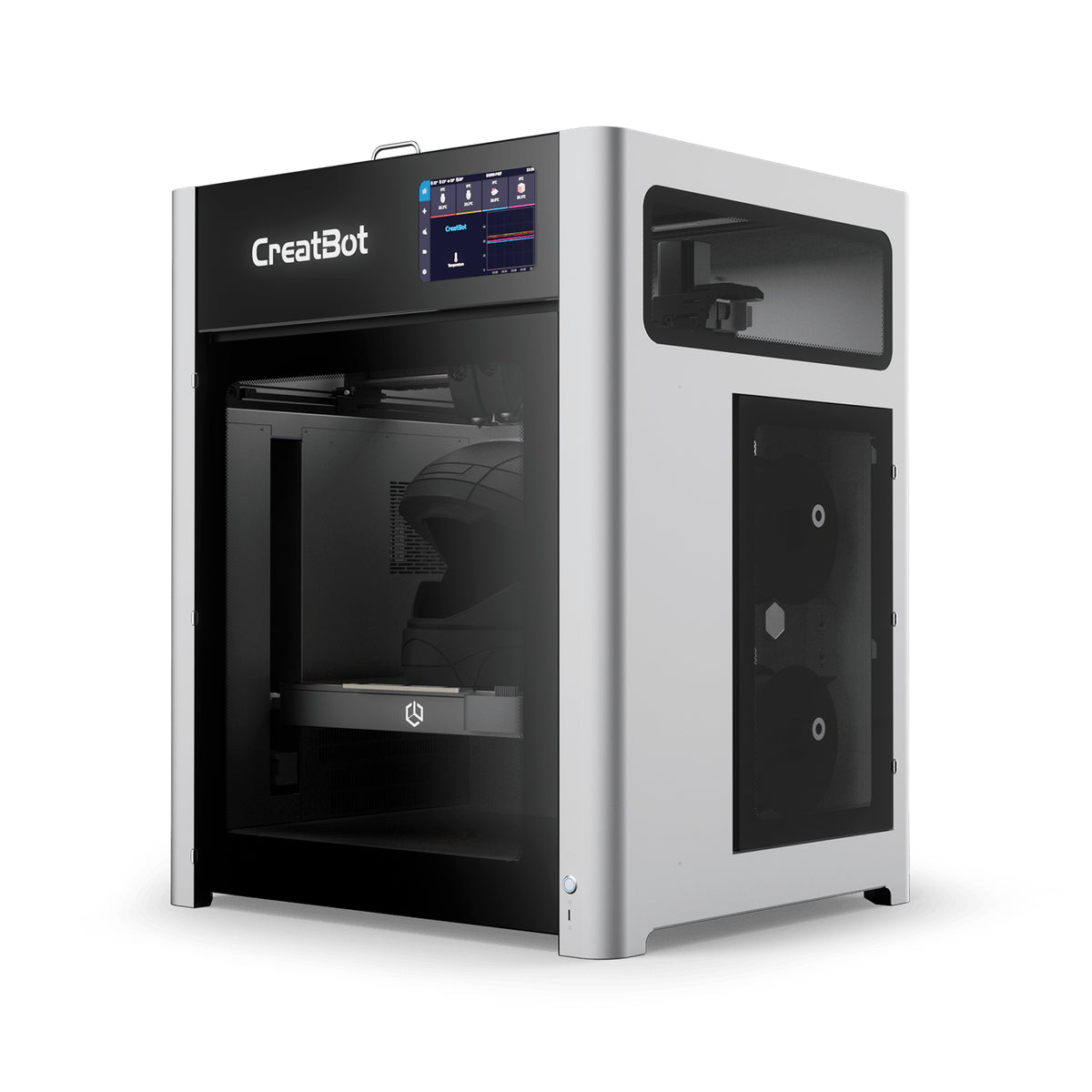

The CreatBot D400 HS addresses both constraints in an enclosed professional FDM/FFF platform. Its single-extrusion workspace measures 420 × 400 × 420 mm, while smart dual auto-rising extruders support secondary model materials, two-color work and dedicated support-material workflows.

A 420°C maximum nozzle temperature, 120°C heated build plate and actively heated 70°C chamber provide the thermal range required by many standard, engineering-grade and fiber-reinforced filaments. For production efficiency, the D400 HS combines Klipper-based firmware with a maximum volumetric flow rate of 90 mm³/s, automatic calibration, filament monitoring, power-loss recovery and remote camera access.

The D400 HS is positioned for engineering teams that have outgrown conventional desktop machines but do not require the footprint, power consumption or material capacity of a 600 mm or one-meter industrial printer.

Key Features

• 420 × 400 × 420 mm single-extrusion build volume: Produce larger prototypes, tools and end-use components as one part instead of dividing them solely to fit a smaller build plate.

• Smart dual auto-rising extruders: Use a second model, color or support material while the inactive nozzle lifts away from the part.

• Automatic dual-nozzle shutters: A mechanical shutter closes over each inactive nozzle to help control oozing during dual-extrusion printing.

• 420°C maximum nozzle temperature: Provides the thermal range needed by many engineering-grade and fiber-reinforced materials identified as compatible by CreatBot.

• 70°C actively heated chamber: Maintains a more stable thermal environment around the part, reducing temperature gradients that can contribute to warping, cracking and interlayer separation.

• 120°C heated build plate: Supports adhesion and controlled first-layer conditions for higher-temperature materials.

• 90 mm³/s maximum volumetric flow: Supplies the material output needed for higher-throughput deposition when the nozzle, filament and part geometry permit.

• Automatic bed and nozzle calibration: Eddy-current bed probing, camera-assisted XY alignment and photoelectric Z-offset sensing reduce repetitive setup work.

• Removable magnetic build surface: Allows the print surface to be removed for easier part release.

• Print-recovery functions: Filament detection, power-loss recovery and dual-nozzle backup help protect longer print jobs.

• HEPA and activated-carbon filtration: Combines particulate filtration with odor and VOC adsorption inside the enclosed system.

• Networked or offline operation: Transfer files over Wi-Fi or LAN, connect locally without cloud access, or print from a USB storage drive.

• Remote camera monitoring: Check supported printer functions without remaining beside the machine.

• Door-opening detection: Configure the printer to pause or stop if the chamber door is opened.

Applications

• Functional prototypes and design-validation models

• Jigs, fixtures and assembly aids

• Forms, patterns and molds

• Automotive and robotics components

• Housings, brackets and equipment components

• Replacement and spare parts

• Low-volume and customized production

• Engineering-material process development

• Multi-material and two-color parts

• Complex geometries using soluble or breakaway supports

Application suitability depends on the material, nozzle construction, slicing parameters, part geometry and required mechanical or dimensional performance.

Printing, Thermal & Material Capability

Single- and Dual-Extrusion Capacity

The available workspace depends on the selected extrusion mode:

Printing Mode	Build Volume
Single extrusion	420 × 400 × 420 mm
Dual extrusion	365 × 400 × 420 mm

Single-extrusion mode provides the full 420 mm X-axis capacity. Using both extruders reduces the usable X-axis width to 365 mm, which should be considered when a large part requires a second model or support material.

Smart Dual Extrusion

The two extruders rise independently. When one nozzle is inactive, it lifts away from the print plane to reduce the possibility of dragging across the printed part.

A mechanical shutter closes over the inactive nozzle to help manage residual material flow during tool changes. This is particularly useful when combining a model material with soluble or breakaway support or when unwanted material transfer would affect the part surface.

The second nozzle can also operate as a filament backup during single-material printing. If the primary filament runs out, the machine can switch to the secondary nozzle and continue. This function requires:

• The same material in both extruders

• Identical nozzle diameters

• A calibrated offset for the second nozzle

Using different materials or mismatched nozzle diameters in backup mode can cause flow problems, layer shifting or print failure.

Actively Heated Build Chamber

Larger engineering-polymer parts are sensitive to the difference between extrusion temperature, previous-layer temperature and the surrounding air. As that temperature gradient increases, internal stress can pull corners away from the platform or separate the part along layer lines.

The D400 HS combines:

• 420°C maximum nozzle temperature

• 120°C maximum build-plate temperature

• 70°C maximum chamber temperature

• An insulated enclosure

The actively heated chamber is particularly relevant to ABS, ASA, PC, nylon and reinforced materials that benefit from controlled cooling. It maintains more consistent conditions around the part instead of exposing every layer to ambient room air.

The D400 HS is not an ultra-high-temperature PEEK-class machine. Applications involving PEEK, PEI or other ultra-high-temperature polymers require a printer with substantially higher chamber and build-plate temperatures.

High-Flow Extrusion

Print speed alone does not determine production time. The extrusion system must melt and deposit enough material to support the selected travel speed, layer height and extrusion width.

The D400 HS has a specified maximum volumetric flow rate of 90 mm³/s. This supports higher material output when paired with an appropriate material profile and nozzle. Larger nozzles can reduce print time for tooling, fixtures and substantial prototypes where throughput is more important than fine surface detail.

Actual output depends on:

• Filament type and melt behavior

• Nozzle diameter

• Layer height and extrusion width

• Part geometry

• Cooling requirements

• Support strategy

• Surface-finish expectations

Maximum machine capability should not be treated as the expected production setting for every material or feature.

Automatic Calibration

Large build platforms amplify small setup errors. A minor height difference can cause poor adhesion in one area and excessive first-layer compression in another.

The D400 HS uses:

• Eddy-current bed leveling: Non-contact sensing measures the build surface and creates a compensation mesh.

• Camera-assisted XY calibration: A macro camera assists with aligning the two nozzles across the X and Y axes.

• Photoelectric Z-offset sensing: Dual sensors help establish the vertical relationship between the nozzles and platform.

• Input-shaper calibration: Klipper-based calibration helps tune the motion system for the installed configuration.

CreatBot’s 0.001 mm bed-probing figure and its stated XY/Z offset figures describe sensing or calibration precision. They are not guaranteed tolerances for finished parts. Final dimensional results also depend on material shrinkage, calibration, slicing parameters and geometry.

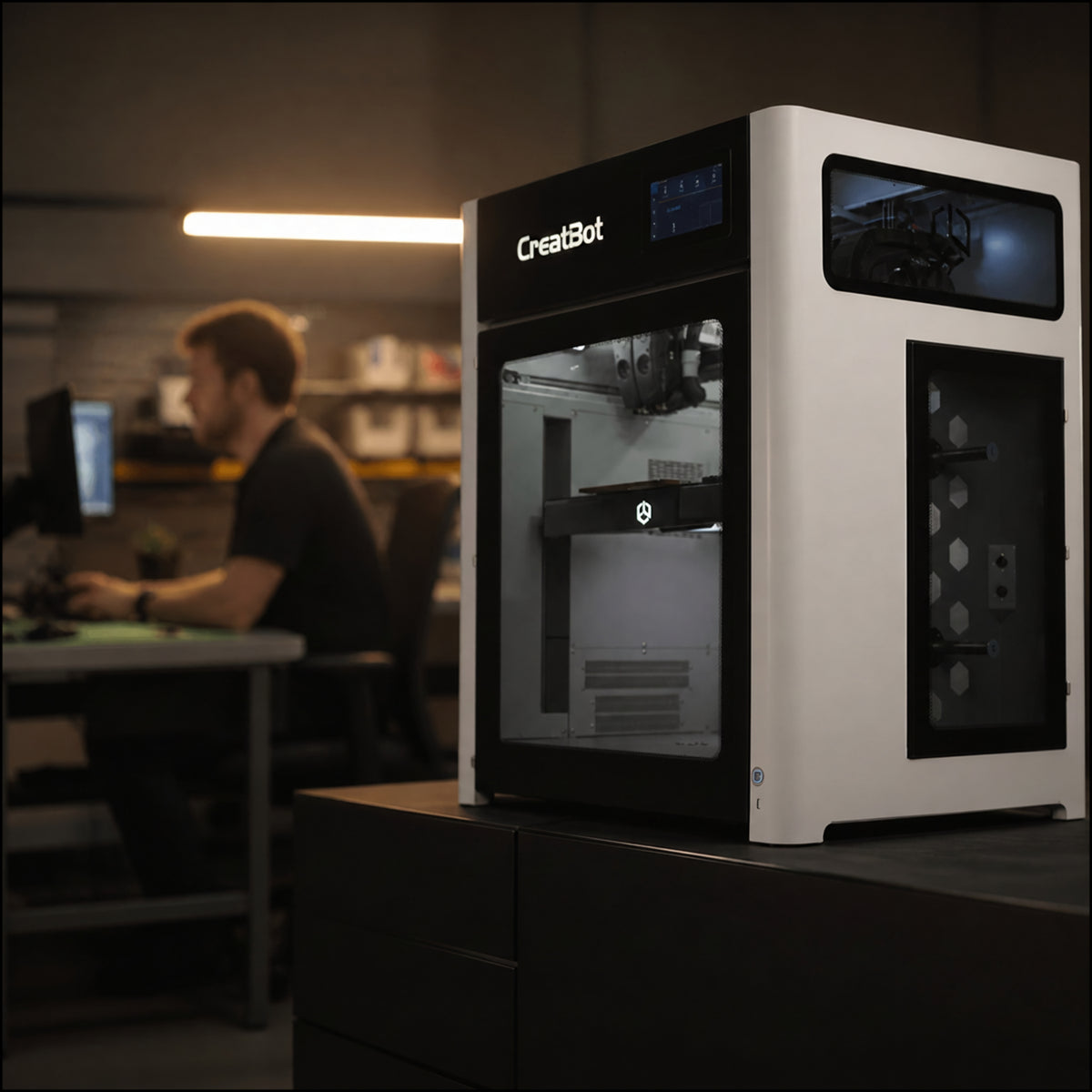

Removable Magnetic Platform

The build system combines an aviation-aluminum platform with a removable magnetic sheet. The aluminum base provides a rigid, thermally conductive foundation, while the removable surface can be taken out of the enclosure for easier part removal.

Compatible Materials

CreatBot identifies the following materials as compatible with the D400 HS:

Material Group	Compatible Materials
Standard thermoplastics	PLA, PETG, PP, TPU
Engineering thermoplastics	ABS, ASA, PC, nylon
Carbon-fiber composites	ABS-CF, PC-CF, PET-CF, UltraPA-CF, PPS-CF, PA-CF, PP-CF
Glass-fiber composites	PET-GF, PA-GF, PP-GF
Polymer blends	PA-ABS, PC-ABS

Compatibility means the printer provides an appropriate general processing platform. It does not mean every filament can use the same nozzle, build surface or print profile.

Carbon- and glass-fiber materials are abrasive. Confirm the installed nozzle material and the filament manufacturer’s hardware requirements before extended use.

Long-Print Protection

The cost of an interruption increases with part size and print duration. The D400 HS provides:

• Filament runout detection and automatic pause

• Power-loss recovery

• Dual-nozzle filament backup

• Remote camera monitoring

• Door-opening detection

• On-screen speed and flow adjustment

Before resuming after a power interruption, confirm that the part remains securely attached to the platform. Continuing with a warped or detached part can cause a printhead collision.

Cooling and Filtration

An external air-pump system supplies printhead and model cooling without relying entirely on air drawn from the heated chamber.

The enclosed filtration system combines:

• A HEPA particulate filter

• An activated-carbon filter

• A chamber exhaust fan

Filtration can reduce particles, odors and volatile compounds released into the immediate environment. It should not replace facility ventilation or exposure controls required by the filament manufacturer, safety data sheet or workplace policy.

Facility Requirements

The D400 HS is offered in different regional electrical configurations:

Electrical Configuration	Rated Power
100–120 V	2700 W
210–240 V	3200 W

Confirm the required voltage when ordering. The printer must be connected to a properly grounded outlet and an electrical circuit suitable for the selected configuration.

CreatBot specifies indoor operation between 5°C and 30°C. The installation location should provide:

• A stable, level supporting surface

• Clearance for loading, ventilation and service

• A properly grounded electrical connection

• Protection from significant vibration

• Appropriate material storage and environmental controls

• An access route suitable for a machine weighing approximately 110 kg

Confirm current external and packed dimensions before planning doorway clearance, freight handling or final placement.

Software & Connectivity

CreatBot lists the D400 HS for use with:

• CreatWare

• OrcaSlicer

• Cura

• Simplify3D

• Prusa-based slicing workflows

Supported file formats listed by the manufacturer include:

• STL

• 3MF

• OBJ

• AMF

• STEP

• STP

• G-code

CreatWare is available for Windows and macOS. CreatBot also provides an older Linux version, which should be evaluated before Linux is selected as the primary production environment.

Files can be transferred using:

• USB connection

• USB storage drive

• Wi-Fi

• Ethernet LAN

The printer can operate over a local network without requiring an active internet connection. Supported local functions include printer access, file transfer and firmware management.

CreatCloud app compatibility and the internal camera provide remote monitoring and supported printer-control functions. G-code can also be exported to a USB drive for offline printing in facilities that restrict cloud-connected equipment.

Included in the Purchase

Included Component	Quantity	Notes
CreatBot D400 HS printer system	1	Voltage configuration selected when ordering
Smart dual auto-rising extrusion system	Integrated	Includes two quick-release hotend positions and automatic nozzle shutters
Aluminum build platform with removable magnetic sheet	Integrated	Supports automatic bed leveling
HEPA and activated-carbon filtration system	Integrated	Installed in the printer
Internal monitoring and alignment camera	Integrated	Supports remote monitoring and camera-assisted XY calibration
Wi-Fi and Ethernet connectivity	Integrated	Supports networked and local operation
Power cord	1	Plug type depends on the regional electrical configuration

The exact tool kit, supplied filament, spare parts and loose accessories will be confirmed in the formal quotation.

Technical Specifications

Category	Specification
Printing technology	FDM/FFF
Single-extrusion build volume	420 × 400 × 420 mm
Dual-extrusion build volume	365 × 400 × 420 mm
Extrusion system	Smart dual auto-rising extruders
Number of nozzles	2
Filament diameter	1.75 mm
Standard listed nozzle diameter	0.6 mm
Optional nozzle diameters	0.3, 0.4, 0.8 and 1.0 mm
Minimum listed layer height	0.05 mm
Maximum nozzle temperature	420°C
Maximum build-plate temperature	120°C
Maximum chamber temperature	70°C
Maximum volumetric flow rate	90 mm³/s
Firmware	Klipper-based
Bed-leveling method	Automatic eddy-current leveling
XY nozzle-offset calibration	HD camera-assisted
Z-offset calibration	Dual photoelectric sensing
Build plate	Aviation-aluminum plate with removable magnetic sheet
Air filtration	HEPA and activated carbon
Display	7-inch touchscreen
File transfer	USB, USB drive, Wi-Fi and LAN
Camera monitoring	Yes
Door-opening detection	Yes
External air cooling	Yes
Power-loss recovery	Yes
Filament detection	Yes
X/Y positioning precision	0.00375 mm
Z positioning precision	0.00156 mm
Power requirements	100–120 V or 210–240 V, depending on regional configuration
Rated power	2700 W at 100–120 V; 3200 W at 210–240 V
Specified operating environment	Indoor use at 5°C to 30°C
Machine weight	Approximately 110 kg
Operating-system compatibility	Windows and macOS; older Linux CreatWare version available

Optional Accessories

CreatBot lists 0.3, 0.4, 0.8 and 1.0 mm nozzle options in addition to the standard listed 0.6 mm diameter.

Nozzle Diameter	Selection Consideration
0.3 mm	Fine features and smaller extrusion lines
0.4 mm	General balance between detail and material output
0.8 mm	Increased deposition for larger parts
1.0 mm	High material output where fine detail is secondary

Nozzle construction, abrasion resistance, hotend compatibility and accessory part numbers should be confirmed for the intended material before ordering.

Support & Resources

Customer Reviews and Feedback

Customer reviews and application feedback for the CreatBot D400 HS will appear here as they become available.

Precision 3D Works does not publish fabricated testing claims or customer experiences. Contact our team for guidance based on your part, material and workflow requirements.

Owner’s Manual

Review the official CreatBot D400 HS User Manual before installation and operation.

Download the CreatBot D400 HS User Manual

The manual covers safety, controls, networking, calibration, print preparation and operating procedures.

Download the CreatBot D400 HS Brochure

Warranty

The CreatBot D400 HS carries a limited manufacturer warranty for 12 months from delivery to the first end user.

CreatBot identifies nozzles and hotends as consumable products with a six-month warranty. Coverage remains subject to the manufacturer’s terms, exclusions, operating instructions and maintenance requirements.

Review the CreatBot Warranty Policy

For warranty assistance, contact Precision 3D Works with your order information, machine serial number and a description of the issue.

Configuration Assistance

Choosing an industrial 3D printer involves more than matching the build volume to a CAD model. Material behavior, support strategy, nozzle selection, electrical requirements and expected throughput all affect the correct configuration.

Please Request a Quote for current pricing and lead time, or Talk to an Expert to discuss your intended parts, materials and production requirements with Precision 3D Works.
