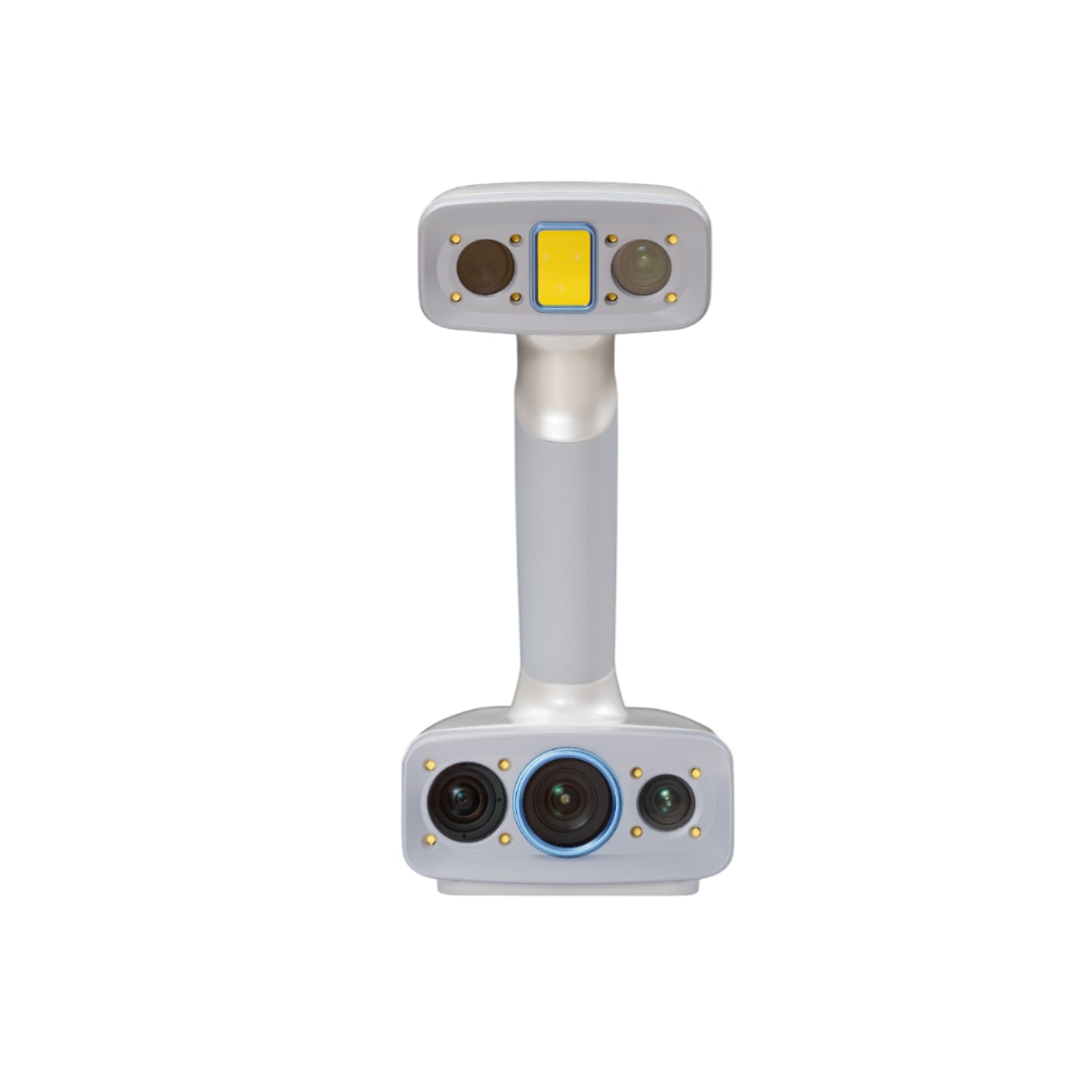

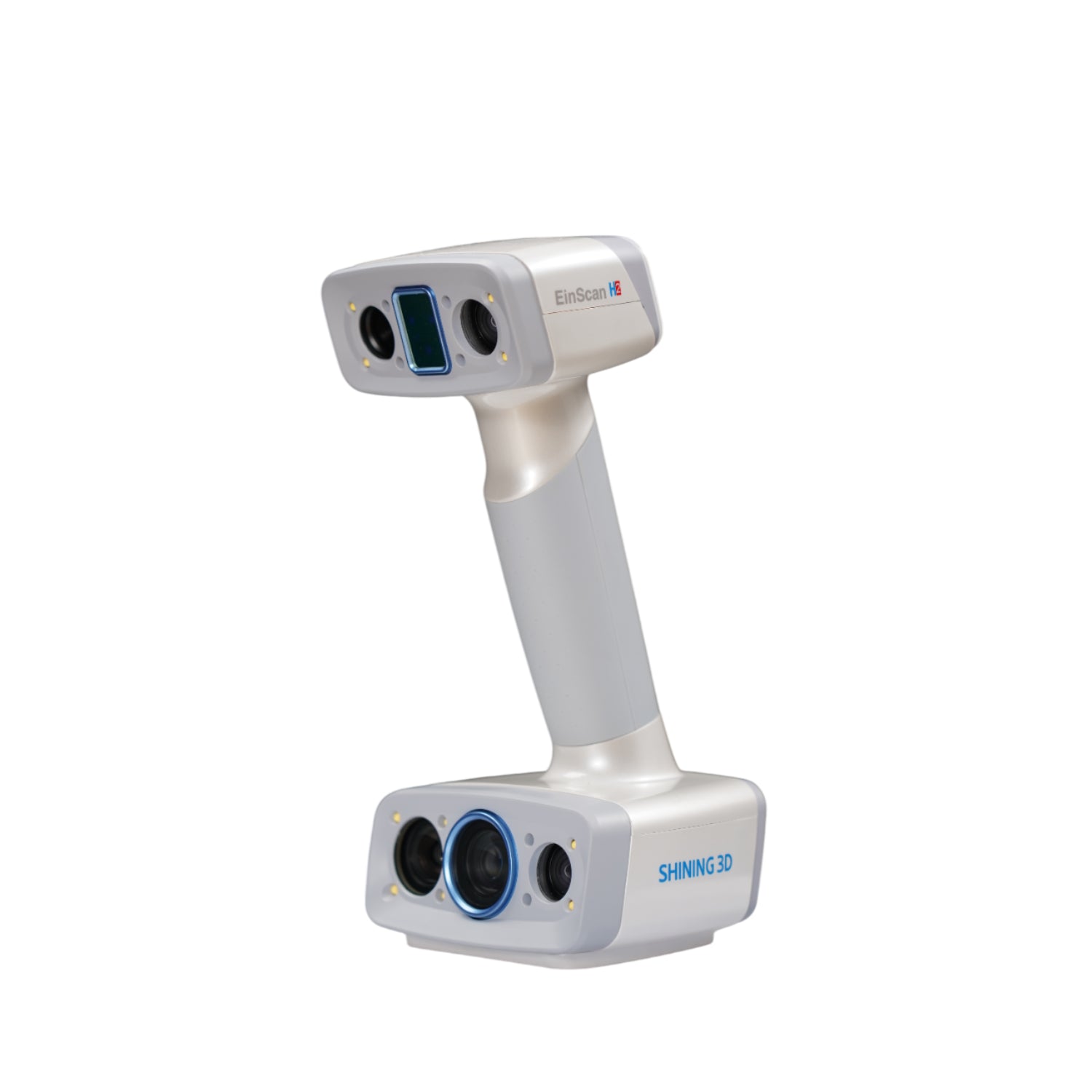

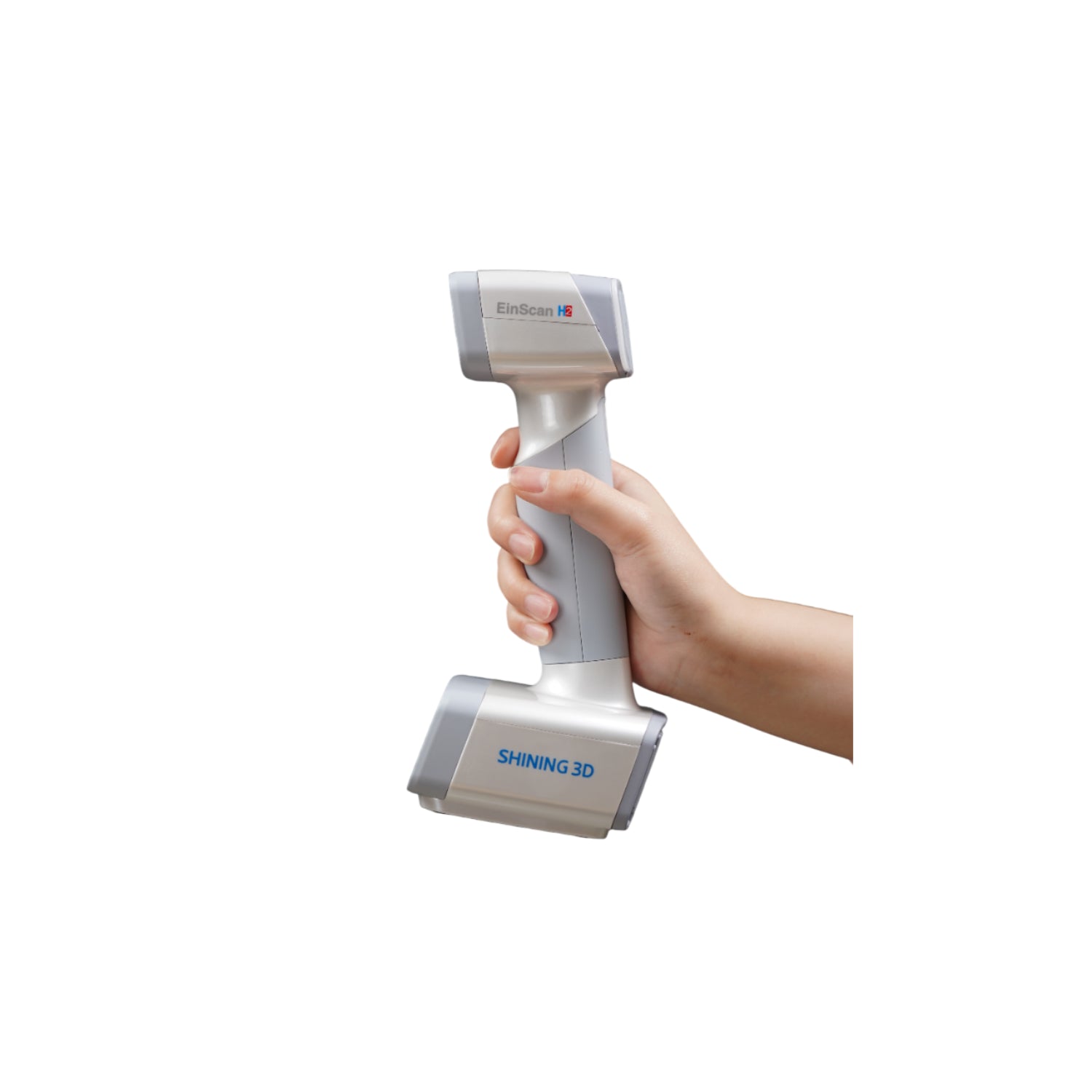

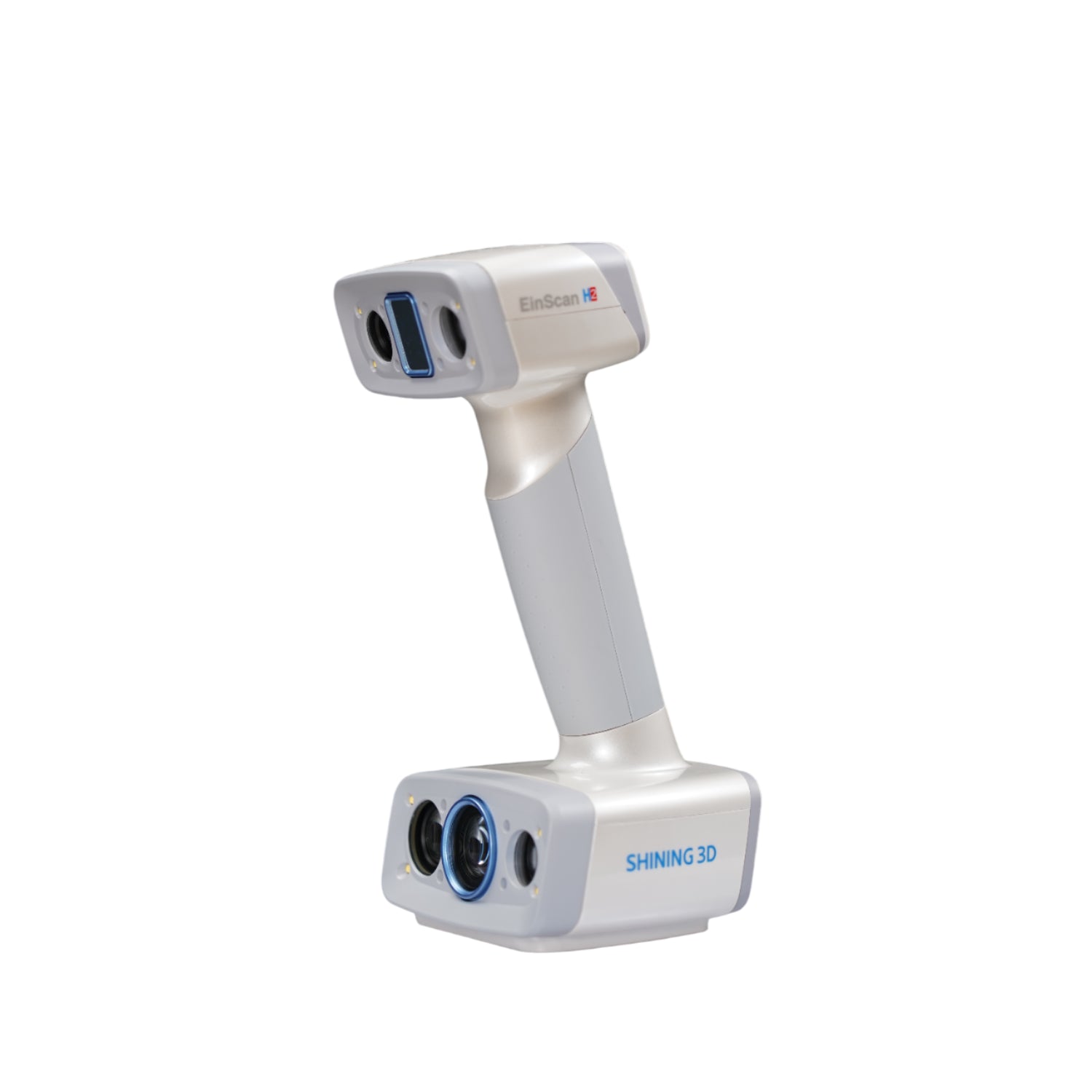

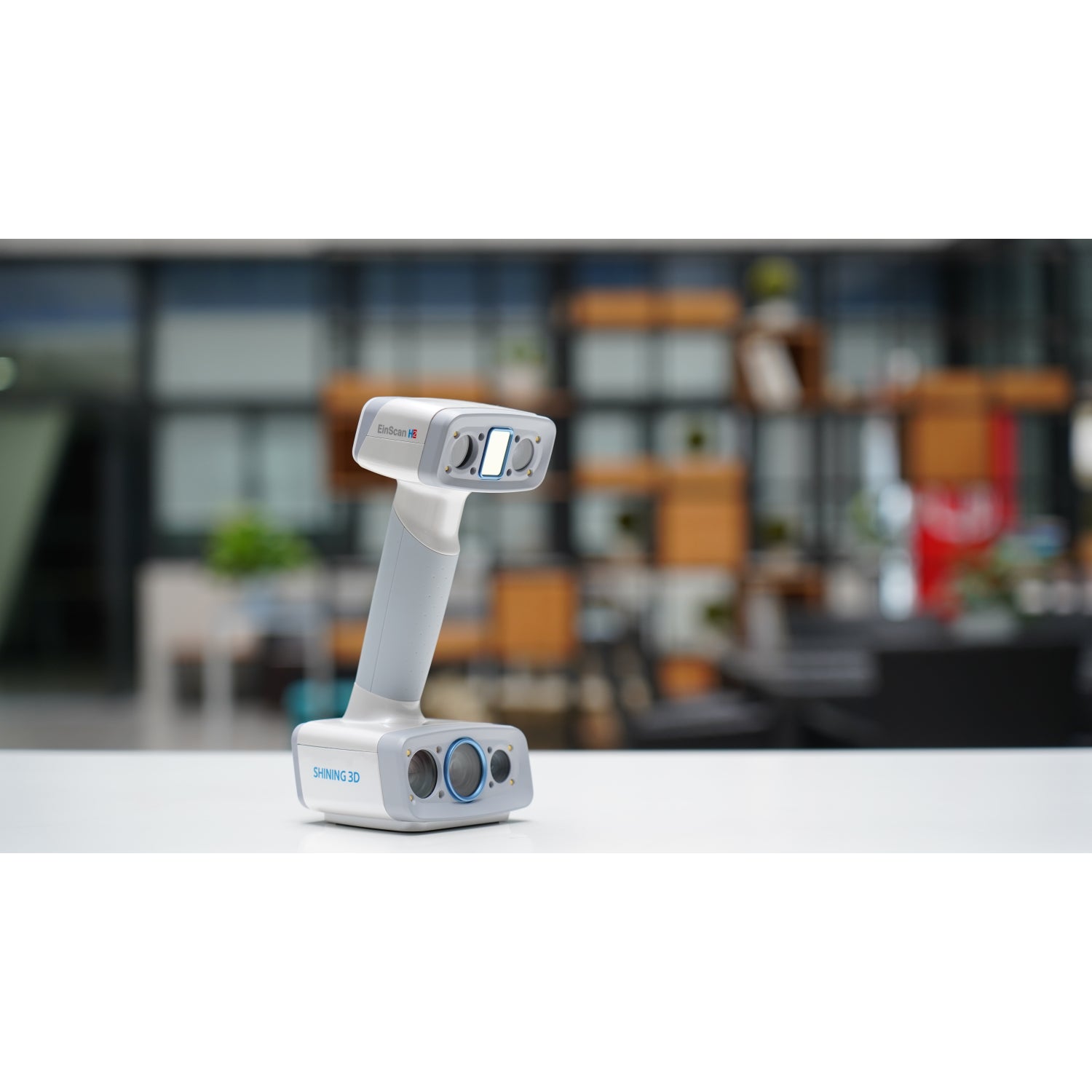

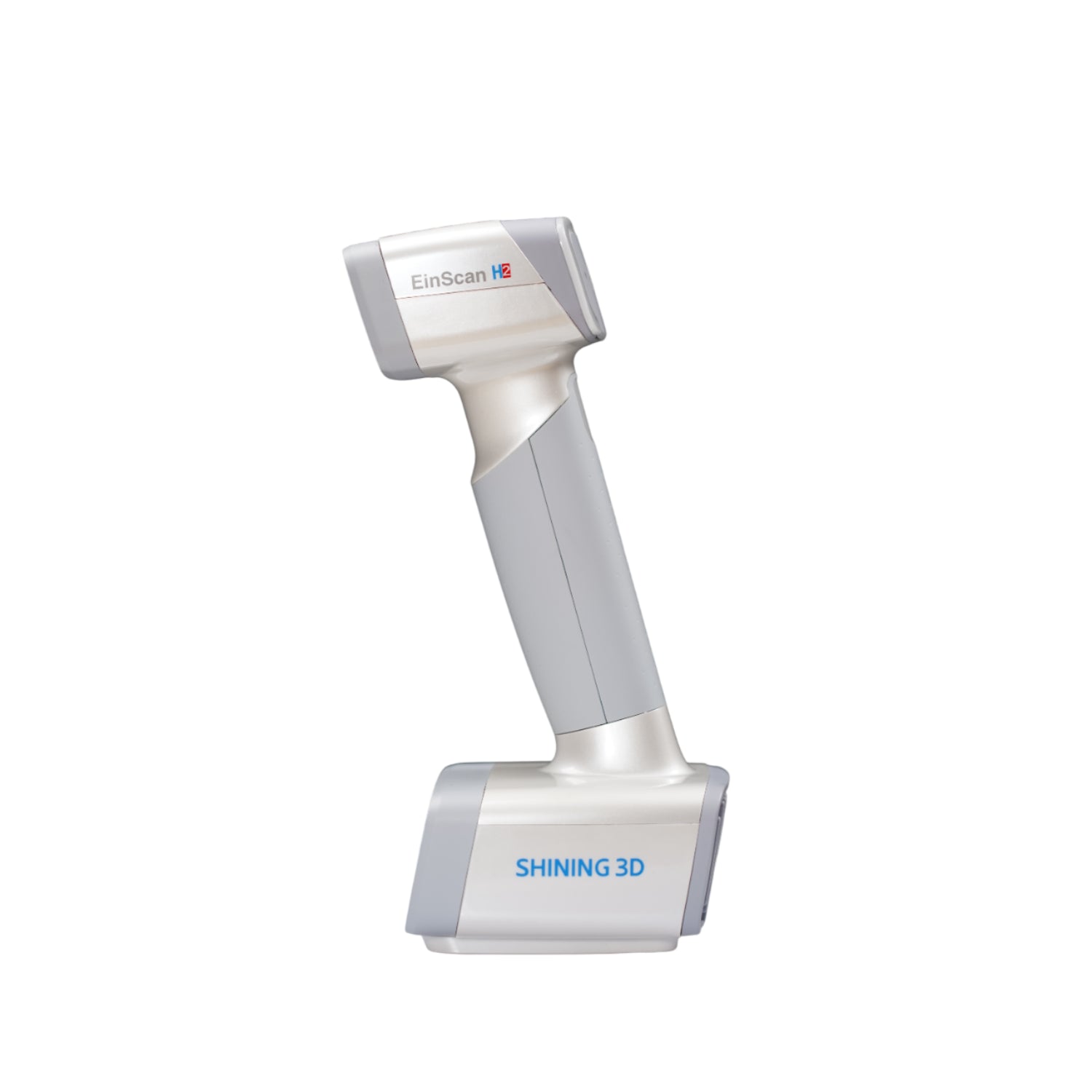

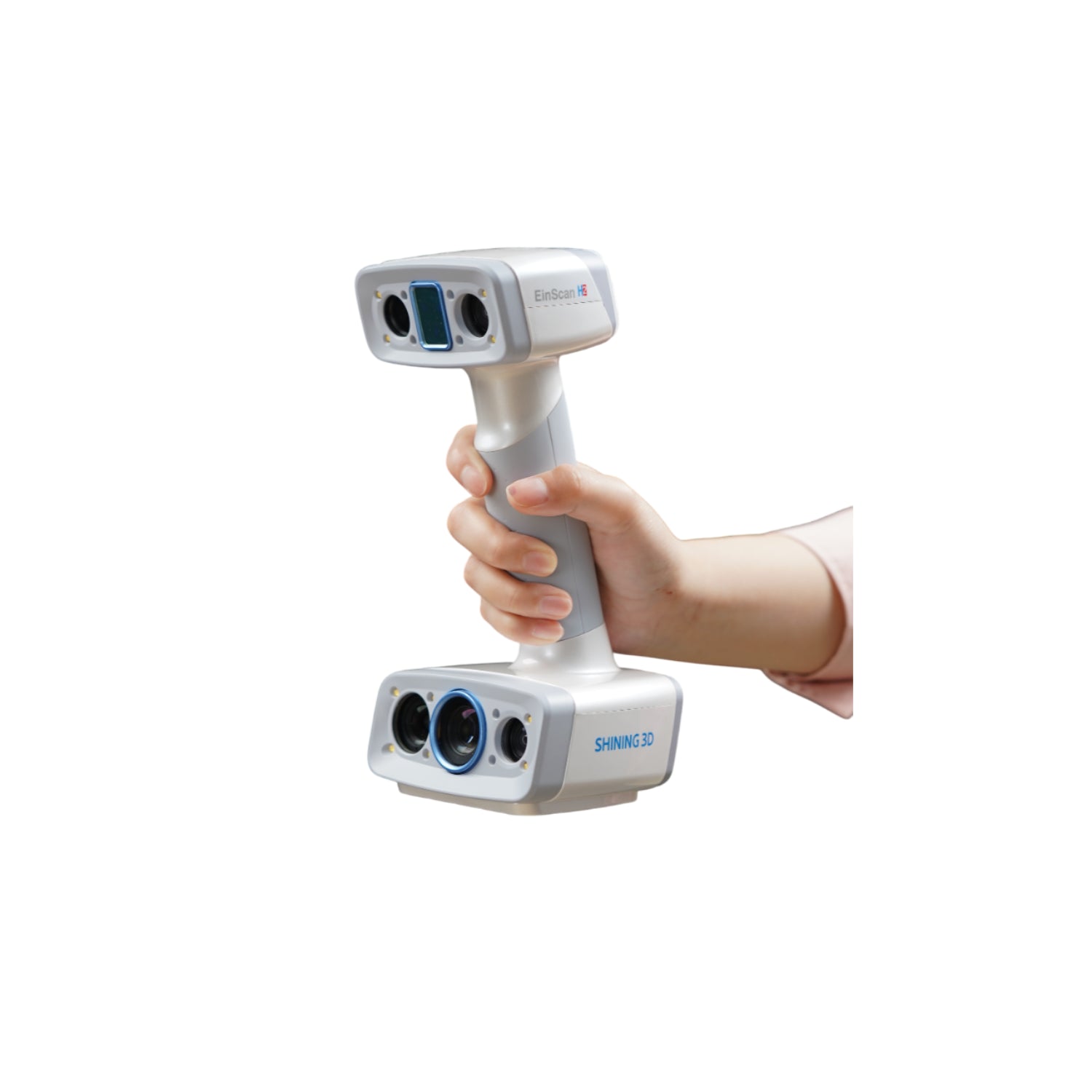

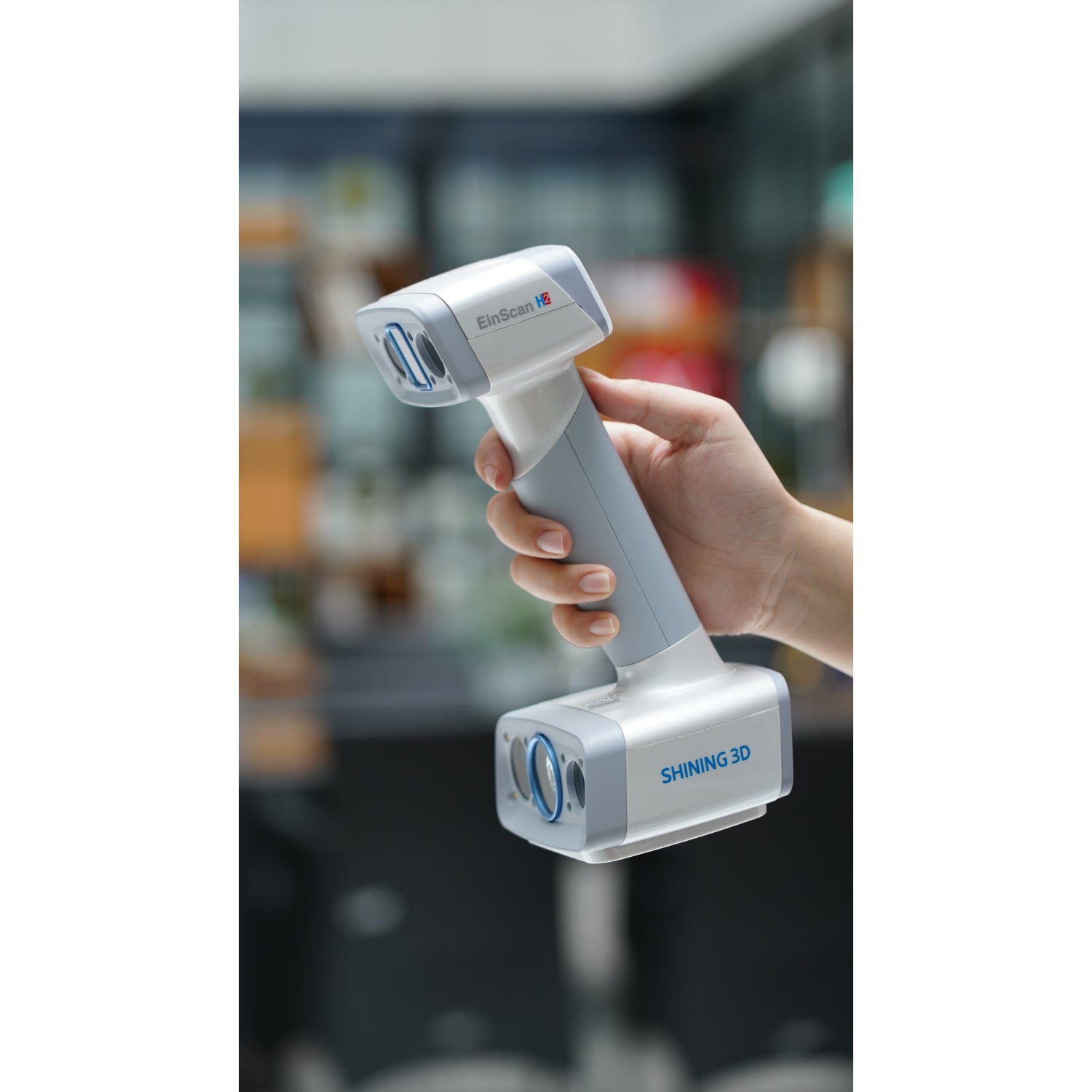

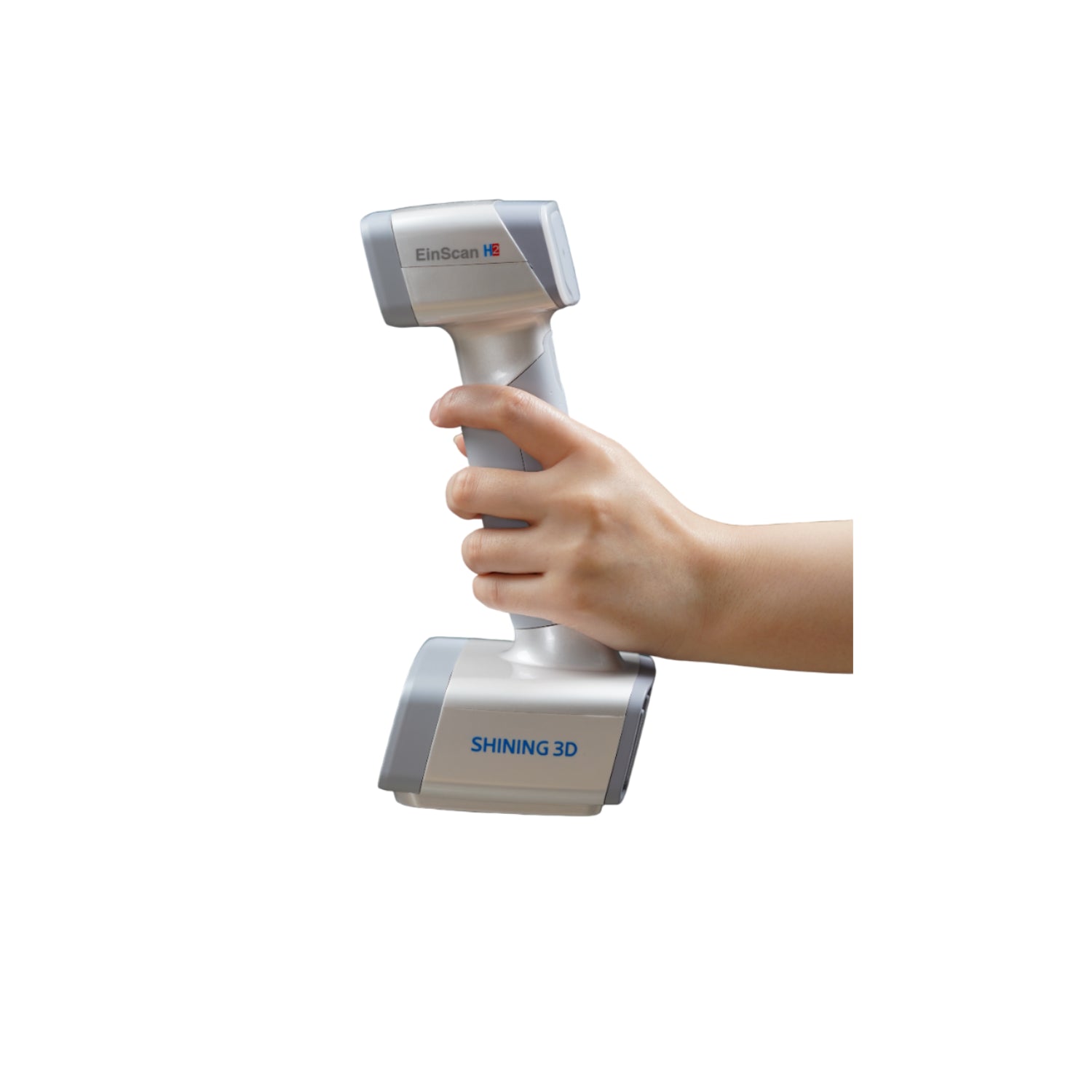

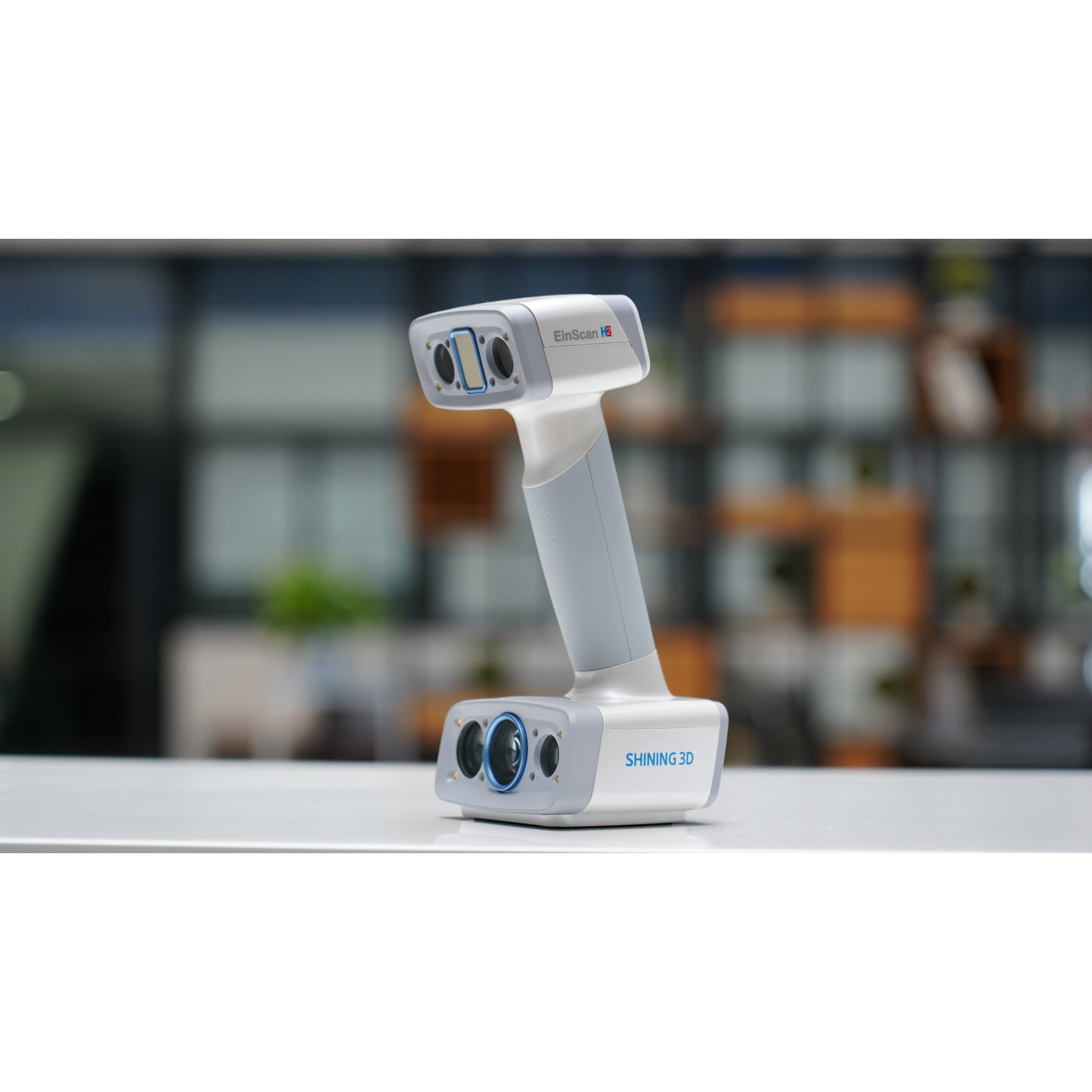

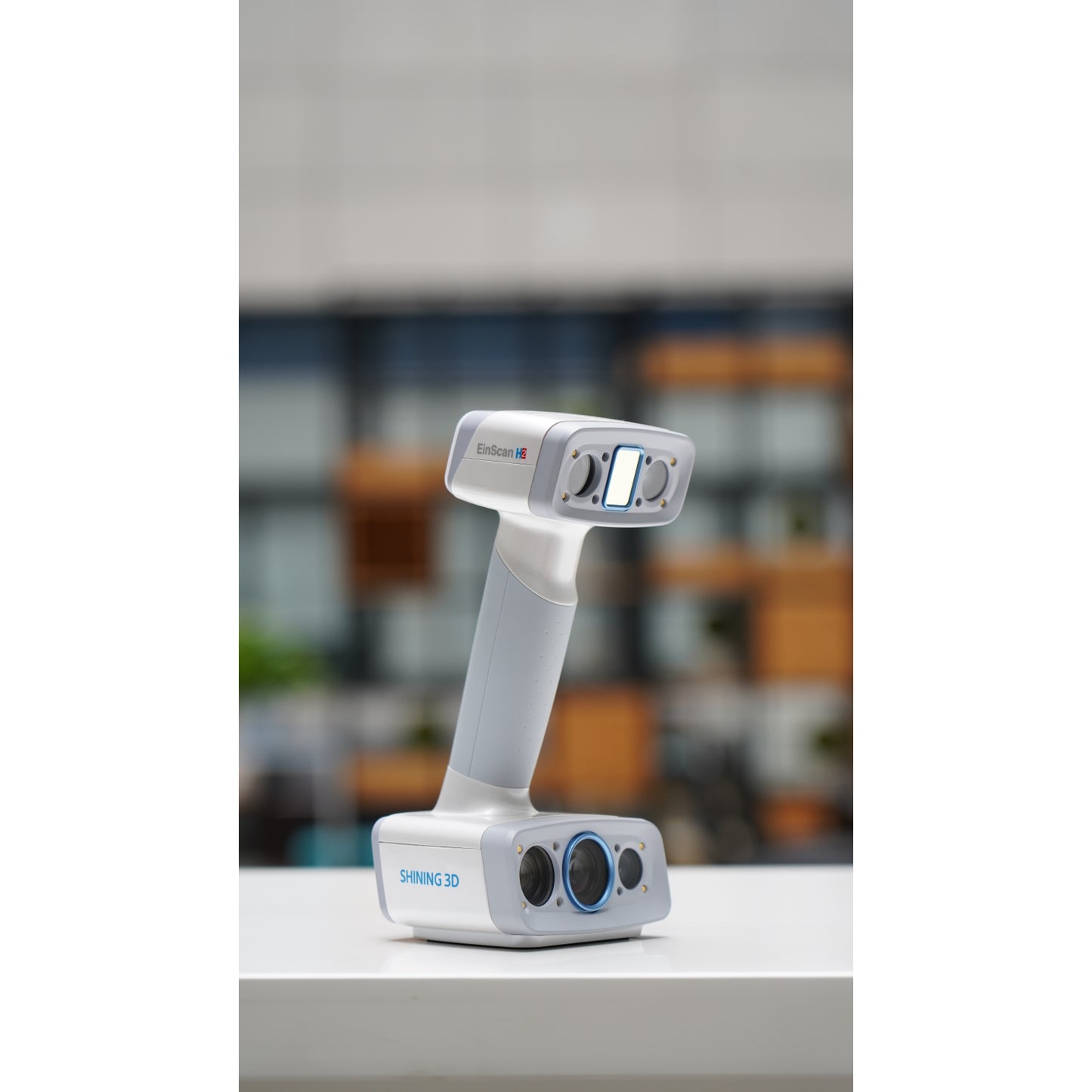

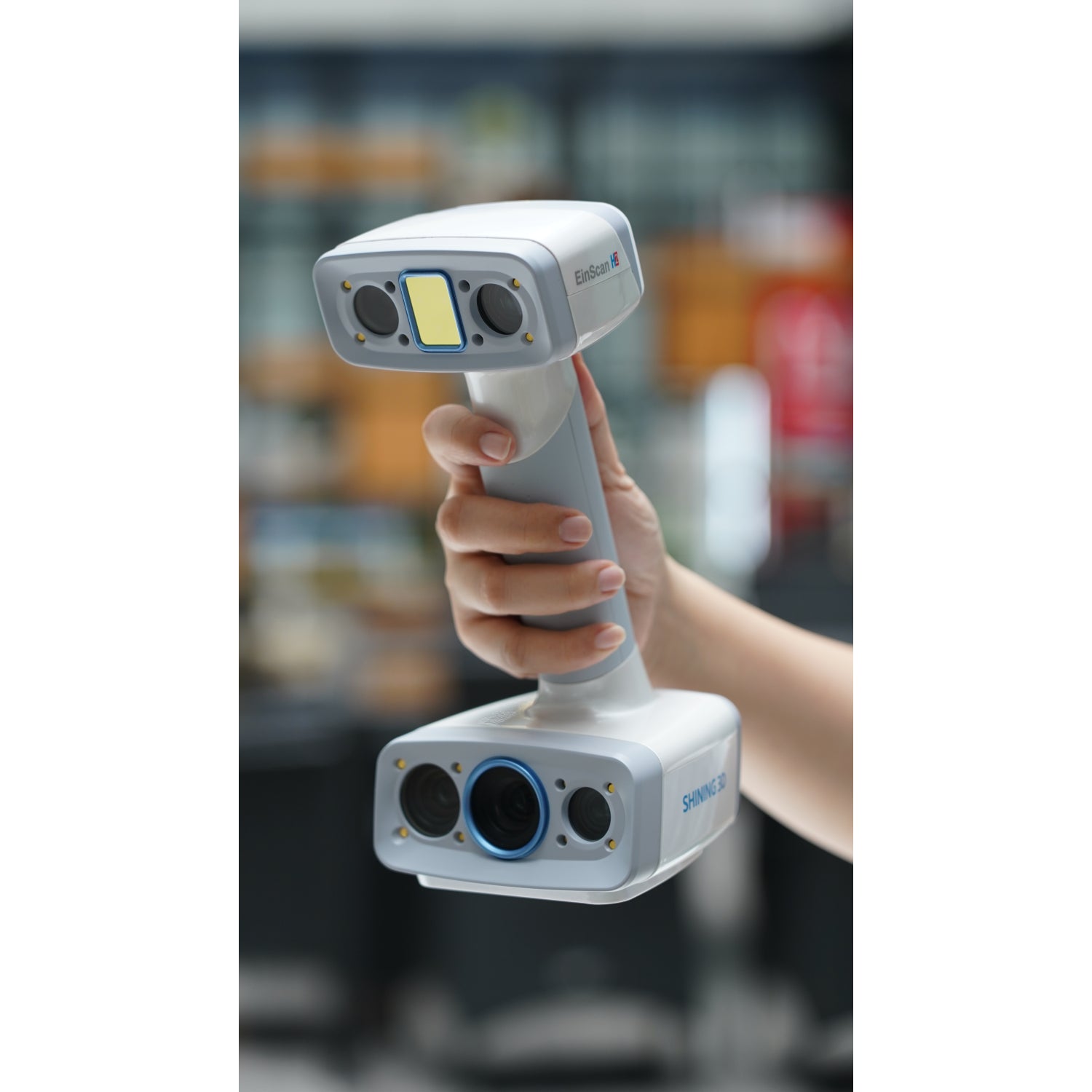

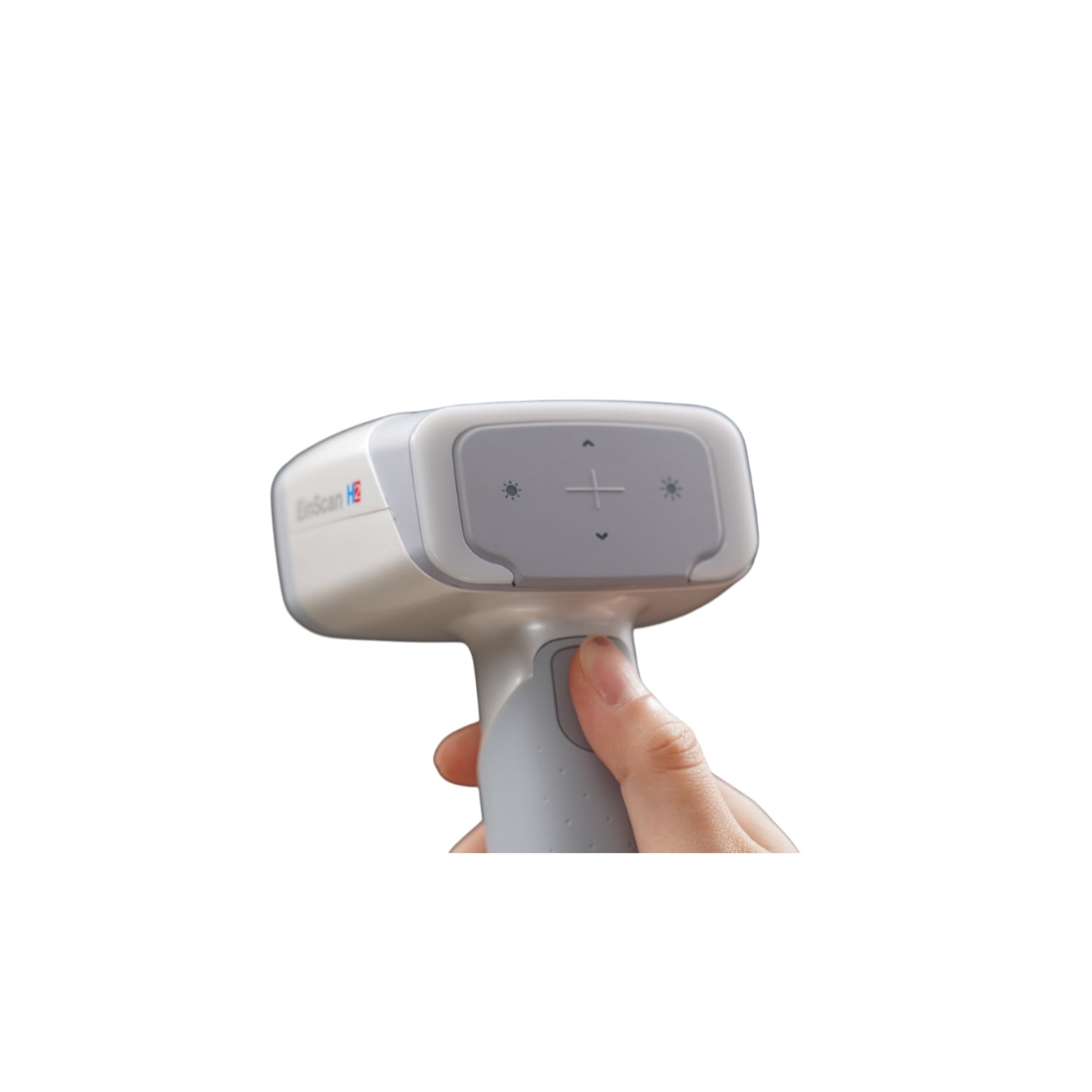

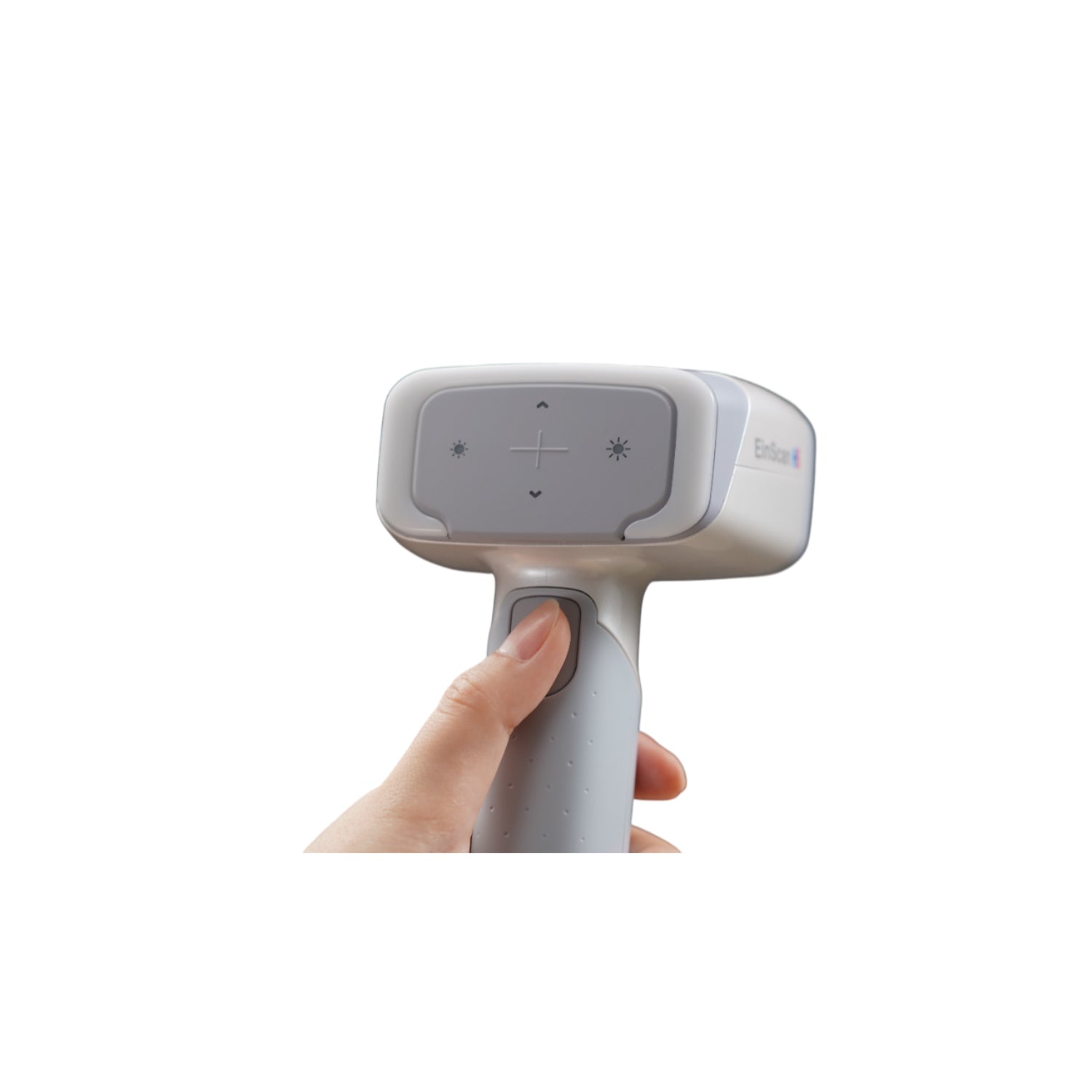

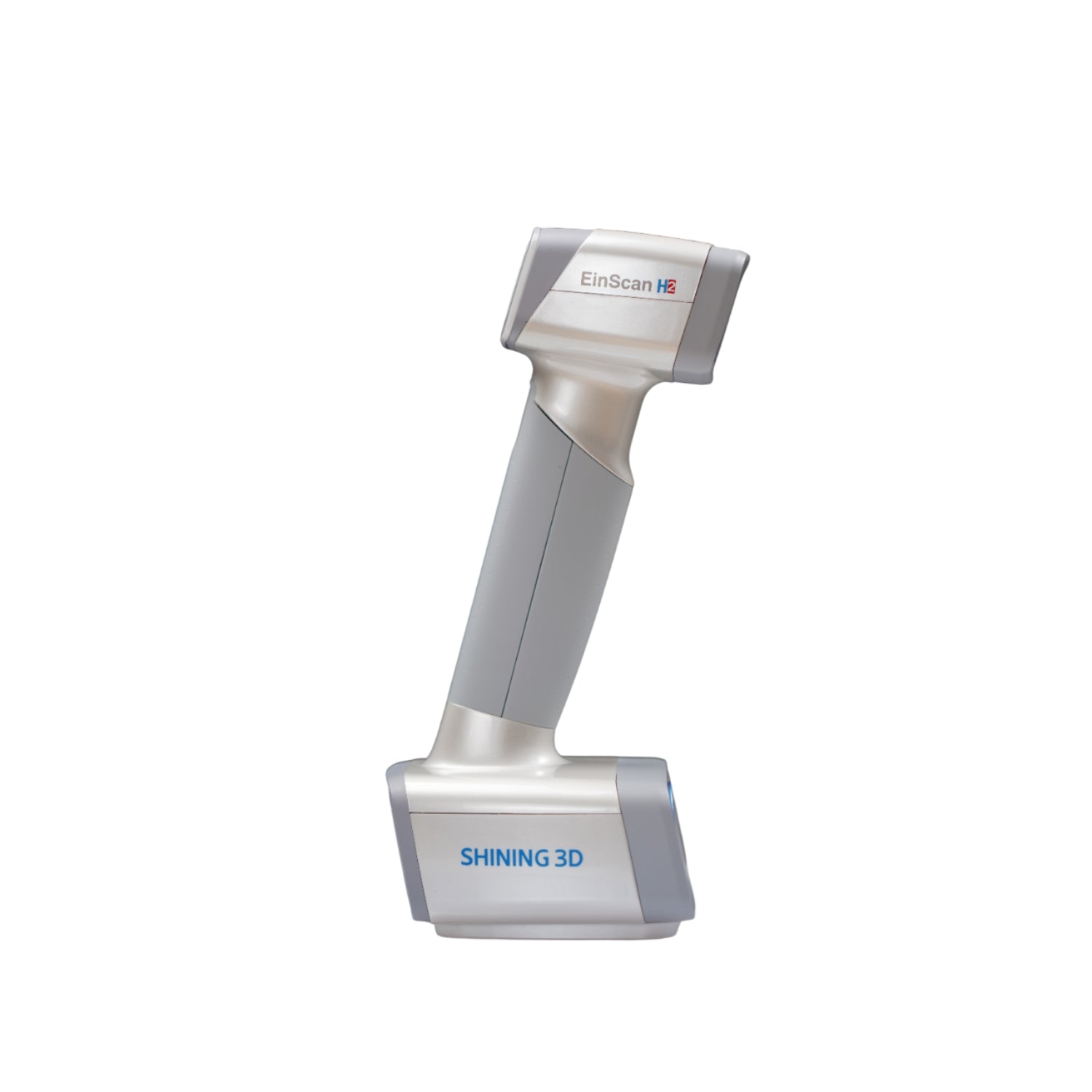

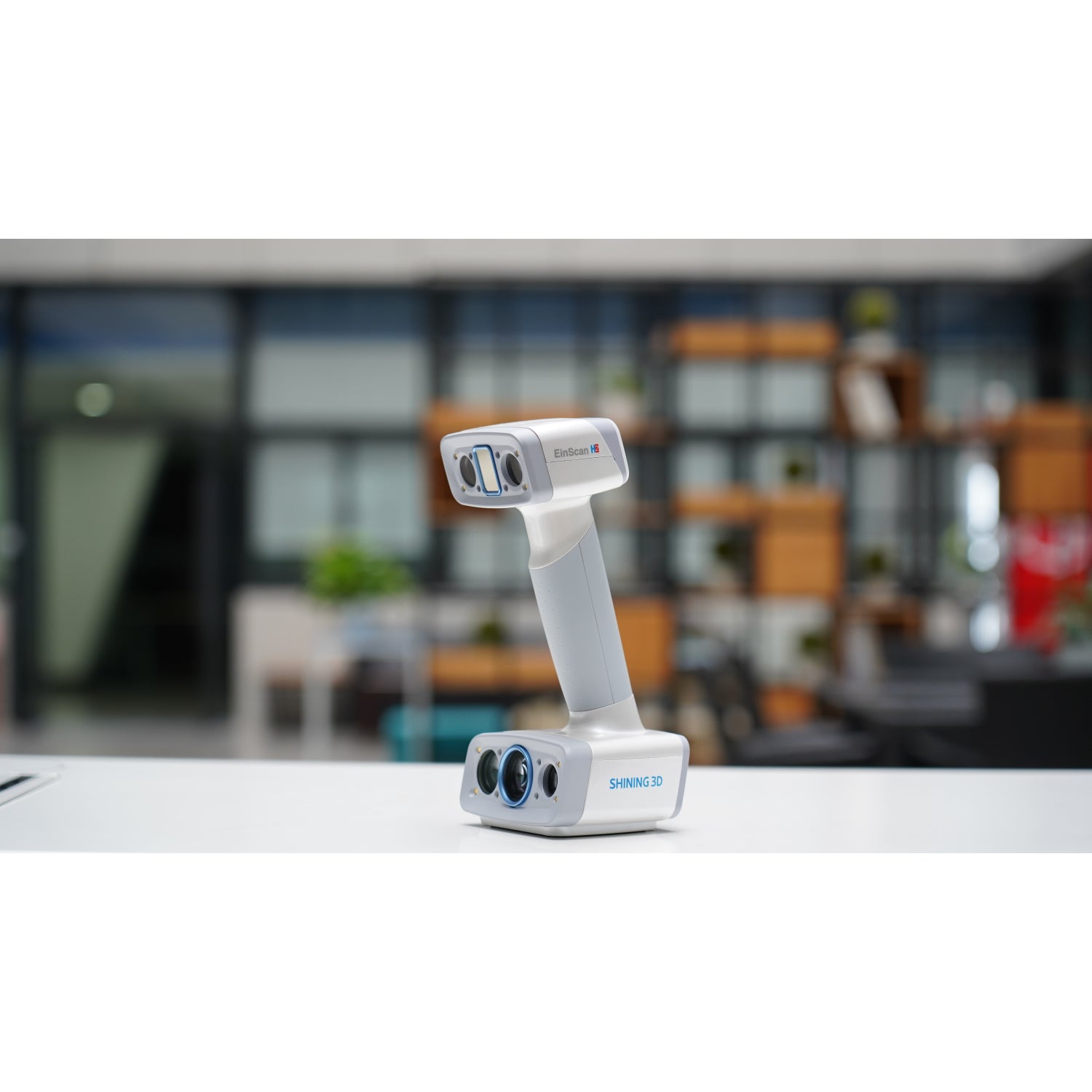

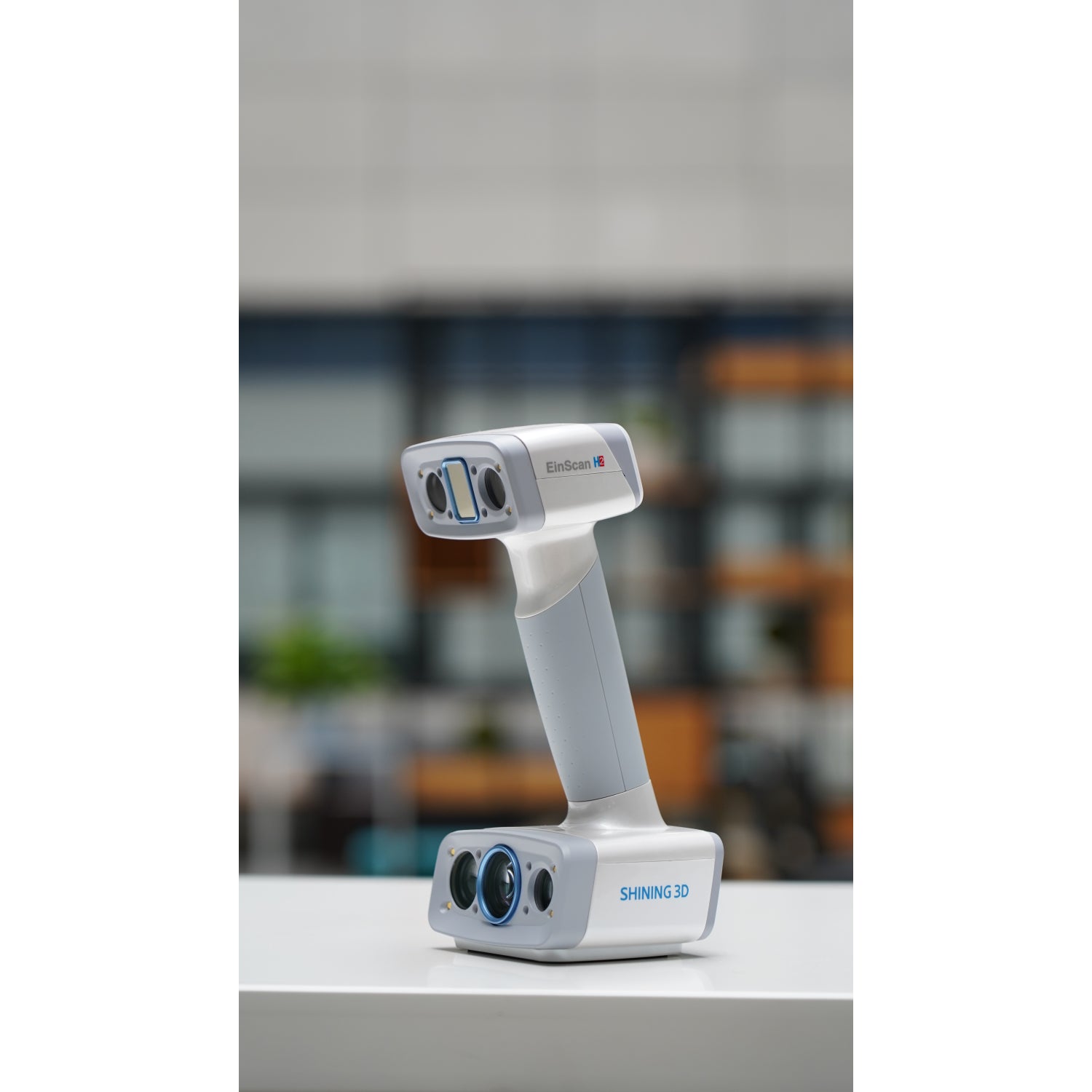

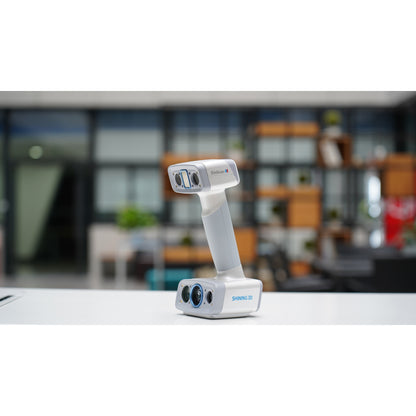

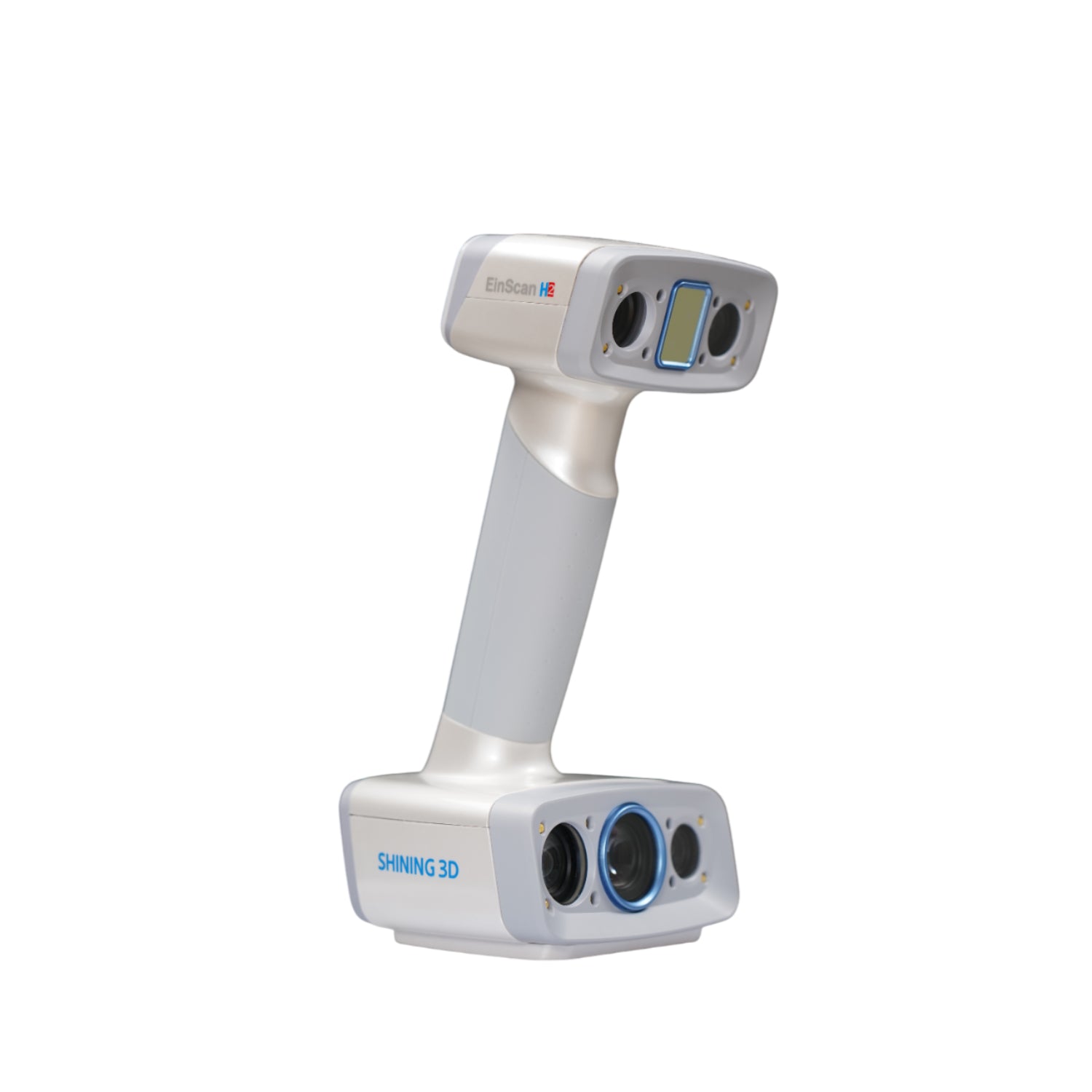

Shining3D EinScan H2 Hybrid Infrared-LED Handheld 3D Scanner C7446

Shining3D EinScan H2 Hybrid Infrared-LED Handheld 3D Scanner C7446

Regular price $5,299.00 USD
Regular price Sale price $5,299.00 USD
Sale Sold out

In stock

Includes Warranty

30-Day Returns

Unlimited Free Support

Hybrid LED & Infrared Light Source for Professional, Full-Color 3D Scanning

The EinScan H2 is a powerful handheld 3D scanner designed to deliver precise, full-color digital models using a hybrid light source (LED + Infrared VCSEL). Equipped with a 5MP texture camera, three VCSEL projectors, and accuracy up to 0.05 mm, it is optimized for scanning human faces, bodies, cultural artifacts, and large objects with unmatched detail, even in brightly lit or reflective environments.


Key Features

  • Hybrid Light Source (LED + VCSEL)
    Combines structured white LED light for high-precision scanning and VCSEL infrared light for safe, accurate scanning of dark, reflective, or human surfaces.

  • High Accuracy
    Delivers up to 0.05 mm accuracy and 0.2–3 mm point distance in LED mode—ideal for reverse engineering, inspection, and digital archiving.

  • Photorealistic Texture
    A 5MP full-color camera enables high-resolution texture capture for realistic 3D models.

  • Large Field of View (FOV)
    Capture large areas up to 780 x 900 mm quickly and efficiently in IR mode.

  • Marker-Free Scanning
    Easily scan using geometric features or textures—no markers required for many projects.

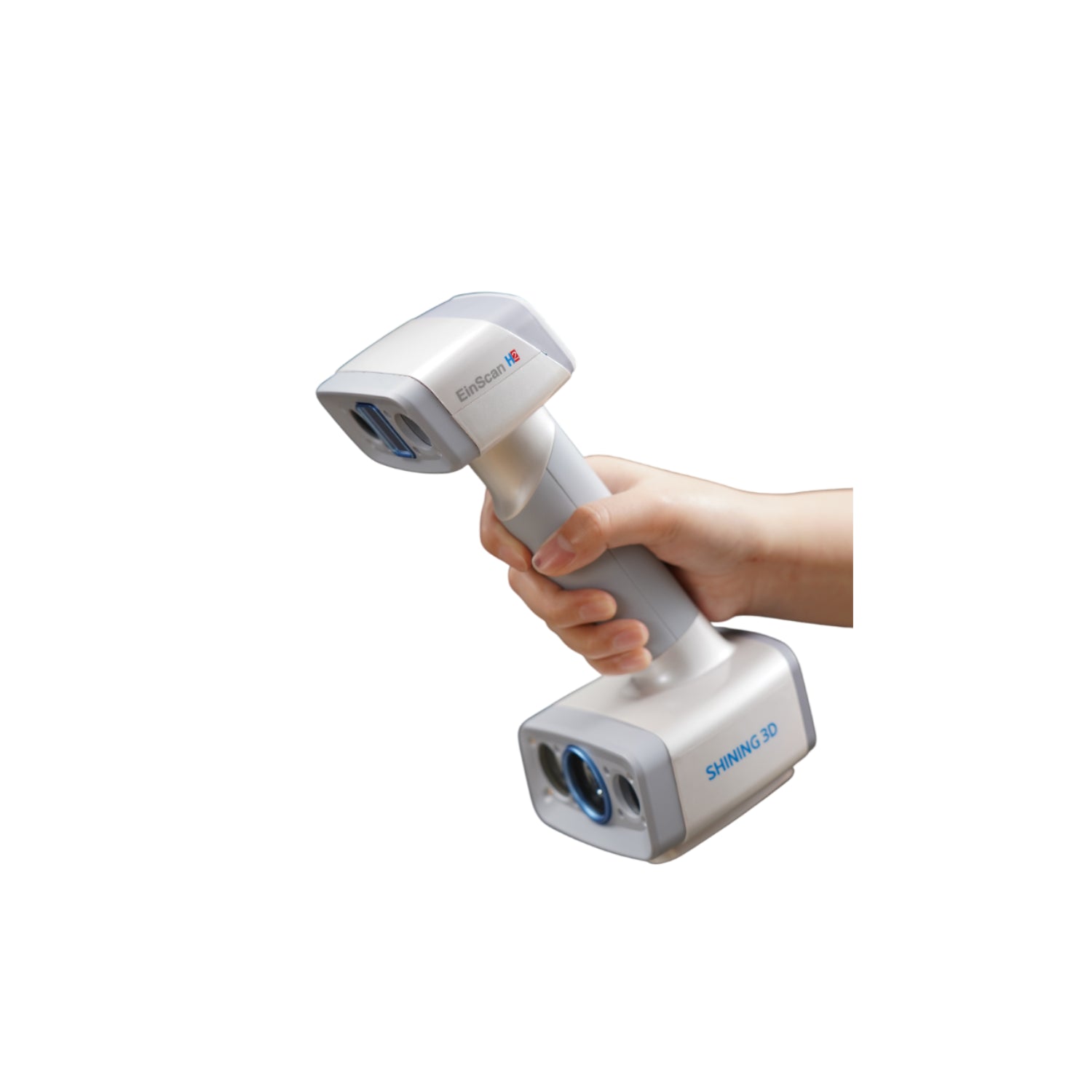

  • Ergonomic & Portable
    Lightweight at 731 g and easy to use on-site or in the studio. Plug-and-play usability with USB 3.0.

  • Multiple Align Modes
    Supports alignment via global markers, features, hybrid tracking, and texture alignment.


What You Can Achieve

  • Face & Body Scanning
    Optimized algorithms and non-rigid tracking enable seamless body scans—even compensates for minor movement.

  • Cultural Heritage & Art
    Perfect for restoration, documentation, and museum-quality 3D digitization.

  • Medical & O&P (Orthotics & Prosthetics)
    Accurate data capture for prosthetic design and medical modeling.

  • Automotive & Industrial Design
    Scan complex surfaces and components with precision for engineering workflows.


EXScan H Software Suite

  • Step-by-Step Workflow
    Intuitive guidance through the scanning, editing, and data optimization process.

  • Multiple Scan Modes
    Includes white light, IR portrait, and IR object modes to fit every scanning scenario.

  • Texture Mapping & Alignment
    Advanced texture tools for aligning and enhancing visual fidelity—especially useful for color-rich objects.

  • Optimized for Face & Body Scanning
    Captures fine details of facial features and hair, even with slight user movement.


EXScan O&P Software (For Orthotics & Prosthetics)

  • Specialized 3D Digitization Workflow
    Tailored for O&P practitioners, enabling fast scanning and precise modeling of limbs, sockets, and braces.

  • Supports Custom Device Design
    Automatically aligns and optimizes human body scans for CAD use and patient-specific production.


Specs

Feature LED Mode IR Mode
Light Source White LED Light (Visible) Infrared VCSEL Light (Invisible)
Scan Accuracy Up to 0.05 mm Up to 0.1 mm
Volumetric Accuracy 0.05 mm ± 0.1 mm/m 0.1 mm ± 0.3 mm/m
Point Distance 0.2 mm – 3 mm 0.2 mm – 3 mm
Working Distance 470 mm 470 mm
Effective Range 200 mm – 700 mm 200 mm – 1500 mm
Max FOV 420 x 440 mm 780 x 900 mm
Scan Speed 1,200,000 points/s 1,060,000 points/s
Texture Camera Resolution 5 MP 5 MP
Align Modes Global Markers, Feature, Texture, Hybrid Feature, Texture, Hybrid, Global Markers
Safety Rating Class I Eye-Safe Class I Eye-Safe

General Specifications

Feature Specification
Output File Formats OBJ, STL, ASC, PLY, P3, 3MF
Software Included EXScan H, EXScan O&P
Connectivity USB 3.0
Scanner Size 108 × 110 × 237 mm
Weight 731.1 g
Operating Temp Range 0°C to 40°C
Operating Humidity Range 10% – 90% RH
Certifications CE, FCC, RoHS, WEEE, KC
Input Voltage DC 12V, 5.0A

System Requirements

Configuration Minimum Requirements Recommended Requirements
OS Windows 10 64-bit Windows 10/11 64-bit
CPU Intel i7-8700 or higher Intel i7-11700 or higher
Graphics Card NVIDIA GTX1060 or better NVIDIA RTX 2060 or better
Video Memory ≥ 4 GB ≥ 6 GB
System RAM ≥ 16 GB ≥ 64 GB

Included in the Box

Item Quantity
EinScan H2 Scanner 1
USB 3.0 Cable 1
Power Adapter 1
Calibration Board 1
Carrying Case 1
Quick Start Guide 1
Warranty Card 1
EXScan Software License 1

EInScan H2 Brochure

📄 View EinScan H2 Brochure

Owner’s Manual

📄 View EinScan H2 User Manual

Standard Warranty

📄 View EinScan 1-Year Standard Warranty
