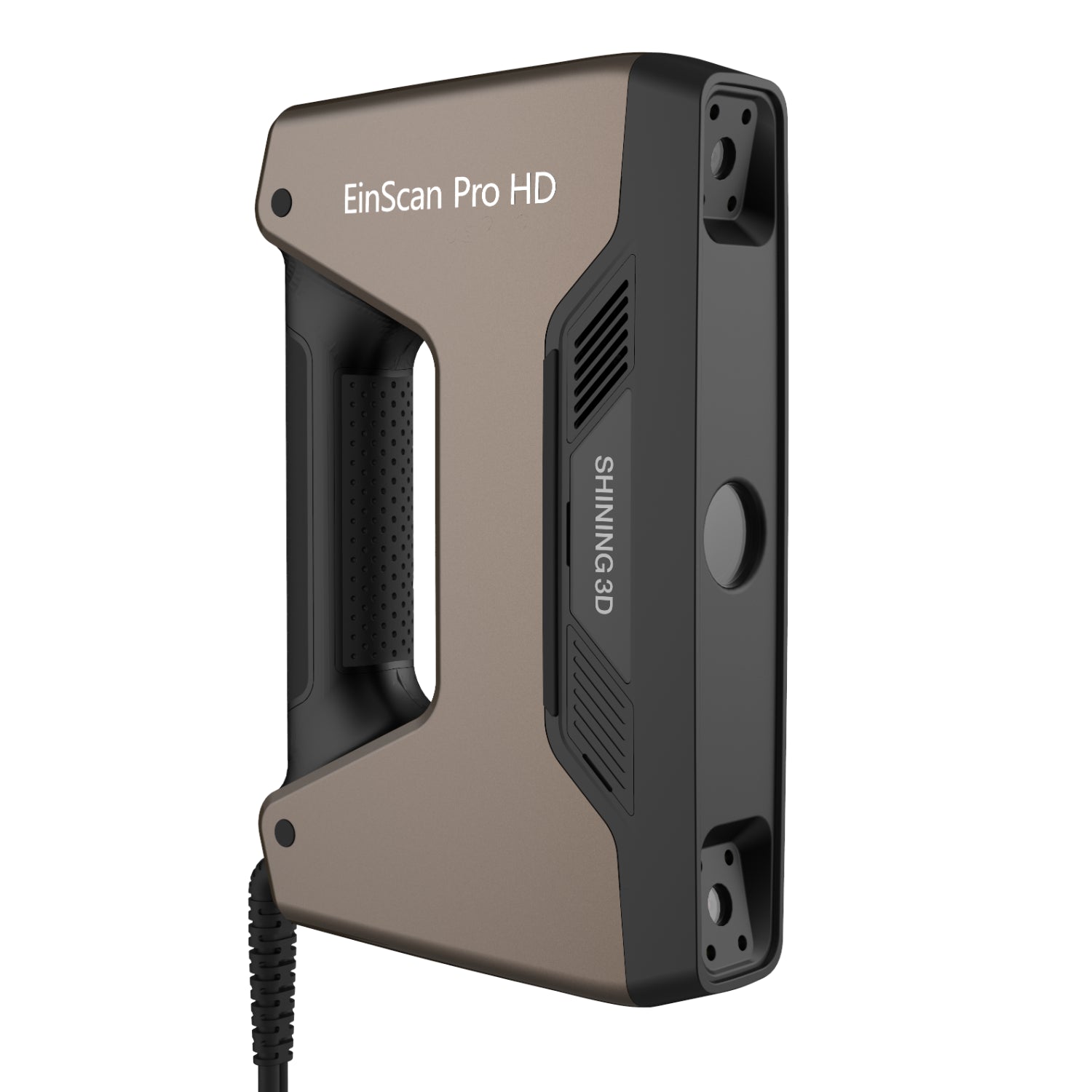

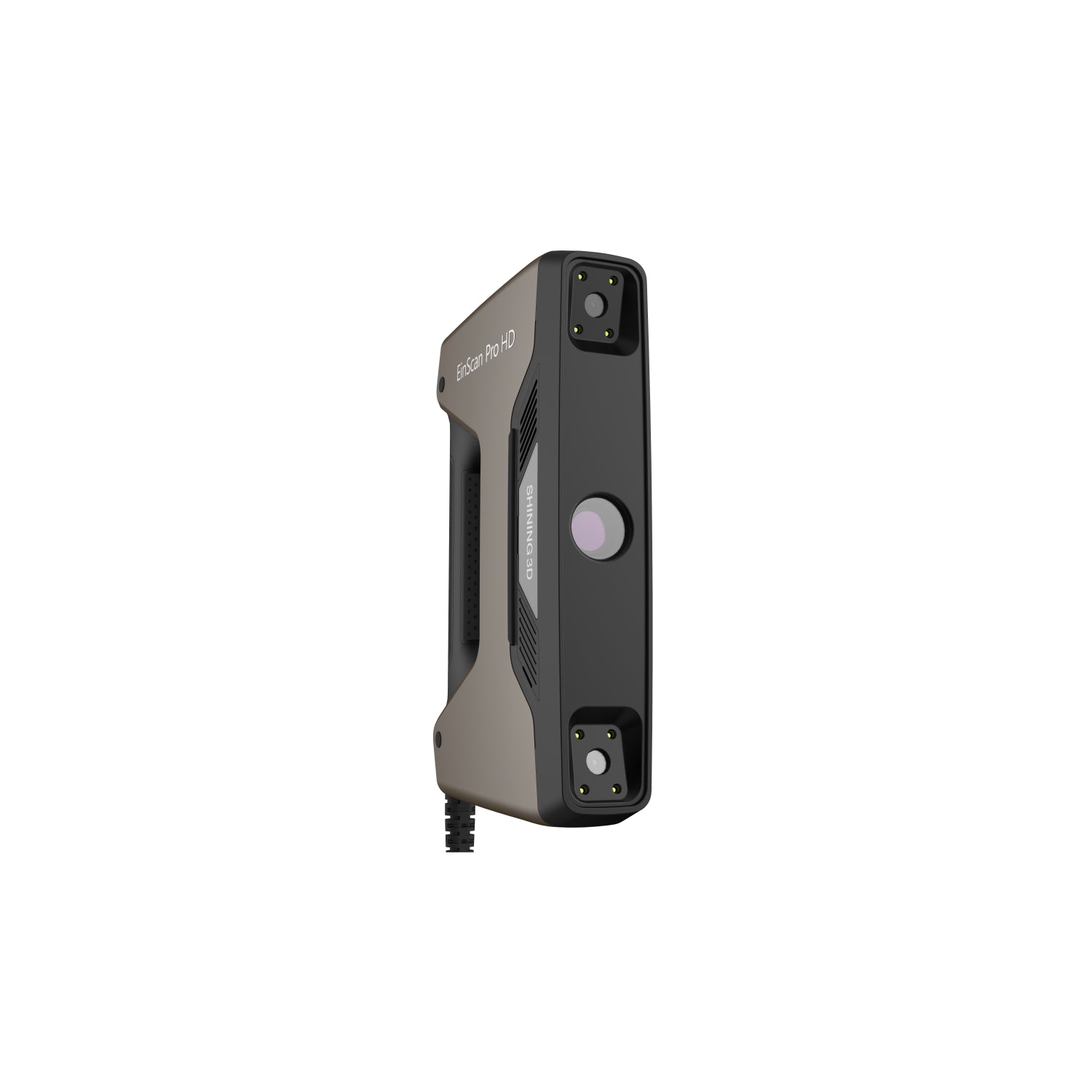

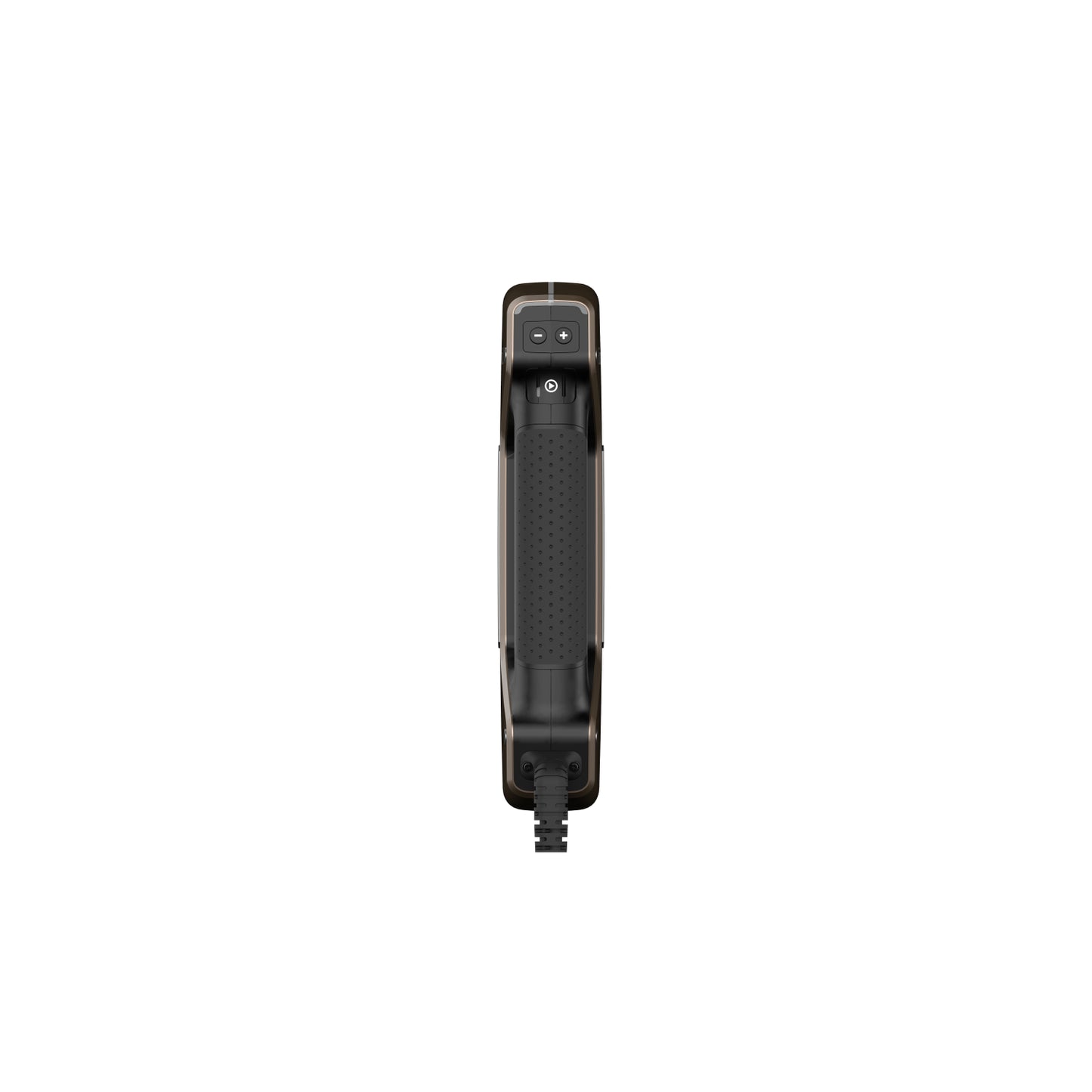

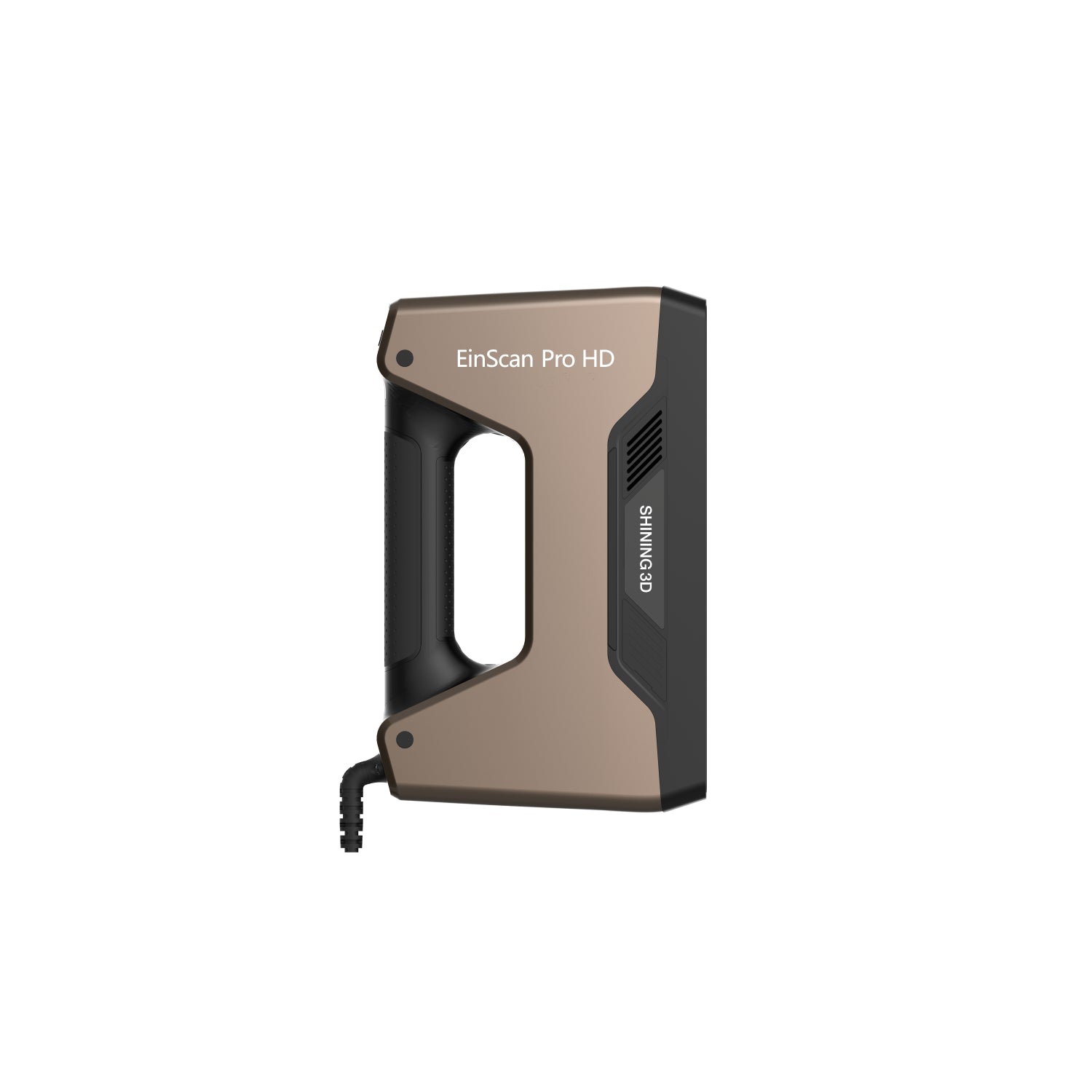

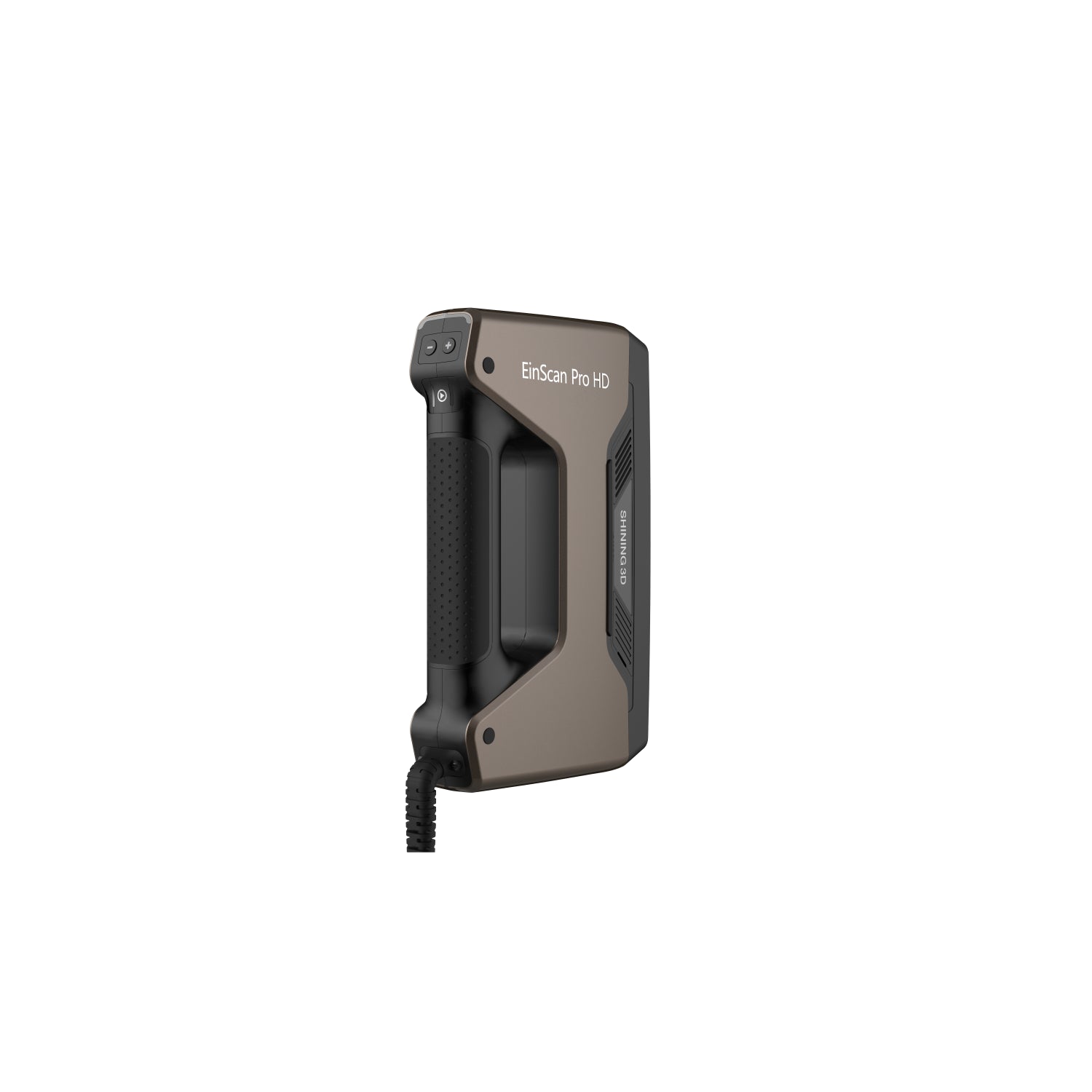

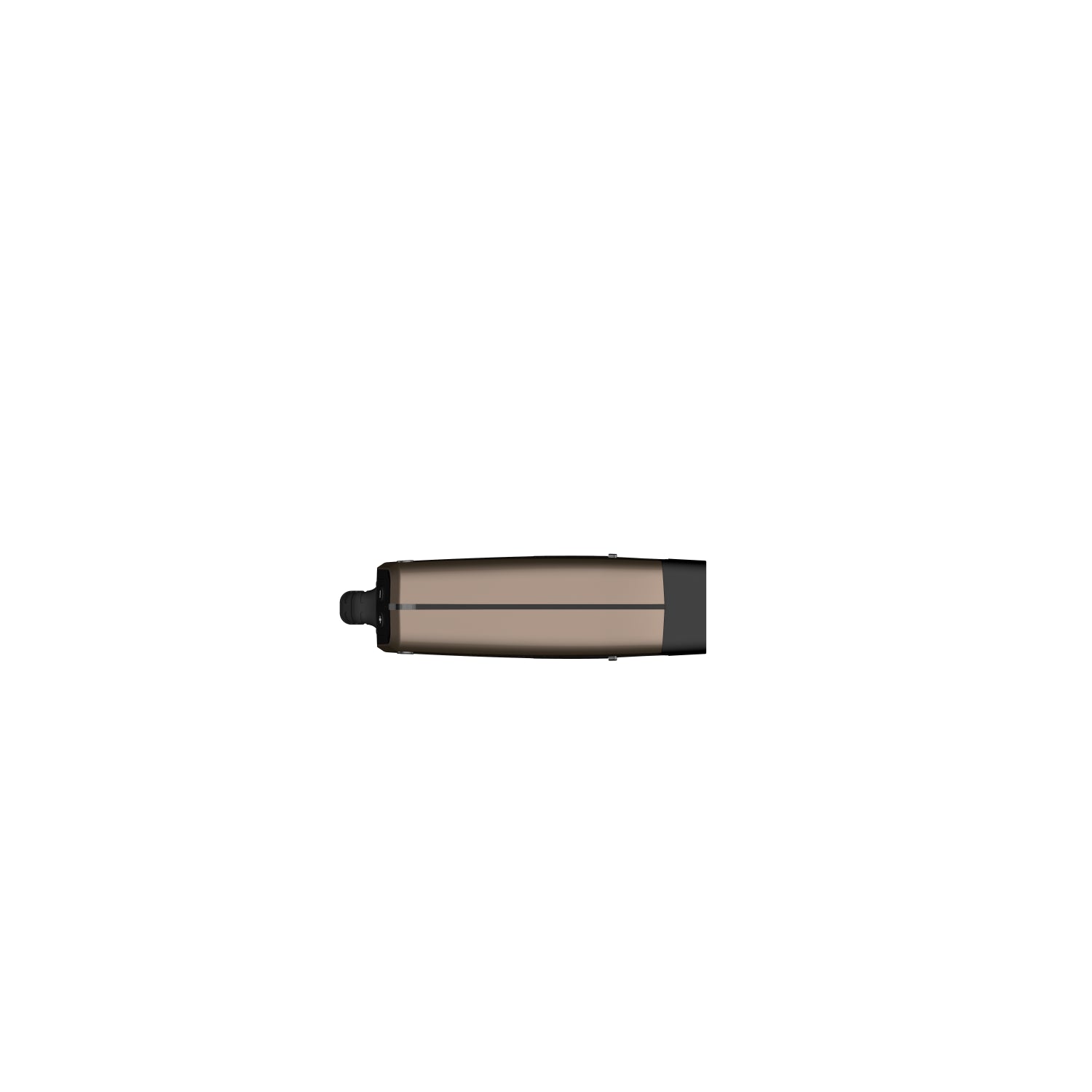

EinScan Pro HD Handheld Industrial 3D Scanner BDL00123

EinScan Pro HD Handheld Industrial 3D Scanner BDL00123

Regular price $7,699.00 USD
Regular price Sale price $7,699.00 USD
Sale Sold out

In stock

Includes Warranty

30-Day Returns

Unlimited Free Support

High-Resolution, High-Accuracy Scanning for Designers, Engineers & Manufacturers

The EinScan Pro HD is a professional multi-functional handheld 3D scanner delivering exceptional resolution, speed, and accuracy for industrial design, engineering, and product development. Capable of capturing up to 3,000,000 points per second, it handles dark-colored objects, cast metal surfaces, and complex geometries with ease. Trusted worldwide—including as the designated model for WorldSkills competitions—the EinScan Pro HD is built for precision and versatility.


Key Features

  • Exceptional Resolution & Detail
    Point distance down to 0.24 mm (fixed scan) and 0.2 mm (handheld) for capturing intricate details.

  • High-Speed Scanning
    Up to 3,000,000 points/s in handheld mode; <0.5s per frame in fixed mode.

  • Handles Challenging Surfaces
    Scans dark, black, and casting metal objects without the need for excessive preparation.

  • High Accuracy for Reverse Engineering
    Fixed scan accuracy up to 0.04 mm, volumetric accuracy up to 0.045 mm + 0.3 mm/m in handheld mode.

  • Modular Design

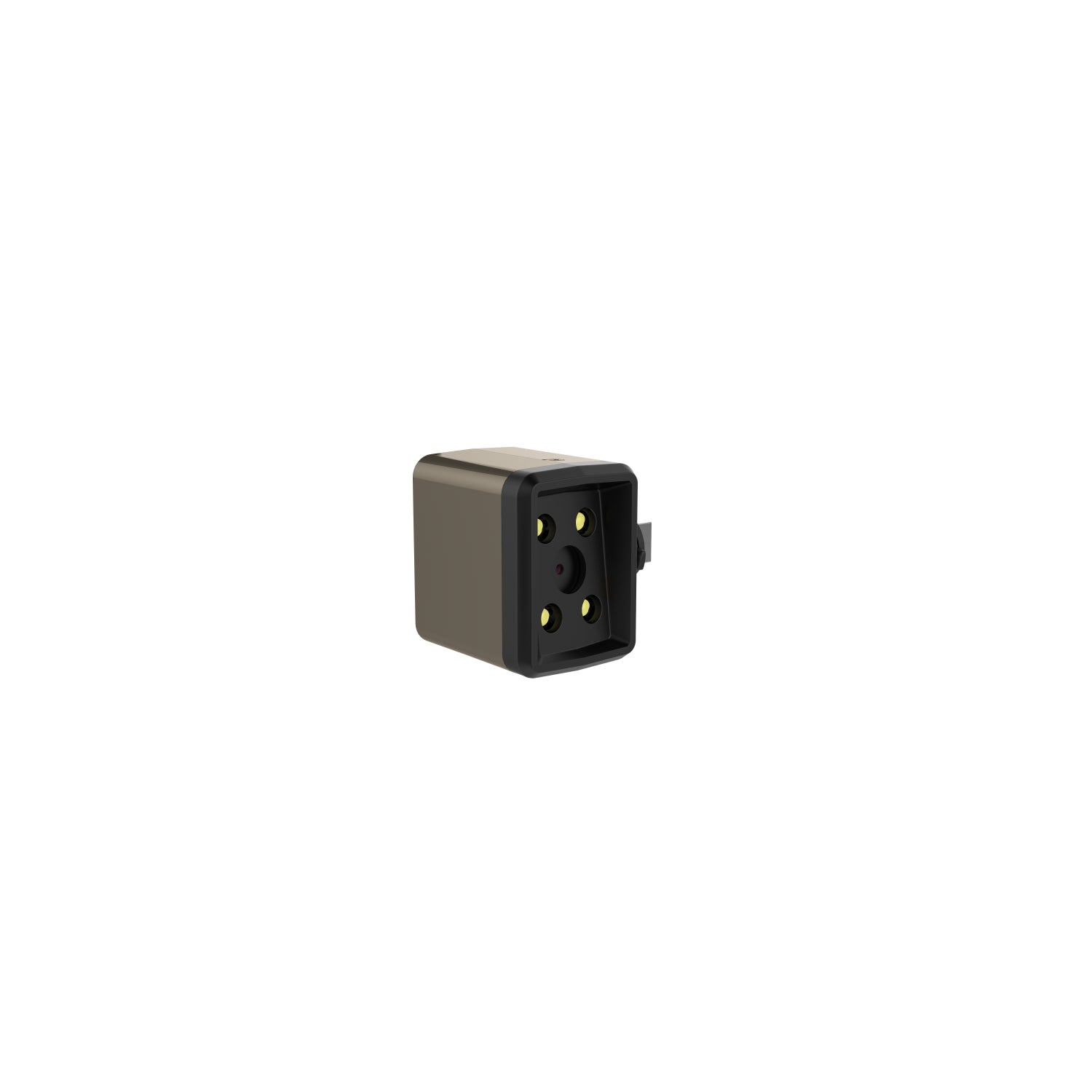

    Expand functionality with optional Color Pack for full-color capture or Industrial Pack for fixed scan with turntable.

  • User-Friendly Software
    EXScan Pro provides step-by-step guidance, automatic alignment, robust mesh editing, and integration with CAD software.


Applications

  • Industrial Design & Reverse Engineering
    Capture precise geometry for product design, modifications, and reproduction.

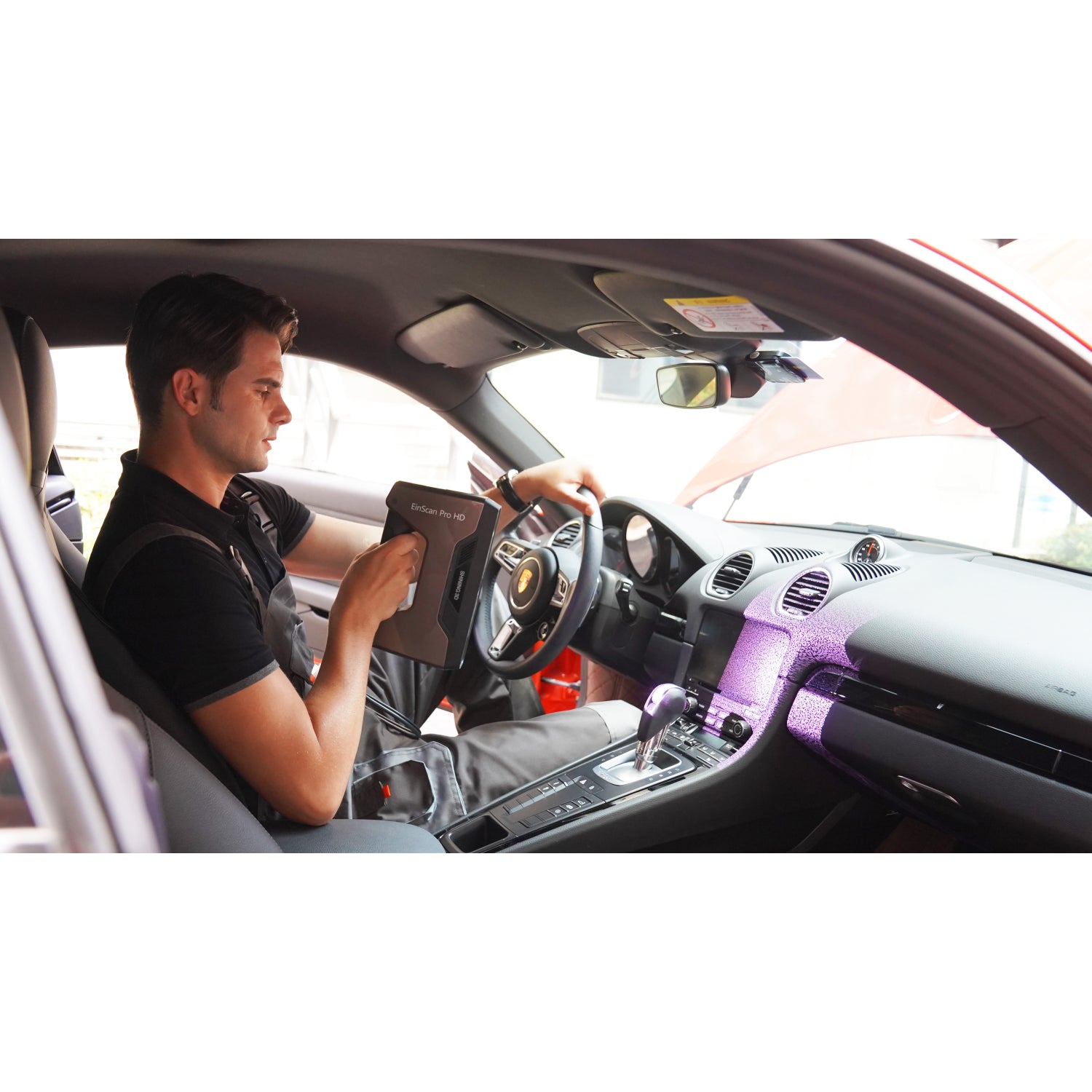

  • Automotive & Aerospace
    Scan mechanical components, tooling, and custom parts for manufacturing or inspection.

  • Cultural Heritage Preservation
    Digitize artifacts with fine geometry and full color for documentation and restoration.

  • Medical & Research
    Create accurate digital models for prosthetics, orthotics, and academic studies.


EXScan Pro Software

  • Multiple Scan Modes
    Choose from handheld HD, handheld rapid, or fixed scan to match your project needs.

  • Robust Processing Tools
    Automatic alignment, noise removal, hole filling, and mesh refinement.

  • Texture Mapper Lite
    Adds realistic color data to 3D models for photorealistic results.

  • Multi-Software Integration
    Compatible with Geomagic Design X, EXModel, and other engineering tools.

  • Cloud Connectivity
    SHINING 3D Digital Cloud for secure storage, sharing, and labeling of scanned data.

Specs

Specification EinScan Pro HD
Accuracy Up to 0.04 mm (fixed scan)
Volumetric Accuracy 0.045 mm + 0.3 mm/m (handheld marker alignment)
Point Distance 0.2 – 3 mm (handheld), 0.24 mm (fixed)
Scan Speed Up to 3,000,000 points/s
Scan Modes Handheld HD / Handheld Rapid / Fixed with or without Turntable
Light Source LED
Align Modes Marker, Feature, Texture, Hybrid, Turntable, Manual
Single Scan Range 209 × 160 mm to 310 × 240 mm
Texture Capture Yes (with optional Color Pack)
Outdoor Use Requires shade from direct sunlight
Special Objects Requires spray for transparent or reflective surfaces
File Formats OBJ, STL, ASC, PLY, P3, 3MF
Weight 1.13 kg
OS Support Windows 10, 64-bit
Recommended PC NVIDIA RTX 2060+, 6GB VRAM, i7-9750+, 64GB RAM
Required PC NVIDIA GTX 1080+, 4GB VRAM, i7-8700+, 16GB RAM
Interface USB 3.0

Included in the Box

Item Quantity
EinScan Pro HD Scanner 1
USB 3.0 Cable 1
Power Adapter 1
Calibration Board 1
Marker Set 1 pack
EXScan Pro Software License 1 set
Quick Start Guide / Manual 1 set

EinScan Pro HD Brochure

📄 View EinScan Pro HD Brochure

Quick Start Guide

📄 View EinScan Pro HD Quick Start Guide

Owner’s Manual

📄 View EinScan Pro HD User Manual

Standard Warranty

📄 View EinScan 1-Year Standard Warranty
