🟢authorized PARTNER

SKU:BD.202506.007

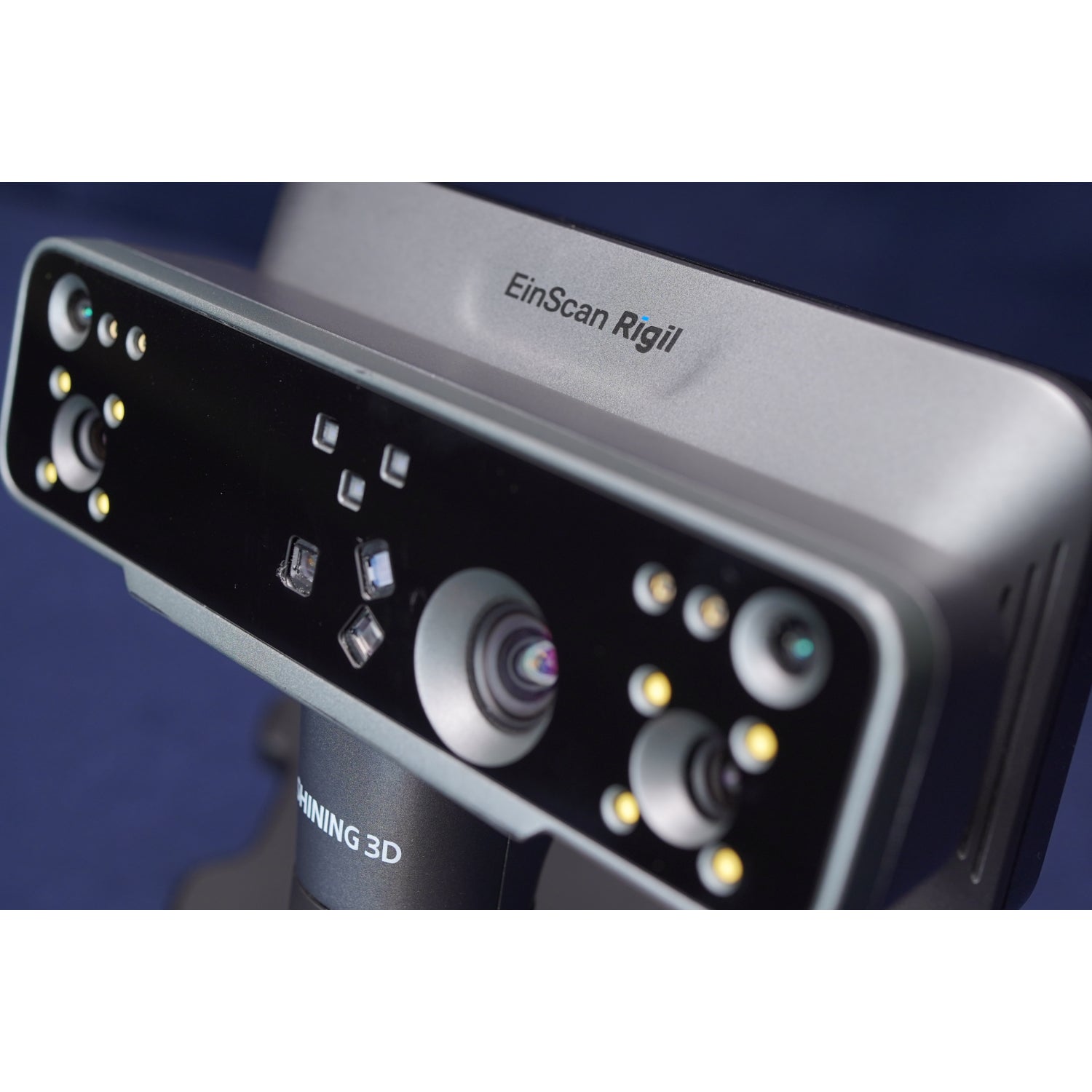

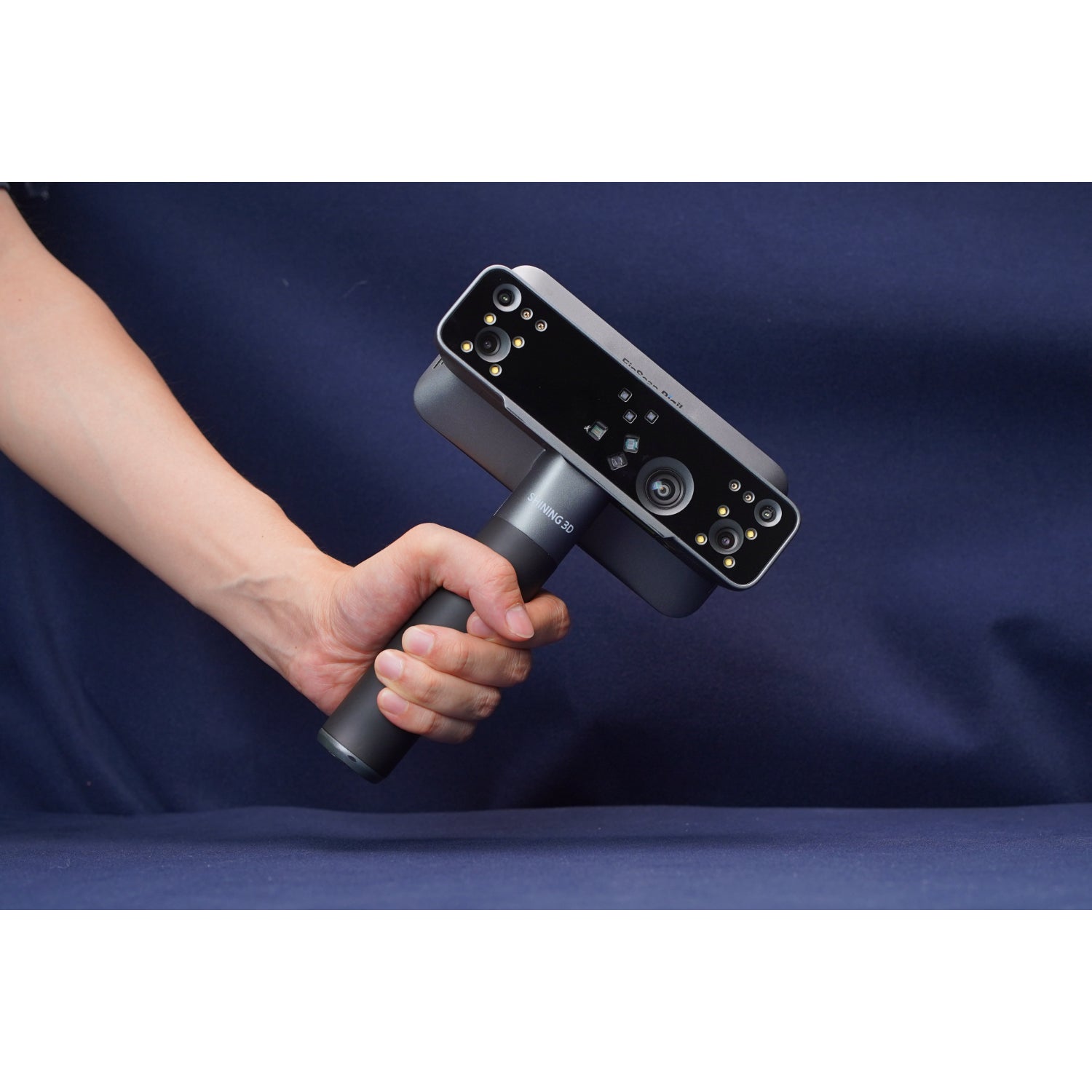

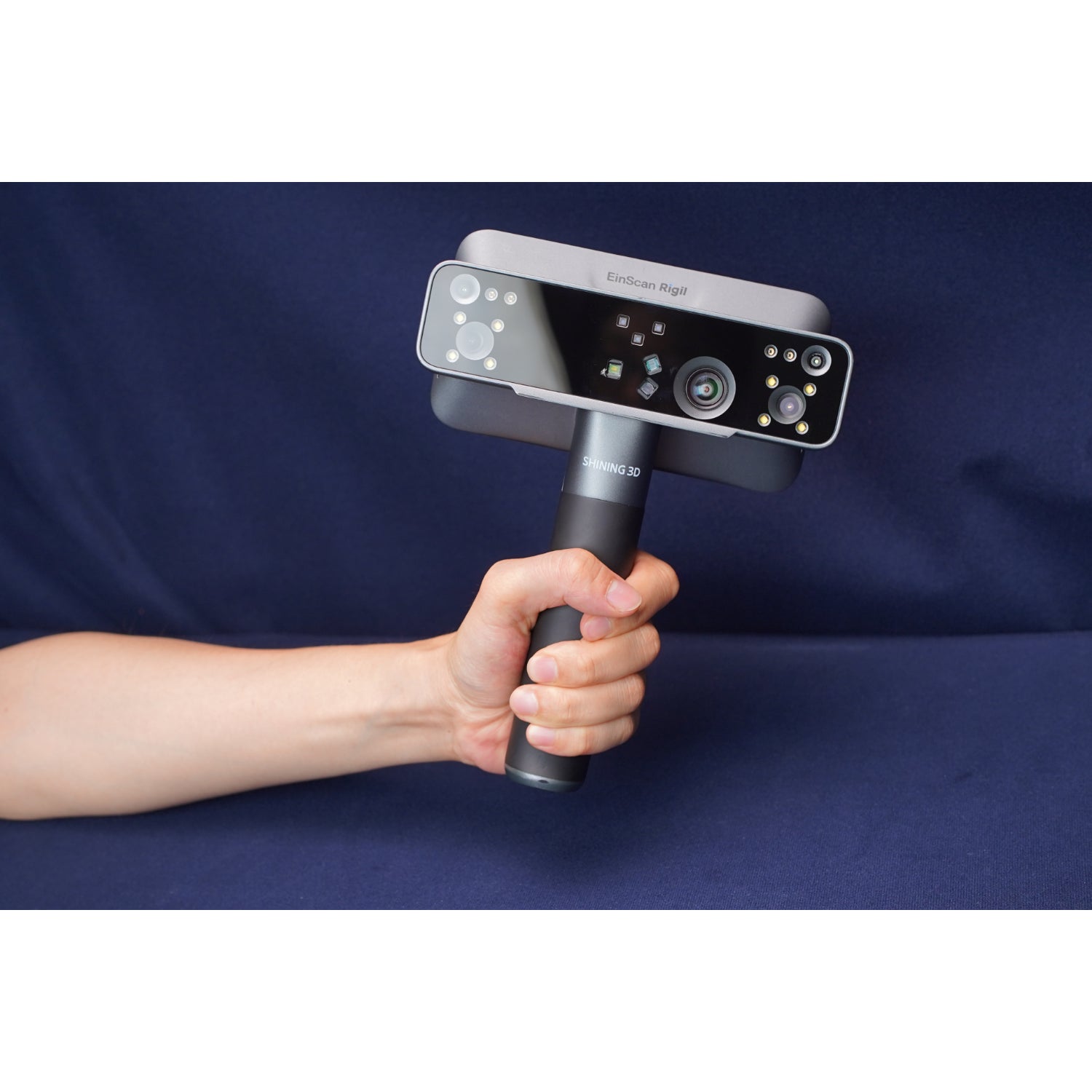

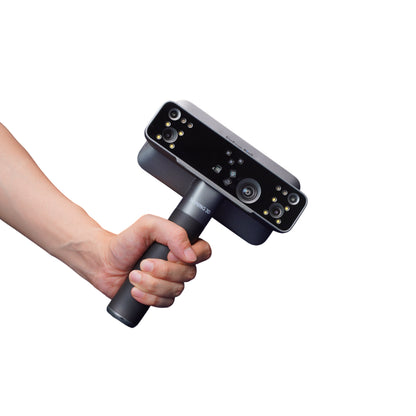

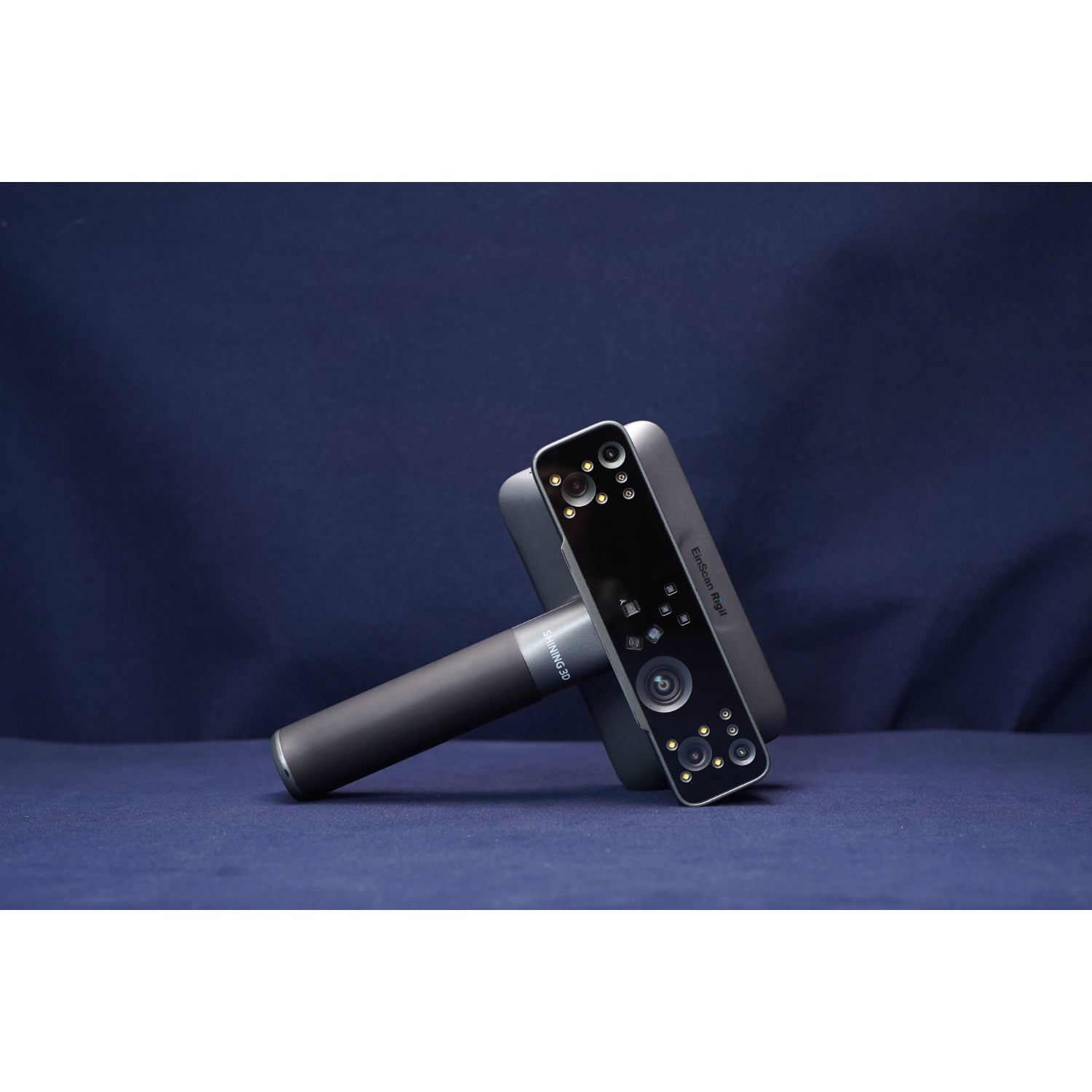

EinScan Rigil Tri-Mode Blue Laser-Infrared 3D Scanner BD.202506.007

EinScan Rigil Tri-Mode Blue Laser-Infrared 3D Scanner BD.202506.007

Regular price $4,999.00 USD
Regular price Sale price $4,999.00 USD
Sale Sold out

In stock

Includes Warranty

30-Day Returns

Unlimited Free Support

Triple Work Modes, Marker-Free Laser Scanning, and Seamless Wireless PC Integration

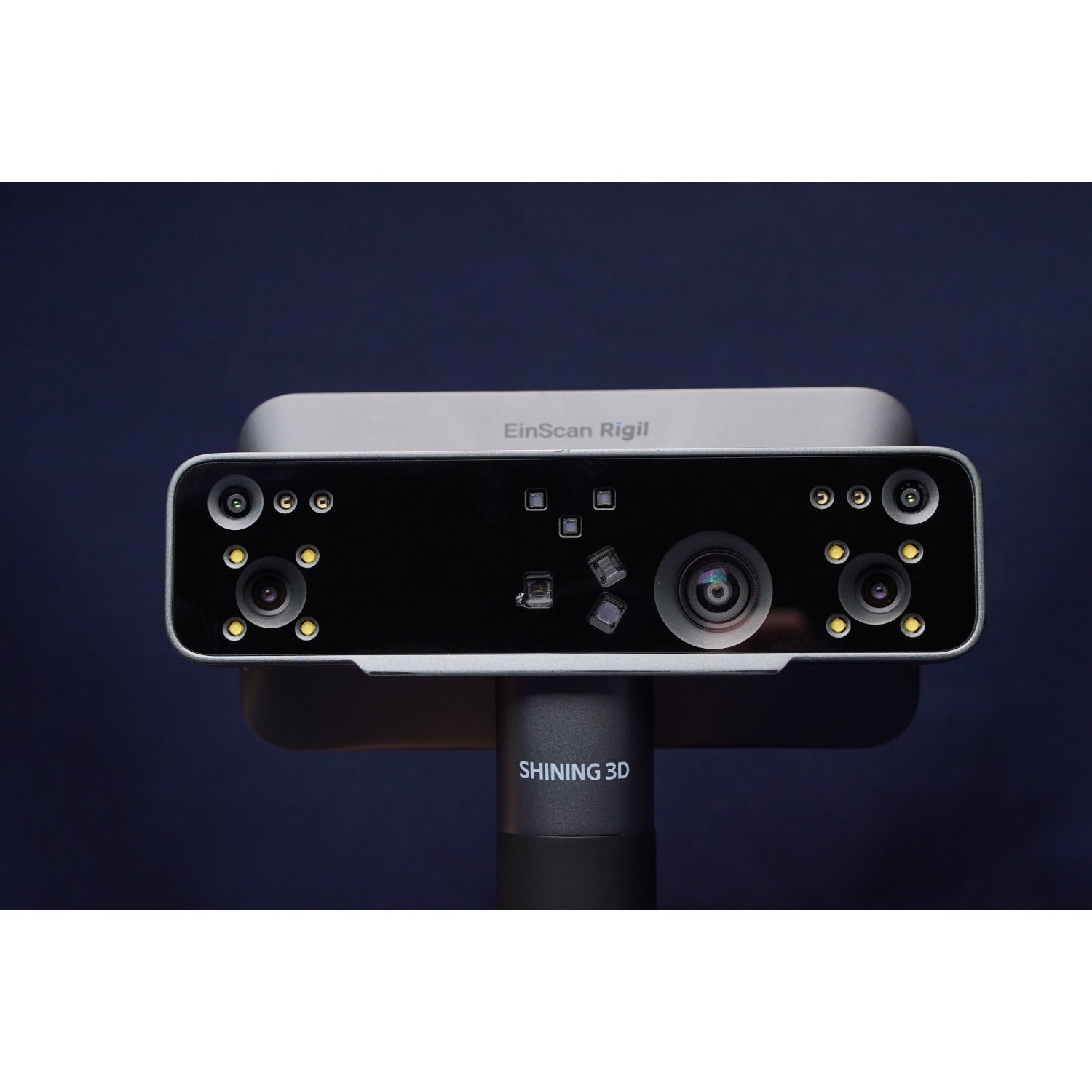

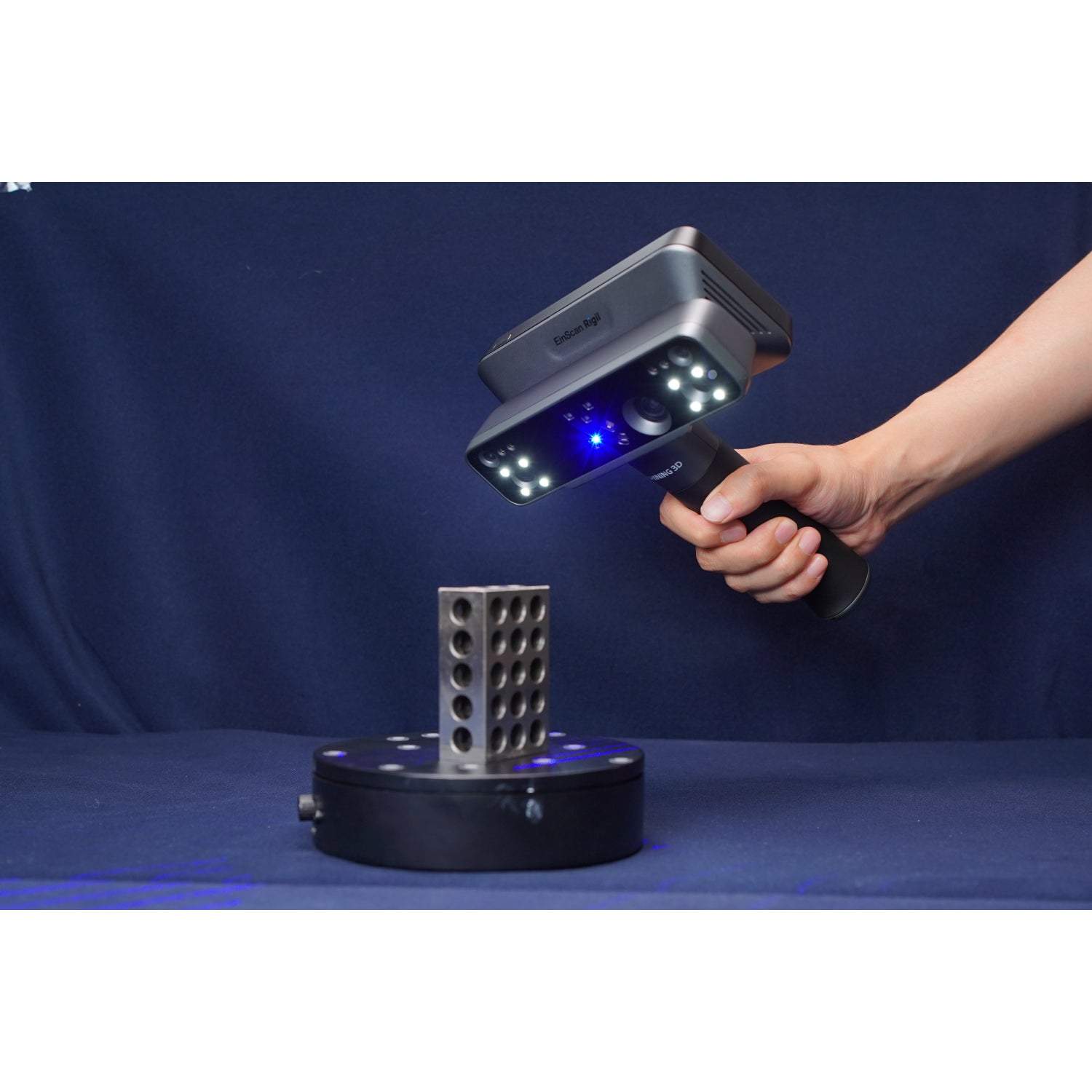

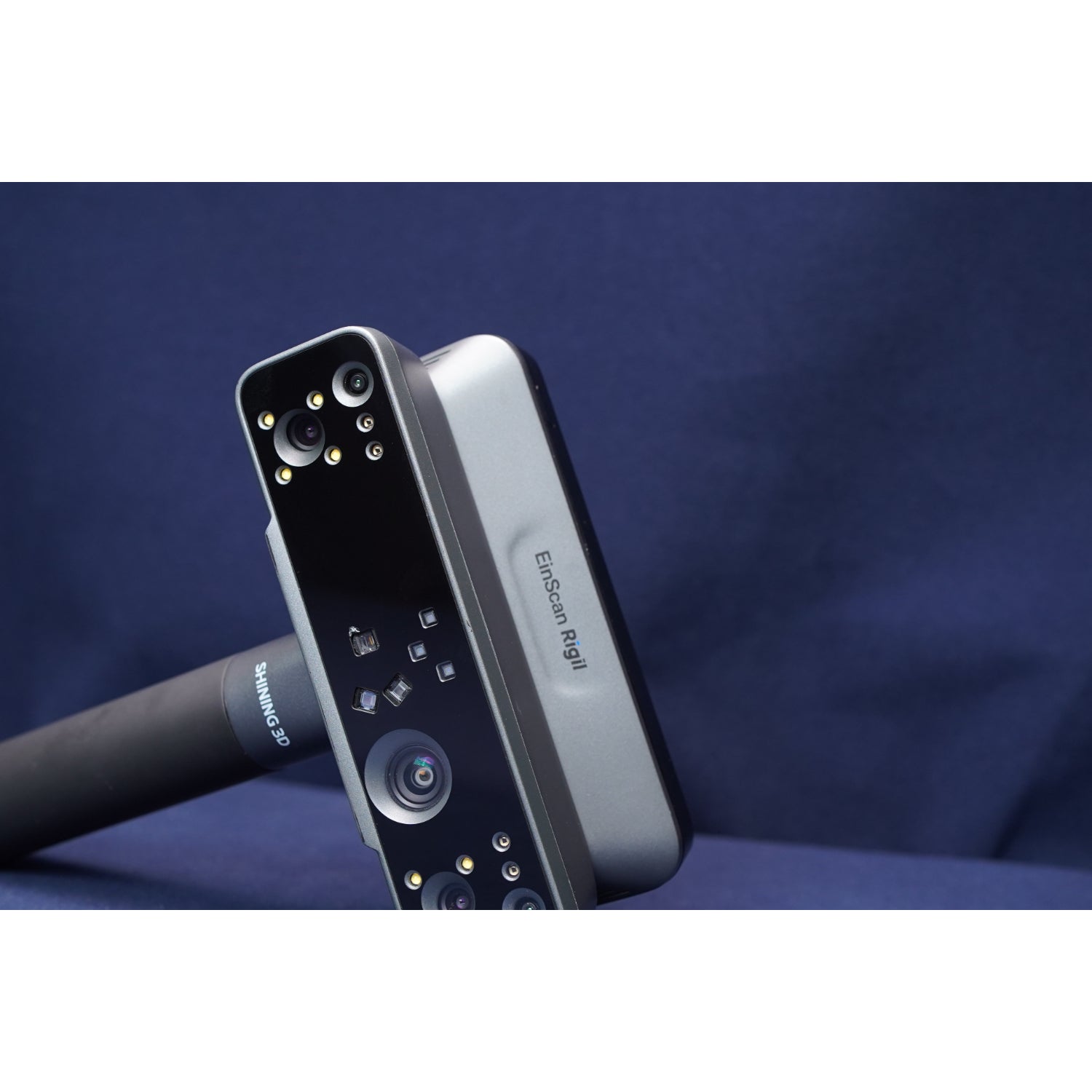

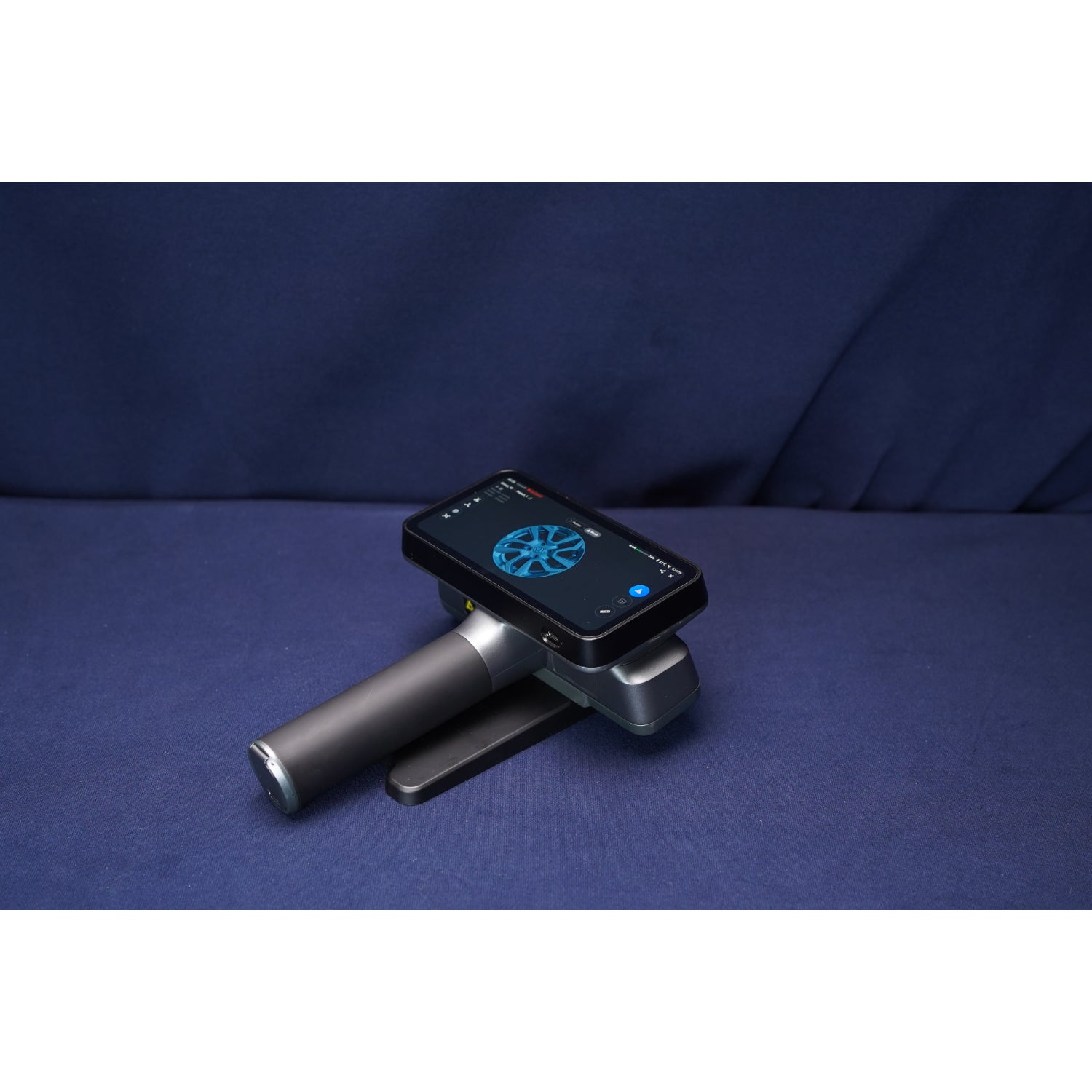

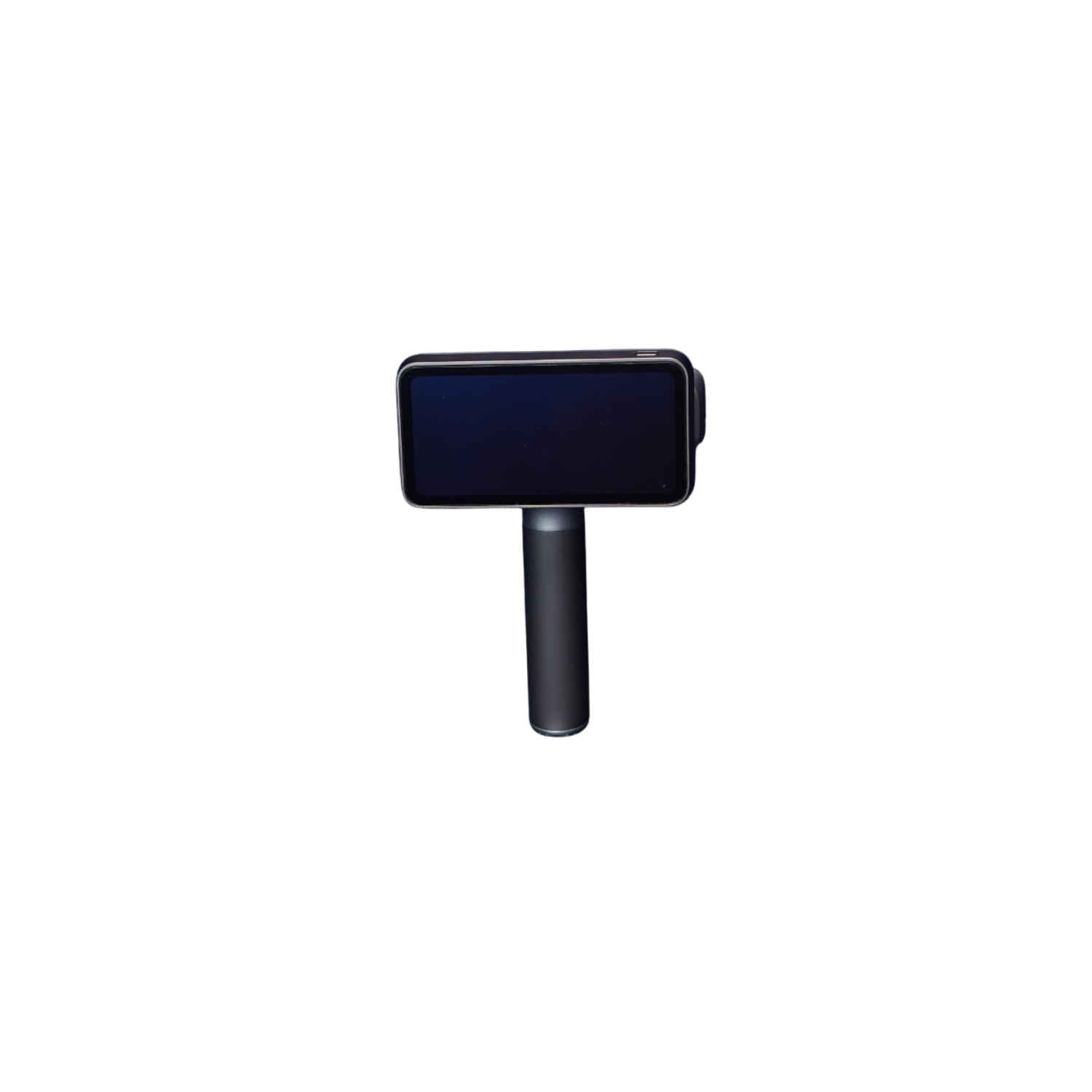

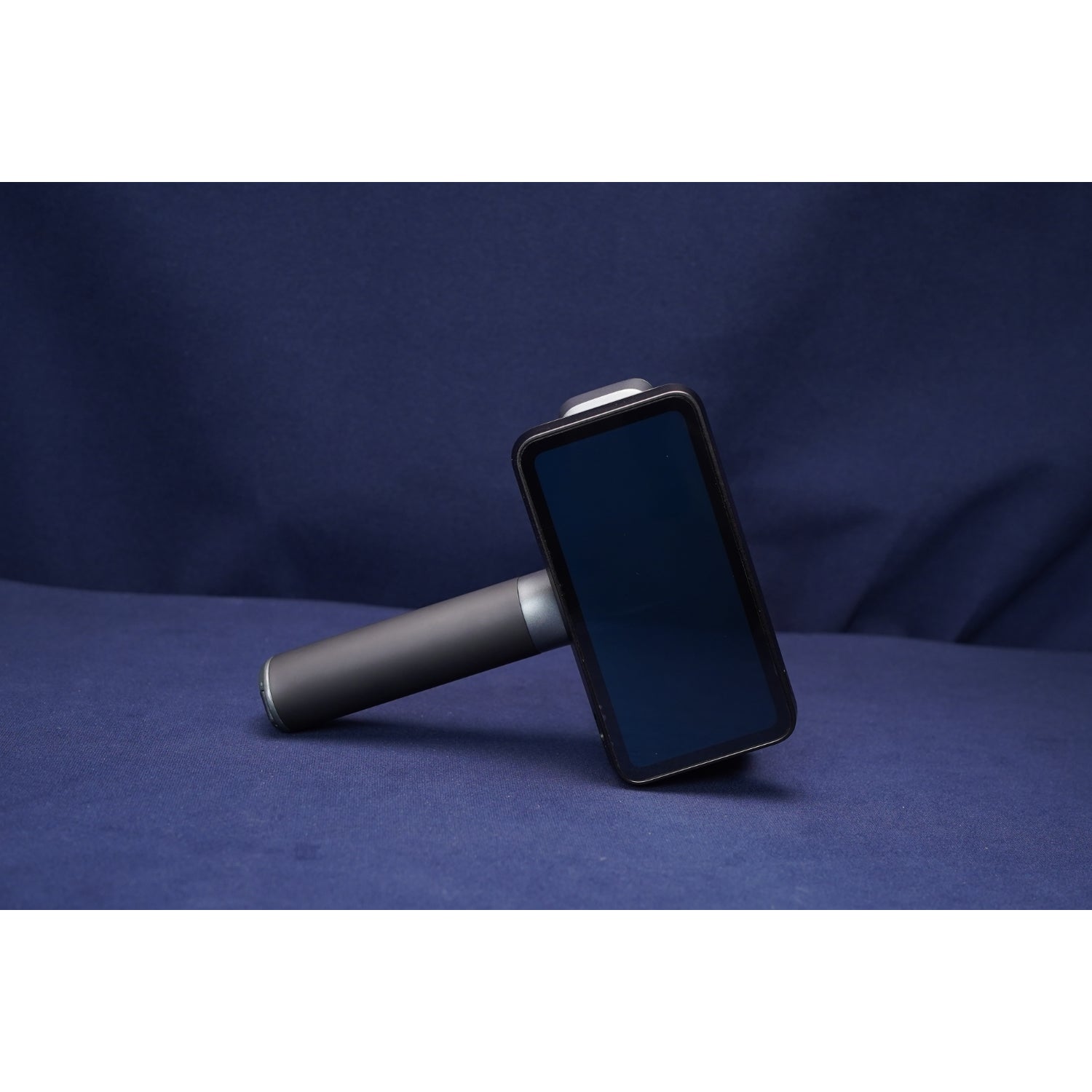

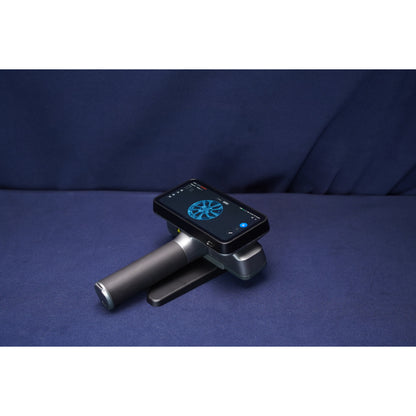

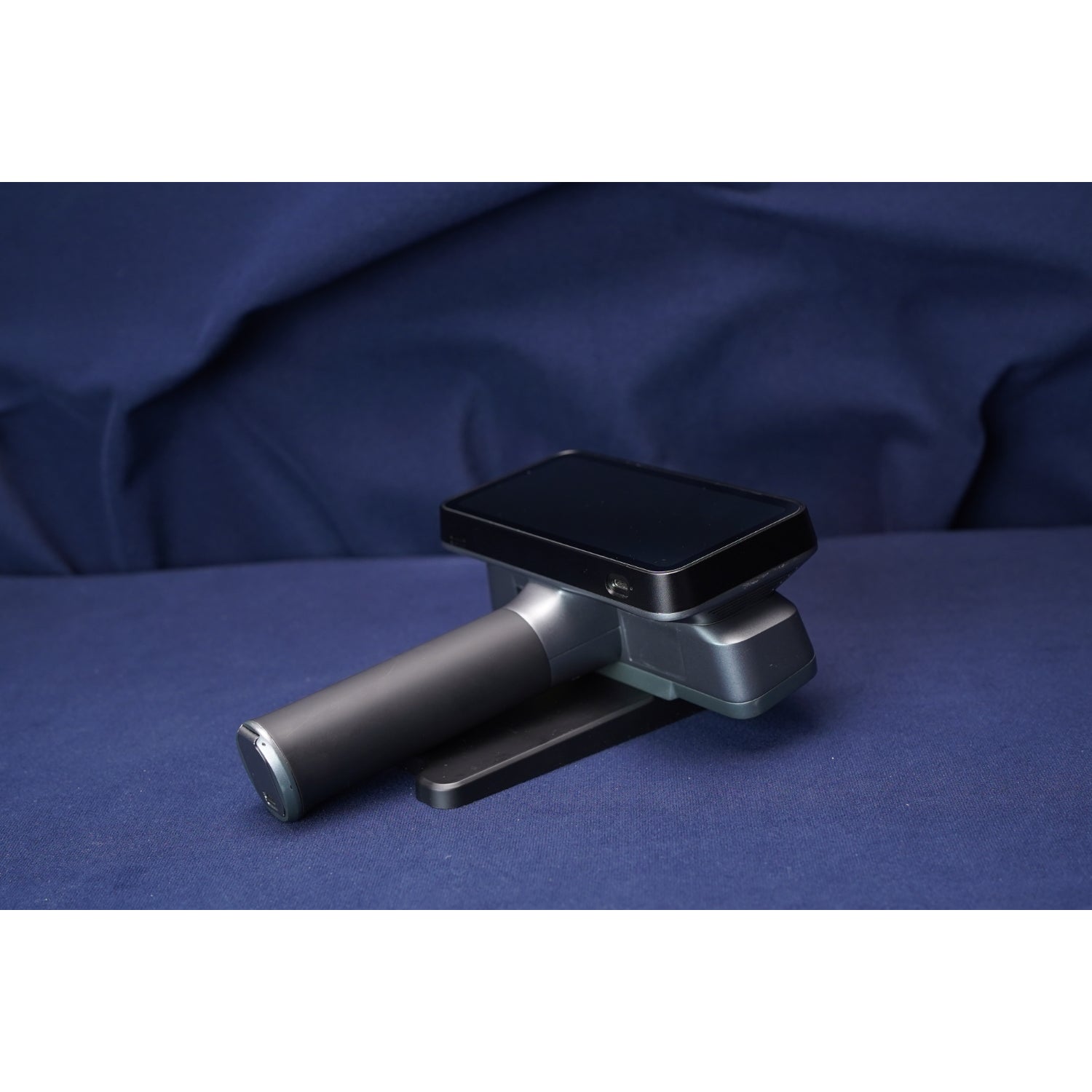

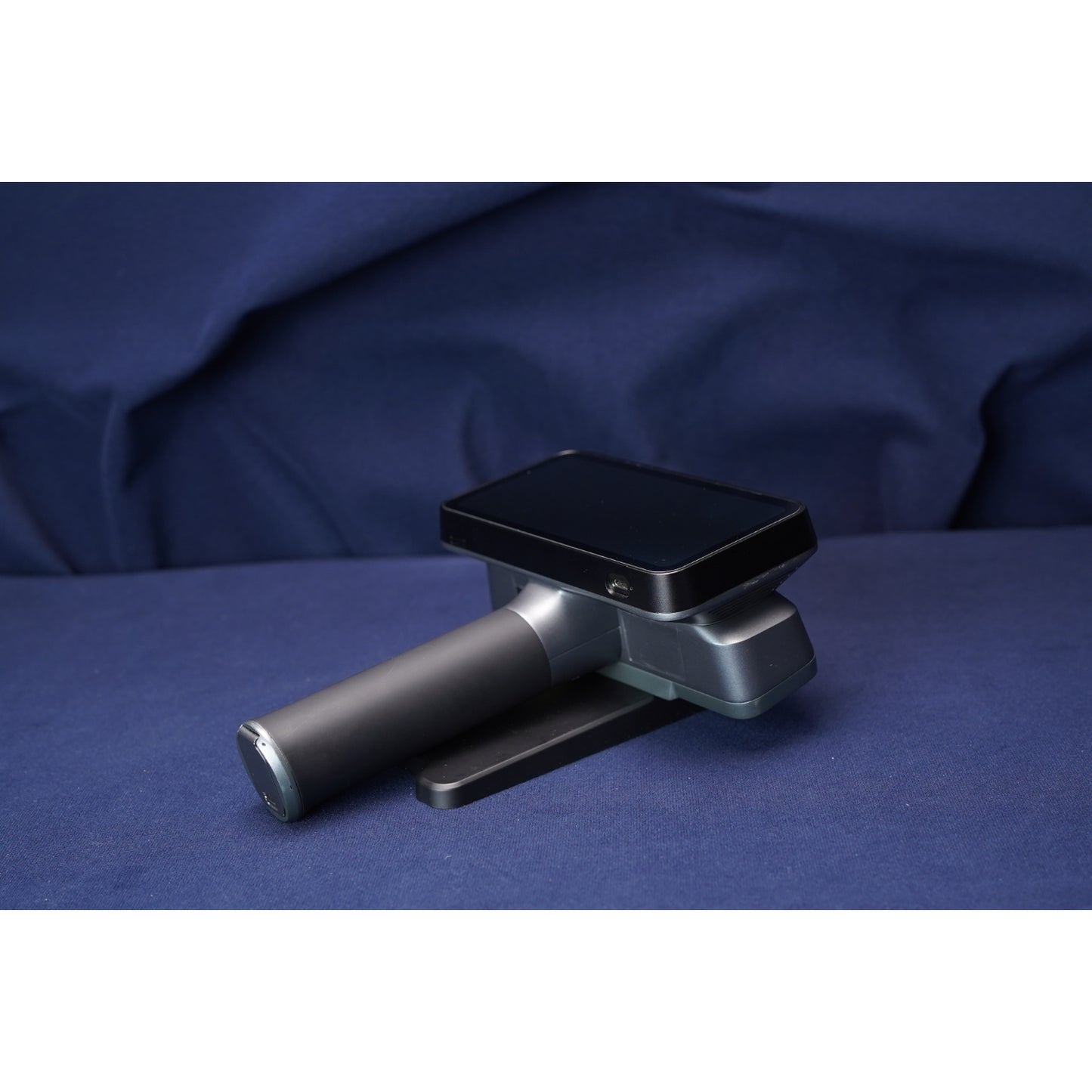

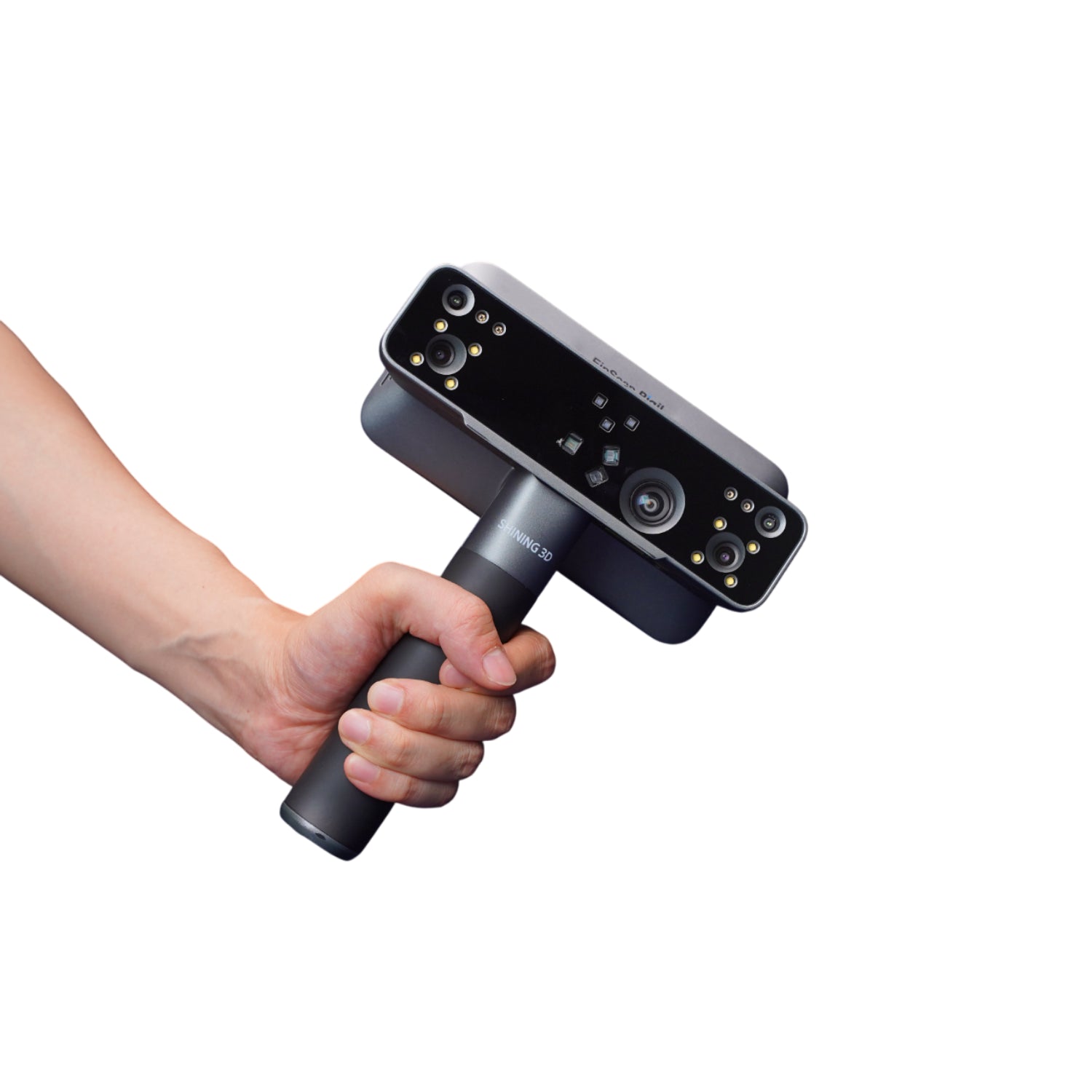

The EinScan Rigil is a revolutionary handheld 3D scanner that combines powerful blue laser and infrared VCSEL light sources with a fully wireless, standalone, and PC-compatible workflow. Built for scanning small to large objects in high detail, it offers advanced accuracy, rapid data capture, and color-rich texture mapping—all in a robust, portable package with three work modes: Standalone, Wireless PC, and Wired PC.


Key Features

  • Triple Work Modes

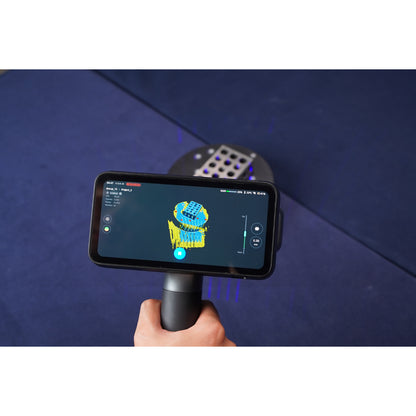

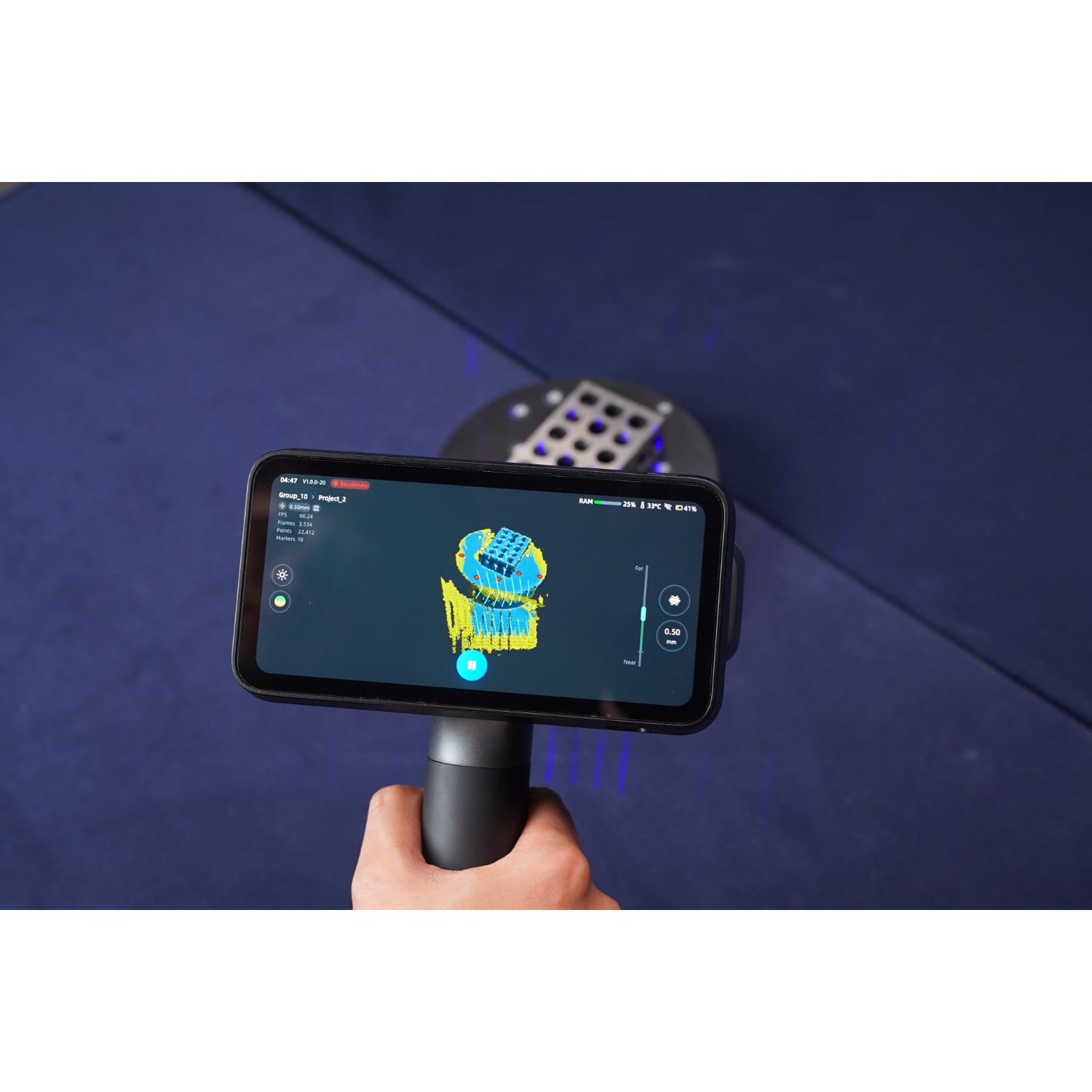

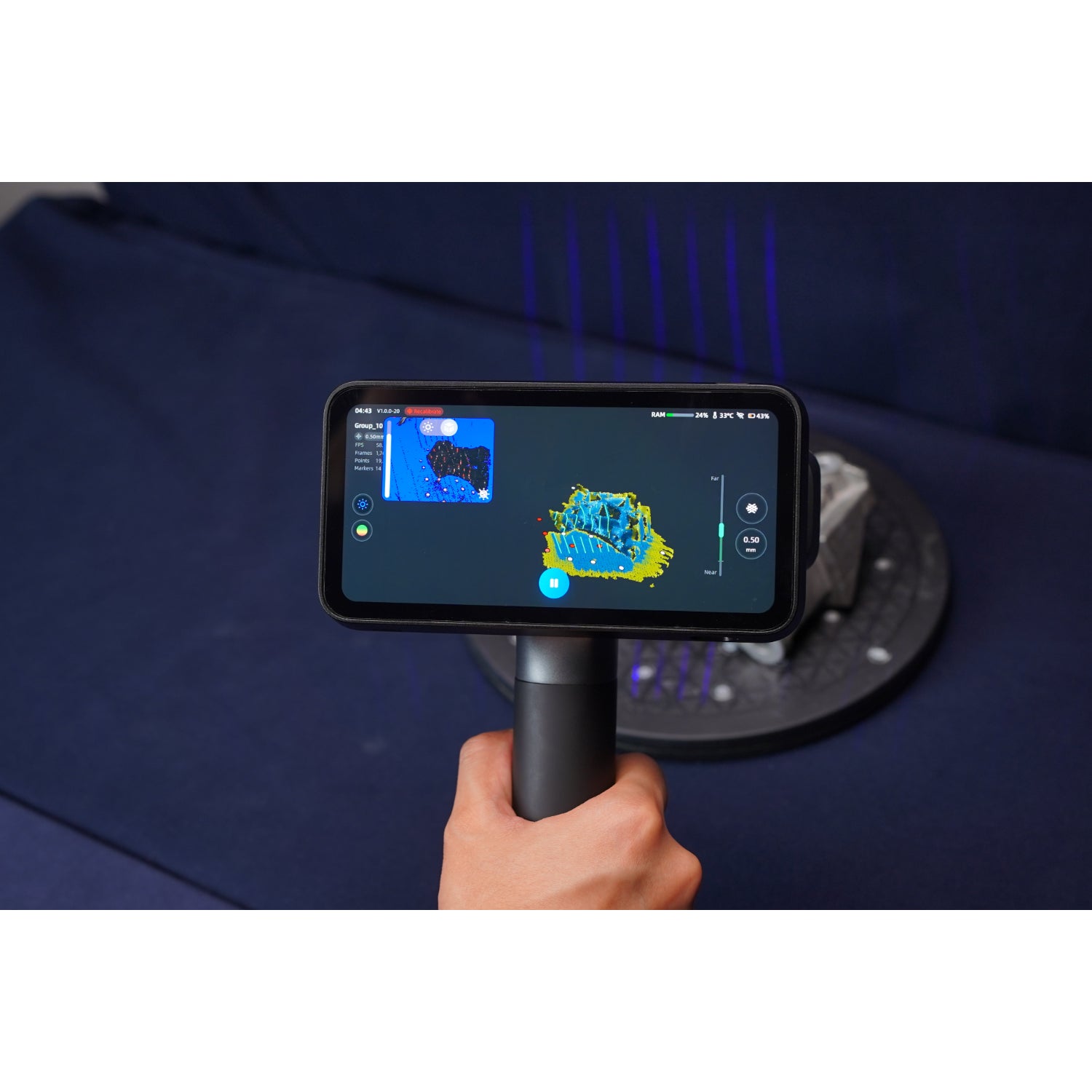

    • Standalone Mode: Scan and process data directly on the scanner—no PC required.

    • Wireless PC Mode: Wi-Fi 6 enables high-speed scanning and transfer to external PCs.

    • Wired PC Mode: Full-performance, low-latency scanning in complex network environments.

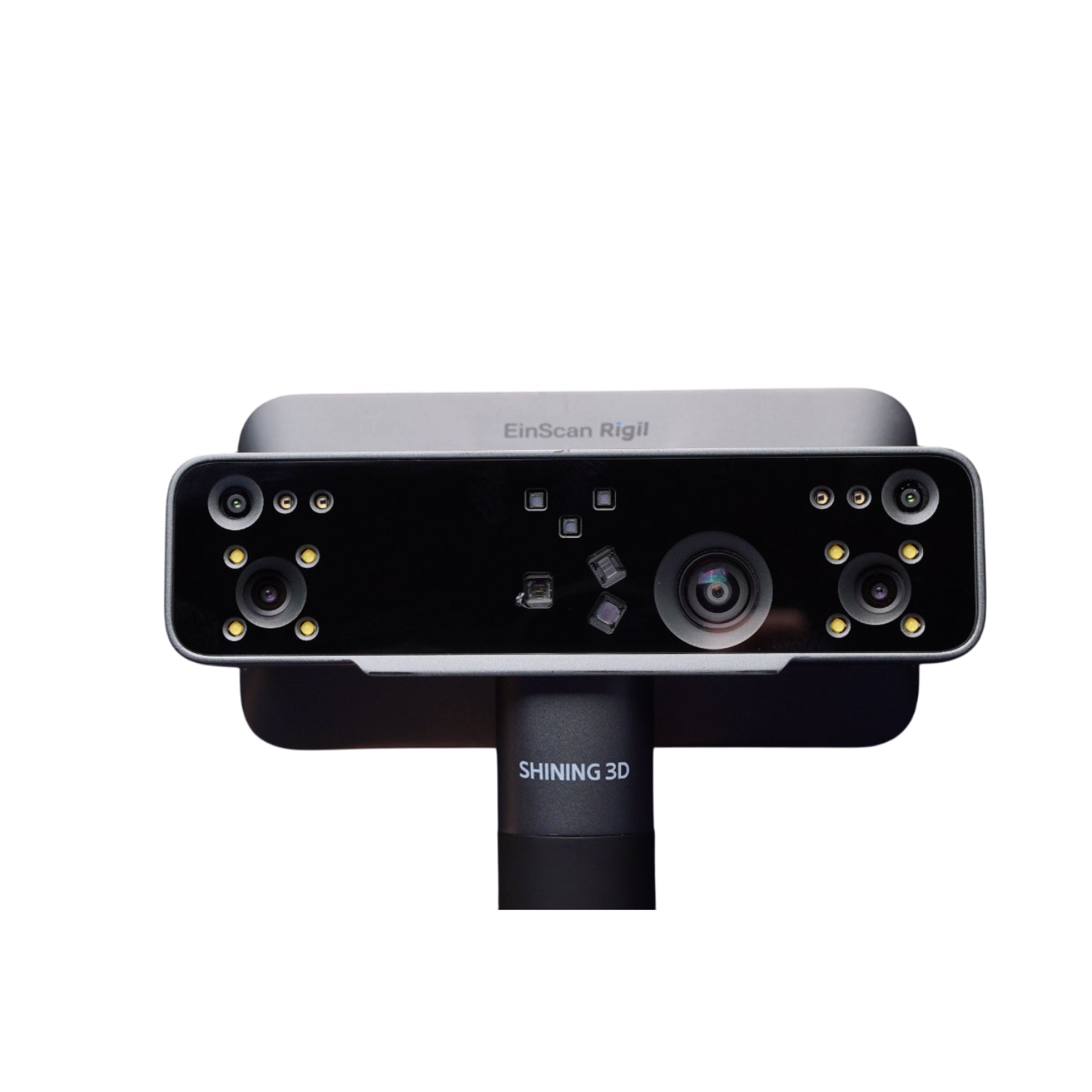

  • Hybrid Light Sources
    Equipped with blue laser (HD) and VCSEL infrared (IR Rapid) light for exceptional adaptability across object surfaces.

  • Marker-Free Laser Scanning
    Exclusive algorithm allows high-precision scanning without physical markers via laser + IR hybrid mode.

  • Dynamic Laser Switching
    Switch seamlessly between laser HD mode and IR rapid mode in one scan session for both detail and speed.

  • Full Color Texture Scanning
    Integrated 5MP color camera ensures realistic color capture and visual fidelity in models.

  • Wireless Workflow Support
    Enables scanning, screen casting, and cloud transfers over Wi-Fi for untethered mobility.

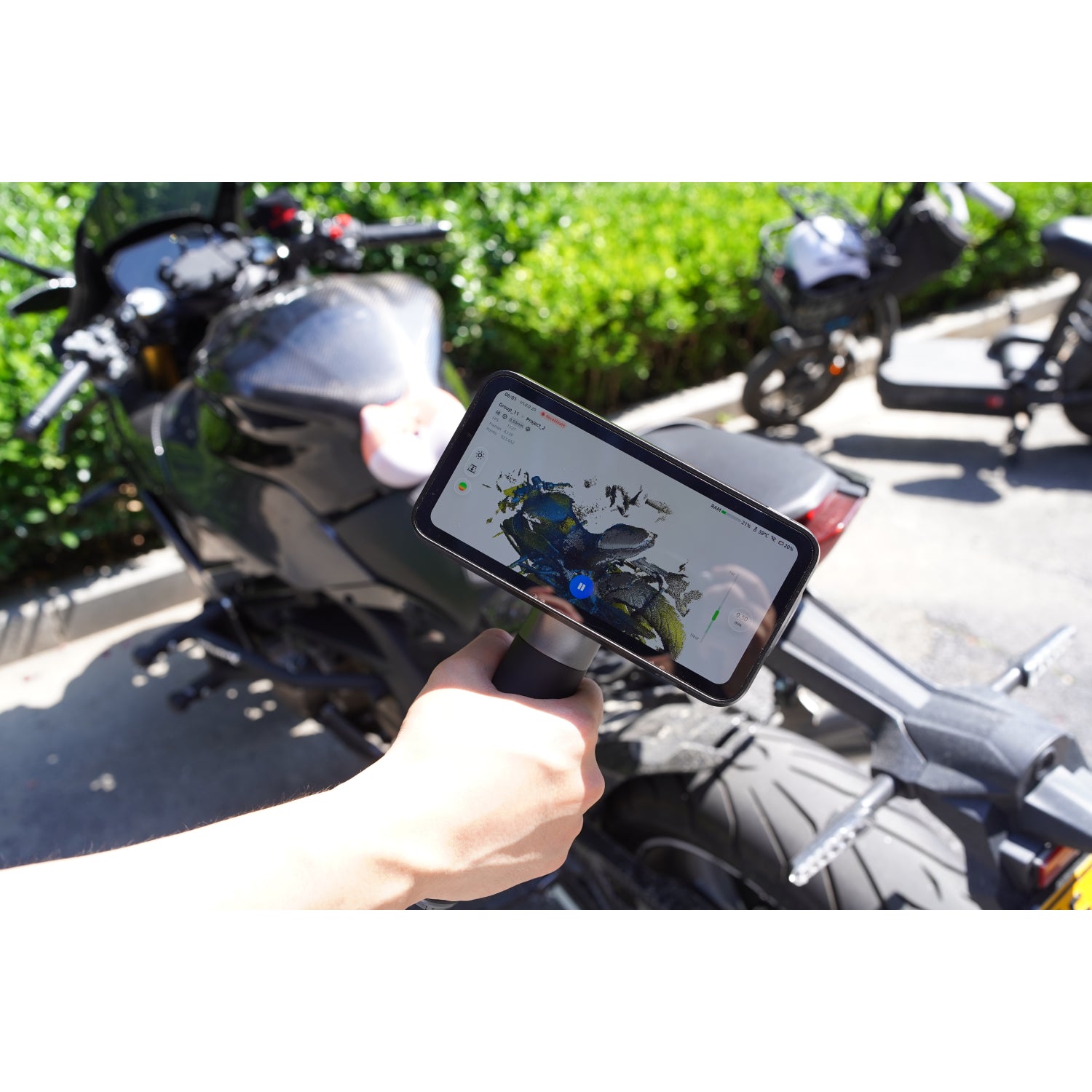

  • Outdoor & Reflective Surface Capable

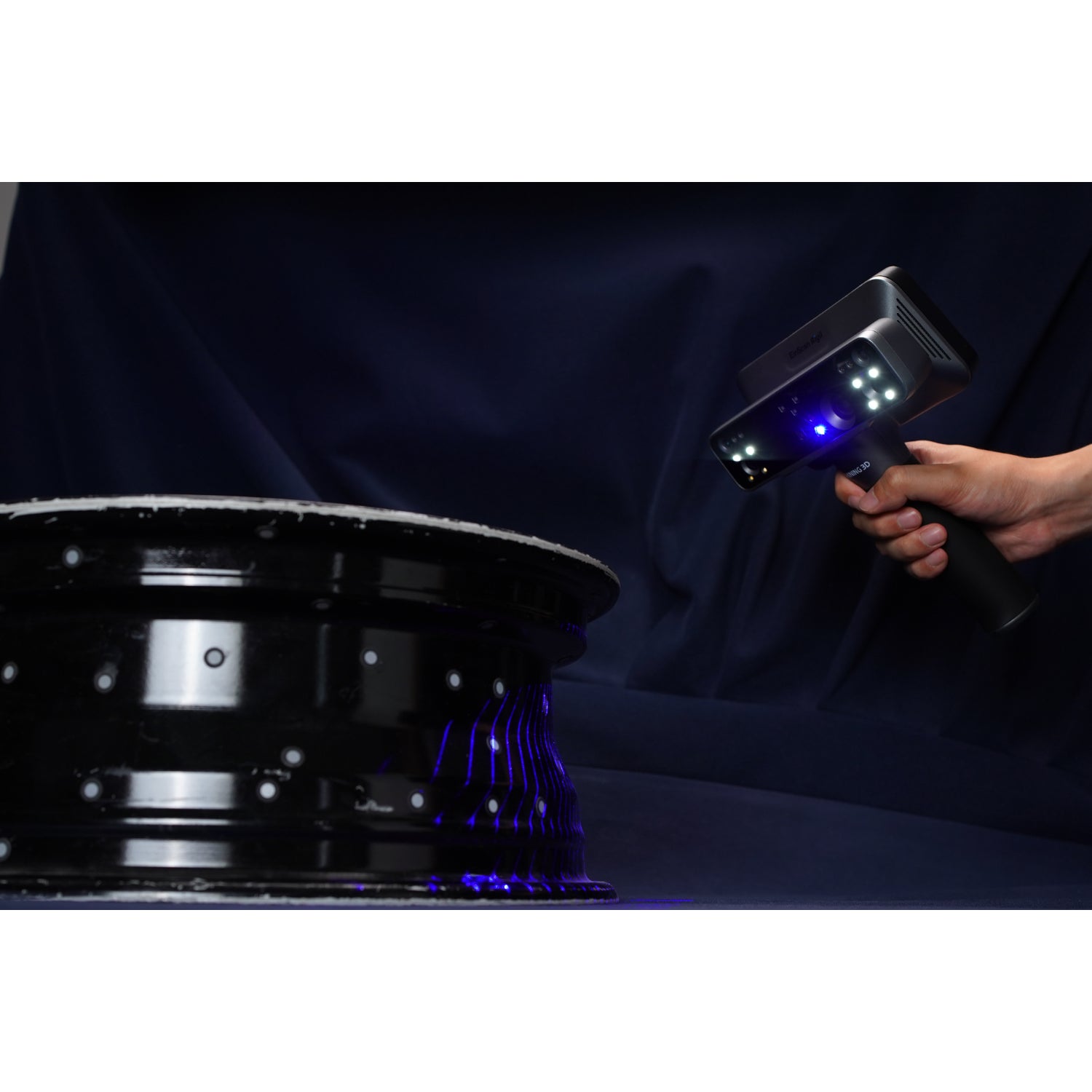

    Works efficiently in direct sunlight and with dark or reflective surfaces—no spray needed.

  • Powerful Embedded Hardware

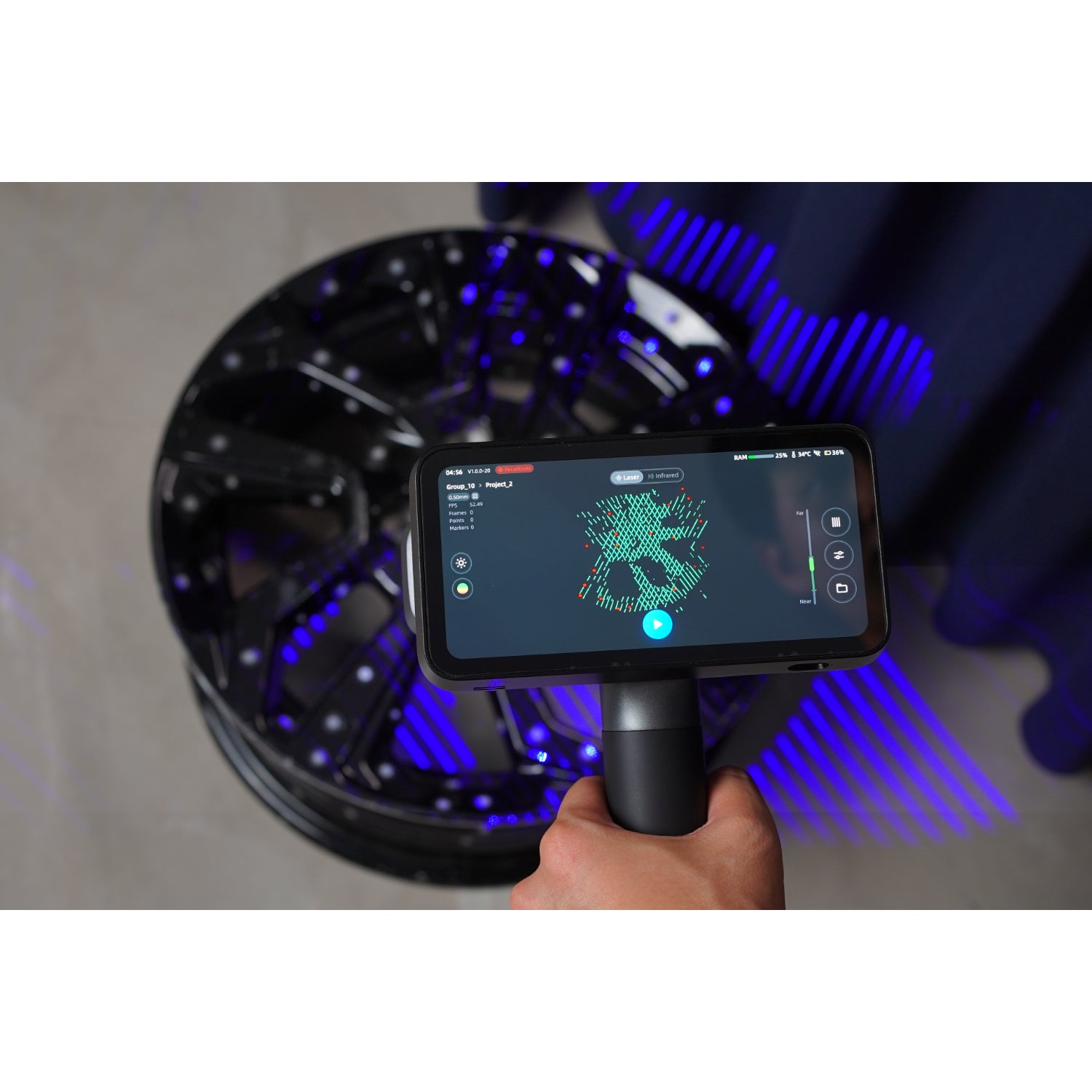

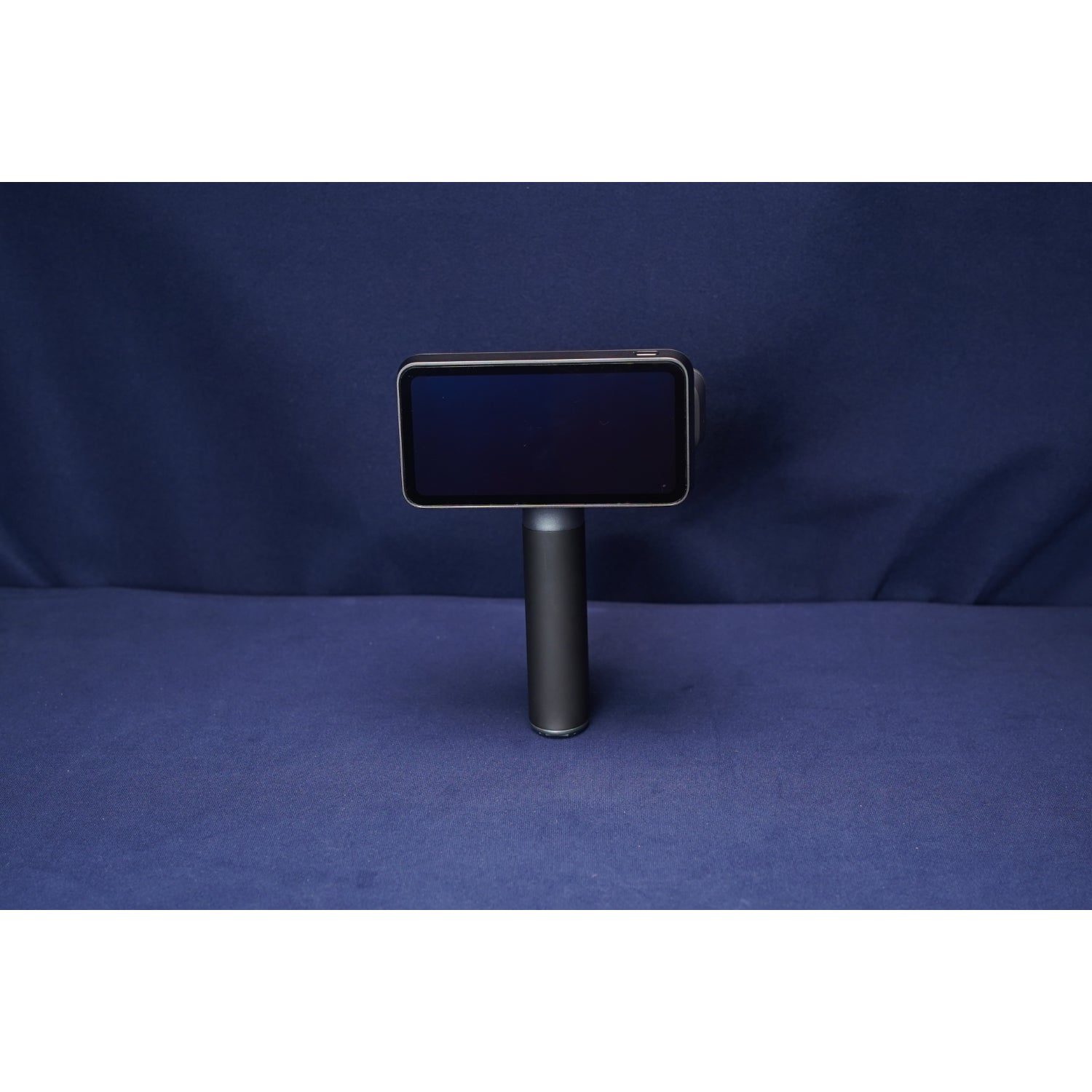

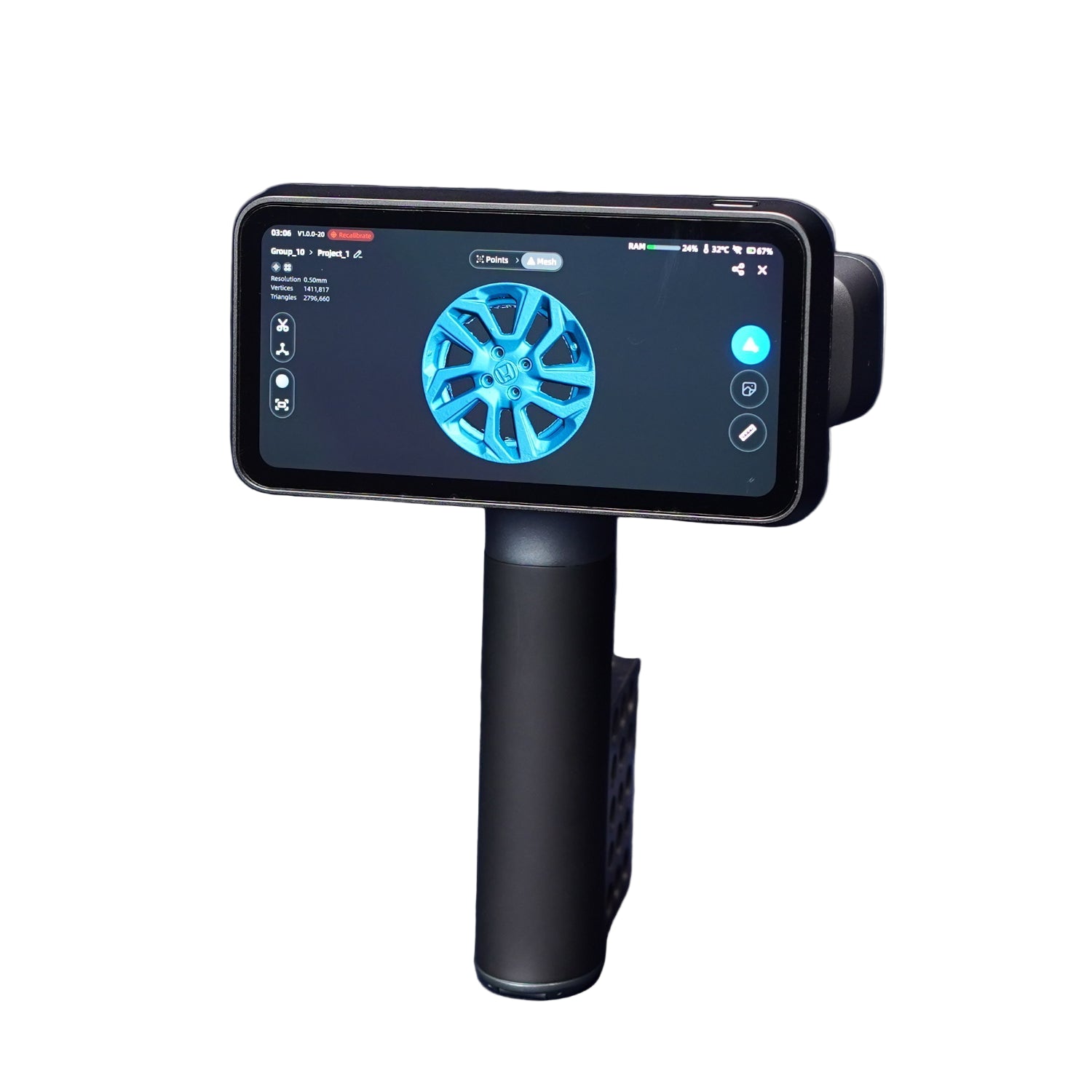

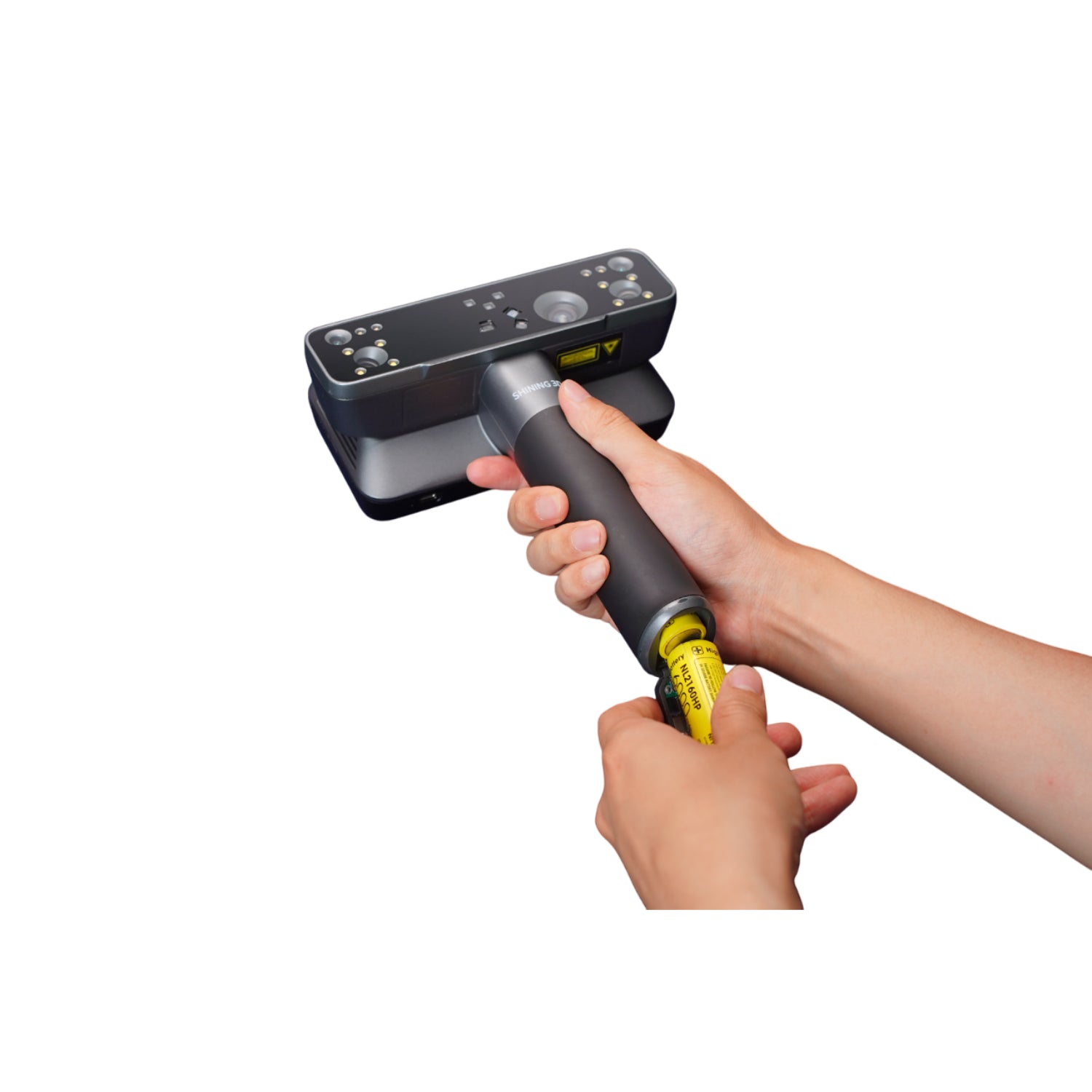

    Built-in 6.4" AMOLED screen, 32GB RAM, 1TB SSD, and dual 6000mAh hot-swappable batteries.


What You Can Achieve

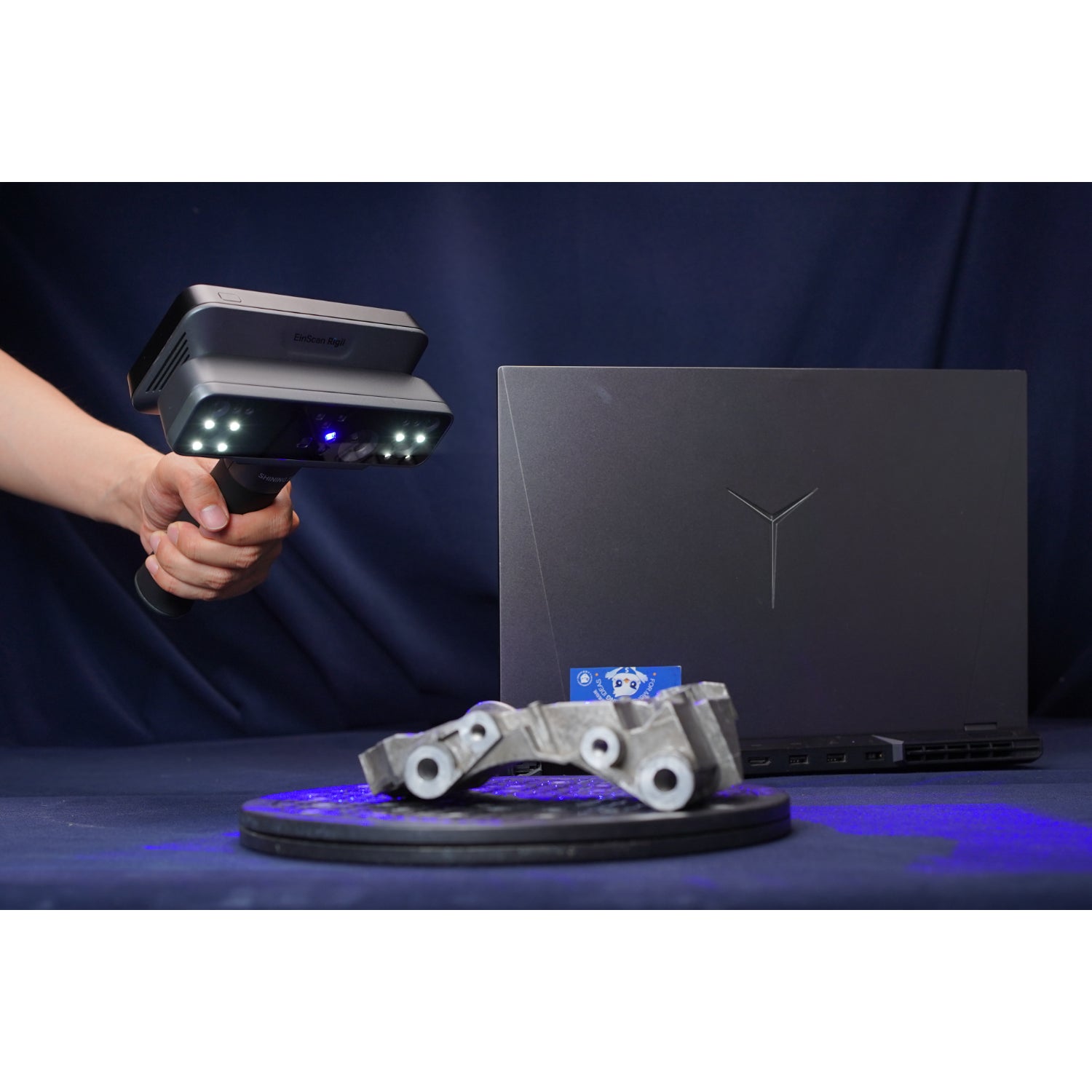

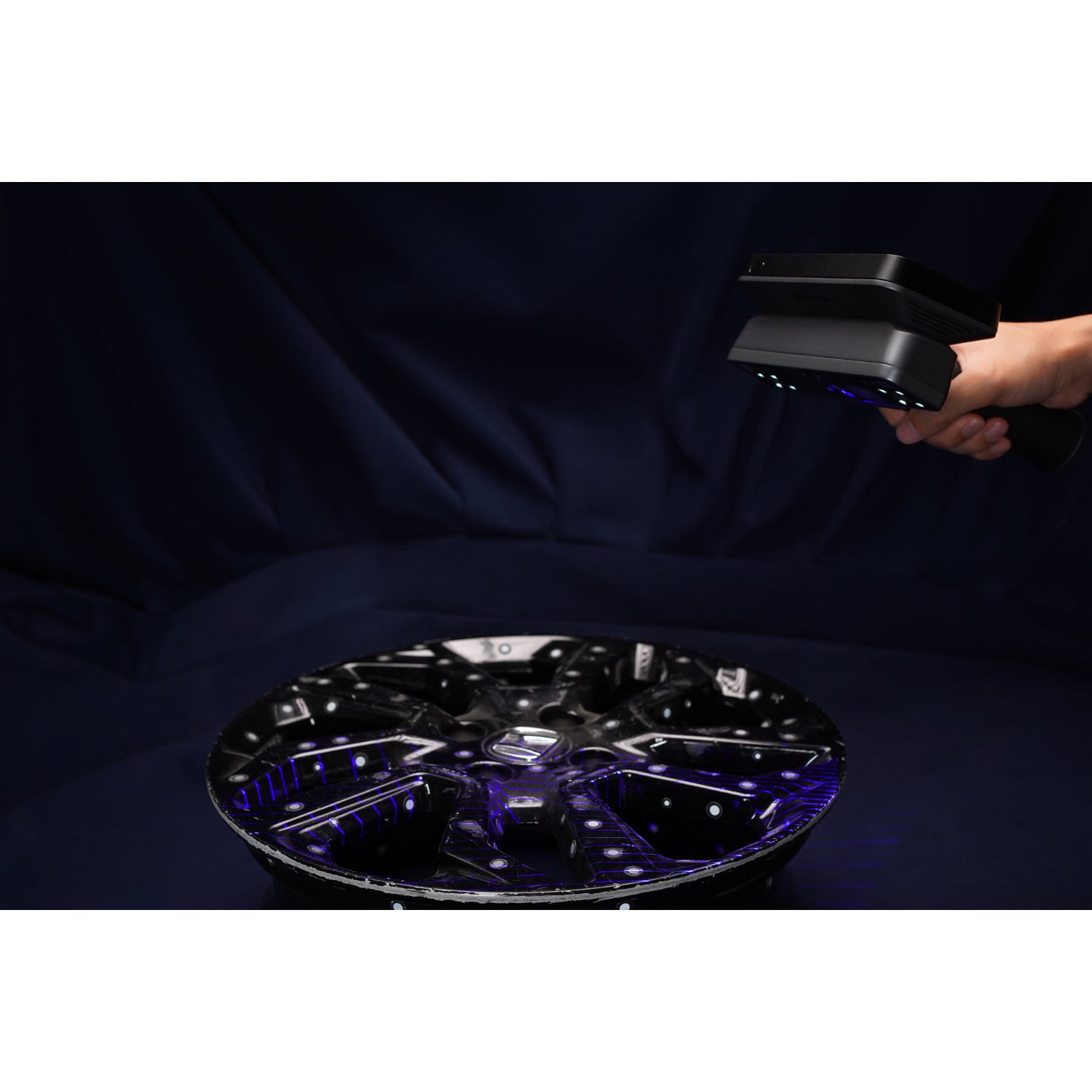

  • Automotive Reverse Engineering & Aftermarket

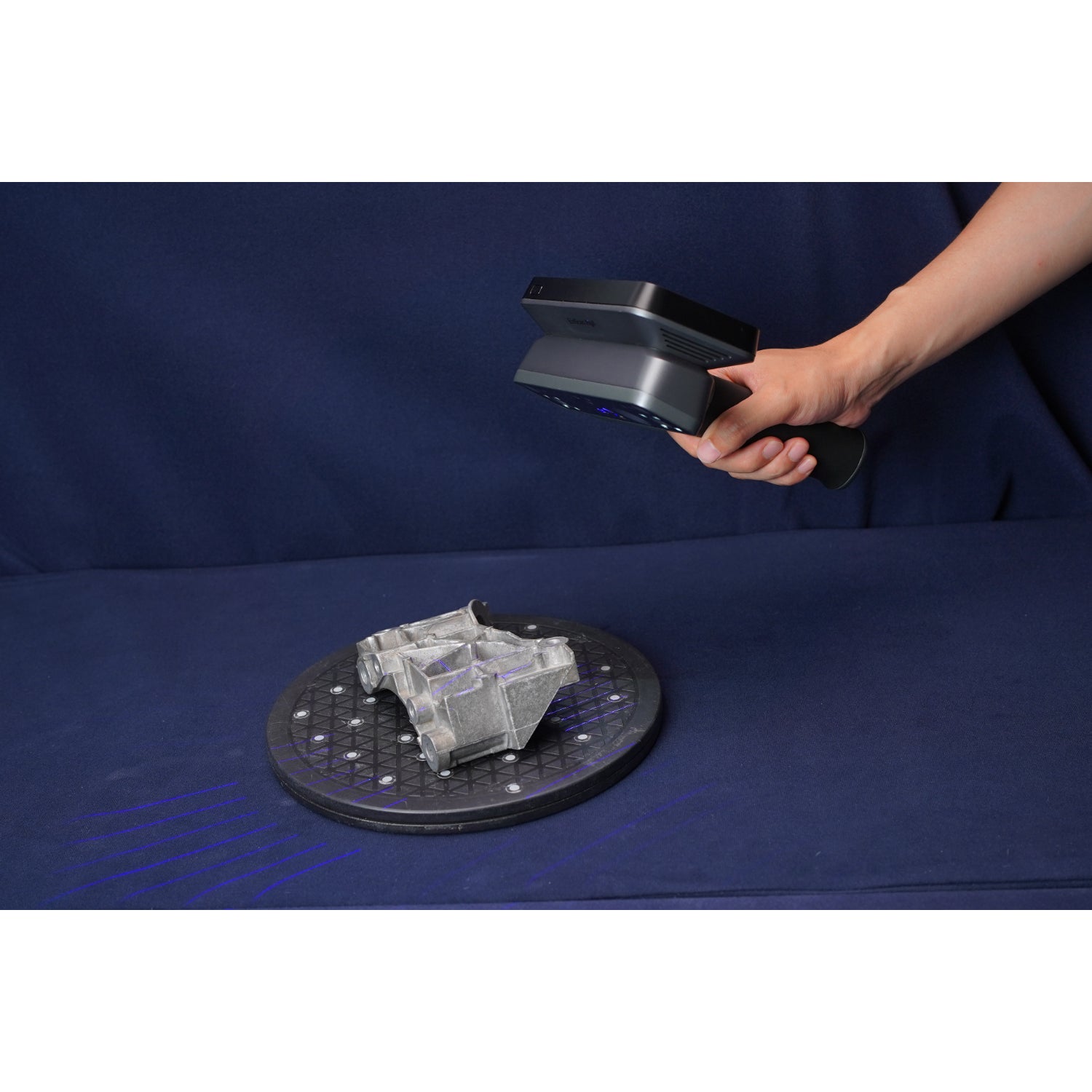

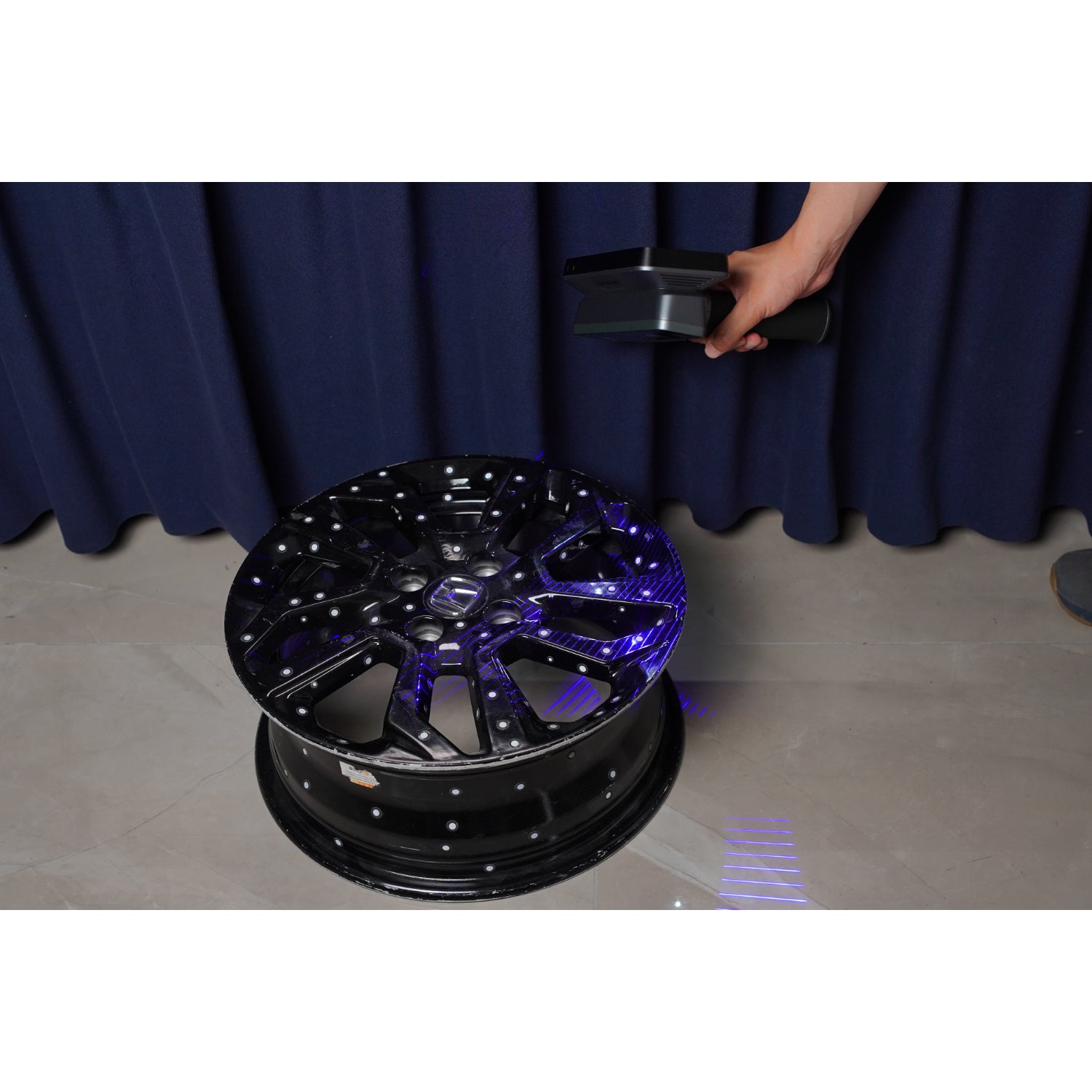

    Capture accurate scans of complex auto parts, panels, or interiors—without markers or messy prep.

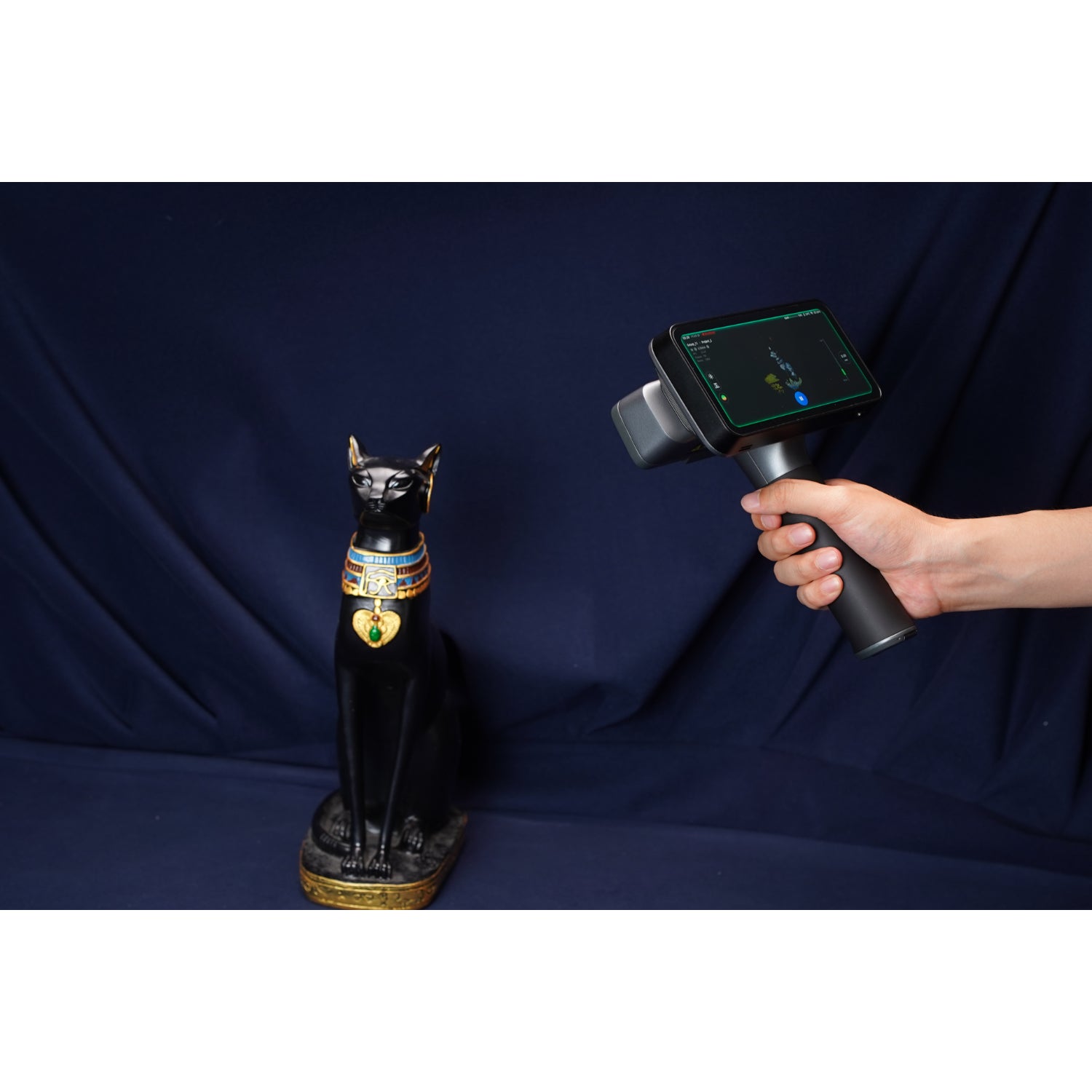

  • Cultural Heritage & Art Restoration

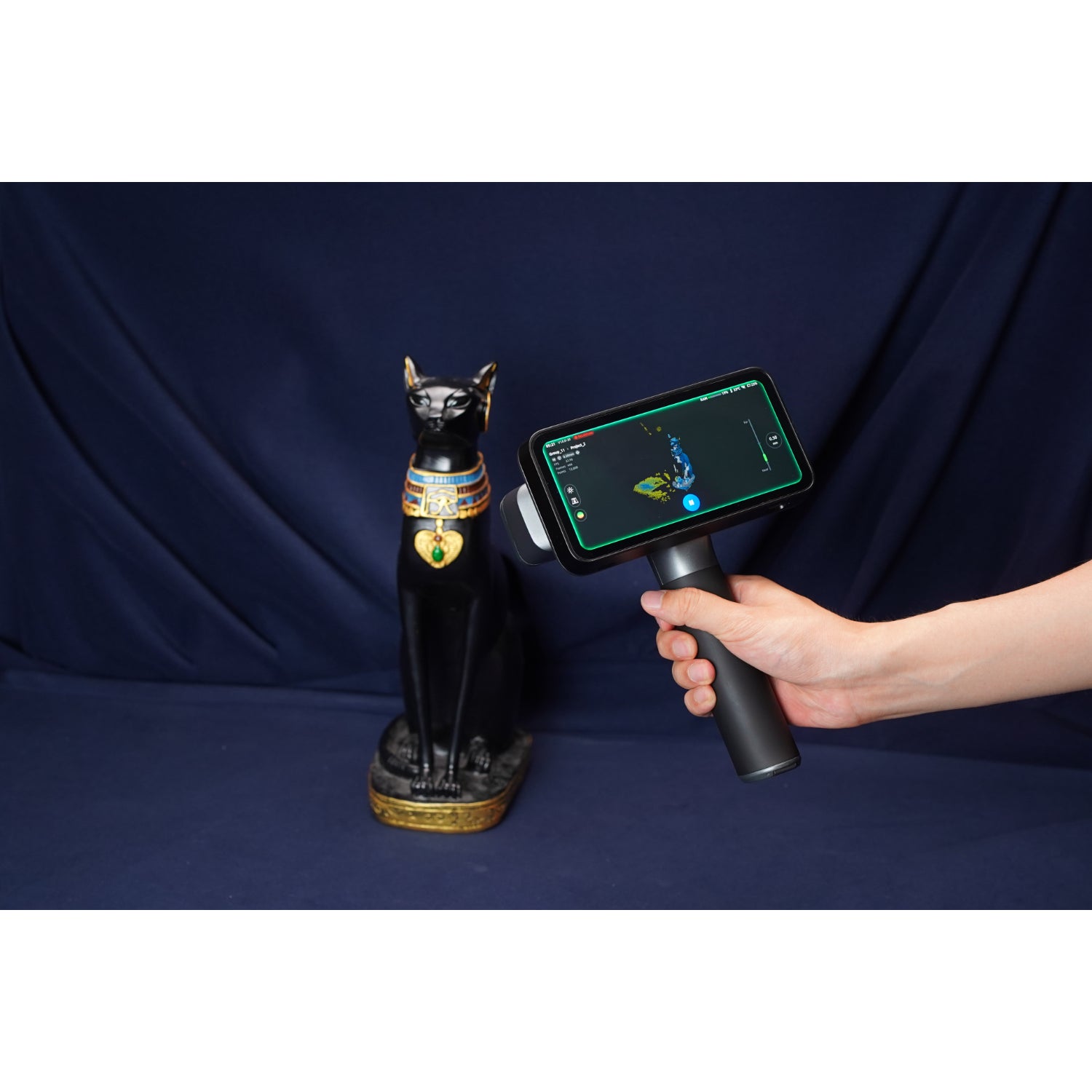

    Digitize and archive full-color replicas of statues, relics, and artwork.

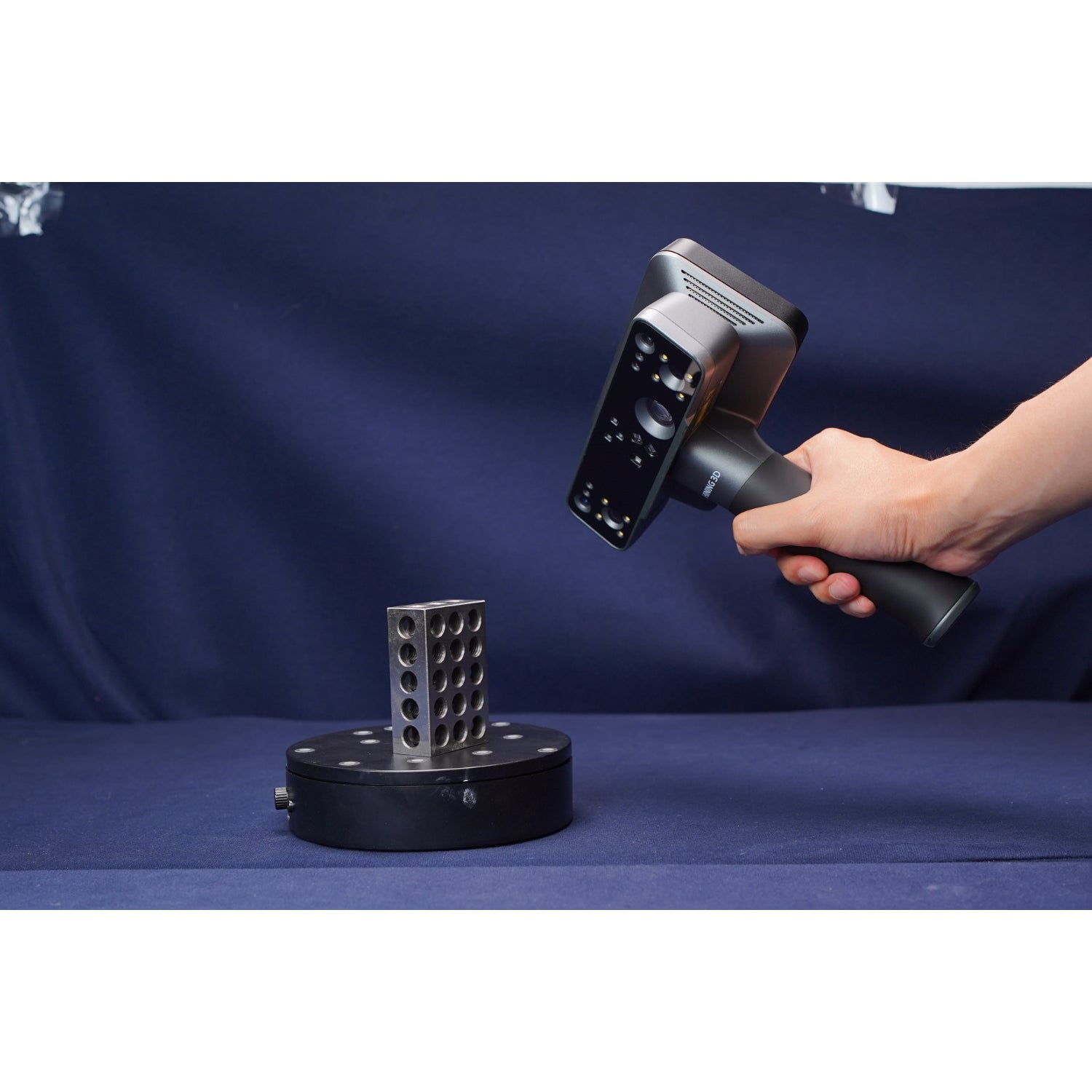

  • Research, Education & Manufacturing
    Use advanced laser scanning for academic projects, R&D, or design validation with maximum efficiency.


EXScan Rigil Software

  • All-in-One Workflow
    Full scanning, calibration, data cleanup, editing, and export—all from one streamlined software suite.

  • Advanced Editing Tools

    • Cutting Plane Tool: Cleanly crop and align scanned data.

    • Mirror: Create symmetrical mesh copies.

    • Flip Normal: Fix mesh orientation errors.

    • Remove Floating Parts: Auto-cleanup for watertight models.

  • Smart Features

    • Auto Plane Detection

    • Global Marker Alignment

    • XYZ System Alignment

    • Scan Rewind & Resume

    • Data Quality Indicators


Specs

Specification Laser HD Mode IR Rapid Mode
Light Source 19+19 Crossed Blue Laser Lines
7 Parallel Blue Lasers
IR VCSEL (Infrared)
Resolution 0.05 – 10 mm 0.2 – 10 mm
Scan Speed Up to 4,400,000 points/s Up to 1,600,000 points/s
Working Distance 170 – 550 mm 160 – 1500 mm
Volumetric Accuracy Up to 0.04 + 0.06 mm/m Up to 0.1 + 0.4 mm/m
Alignment Modes Markers, Features, Hybrid, Global Markers Markers, Texture, Features, Hybrid, Global Markers
Color Camera 5 MP 5 MP
Output Formats STL, OBJ, PLY, ASC, 3MF STL, OBJ, PLY, ASC, 3MF
Laser Class Class II (Eye Safe) Class II (Eye Safe)

General Specifications

Specification Details
Operating Modes Standalone, PC-Wireless, PC-Wired

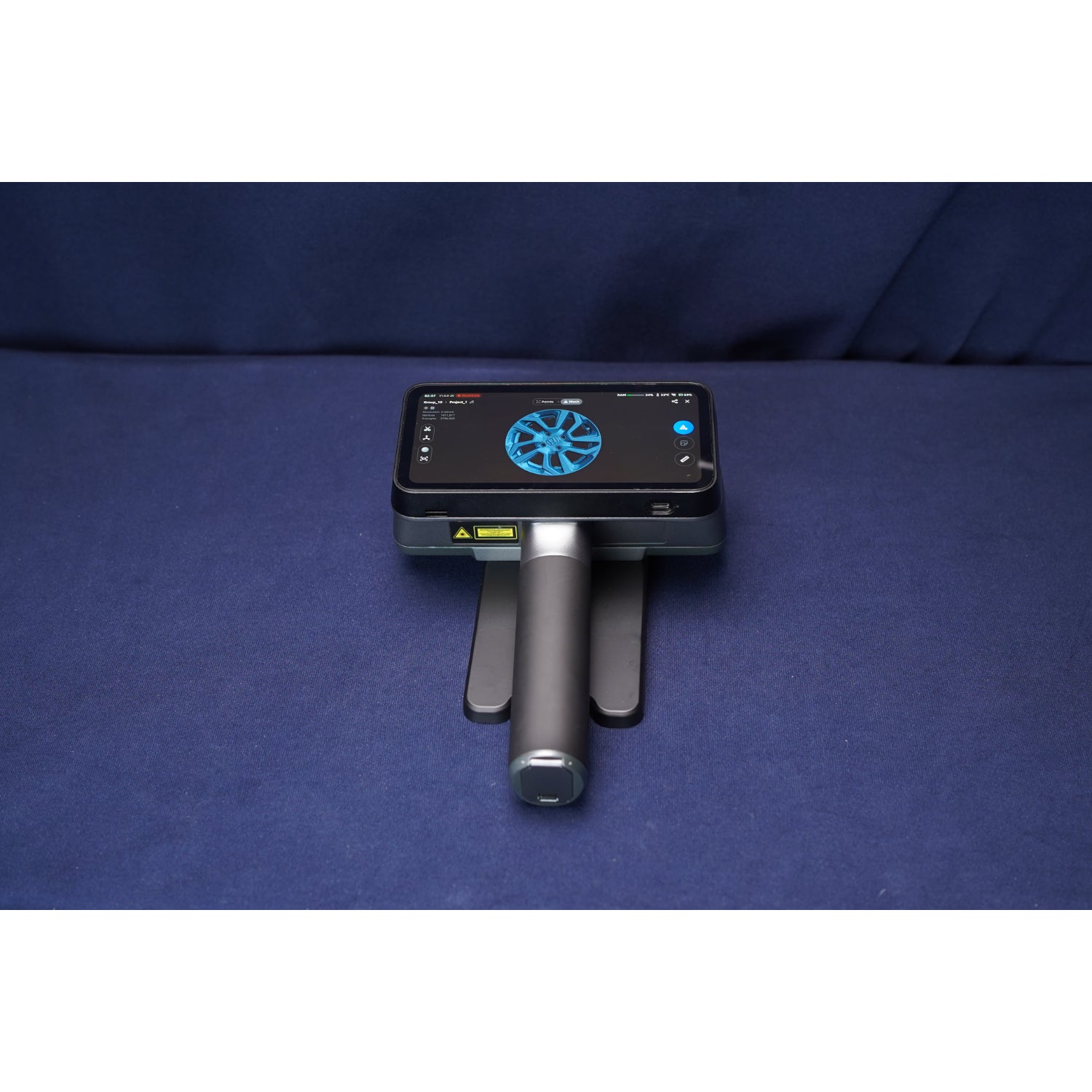

Built-in Display 6.4" 2K AMOLED Touchscreen
Processor 8-Core 2.4 GHz
Memory 32 GB DDR5
Storage 32 GB eMMC + 1 TB SSD

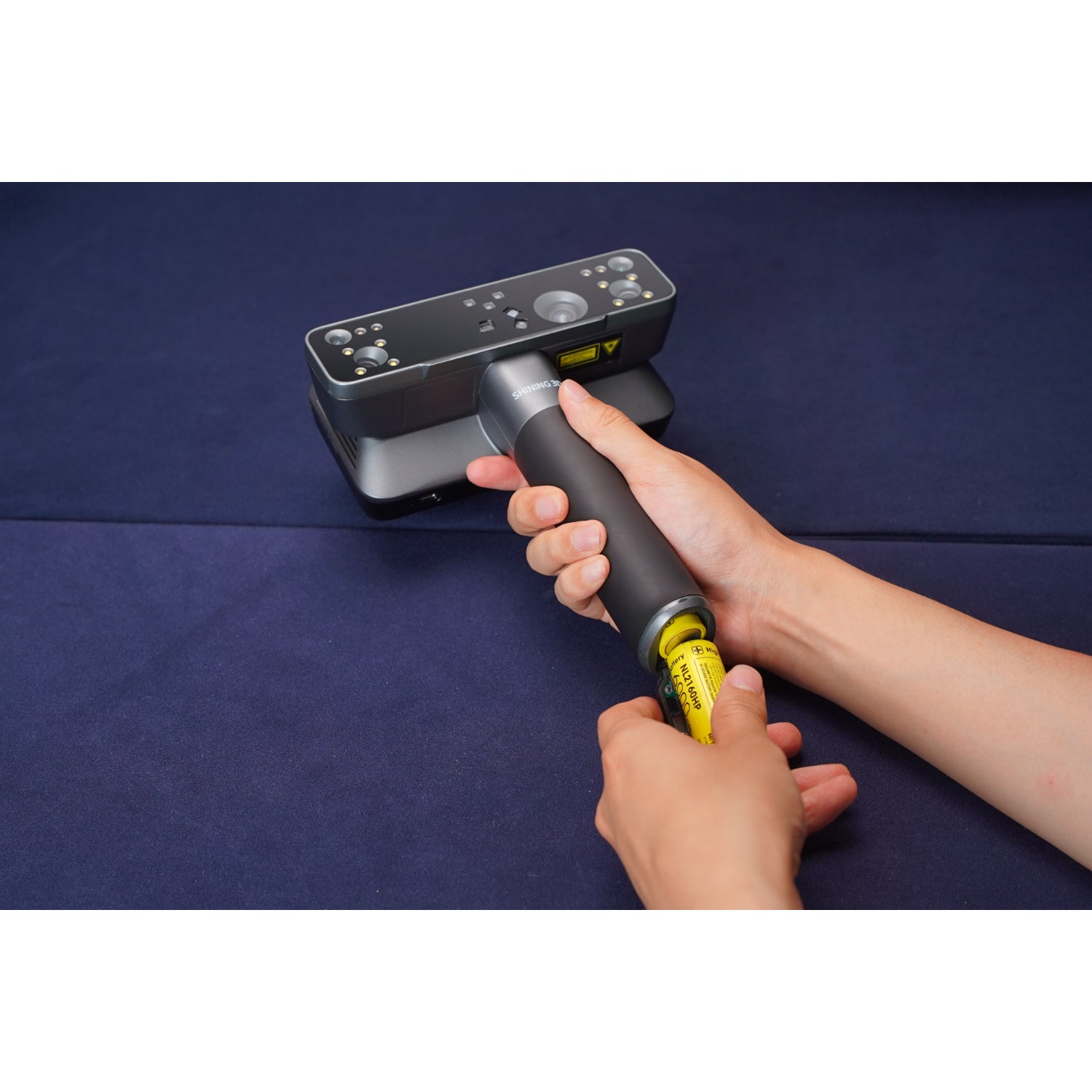

Battery 2 × 6000mAh Replaceable (60W PD3.0 Support)
Scanner Dimensions 233 × 180 × 72.8 mm
Weight 870 g (including batteries)
Operating Temperature –10°C to 40°C
Certifications CE, FCC, ROHS, WEEE, FDA, SRRC, IP50

System Requirements

Requirement Minimum Recommended
Operating System Windows 11 Pro (64-bit) Windows 11 Pro (64-bit), 22H2 or later
Graphics Card NVIDIA GeForce RTX 3060 NVIDIA RTX 3080 or higher
VRAM ≥ 8 GB ≥ 12 GB
Processor Intel Core i7-13700H or better Intel Core i9 / Xeon
RAM ≥ 64 GB DDR5 128 GB (for large scan datasets)
Interface USB 3.0, USB Type-C USB 3.2 Gen 2 / Thunderbolt optional

Included in the Box

Item Quantity
EinScan Rigil 3D Scanner 1
USB-C Power Cable & Adapter 1 set
Dual 6000mAh Batteries 2
Calibration Panel 1
Soft Carrying Case 1
EXScan Rigil Software License 1
User Manual & Quick Start Guide 1 set

EinScan Rigil Brochure

📄 View EinScan Rigil Brochure

Owner’s Manual

📄 View EinScan Rigil User Manual

Standard Warranty

📄 View EinScan 1-Year Standard Warranty
