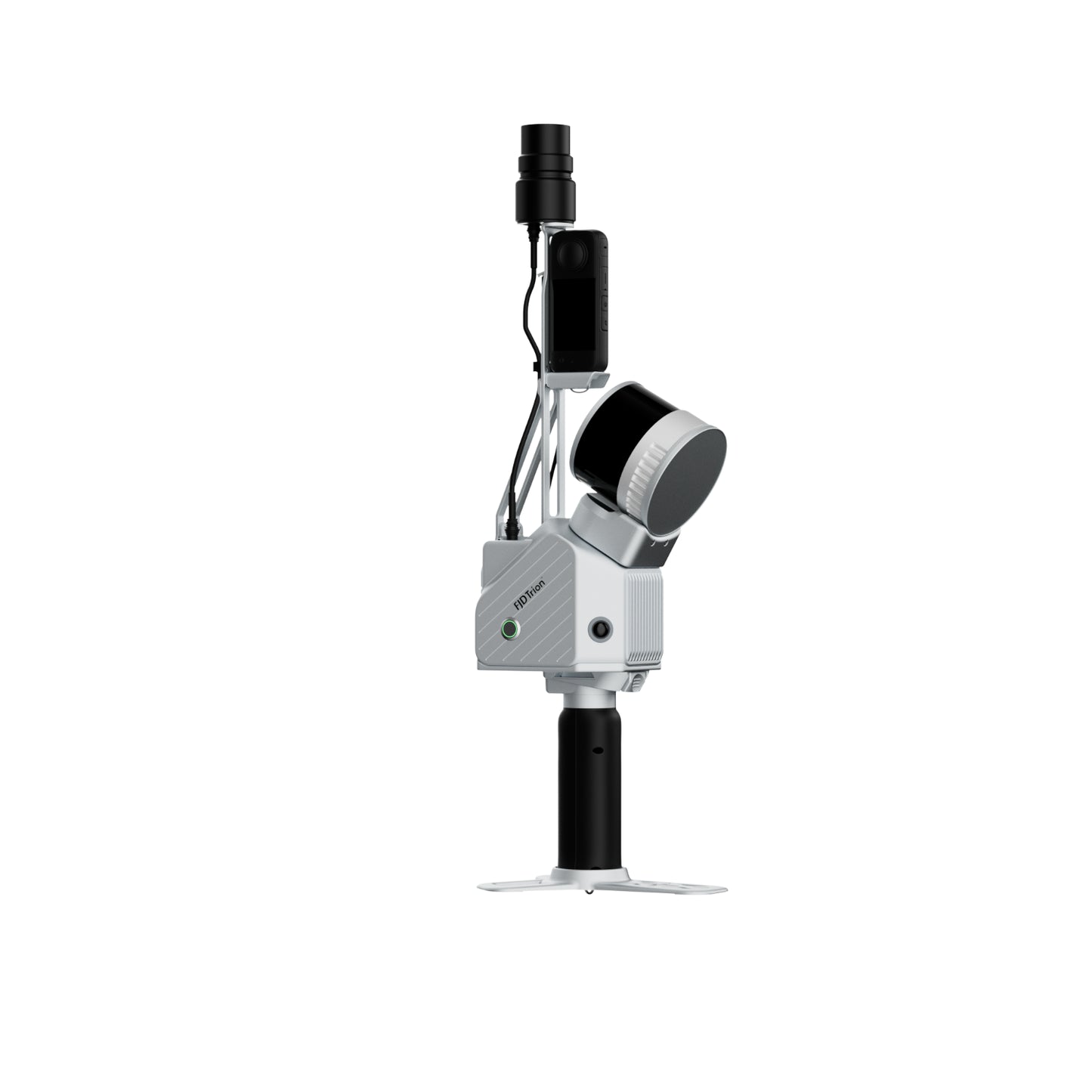

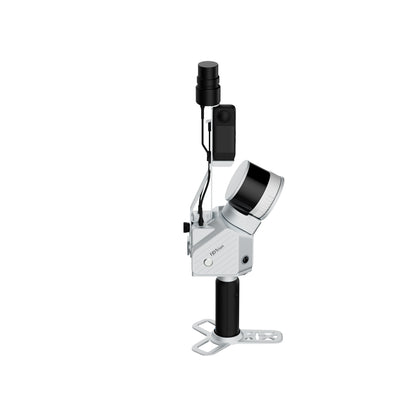

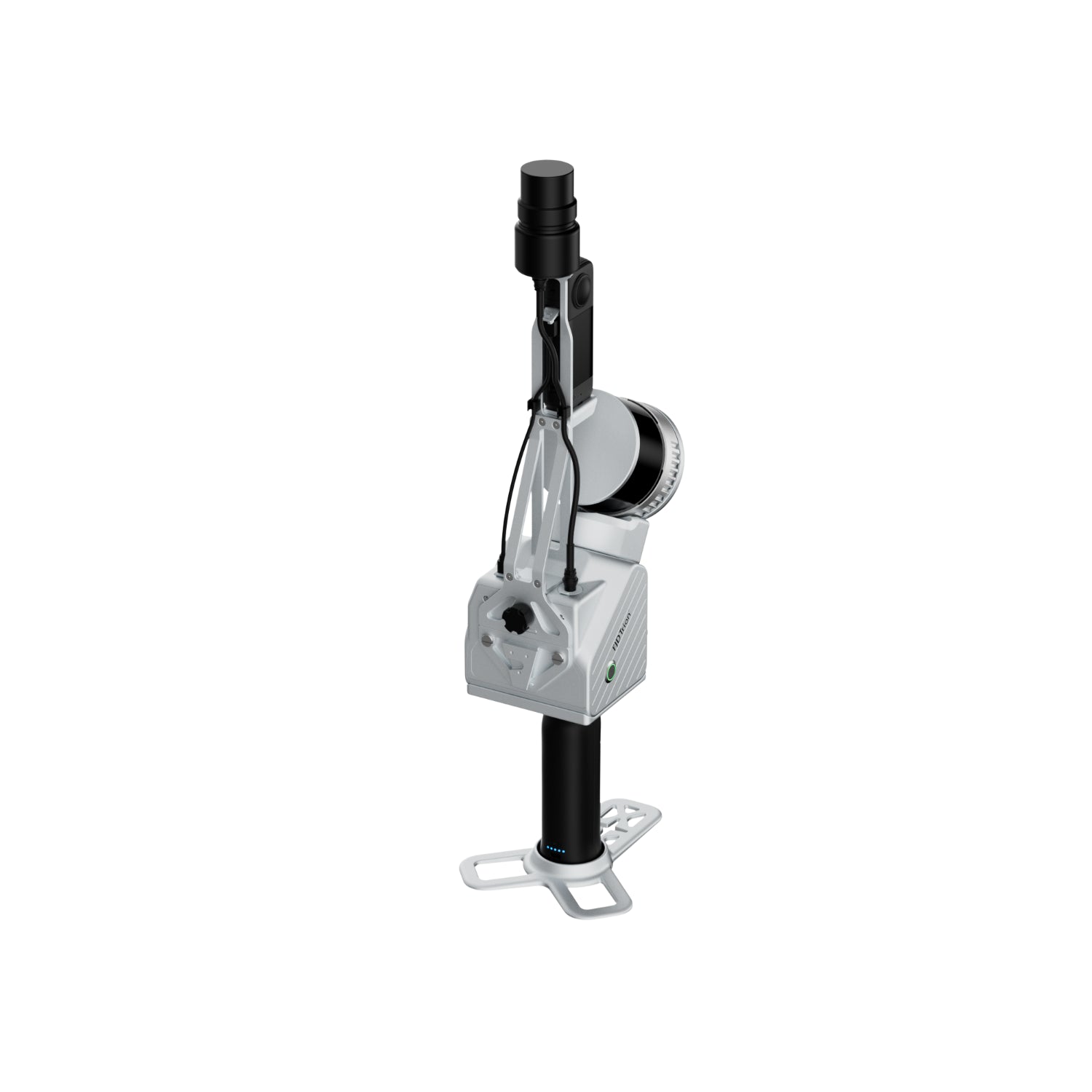

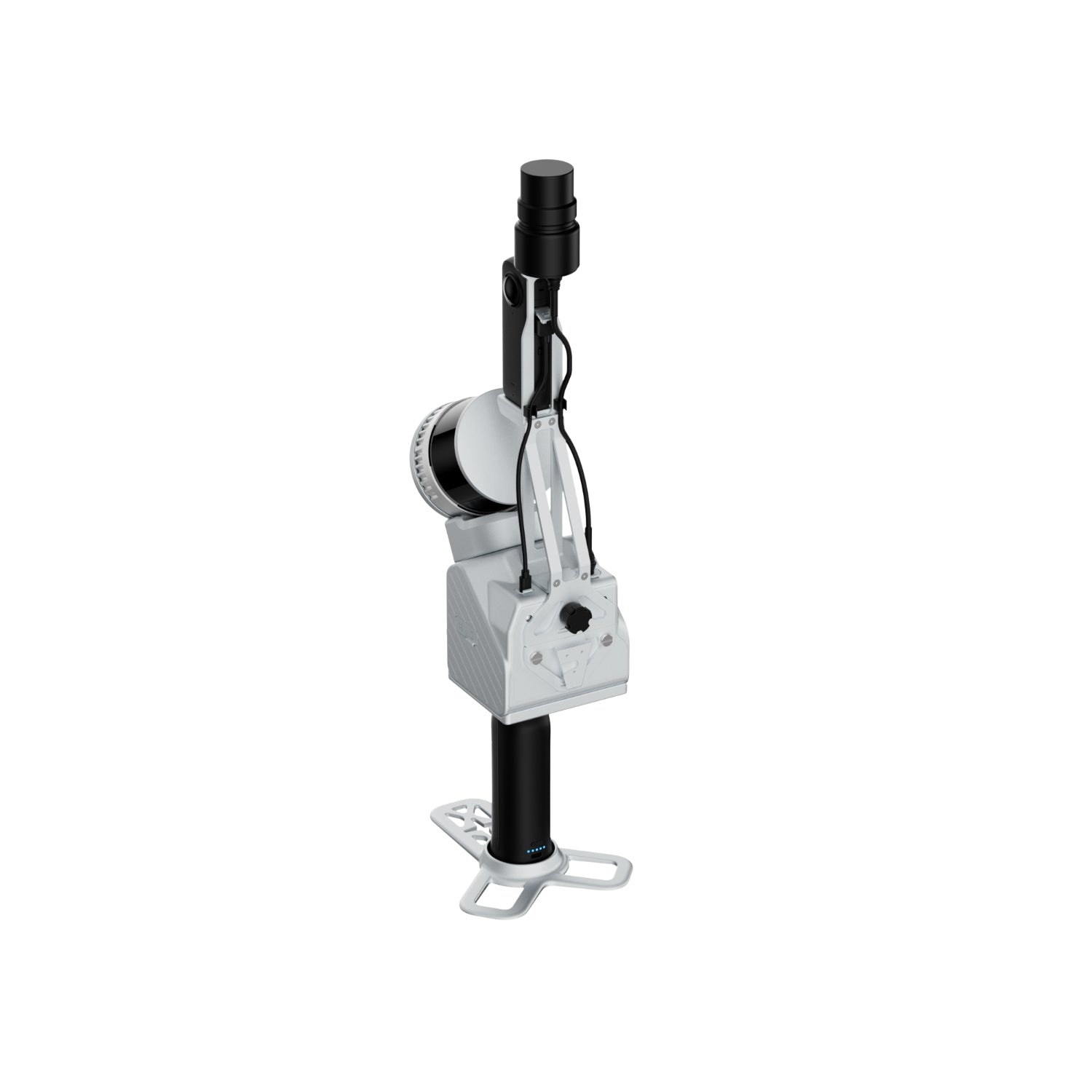

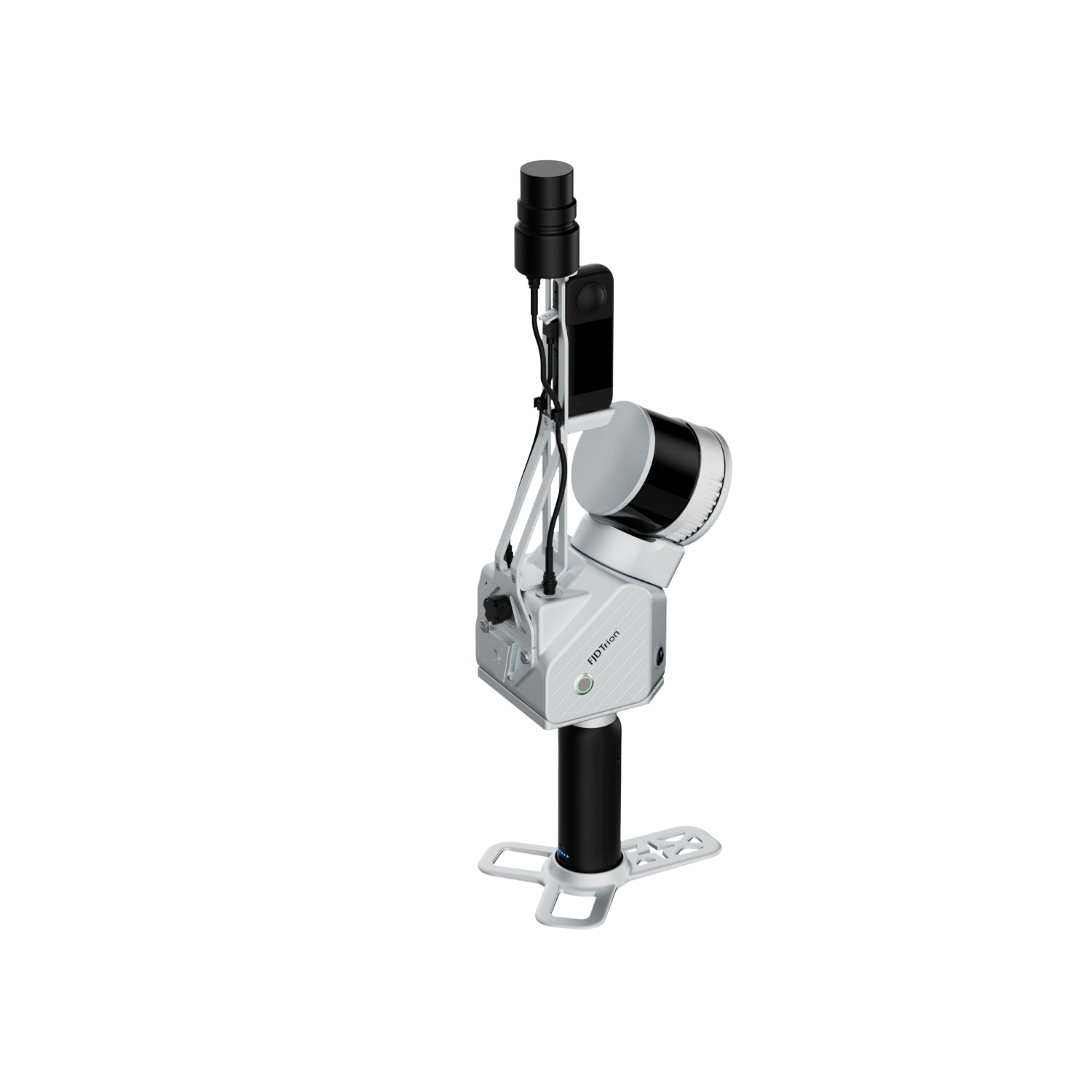

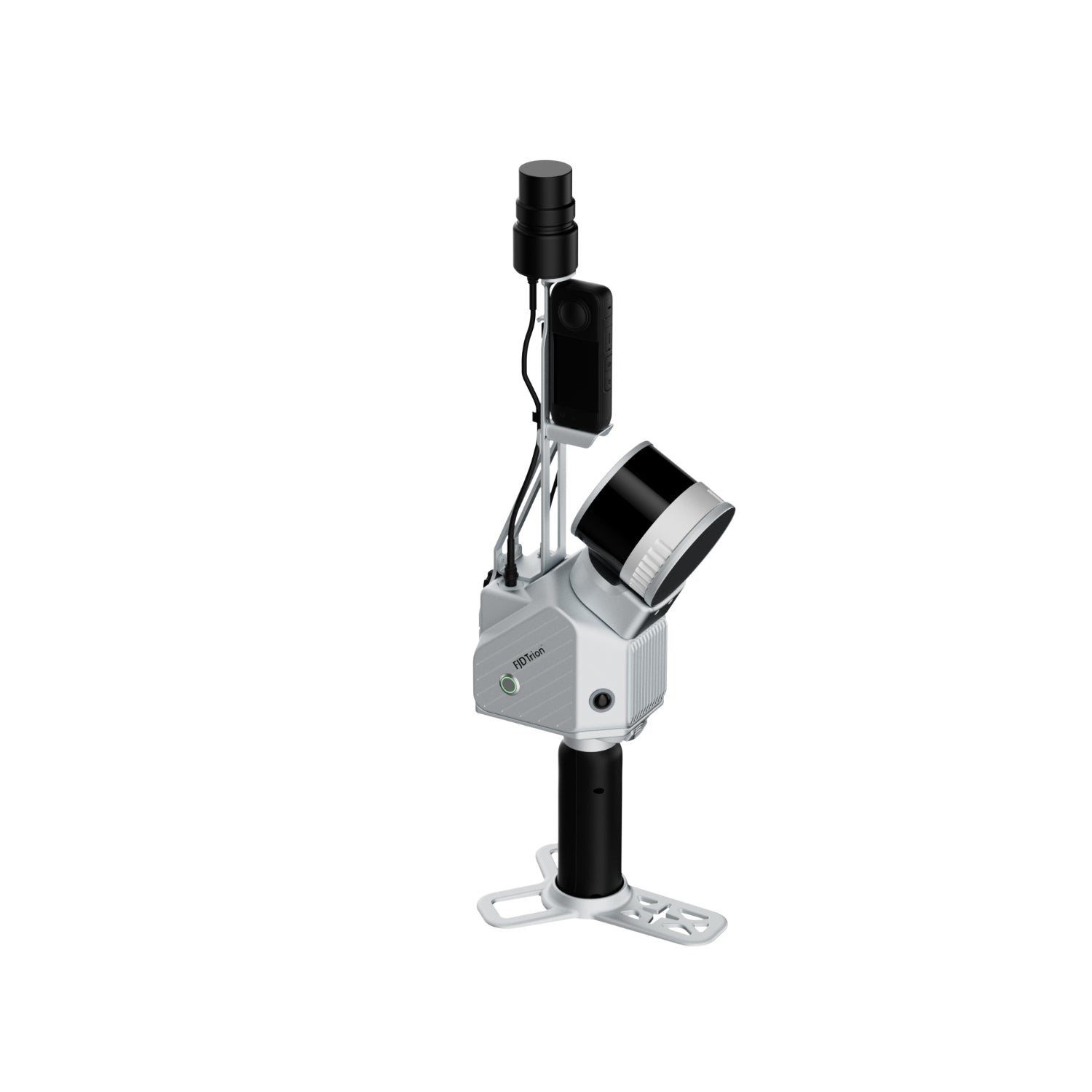

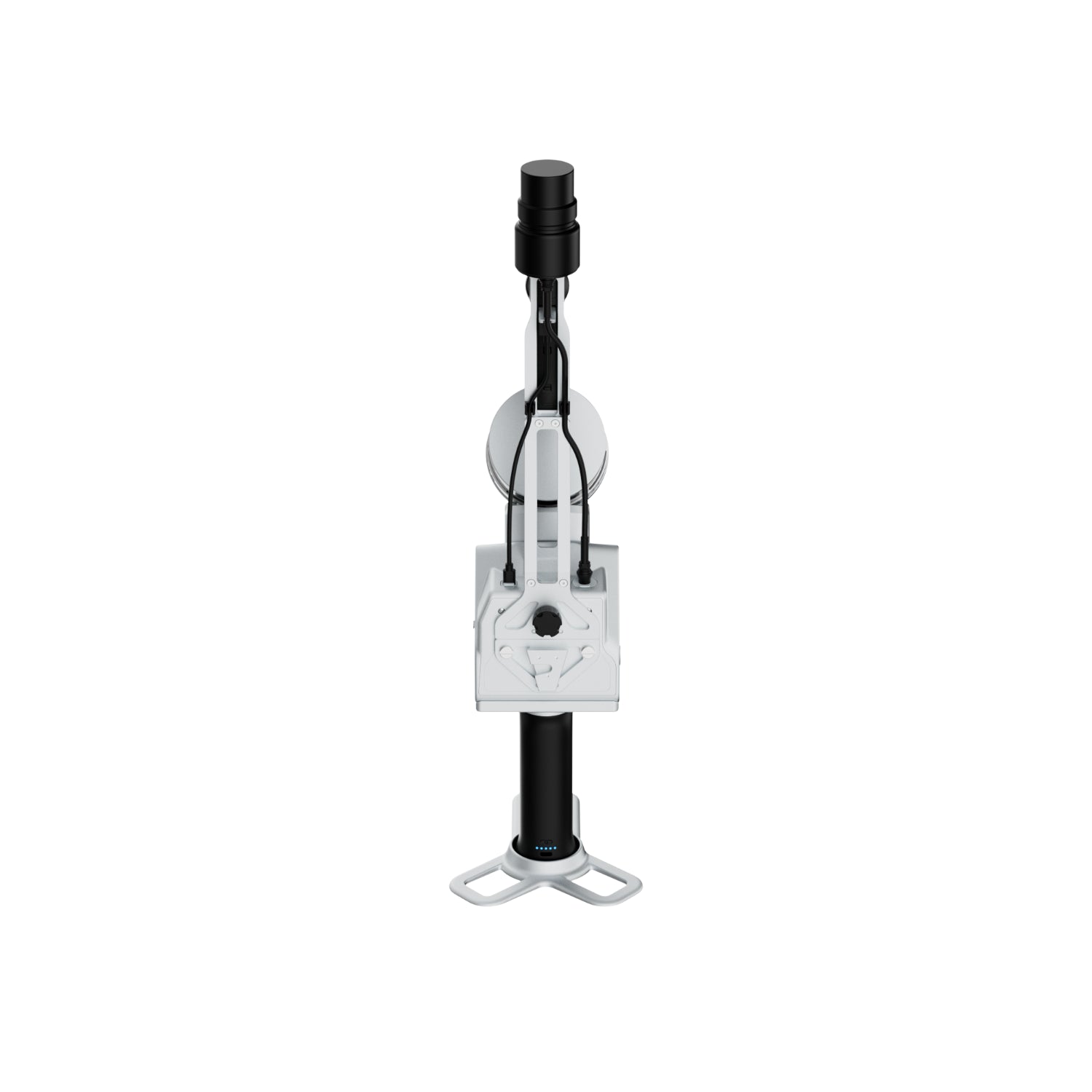

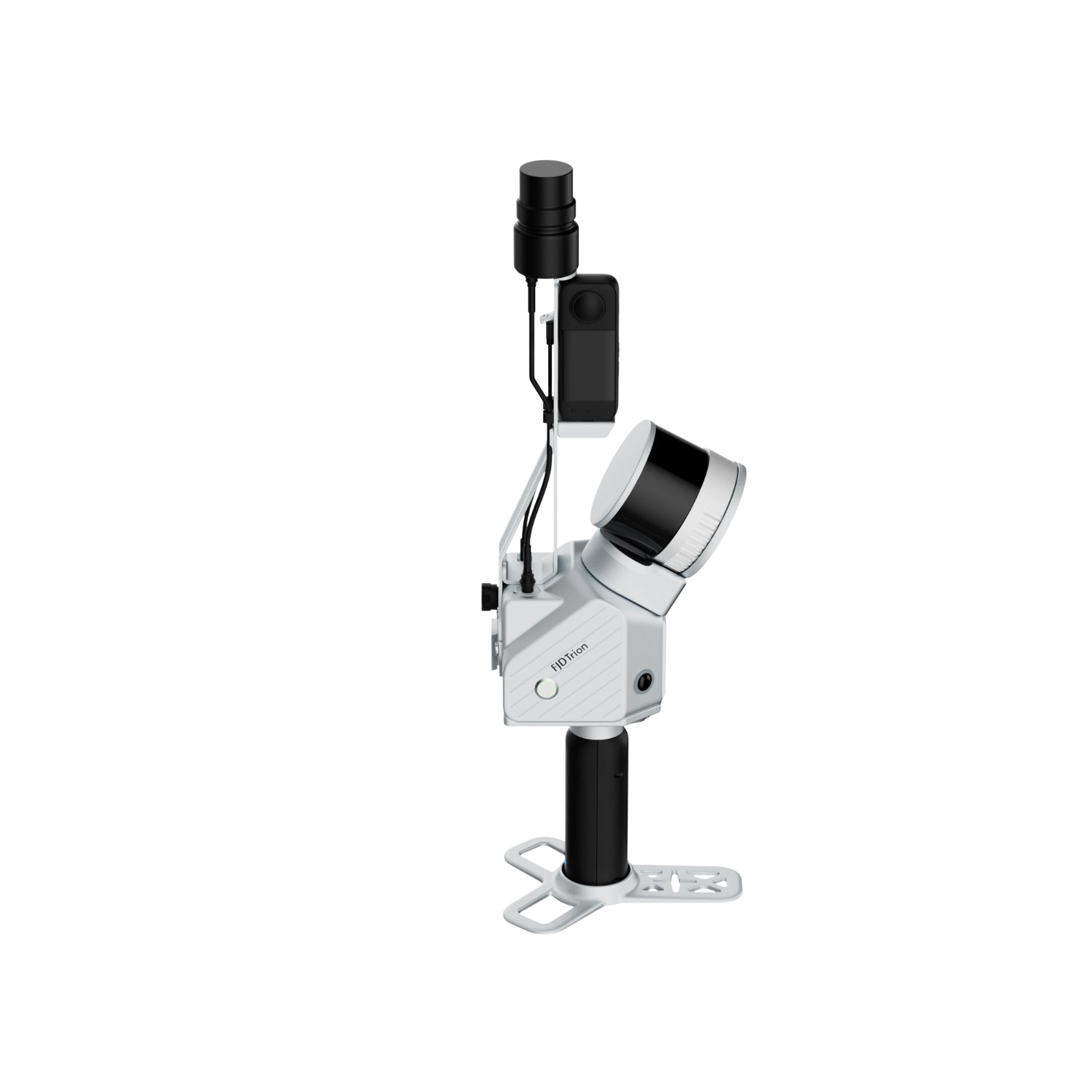

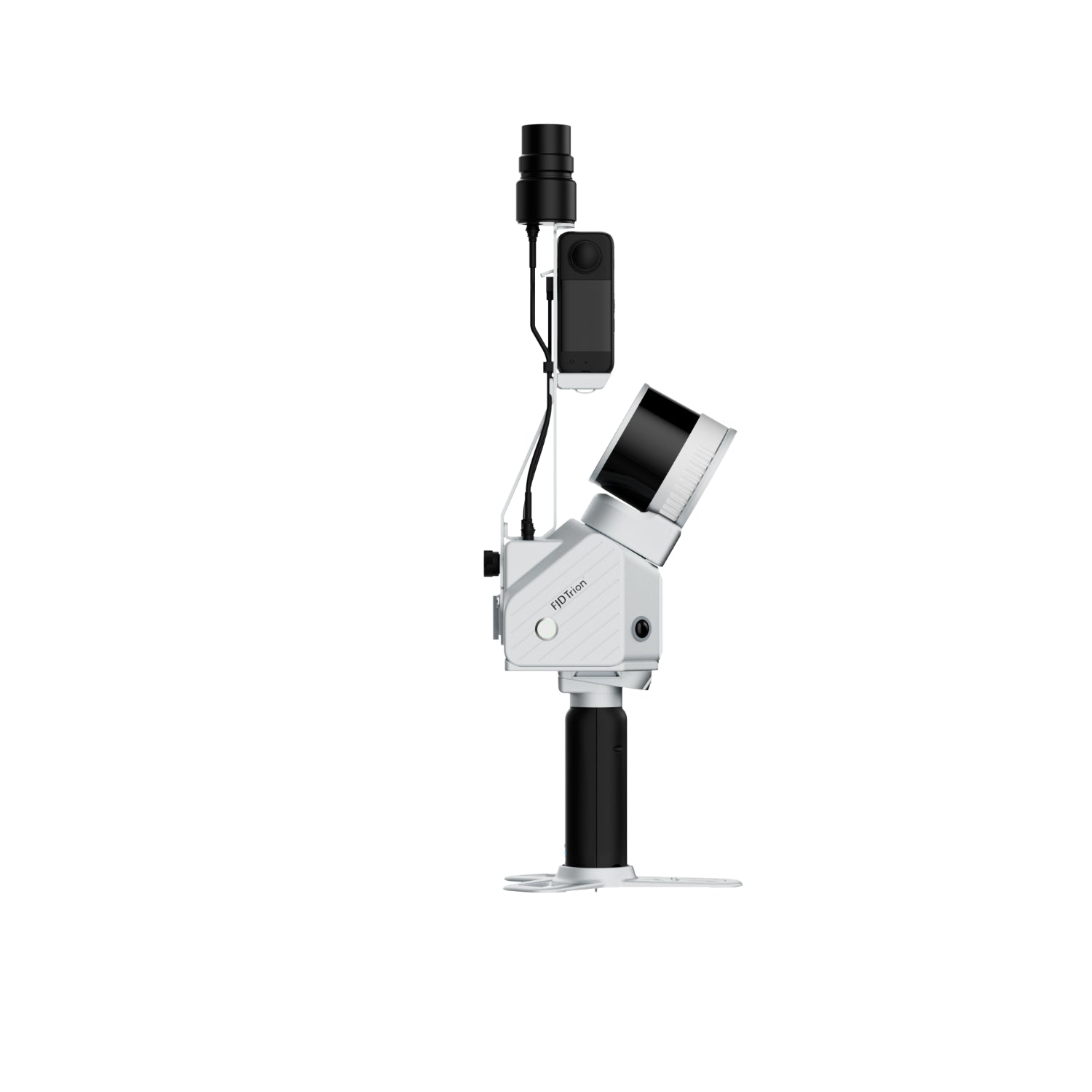

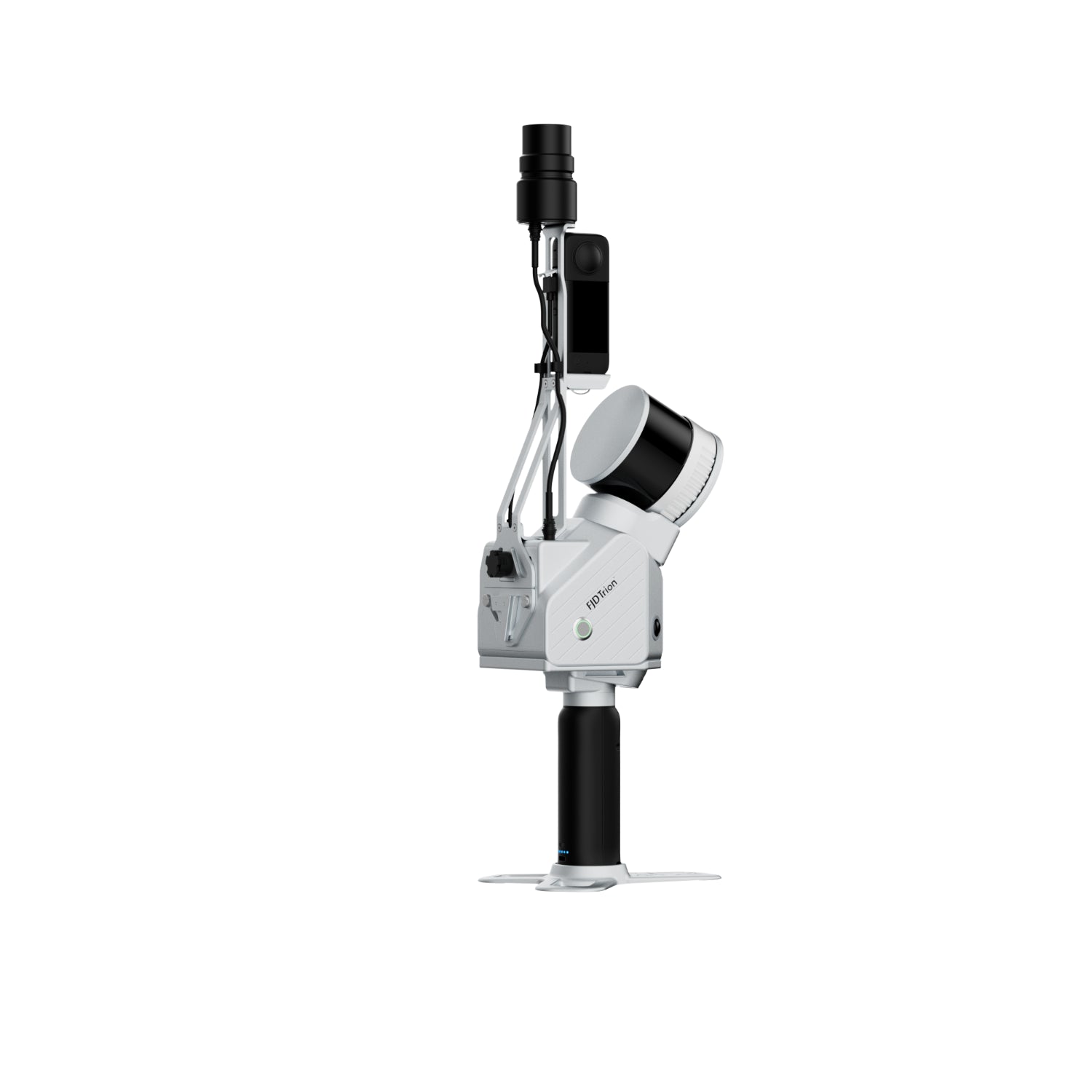

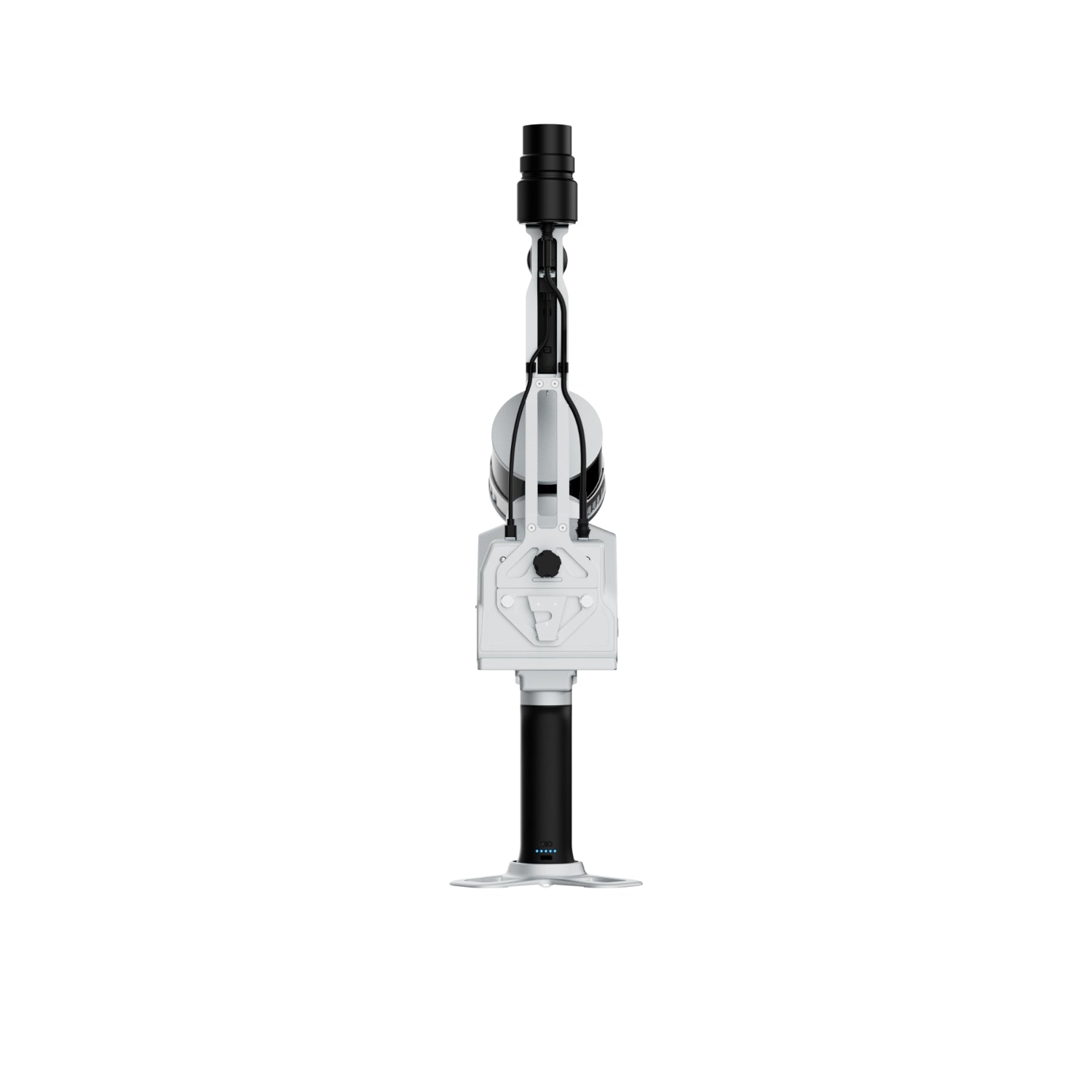

FJ Dynamics Trion S2 Portable LiDar 3D Scanner FJDS2

FJ Dynamics Trion S2 Portable LiDar 3D Scanner FJDS2

Regular price $18,999.00 USD
Regular price Sale price $18,999.00 USD
Sale Sold out

In stock

Includes Warranty

30-Day Returns

Unlimited Free Support

LiDaR Options

Compact, Accurate, and Versatile Scanning for Indoor & Outdoor Applications

The FJD Trion™ S2 LiDAR Scanner is a lightweight and powerful SLAM-based scanning solution designed for surveying, construction, forestry, mining, and public safety sectors. Weighing just 2 kg, it integrates high-precision VIO/SLAM algorithms, dual 12MP cameras, an RTK/PPK-supported georeferencing system, and real-time point cloud processing. The FJD Trion S2 supports over 8000 coordinate systems and pairs seamlessly with FJD Trion Scan and Model software for a complete mobile mapping workflow.


Key Features & Advantages

  • High Accuracy & Resolution
    Achieve point cloud accuracy up to 1.2 cm, even in areas with sparse features.

  • Real-Time Colorized Scanning
    Dual 12MP cameras enable real-time point cloud generation and colorization.

  • SLAM + VIO Fusion
    Multi-SLAM algorithms ensure tracking stability in GPS-denied environments.

  • RTK & PPK Georeferencing
    Onboard GNSS/RTK module enables direct output of georeferenced point clouds.

  • 8000+ Coordinate System Support
    Eliminate manual conversions with wide system compatibility.

  • All-in-One Compact System
    Built-in camera, IMU, RTK, and data storage with a total weight of only 2 kg.

  • Broad Accessory Support

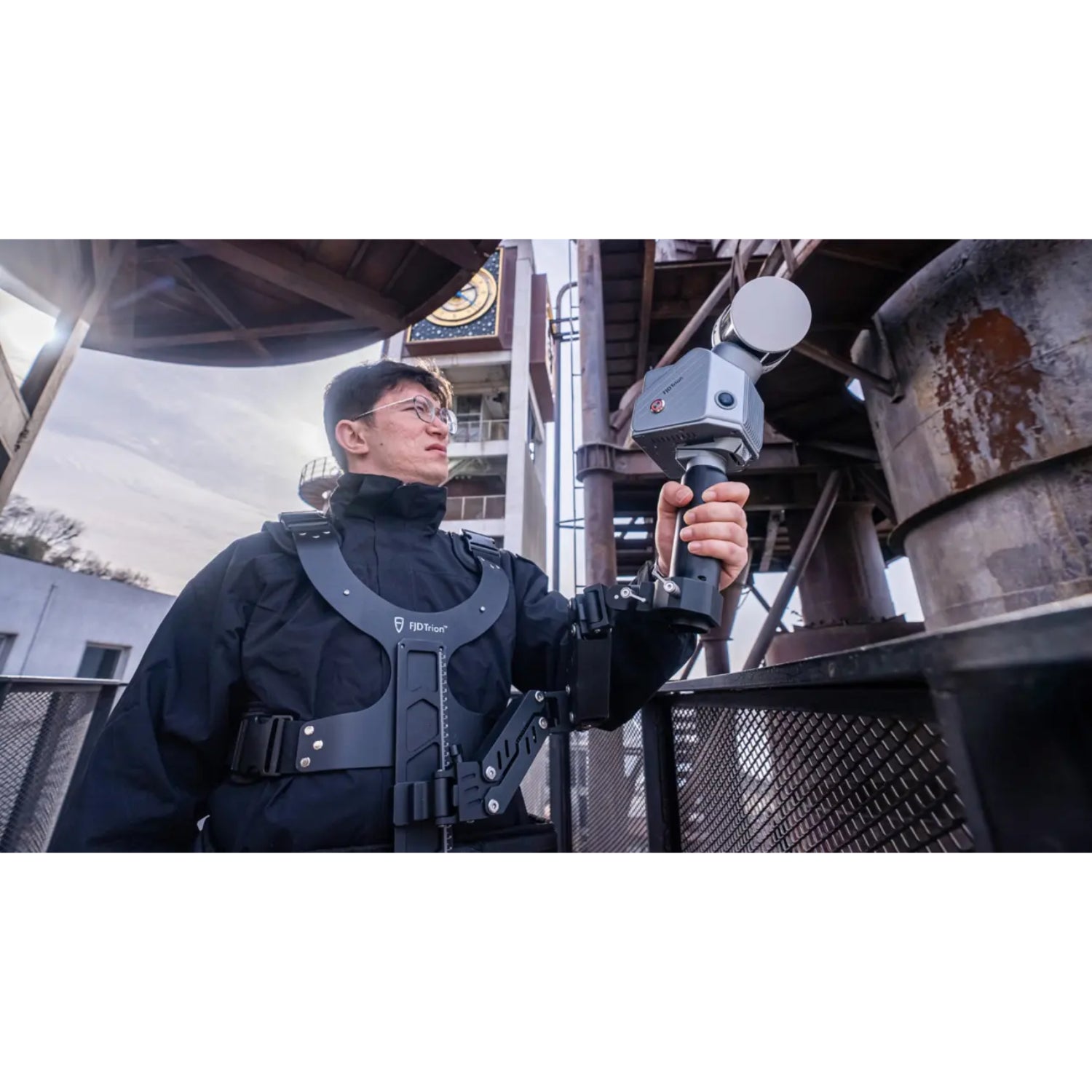

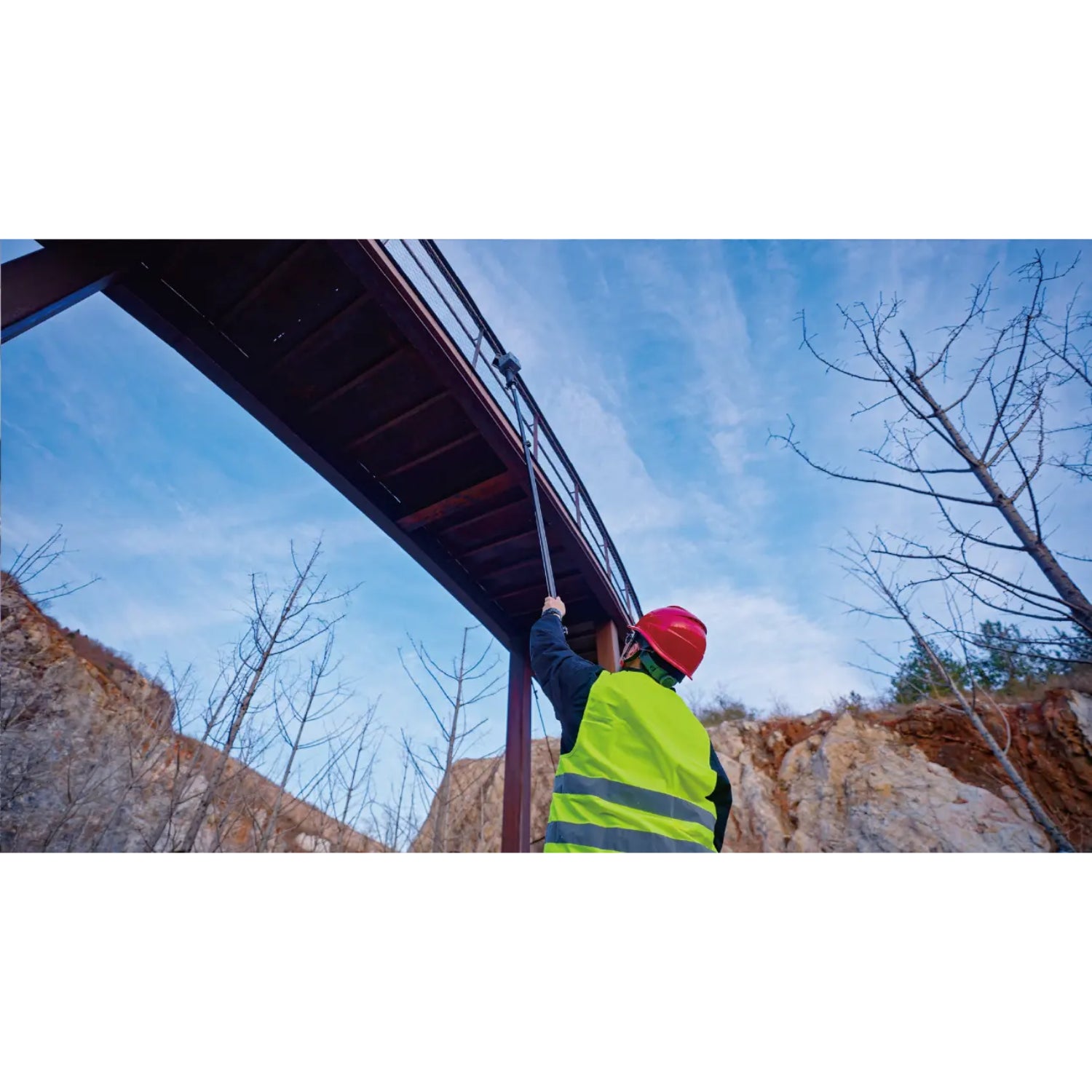

    Includes stabilizing vest, extension pole, drone/car/robot dog mounts, and rolling suitcase.


Seamless Workflow Integration

  • FJD Trion Scan App
    Monitor scanning progress and view point clouds in real-time on your tablet or phone.

  • FJD Trion Model Software
    Process point clouds into 2D/3D models with tools like Gaussian splatting, mesh modeling, canopy analysis, and more. Available on PC and iPadOS.

  • Modular Accessories

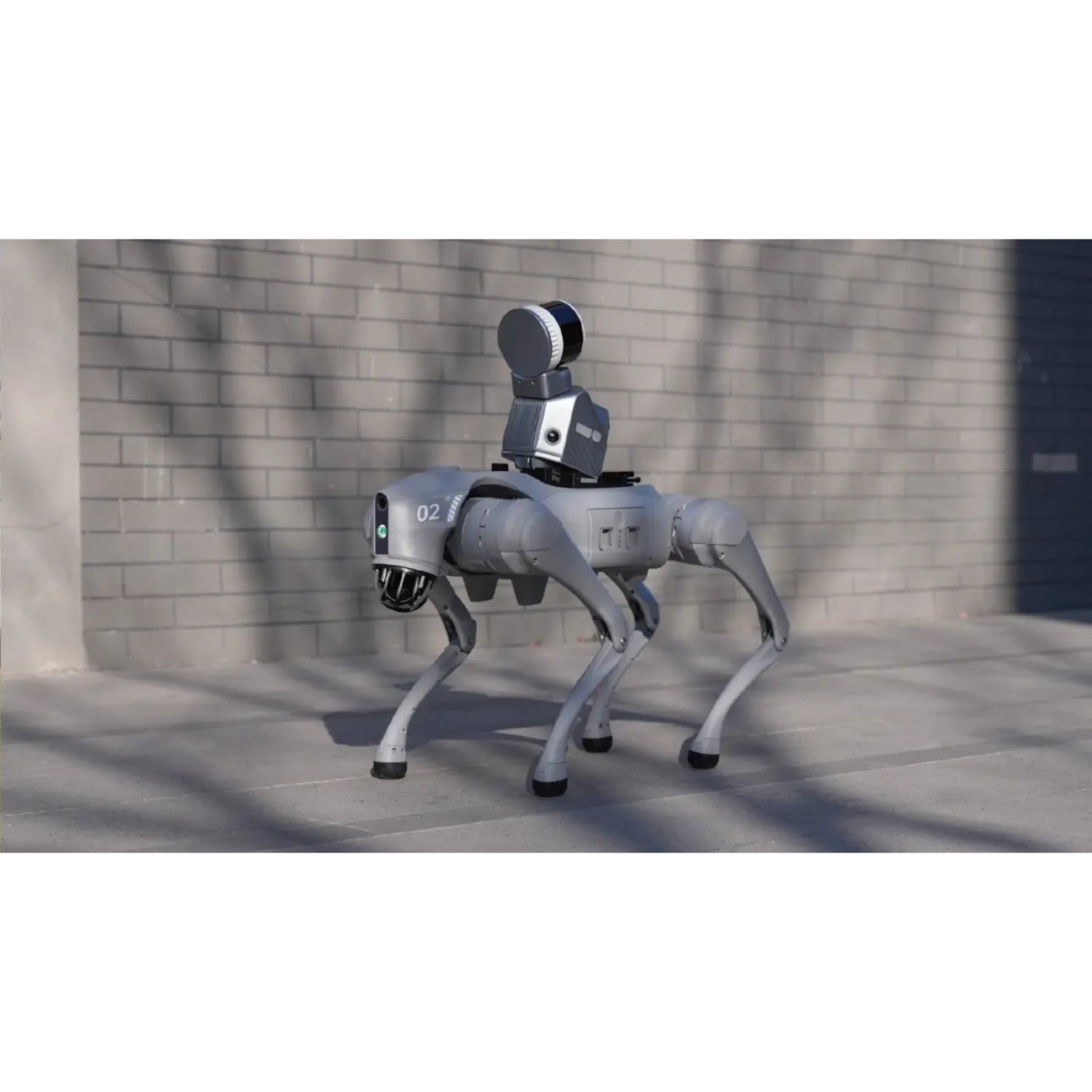

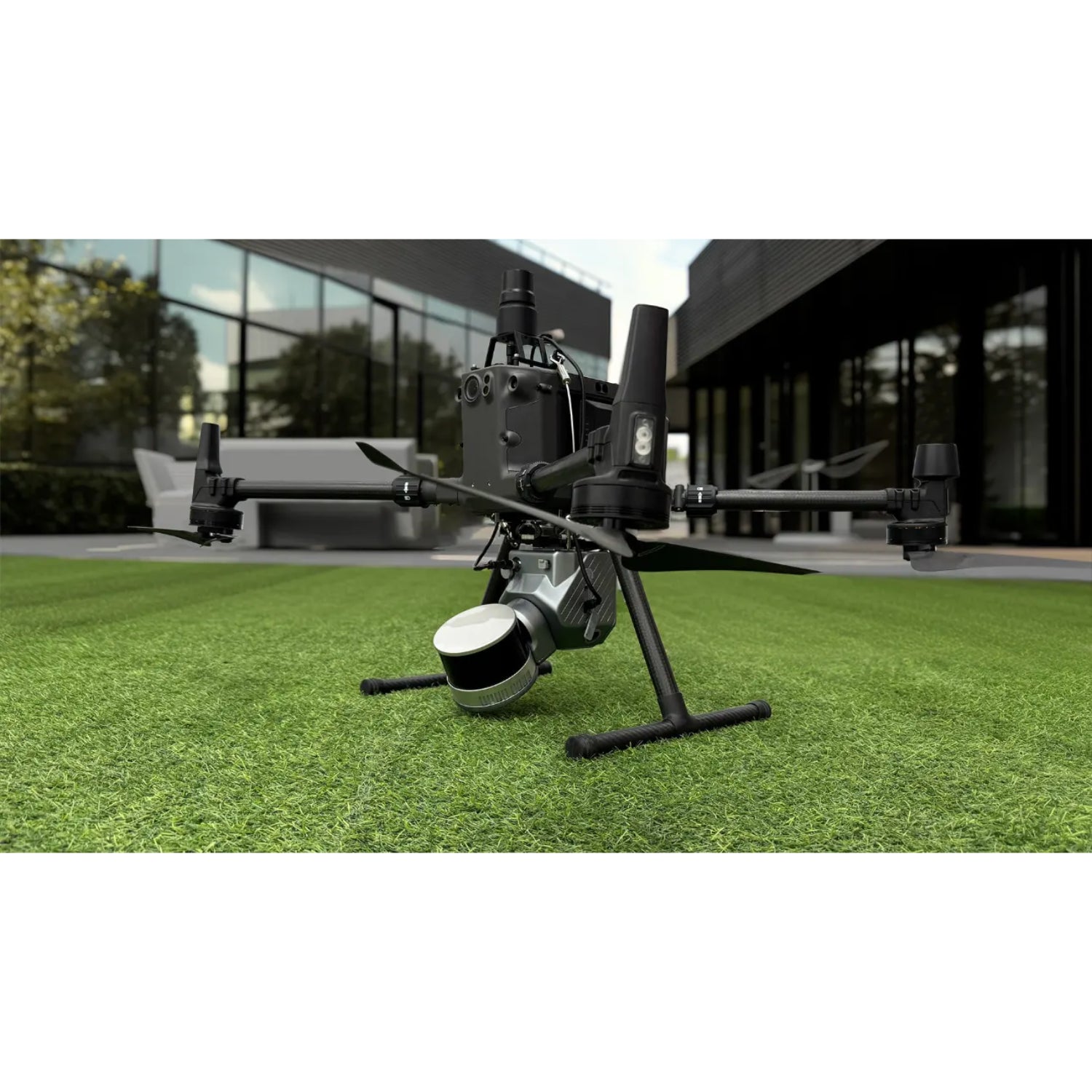

    Mount S2 on robots, drones, vehicles, or wear it with a vest for maximum versatility in any terrain.


Application Scenarios

  • Architecture, Engineering & Construction
    Use for as-built documentation, scan to CAD/BIM, floor plans, stockpile volume.

  • Public Safety & Forensics
    Rapid evidence capture and crime scene modeling for precise documentation.

  • Mining & Tunneling
    Conduct underground surveys and safety inspections with point cloud analysis.

  • Forestry & Vegetation Analysis
    Map forest structure, measure trunk height/diameter, crown spread, and canopy volume.

  • Topographic Surveying
    Create accurate elevation models for land development and terrain studies.

  • Property Management & Assessment
    Measure structural details and spatial metrics for renovation or risk evaluation.


Specs

LiDAR

Model Range (@ 80% Reflectivity) Range (@ 10% Reflectivity) Channels Speed (pts/s) FOV
S2 120 m 80 m 16 320,000 360° × 270°
S2 PRO 120 m 80 m 32 640,000 360° × 270°
S2 MAX 300 m 80 m 32 640,000 360° × 270°
  • Safety Level: Class 1 / 905nm, eye safe

Specification Details
Relative Accuracy 1.2 cm
Absolute Accuracy 3 cm
Weight 1.8 kg (excluding battery & modules)
Battery Life 3 hours (1 set of 2 batteries)
Storage 512 GB (Expandable to 1TB)
Operating Temperature -10℃ to 50℃
Power Consumption 25 W
Dimensions 107 x 118 x 398 mm
Data Export Wi-Fi, USB Type-C, USB Type-A
Point Cloud Format .las / .ply / .pts / .e57
Power Supply 10.8 V, 3 A

Camera

Specification Details
Resolution 2 × 12 MP
FOV 200°
Visual SLAM Supported
Image Export Supported
Image Format .jpg

GNSS

Feature Supported Bands
Satellite Constellations BDS, GPS, GLONASS, Galileo, QZSS
RTK Accuracy H: 8 mm + 1 ppm RMSV: 15 mm + 1 ppm RMS
PPK Supported

Included in the Purchase

Item Description Quantity
FJD Trion S2 LiDAR Scanner 1
Dual 12MP Camera and SLAM/RTK Module 1
Battery & Power Accessories 1 set
Stabilizing Vest, Extension Pole 1 set
Rolling Suitcase with Modular Storage 1
Drone Mount, Car Mount, Robot Mount Optional
Quick Start Toolkit 1
Owner’s Manual and Safety Guide 1
