SKU:KT-CP0142

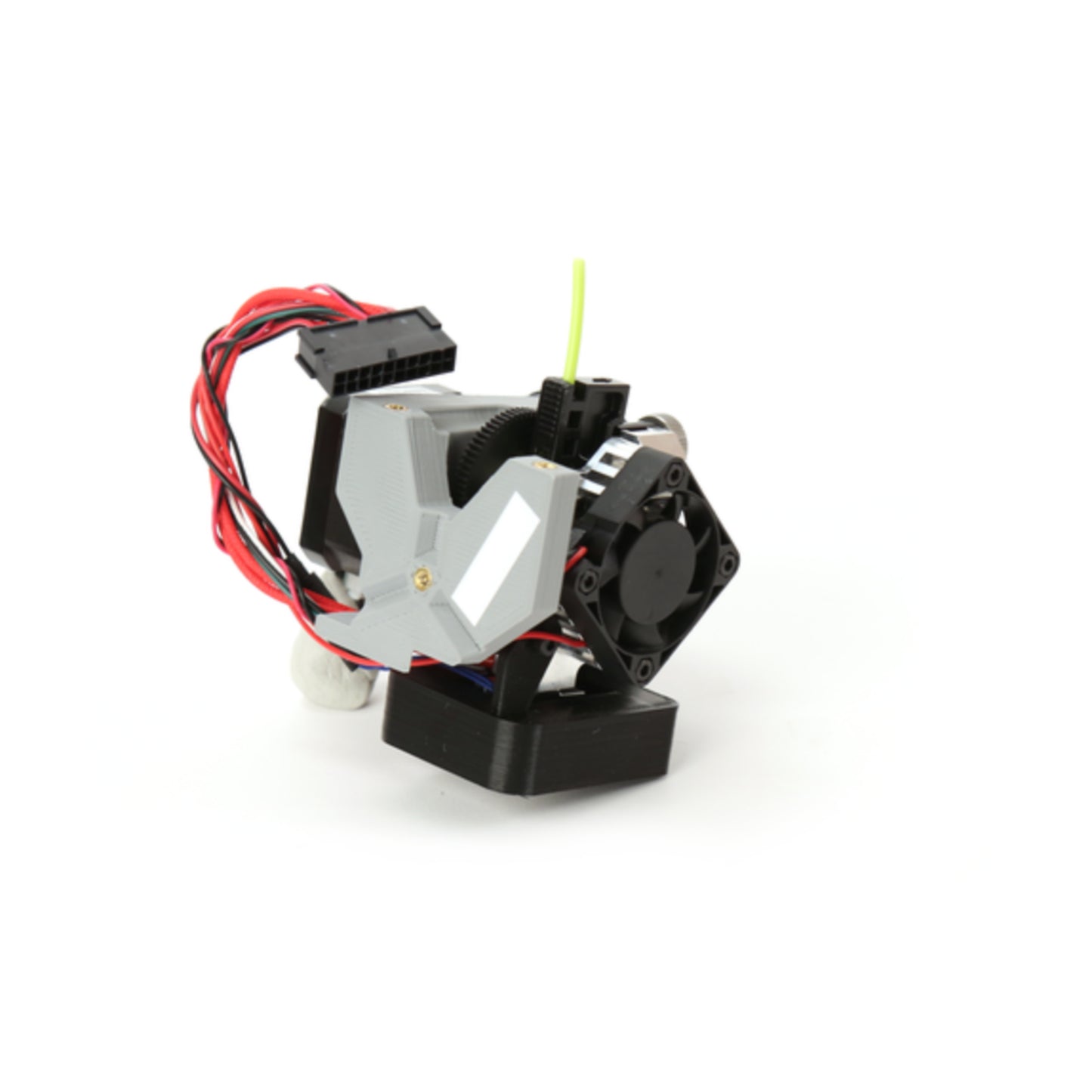

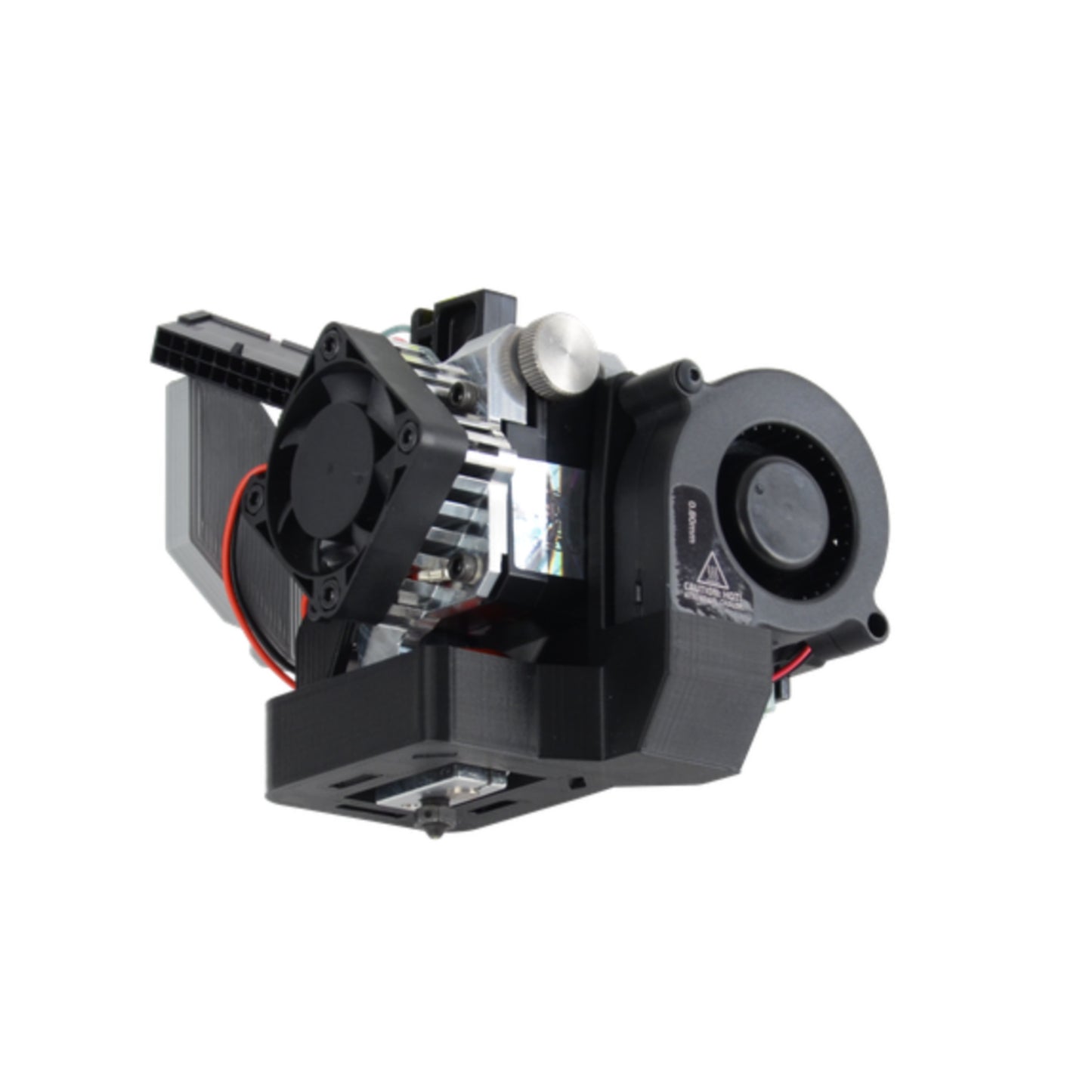

LulzBot HS Tool Head | Hardened Steel | 0.8 mm KT-CP0142

LulzBot HS Tool Head | Hardened Steel | 0.8 mm KT-CP0142

Regular price $385.00 USD
Regular price Sale price $385.00 USD
Sale Sold out

In stock

Includes Warranty

30-Day Returns

Unlimited Free Support

The LulzBot HS Tool Head is designed for high-strength 3D printing, perfect for engineers who need robust parts and faster printing times. Ideal for producing functional jigs, fixtures, and prototypes on-site, it significantly reduces lead time and cost.

Equipped with a hardened steel nozzle and extruder hobb, this extruder head can print high-strength composite polymers with tensile strength comparable to PEEK (15,200 psi - ASTM638). These polymers are suitable for demanding applications, including structural components and the automotive industry.

Printed parts exhibit higher impact resistance, resist deformation, and maintain strength in harsh environments. Industrial materials like PA-CF Low Warp offer strength and dimensional stability (less than 2% elongation at break - ASTM638) and can perform at high temperatures up to 120°C (248°F).

Filament Tension Settings

Specs

Extruder Type Single Extruder, Legacy
Filament Diameter 2.85mm
Maximum Flow Rate Test Data Unavailable
Flow Testing Test Data Unavailable
Nozzle Diameter 0.8mm Hardened Steel
Nozzle Layer Height Range 0.4mm (400 microns) to 0.6mm (600 microns)
Nozzle Swapping Not Supported
Swappable Layer Height Range Not Supported
Maximum Hot End Temperature 290°C (554°F) - Firmware Limited
Compatible Filaments PLA, TPU, ABS, PETg, PVB, Nylon, PC, and others below 290°C
Filament Tension Method Adjustable via Knob, Spring Loaded Idler
Extruder Drive Type Direct-Drive, Gear & Idler
Extruder E-Steps 420 steps/mm
Leveling System Compatibility Automatic 5V Circuit, Automatic BLTouch
PTFE Guide Tube Attachment 3D Printed Clamp
Tool Head Weight 609g (21.5oz)
Tool Head Warranty 90-Days
Country of Origin USA


Construction Materials

Nozzle Material Hardened Steel
Heater Block Material Aluminum, Volcano Configuration
Heat Break Material Stainless Steel
Fan Shroud and Mount Material Polymaker ABS
Cold Block and Heat Sink Material Aluminum
Drive Gear Material Plastic Drive and Hardened Steel Hobb
Extruder Motor Size 48mm, 1.8° NEMA 17 Stepper
Heater Cartridge 24V, 40W
Temperature Sensor 100k Semitec NTC Thermistor
Part Cooling Fan 24V DC Centrifugal Blower
Heat Sink Fan 5V DC Axial Fan



Compatible Printers

TAZ SideKick SideKick 289, SideKick 747
Mini Platform Mini 1(with Adapter), Mini 2
TAZ Workhorse TAZ 6(with Adapter), Workhorse, Workhorse+
TAZ Pro Platform Pro, Pro S, Pro XT
