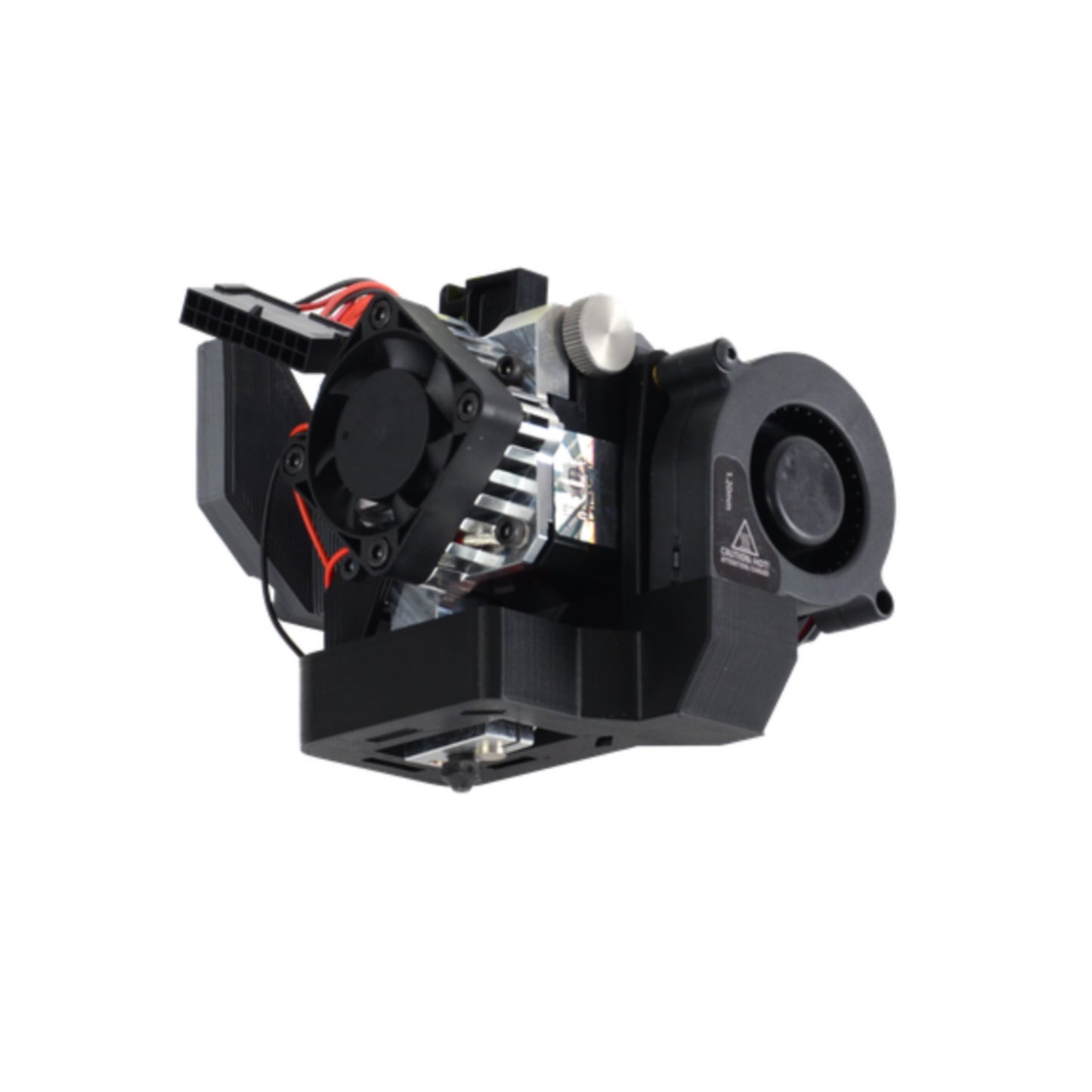

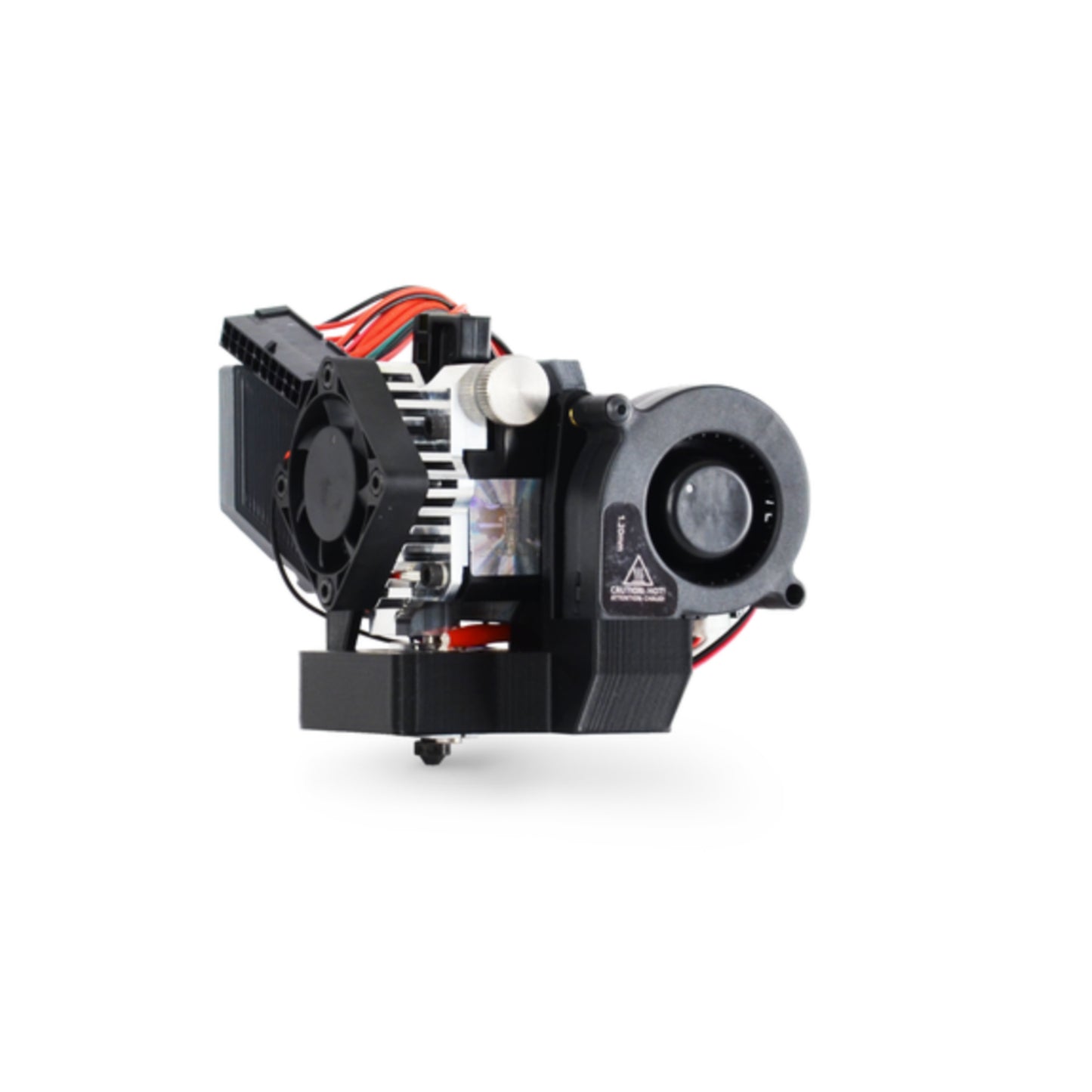

LulzBot HS+ Tool Head | Hardened Steel | 1.2 mm KT-CP0134

LulzBot HS+ Tool Head | Hardened Steel | 1.2 mm KT-CP0134

Regular price $395.00 USD
Regular price Sale price $395.00 USD
Sale Sold out

In stock

Includes Warranty

30-Day Returns

Unlimited Free Support

High-Performance Industrial 3D Printer Extruder Head

Revolutionize your manufacturing with our high-performance industrial 3D printer extruder head, designed to produce high-strength parts with exceptional dimensional stability in even the harshest environments, all in a fraction of the time.

Key Features:
- High-Speed Extrusion: Equipped with a large 1.2 mm nozzle diameter and the massive E3D Volcano Heater Block with an elongated melting zone, paired with the E3D Titan Extruder, this extruder head achieves impressive extrusion rates of up to 205 grams/hour.
- Durable Construction: Featuring a hardened steel nozzle and extruder hob, this extruder head is built to withstand the demands of industrial 3D printing.
- Advanced Composite Printing: Capable of printing high-strength composite polymers with tensile strengths comparable to PEEK (15,200 psi - ASTM638), making it ideal for a variety of high-demand applications, from structural components to the automotive industry.

Performance Benefits:
- Superior Strength and Stability: Parts printed with these advanced composites exhibit higher impact resistance and superior deformation resistance, retaining their strength in demanding environments.
- Industrial-Grade Materials: Utilize materials like PA-CF Low Warp, which combine remarkable strength and dimensional stability (less than 2% elongation at break - ASTM638) with high-temperature performance up to 120°C (248°F).

Upgrade your 3D printing capabilities with this state-of-the-art extruder head, and produce industrial-grade parts faster and more efficiently than ever before.

Filament Tension Settings

Specs

Extruder Type Single Extruder, Legacy
Filament Diameter 2.85mm
Maximum Flow Rate Test Data Unavailable
Flow Testing Test Data Unavailable
Nozzle Diameter 1.2mm Hardened Steel
Nozzle Layer Height Range 0.6mm (600 microns) to 0.9mm (900 microns)
Nozzle Swapping Not Supported
Swappable Layer Height Range Not Supported
Maximum Hot End Temperature 290°C (554°F) - Firmware Limited
Compatible Filaments PLA, TPU, ABS, PETg, PVB, Nylon, PC, and others below 290°C
Filament Tension Method Adjustable via Knob, Spring Loaded Idler
Extruder Drive Type Direct-Drive, Gear & Idler
Extruder E-Steps 420 steps/mm
Leveling System Compatibility Automatic 5V Circuit, Automatic BLTouch
PTFE Guide Tube Attachment 3D Printed Clamp
Tool Head Weight 609g (21.5oz)
Tool Head Warranty 90-Days
Country of Origin USA


Construction Materials

Nozzle Material Hardened Steel
Heater Block Material Aluminum, Volcano Configuration
Heat Break Material Stainless Steel
Fan Shroud and Mount Material Polymaker ABS
Cold Block and Heat Sink Material Aluminum
Drive Gear Material Plastic Drive and Hardened Steel Hobb
Extruder Motor Size 48mm, 1.8° NEMA 17 Stepper
Heater Cartridge 24V, 40W
Temperature Sensor 100k Semitec NTC Thermistor
Part Cooling Fan 24V DC Centrifugal Blower
Heat Sink Fan 5V DC Axial Fan



Compatible Printers

TAZ SideKick SideKick 289, SideKick 747
Mini Platform Mini 1(with Adapter), Mini 2
TAZ Workhorse TAZ 6(with Adapter), Workhorse, Workhorse+
TAZ Pro Platform Pro, Pro S, Pro XT
