LulzBot M175 v2 Tool Head | Carbide Coated Copper | 0.5 mm KT-CP0175

LulzBot M175 v2 Tool Head | Carbide Coated Copper | 0.5 mm KT-CP0175

Regular price $375.00 USD
Regular price Sale price $375.00 USD
Sale Sold out

In stock

Includes Warranty

30-Day Returns

Unlimited Free Support

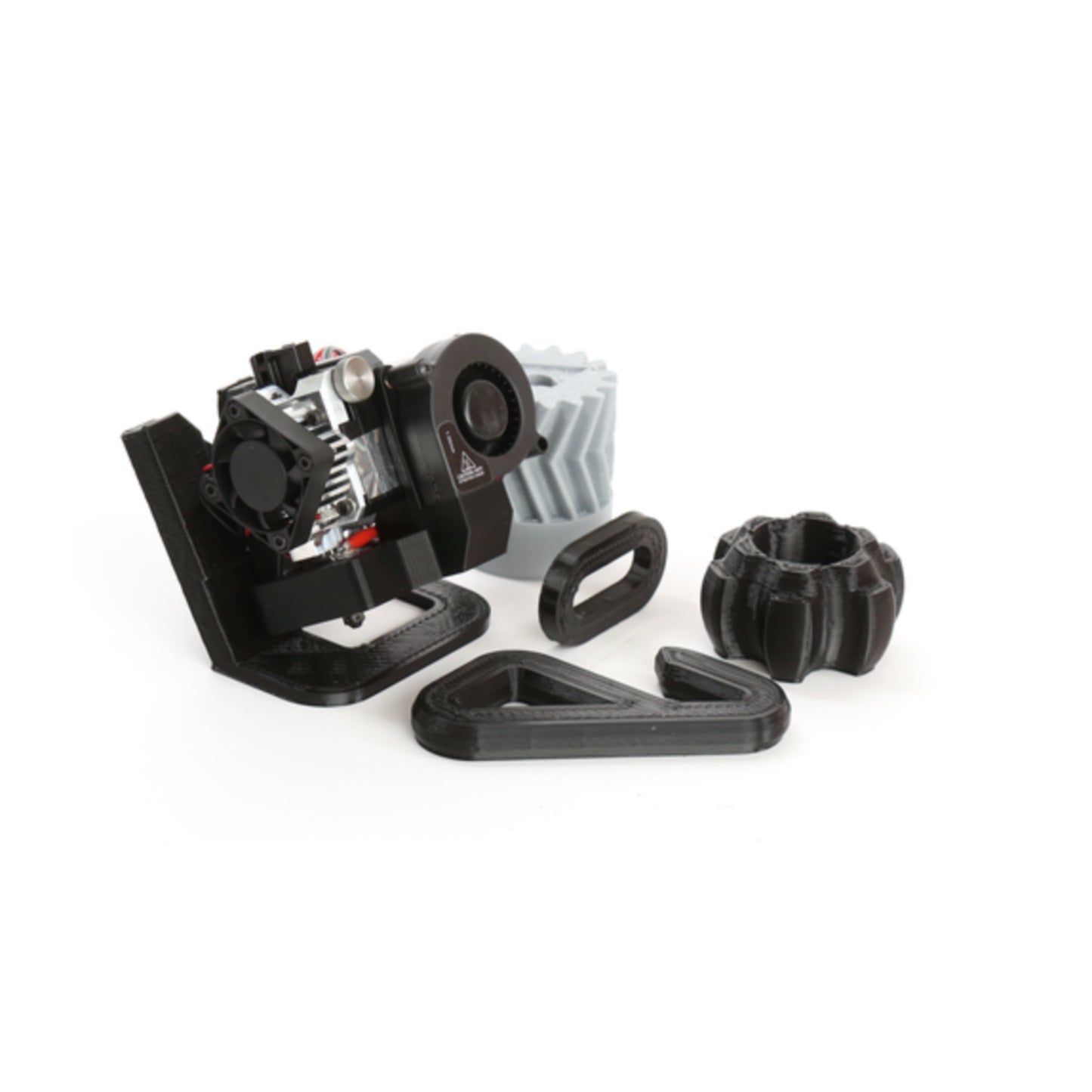

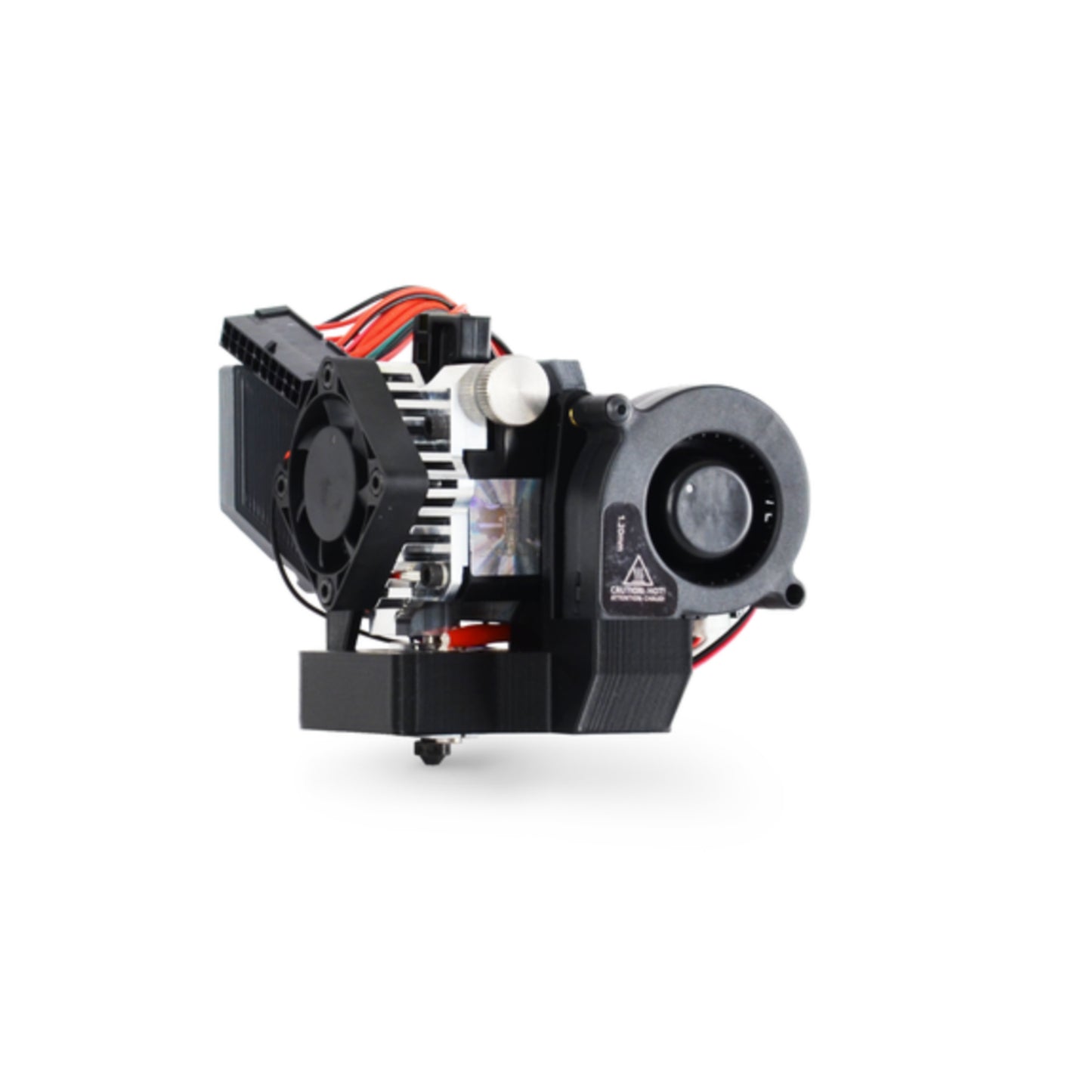

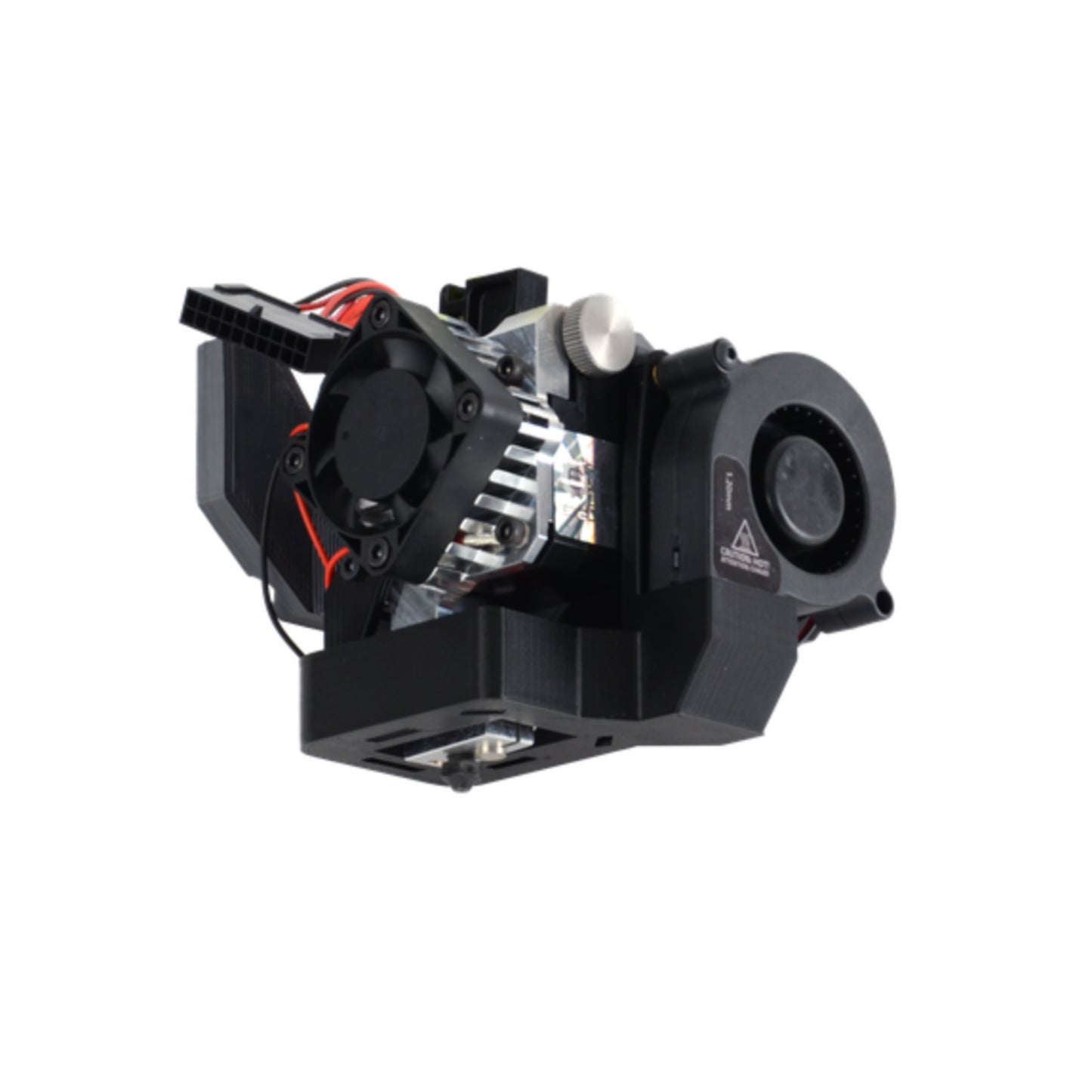

M175 v2 Tool Head | Carbide Coated Copper | 0.5 mm

Enhance your 3D printing experience with the M175 v2 Tool Head, engineered for precision and durability. Featuring a carbide-coated copper nozzle, this tool head is designed to deliver exceptional print quality and performance, making it a perfect choice for detailed and high-strength applications.

 Key Features:
- Precision Printing: The 0.5 mm nozzle diameter ensures fine detail and accuracy, ideal for intricate designs and complex geometries.
- Advanced Material: The carbide-coated copper nozzle combines excellent thermal conductivity with extreme durability, ensuring consistent extrusion and prolonged nozzle life.
- Versatile Applications: Capable of printing a wide range of materials, from standard filaments to high-performance composites, making it suitable for various industrial and engineering applications.

Performance Benefits:
- High-Quality Outputs: Achieve superior print quality with smooth finishes and precise dimensions, thanks to the precision-engineered nozzle.
- Durability and Reliability: The carbide coating enhances the wear resistance of the copper nozzle, maintaining performance over extended use and reducing the need for frequent replacements.
- Efficient Heat Transfer: The copper nozzle's excellent thermal conductivity ensures rapid heating and stable extrusion temperatures, improving print consistency and reducing potential defects.

Upgrade your 3D printing capabilities with the M175 v2 Tool Head and experience the perfect balance of precision, durability, and versatility. Ideal for professionals and enthusiasts alike, this tool head sets a new standard in high-quality 3D printing.

Specs

Extruder Type Single Extruder, Legacy
Filament Diameter 2.85mm
Maximum Flow Rate Test Data Unavailable
Flow Testing Test Data Unavailable
Nozzle Diameter 0.5mm Carbide Coated Copper
Nozzle Layer Height Range 0.18mm (180 microns) to 0.38mm (380 microns)
Nozzle Swapping Not Supported
Swappable Layer Height Range Not Supported
Maximum Hot End Temperature 290°C (554°F) - Firmware Limited
Compatible Filaments PLA, TPU, ABS, PETg, PVB, Nylon, PC, and others below 290°C
Filament Tension Method Adjustable via Knob, Spring Loaded Idler
Extruder Drive Type Direct-Drive, Gear & Idler
Extruder E-Steps 420 steps/mm
Leveling System Compatibility Automatic 5V Circuit, Automatic BLTouch
PTFE Guide Tube Attachment 3D Printed Clamp
Tool Head Weight 491g (17.3oz)
Tool Head Warranty 90-Days
Country of Origin USA


Construction Materials

Nozzle Material Carbide Coated Copper
Heater Block Material Aluminum, V6 Configuration
Heat Break Material Stainless Steel
Fan Shroud and Mount Material Polymaker ABS
Cold Block and Heat Sink Material Aluminum
Drive Gear Material Plastic Drive and Steel Hobb
Extruder Motor Size 34mm, 1.8° NEMA 17 Stepper
Heater Cartridge 24V, 40W
Temperature Sensor 100k Semitec NTC Thermistor
Part Cooling Fan 24V DC Centrifugal Blower
Heat Sink Fan 5V DC Axial Fan



Compatible Printers

TAZ SideKick SideKick 289, SideKick 747
Mini Platform Mini 1(with Adapter), Mini 2
TAZ Workhorse TAZ 6(with Adapter), Workhorse, Workhorse+
TAZ Pro Platform Pro, Pro S, Pro XT
