LulzBot SL Tool Head | Nickel Plated Copper | 0.25 mm KT-CP0138

LulzBot SL Tool Head | Nickel Plated Copper | 0.25 mm KT-CP0138

Regular price $305.00 USD
Regular price Sale price $305.00 USD
Sale Sold out

In stock

Includes Warranty

30-Day Returns

Unlimited Free Support

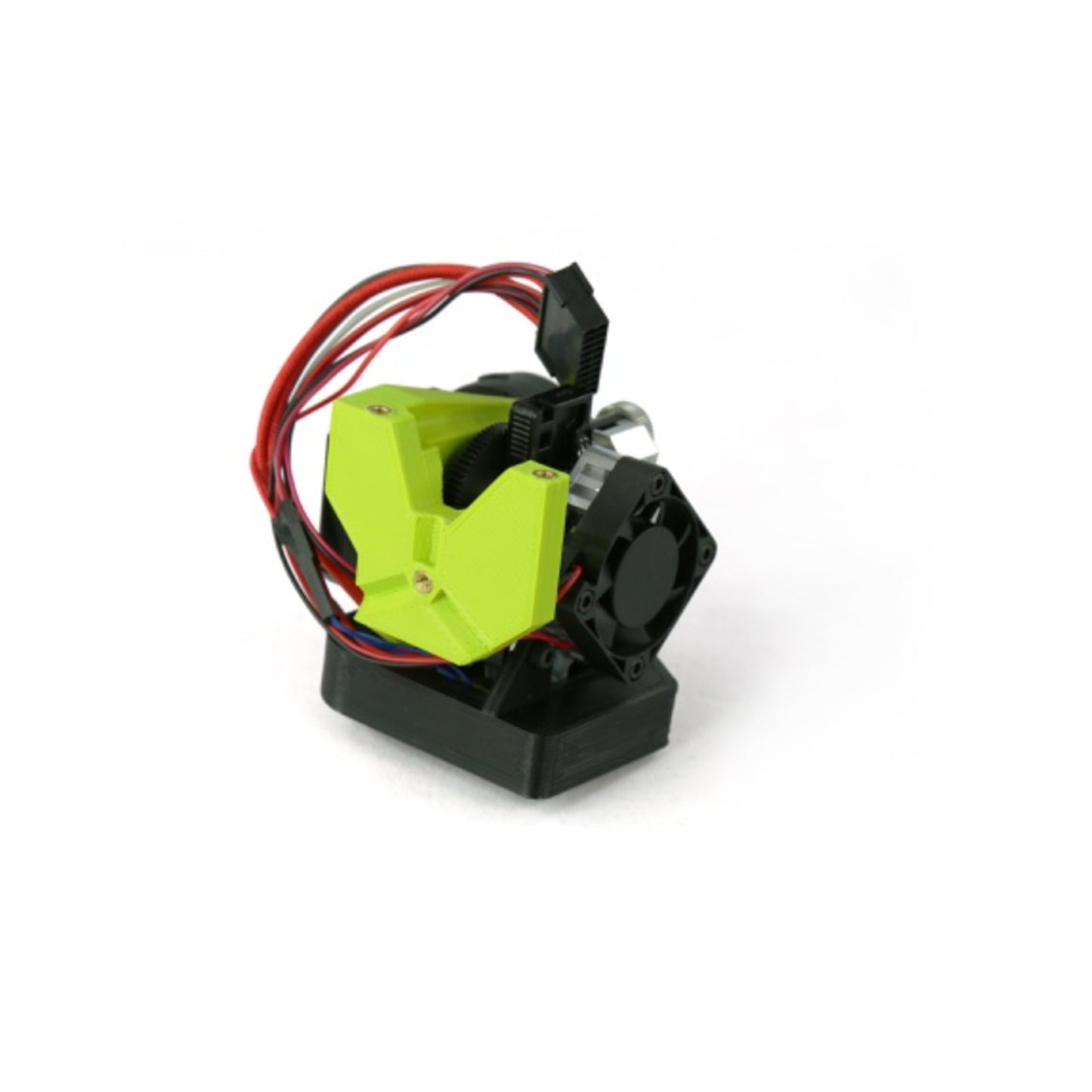

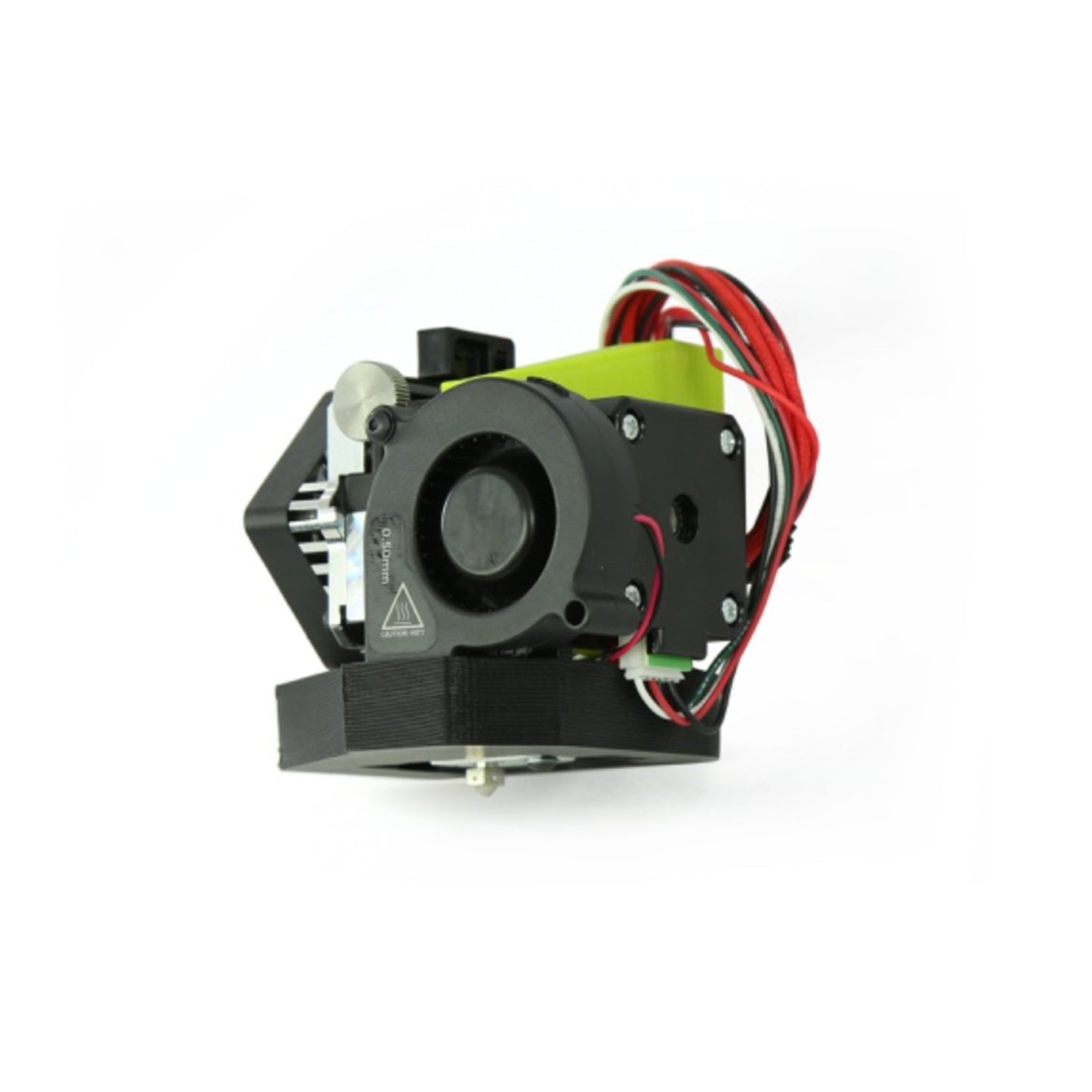

Discover unmatched versatility and precision with the LulzBot SE Tool Head. Engineered with the Universal Mounting System and equipped with the renowned E3D Titan Aero Hot End and Extruder, this tool head supports a wide range of 3D printing materials, both rigid and flexible.

The LulzBot SE Tool Head comes with a genuine E3D Titan Aero Extruder/Hot End featuring a 0.50 millimeter nozzle, ready for out-of-the-box 3D printing with over 35 materials, including flexible filaments.

A high-output centrifugal fan and quad-port cooling duct ensure exceptional print quality, providing 360-degree filament cooling to prevent sagging during complex prints and extensive bridging.

The Universal Mounting System allows for quick and effortless tool head swaps, ensuring you always have the perfect tool for any job in just minutes.

Filament Tension Settings

Specs

Extruder Type Single Extruder, Legacy
Filament Diameter 2.85mm
Maximum Flow Rate Test Data Unavailable
Flow Testing Test Data Unavailable
Nozzle Diameter 0.5mm Nickel Plated Copper
Nozzle Layer Height Range 0.18mm (180 microns) to 0.38mm (380 microns)
Nozzle Swapping Not Supported
Swappable Layer Height Range Not Supported
Maximum Hot End Temperature 290°C (554°F) - Firmware Limited
Compatible Filaments PLA, TPU, ABS, PETg, PVB, Nylon, PC, and others below 290°C
Filament Tension Method Adjustable via Knob, Spring Loaded Idler
Extruder Drive Type Direct-Drive, Gear & Idler
Extruder E-Steps 420 steps/mm
Leveling System Compatibility Automatic 5V Circuit, Automatic BLTouch
PTFE Guide Tube Attachment 3D Printed Clamp
Tool Head Weight 491g (17.3oz)
Tool Head Warranty 90-Days
Country of Origin USA


Construction Materials

Nozzle Material Nickel Plated Copper
Heater Block Material Aluminum, V6 Configuration
Heat Break Material Stainless Steel
Fan Shroud and Mount Material Polymaker ABS
Cold Block and Heat Sink Material Aluminum
Drive Gear Material Plastic Drive and Steel Hobb
Extruder Motor Size 34mm, 1.8° NEMA 17 Stepper
Heater Cartridge 24V, 40W
Temperature Sensor 100k Semitec NTC Thermistor
Part Cooling Fan 24V DC Centrifugal Blower
Heat Sink Fan 5V DC Axial Fan



Compatible Printers

TAZ SideKick SideKick 289, SideKick 747
Mini Platform Mini 1(with Adapter), Mini 2
TAZ Workhorse TAZ 6(with Adapter), Workhorse, Workhorse+
TAZ Pro Platform Pro, Pro S, Pro XT
