LulzBot TAZ 8 FDM 3D Printer AS-TH0095

LulzBot TAZ 8 FDM 3D Printer AS-TH0095

Regular price $5,395.00 USD
Regular price Sale price $5,395.00 USD
Sale Sold out

In stock

Includes Warranty

30-Day Returns

Unlimited Free Support

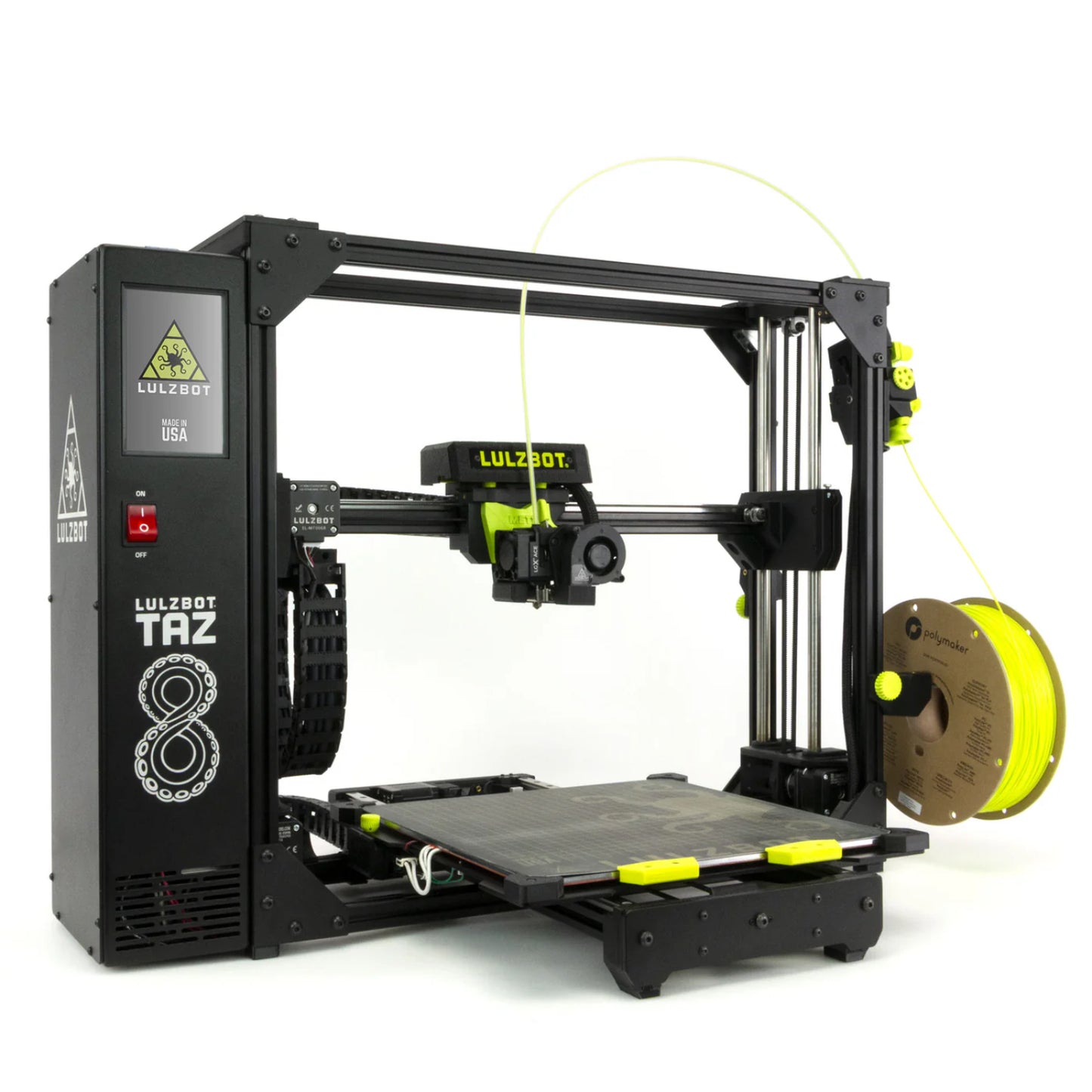

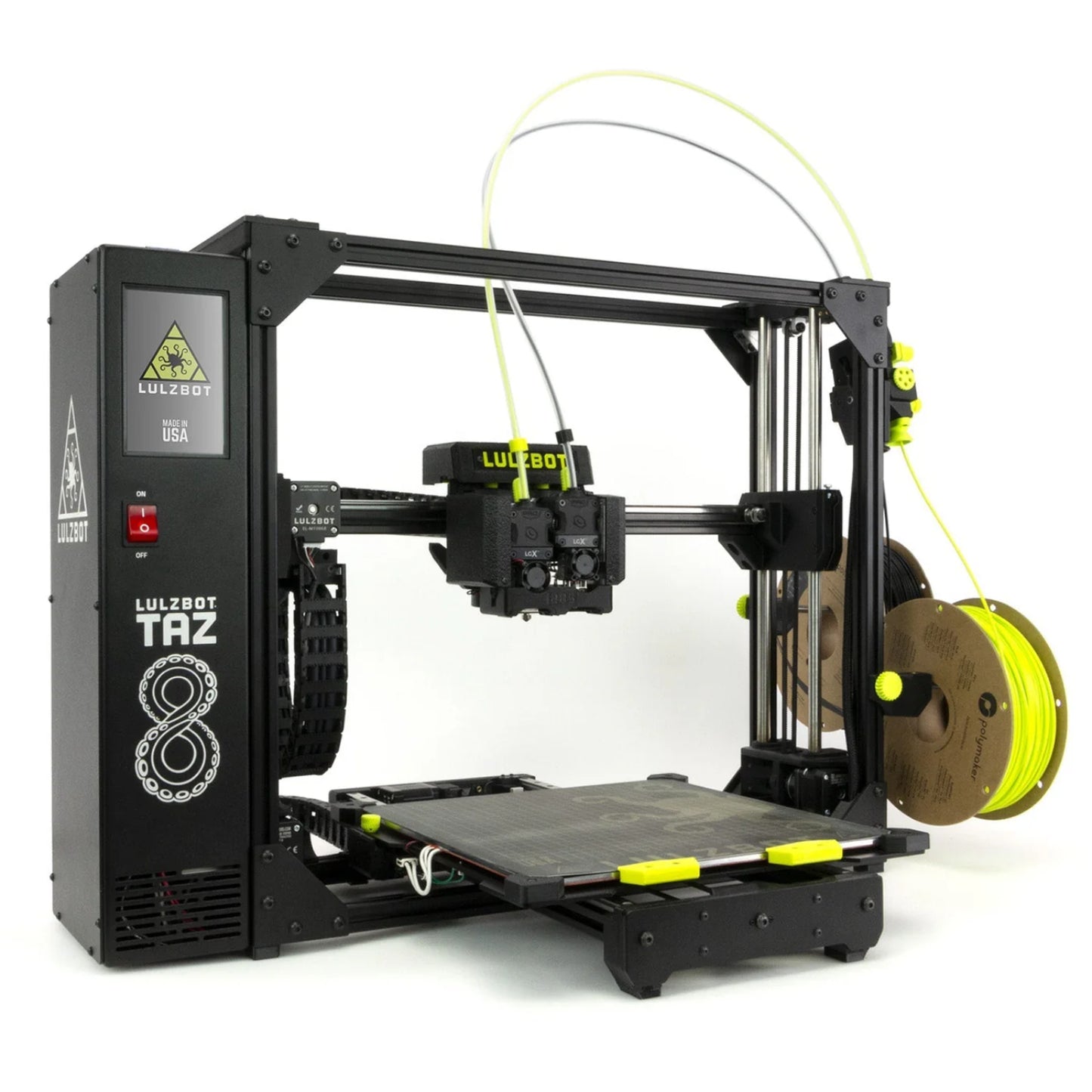

LulzBot TAZ 8 – Precision & Performance Redefined

The LulzBot TAZ 8 is the next evolution in industrial-grade 3D printing, designed for unmatched accuracy, speed, and reliability. Featuring a high-performance linear rail motion system, it ensures smooth, precise, and repeatable prints, making it the perfect choice for professionals, businesses, and educators.

Built for versatility and efficiency, the TAZ 8 supports a wide range of materials, from PLA and TPU to Nylon and PC, allowing for advanced applications across multiple industries. With an automatic bed leveling system, true tramming calibration, and a robust motion system, this printer significantly reduces setup time and ensures high-quality results with minimal user intervention.

  • Large Build Volume: 285 x 285 x 285 mm, allowing for sizable and complex prints
  • Precision Printing:
    • Layer height range from 0.1mm to 0.4mm
    • X/Y positional resolution of 10 microns
    • Z positional resolution of 1.9 microns
  • High-Speed Performance: Capable of reaching 500 mm/s travel speed for increased productivity

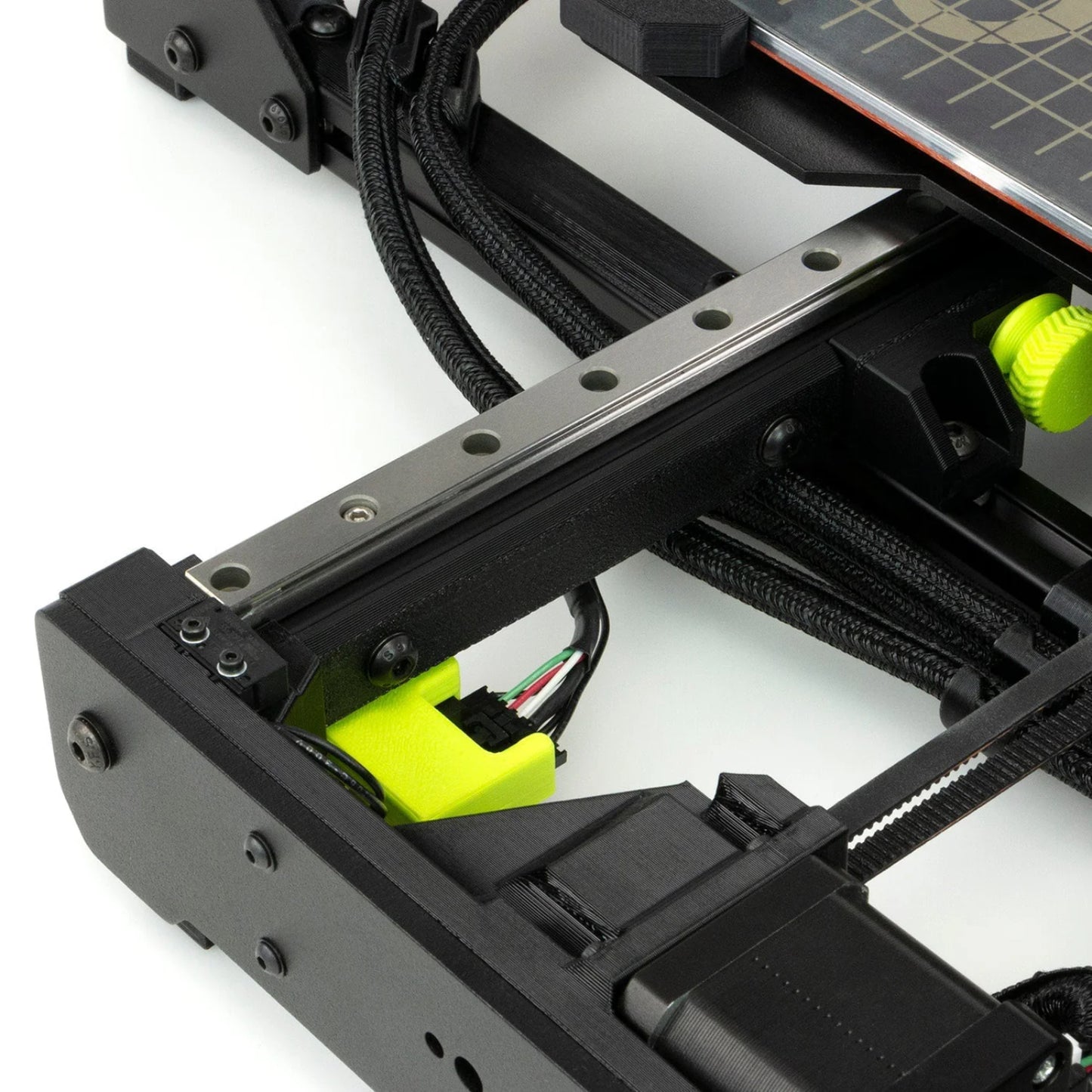

  • Advanced Motion System: GT2 belt drive, linear rails for X and Y axes, and polymer bushings for smooth and precise movement
  • Automatic Calibration & Leveling: BLTouch 16-point mesh leveling, automatic X-axis tramming, Z-offset, and backlash compensation
  • Reliable Hot End & Bed:
    • Maximum Hot End Temperature: 290°C, supporting a wide range of filaments
    • Magnetic Flex Bed System: Heats up to 110°C for optimal adhesion and easy part removal
  • Smart Filament Management: Runout and stripping detection prevents failed prints
  • Connectivity Options: USB serial and SD card for standalone printing
  • Cross-Platform Compatibility: Works with Windows, macOS, and Linux, supporting file formats like STL, OBJ, X3D, and 3MF

Engineered for Performance and Reliability

The LulzBot TAZ 8 is powered by a 32-bit Archim 2.2b mainboard with Trinamic TMC2130 drivers, ensuring smooth operation and precise control. The Marlin firmware optimizes print quality while providing a user-friendly interface for customization.

Designed for both high-performance prototyping and production, the TAZ 8 integrates seamlessly into workflows that demand consistency and reliability. It is an ideal solution for businesses looking to maximize output while minimizing downtime, backed by a one-year warranty with extended options available.

Specs

Category Specification
3D Printing Technology FFF (Fused Filament Fabrication)
Build Volume 285 x 285 x 285 mm (11.22 x 11.22 x 11.22 inches)

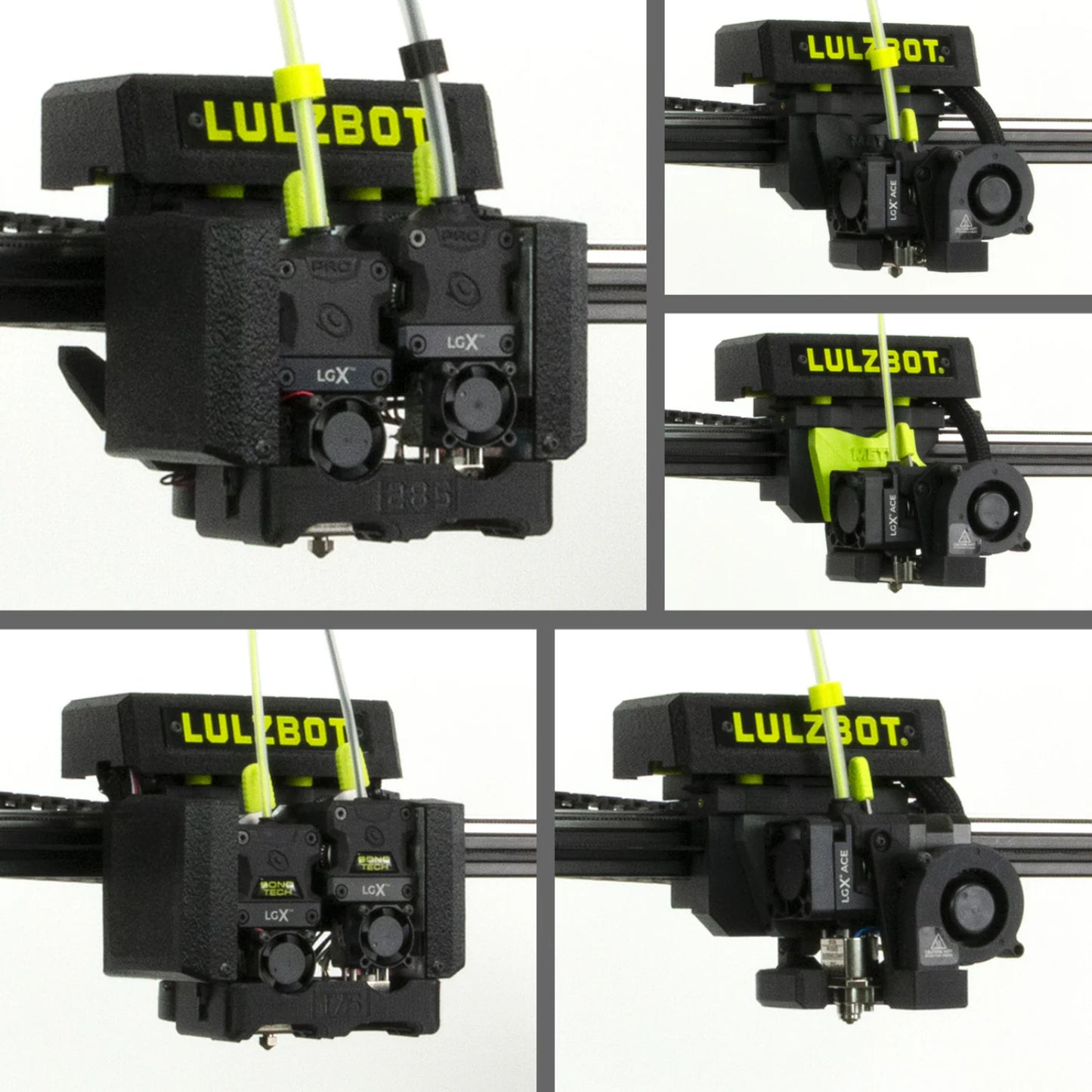

Standard Tool Head Model Any Galaxy Series Tool Head
Equipped Layer Height Range 0.1mm (100 microns) to 0.4mm (400 microns)
Platform Layer Height Capabilities 0.05mm (50 microns) to 1.8mm (1800 microns)
Nozzle Diameter & Material 0.5mm Nickel Plated Brass
Maximum Hot End Temperature 290°C (554°F) - Firmware Limited
XYZ Positional Resolution X and Y axes - 0.01mm (10 microns), Z axis - 0.0019mm (1.9 microns)
Movement System GT2 Belt Drive, Linear Rails X&Y, 12mm Igus SST Rods and Polymer Bushings Z
Maximum Travel Speed 500 mm/s - Firmware Limited
Print Bed Heater 360W 24V Silicon
Print Bed Material Magnetic Flex Bed System
Maximum Print Bed Temperature 110°C (230°F)
Filament Diameter Compatibility 2.85mm or 1.75mm (Tool Head Dependent)
Filament Sensor Runout and Stripping Detection
Mainboard 32-bit Archim 2.2b with Trinamic TMC2130 drivers and Xpand board
Firmware Marlin
Bed Leveling System Automatic BLTouch 16-Point Mesh
Calibration Automatic X-Axis True Tramming, Z-Offset, and Backlash Compensation
Power Supply 500W 24V Mean Well, Auto-Switching
Power Input 100VAC-240VAC
Slicer Software Recommendation Cura LE (LulzBot Edition)
OS Compatibility Windows, macOS, Linux
Supported File Formats STL, OBJ, X3D, 3MF
Operating Temperature Range 41°F to 113°F (5°C to 45°C)
Supported Print Materials PLA, TPU, ABS, PETg, PVA, PVB, Nylon, PC, and others below 290°C
Enclosure Optional Accessory Available
Connectivity Options USB Serial, Includes 8GB SD Card for Standalone Printing
Certifications -
Warranty 1-year standard with options for extended warranties
Country of Origin USA


Included with the Purchase

Item Quantity
LulzBot TAZ 8 3D Printer 1
Premium Tool Kit 1
Polylite LulzBot Green PLA (1kg) 1
Polylite True Black PLA (1kg) 1
LulzBot 8GB SD Card 1
LulzBot Die-Cut Sticker 1
Standard 1-Year Warranty 1
Unlimited Access to LulzLessons Curriculum N/A
Unlimited Downloads of Cura LE Software N/A


Owner's Manual

View LulzBot TAZ 8 User Manual
