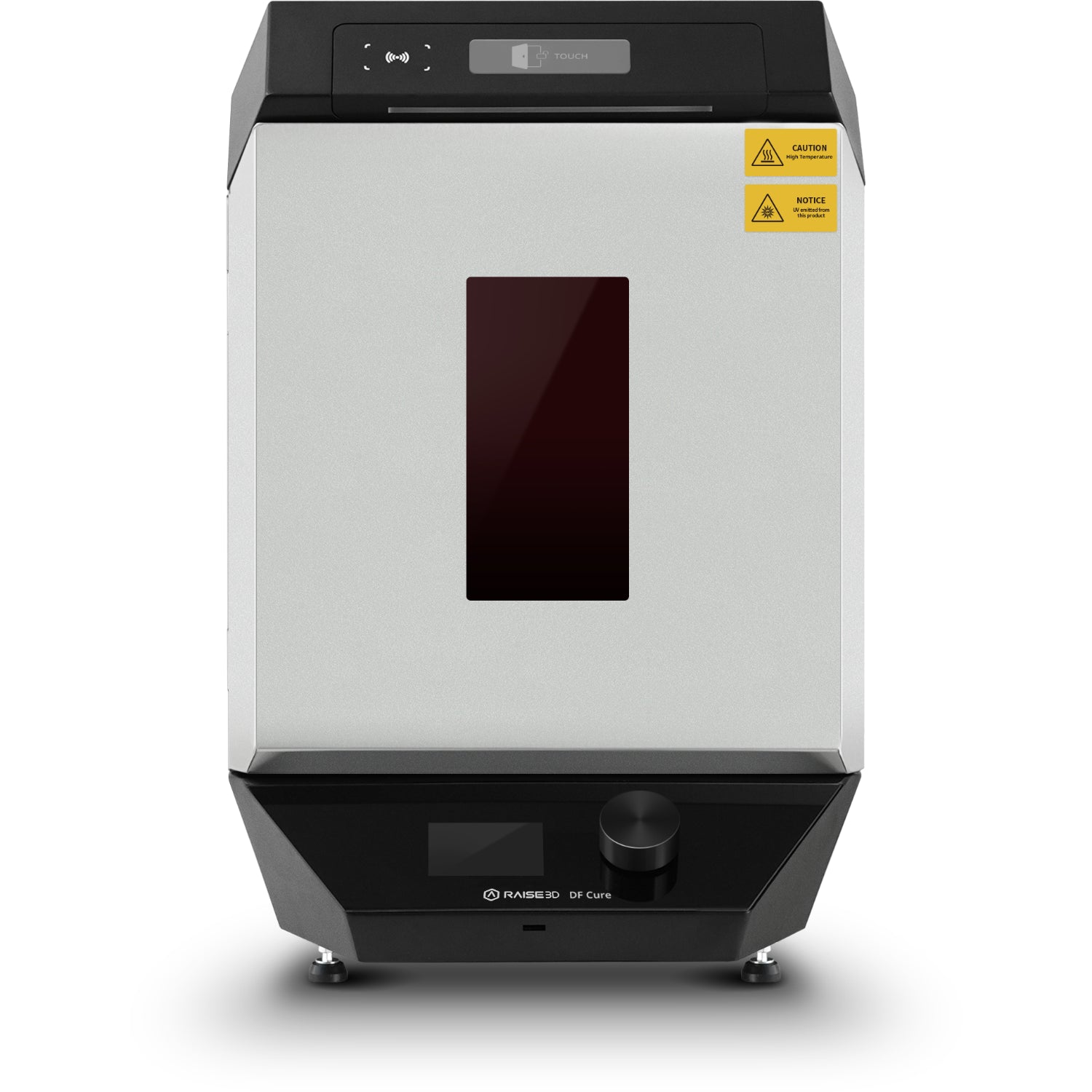

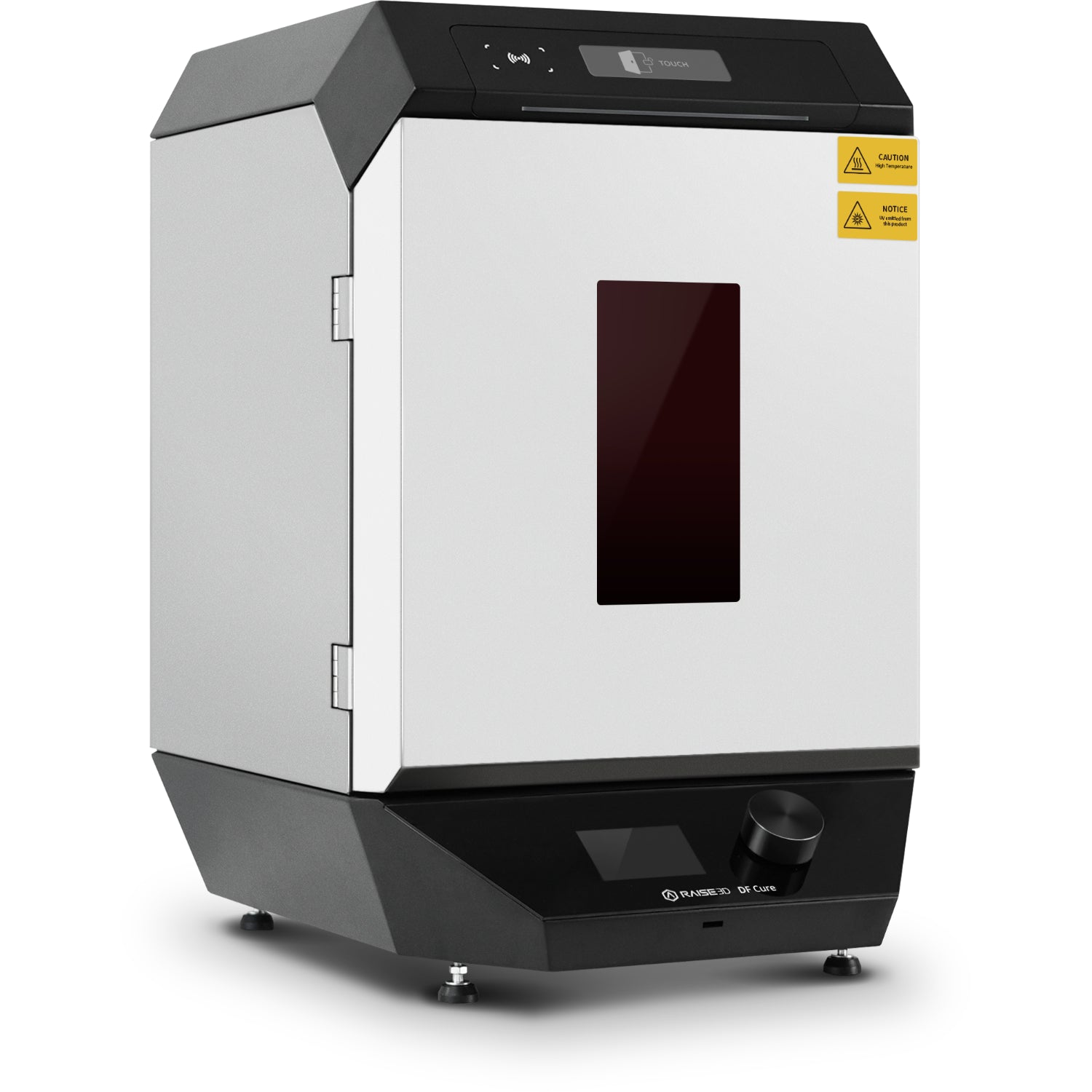

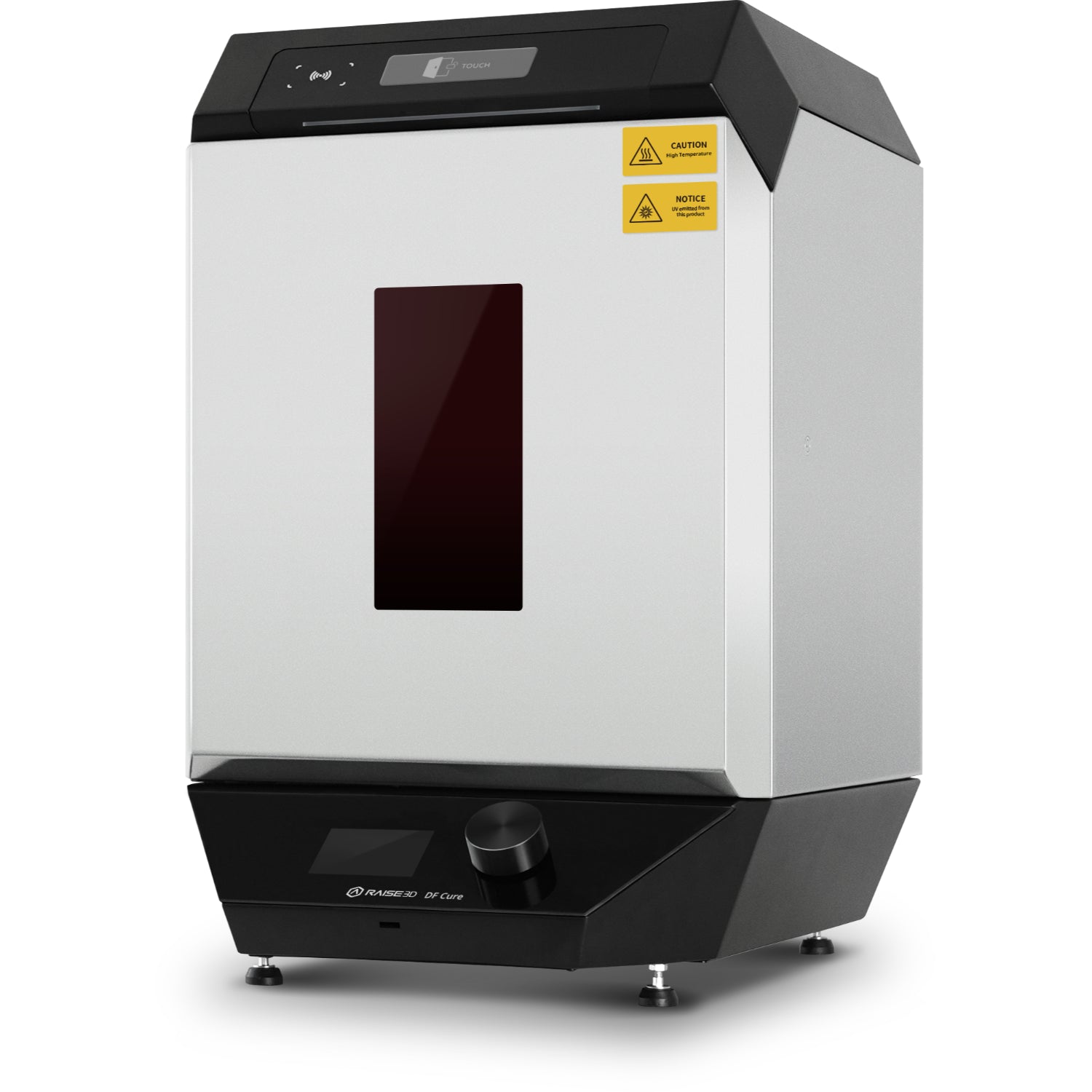

Raise3D DF Cure

Traceable, High-Performance UV Curing for Professional Resin Production

The Raise3D DF Cure is a powerful, industrial-grade curing station engineered for precision resin post-processing. Designed to deliver consistent, repeatable, and traceable curing results, DF Cure combines multi-wavelength UV LEDs with high-temperature air heating, making it ideal for engineering, dental, and production resin workflows.

With RFID-enabled curing profiles, customizable parameters, and uniform 360° exposure, DF Cure ensures every part reaches its optimal mechanical and thermal performance.


Why Choose Raise3D DF Cure

  • Multi-wavelength UV curing (365 / 385 / 405 nm)

  • High-temperature air heating up to 120°C

  • RFID-enabled traceable curing profiles

  • Uniform curing for consistent mechanical properties

  • Designed for professional DLP production environments

  • Seamless integration with Raise3D DF Wash & DF printers


Advanced Multi-Wavelength UV Curing

Raise3D DF Cure uses a mixed LED UV light source (365 nm, 385 nm, 405 nm) to ensure compatibility with a wide range of engineering and industrial resins.

  • Uniform 360° UV exposure

  • Improved surface finish and part strength

  • Reduced under-curing and shadowing

  • Consistent curing across batches


High-Temperature Air Heating (Up to 120°C)

Integrated air heating enables:

  • Enhanced mechanical performance

  • Improved thermal resistance

  • Faster post-processing cycles

  • Compatibility with high-performance resins

This combination of UV + heat curing ensures parts meet end-use and functional requirements.


RFID-Enabled Smart Workflow

DF Cure supports RFID-based curing profiles, allowing the system to:

  • Automatically load correct curing parameters

  • Reduce operator errors

  • Maintain traceability and consistency

  • Support regulated and production environments

Profiles can also be manually entered when required.


Technical Specifications

Curing System

Specification Details
Max Curing Size Ø230 × 300 mm
UV Light Source LED (365 nm, 385 nm, 405 nm mixed)
Max Air Heating Temperature 120°C
Cure Profiles RFID auto-set or manual entry

Machine Specifications

Specification Details
Machine Size (W × D × H) 490 × 400 × 610 mm
Net Weight 31.95 kg (72.3 lbs)
Gross Weight 45.5 kg (100.3 lbs)
Power Input 100–240 V AC, 50/60 Hz
Power Consumption 500 W

Operating & Storage Conditions

Condition Range
Operating Temperature 10°C – 35°C
Storage Temperature -25°C to 55°C
Storage Humidity 10–90% RH, non-condensing

Shipping Dimensions

Item Dimensions
DF Cure Shipping Size 725 × 585 × 850 mm

Included in the Purchase

Included Component Description
Curing Tray Secure placement for parts during curing
Heat Resistant Gloves Safe handling of heated parts

Installation

  1. Unpack
    Cut straps and tape. Remove the outer box, power cord, tray, firmware kit, gloves, and protective packaging. Use two people to lift the unit safely.

  2. Position Unit
    Place on a stable, ventilated, dry surface with clearance:

    • 30 cm on each side

    • 40 cm front

    • 20 cm back and top

  3. Power On
    Connect to a grounded outlet and turn on the machine. Open the front door using the touch button.

  4. Install Tray & Start
    Align tray pins with slots, insert until it clicks, close the door, and begin curing.


Ideal Applications

  • DLP resin post-curing

  • Engineering and industrial resin parts

  • Dental and medical models

  • End-use resin components

  • Production resin workflows requiring traceability
