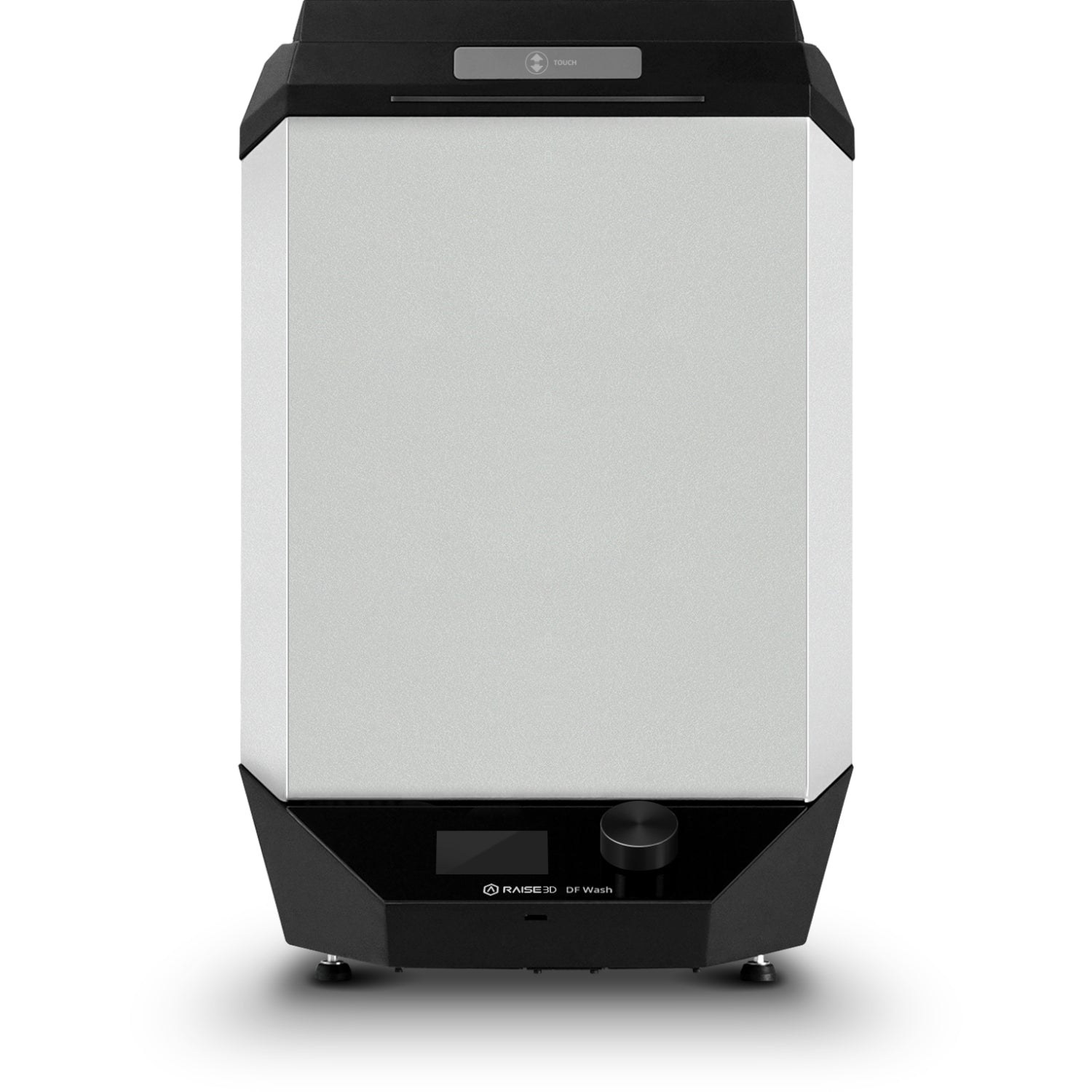

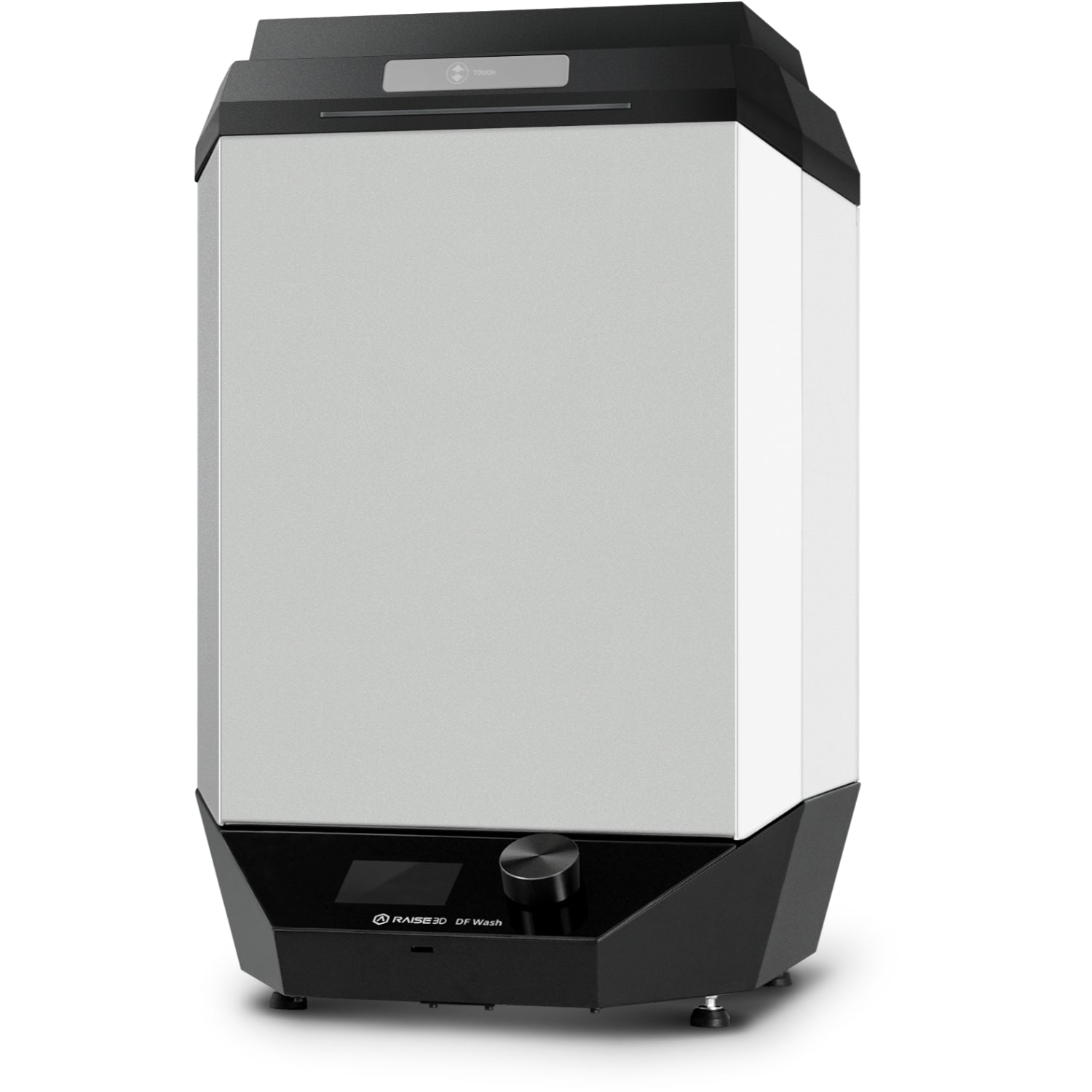

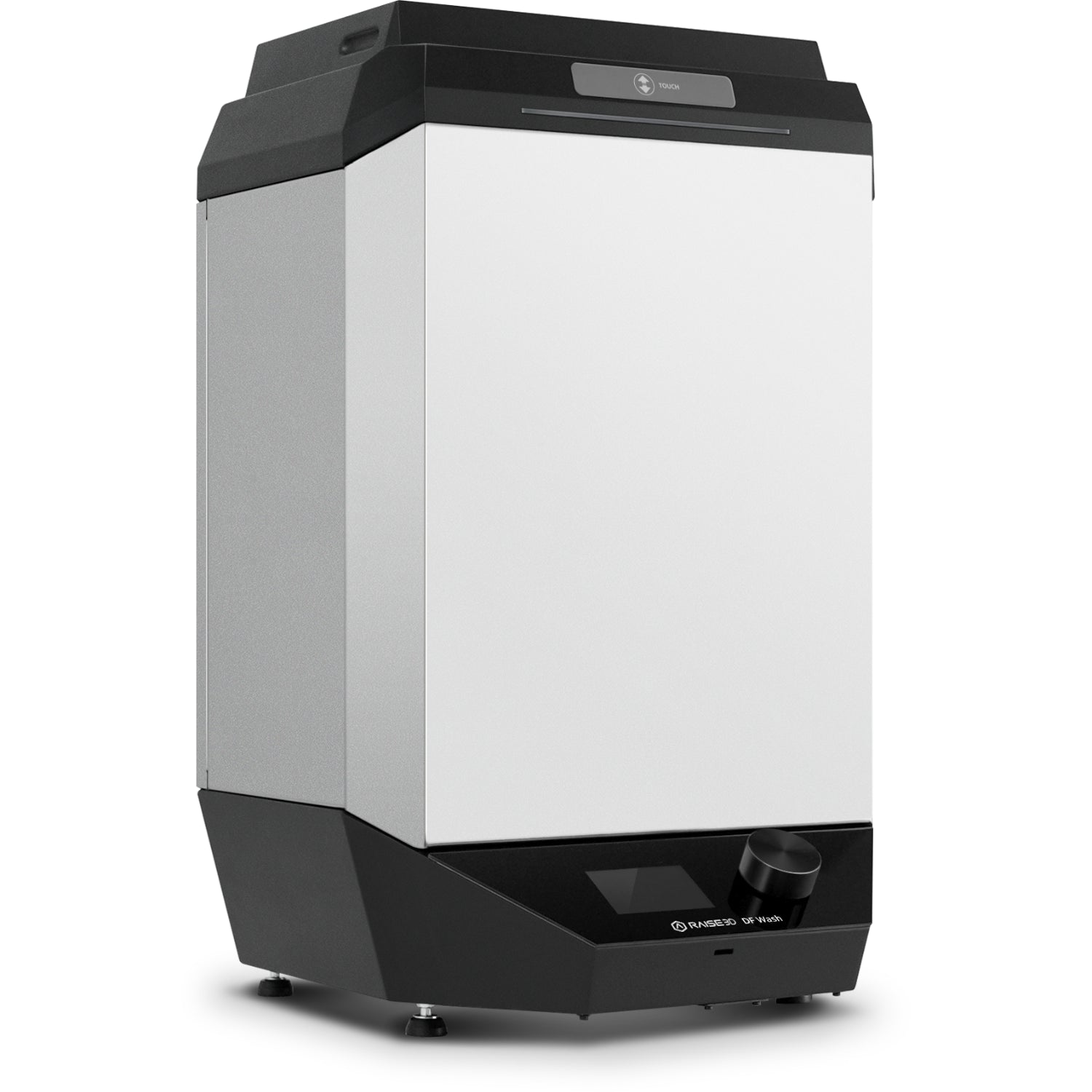

Raise3D DF Wash

Automated, Controlled Post-Processing for DLP & Resin 3D Printing

The Raise3D DF Wash is a process-controllable, automated washing solution designed for professional DLP and resin 3D printing workflows. Built for efficiency, consistency, and easy maintenance, DF Wash delivers repeatable cleaning results while reducing manual handling, solvent exposure, and post-processing variability.

With RFID-enabled workflow control, automatic liquid drainage, and twin-turbo washing technology, DF Wash ensures cleaner parts, safer operation, and streamlined production.


Why Choose Raise3D DF Wash

  • Automated, repeatable resin part cleaning

  • RFID-enabled workflow integration

  • Twin-turbo washing for uniform results

  • Automatic solvent drainage and waste handling

  • Double fan air drying for faster turnaround

  • Designed for professional DLP production environments


High-Efficiency Automated Washing

Raise3D DF Wash uses twin-turbo washing technology, simulating manual hand washing through controlled agitation while ensuring consistent solvent flow across all part surfaces.

  • Uniform cleaning results

  • Reduced resin residue

  • Minimal operator intervention

  • Consistent results across batches


RFID-Enabled Smart Workflow

DF Wash integrates RFID print platform support, allowing the system to:

  • Automatically load wash profiles

  • Reduce operator setup errors

  • Ensure repeatable cleaning parameters

  • Maintain traceable post-processing workflows

Wash profiles can also be manually entered when needed.


Integrated Drying & Waste Management

Double Fan Air Drying

  • Accelerates drying after washing

  • Reduces solvent carryover

  • Improves post-cure readiness

Automatic Liquid Drainage

  • One-touch solvent drainage

  • Reduces handling risks

  • Waste directed into dedicated container


Compatible Solvents

  • IPA (Isopropyl Alcohol)

  • TPM (Tripropylene Glycol Monomethyl Ether)

Designed to support common industrial resin cleaning solvents.


Technical Specifications

Washing System

Specification Details
Washing Tank Volume 14 L
Max Washing Size 200 × 112 × 300 mm
Washing Method Twin-turbo washing
Drying Feature Double fan air drying
Compatible Solvents IPA, TPM
RFID Print Platform Supported
Wash Profiles RFID auto-set or manual entry
Automatic Drainage Yes (with waste container)

Machine Specifications

Specification Details
Machine Size (W × D × H) 400 × 410 × 646 mm
Net Weight 27.7 kg (61.1 lbs)
Gross Weight 45.8 kg (101 lbs)
Power Input 100–240 V AC, 50/60 Hz
Power Consumption 96 W

Waste Container Specifications

Specification Details
Waste Container Size (W × D × H) 350 × 190 × 290 mm
Net Weight 0.7 kg (1.54 lbs)
Gross Weight 1.5 kg (3.3 lbs)

Operating & Storage Conditions

Condition Range
Operating Temperature 10°C – 35°C
Storage Temperature -25°C to 55°C
Storage Humidity 10–90% RH, non-condensing

Shipping Dimensions

Item Dimensions
DF Wash Shipping Size 725 × 585 × 915 mm
Waste Container Shipping Size 407 × 247 × 349 mm

Installation

  1. Unpack
    Remove straps, packaging, power cord, adapter, firmware kit, hydrometer, and accessories.

  2. Position Unit
    Place DF Wash on a stable, ventilated, dry surface away from open flames.

  3. Connect Power
    Connect adapter and plug into a grounded electrical outlet.

  4. Setup & Start
    Replace the shipping drain cap with the functional drain cap, install the drain tool, power on the unit, and follow on-screen prompts.


Ideal Applications

  • DLP resin 3D printing post-processing

  • Production resin workflows

  • Engineering and dental applications

  • Traceable, repeatable manufacturing environments

  • Automated wash stations for print farms

Technical Data Sheet

📄 View Raise3D DF Wash Technical Data Sheet

Owner’s Manual

📄 View Raise3D DF Wash User Manual

Standard 1-Year Warranty

📄 View Raise3D DF Wash 1-Year Warranty
