Raise3D E2 3D Printer FDM IDEX 3D Printer 1.01.018.004A01

Raise3D E2 3D Printer FDM IDEX 3D Printer 1.01.018.004A01

Regular price $2,999.00 USD
Regular price Sale price $2,999.00 USD
Sale Sold out

In stock

Includes Warranty

30-Day Returns

Unlimited Free Support

IDEX Dual Extruders, Smart Auto-Leveling & FlexPlate Convenience

The Raise3D E2 is a feature-rich, desktop 3D printer designed for professional use. With its Independent Dual Extruder (IDEX) system, the E2 can handle complex dual-material prints, mirror and duplication modes, and print with a wide range of materials—including flexible filaments like TPU. Designed for ease-of-use and print reliability, it integrates Raise3D’s ideaMaker, RaiseCloud, and Raise3D Academy platforms for a full ecosystem experience.


Key Features & Benefits

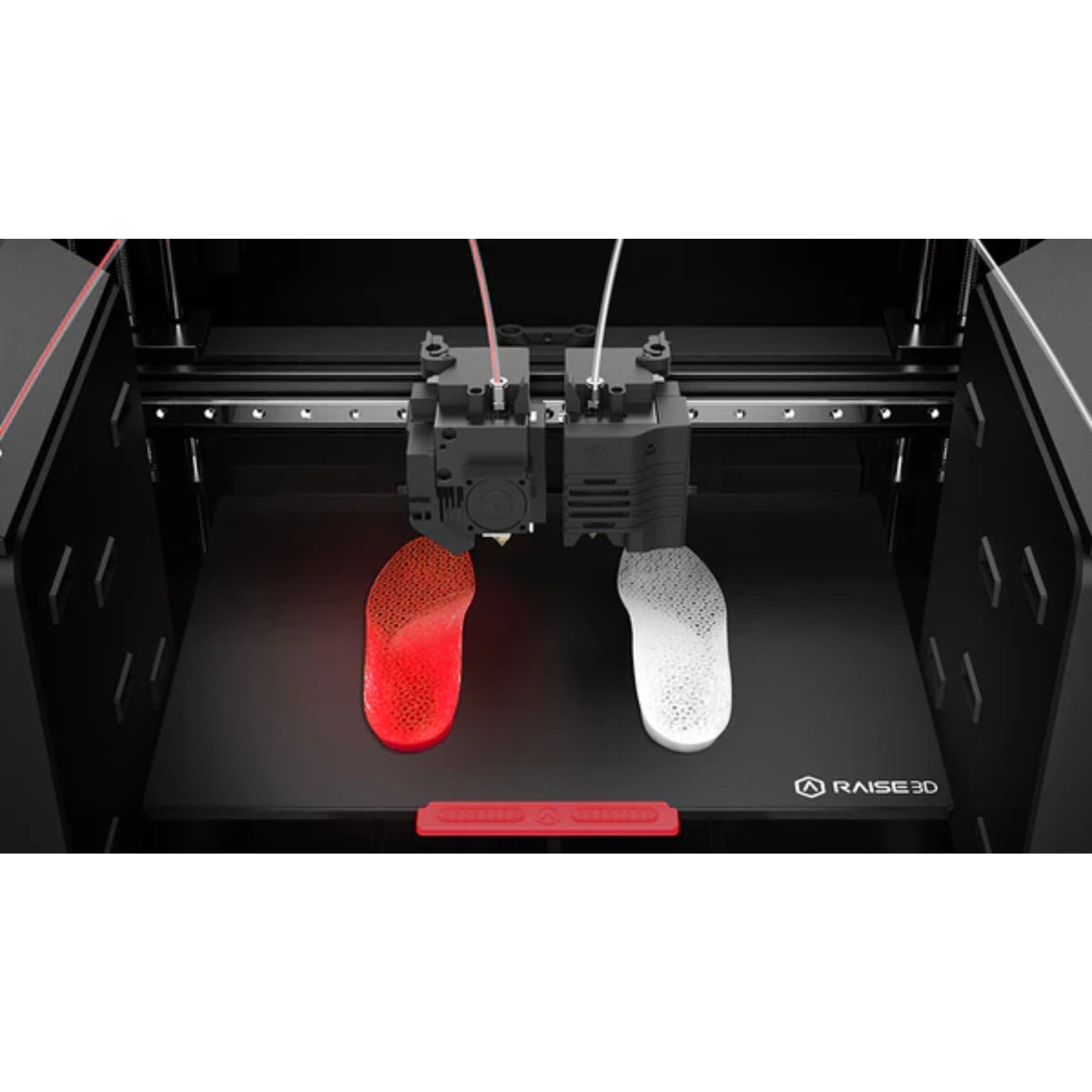

  • IDEX Technology for Advanced Dual Extrusion
    Enables Mirror Mode and Duplication Mode, maximizing productivity and reducing print preparation.

  • Easy Swap Print Heads
    Quickly replace print heads for different nozzle sizes or materials. Supports hardened nozzles and various diameters.

  • Auto Bed Leveling & Mesh Calibration
    Ensures consistent first-layer adhesion with precision leveling using a built-in sensor system.

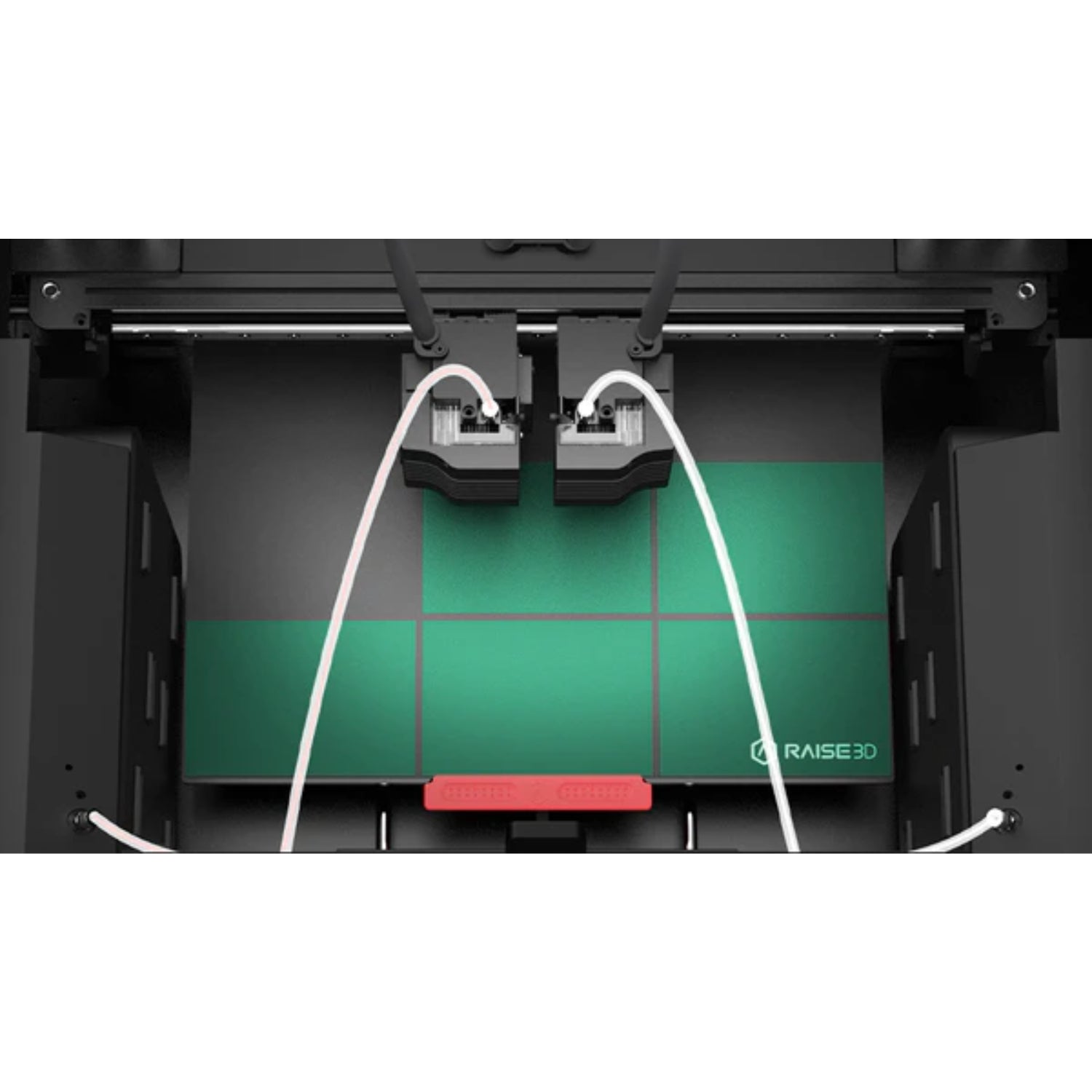

  • Flexible BuildTak FlexPlate
    Removable and bendable plate makes part removal quick and minimizes part damage.

  • Live Print Monitoring with Onboard Camera
    Monitor your print remotely using the integrated camera through RaiseCloud.

  • Wide Filament Compatibility
    Supports PLA, ABS, TPU, PETG, Nylon, Carbon/Glass Fiber Infused, and more—up to 300ºC.

  • Intelligent Safety Features
    Power loss recovery, filament runout detection, and automatic pause if the door is opened.

  • Award-Winning Performance
    Recognized as a benchmark in the industry and awarded Best 2021 3D Printer by Jiga.

  • Part of the Raise3D Ecosystem
    Seamlessly integrates with ideaMaker slicing software, RaiseCloud remote management, and Raise3D’s online community library.


Specs

General

Feature Specification
Build Volume (Single Extruder) 330 × 240 × 240 mm (13 × 9.4 × 9.4 inch)
Build Volume (Dual Extruder) 295 × 240 × 240 mm (11.6 × 9.4 × 9.4 inch)
Machine Size (W × D × H) 607 × 596 × 465 mm (23.9 × 23.5 × 18.3 inch)
Print Technology Fused Filament Fabrication (FFF)
Print Head System IDEX Independent Dual Extruders
Filament Diameter 1.75 mm
XYZ Step Size 0.78125, 0.78125, 0.078125 micron
Print Head Travel Speed 15–150 mm/s
Max Build Plate Temperature 110ºC
Heated Bed Material Silicone
Build Plate Flexible Steel with BuildTak Surface
Build Plate Leveling Mesh-leveling with Flatness Detection
Noise Emission < 50 dB(A)
Operating Temperature 15–30ºC, 10–90% RH non-condensing
Storage Temperature -25 to +55ºC, 10–90% RH non-condensing
Filter HEPA with Activated Charcoal
Net Weight 35.1 kg (77.4 lbs)
Gross Weight (Carton Only) 43.8 kg (96.6 lbs)
Gross Weight (With Pallet) 51.3 kg (113.1 lbs)

Electrical

Feature Specification
Power Supply Input 100–240 V AC, 50/60 Hz
Power Supply Output 24 V DC, 350 W

Material Compatibility

Type Supported Materials
Materials PLA, ABS, HIPS, PC, TPU, TPE, Nylon, PETG, ASA, PP, PVA, CF/Glass Fiber, Metal/Wood Fill
Third-Party Filaments Supported via Open Filament Program (OFP)

Software & Connectivity

Feature Specification
Slicing Software ideaMaker
Supported File Types STL, OBJ, 3MF, OLTP
Supported OS Windows, macOS, Linux
Machine Code Type GCODE
User Interface 7-inch Touch Screen (1024 × 600 resolution)
Connectivity Wi-Fi, Ethernet, USB (2 ports), Live Camera
Network Integration RaiseCloud compatible
Power Loss Recovery Yes
Motion Controller Atmel ARM Cortex-M4 120 MHz FPU
Logic Controller NXP ARM Cortex-A9 Quad 1 GHz
Memory 1 GB
Onboard Flash 16 GB
Operating System Embedded Linux

Raise 3D E2 Technical Data Sheet

📄 View Raise3D E2 Technical Data Sheet

Owner’s Manual

📄 View Raise3D E2 User Manual

Standard 1-Year Warranty

📄 View Raise3D E2 Standard 1-Year Warranty
