🟢authorized PARTNER

SKU:E2CF Bundle

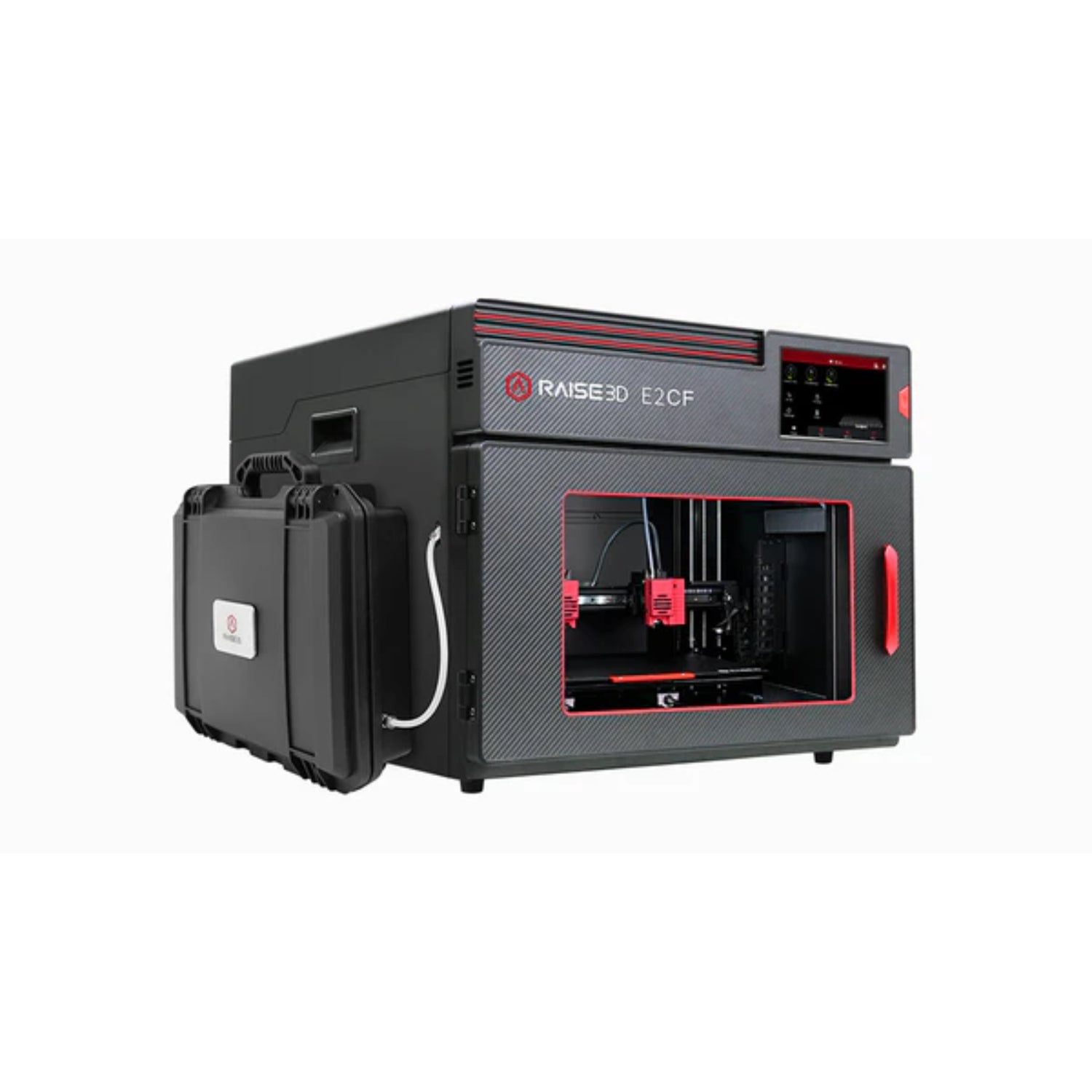

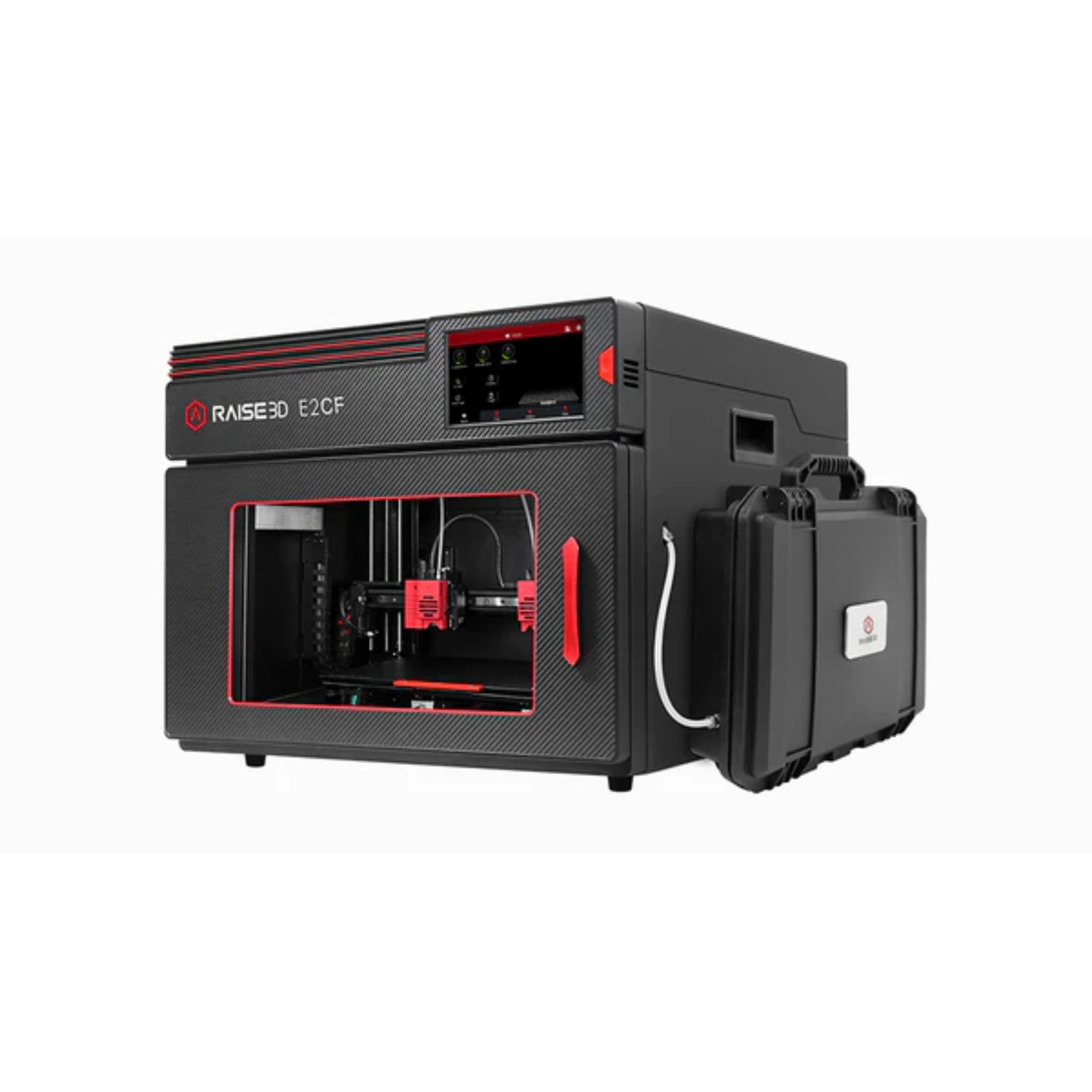

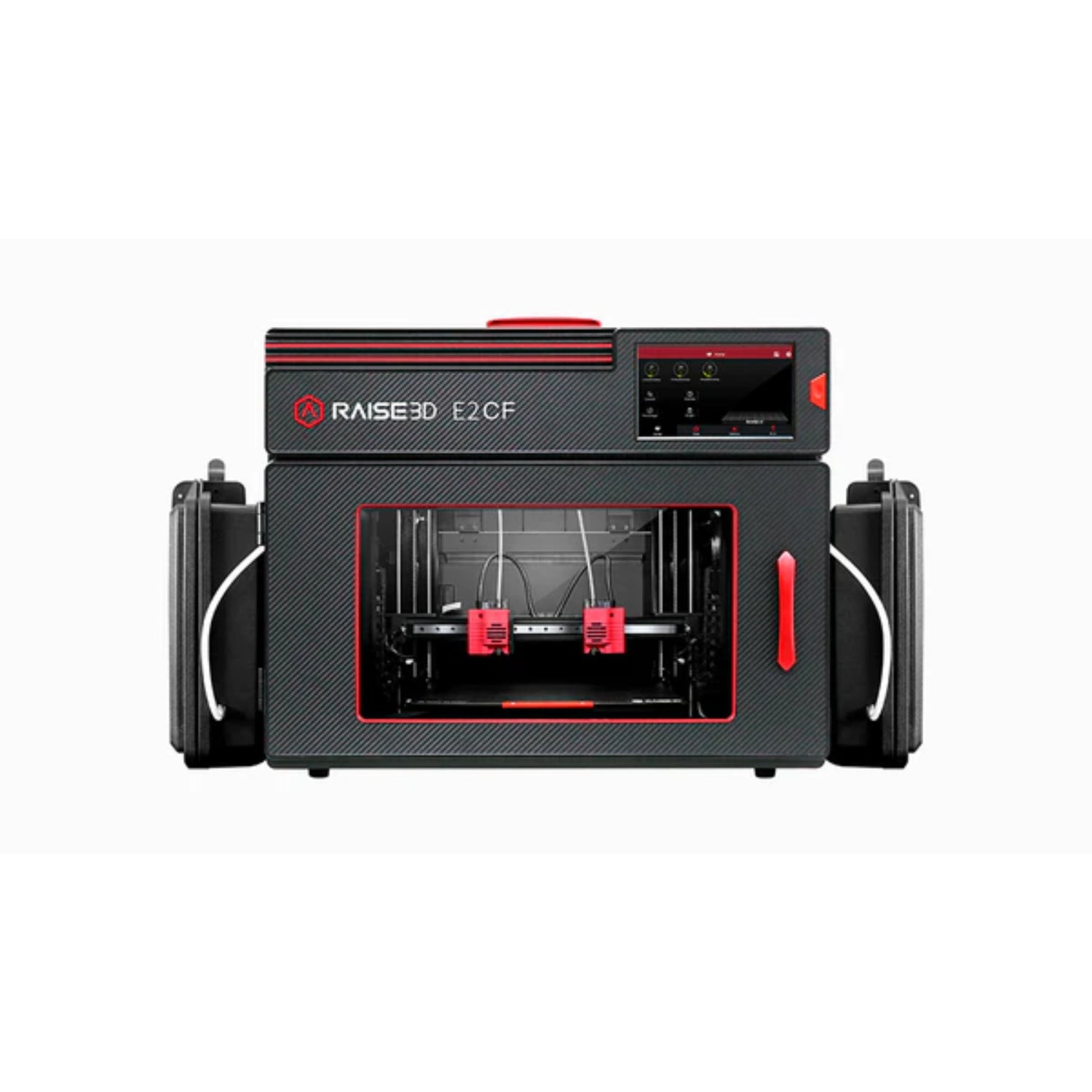

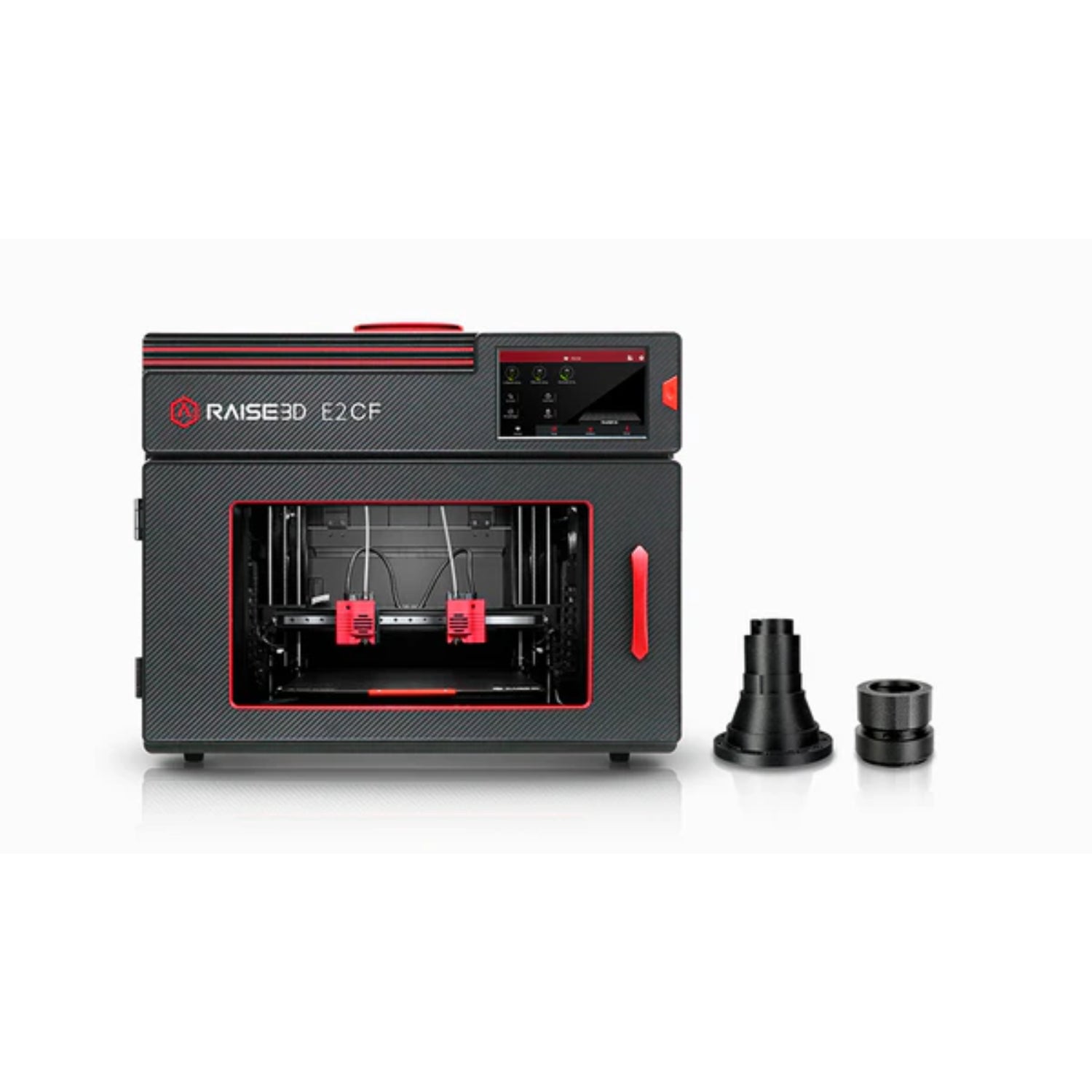

Raise3D E2CF 3D Printer FDM IDEX Carbon Fiber 3D Printer E2CF Bundle

Raise3D E2CF 3D Printer FDM IDEX Carbon Fiber 3D Printer E2CF Bundle

Regular price $3,999.00 USD
Regular price Sale price $3,999.00 USD
Sale Sold out

In stock

Includes Warranty

30-Day Returns

Unlimited Free Support

Designed for Carbon Fiber-Reinforced Filaments

The Raise3D E2CF is a professional desktop 3D printer with IDEX (Independent Dual Extruders), purpose-built for high-strength carbon fiber-reinforced materials. Ideal for manufacturing, functional prototyping, and industrial applications, it combines precision, durability, and ease of use.


Key Features & Advantages

  • Carbon Fiber Ready
    Compatible with a variety of fiber-reinforced filaments such as PA12 CF, PET CF, PET GF, and more. Optimized for superior strength-to-weight performance.

  • Silicon Carbide Nozzles
    Highly durable nozzles withstand abrasive materials while maintaining excellent thermal performance.

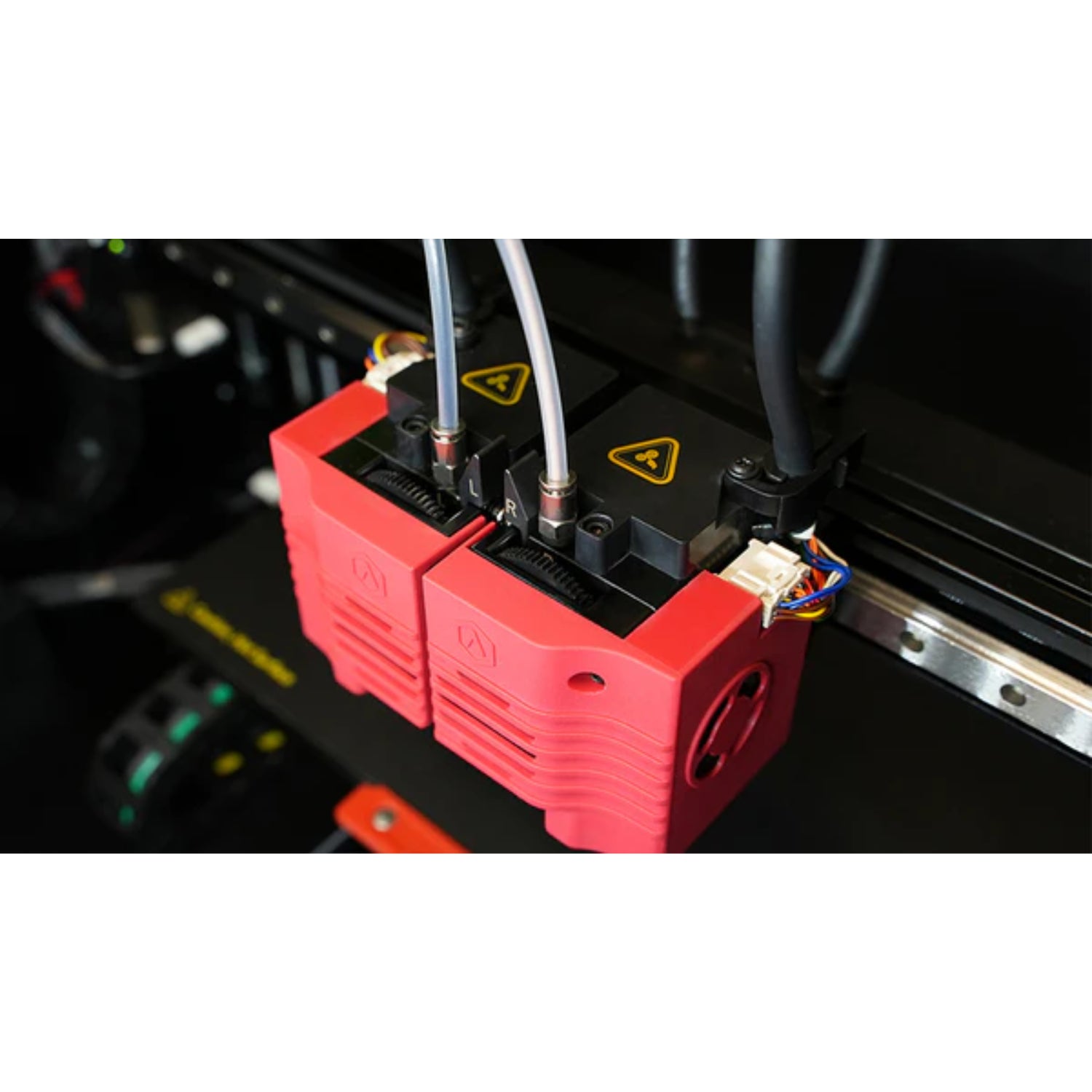

  • Dual Direct Drive Extrusion System
    Reinforced steel gears ensure secure filament grip and stable extrusion.

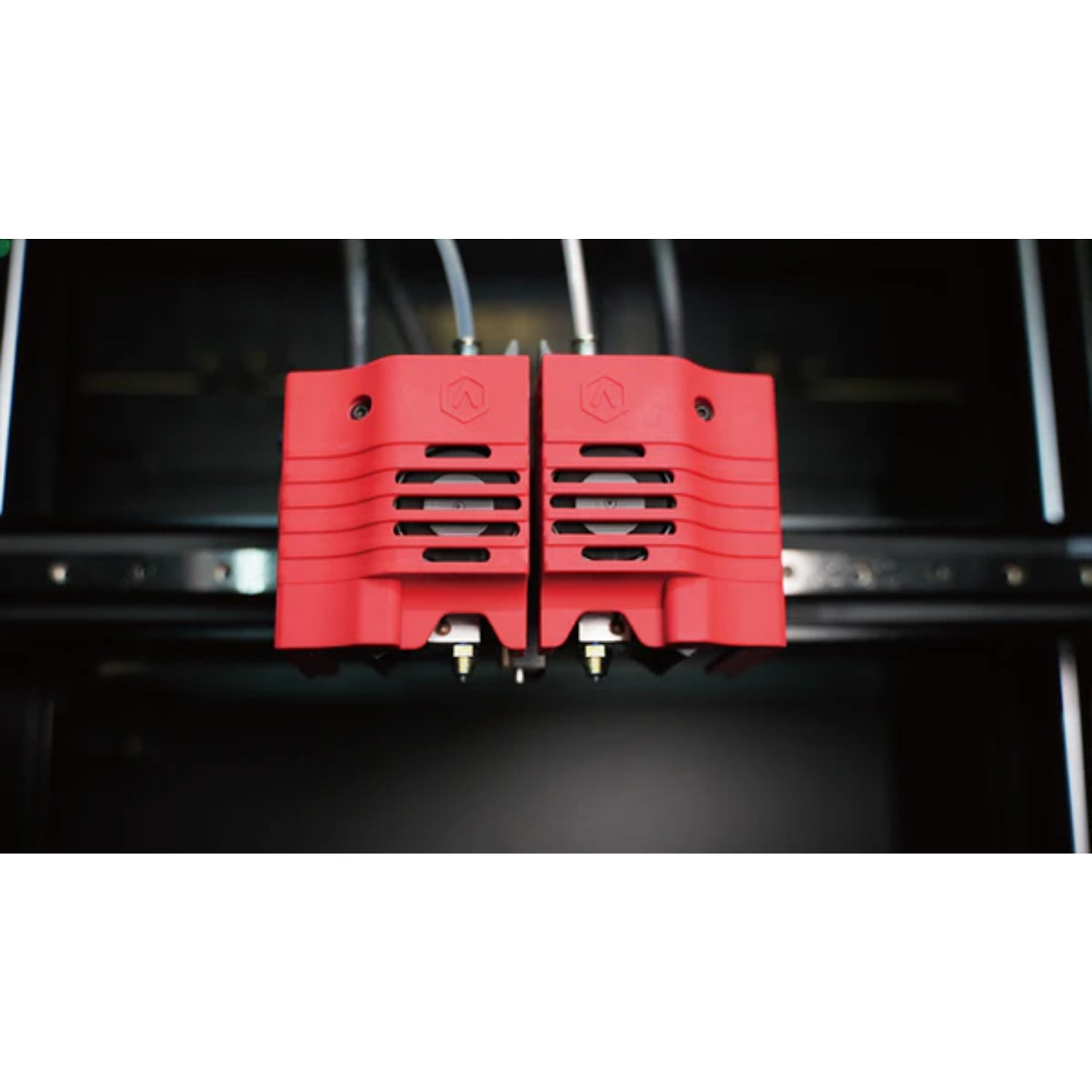

  • Easy-Swap Print Heads
    Quickly change nozzles or entire heads for flexibility with different materials or nozzle sizes.

  • Support for Removable Filament
    Print with support material engineered for carbon composites – easy to detach with clean surface finish.

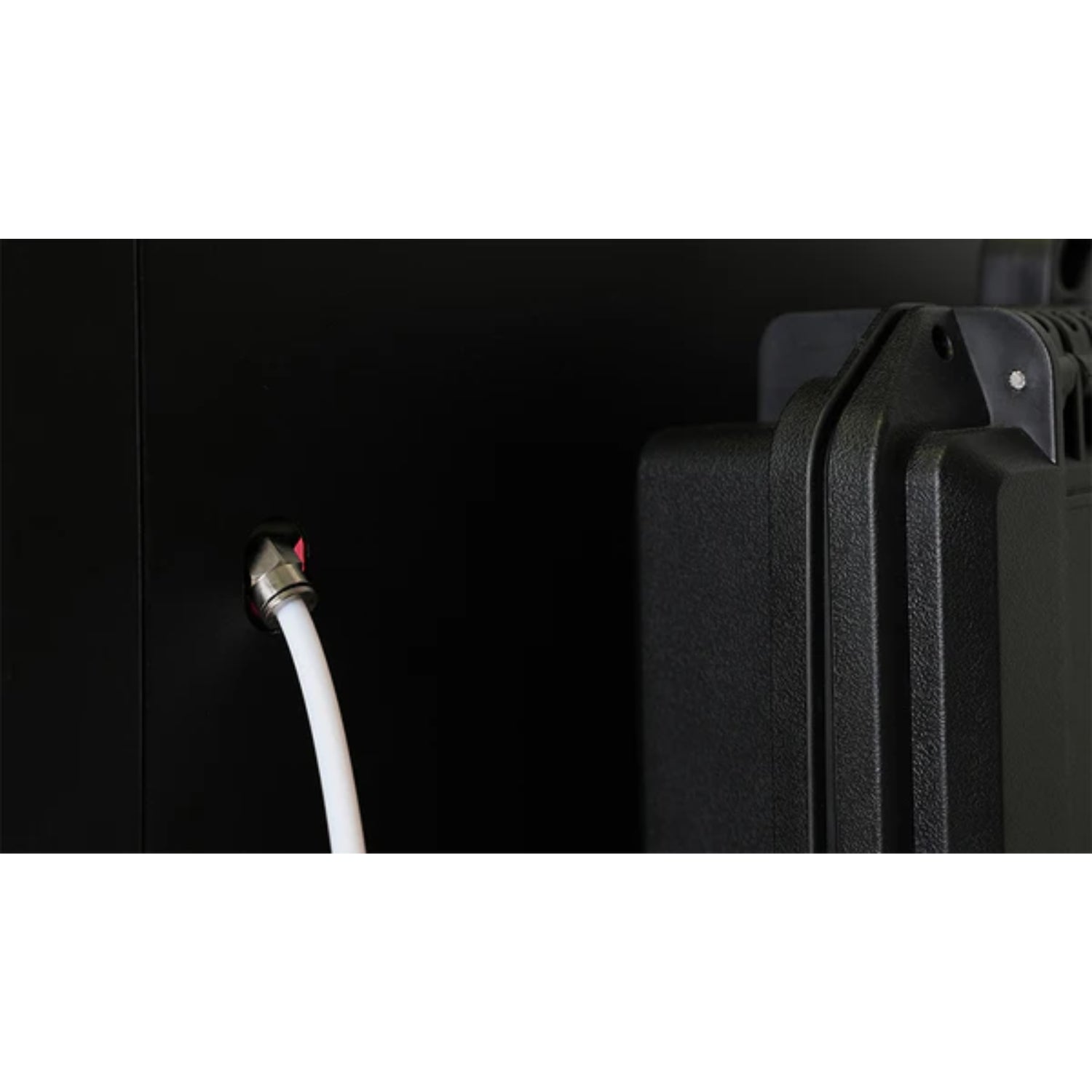

  • Built-in Filament Dry Box
    Suspended tray system keeps filament protected from moisture for up to 30 days.*

  • Pre-Tested Slicing Profiles in ideaMaker
    No need for manual parameter tuning — optimized print profiles ensure excellent first-time results.


Application Areas

Carbon fiber composite materials are used across a wide range of industries:

  • Aerospace – lightweight yet strong flanges and housings

  • Automotive – spare parts and customized tools

  • Medical – prosthetics and orthotic solutions

  • Industrial Manufacturing – jigs, fixtures, pedestals

  • Sports Equipment – strong, custom bike frames and gear

To download the full white paper on fiber-reinforced printing applications, [click here].


Professional Features

  • IDEX System – Offers Mirror and Duplication Modes for time-efficient and symmetrical part production.

  • Auto Bed Leveling – Mesh-leveling with advanced flatness detection for first-layer success.

  • Flexible Build Plate – Easy part removal and reduced part damage.

  • Camera & RaiseCloud – Real-time monitoring and remote control.

  • Power Loss Recovery – Resume prints after outages.

  • Filament Run-Out Sensor – Pause print when filament is depleted.

  • Improved Calibration for Composites – Enhanced Z-offset precision for better adhesion.


Specs

Feature Specification
Print Technology Fused Filament Fabrication (FFF)
Build Volume (Single/ Dual) 330 × 240 × 240 mm / 295 × 240 × 240 mm
Machine Size 607 × 596 × 465 mm
Nozzle Diameter 0.4 mm (Default), 0.6/ 0.8 mm (Available)
Hot End V4P
Max Nozzle Temperature 330°C
Max Bed Temperature 110°C
Print Head Travel Speed 15–150 mm/s
Filament Diameter 1.75 mm
Layer Height Range 0.1–0.5 mm
Compatible Materials Carbon-fiber reinforced PLA, ABS, PA12 CF, PPA CF, PET CF
Third Party Materials Supported via Raise3D Open Filament Program (OFP)
Filament Dry Box Included
Connectivity Wi-Fi, LAN, USB, RaiseCloud
Touchscreen UI 7-inch Touch Panel, 1024 × 600 resolution
Noise Emission < 50 dB(A)
OS Support Windows, macOS, Linux
File Types STL, OBJ, 3MF, OLTP
Build Plate Flexible Steel Plate with BuildTak
Weight (Net / Gross) 36.6 kg / 43.1 kg
Power Supply 100–240 V AC, 50/60 Hz → 24V DC, 350W
Filters HEPA with Activated Charcoal
Certifications CB, CE, FCC, RoHS, RCM

Included in the Purchase

Item Quantity
Raise3D Pro2 Plus 3D Printer 1
Flexible Build Plate 1
Filament Spool Holders 2
Power Cable 1
USB Drive 1
Filament (sample) 2 rolls
HEPA Filter 1
User Manual & Documentation 1 Set
Toolbox (including wrenches, nozzle cleaning tools, etc.) 1 Set

Raise3D E2CF Technical Data Sheet

📄 View Raise3D E2CF Technical Data Sheet

Owner’s Manual

📄 View Raise3D E2CF User Manual

Standard 1-Year Warranty

📄 View Raise3D E2CF Standard 1-Year Warranty
