🟢authorized PARTNER

SKU:1.02.018.004A01

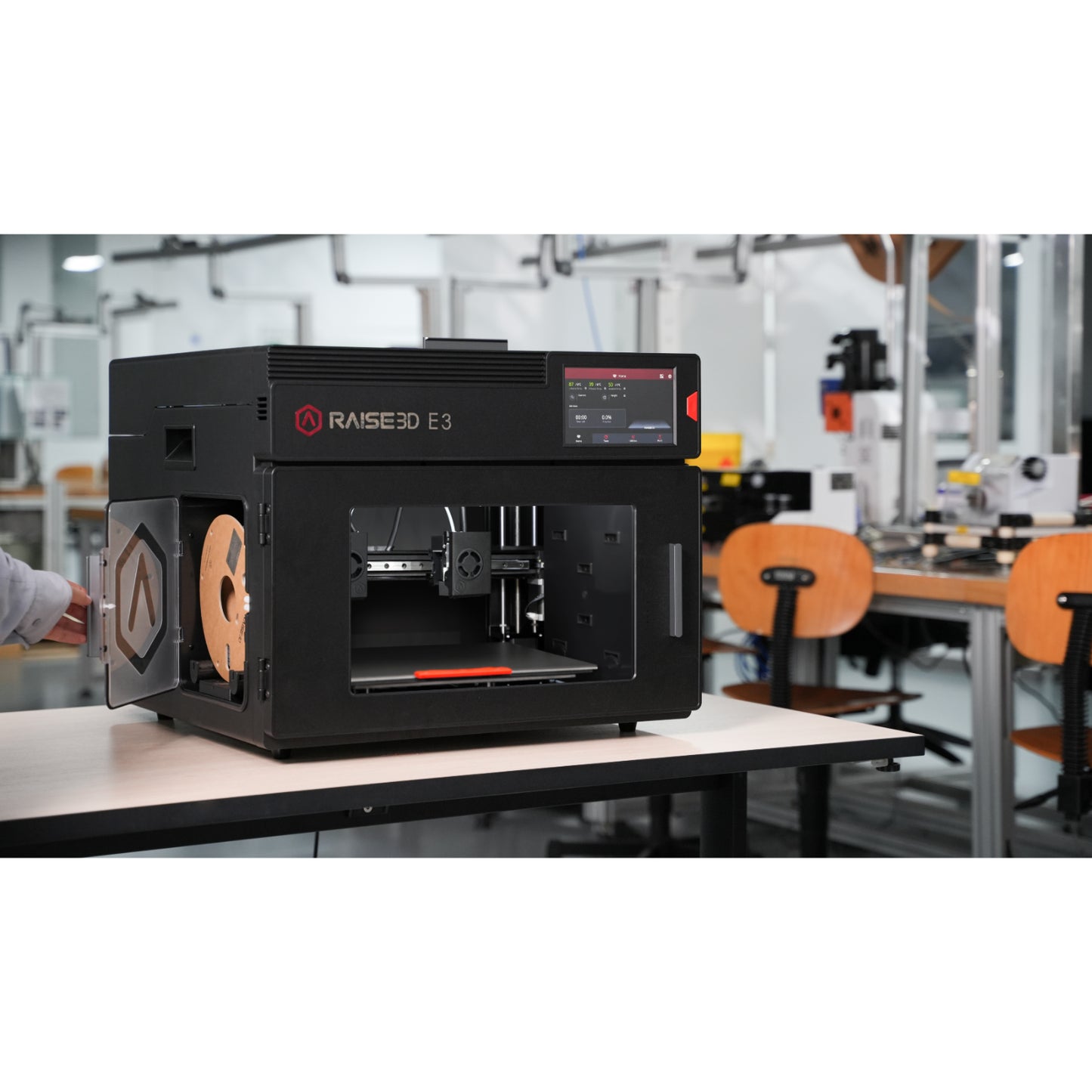

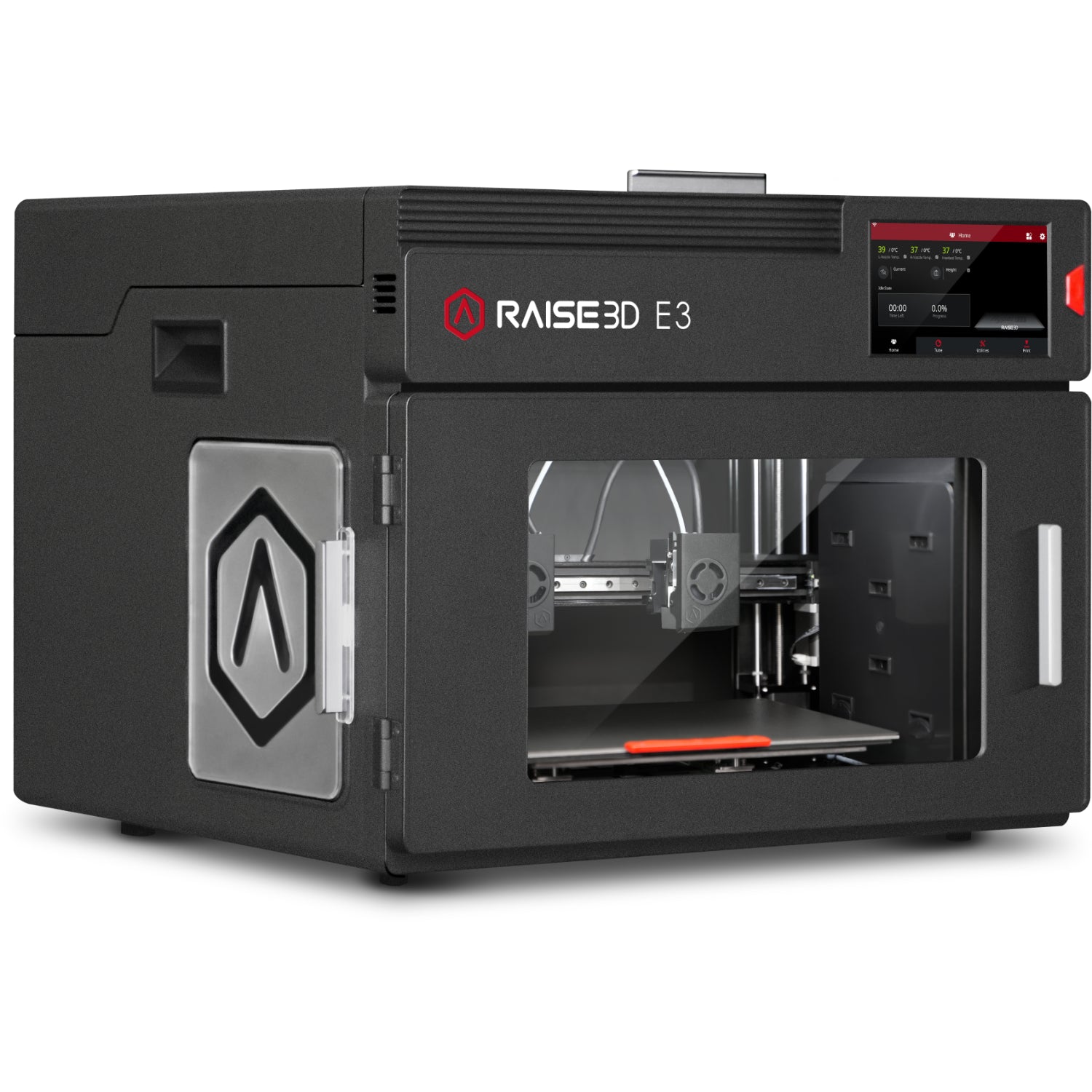

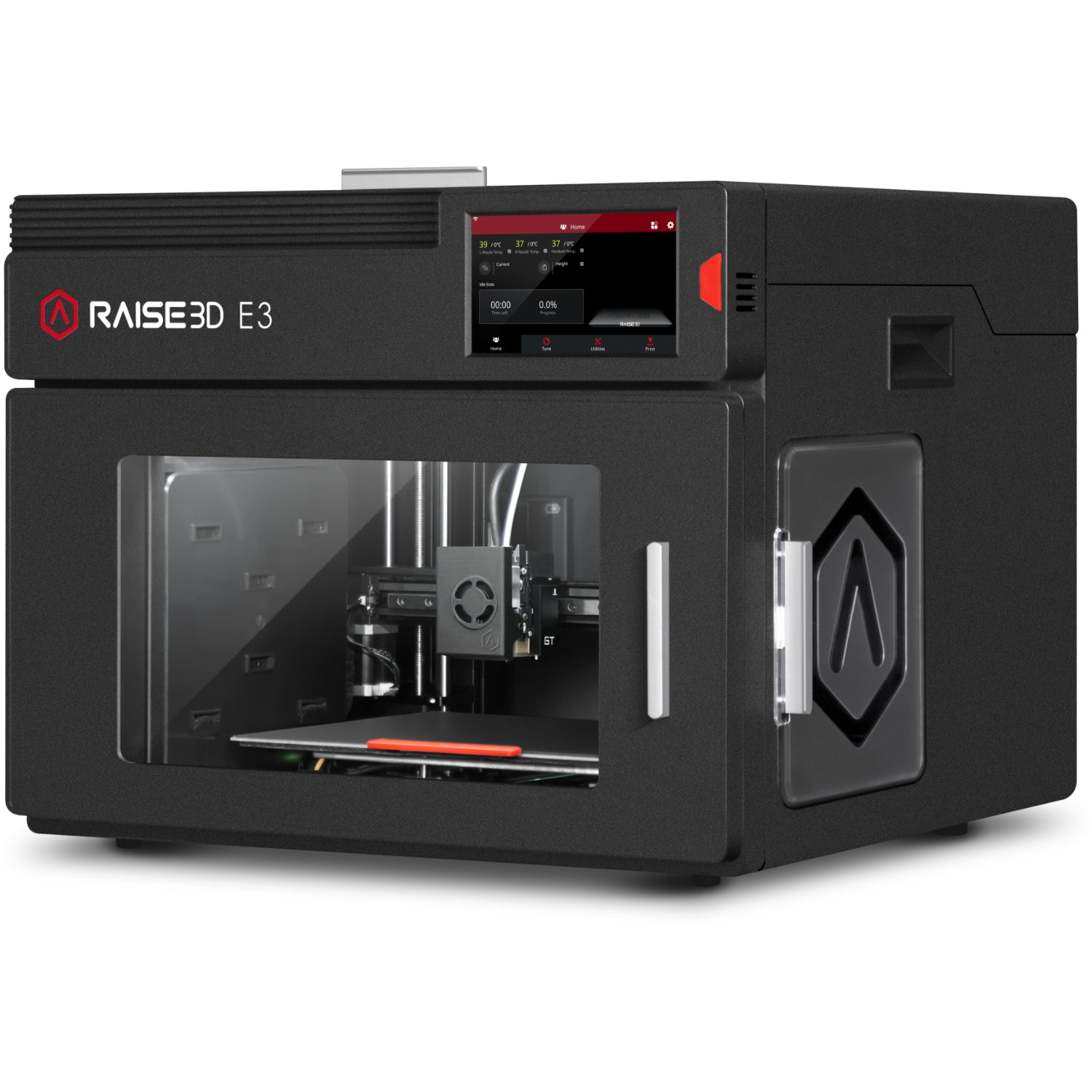

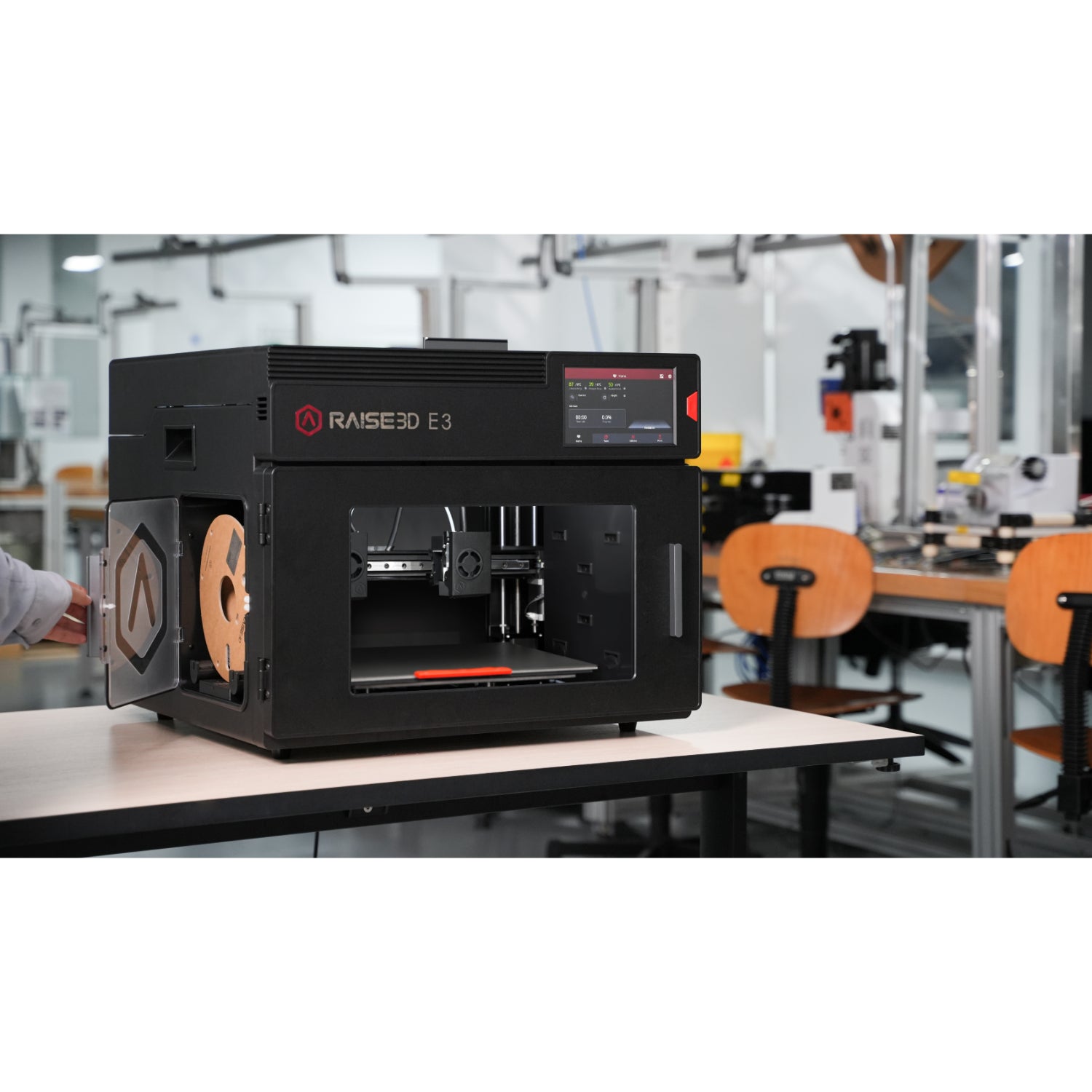

Raise3D E3 FDM IDEX 3D Printer 1.02.018.004A01

Raise3D E3 FDM IDEX 3D Printer 1.02.018.004A01

Regular price $2,499.00 USD
Regular price Sale price $2,499.00 USD
Sale Sold out

Includes Warranty

30-Day Returns

Unlimited Free Support

Elastic. Engineering-grade. Expandable.

The Raise3D E3 IDEX 3D Printer redefines flexible and composite material printing. Built for professional-grade prototyping, production, and R&D, the E3 delivers precision, speed, and stability — printing flexible and composite materials up to 200 mm/s with exceptional accuracy.

Engineered for demanding environments, the E3 integrates advanced features like Flexible Filament Auxiliary Feeder, composite filament print head, and IDEX dual extrusion, enabling high-performance production with an exceptional surface finish and repeatable results.

Reshape your workflow with Raise3D’s E3: Elastic, Engineering-grade, Expandable.


Key Features

  • High-Speed Flexible Filament Printing – Print TPU and other flexible filaments up to 200 mm/s with stable extrusion.

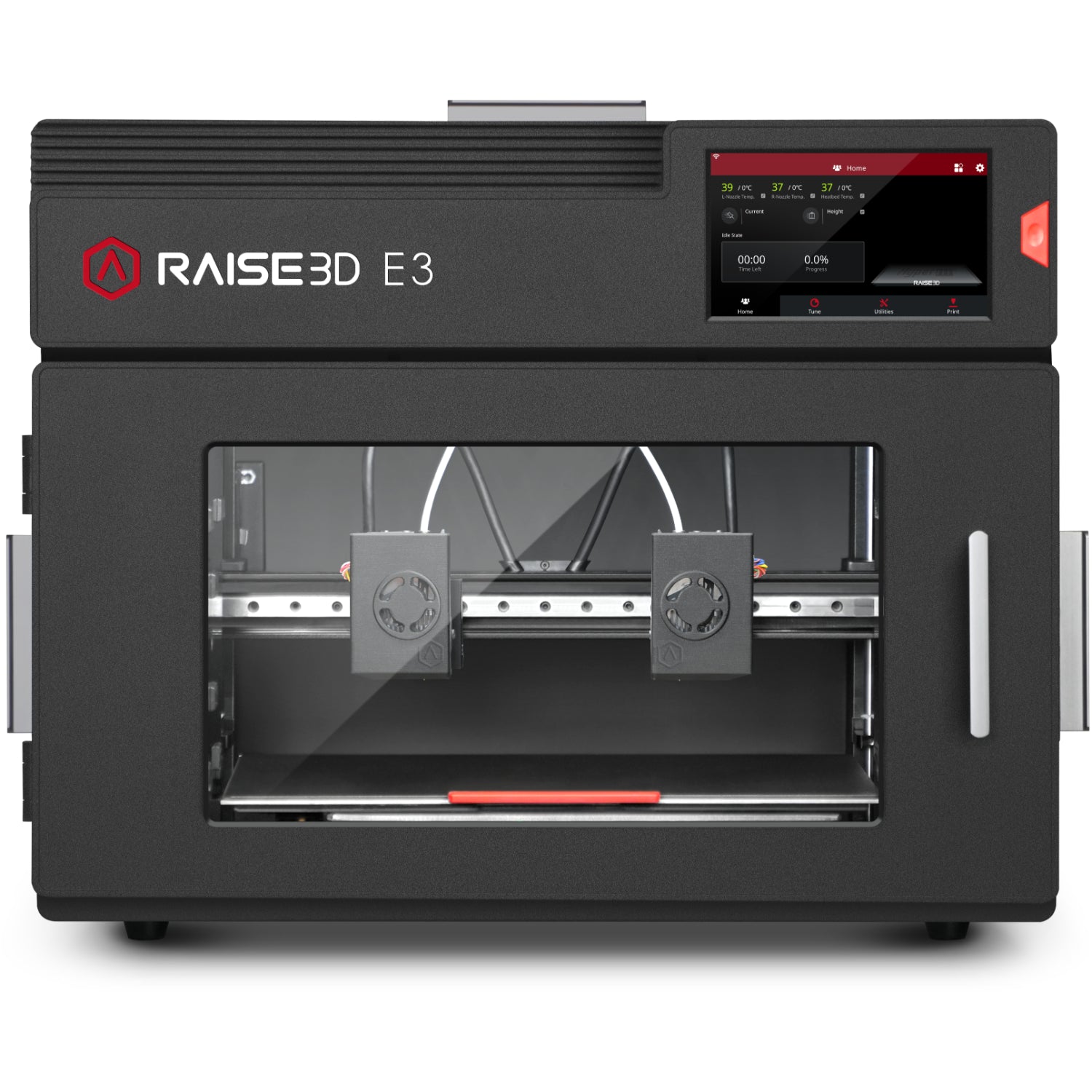

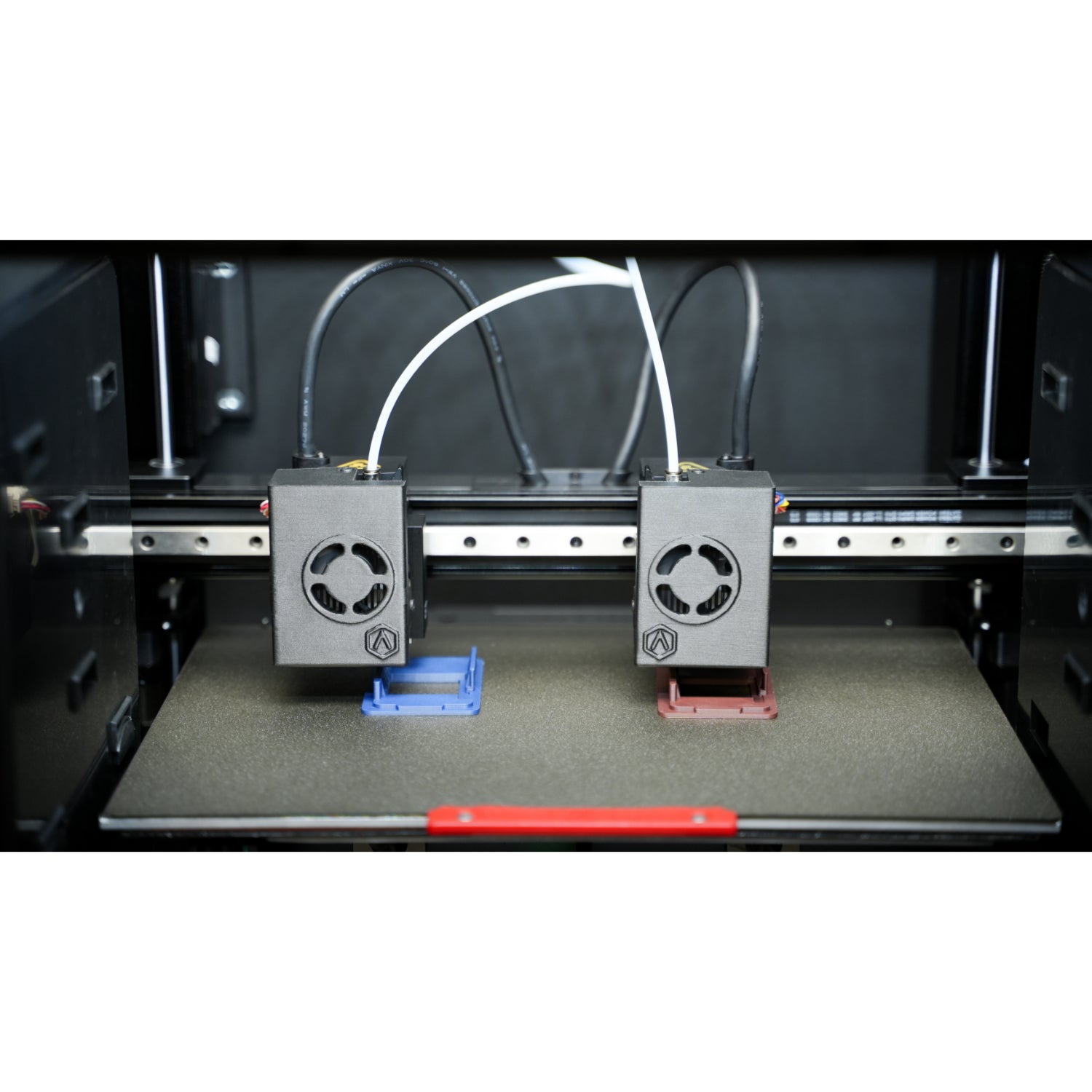

  • Dual Extruder (IDEX) System – Enables mirror mode, duplication mode, and multi-material printing.

  • Composite Filament Compatibility – Supports PET CF, PET GF, PPS CF, and more for functional prototypes and end-use parts.

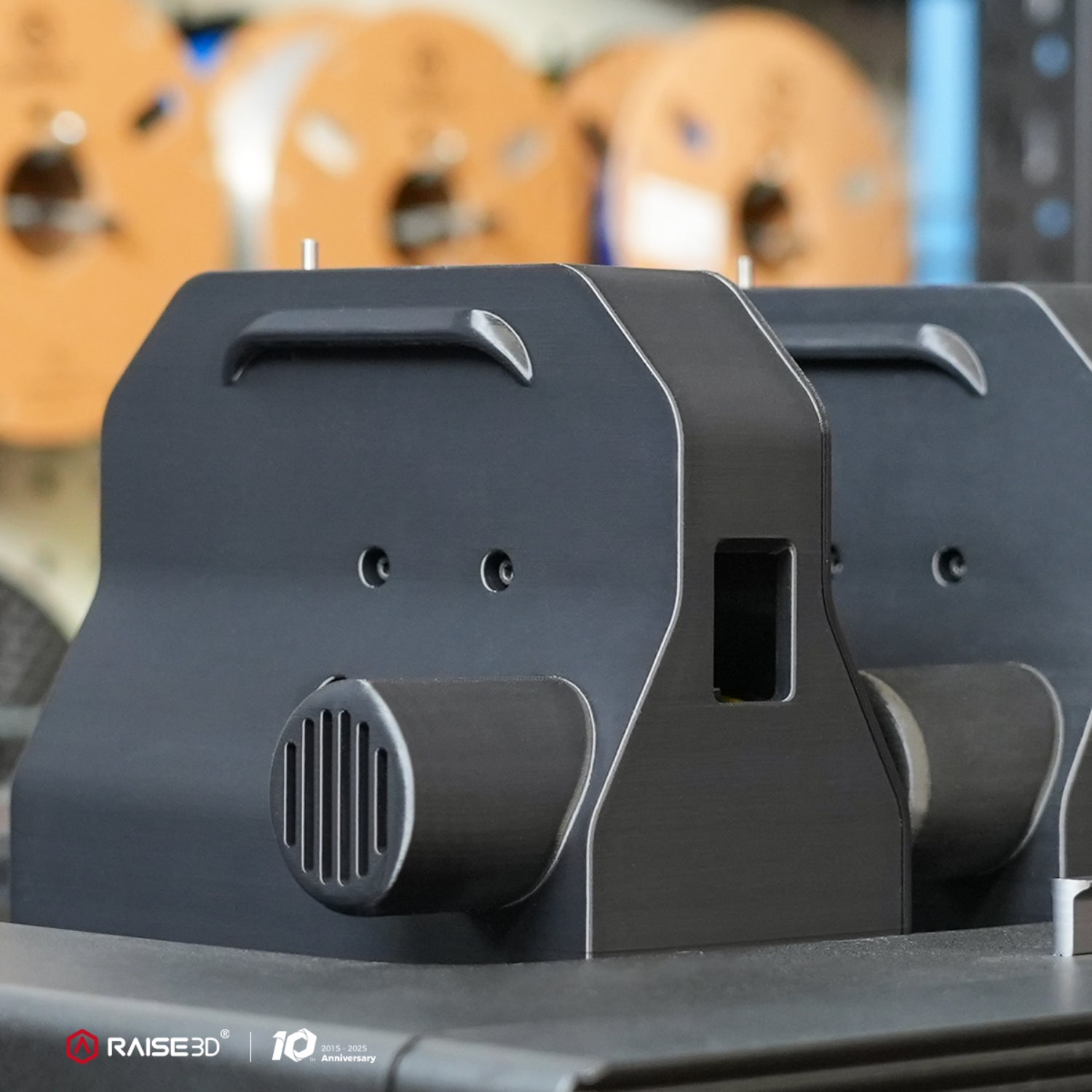

  • Flexible Filament Auxiliary Feeder – Expands compatibility across TPU-95A to TPU-80A hardness levels.

  • Exceptional Surface Finish – Achieve <2 μm surface roughness with Hyper Speed PLA Pro and Pro Ironing technology.

  • Auto Bed Leveling & Substrate Printing – 9-point mesh-leveling ensures easy setup and consistent results.

  • Smart Recovery Features – Includes filament run-out sensors and power loss recovery for uninterrupted printing.

  • HEPA & Activated Charcoal Filter – Keeps your workspace clean from fine dust and fumes.

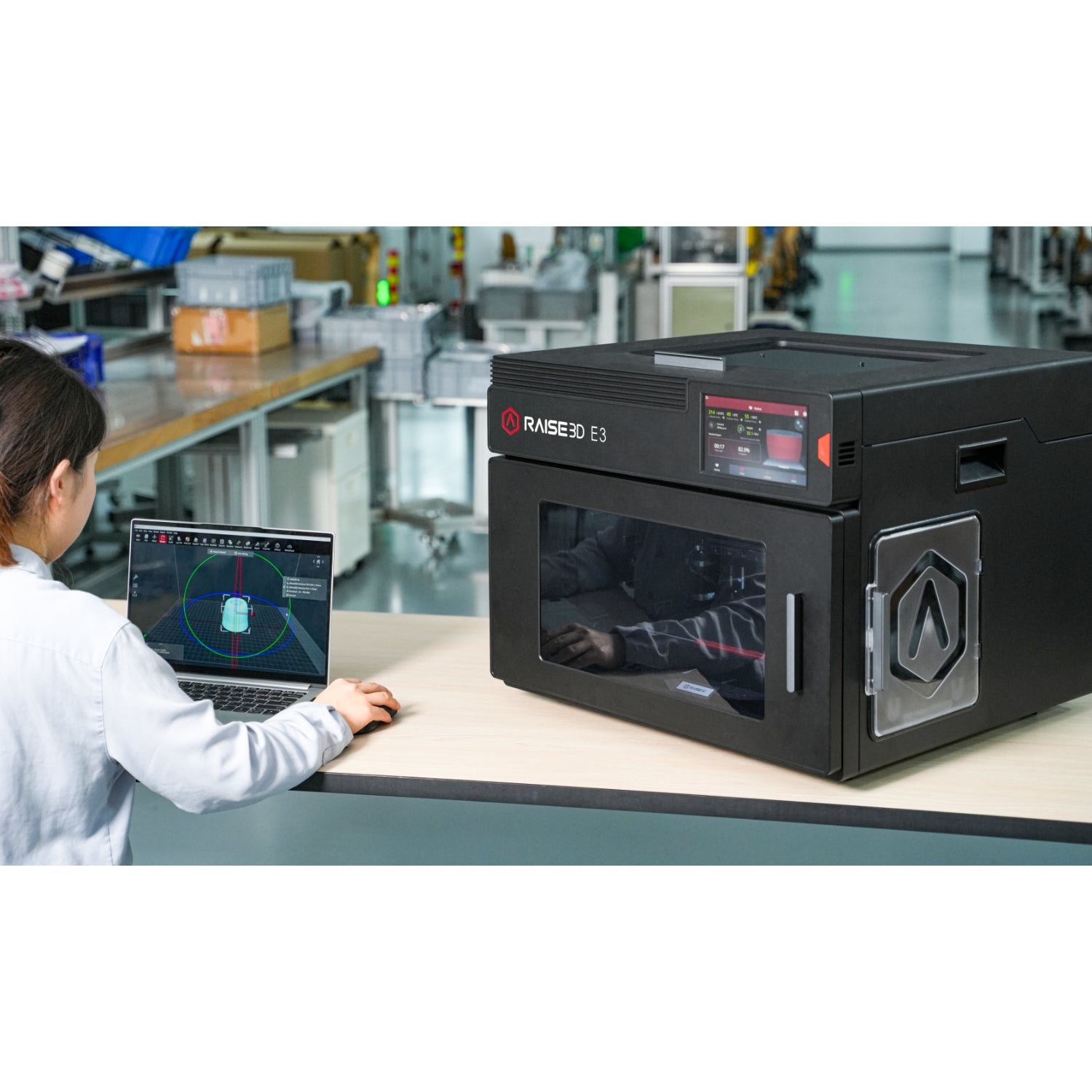

  • Seamless Workflow – Integrated Wi-Fi, LAN, and USB connectivity with live camera monitoring.

  • ideaMaker Software Integration – Full control over slicing, calibration, and material profiles.


Applications

  • Industrial Prototyping – Print flexible, engineering-grade, and composite prototypes with dimensional accuracy.

  • Functional End-Use Parts – Ideal for producing durable, high-performance components for various industries.

  • Flexible Filament Manufacturing – Enables fast, reliable TPU and TPE-based part production.

  • Composite Part Development – Handle reinforced filaments for strong and lightweight functional parts.

  • Educational & R&D Use – Expand experimental material capabilities with IDEX and flexible feeders.


Specs

Category Specification Details
General Build Volume Single: 330 × 240 × 240 mm
Dual: 295 × 240 × 240 mm
Machine Size 607 × 596 × 465 mm
Net Weight 33.3 kg
Print Technology Fused Filament Fabrication (FFF)
Print Head System IDEX (Independent Dual Extruders)
Filament Diameter 1.75 mm
Max Print Speed 200 mm/s
Max Volumetric Speed 16 mm³/s

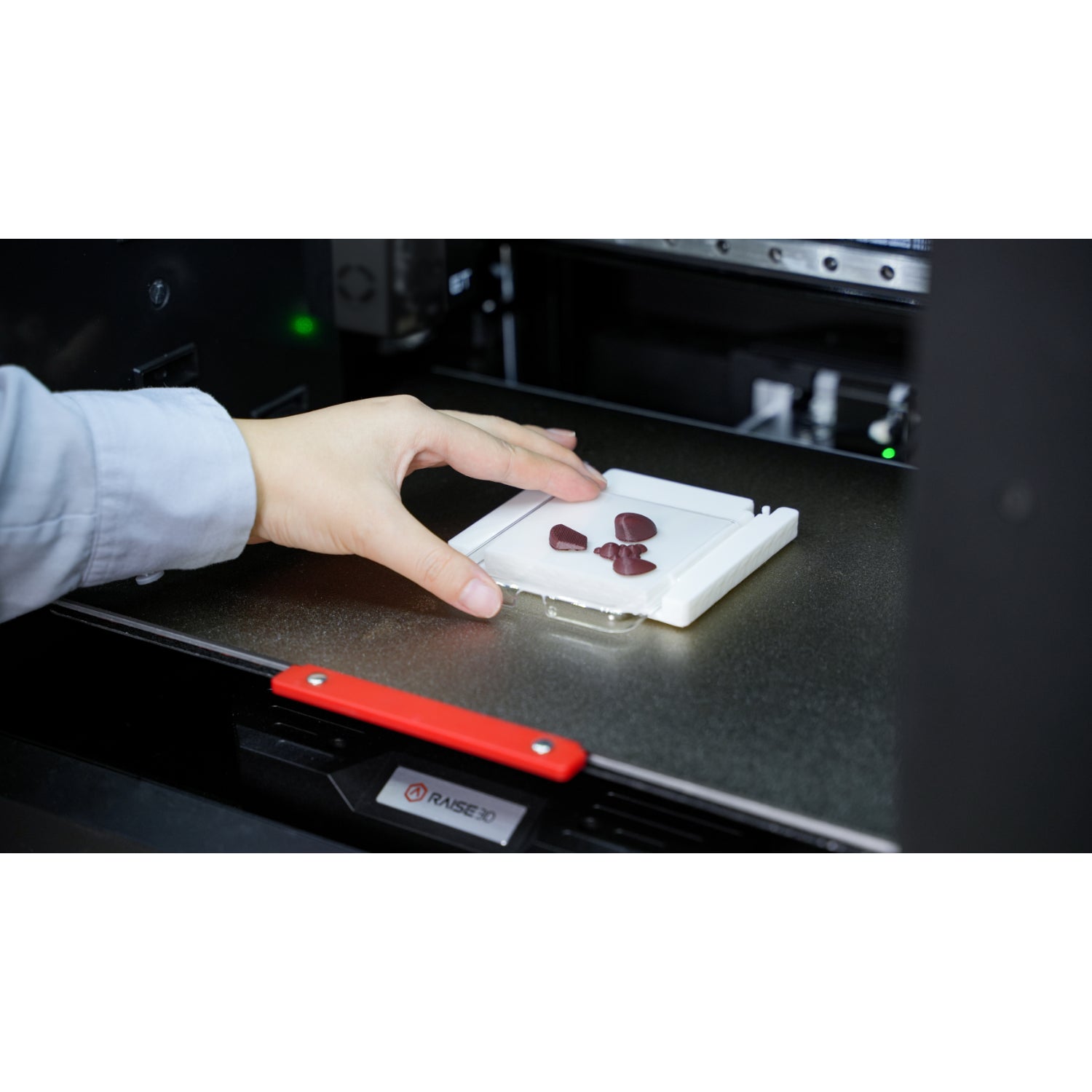

Build Plate Flexible double-sided PEI (default); Steel BuildTak optional
Bed Leveling Mesh-leveling with flatness detection
Max Bed Temp 110°C
Nozzle Diameter 0.4 mm (default), 0.2 / 0.6 / 0.8 / 1.0 mm (optional)
Max Nozzle Temp 330°C
Layer Height 0.1 – 0.5 mm (recommended 0.1 – 0.3 mm for 0.4 mm nozzle)
Surface Finish Ra < 2 μm (with Hyper Speed PLA Pro, ironing enabled)
Noise Level < 55 dB(A)
Materials Supported Types Hyper Core (PPA CF, PPA GF, ABS CF), Hyper Speed (PLA, ABS, PETG CF, PET CF, PLA Pro), Industrial (PPS CF, PA12 CF+, PET ESD), Premium (PLA, ABS, ASA, PC, TPU-95A, PVA+)
Flexible Filaments TPU, TPE-A, TPE-S, Shore (A) hardness 80A–95A
Composite Compatibility PET CF, PET GF, PPS CF
3rd Party Filaments Supported via Raise3D OMP (Open Material Program)
Connectivity Network Wi-Fi, Ethernet, USB
Camera Built-in live monitoring
Recovery Features Power loss recovery, filament run-out detection
Software Slicer ideaMaker
File Types STL, OBJ, 3MF, OLTP, STEP, IGES
OS Compatibility Windows, macOS, Linux
Machine Code GCODE
Controller Display 7-inch touchscreen (1024 × 600)
Motion Controller Atmel ARM Cortex-M4 120MHz
Logic Controller NXP ARM Cortex-A55 Quad 2GHz
Memory 2 GB RAM, 16 GB onboard storage
OS Embedded Linux
Ports USB 2.0 × 2, Ethernet × 1
Electrical Power Input 100–240V AC, 50/60Hz
Power Output 24V DC, 350W
Environmental Operating Temp 15–30°C
Storage Temp -25°C to +55°C
Humidity 10–90% RH (non-condensing)
Filter Type HEPA Filter with Activated Charcoal

Included in the Purchase

Item Quantity
Raise3D E3 3D Printer 1
Power Cable & Adapter 1
Flexible Filament Auxiliary Feeder 1
Quick Start Guide & Warranty Card 1 set
Maintenance Tools 1 set
Spare Nozzle (0.4mm) 1
Filament Sample (varies by kit) 1
User Manual 1

Raise3D | E3 Unboxing & Setup Video

Technical Specification Sheet

📄 View Raise3D E3 Technical Specification Sheet

Brochure

📄 View Raise3D E3 Brochure

Owner’s Manual

📄 View Raise3D E3 User Manual

Standard Warranty

📄 View Raise3D Standard 1-Year Warranty
