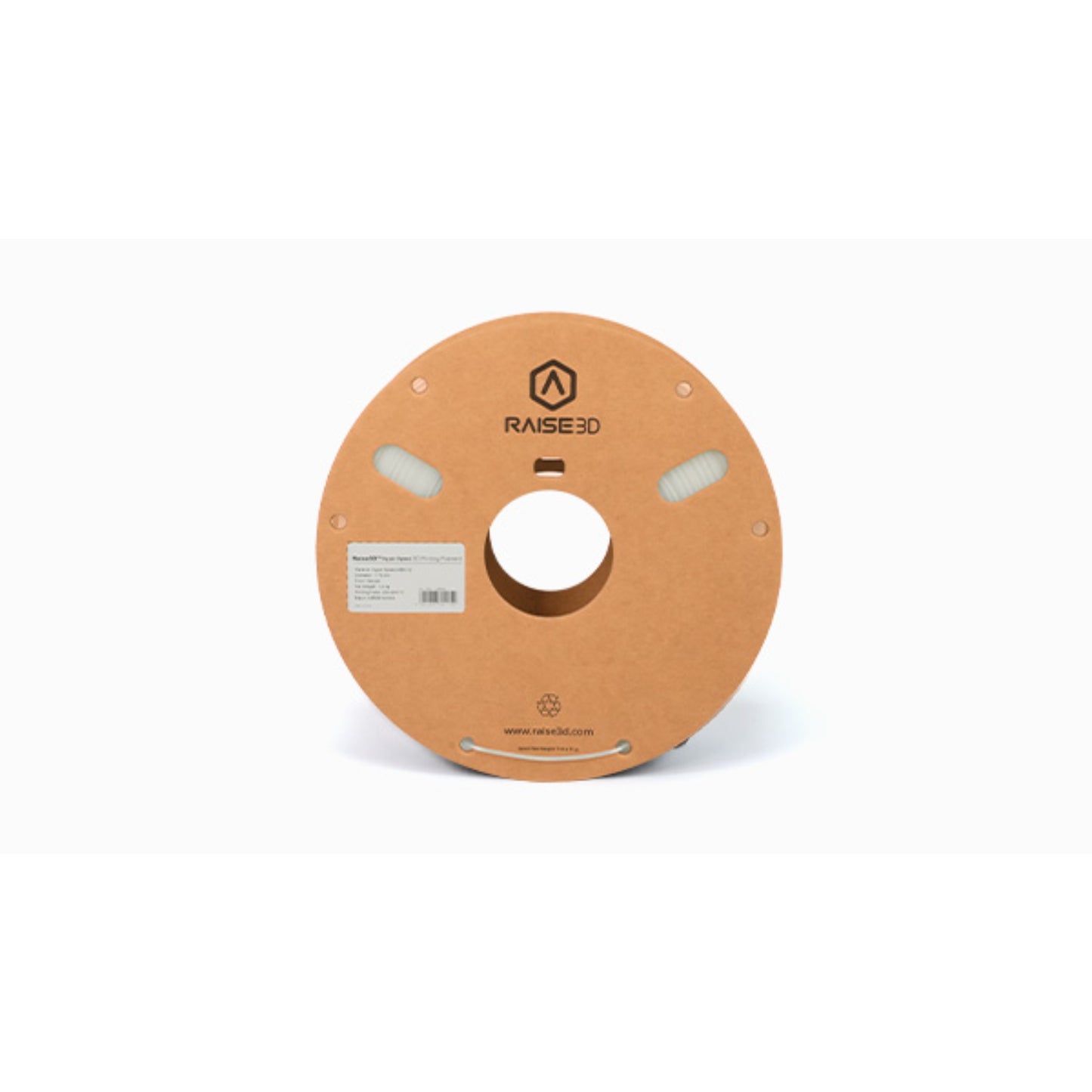

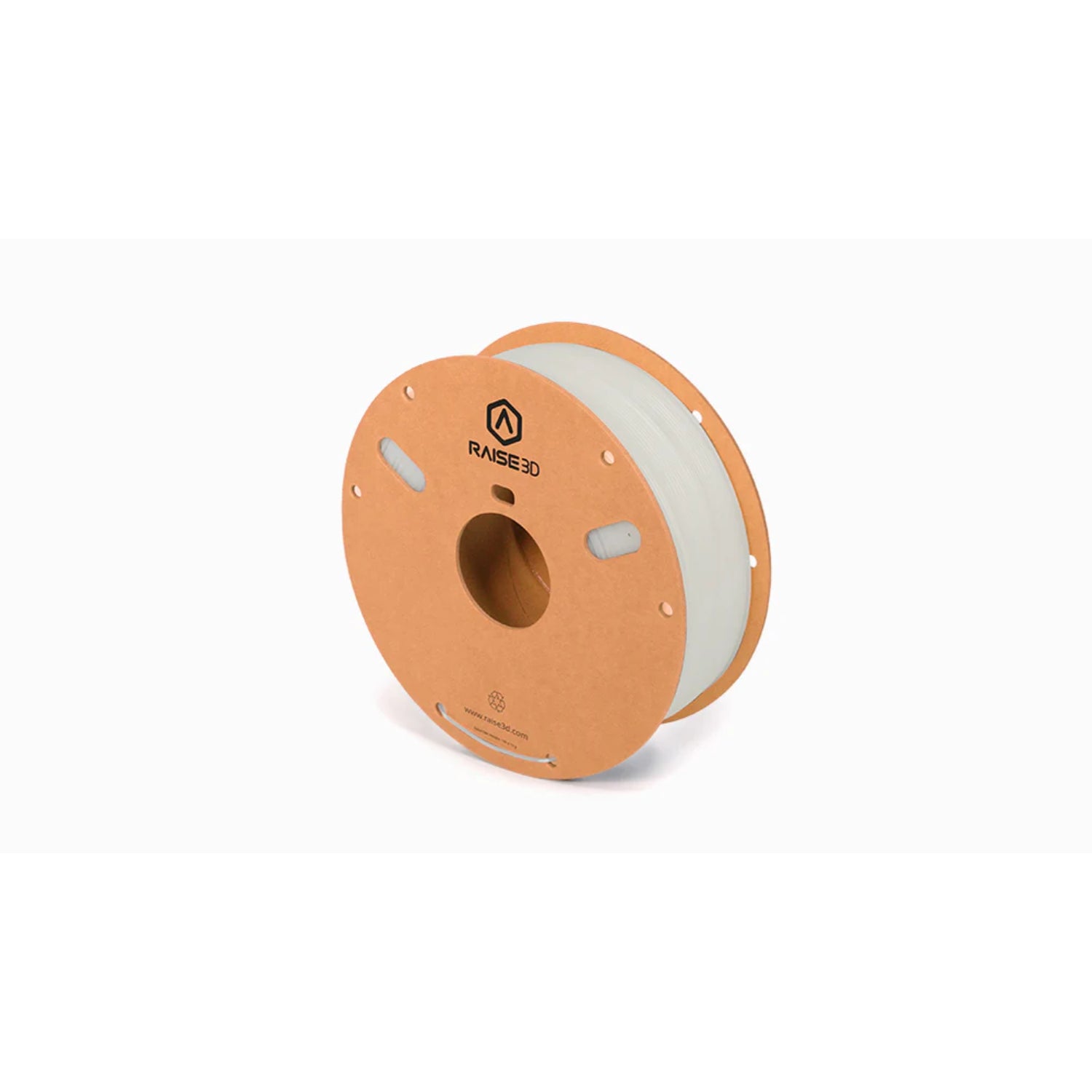

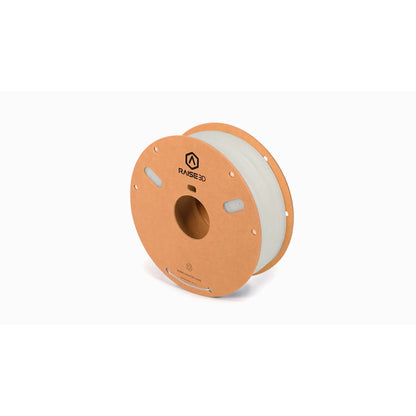

Raise3D Hyper Core PPA GF25 1.75mm 1kg Filament- RFID 5.11.19061A01

Raise3D Hyper Core PPA GF25 1.75mm 1kg Filament- RFID 5.11.19061A01

Regular price $209.00 USD
Regular price Sale price $209.00 USD
Sale Sold out

Includes Warranty

30-Day Returns

Unlimited Free Support

Color

Raise3D Hyper Core PPA GF25 Filament – High-Speed, Fiber-Reinforced Performance for Industrial 3D Printing

Raise3D Hyper Core PPA GF25 Filament represents a new generation of high-performance, fiber-reinforced composite materials optimized for Hyper FFF® high-speed 3D printing. Engineered with a 25% glass fiber reinforcement and an innovative dual-layer extrusion structure, this filament combines exceptional strength, stiffness, and heat resistance with smooth, high-speed printability.

The unique fiber-rich inner core provides extreme rigidity and durability, while the polymer-coated outer skin ensures excellent interlayer bonding, melt flow, and print consistency — even under high-speed extrusion conditions. This makes Raise3D Hyper Core PPA GF25 ideal for industrial applications that require superior mechanical performance, dimensional stability, and cost efficiency.


Key Benefits

  • Advanced Fiber-Reinforced Design: 25% glass fiber composition for superior strength and stiffness.

  • High-Speed Printing Ready: Optimized for Hyper FFF® systems, ensuring consistent flow and adhesion.

  • Extreme Mechanical Performance: Tensile strength up to 98 MPa and stiffness of 6.6 GPa.

  • High Heat Resistance: Operates safely up to 189°C, ideal for heavy-duty industrial parts.

  • Enhanced Interlayer Welding: Polymer-coated skin improves bonding and surface finish.

  • Dimensional Stability: Maintains accuracy and shape under high stress and temperature.


Specs

Specification Details
Material Type PPA GF25 (25% Glass Fiber Reinforced Polyphthalamide)
Filament Diameter 1.75 mm
Net Weight 1 kg
Color White (RAL 1013)
Tensile Strength 98 MPa
Flexural Modulus (Stiffness) 6.6 GPa
Heat Deflection Temperature 189°C
Fiber Content 25 wt.%
Compatible Printers Raise3D Pro3 Series with Hyper Speed Upgrade Kit, Raise3D RMF500
Recommended Support Material Raise3D Industrial PPA Support
Nozzle Compatibility 0.4 mm (default), 0.2 / 0.6 / 0.8 / 1.0 mm
Recommended Tool Raise3D Filament Dry Box for best print quality
Price $209.00 USD

Applications

  • Automotive & Aerospace: High-strength components, brackets, and housings exposed to heat and vibration.

  • Industrial Tooling: Fixtures, jigs, and molds requiring rigidity and precision.

  • Mechanical Assemblies: Load-bearing parts with exceptional dimensional accuracy.

  • Electrical & Electronics: Insulating and structural components with high temperature resistance.

  • Functional Prototypes & End-Use Parts: For testing and production in demanding environments.


Compatibility

  • Printers: Raise3D Pro3 Series (with Hyper Speed Upgrade Kit) and Raise3D RMF500.

  • Support Filament: Raise3D Industrial PPA Support for clean, stable overhangs.

  • Slicing Software: Latest version of ideaMaker for optimized print profiles.

  • Nozzle Options: 0.4 mm default; supports 0.2, 0.6, 0.8, 1.0 mm.

  • Storage Recommendation: Use Raise3D Filament Dry Box to prevent moisture absorption and ensure consistent extrusion.


Why Choose Raise3D Hyper Core PPA GF25?

The Raise3D Hyper Core PPA GF25 Filament is the culmination of advanced material science and high-speed 3D printing innovation. Unlike conventional fiber composites, its core-shell structure maximizes both strength and printability, solving common challenges such as nozzle wear and weak interlayer adhesion.

With industry-leading heat resistance (up to 189°C) and excellent stiffness, it delivers a new benchmark in high-performance additive manufacturing. Ideal for engineers and manufacturers seeking to replace metal or heavy polymer parts with lightweight, fiber-reinforced alternatives.


FAQs

What is Raise3D Hyper Core PPA GF25 Filament?

It’s a glass fiber–reinforced PPA (Polyphthalamide) filament featuring a fiber-rich inner core and polymer-coated skin for high-speed, high-strength 3D printing under Hyper FFF® technology.


What makes Hyper Core PPA GF25 different from other composite filaments?

Its dual-layer extrusion design improves interlayer bonding and melt flow, enabling faster printing speeds without sacrificing strength or print quality.


What are the mechanical properties of PPA GF25?

It offers a tensile strength of 98 MPa, a stiffness (modulus) of 6.6 GPa, and heat resistance up to 189°C, making it suitable for industrial and functional parts.


Which printers are compatible with Hyper Core PPA GF25?

Compatible with the Raise3D Pro3 Series (with Hyper Speed Upgrade Kit) and the Raise3D RMF500 for advanced industrial printing.


What support material should I use?

Use Raise3D Industrial PPA Support Filament to ensure stable overhangs, clean detachment, and high surface quality.


How should I store Hyper Core PPA GF25?

Always store in a dry box (preferably Raise3D Filament Dry Box) to prevent moisture absorption and maintain print consistency.
