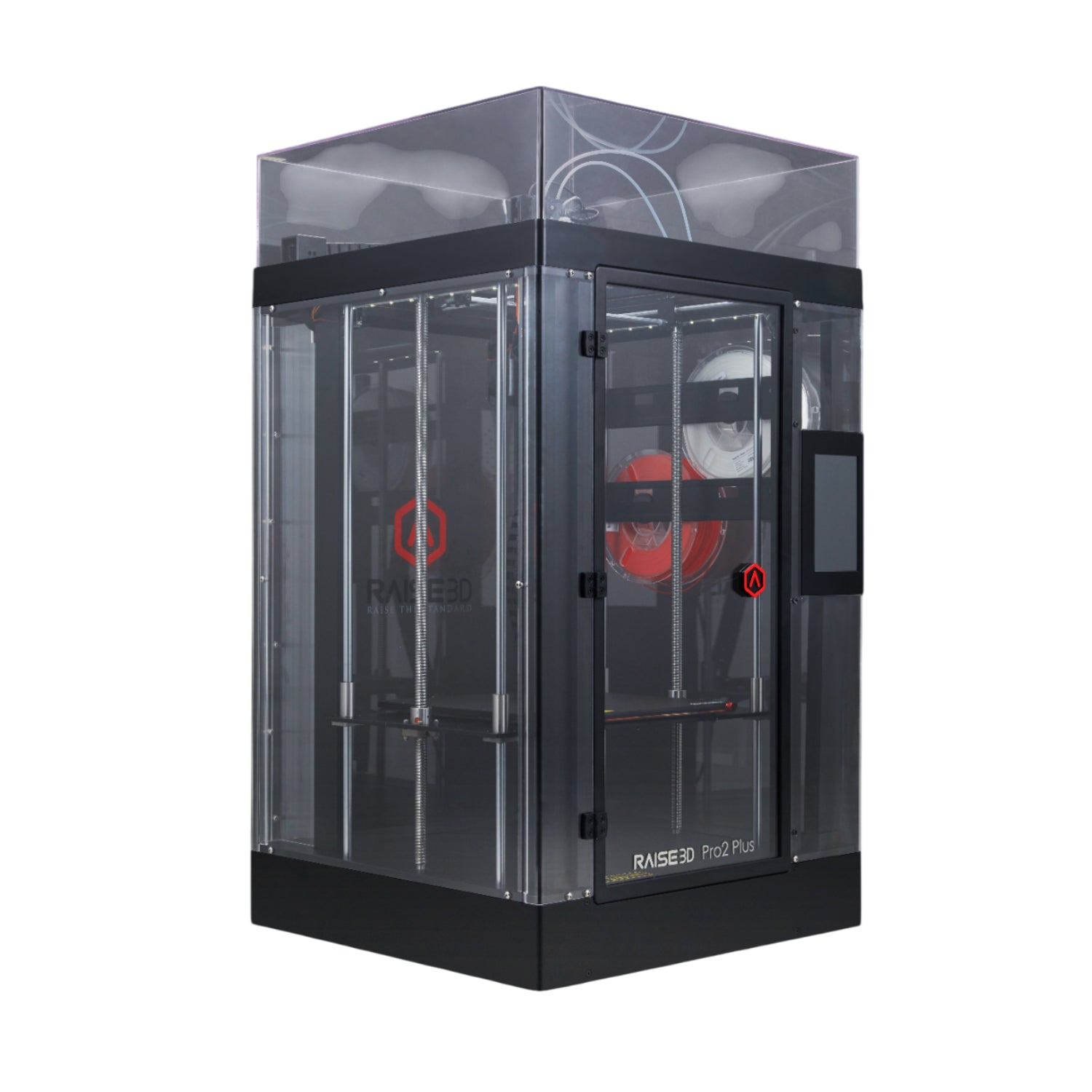

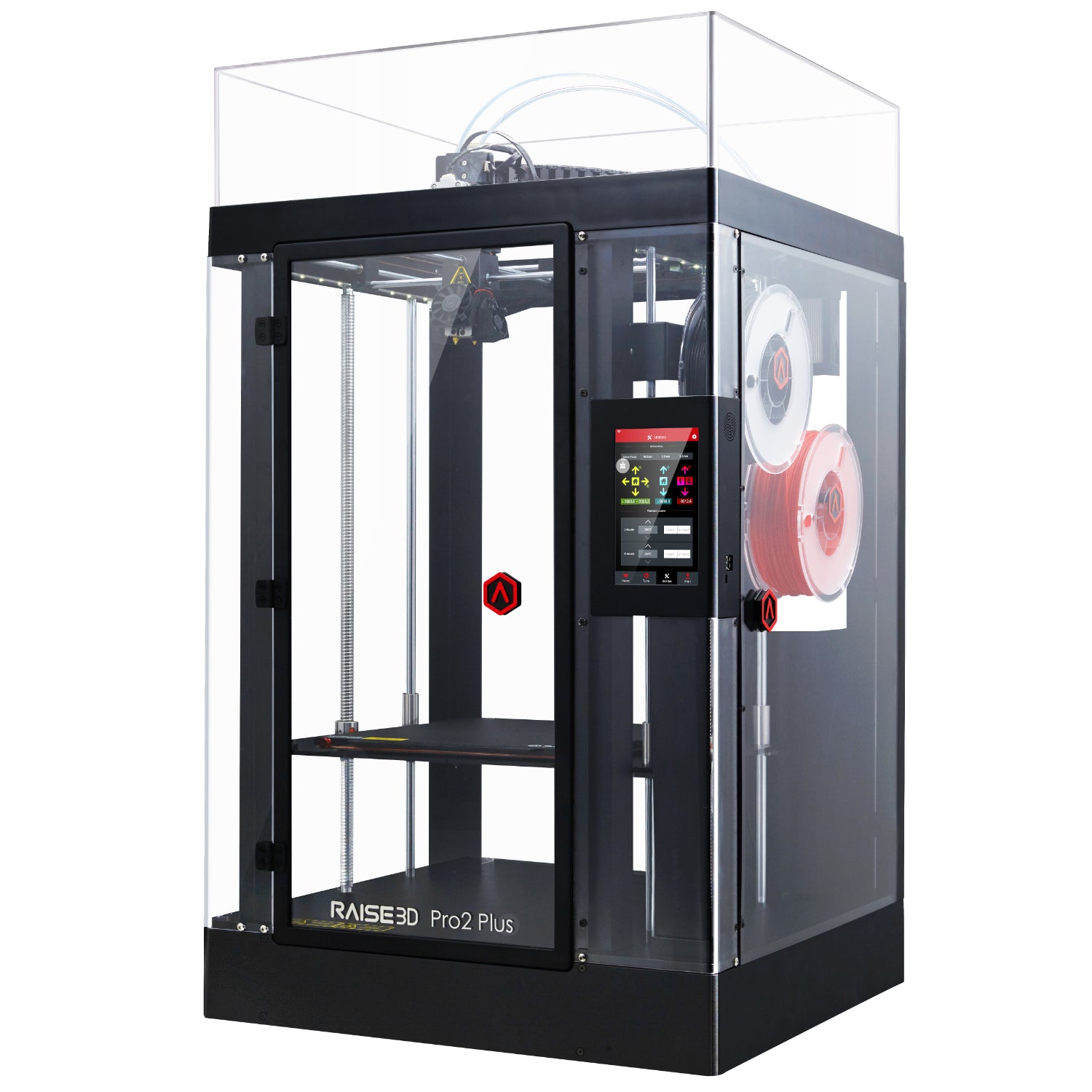

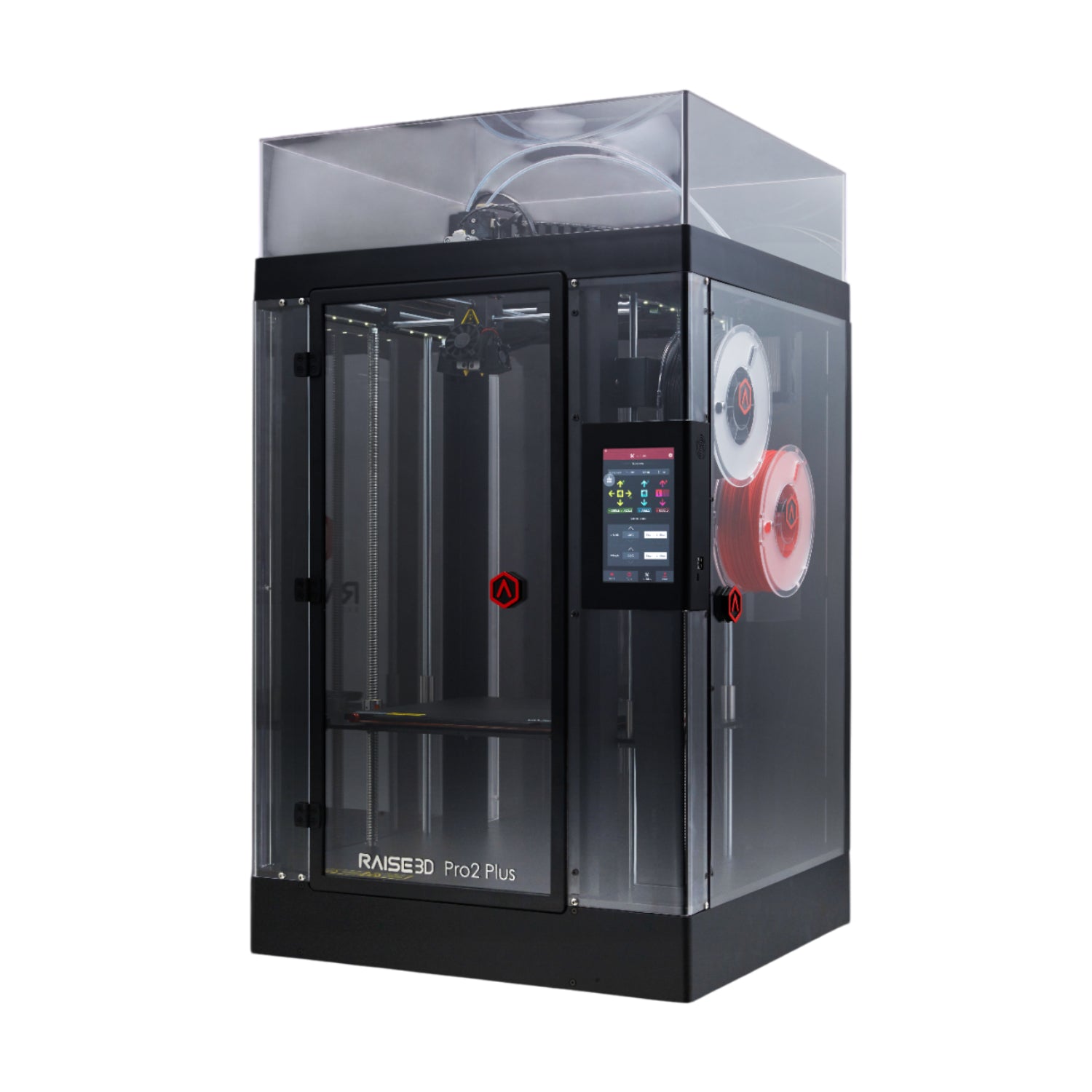

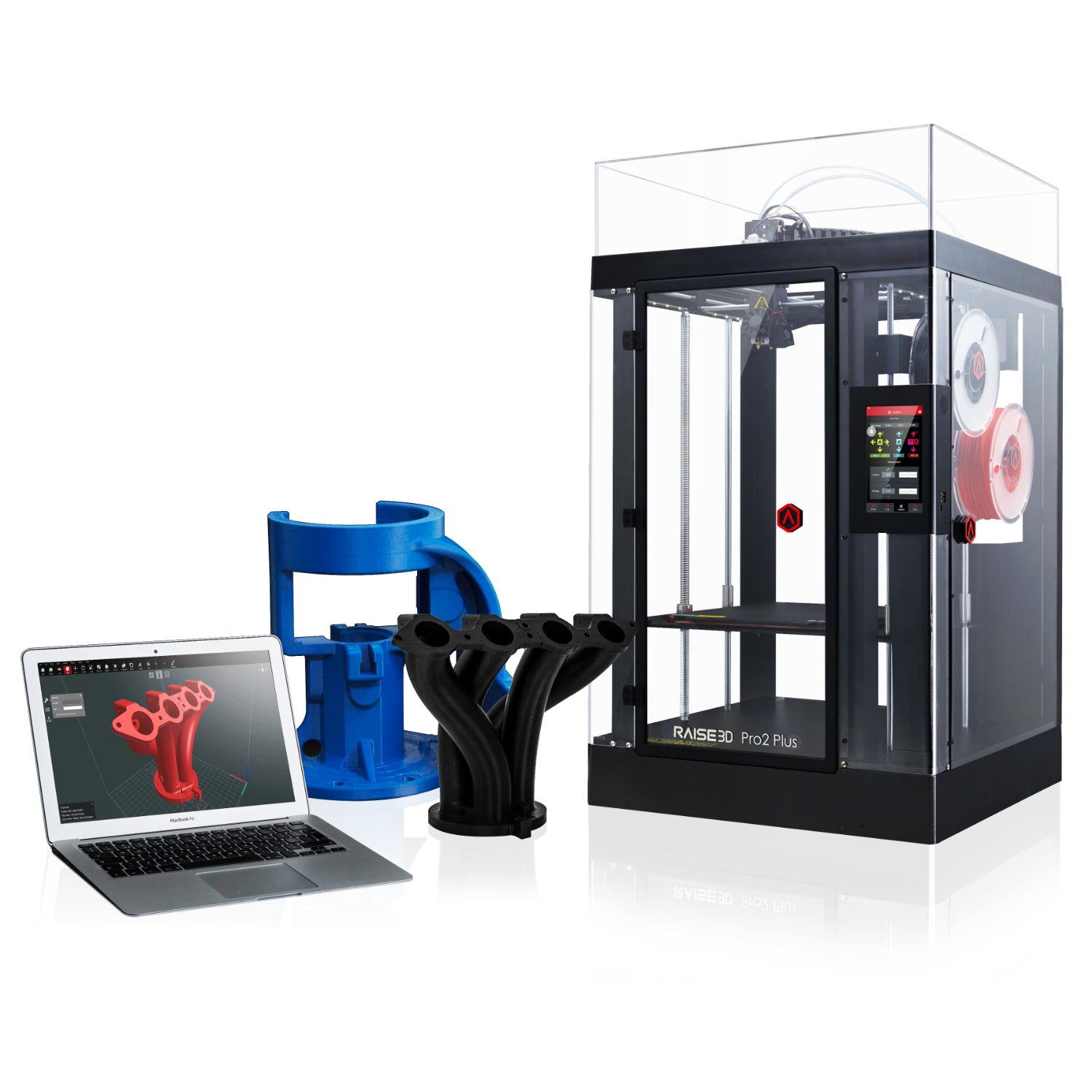

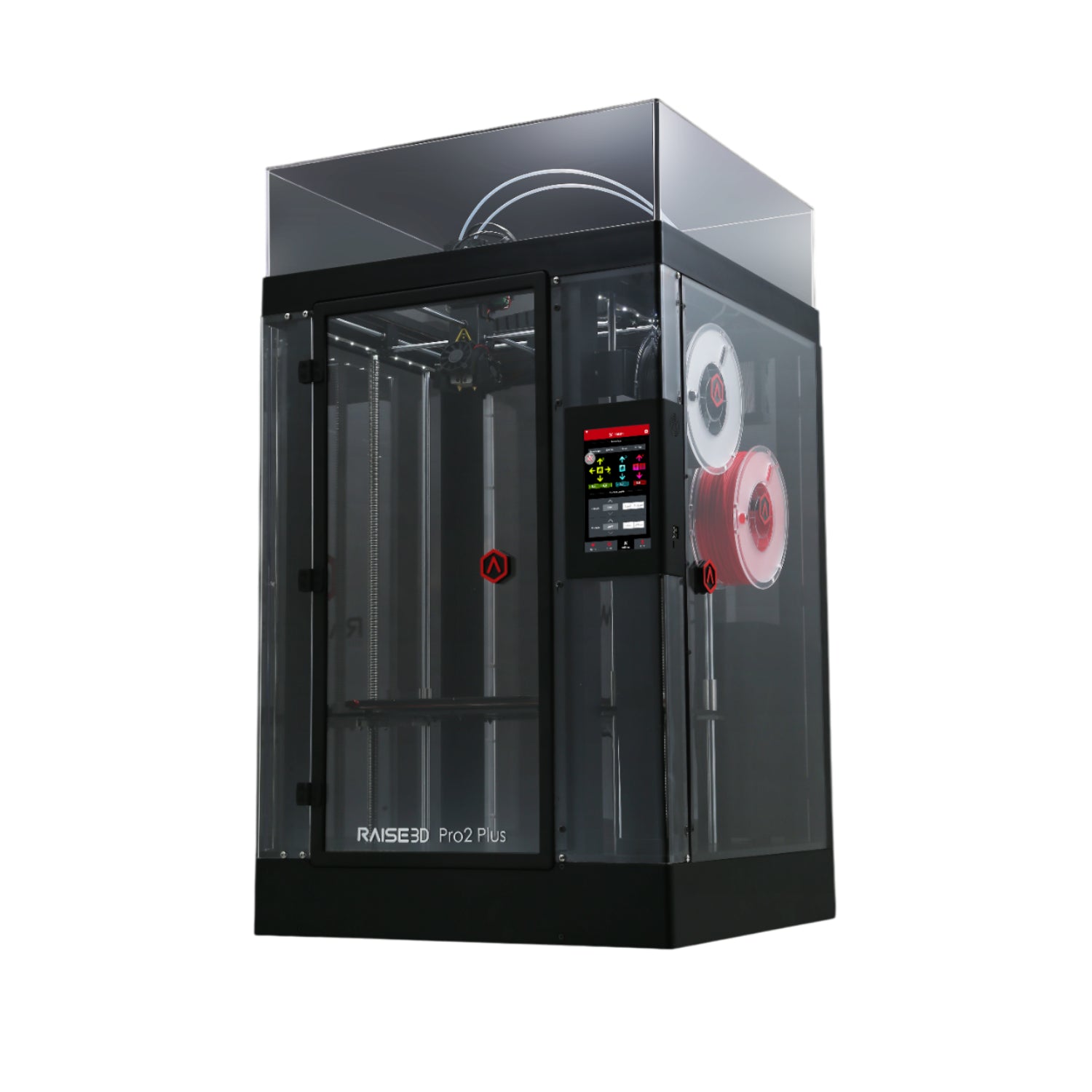

Raise3D Pro2 Plus Industrial Grade FDM 3D Printer 1.01.017.001A01

Raise3D Pro2 Plus Industrial Grade FDM 3D Printer 1.01.017.001A01

Regular price $2,999.00 USD
Regular price Sale price $2,999.00 USD
Sale Sold out

In stock

Includes Warranty

30-Day Returns

Unlimited Free Support

Engineered for Manufacturing and Prototyping

The Raise3D Pro2 Plus – delivers industrial-grade 3D printing in a professional desktop setup. With IDEX capabilities, precision extrusion, and unmatched reliability, these dual extruder printers are ideal for rapid prototyping, manufacturing aids, and end-use part production.


Key Features & Advantages

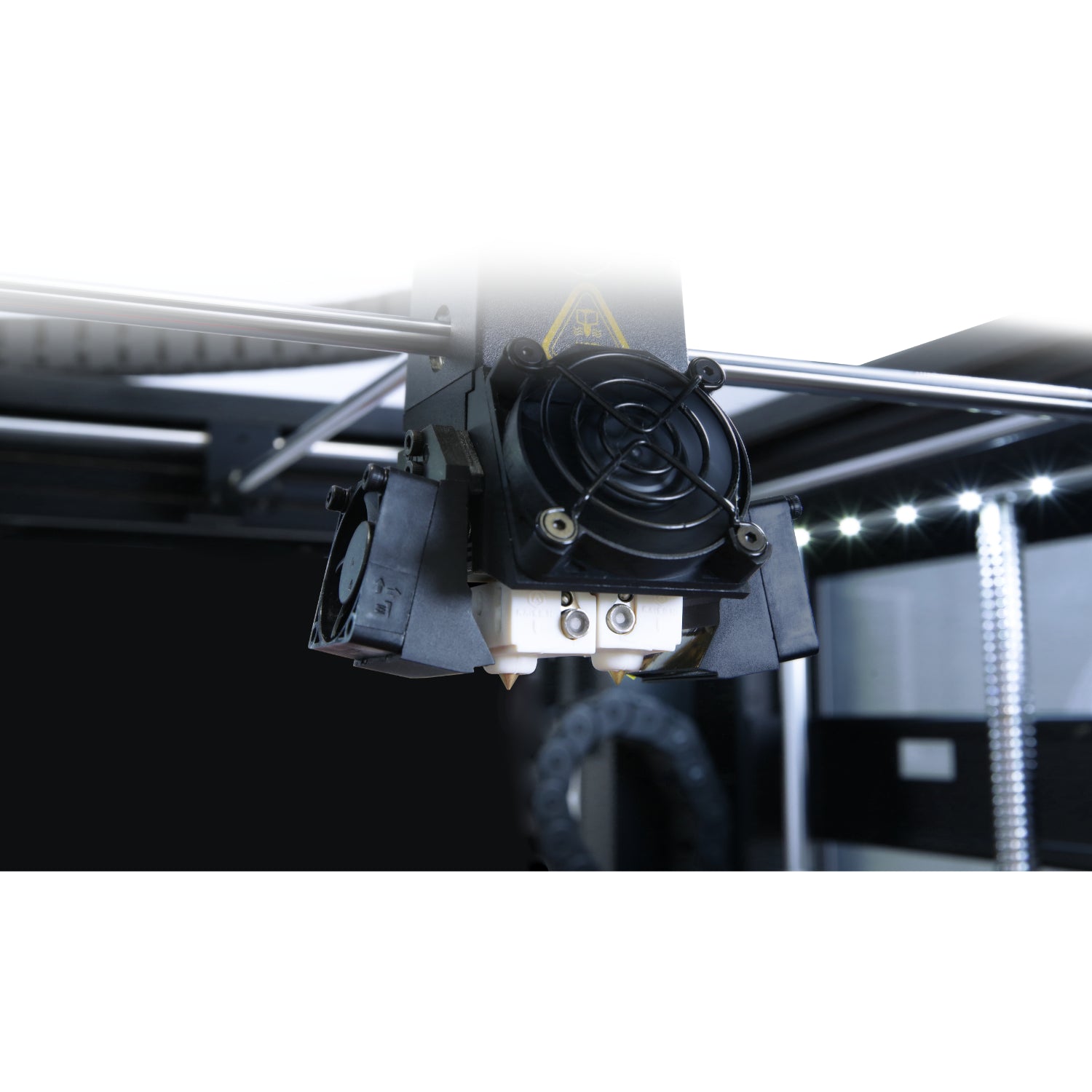

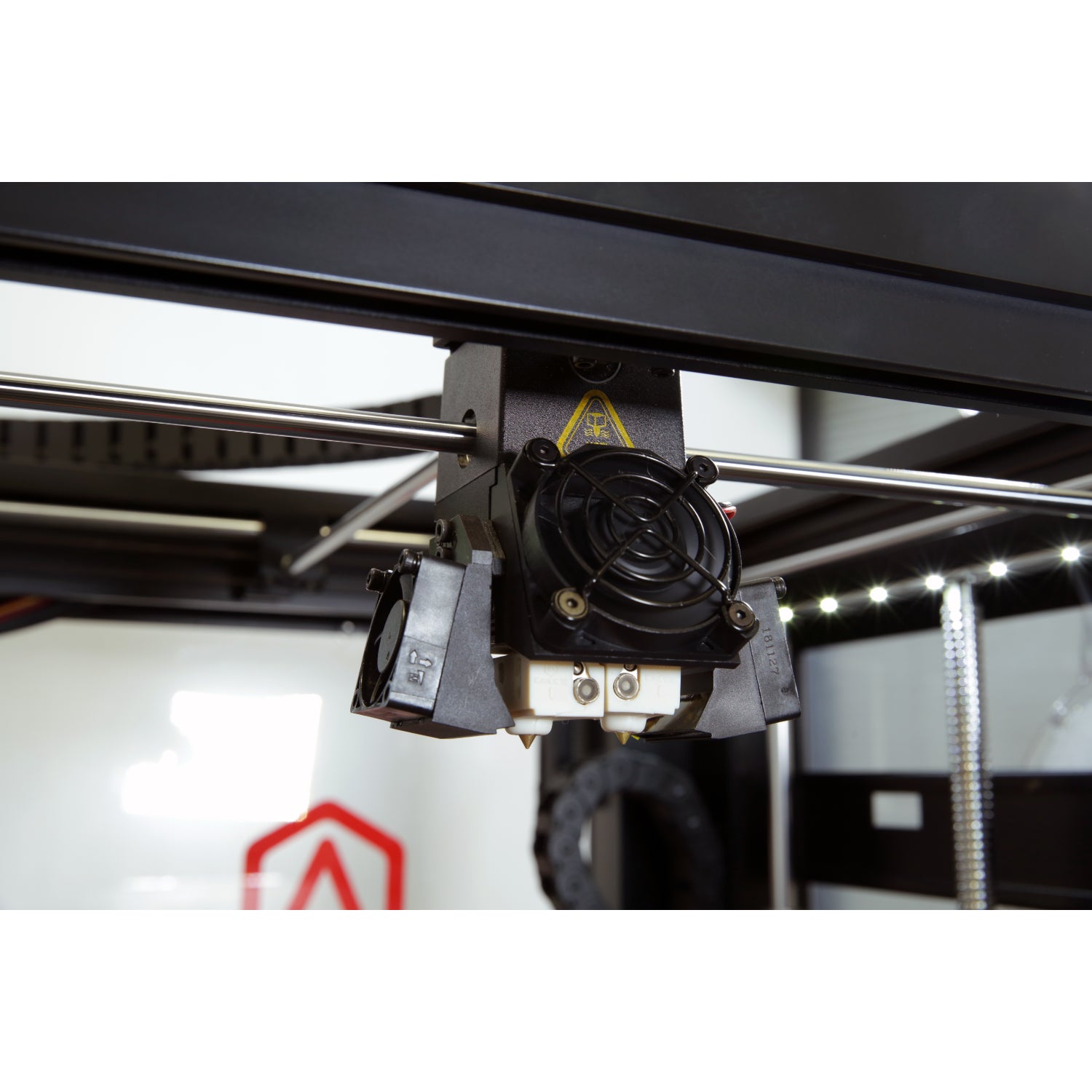

  • Dual Extruder System (IDEX)
    Print with different materials or colors in one job. Supports water-soluble and composite filaments.

  • High Repeatability
    < 0.005 mm (5 micron) for consistent layer registration and dimensional accuracy.

  • Lightning-Fast Switching
    < 1 second toolhead switching improves efficiency and print speed.

  • Large Build Volume
    Especially with the Pro2 Plus, print models up to 605 mm (23.8”) tall.

  • Metal Build Plate with Even Heat Distribution
    Ensures smooth adhesion and high print quality across the entire surface.

  • 1.5 mm Lifting Nozzle Distance
    Reduces interference and improves results when switching tools.

  • 7-Inch Touchscreen Interface
    Full-color panel with RaiseCloud connectivity for remote monitoring and control.

  • HEPA Filter with Activated Carbon
    Keeps your workspace clean by filtering airborne particles and VOCs.


Compatible Materials

  • PLA, ABS, ASA, PETG, PC, TPU 95A, PVA+, PETG ESD

  • Glass Fiber Infused, Carbon Fiber Infused, Metal Fill, Wood Fill

  • Hyper Speed PLA & ABS with software upgrade (Hyper FFF®)

  • Open Filament Program (OFP) Supported


Raise3D Ecosystem

  • ideaMaker – Free slicing software for Raise3D and third-party printers.

  • RaiseCloud – Manage and monitor your printers from anywhere.

  • ideaMaker Library – Access verified print profiles.


Specs

Feature Pro2 Plus
Build Volume (Single / Dual) 305×305×605 mm / 280×305×605 mm
Machine Size (W×D×H) 620×590×1105 mm
Net Weight 59.5 kg
Gross Weight (Carton) 72.7 kg
Gross Weight (Pallet) 80.2 kg
Feature Specification
Print Technology Fused Filament Fabrication (FFF)
Print Head System Dual-head with electronic lifting system
Nozzle Diameter 0.4 mm (default), 0.2/0.6/0.8/1.0 mm available
Max Nozzle Temperature 300°C
Heated Bed Silicone with max temp of 110°C
XYZ Step Size 0.78125, 0.78125, 0.078125 micron
Print Speed 15–150 mm/s
Layer Height 0.05–0.6 mm (Recommended: 0.1–0.3 mm for 0.4 mm nozzle)
Filament Diameter 1.75 mm
Connectivity Wi-Fi, LAN, USB, Live camera
Touchscreen 7-inch, 1024×600 resolution
Noise Level < 50 dB(A)
Power Input 100–240 V AC, 50/60 Hz, 230V @ 3.3 A
Power Output 24V DC, 600W
Certifications CB, CE, FCC, RoHS
Filter System HEPA with Activated Charcoal
Software ideaMaker slicer, RaiseCloud enabled
Supported File Types STL, OBJ, 3MF, OLTP
Supported OS Windows, macOS, Linux
Controller Cortex M7, Cortex-A9, 1GB RAM, 16GB Flash

Raise3D Pro2 Plus Technical Data Sheet

📄 View Raise3D Pro2 Plus Technical Data Sheet

Raise3D Pro2 Unboxing and Setup Videos

Owner’s Manual

📄 View Raise 3D Pro2 Plus User Manual

Standard 1-Year Warranty

📄 View Raise3D Pro2 Plus Standard 1-Year Warranty
