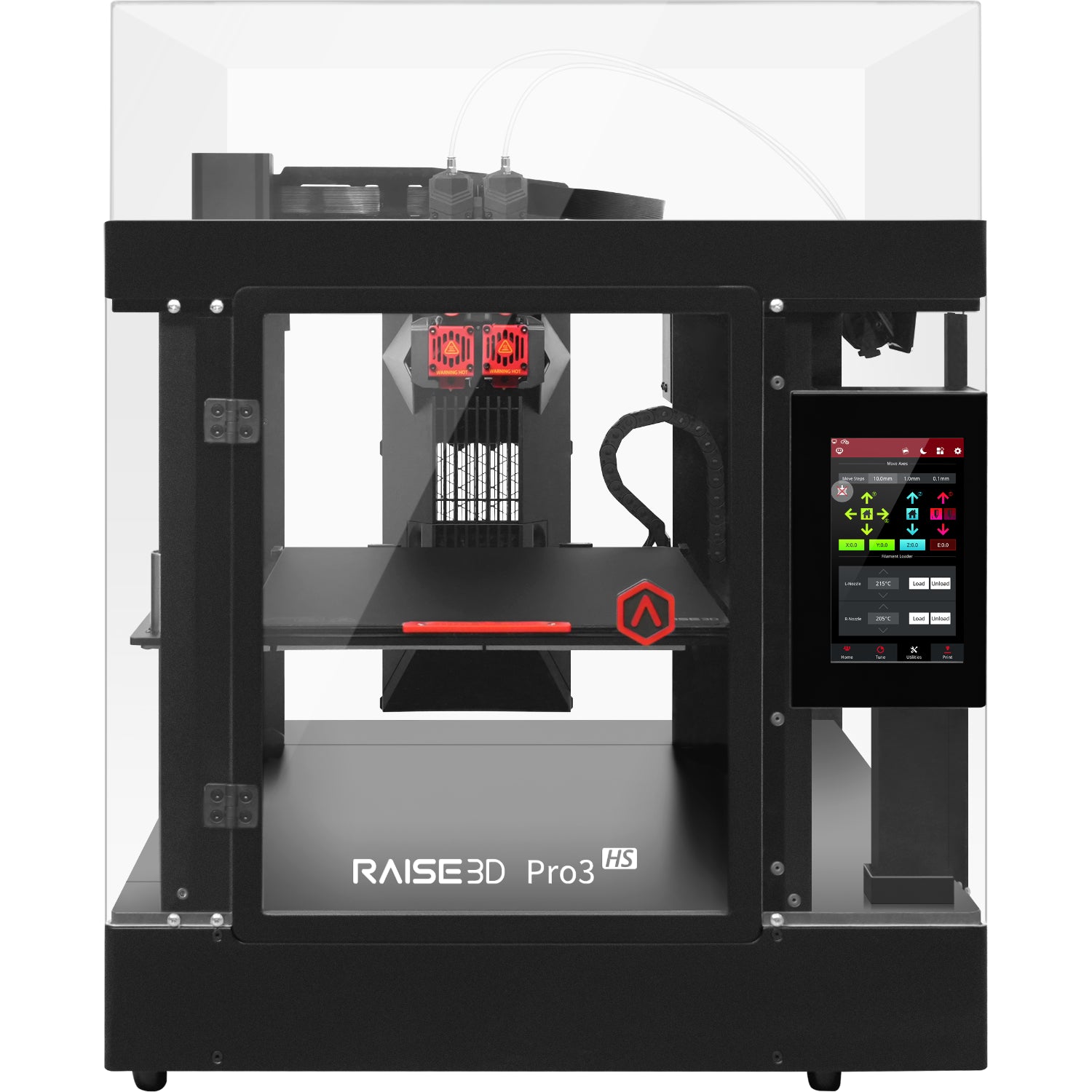

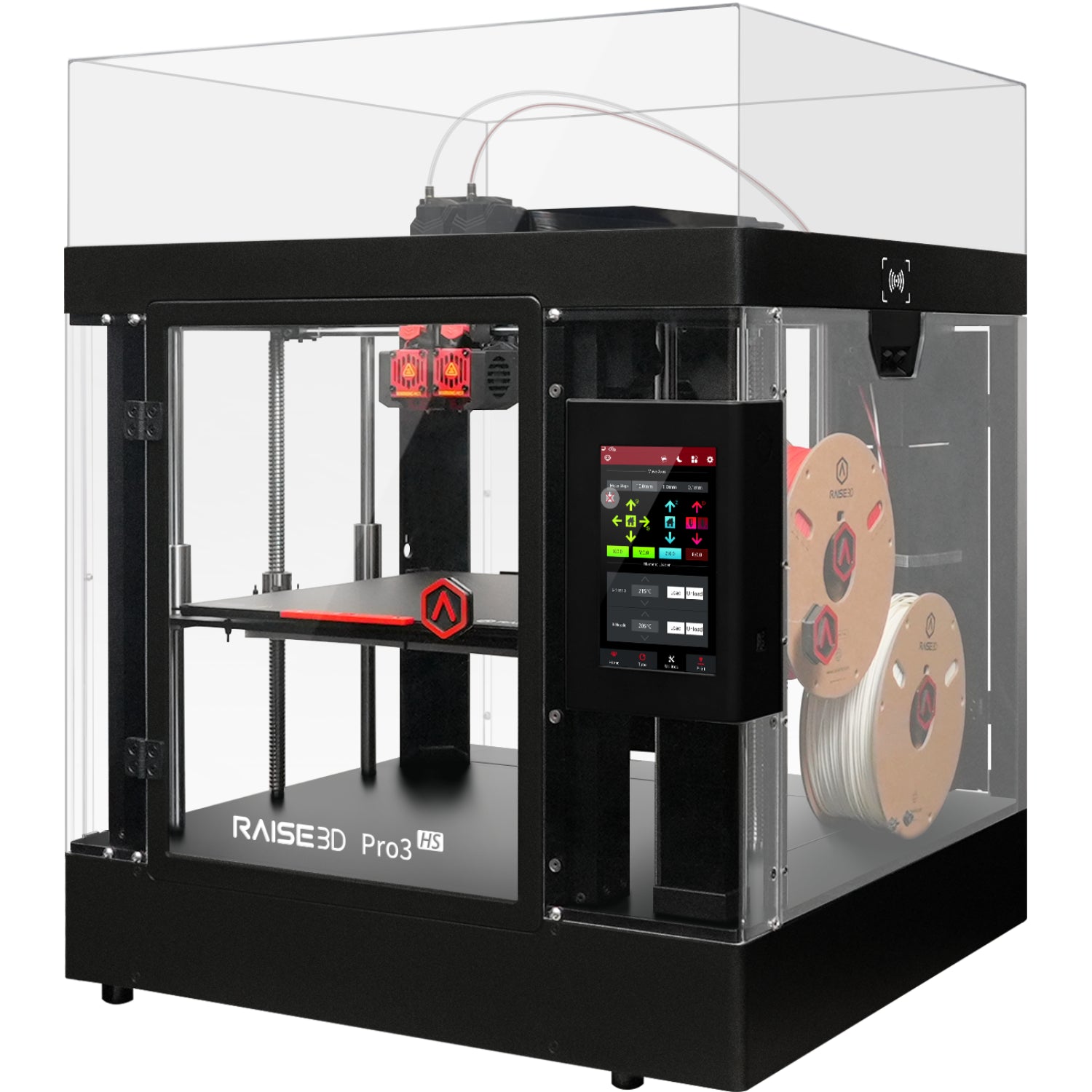

Raise3D Pro3 HS Industrial Grade FDM 3D Printer 1.01.044.005A01

Raise3D Pro3 HS Industrial Grade FDM 3D Printer 1.01.044.005A01

Regular price $5,599.00 USD
Regular price Sale price $5,599.00 USD
Sale Sold out

In stock

Includes Warranty

30-Day Returns

Unlimited Free Support

Industrial-Grade High-Speed Printing with Composite Materials

The Raise3D Pro3 HS Series is a next-generation 3D printing solution for high-performance composite materials. It builds on the successful Pro3 Series with advanced Hyper FFF® technology, delivering ultra-fast speeds, superior surface quality, and exceptional material compatibility. Designed for professional applications, it features minimal manual intervention, enhanced part strength, and reduced production time.


Key Features & Advantages

  • Powered by Hyper FFF®
    Achieve consistent, high-speed printing with active vibration control and a high-flowrate hot end.

  • 500 mm/s Max Speed
    Standard print speeds up to 300 mm/s with Hyper Core materials.

  • Closed-Loop Stepper Motors
    Ensures precision movement and eliminates layer shifting at high speeds.

  • Enhanced Platform & Components
    Magnetic steel plate, dual-diaphragm couplings, all-metal hot ends and nozzles.

  • Auto Filament Switching
    Supports dual 2.5 kg filament spools (5 kg total capacity) for uninterrupted production.

  • RFID Filament Sensor (Coming Soon)
    Detects and verifies filament type for optimized printing parameters.

  • All-Metal Frame with Optimized Shaft Design
    Industrial-grade durability and motion stability.

  • Smart Features for Efficiency
    EVE Smart Assistant, HEPA filtration, and RaiseCloud compatibility.


Compatible Materials

  • Hyper Core: PPA CF, PPA GF, ABS CF

  • Hyper Speed: PLA, ABS

  • Industrial: PET CF, PET GF, PPA Support, PET Support, PETG ESD

  • Premium: PLA, ABS, ASA, PETG, PC, TPU-95A, PVA+

  • Raise3D Open Filament Program (OFP) Supported


Raise3D Ecosystem

  • ideaMaker – Advanced slicing software with templates for Hyper materials

  • RaiseCloud – Cloud-based printer management and monitoring

  • ideaMaker Library – Verified print profiles and material settings


Specs

Pro3 HS

Feature Specification
Build Volume (Single/Dual) 300×300×300 mm / 255×300×300 mm
Machine Size (W×D×H) 620×626×760 mm
Net Weight 54 kg (119 lbs)
Gross Weight (Pallet) 75.7 kg (166.9 lbs)
Feature Specification
Print Technology Fused Filament Fabrication (FFF)
Print Head System Dual-head with Electronic Lifting System
Filament Diameter 1.75 mm
XYZ Step Size 0.78125, 0.78125, 0.078125 micron
Max Printing Speed 500 mm/s
Build Plate Flexible Steel Plate with Buildtak
Heated Bed Material Silicone, Max Temp: 120°C
Build Plate Leveling Mesh-Leveling with Flatness Detection
Nozzle Diameter 0.4 mm (Default); 0.2 / 0.6 / 0.8 / 1.0 mm available
Max Nozzle Temperature 320°C
Layer Height 0.05–0.6 mm (Recommended: 0.1–0.3 mm with 0.4 mm nozzle)
Filament Run-out Sensor Available
Filter HEPA Filter with Activated Charcoal
EVE Smart Assistant Available
Connectivity Wi-Fi, LAN, USB, Live Camera
Noise Emission < 55 dB(A)
Operating Temperature 15–30ºC, 10–90% RH
Storage Temperature -25ºC to +55ºC, 10–90% RH
Power Input / Output 100–240 V AC / 24 V DC, 600 W
Supported File Types STL, OBJ, 3MF, OLTP, STEP, STP, IGES, IGS
Software ideaMaker
Supported OS Windows, macOS, Linux
User Interface 7-inch Touchscreen, 1024×600 resolution
Controller Cortex-M4, Cortex-A9, 1GB RAM, 16GB Flash
Ports USB 2.0 × 2, Ethernet × 1

Sample Applications

  • Rim Mounting Fixture
    Material: Hyper Core PPA CF25
    Size: 145×140×55 mm
    Weight: 233.3 g
    Print Time: 8h 44m
    Use: Automotive manufacturing – Jigs, Fixtures
    Key Needs: Strength, Precision, Lightweight, Customization


Included in the Purchase

Machine/Component Quantity
Raise3D Pro3 HS or Pro3 Plus HS 1
Dual Extruder with Electronic Lifting System 1
Flexible Magnetic Build Plate 1
7-Inch Touchscreen Interface 1
Power Cable & Required Accessories 1 set
Spool Holders (Supports Dual 2.5kg Filament Spools) 2
Quick Start Toolkit 1
User Manuals and Safety Guide 1

Raise3D Pro3 HS Data Sheet

📄 View Raise3D Pro3 HS Data Sheet

Raise3D Tutorial & Setup Video


Owner's Manual

📄 View Raise3D Pro3 HS User Manual


Standard 1 Year Warranty

📄 View Raise3D Standard 1 Year Warranty
