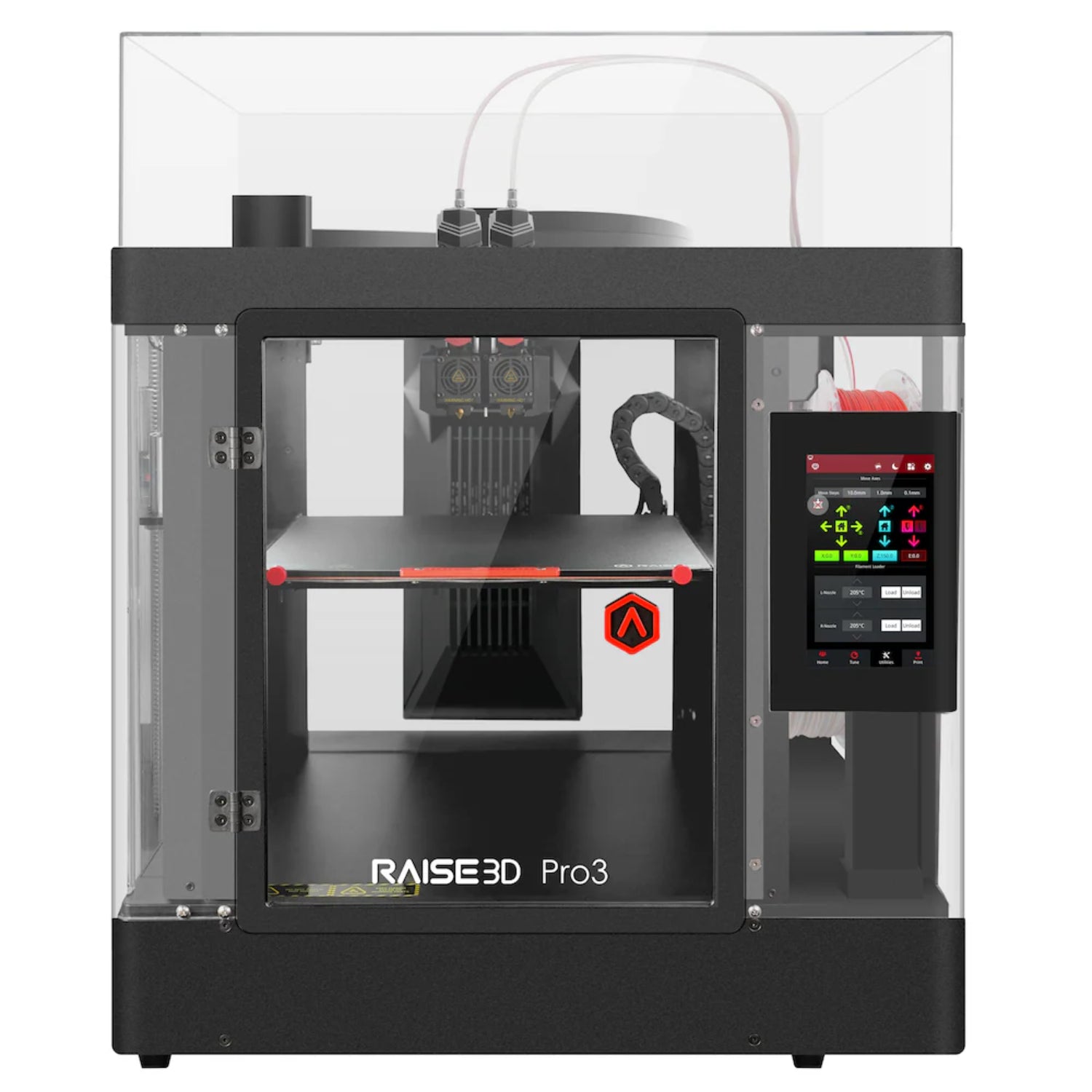

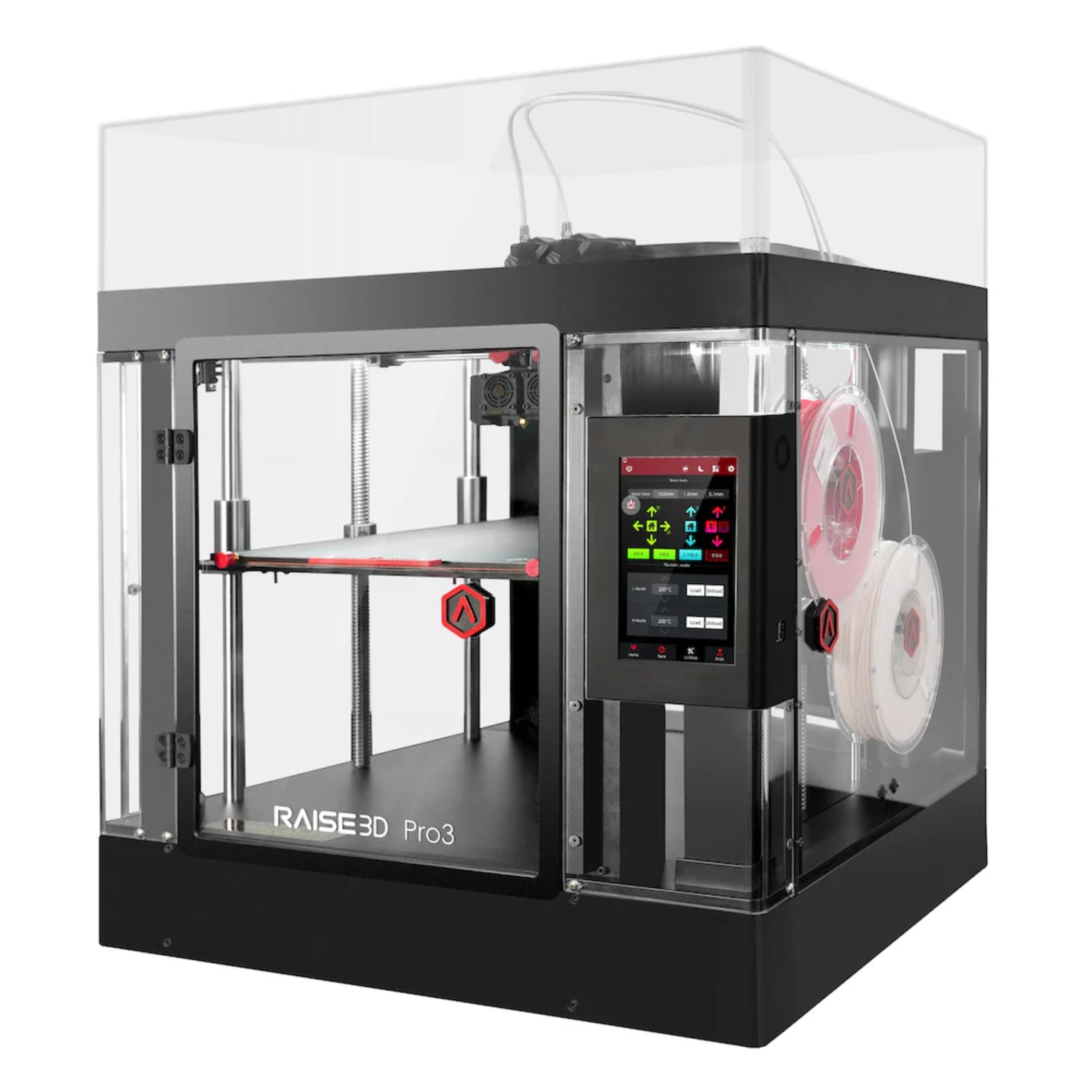

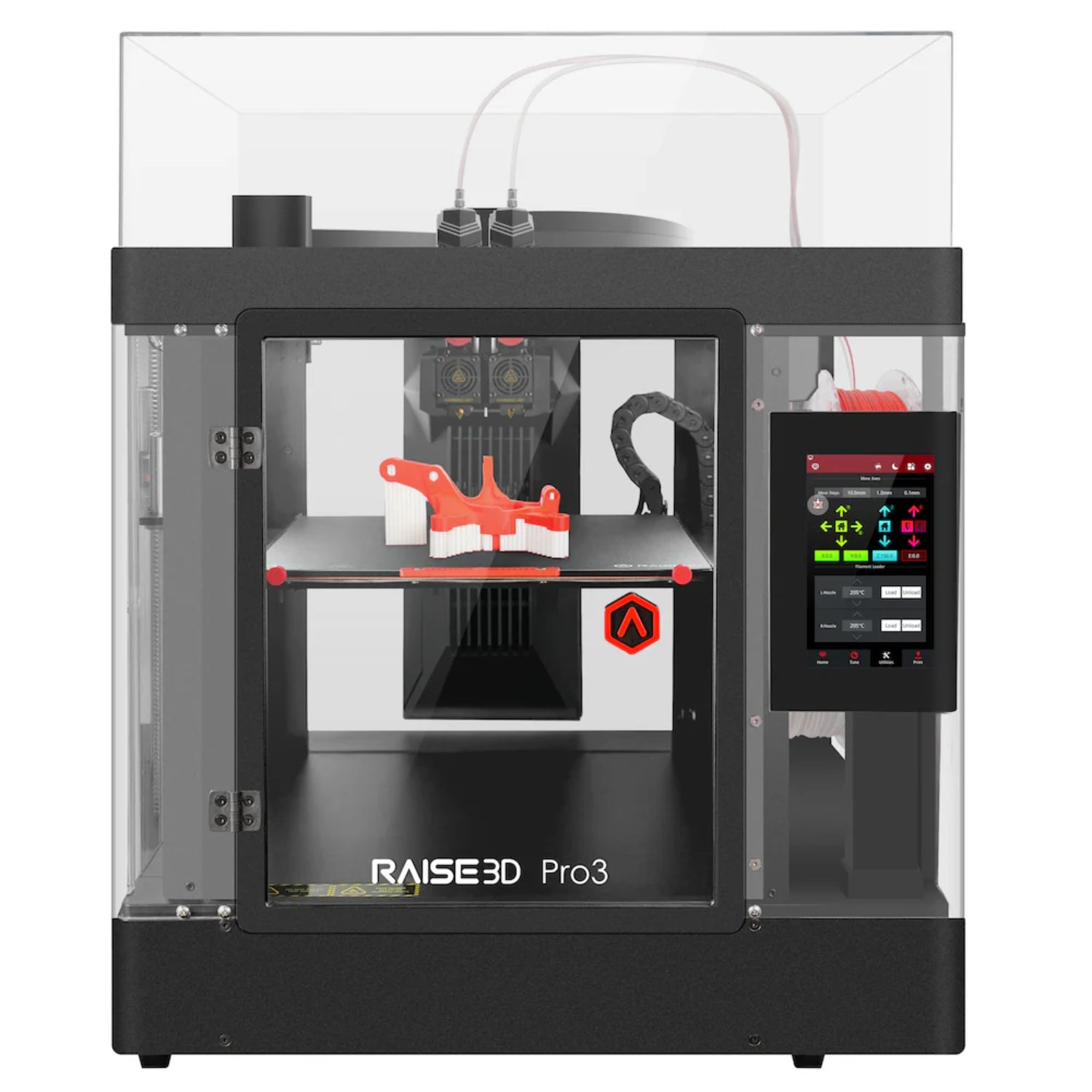

Raise3D Pro3 Industrial Grade FDM 3D Printer 1.01.024.004A01

Raise3D Pro3 Industrial Grade FDM 3D Printer 1.01.024.004A01

Regular price $4,599.00 USD
Regular price Sale price $4,599.00 USD
Sale Sold out

In stock

Includes Warranty

30-Day Returns

Unlimited Free Support

Precision, Reliability, and Smart Automation for High-Performance FFF Printing

The Raise3D Pro3 Series is a professional dual-extruder 3D printer designed to streamline production and large-scale rapid prototyping. Built on the legacy of the Pro2, the Pro3 Series incorporates intelligent automation with the EVE Smart Assistant, advanced material compatibility, and upgradeable Hyper FFF® technology for ultra-fast printing. The series includes the Pro3 and Pro3 Plus, offering 300×300×300 mm and 300×300×605 mm build volumes respectively.


Key Features & Advantages

  • Compatible with Hyper Speed Upgrade Kit Transform the Pro3 Series into a high-speed printer (up to 1000 g/day output) with the optional upgrade.

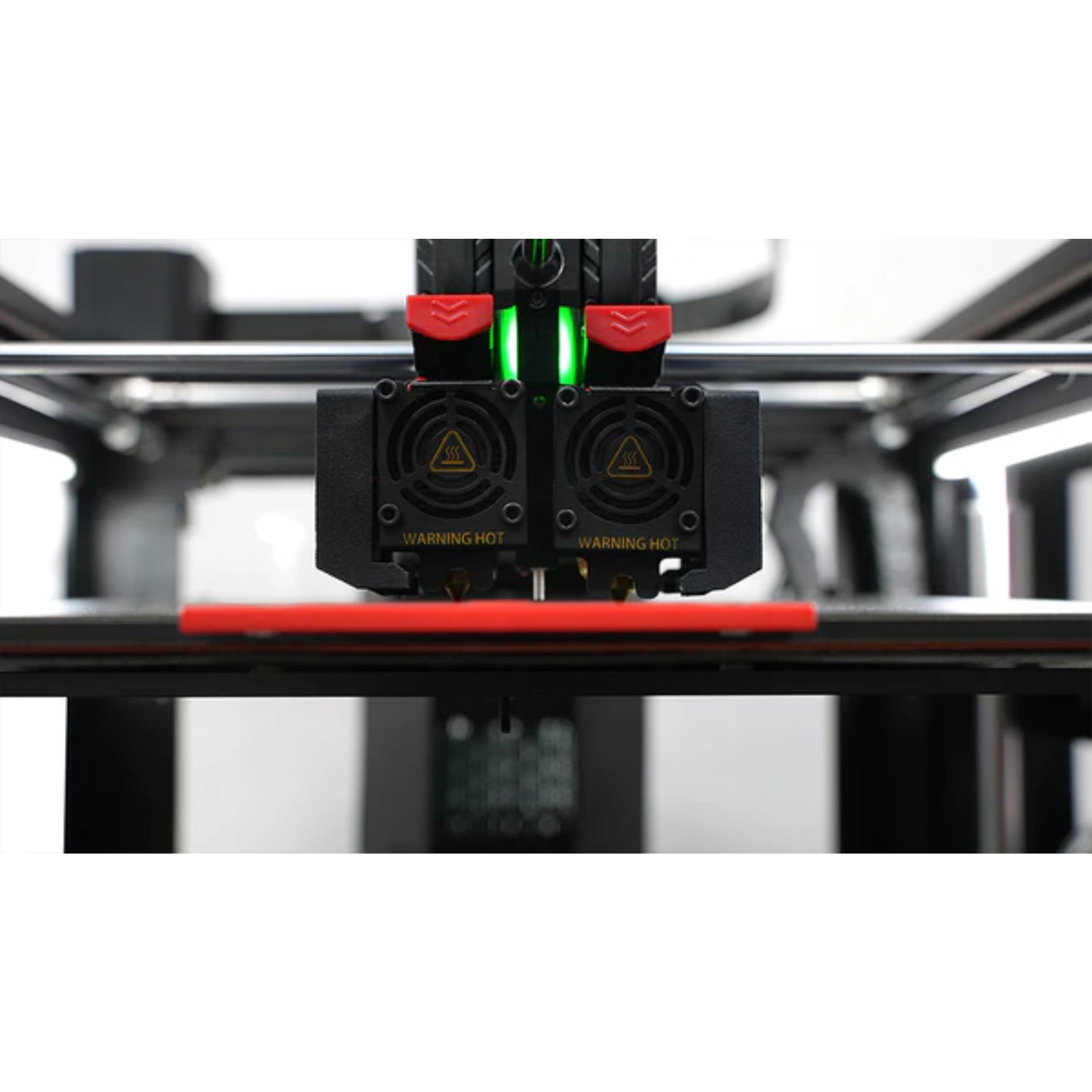

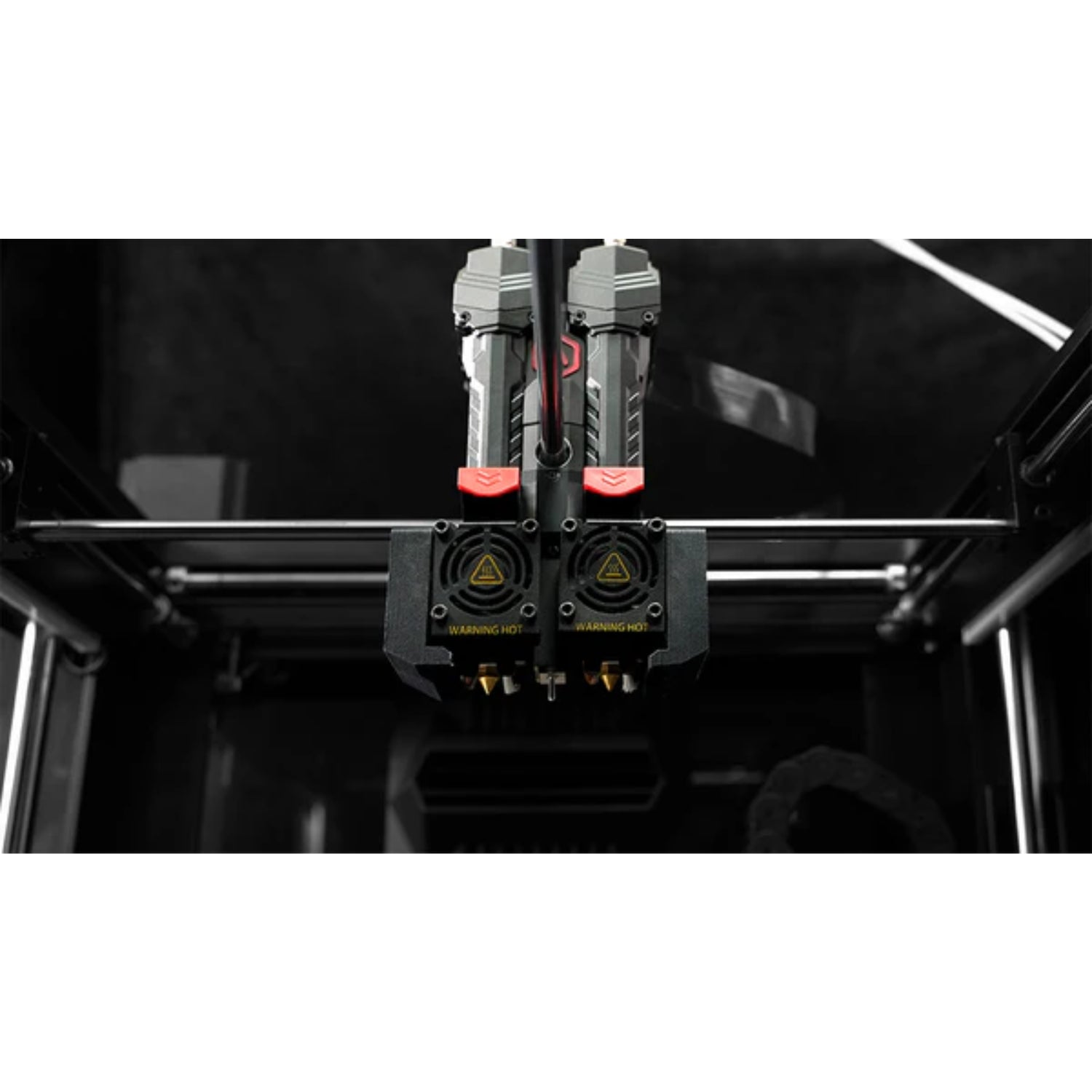

  • Smart Dual Extruder System Tool-free hot end swapping, independent nozzle lifting, <1s switching time, and 1.5 mm lift distance.

  • Auto Bed Leveling & Flexible Build Plate Mesh-based flatness detection ensures better adhesion and precise first layers.

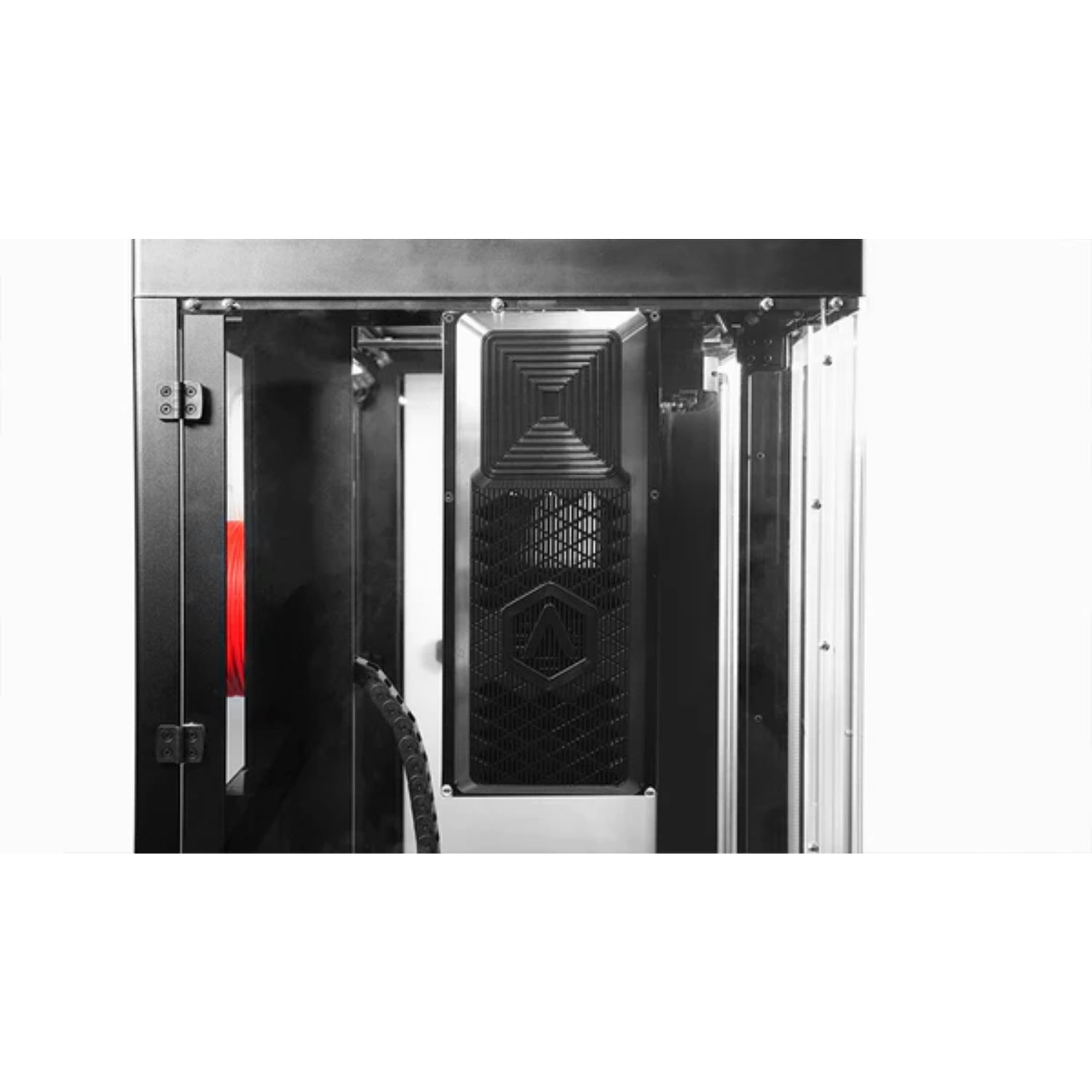

  • Air Flow Manager & HEPA Filtration Rear-positioned system regulates chamber temperature and filters internal air.

  • Live HD Camera Monitoring Monitor remotely through RaiseCloud with upgraded CMOS sensor for clear image quality.

  • Lightweight Cable + Digital Temp Sensing Reduces motion mass and enhances print head stability.

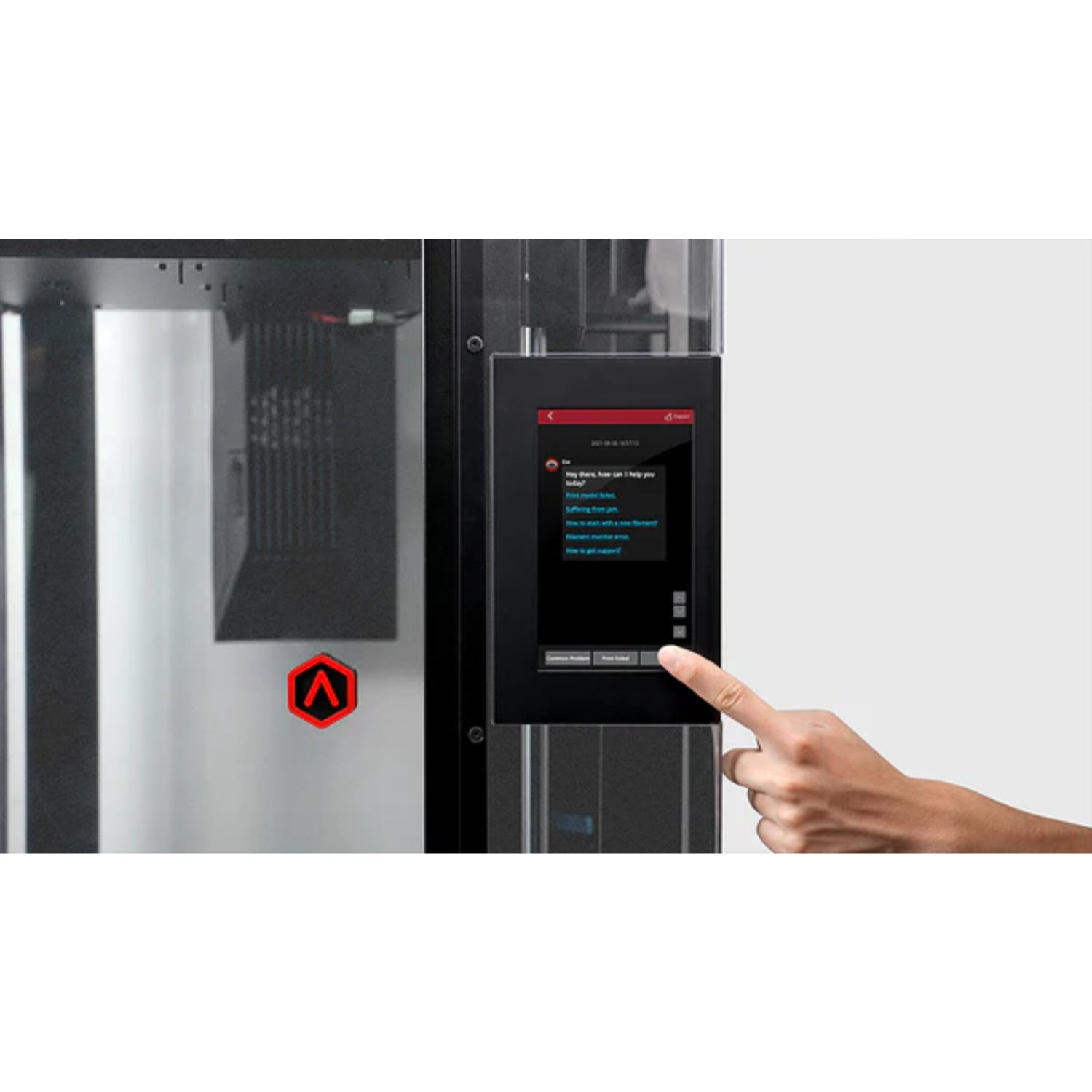

  • EVE Smart Assistant Diagnostic tool with maintenance reminders and real-time troubleshooting.


Compatible Materials

  • Hyper Speed: PLA, ABS

  • Premium: PLA, ABS, ASA, PETG, PC, TPU-95A, PVA+

  • Industrial: PETG ESD, PET Support

  • Open Filament Program (OFP) Supported


Raise3D Ecosystem

  • ideaMaker – Free slicing software for Raise3D and third-party printers

  • RaiseCloud – Cloud-based printer management and job tracking

  • ideaMaker Library – Pre-tuned slicing profiles for optimized material performance


Specs

Feature Specification
Build Volume (Single/Dual) 300×300×300 mm / 255×300×300 mm
Machine Size (W×D×H) 620×626×760 mm
Net Weight 56.2 kg (123.9 lbs)
Gross Weight (Pallet) 74.5 kg (164.3 lbs)


Feature Specification
Print Technology Fused Filament Fabrication (FFF)
Print Head System Dual-head with Electronic Lifting System
Filament Diameter 1.75 mm
XYZ Step Size 0.78125, 0.78125, 0.078125 micron
Print Speed Max: 150 mm/s (Up to 1000 g/day with Hyper Upgrade)
Build Plate Flexible Steel Plate with Buildtak
Heated Bed Material Silicone, Max Temp: 120°C
Build Plate Leveling Mesh-Leveling with Flatness Detection
Nozzle Diameter 0.4 mm (Default); 0.2 / 0.6 / 0.8 / 1.0 mm available
Max Nozzle Temperature 300°C
Layer Height 0.05–0.6 mm (0.1–0.3 mm recommended for 0.4 mm)
Filament Run-out Sensor Available
Filter HEPA Filter with Activated Charcoal
Connectivity Wi-Fi, LAN, USB, Live Camera
Noise Emission < 55 dB(A)
Operating Temperature 15–30ºC, 10–90% RH
Storage Temperature -25ºC to +55ºC, 10–90% RH
Power Input / Output 100–240 V AC / 24 V DC, 600 W
Supported File Types STL, OBJ, 3MF, OLTP
Software ideaMaker
Supported OS Windows, macOS, Linux
User Interface 7-inch Touchscreen, 1024×600 resolution
Controller Cortex-M4, Cortex-A9, 1GB RAM, 16GB Flash
Ports USB 2.0 × 2, Ethernet × 1

Included in the Purchase

Machine Quantity
Raise3D Pro3 or Pro3 Plus 1
Dual Extruder with Electronic Lifting System 1
Flexible Magnetic Build Plate 1
7-Inch Touchscreen Interface 1
Power Cable & Accessories 1 set
Spool Holders 2
Quick Start Toolkit 1
User Manual and Safety Guide 1

Raise3D Tutorial & Setup Video


Owner's Manual

📄 View Raise3D Pro3 User Manual


Standard 1 Year Warranty

📄 View Raise3D Standard 1 Year Warranty


View full details
