🟢authorized PARTNER

SKU:MIRACO-PRO

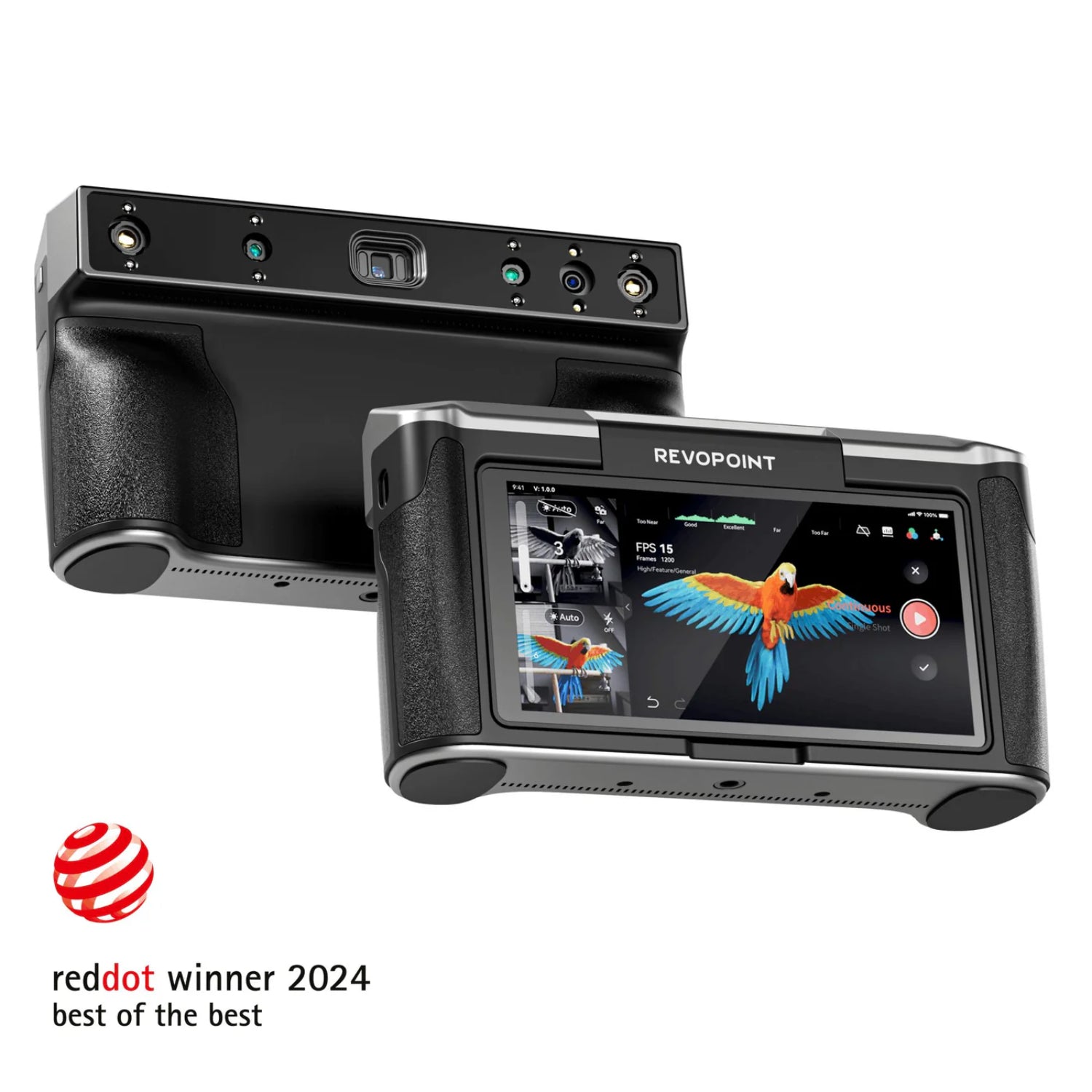

Revopoint MIRACO Pro Metrology-Grade 3D Scanner MIRACO-PRO

Revopoint MIRACO Pro Metrology-Grade 3D Scanner MIRACO-PRO

Regular price $1,599.00 USD
Regular price Sale price $1,599.00 USD
Sale Sold out

In stock

Includes Warranty

30-Day Returns

Unlimited Free Support

Versatile, Powerful, and All-in-One Scanning

The MIRACO Pro 3D Scanner delivers surgical accuracy, versatile scanning modes, and intuitive on-board software in a fully portable handheld device. With its dual Near and Far scanning modes, MIRACO gives users the flexibility to digitize everything from fine surface details to large structural components—all with up to 0.02 mm precision.


Key Features & Benefits

  • Dual Mode Scanning (Far/Near)
    Seamlessly switch between Far-mode for large surface captures and Near-mode for capturing intricate details mid-scan.

  • High Precision & Accuracy
    Capture surfaces with a single-frame accuracy of up to 0.05 mm and precision up to 0.02 mm.

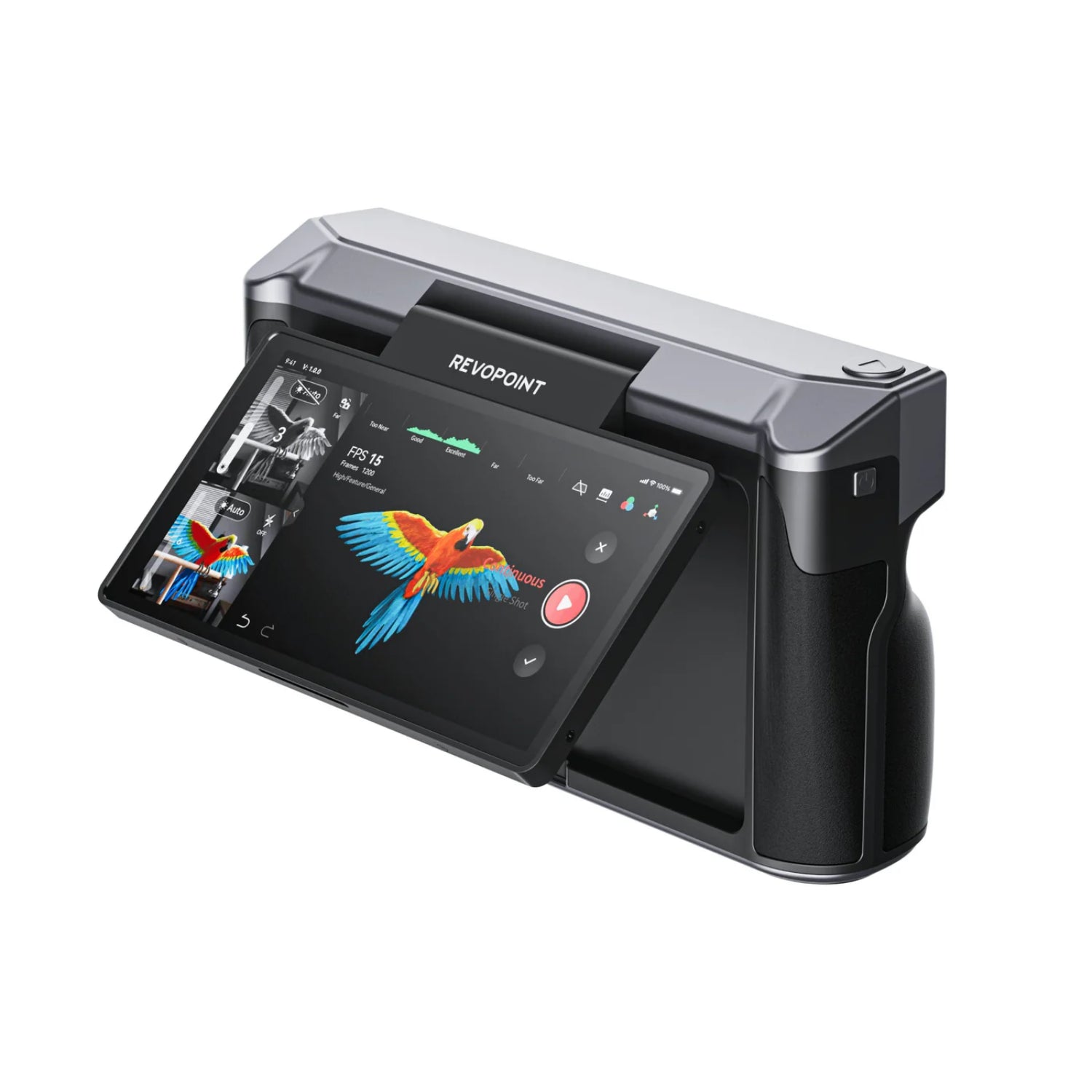

  • 6” AMOLED Flip Screen
    Enjoy a crystal-clear, 2K AMOLED touchscreen that flips 180° for flexible viewing and convenient selfie scanning.

  • Professional RGB Imaging
    The built-in 48 MP RGB camera lets you produce lifelike full-color 3D models with photo-realistic detail.

  • Independent Power & Performance
    An 8-core 2.4GHz processor, 256GB storage, and 16GB/32GB DDR4 RAM enable fully autonomous scanning and model processing.

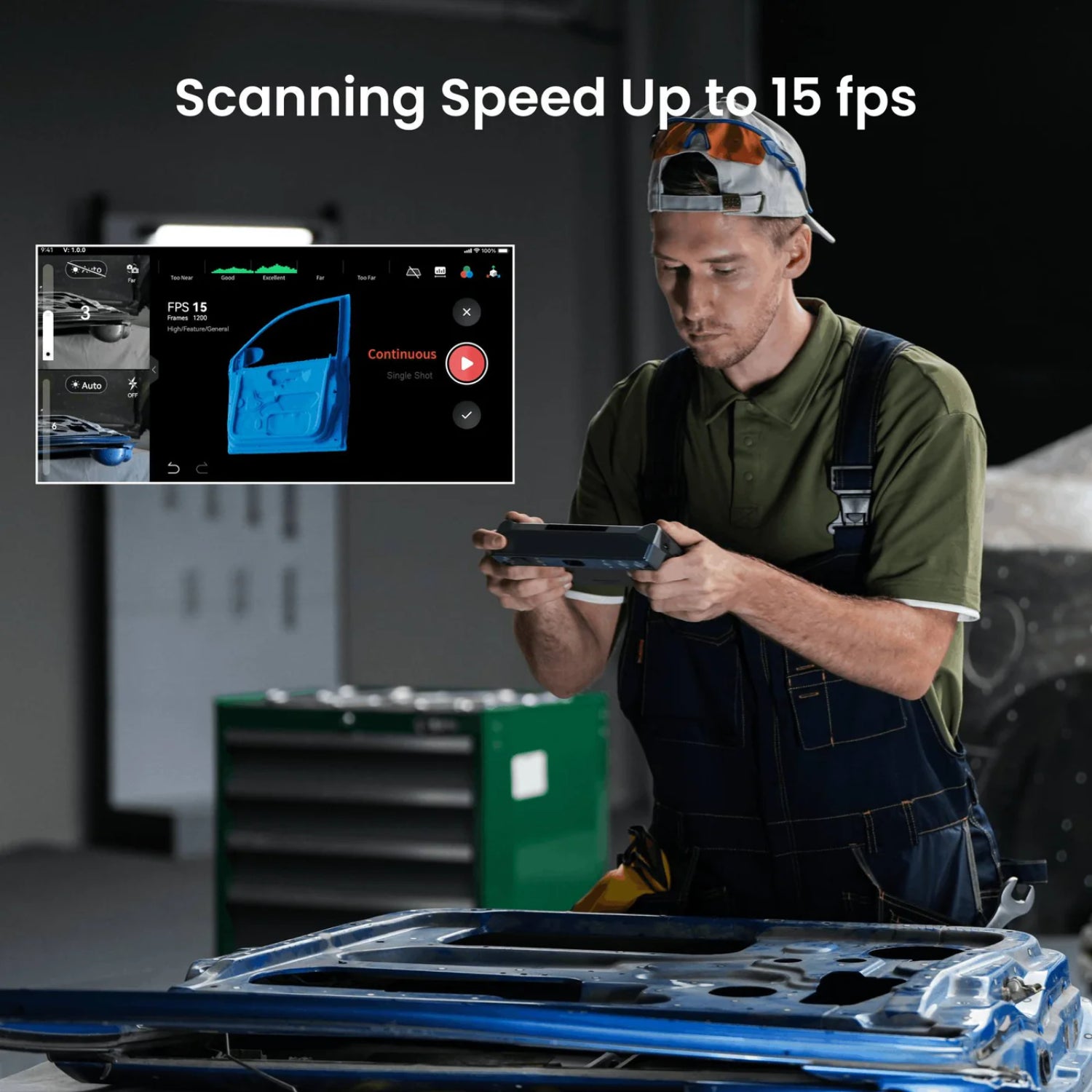

  • Capture Modes: Single-shot & Continuous
    Use single-frame mode for hard-to-reach areas or continuous capture up to 15 fps for efficient scanning workflows.

  • Battery & Fast Charging
    5000mAh battery offers up to 2 hours of continuous scanning and reaches 80% charge in just 35 minutes using 65W USB-C fast charging.

  • Wi-Fi 6 + USB-C
    Transfer data wirelessly or with USB Type-C. Also supports screen mirroring to TVs or monitors.

  • Native Android System
    Intuitive onboard software for scanning, editing, meshing, and exporting without the need for external PCs.

  • 3D Printing Ready
    Export files in PLY, OBJ, STL, ASC, 3MF, GLTF, or FBX formats for direct use in 3D printing workflows.


Applications

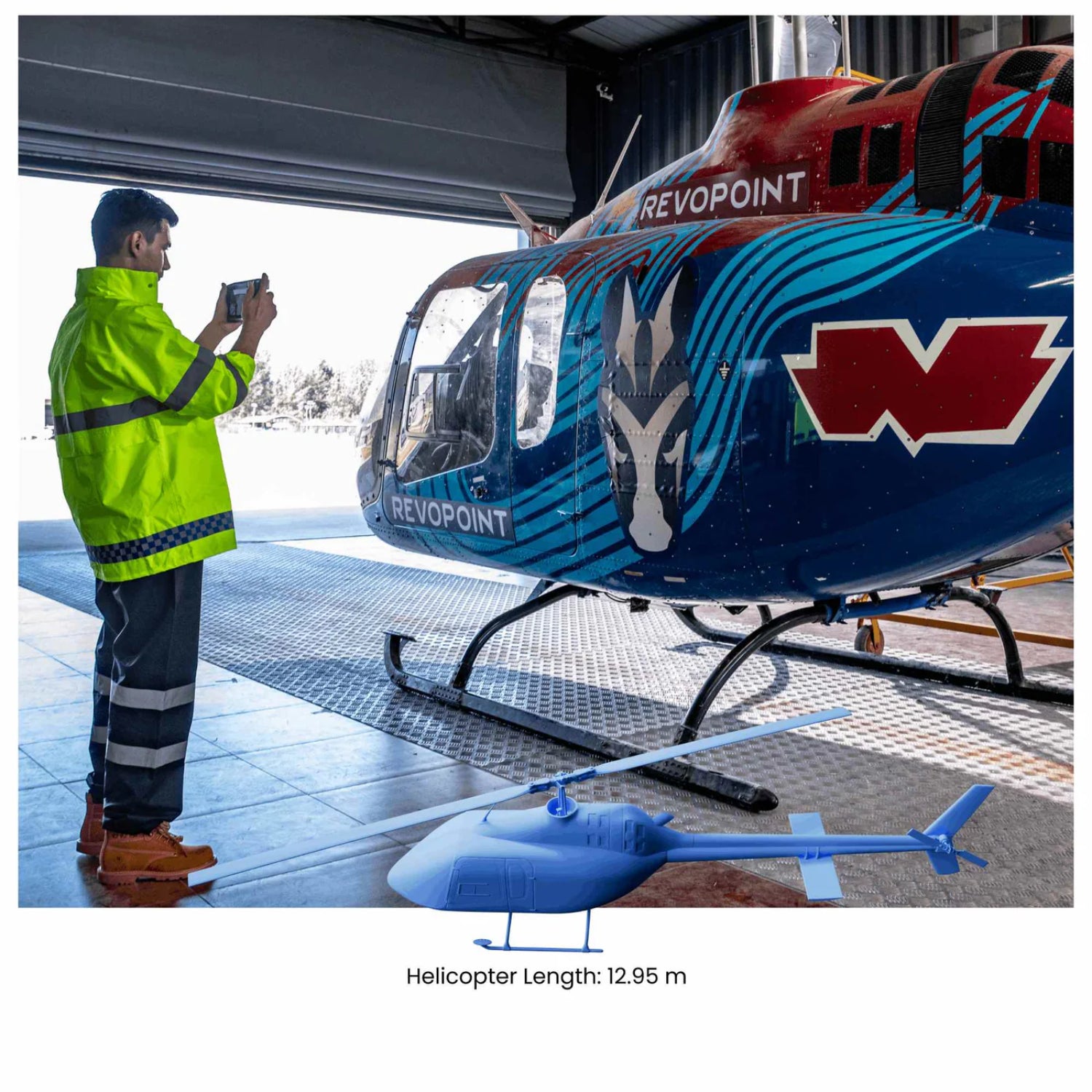

  • Aerospace – Scan complex aircraft parts for inspection, analysis, or replication.

  • Automotive – Digitally capture every component for restoration, prototyping, or quality assurance.

  • 3D Animation & Gaming – Scan characters, faces, or props for use in digital production pipelines.

  • Preservation – Digitize historical artifacts in vivid detail for archival and conservation.


Specs

Feature Specification

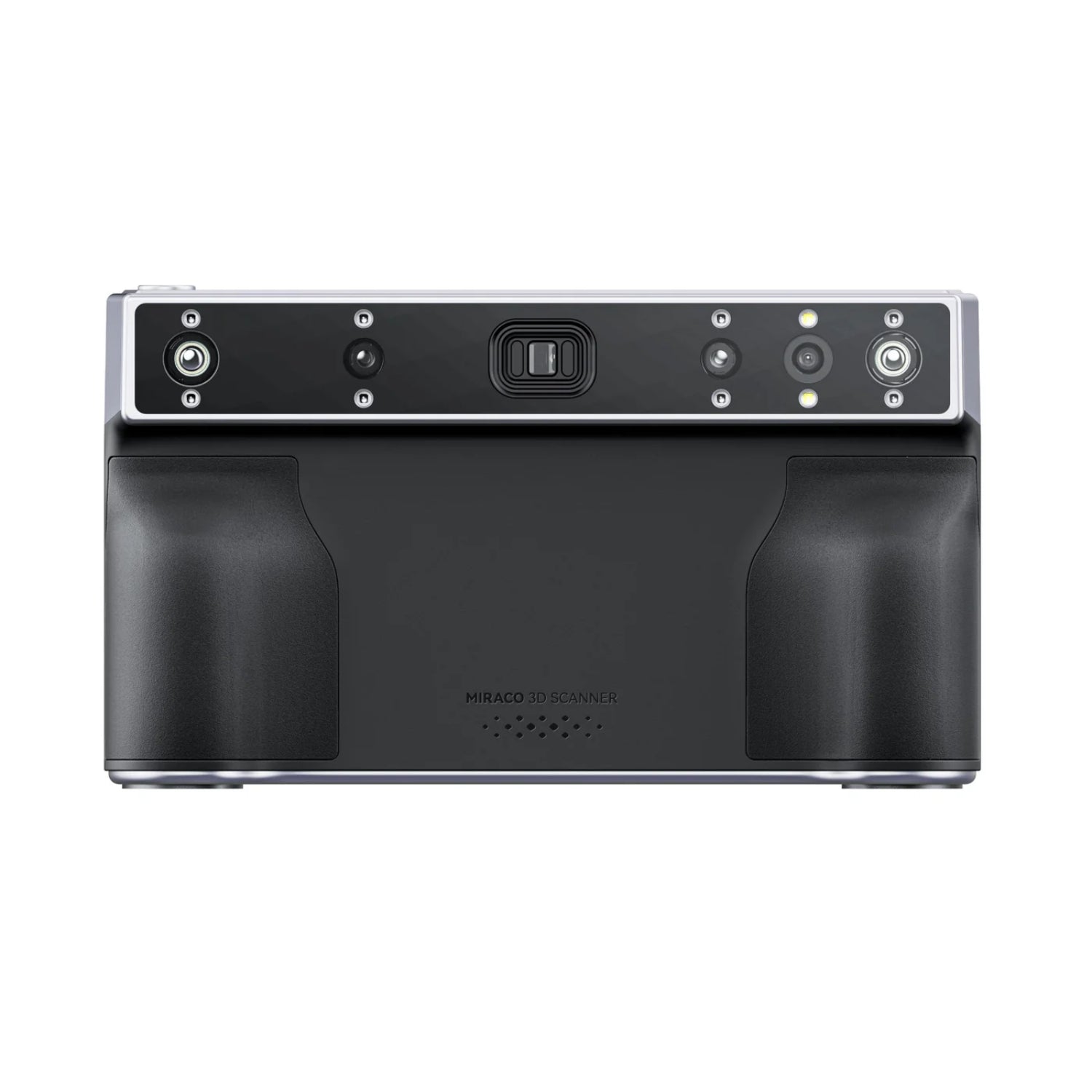

Technology Quad-camera Infrared Structured Light
RGB Camera Resolution 48 MP
Single-frame Accuracy Up to 0.05 mm
Single-frame Precision Up to 0.02 mm
Scanning Speed Up to 15 fps
Working Distance 100 – 1000 mm
Min/Max Scan Volume 10 mm – 4 m
Single Capture Area 28 x 53 mm to 975 x 775 mm
Point Distance Up to 0.05 mm
CPU 8-core 2.4GHz
RAM / Storage 16 GB or 32 GB DDR4 / 256 GB eMMC
Battery 5000 mAh, 2-hour runtime, 65W fast charging
Display 6” 2K AMOLED, 180° Flip Touchscreen
Connectivity Wi-Fi 6, USB-C, HDMI Output
Tracking Methods Feature, Marker, Global Marker
File Formats PLY, OBJ, STL, ASC, 3MF, GLTF, FBX
OS Compatibility Windows 10/11, macOS 11+
Device Dimensions / Weight 200 x 50 x 110 mm / 750 g
Light Type Class 1 Infrared (Eye Safe)
Calibration Supports user recalibration
Special Scanning Notes Use spray for transparent or reflective objects
Protection Rating IP45
Built-in OS Android

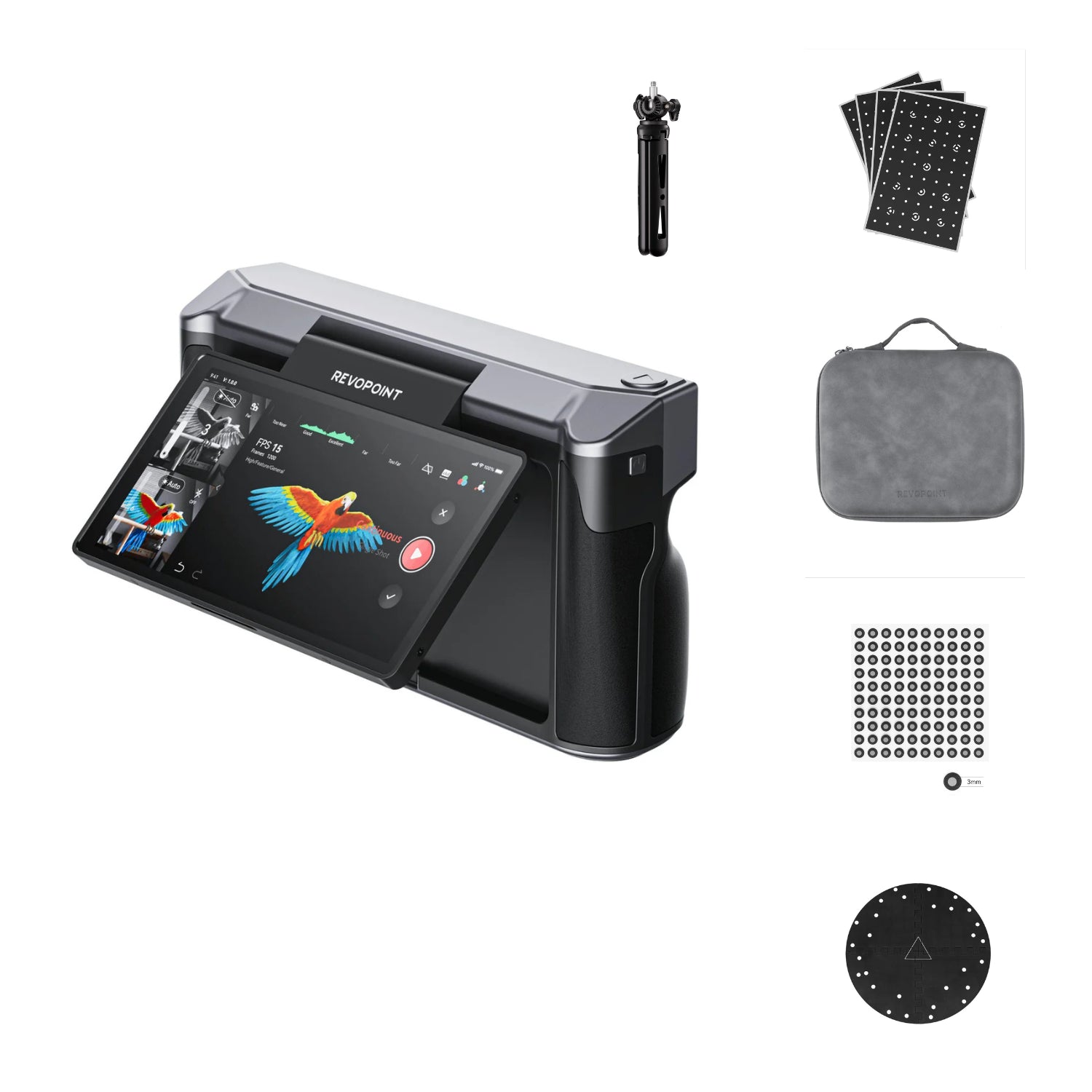

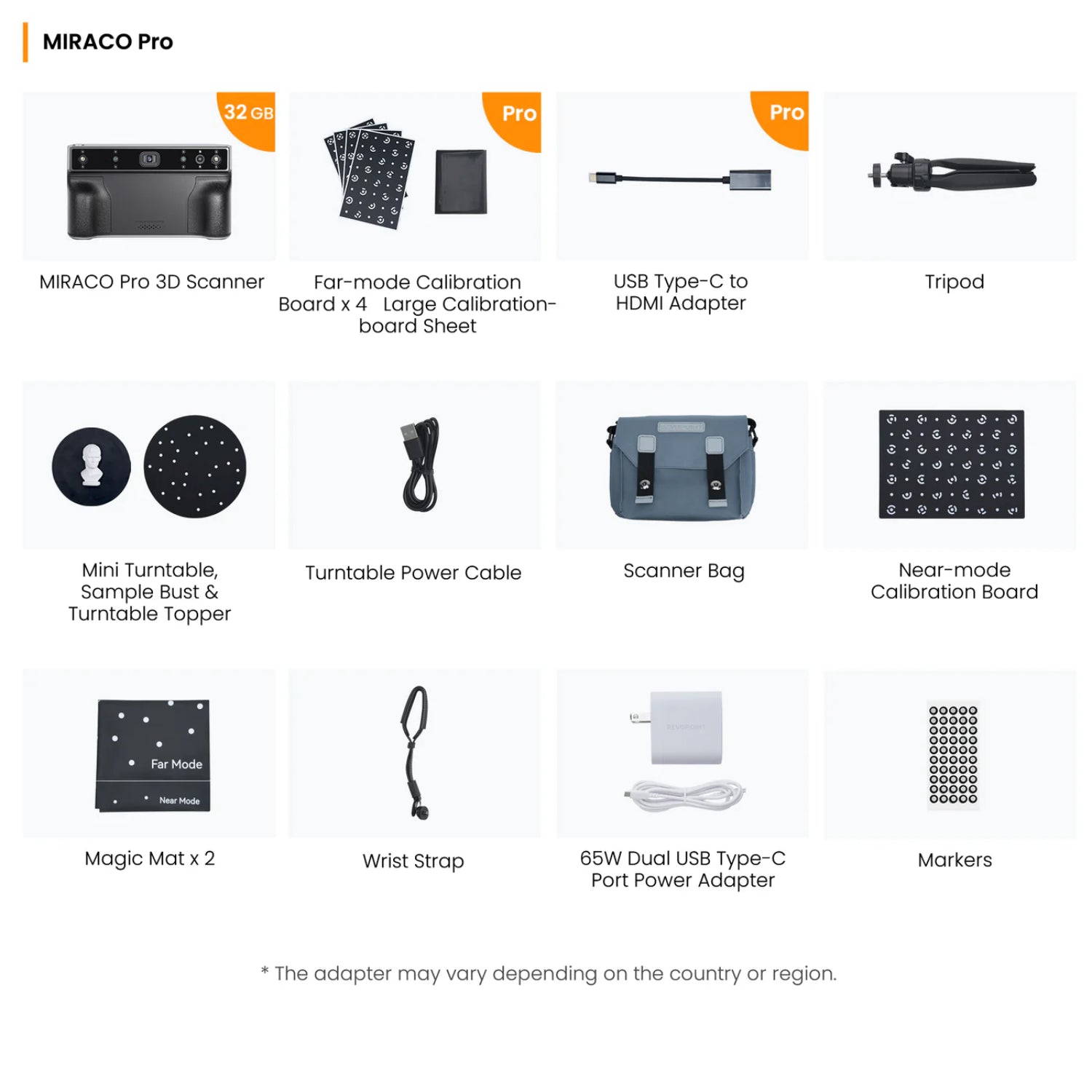

Included in the Purchase

Item Quantity
MIRACO 3D Scanner 1
Far-mode Calibration Board 4
Large Calibration-board Sheet 1
USB Type-C to HDMI Adapter 1
Tripod 1

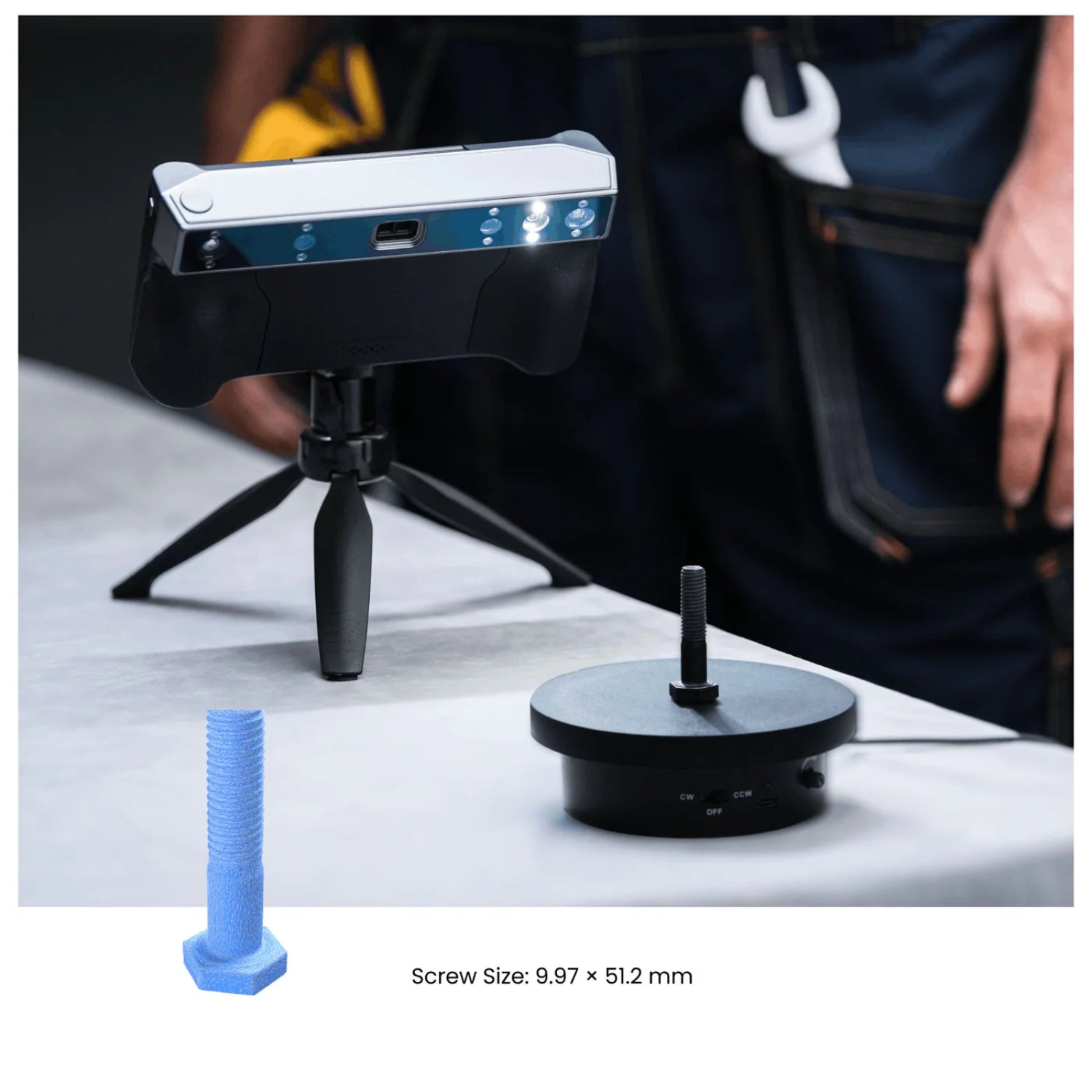

Mini Turntable + Sample Bust 1 Set
Near-mode Calibration Board 4
Magic Mat 2
Wrist Strap 1
65W Dual USB-C Power Adapter 1
Markers (6mm) 200
Scanner Bag 1

Revopoint MIRACO Pro Unboxing & Tutorial Videos

Quick Start Guide

📄 View Revopoint MIRACO Quick Start Guide

Owner’s Manual

📄 View Revopoint MIRACO User Manual

Revopoint Standard 2-Year Warranty

📄View Revopoint Standard 2-Year Warranty
