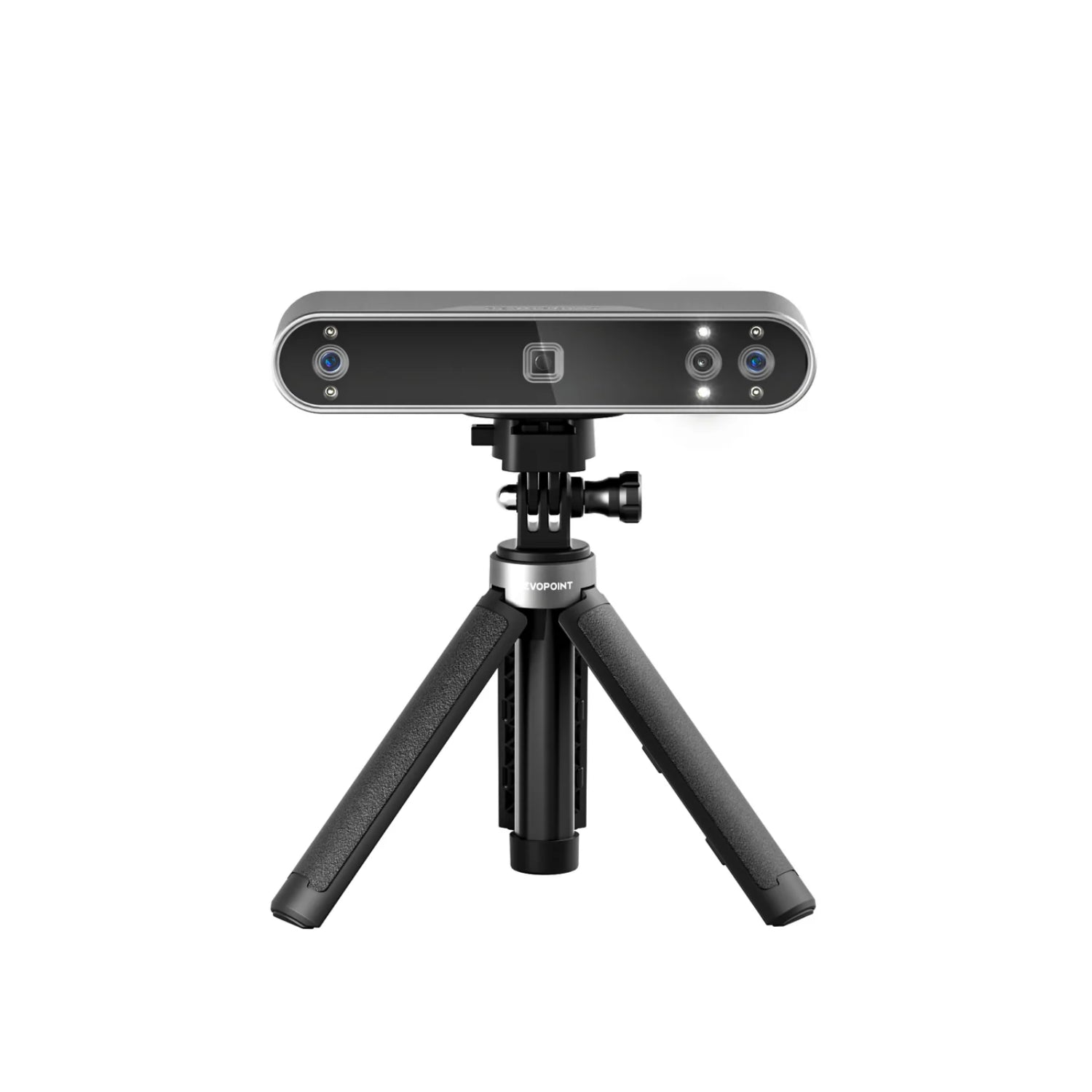

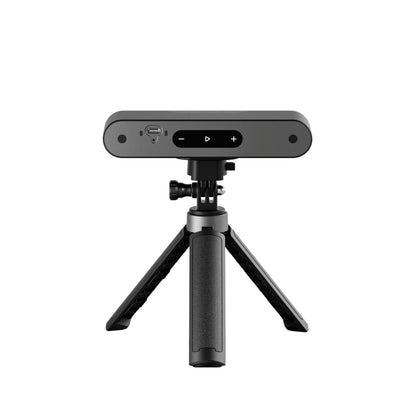

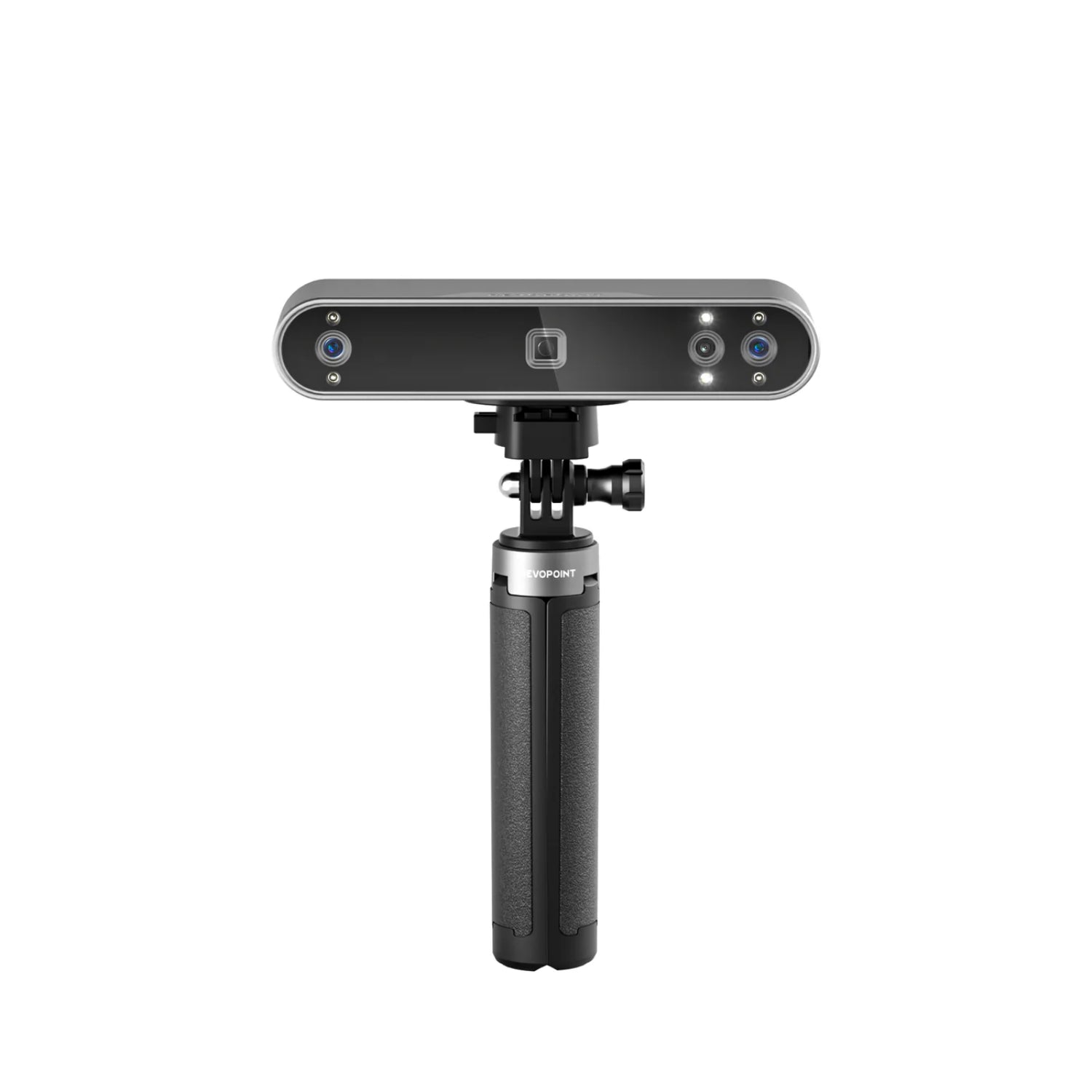

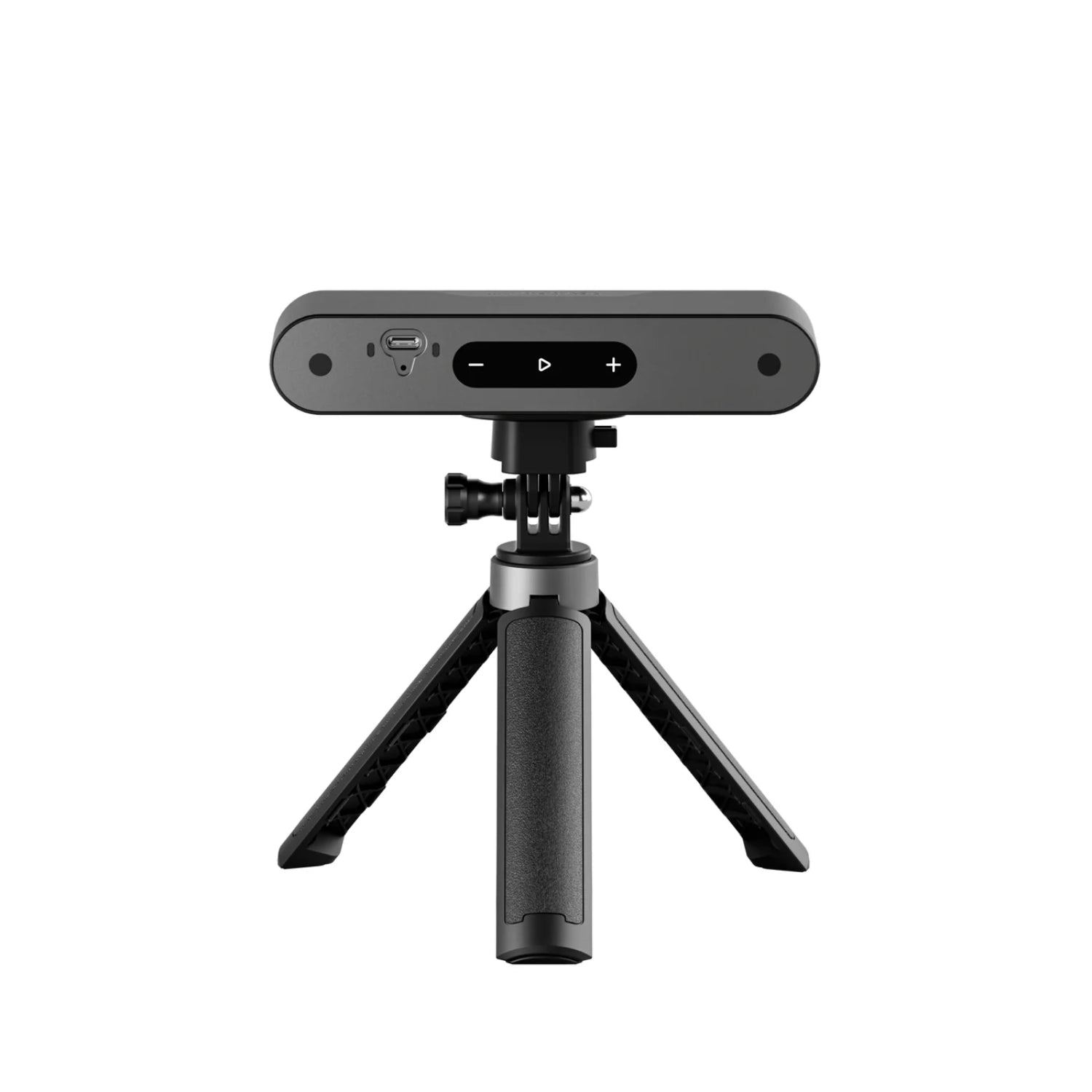

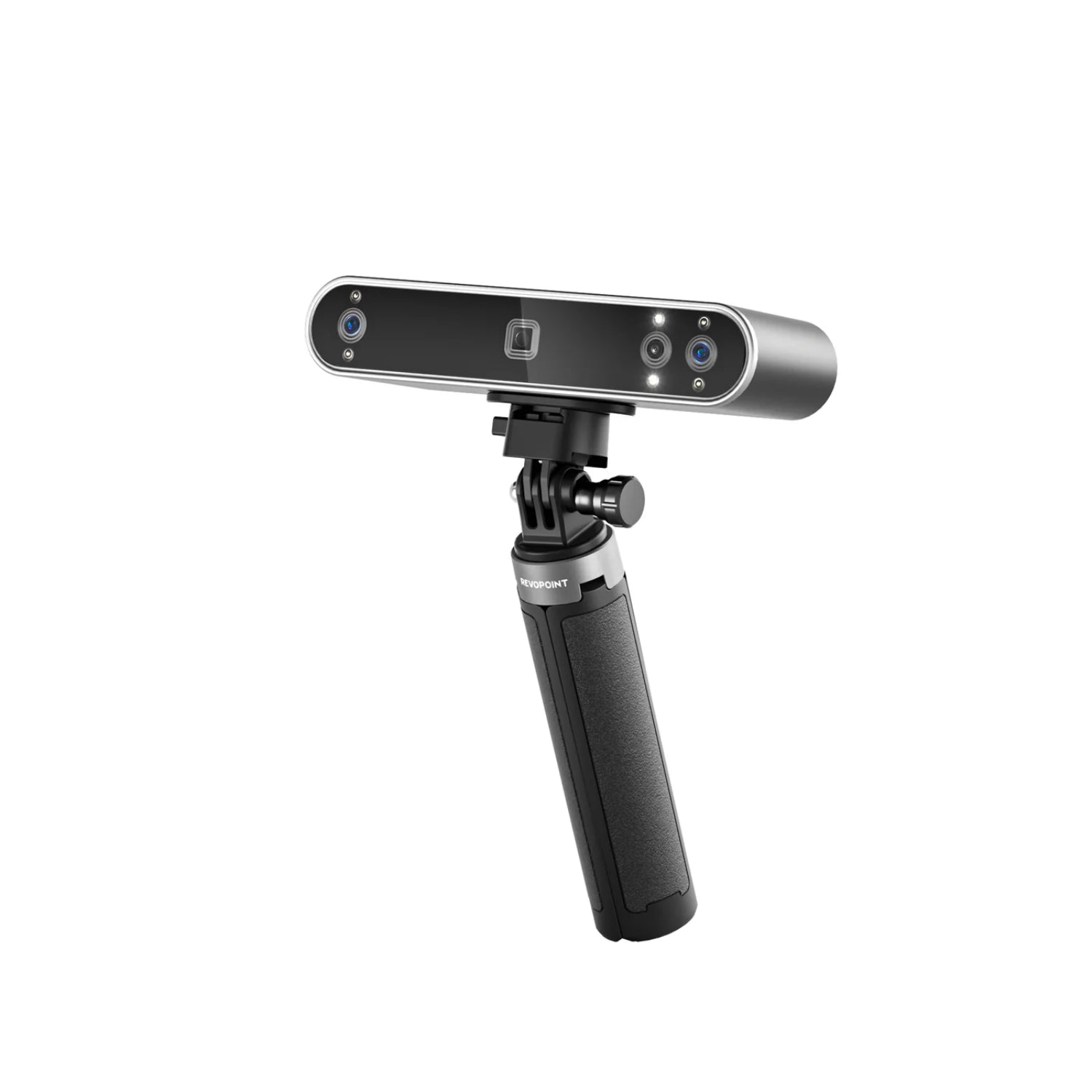

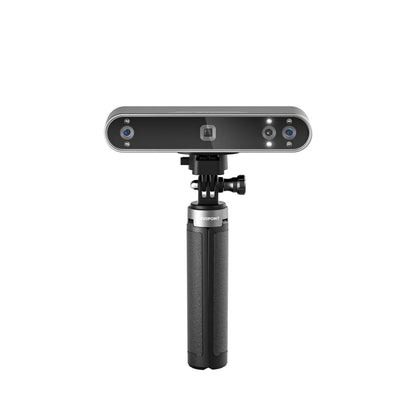

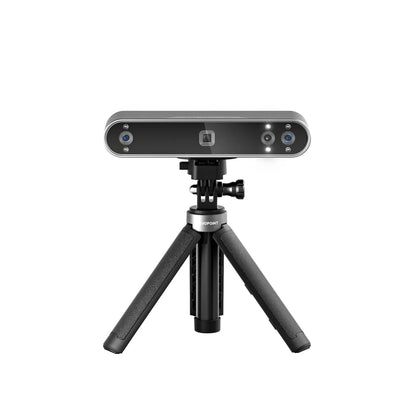

Revopoint POP 3 Plus Advanced Edition Handheld 3D Scanner POP3 PLUS-ADVANCED

Revopoint POP 3 Plus Advanced Edition Handheld 3D Scanner POP3 PLUS-ADVANCED

Regular price $719.00 USD
Regular price Sale price $719.00 USD
Sale Sold out

In stock

Includes Warranty

30-Day Returns

Unlimited Free Support

Every Detail Optimized. Every Scan Refined.

The POP 3 Plus is a next-generation handheld 3D scanner designed for professionals, educators, and creators who need fast, portable, and high-accuracy 3D scanning. Enhanced with improved optical precision, integrated tracking, and mobile compatibility, POP 3 Plus delivers true-to-life, full-color 3D models from virtually any environment.


Key Features & Performance Enhancements

  • High Precision & Accuracy
    Achieves up to 0.08 mm single-frame accuracy and 0.04 mm precision using an advanced lithographic calibration board—a 20% accuracy improvement over the previous generation.

  • Fast Scanning Speeds
    Capture real-time scan data at up to 18 frames per second, optimizing efficiency without compromising quality.

  • Zoom-Enabled Projector
    Switch between 1.5x and 2x zoom to focus structured light projection on fine surface details for enhanced texture fidelity.

  • Anti-Shake 9-Axis Tracking
    A built-in 9-axis IMU (inertial measurement unit) ensures stable scanning and smooth frame stitching by skipping faulty frames automatically.

  • Enhanced Marker Tracking
    The new Global Marker mode significantly improves point fusion accuracy and volumetric tracking, especially useful for featureless or symmetrical objects.

  • HD Full-Color Scanning
    The integrated RGB camera combined with a Flash LED lighting system and pixel-accurate mapping delivers rich, lifelike 3D models.


Mobile-Optimized and Versatile

Weighing only 190 g, the POP 3 Plus is ultra-portable and ideal for mobile scanning workflows. It supports:

  • Wi-Fi 6 for fast wireless transfers

  • USB Type-C for plug-and-play scanning (PC and Android)

  • Bluetooth 4.1 for supported accessories

  • Compatibility with Windows, macOS, iOS, and Android


Common Applications

  • 3D Printing – Scan and convert physical objects into printable meshes quickly

  • Product Design & Reverse Engineering – Digitize dimensions for accurate modeling and prototyping

  • 3D Animation & Game Dev – Generate high-resolution, textured assets for digital content

  • Heritage Preservation & Education – Document cultural artifacts and train future designers with hands-on scanning


System Requirements

Platform Minimum Requirements Recommended Requirements
Windows Intel i7 12th Gen, 16 GB RAM Intel i9 11th Gen, 32 GB RAM
macOS Apple M1 Pro, 8 GB RAM Apple M3 or better, 8 GB RAM

Software Integration

POP 3 Plus includes Revo Scan software for mesh processing, alignment, texture mapping, and multi-device syncing. Create watertight, printable models with export-ready formats for CAD, animation, and modeling tools.


Specs

Specification Value
Technology Dual-camera Infrared Structured Light
Single-frame Accuracy Up to 0.08 mm
Single-frame Precision Up to 0.04 mm
Fused Point Distance Up to 0.05 mm
Capture Area Range 61 × 68 mm to 244 × 180 mm
Working Distance 150 – 400 mm
Scan Volume 20 × 20 × 20 mm to 2 × 2 × 2 m
Light System Infrared Fill Lights, White Flash LEDs
Angular Field of View 40 × 25°
Position Sensor 9-axis IMU
Tracking Methods Feature, Marker, Global Marker
Output File Formats PLY, OBJ, STL, ASC, 3MF, GLTF, FBX
Scanning Modes Handheld and Desktop
Weight 190 g
Dimensions (L × W × H) 153 × 45 × 29 mm
Power Requirements DC 5V, 1A
Wi-Fi & Bluetooth Wi-Fi 6, Bluetooth 4.1
Connector USB Type-C
Supported OS Windows 10/11 (64-bit), macOS 11+, iOS, Android
Light Type Class 1 Infrared (Eye Safe)

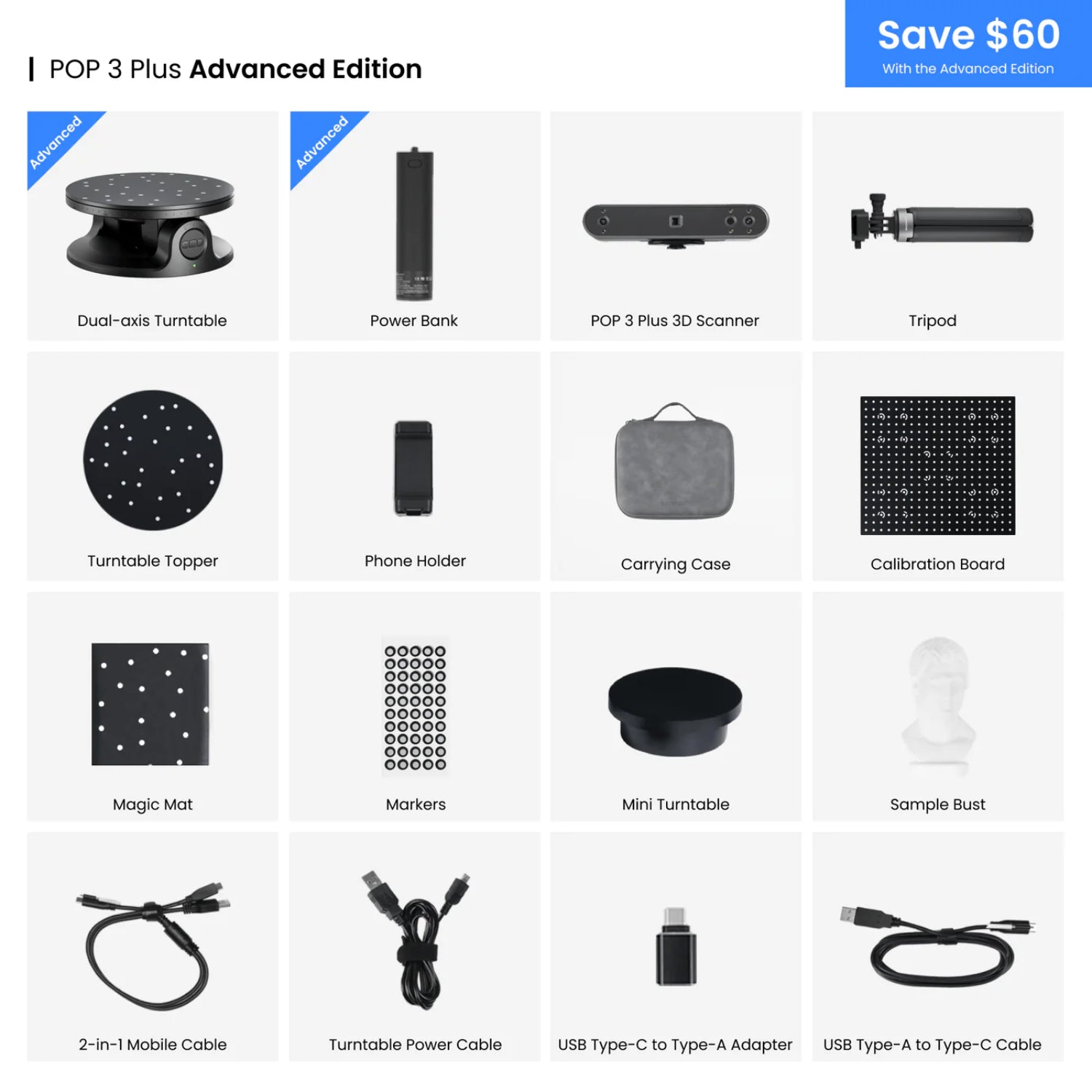

Included in the Purchase

Item Quantity
POP 3 Plus 3D Scanner 1
USB-C Cable 1
Calibration Board 1
Reusable Sticky Pad 1
Dual-axis Turntable 1
Turntable Charger 1
Power Bank 1
Handheld Stabilizer 1
Quick Start Guide 1

Calibration & Scanning Tutorial Videos

Quick Start Guide

📄 View Revopoint POP 3 Plus Quick Start Guide

Owner’s Manual

📄 View Revopoint POP 3 Plus User Manual

Revopoint Standard 2-Year Warranty

📄 View Revopoint Standard 2-Year Warranty
