SKU:K1GCP

XGRIDS K1 GCP Collection Plate K1GCP

XGRIDS K1 GCP Collection Plate K1GCP

Regular price $99.00 USD
Regular price Sale price $99.00 USD
Sale Sold out
Shipping calculated at checkout.

Includes Warranty

30-Day Returns

Unlimited Free Support

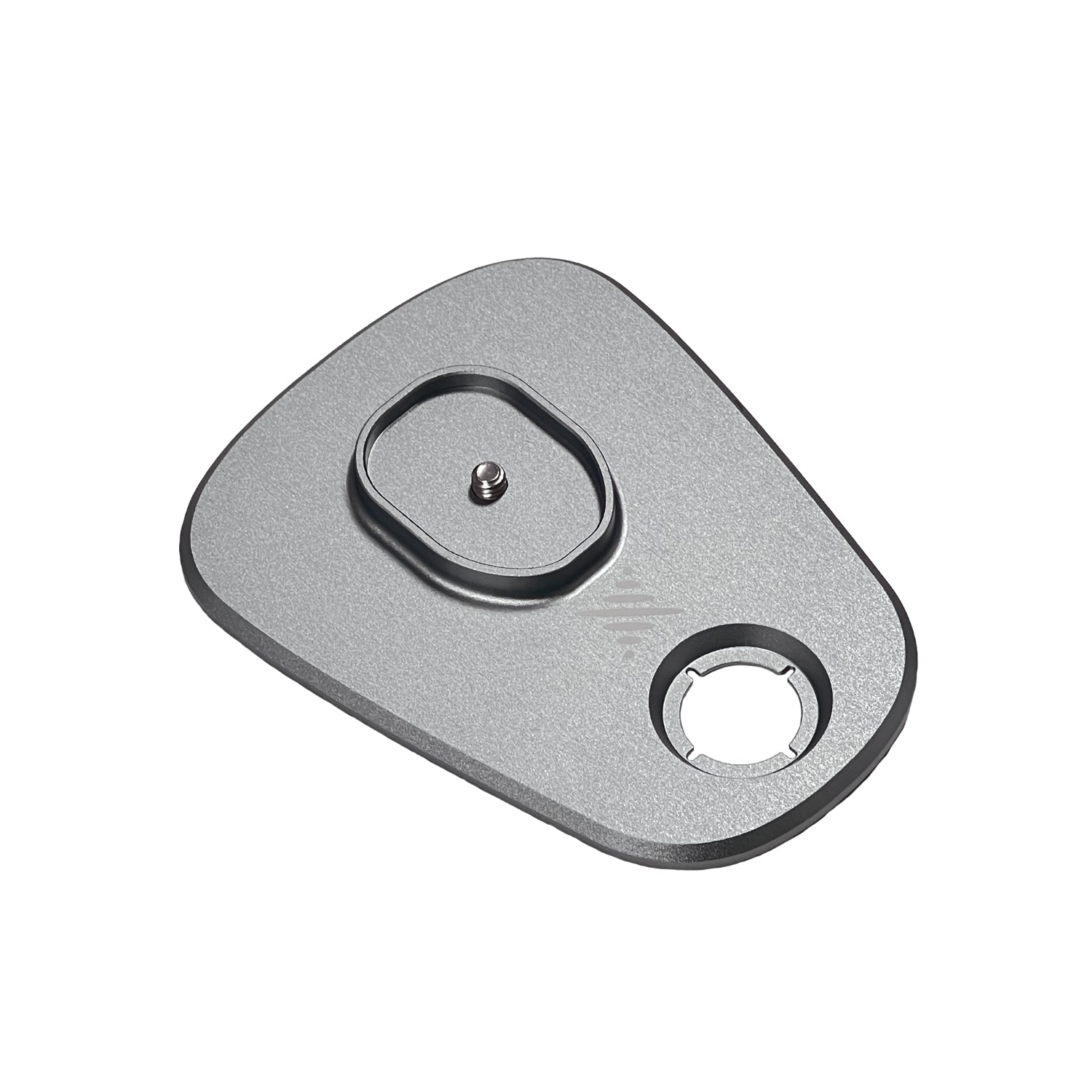

XGRIDS K1 GCP Collection Plate

Overview

The XGRIDS K1 GCP Collection Plate is a professional Ground Control Point (GCP) target plate designed for high-accuracy geospatial data capture when using the XGRIDS K1 RTK module and mobile mapping systems. It provides a high-contrast, survey-grade target to improve RTK positioning, photogrammetry alignment, and LiDAR georeferencing accuracy.

This plate is optimized for field deployment in surveying, mapping, construction, and UAV/UGV workflows, ensuring consistent and repeatable GCP reference points.

3 Key Benefits

1. Survey-Grade Target Accuracy

Engineered for high-visibility and precise centroid detection, enabling centimeter-level geospatial referencing when paired with RTK systems.

2. Durable Field-Ready Construction

Built to withstand outdoor environments, UV exposure, dust, and rugged terrain, making it suitable for long-term field use.

3. Seamless Integration with XGRIDS K1 Ecosystem

Fully compatible with XGRIDS K1 RTK module workflows, simplifying GCP collection and data alignment pipelines.

Technical Specifications

Specification Details
Target Type High-contrast GCP marker plate
Compatibility XGRIDS K1 RTK Module, GNSS survey systems, UAV photogrammetry
Material Weather-resistant composite / coated board
Surface Pattern High-contrast fiducial pattern for photogrammetry detection
Mounting Method Ground placement / tripod / stake mounting (depending on setup)
Field Use Outdoor, survey, mapping, construction sites
Reusability Yes, multi-use

Applications

  • RTK Ground Control Point Collection

  • LiDAR Mapping & Georeferencing

  • Drone Photogrammetry Surveys

  • Construction Site Mapping

  • Topographic Surveying

  • Infrastructure Inspection

  • Urban Planning & GIS Data Collection

Best Use Cases

Use Case Why It Matters
UAV Photogrammetry Improves alignment accuracy in drone mapping workflows
Mobile LiDAR Mapping Provides fixed reference points for LiDAR point cloud registration
Construction Surveying Ensures precise site layout and verification
GIS & Topographic Surveys Enables consistent spatial referencing across datasets
Engineering & Infrastructure Projects Reduces positional drift and improves measurement reliability

Why a Dedicated GCP Collection Plate Matters

Generic markers or improvised targets introduce positional errors, misalignment, and inconsistent reference points.
A dedicated GCP plate ensures:

  • Precise centroid detection in processing software

  • Consistent contrast for automatic recognition

  • Repeatable placement across survey sessions

  • Higher geospatial accuracy in LiDAR and photogrammetry datasets

For professional surveying workflows, GCP accuracy directly impacts final model precision.

What’s Included

  • XGRIDS K1 GCP Collection Plate

  • High-contrast fiducial target surface

  • Field-ready durable construction

Ideal For

  • Surveyors

  • GIS professionals

  • Construction engineers

  • UAV mapping teams

  • Infrastructure inspection firms

  • Research institutions

Compatibility

  • XGRIDS K1 RTK Module

  • GNSS Survey Receivers

  • UAV Mapping Platforms

  • Photogrammetry Software (Pix4D, RealityCapture, Agisoft, etc.)

  • LiDAR Mapping Pipelines

FAQs

Q1: Do I need this if I already use RTK?

Yes. RTK improves positioning, but GCPs provide absolute reference points, improving final model accuracy and validation.

Q2: Can this be used with drones?

Yes. It is ideal for drone photogrammetry and LiDAR mapping workflows.

Q3: Is it reusable?

Yes. The plate is designed for multiple deployments in different survey projects.

Q4: How many GCP plates should I use?

Typical surveys use 5–20+ GCPs depending on area size and required accuracy.

Q5: Does it work with non-XGRIDS RTK systems?

Yes. It functions as a universal GCP target compatible with any GNSS RTK workflow.
