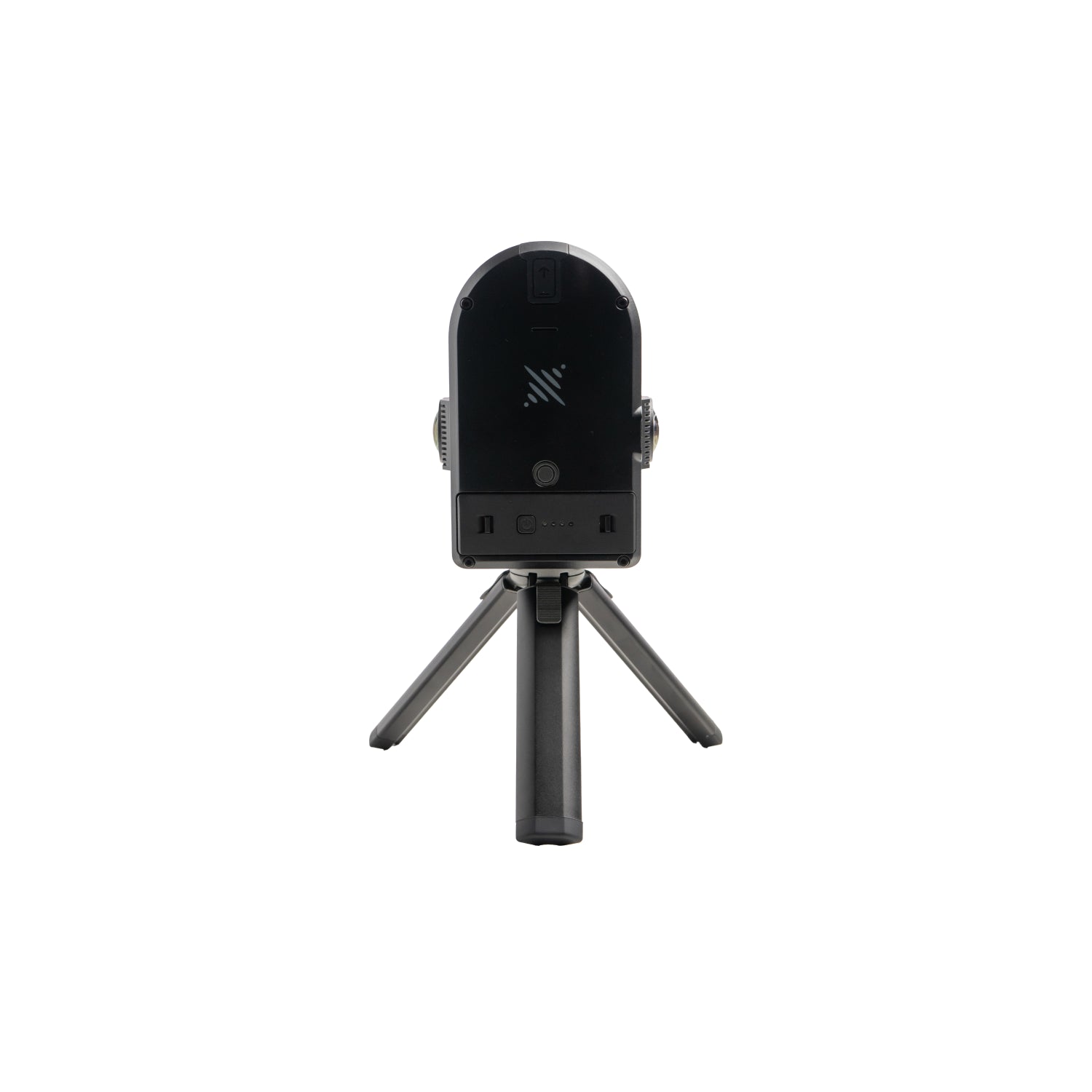

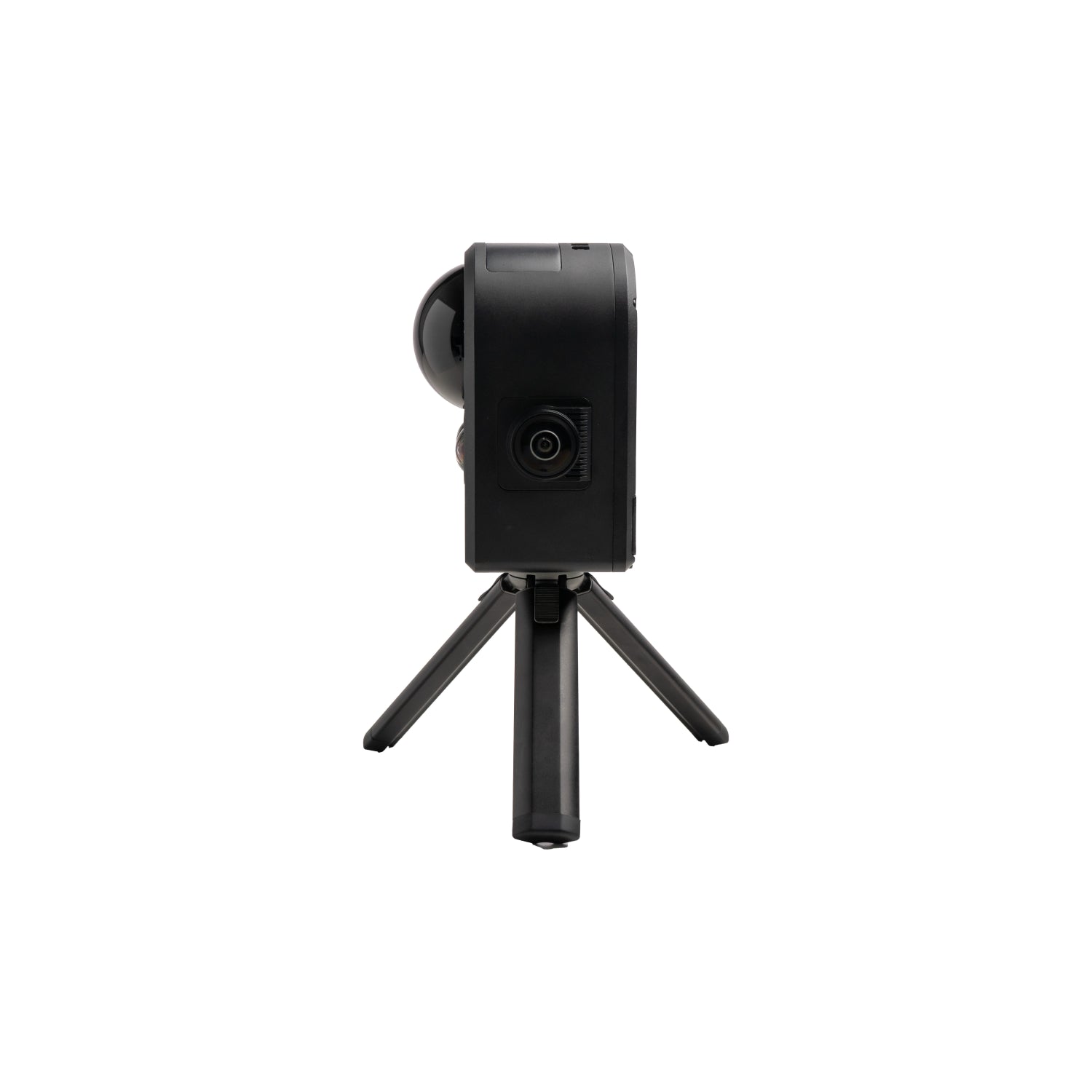

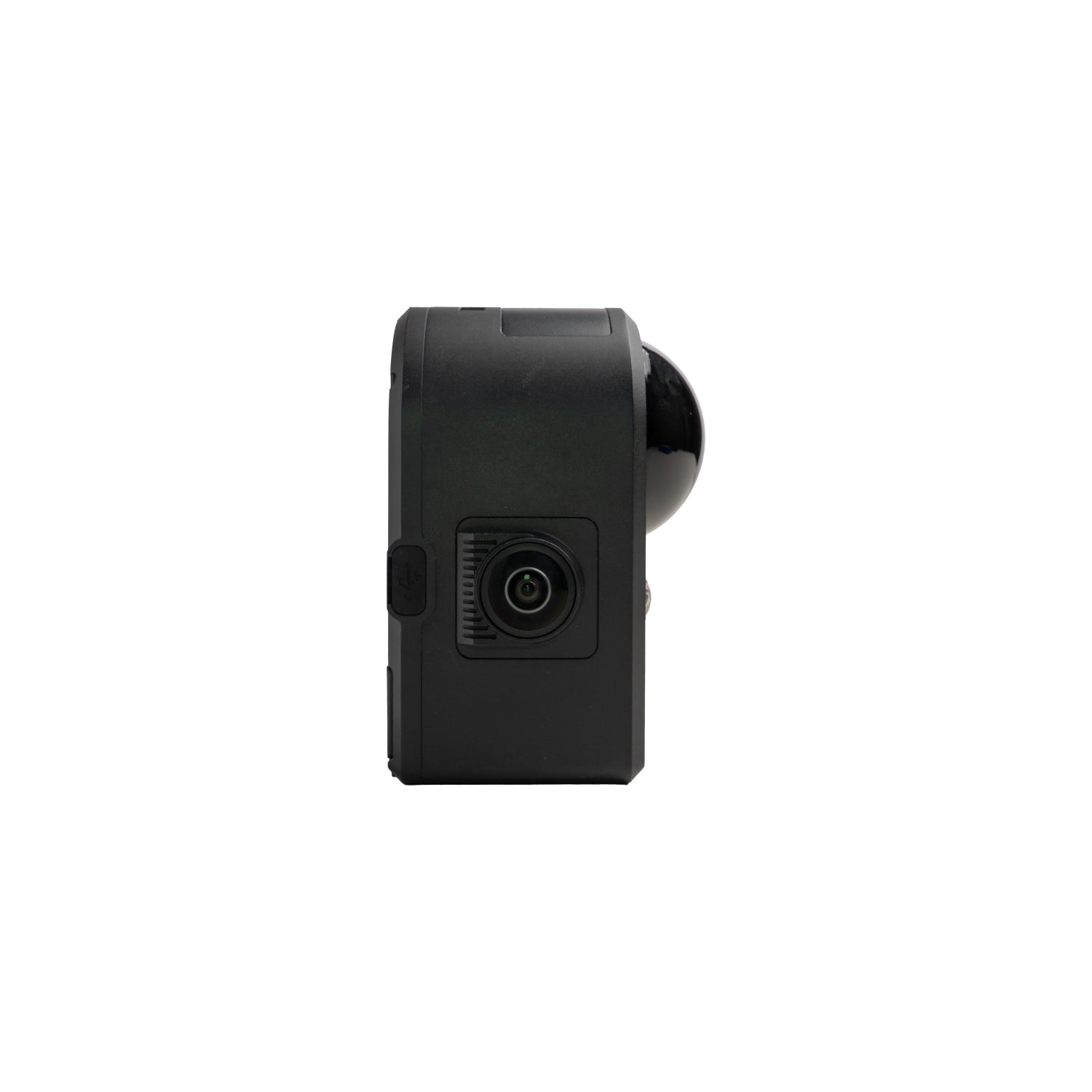

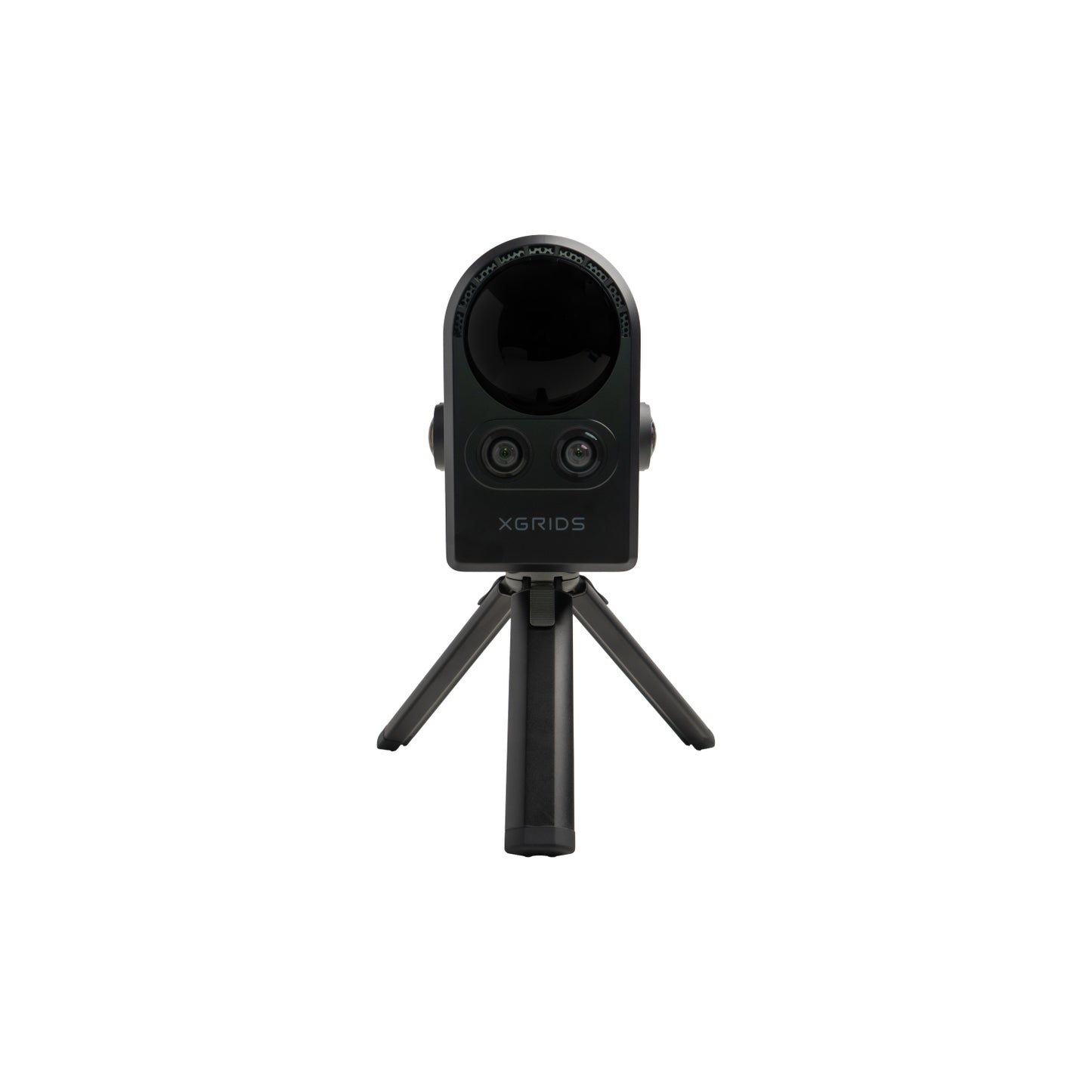

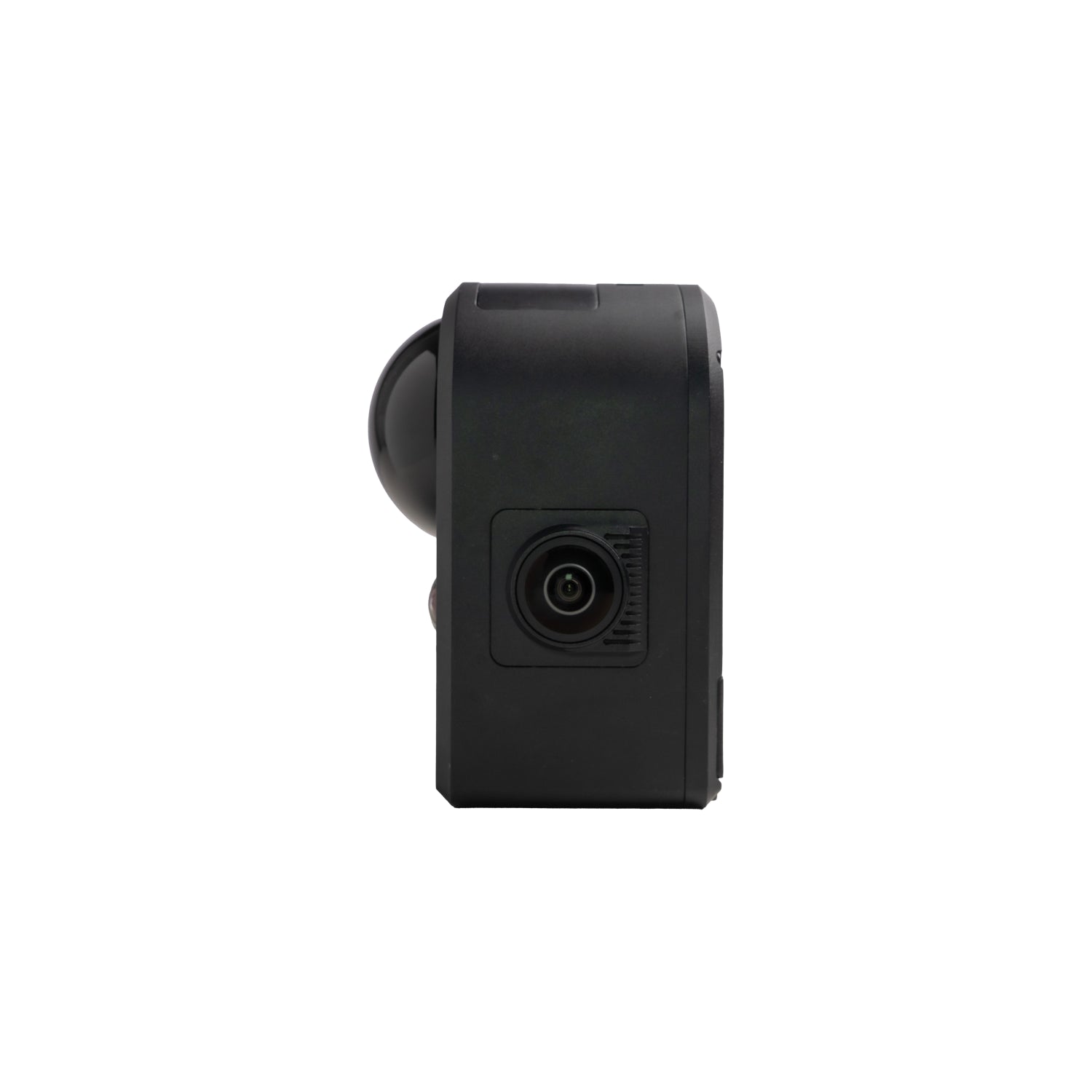

XGRIDS PortalCam SLAM LiDAR System

Key Highlights

• Ultra-portable handheld SLAM LiDAR system under 900 g for fast indoor capture
• Optimized scan range for buildings, corridors, facilities, and construction sites
• One-touch mobile capture with professional 3D processing and sharing workflows

What Is the XGRIDS PortalCam?

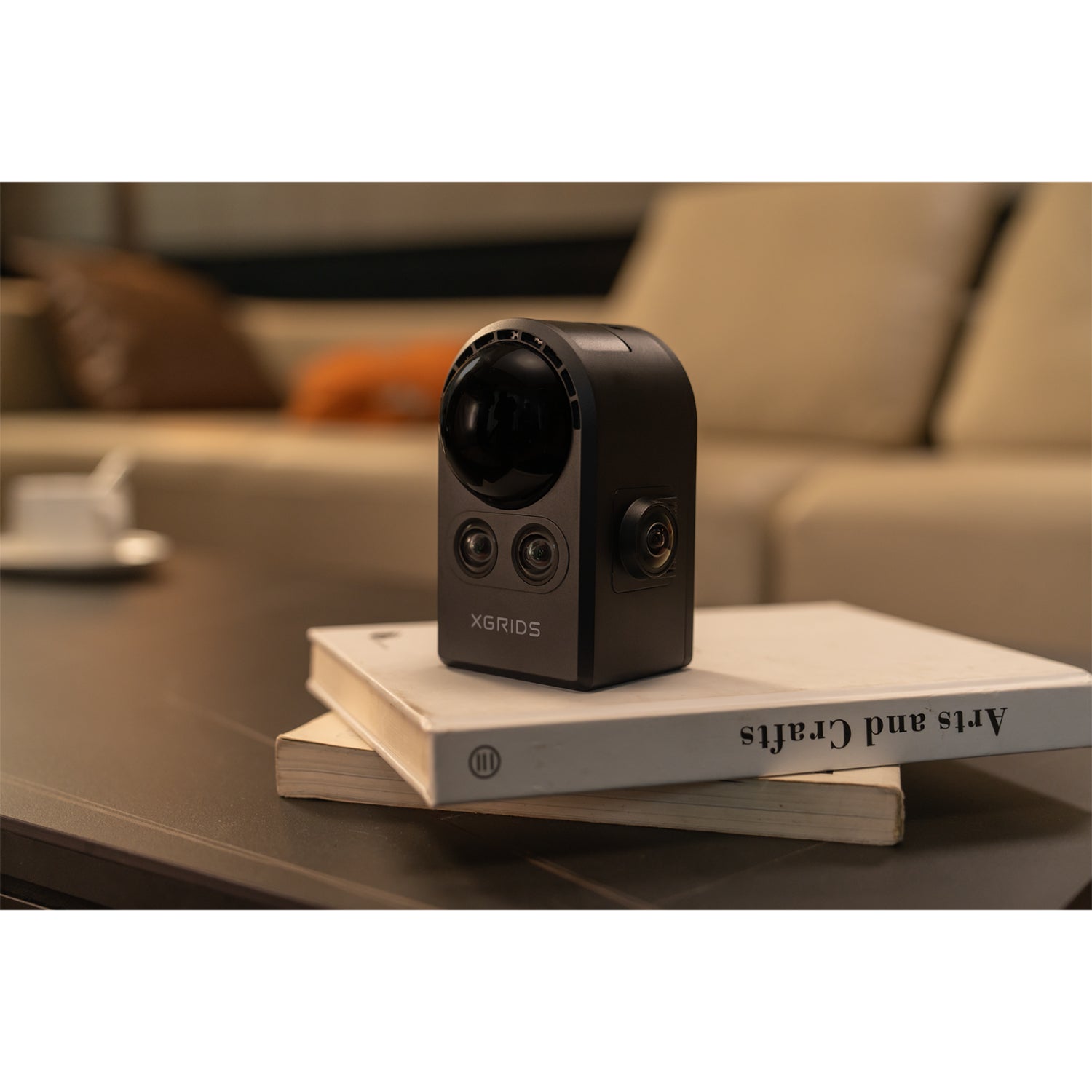

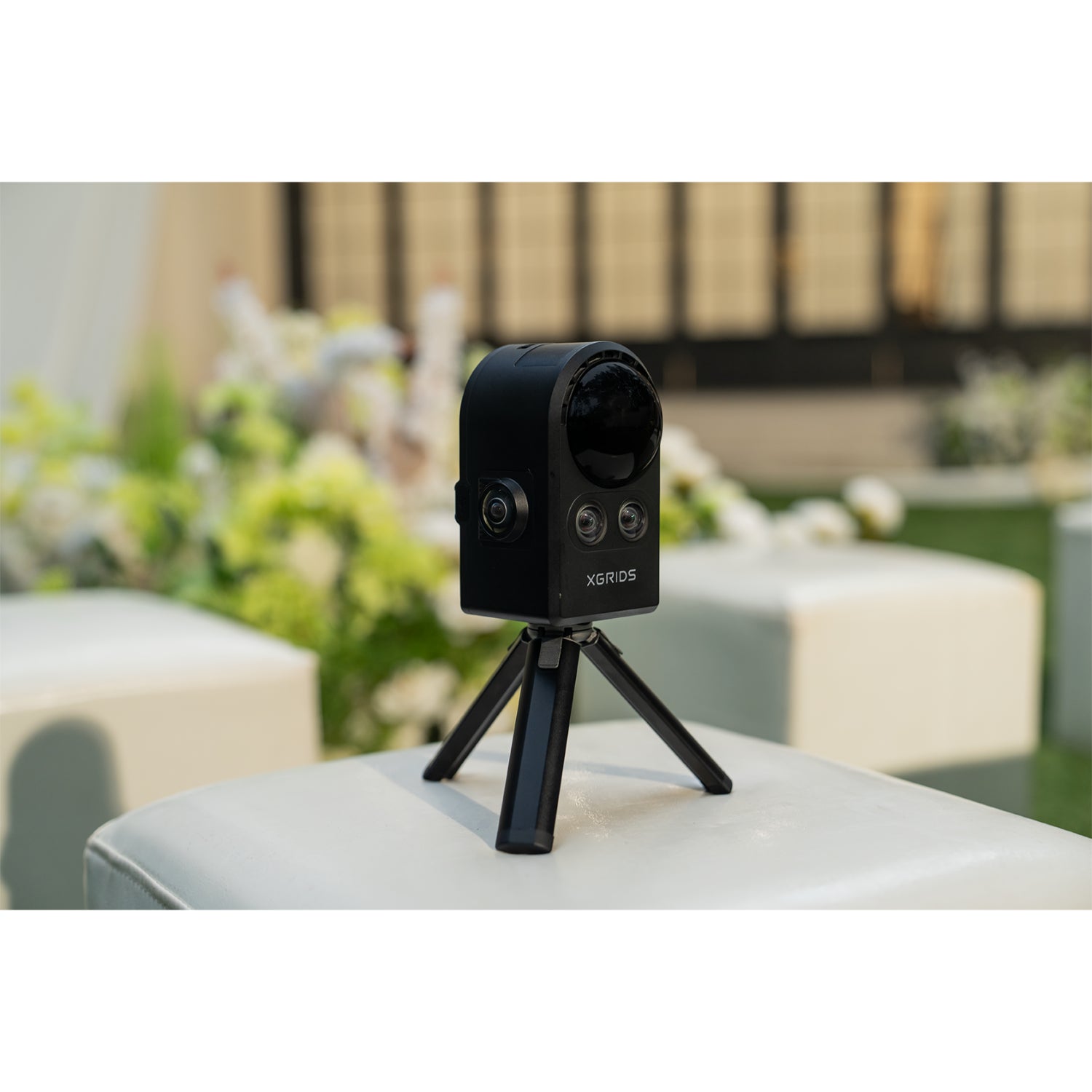

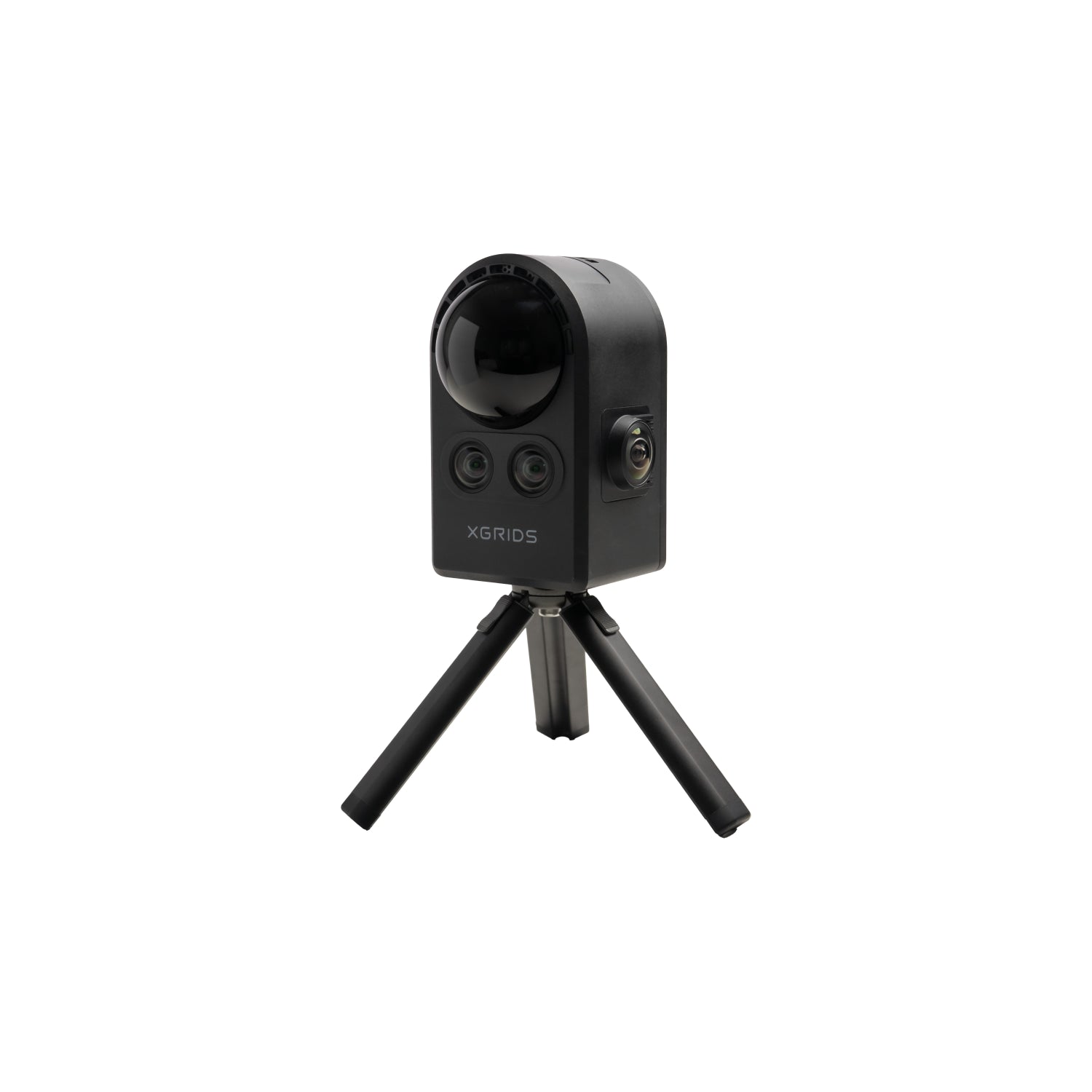

The XGRIDS PortalCam is an ultra-portable SLAM LiDAR mapping system designed for rapid indoor and near-field spatial capture. By simply walking through a space, users can record spatially accurate 3D environments without reliance on GNSS or external positioning systems.

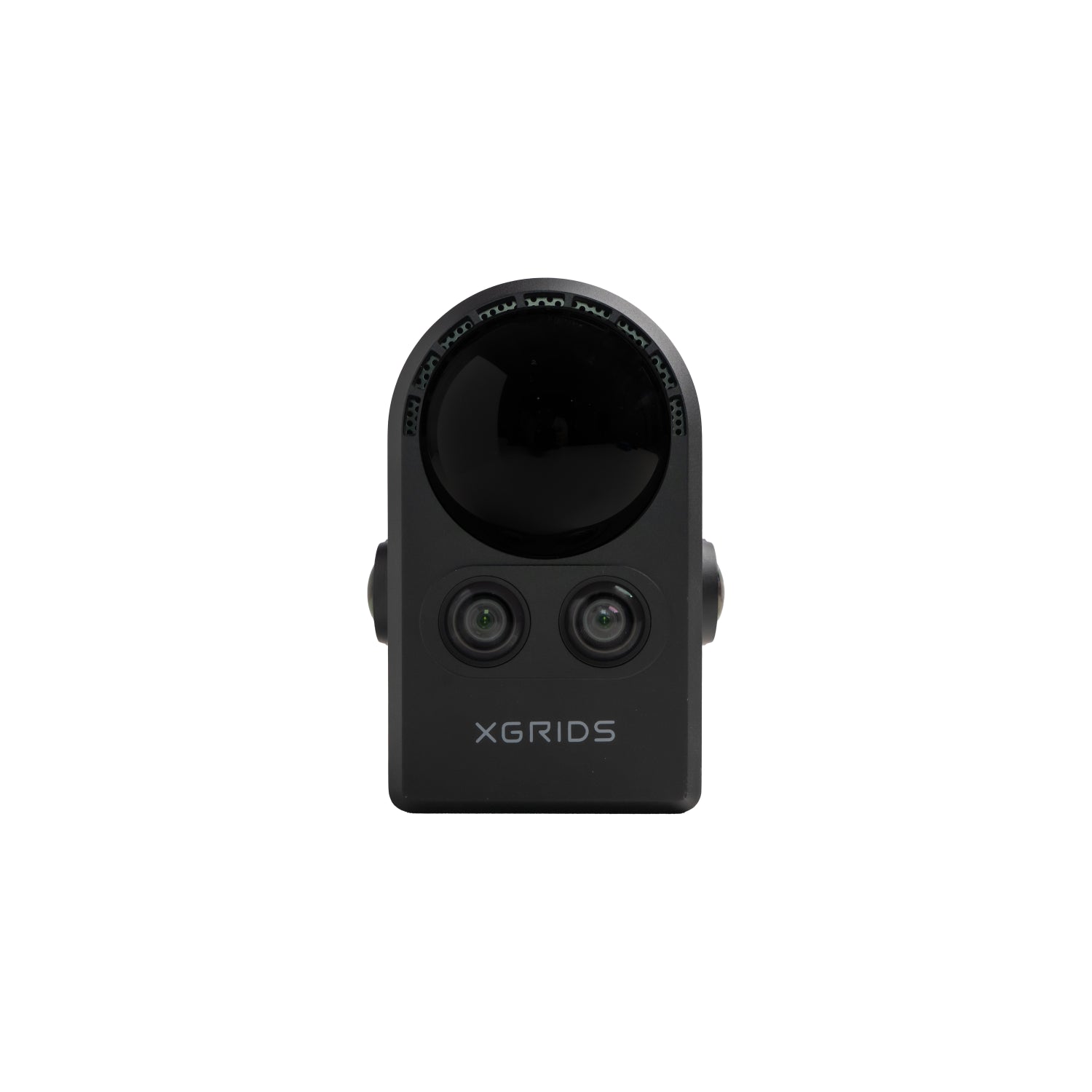

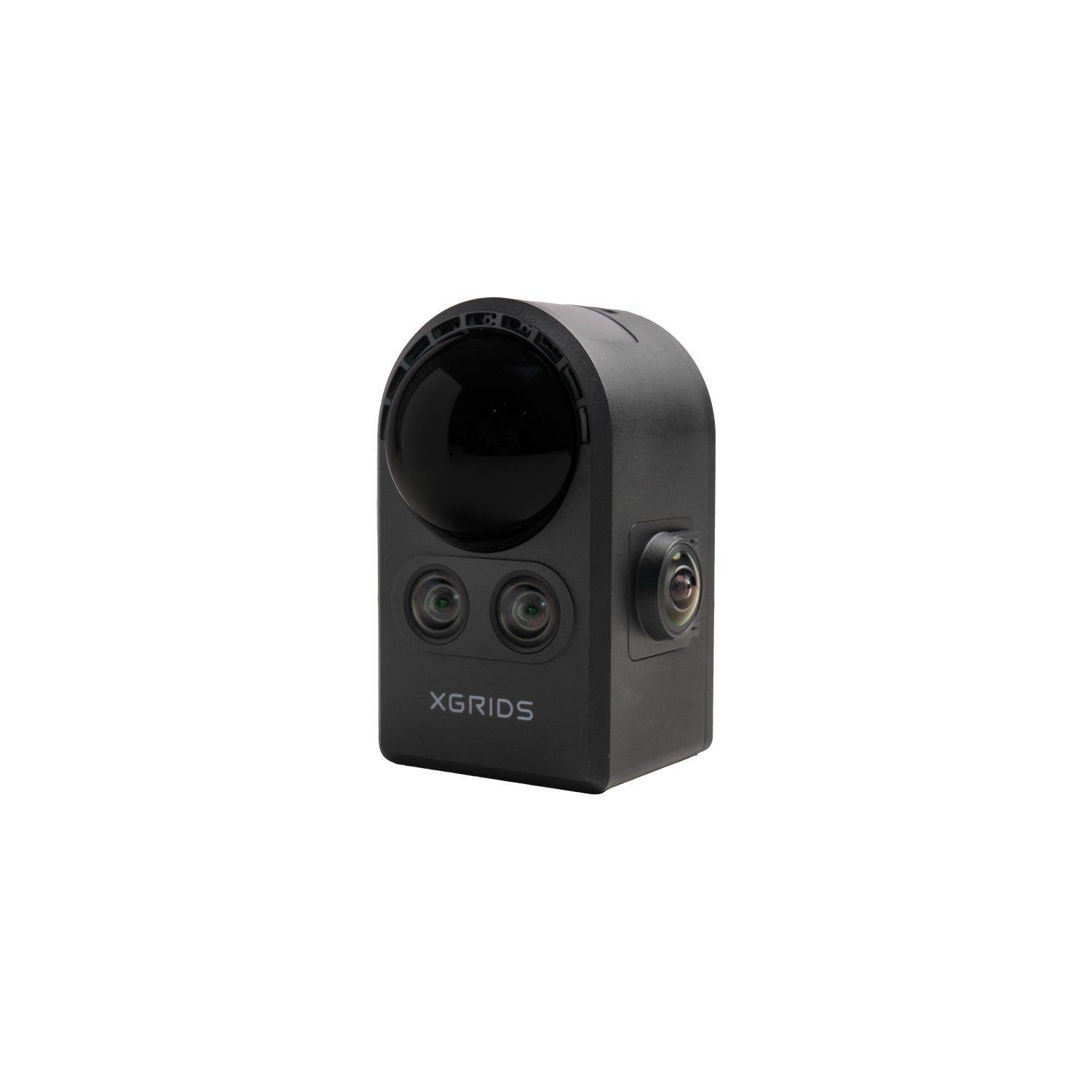

PortalCam integrates LiDAR sensing, a four-camera imaging array, and mobile processing into a single handheld device. This enables fast creation of realistic digital environments for documentation, visualization, and immersive applications.

PortalCam is best suited for indoor mapping, construction documentation, and facilities and BIM capture, where speed and mobility are critical.

The PortalCam Workflow

Capture

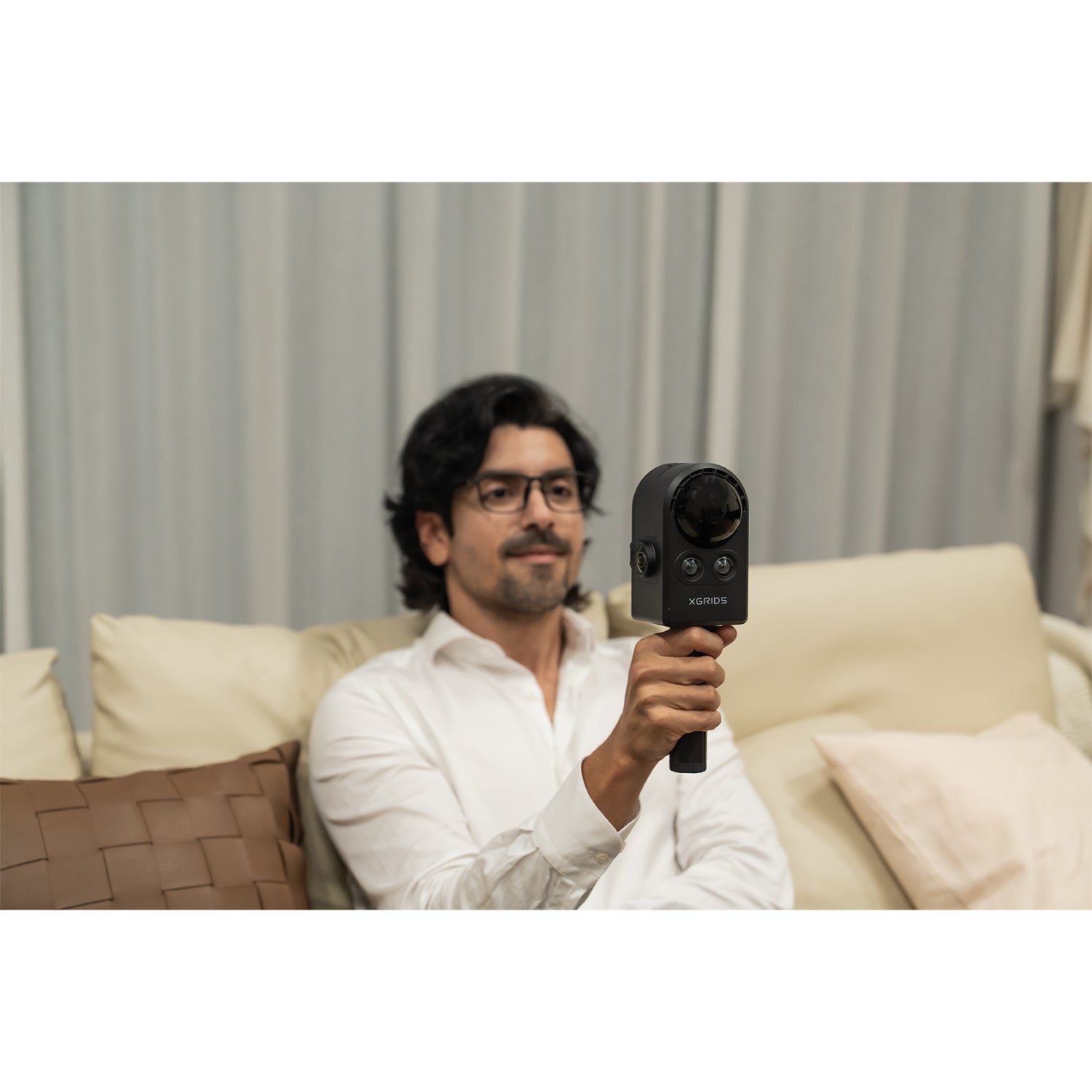

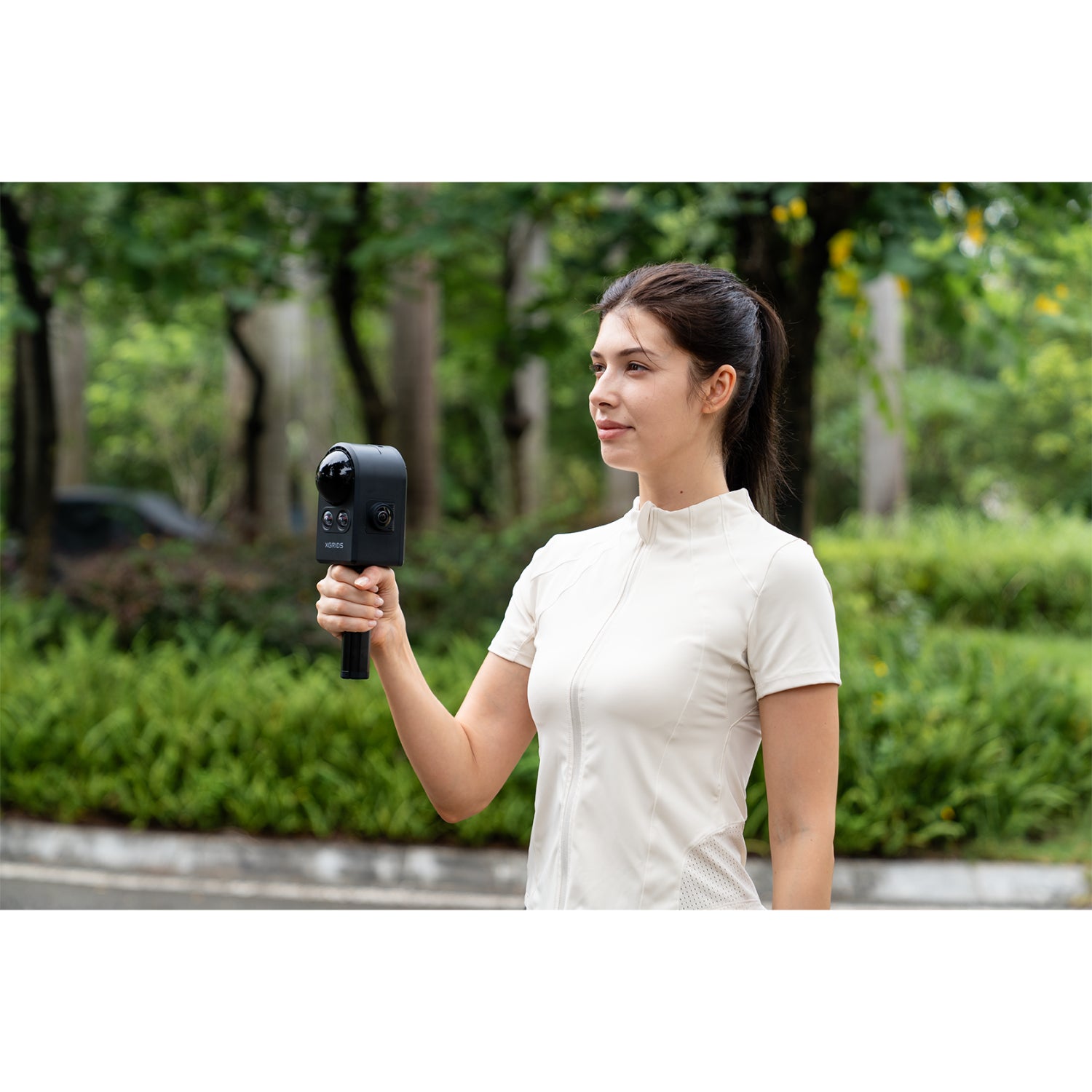

Users walk naturally while PortalCam records the environment.

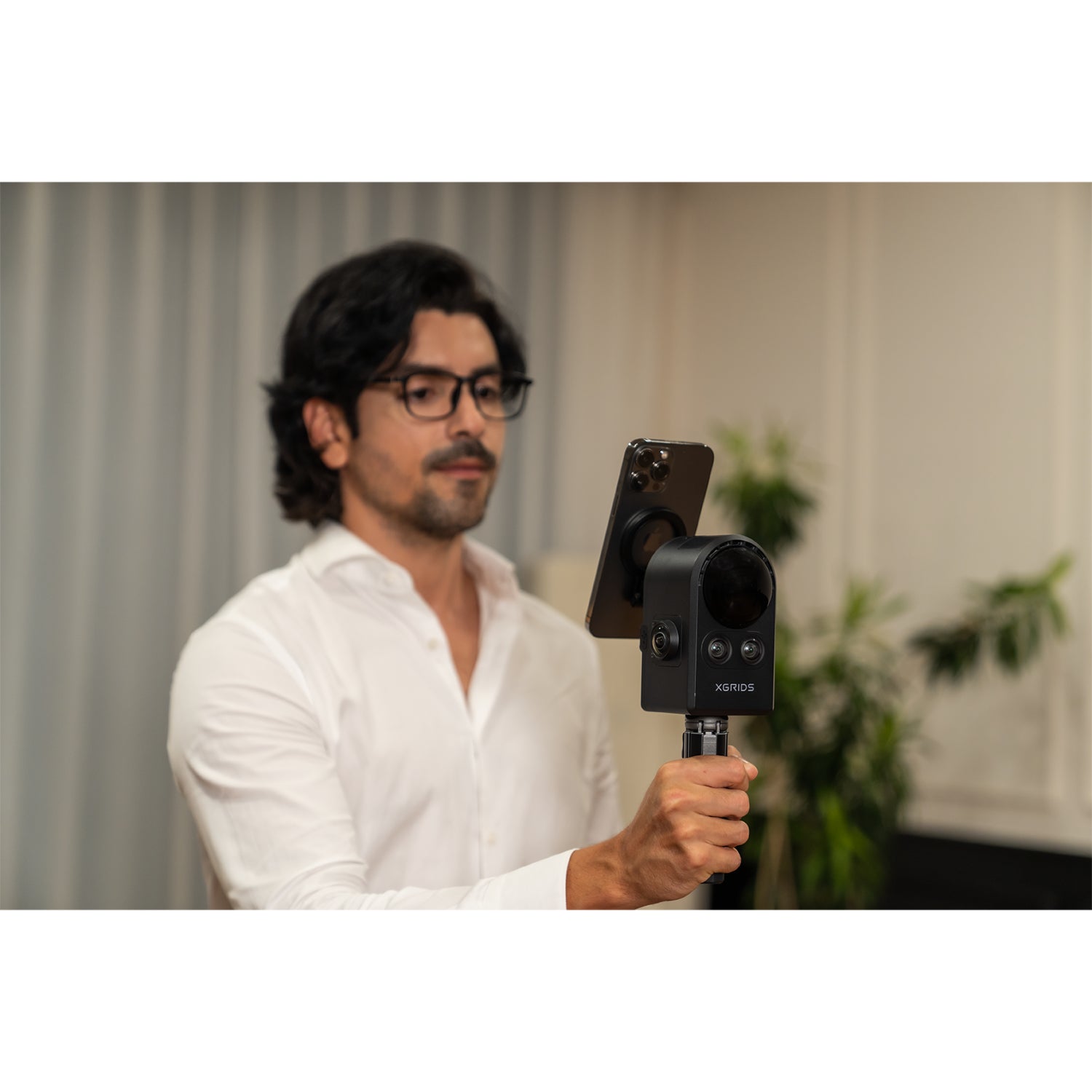

Scanning is controlled and monitored through the LixelGO mobile application.

Process

Captured data is processed automatically using LCC Studio, generating 3D models in just a few clicks.
SDKs are available for custom or advanced workflows.

Apply

Users can edit, measure, annotate, and publish models, then share them instantly or integrate them into existing AEC, media, or visualization pipelines.

---

PortalCam Configurations

PortalCam is available in two official configurations.
Both configurations use the same core SLAM LiDAR hardware and software ecosystem.

The difference lies in deployment readiness, not scanning performance.

Choose the Right PortalCam Kit for Your Workflow

PortalCam is available in two professionally curated kits. Both deliver the same core SLAM LiDAR capture performance, but differ in field readiness, runtime capacity, and software capability.

Quick Guidance

• Standard Kit
  Best for fast indoor captures, training, demonstrations, and straightforward 3D documentation workflows.

• Premium Kit
  Designed for extended field deployments, large or complex environments, and professional-grade 3D, BIM, film, and XR pipelines.

---

What’s Included — Hardware Comparison

Key hardware difference:
The Premium Kit includes an additional battery, enabling longer uninterrupted field sessions without downtime.

Software Capabilities — What’s the Difference?

Both kits use LCC Studio for processing PortalCam scan data. The distinction lies in workflow complexity, scale, and integration depth.

LCC Studio Basic (Included with Standard Kit)

Designed for efficient, lightweight workflows.

Core Capabilities

• Generate and view 3D models using Gaussian Splatting (3DGS)

• Crop, annotate, and measure scanned environments

• Create camera paths and fly-throughs

• Interactive walkthroughs and avatar navigation

• Import simple assets (.FBX, .OBJ, .GLB)

• Export standard formats (.PLY, .LCC)

• Publish and share models via cloud or web viewers

Best suited for

• Indoor mapping

• Real estate tours

• Training and demos

• Small-scale projects

• Straightforward “scan → model → share” workflows

---

LCC Studio Premium (Included with Premium Kit)

Built for advanced, large-scale, and professional deployments.

Adds the following capabilities

• Map Fusion: merge multiple scans into a unified model

• Aerial + Ground Fusion: combine PortalCam data with drone/aerial scans

• HD enhancement & refined reconstruction for higher-fidelity textures and detail

• Cluster / multi-GPU processing for large datasets

• Spatial recognition & analysis tools

• BIM workflow integration, including Autodesk Revit plugin

• Expanded export options for Unreal Engine, Unity, WebGL, VR/AR platforms

• Production-ready assets for film, gaming, digital twins, and XR

Best suited for

• Large or complex spaces

• Multi-scan projects

• Film and virtual production

• Architecture, construction, and BIM

• Advanced XR and game development pipelines

Hardware + Software Differences at a Glance

---

Which Kit Should You Choose?

Choose the Standard Kit if you:

• Need quick, reliable indoor scans

• Want simple 3D models and walkthroughs

• Run occasional or smaller projects

• Prefer a lightweight, streamlined workflow

Choose the Premium Kit if you:

• Scan large or complex environments

• Combine multiple scans or drone data

• Work in film, BIM, construction, or XR

• Need production-ready assets and integrations

• Require longer field operation time

Applications and Use Cases

Application	PortalCam Suitability
Indoor mapping and floor plans	Excellent
Construction documentation	Excellent
Facilities and asset capture	Excellent
BIM and as-built documentation	Excellent
Large-scale outdoor surveying	Not intended

Technical Specifications

Physical Specifications

Connectivity & Storage

Power System

LiDAR System

Camera System

Power Adapter

Expandable and Upgradeable Workflow

PortalCam systems are designed to support modular expansion through optional accessories such as extension poles, additional batteries, and protective transport solutions.

Customers may start with either configuration and expand capabilities as project needs evolve, without replacing the core system.

---

PortalCam Accessories

Internal link placement:
Link the section title to the PortalCam Accessories collection.

Accessories should be selected based on workflow requirements.

Accessory	Purpose	Typical Use Case
Extra Battery	Extends scanning time	Full-day scanning sessions
Charger	Faster turnaround	Multi-site deployments
Extension Pole (2 m)	Overhead and hard-to-reach capture	Facilities and BIM workflows
Protective Case	Transport and protection	Field and travel use
Warranty Extension	Long-term protection	Enterprise and contractor use

Advanced configuration users typically add batteries and protective cases.

---

Software Requirements and Compatibility

During Scanning

• LCC Scan is required for device operation and data capture.

After Scanning

• LCC Studio is required for:

  • 3D Gaussian Splatting reconstruction

  • Editing, measurement, and publishing

Compatible software licenses include:

• LCC Studio Basic

• LCC Studio Premium

• LCC Studio Perpetual Offline

---

Support Videos and Tutorials

Step-by-step guidance is available for setup, scanning, and post-processing.

PortalCam : Unboxing & Initial Setup

Portal Cam Scanning Guide

PortalCam + AI object removal

Brochure and Documentation

Official materials are available for internal review, procurement, and technical evaluation.

• PortalCam Product Brochure (PDF)

---

User Manual

Official user documentation covering setup, operation, maintenance, and safety.

View PortalCam User Manual (PDF)

---

Warranty and After-Sales Support

PortalCam includes a standard manufacturer warranty.
For Extended warranty options are available for professional and enterprise users, Please Contact Us

View XGRIDS PortCam Warranty(PDF)

FAQs

Does PortalCam require GNSS or RTK?
No. PortalCam uses SLAM technology and is designed for environments where GNSS is unavailable or unreliable.

Is there a performance difference between Standard and Advanced?
No. Both configurations deliver identical scan quality and output. The difference relates to deployment readiness.

Can the system be upgraded later?
Yes. PortalCam supports modular expansion through accessories.
